POLE MOUNT BRACKET for STAINLESS STEEL BOX


SSK_SSB Series -PDF

CATEGORY：Pole mounting bracket, Stainless steel bracket

POLE MOUNT BRACKET for STAINLESS STEEL BOX
POLE MOUNT BRACKET for STAINLESS STEEL BOX1

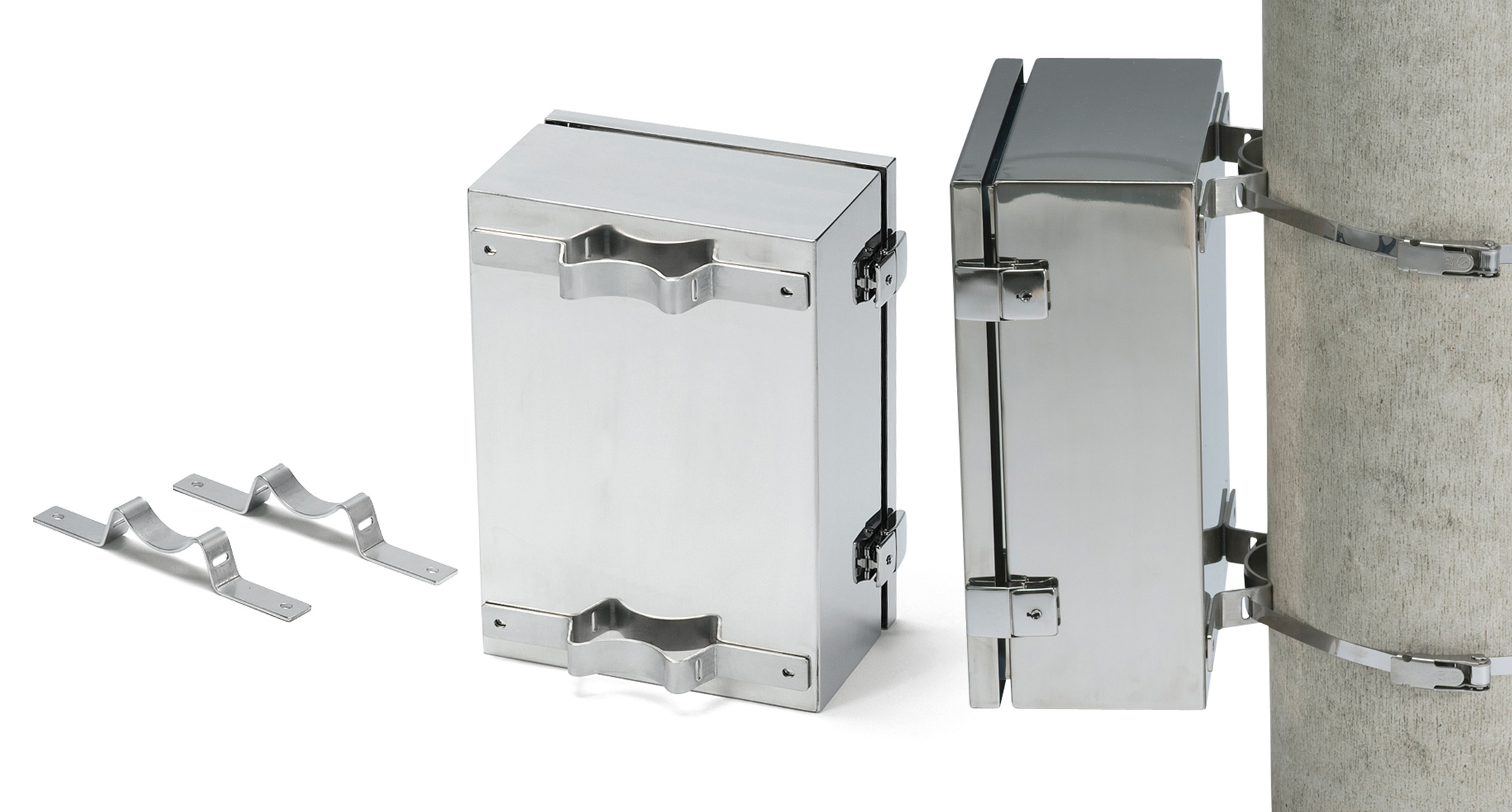

Stainless steel pole mount bracket for SSB・SSM series.
Use PKB mounting belt to install onto a pole.

*To maintain IP65 protection class of SSB・SSM series stainless steel boxes, install SSK pole mounting brackets by welding or seal the installation holes with SZ waterproof washers.

PRODUCT NO. / DIMENSIONS

Product No. Belt to use with (Option) Weight (g) / 2pcs Pack of PDF DXF DWG
SSK -160. PKB-10P ・ PKB-10S 134 2 pcs PDF DXF DWG
SSK -170. PKB-10P ・ PKB-10S 141.5 2 pcs PDF DXF DWG
SSK -200. PKB-10P ・ PKB-10S 160.6 2 pcs PDF DXF DWG
SSK -210. PKB-10P ・ PKB-10S 171.7 2 pcs PDF DXF DWG
SSK -250. PKB-10P ・ PKB-10S 198.9 2 pcs PDF DXF DWG
SSK -280. PKB-10P ・ PKB-10S 339.2 2 pcs PDF DXF DWG
SSK -300. PKB-10P ・ PKB-10S 356.1 2 pcs PDF DXF DWG
SSK -350. PKB-10P ・ PKB-10S 389.4 2 pcs PDF DXF DWG
SSK -400. PKB-20S 1026.2 2 pcs PDF DXF DWG

OPTIONAL PARTS

１
POLE MOUNTING BELT- PKB series
DETAILS
１
WATERPROOF SEALING WASHER SZ series
DETAILS
