POLE MOUNTING BRACKET for UPC


SSK_UPC Series -PDF

CATEGORY：Pole Mounting Bracket, mount braket, mounting braket, StainleStainless steel bracket,

POLE MOUNTING BRACKET for UPC
POLE MOUNTING BRACKET for UPC
POLE MOUNTING BRACKET for UPC1
POLE MOUNTING BRACKET for UPC2

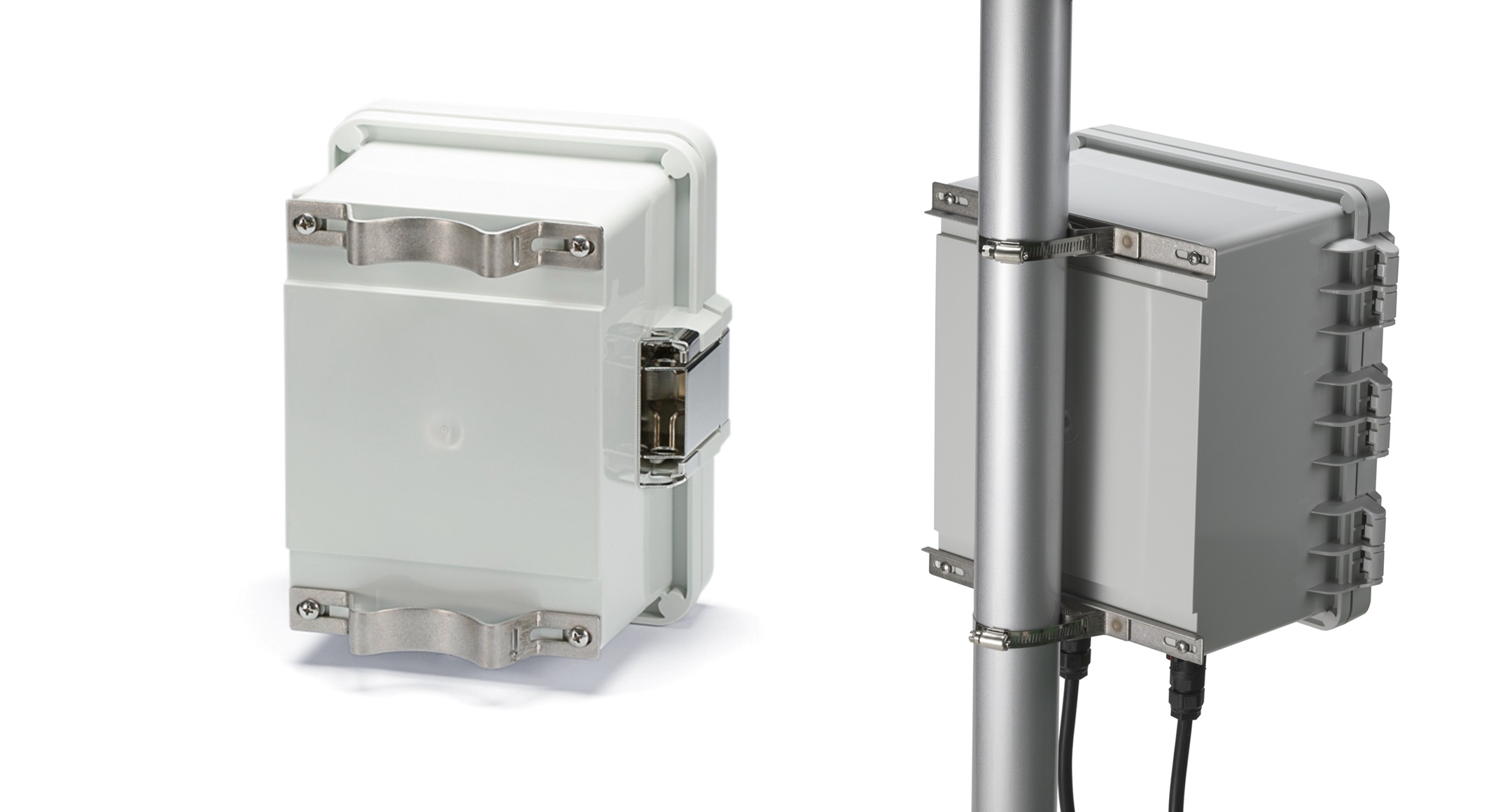

Stainless steel pole mounting bracket for UPC series.
No hole milling is required for attaching the pole mounting bracket to the enclosure.
Pole mount is possible with the use of SSK-B-UPC screw set together with either
SNB series pole mounting strap, or PKB series pole mounting belt.

PRODUCT NO. / DIMENSIONS

Product No. Parts description Suitable box Belt to use with (Option) Weight(g) / pack Pack of PDF DXF DWG
SSK - 160. Mounting bracket UPC172213G PKB-10PM, 10P, PKB-10S, SNB series 134 2 pcs PDF DXF DWG
SSK - 210. Mounting bracket UPC232818G PKB-10PM, 10P, PKB-10S, SNB series 171.7 2 pcs PDF DXF DWG
SSK - 280. Mounting bracket UPC283318G PKB-10PM, 10P, PKB-10S, SNB series 339.2 2 pcs PDF DXF DWG
SSK - 350. Mounting bracket UPC333818G PKB-10PM, 10P, PKB-10S, SNB series 389.4 2 pcs PDF DXF DWG
SSK - 400. Mounting bracket UPC384323G PKB-20S, SNB series 1026.2 2 pcs PDF DXF DWG
SSK - 530. Mounting bracket UPC434829G PKB-20S, SNB series 1252.4 2 pcs PDF DXF DWG

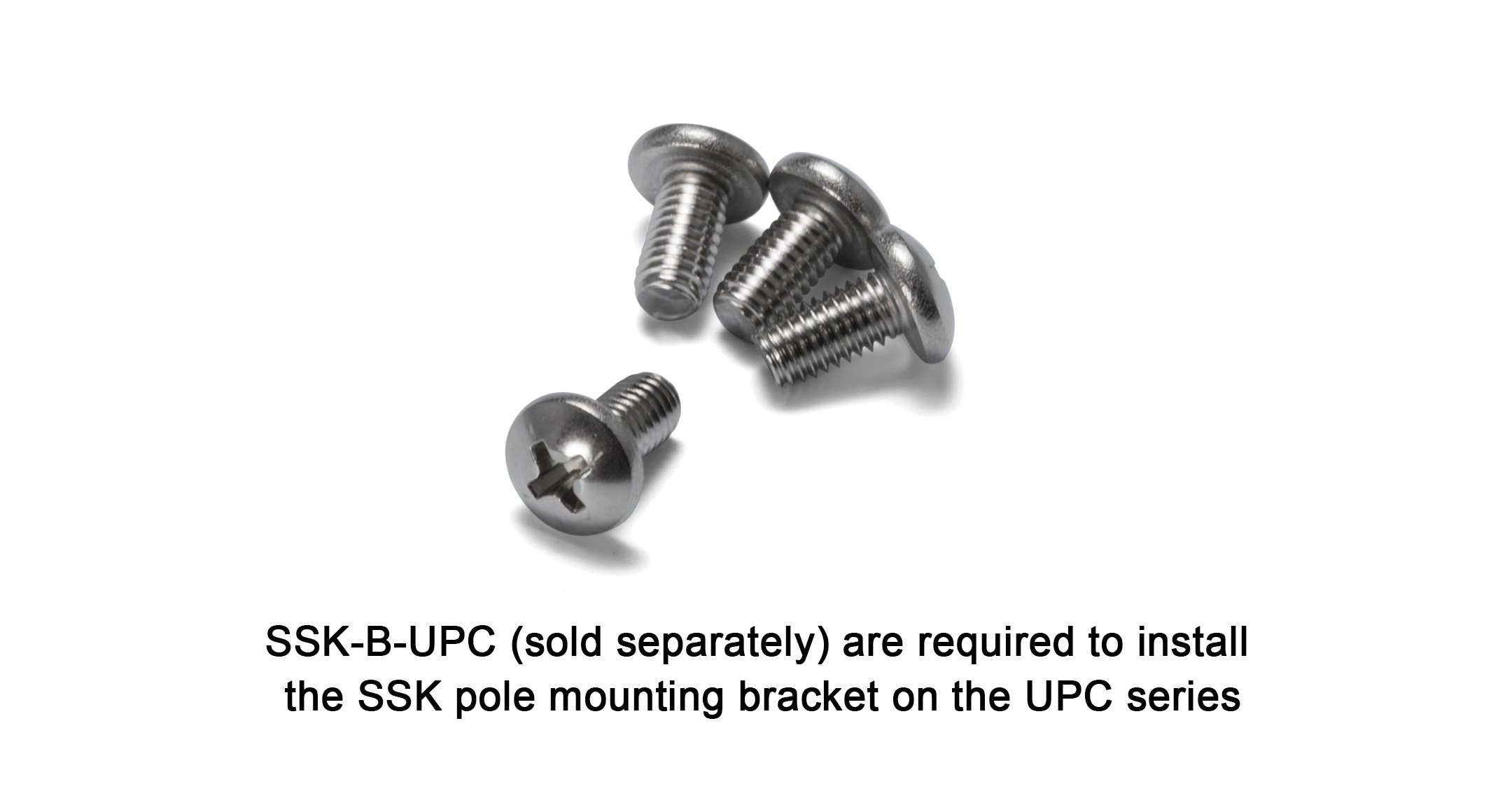

SSK-B- UPC. Mounting screw - - 8.5 4 pcs

OPTIONAL PARTS

１
POLE MOUNTING BELT- PKB series
DETAILS
