MOUNTING BRACKET for UC・UCG - UCK series


UCK Series -PDF

CATEGORY：Mounting bracket, PCB bracket

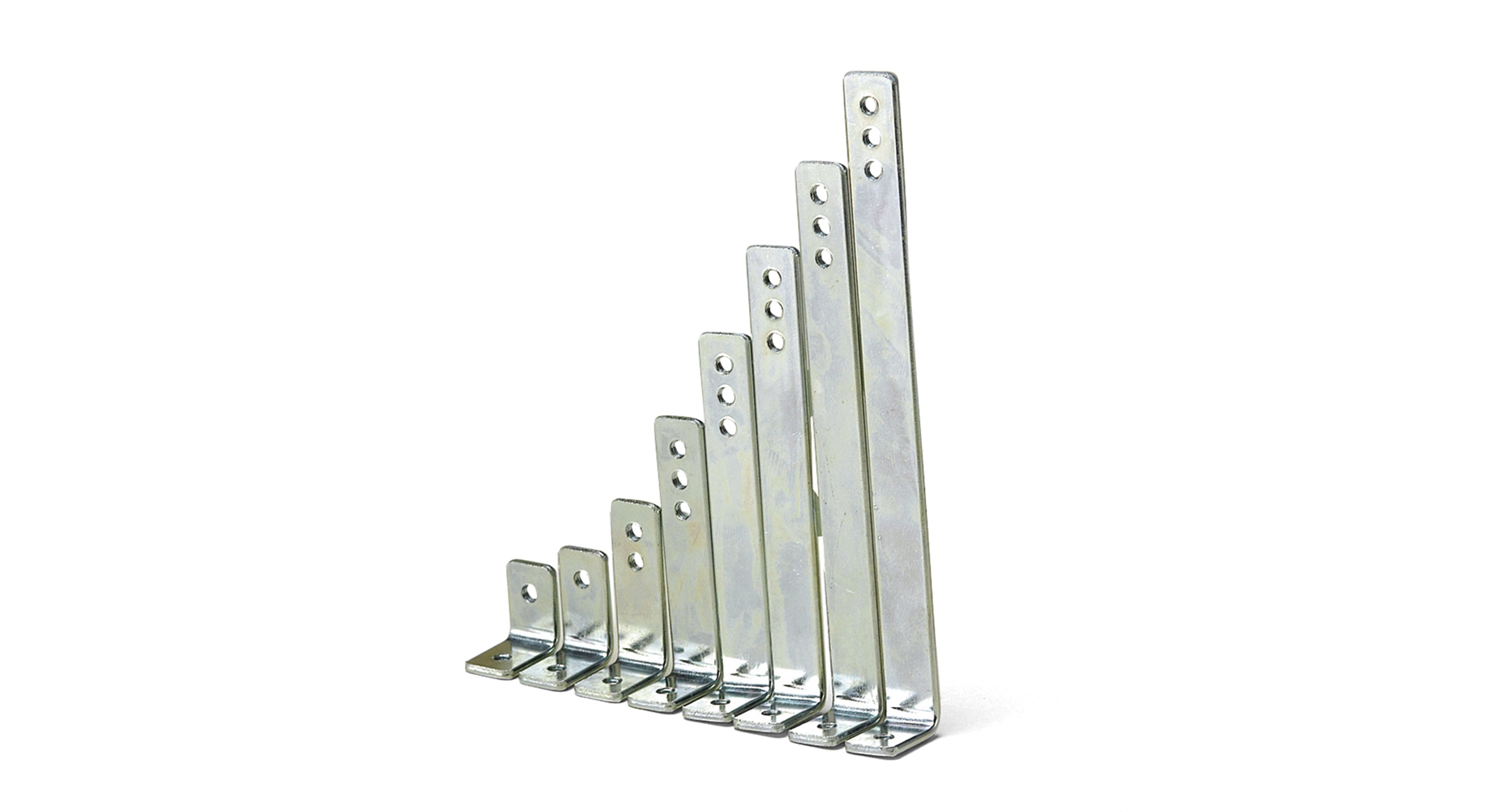

MOUNTING BRACKET for UC・UCG - UCK series
MOUNTING BRACKET for UC・UCG - UCK series1
Mounting bracket to install UCC mounting plate or PCB on UC・UCG series.
Use this bracket with UCC mounting plate.

*Screws are not included (screw set available with UC・UCG case)

PRODUCT NO. / DIMENSIONS

Product No. Height (mm) Weight(g) / 4pcs Pack of PDF DXF DWG
UCK-P13 13 13 4 pcs PDF DXF DWG
UCK-P17 17 15 4 pcs PDF DXF DWG
UCK-P27 27 19 4 pcs PDF DXF DWG
UCK-P42 42 26 4 pcs PDF DXF DWG
UCK-P57 57 33 4 pcs PDF DXF DWG
UCK-P72 72 39 4 pcs PDF DXF DWG
UCK-P87 87 46 4 pcs PDF DXF DWG
UCK-P102 102 54 4 pcs PDF DXF DWG
