CUSTOM SIZED ALUMINUM MOUNTING PLATE for UCS・UCGS


UCSC Series -PDF

CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

CUSTOM SIZED ALUMINUM MOUNTING PLATE for UCS・UCGS
CUSTOM SIZED ALUMINUM MOUNTING PLATE for UCS・UCGS1
Custom sized aluminum mounting plate for UCS・UCGS series.
Plate material : Aluminum thickness 1.5mm

Possible to specify by 1mm intervals to fit customized UCS・UCGS series W and D dimensions.

*Purchase UCK-P series mounting bracket to install this mounting plate.

PRODUCT NO. / DIMENSIONS

Product No. Type PDF DXF DWG

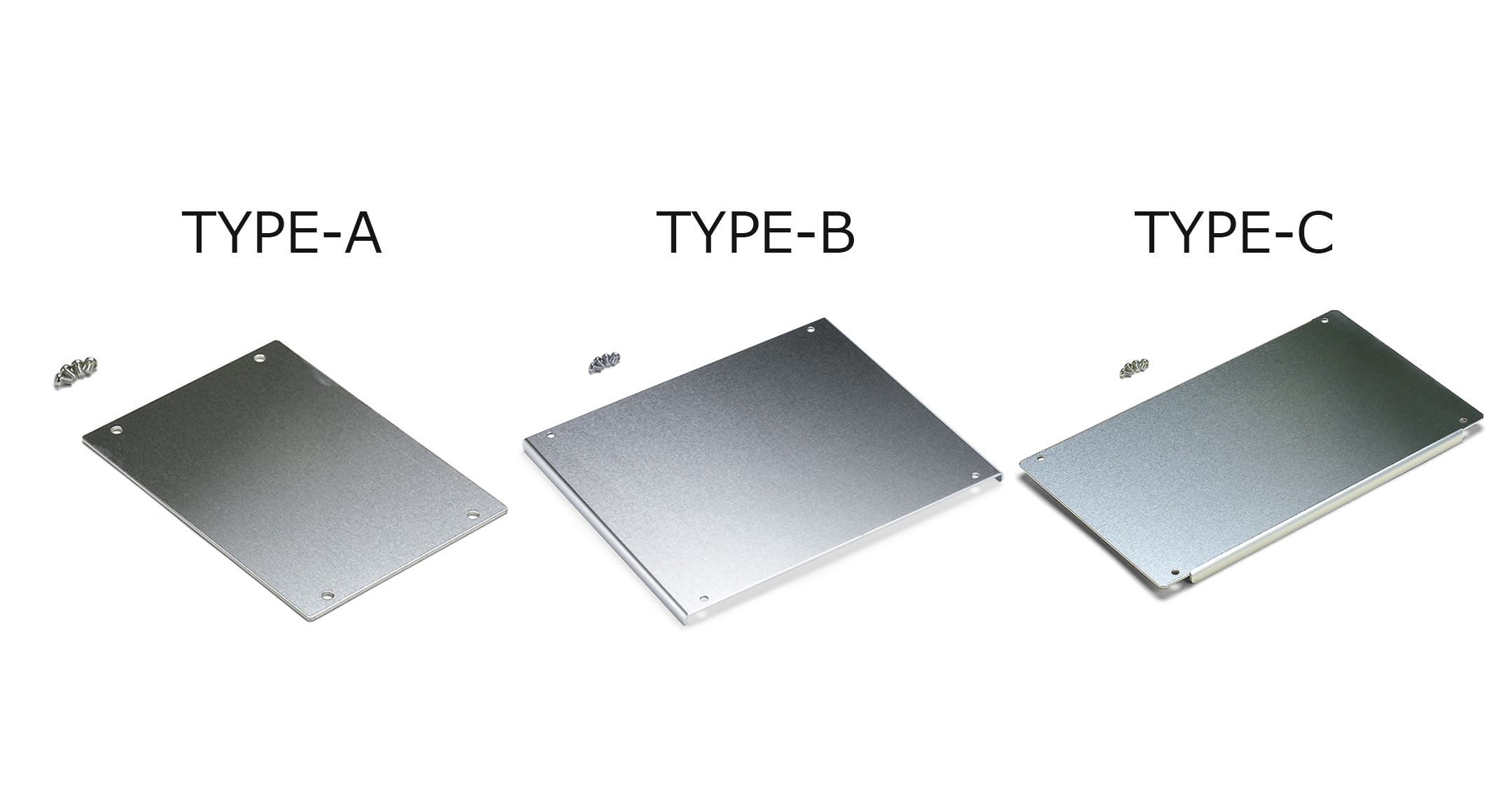

UCSC□-□-A A Type PDF DXF DWG
UCSC□-□-B B Type PDF DXF DWG
UCSC□-□-C C Type PDF DXF DWG
