MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)


AUC Series -PDF

CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)1
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)2
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)3
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)4

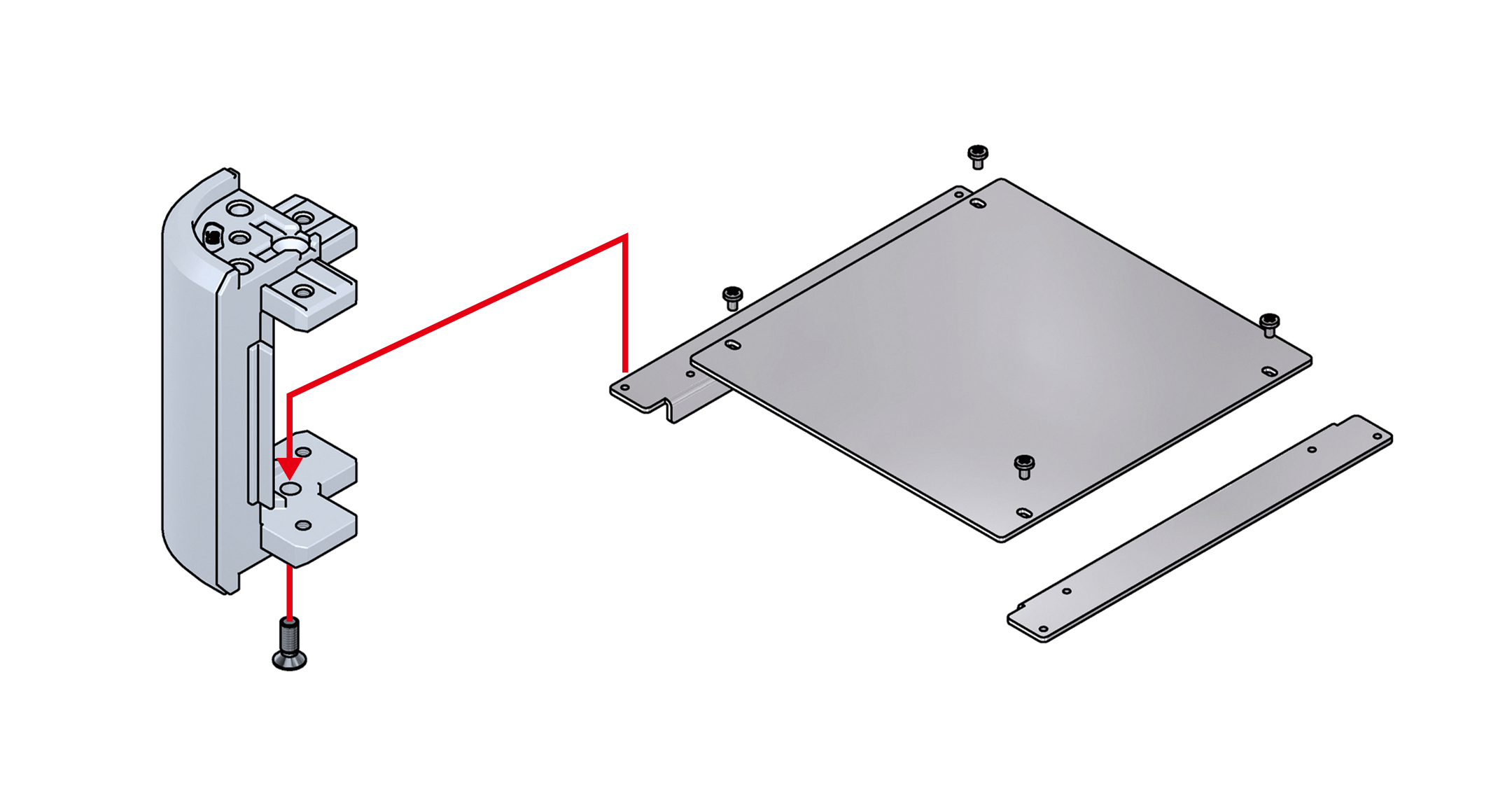

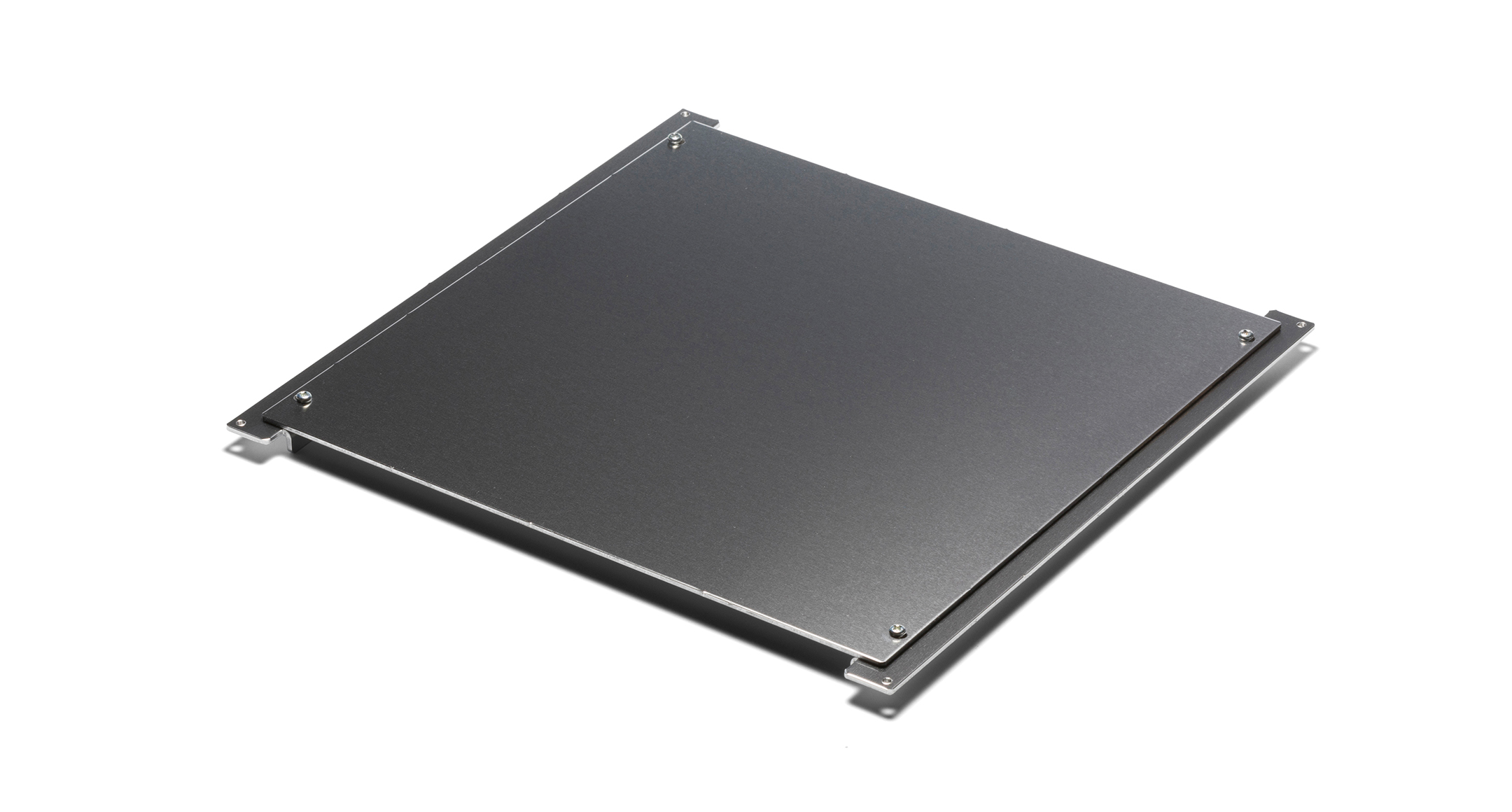

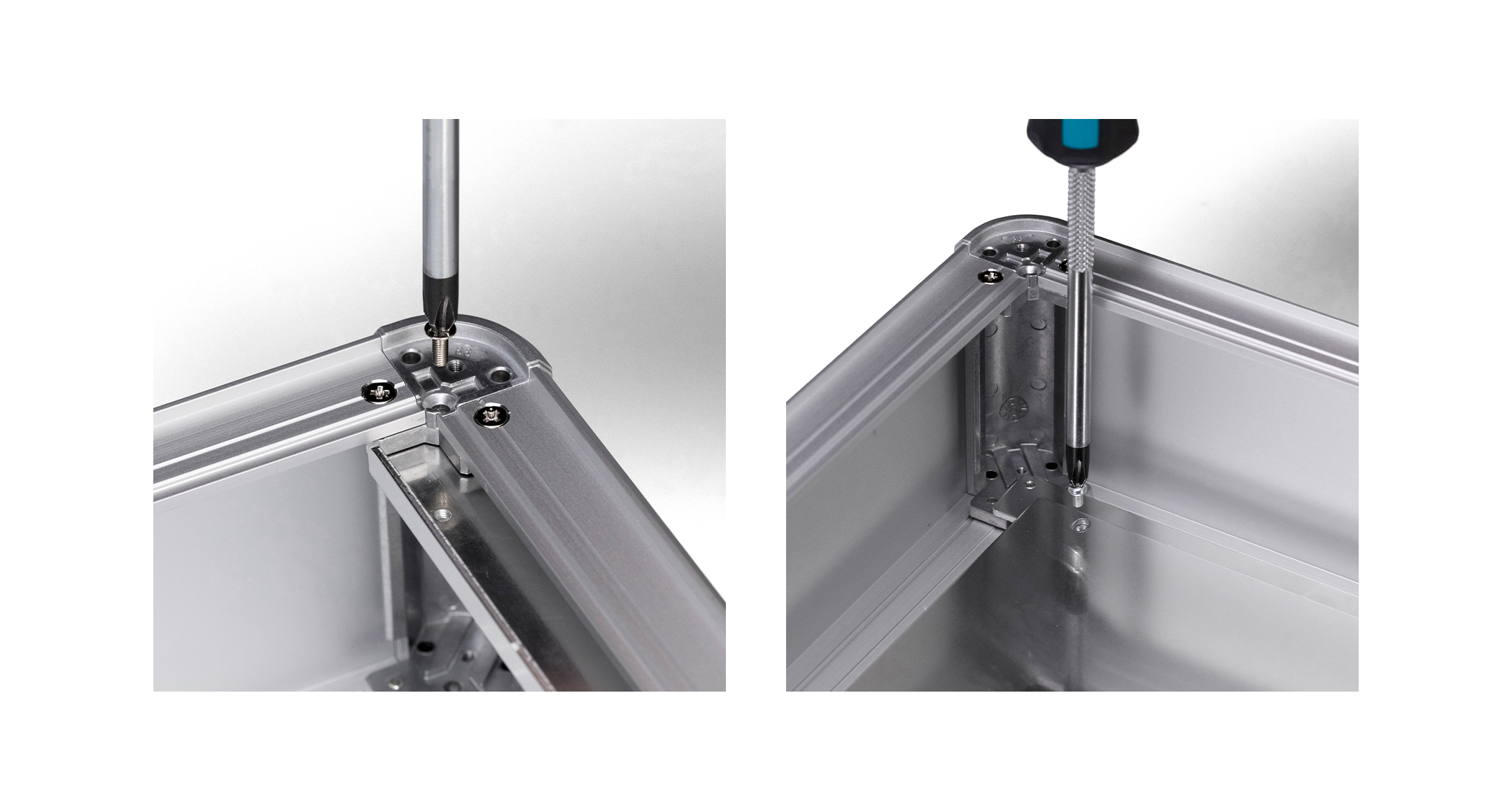

Mounting plate for AUH, AUR, AUPR, AUPRE, AUXR, AUXRE, AUGH, AUG, AUGE, AU, AUP, AUPE, AUX, and AUXE series.
Plate material : Aluminium thickness 2.0mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure W (width) x D (depth) Plate type Weight (g) PDF DXF DWG STP
AUC16-16 160×160 Flat plate 102 PDF DXF DWG
AUC16-20 160×200 Flat plate 138 PDF DXF DWG
AUC16-25 160×250 Flat plate 181 PDF DXF DWG
AUC16-30 160×300 Flat plate 226 PDF DXF DWG
AUC16-36 160×360 Flat plate 279 PDF DXF DWG
AUC16-43 160×430 Flat plate 340 PDF DXF DWG
AUC20-16 200×160 Flat plate 126 PDF DXF DWG
AUC20-20 200×200 Flat plate 170 PDF DXF DWG
AUC20-25 200×250 Flat plate 224 PDF DXF DWG
AUC20-30 200×300 Flat plate 279 PDF DXF DWG
AUC20-36 200×360 Flat plate 345 PDF DXF DWG
AUC20-43 200×430 Flat plate 422 PDF DXF DWG
AUC25-16 250×160 Flat plate 155 PDF DXF DWG
AUC25-20 250×200 Flat plate 210 PDF DXF DWG
AUC25-25 250×250 Flat plate 278 PDF DXF DWG
AUC25-30 250×300 Flat plate 346 PDF DXF DWG
AUC25-36 250×360 Flat plate 428 PDF DXF DWG
AUC25-43 250×430 Flat plate 524 PDF DXF DWG
AUC30-16 300×160 Flat plate 184 PDF DXF DWG
AUC30-20 300×200 Flat plate 249 PDF DXF DWG
AUC30-25 300×250 Flat plate 331 PDF DXF DWG
AUC30-30 300×300 Flat plate 413 PDF DXF DWG
AUC30-36 300×360 Flat plate 512 PDF DXF DWG
AUC30-43 300×430 Flat plate 626 PDF DXF DWG
AUC30-50 300×500 Flat plate 741 PDF DXF DWG
AUC36-16 360×160 Flat plate 219 PDF DXF DWG
AUC36-20 360×200 Flat plate 297 PDF DXF DWG
AUC36-25 360×250 Flat plate 395 PDF DXF DWG
AUC36-30 360×300 Flat plate 494 PDF DXF DWG
AUC36-36 360×360 Flat plate 581 PDF DXF DWG
AUC36-43 360×430 Flat plate 749 PDF DXF DWG
AUC36-50 360×500 Flat plate 886 PDF DXF DWG

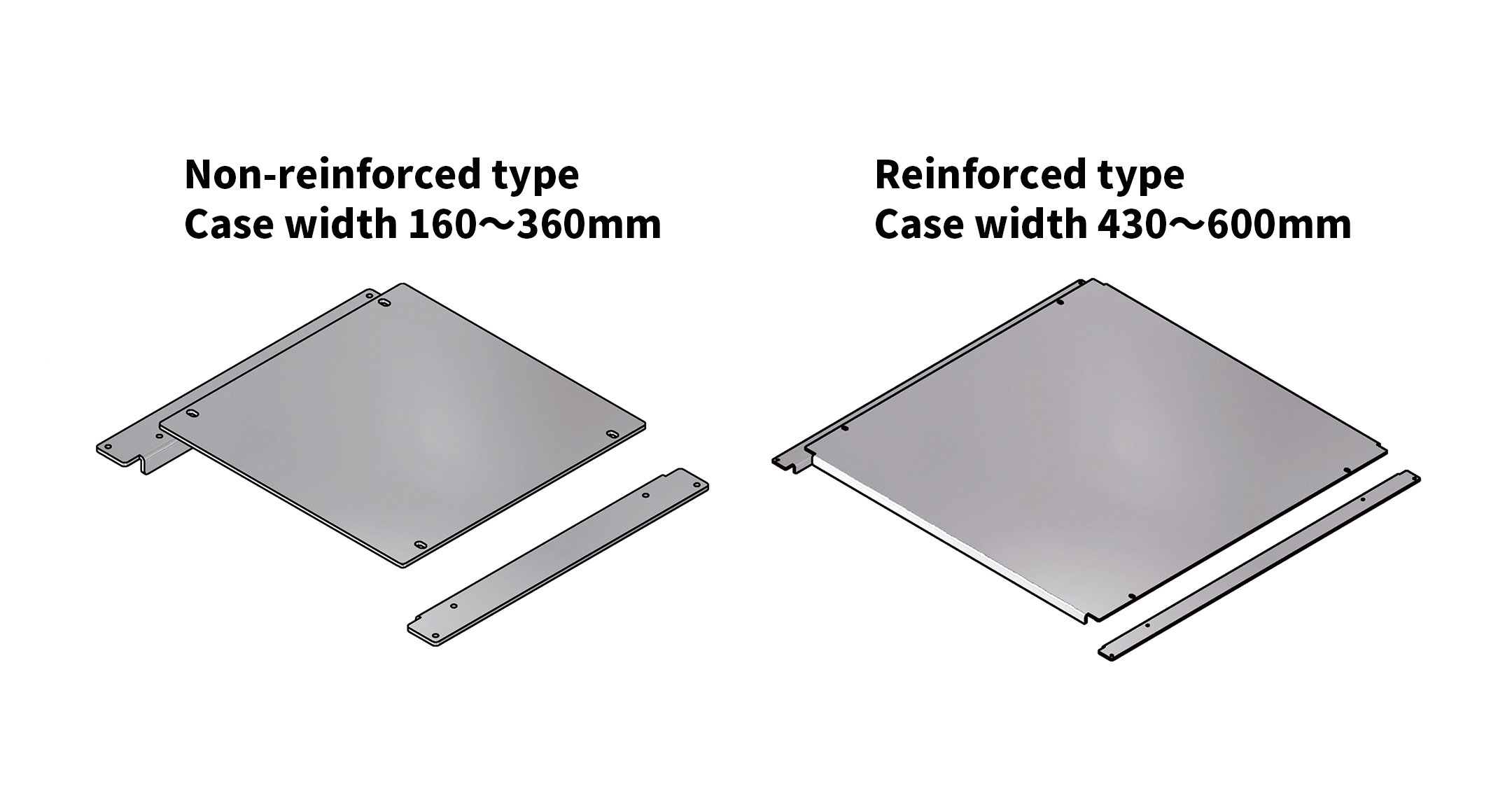

AUC43-16 430×160 With reinforced bending 287 PDF DXF DWG
AUC43-20 430×200 With reinforced bending 353 PDF DXF DWG
AUC43-25 430×250 With reinforced bending 470 PDF DXF DWG
AUC43-30 430×300 With reinforced bending 587 PDF DXF DWG
AUC43-36 430×360 With reinforced bending 728 PDF DXF DWG
AUC43-43 430×430 With reinforced bending 918 PDF DXF DWG
AUC43-50 430×500 With reinforced bending 1082 PDF DXF DWG
AUC50-30 500×300 With reinforced bending 681 PDF DXF DWG
AUC50-36 500×360 With reinforced bending 814 PDF DXF DWG
AUC50-43 500×430 With reinforced bending 1061 PDF DXF DWG
AUC50-50 500×500 With reinforced bending 1257 PDF DXF DWG
AUC60-36 600×360 With reinforced bending 1021 PDF DXF DWG
AUC60-43 600×430 With reinforced bending 1279 PDF DXF DWG
