DIN-RAIL MOUNT ENCLOSURE - DRB series


DRB Series -PDF

CATEGORY：DIN-rail box, DIN rail mountable enclosure, Alminum case with DIN-rail mount bracket

DIN-RAIL MOUNT ENCLOSURE - DRB series
DIN-RAIL MOUNT ENCLOSURE - DRB series
DIN-RAIL MOUNT ENCLOSURE - DRB series

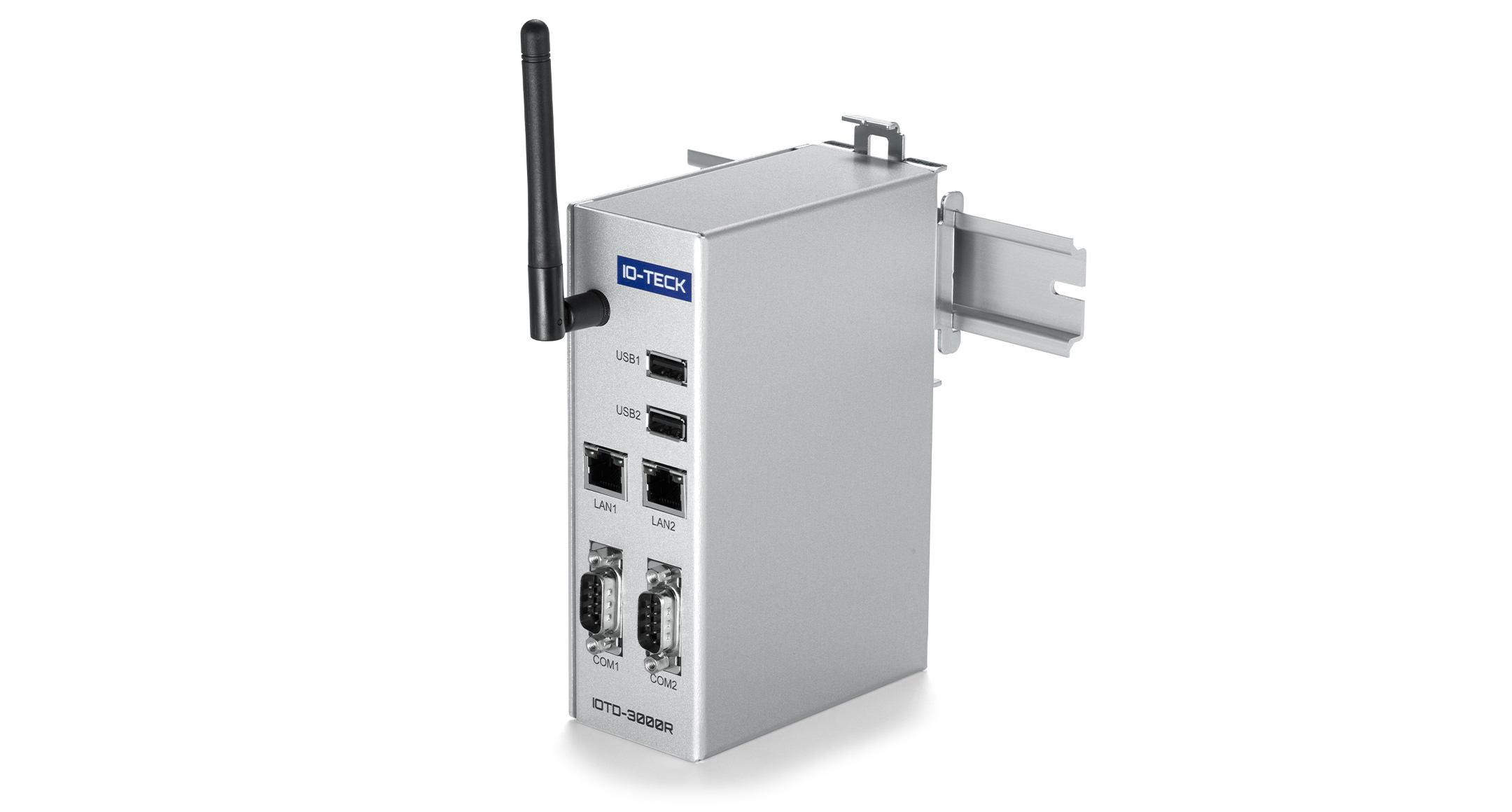

DIN-RAIL MOUNT ENCLOSURE - DRB series1

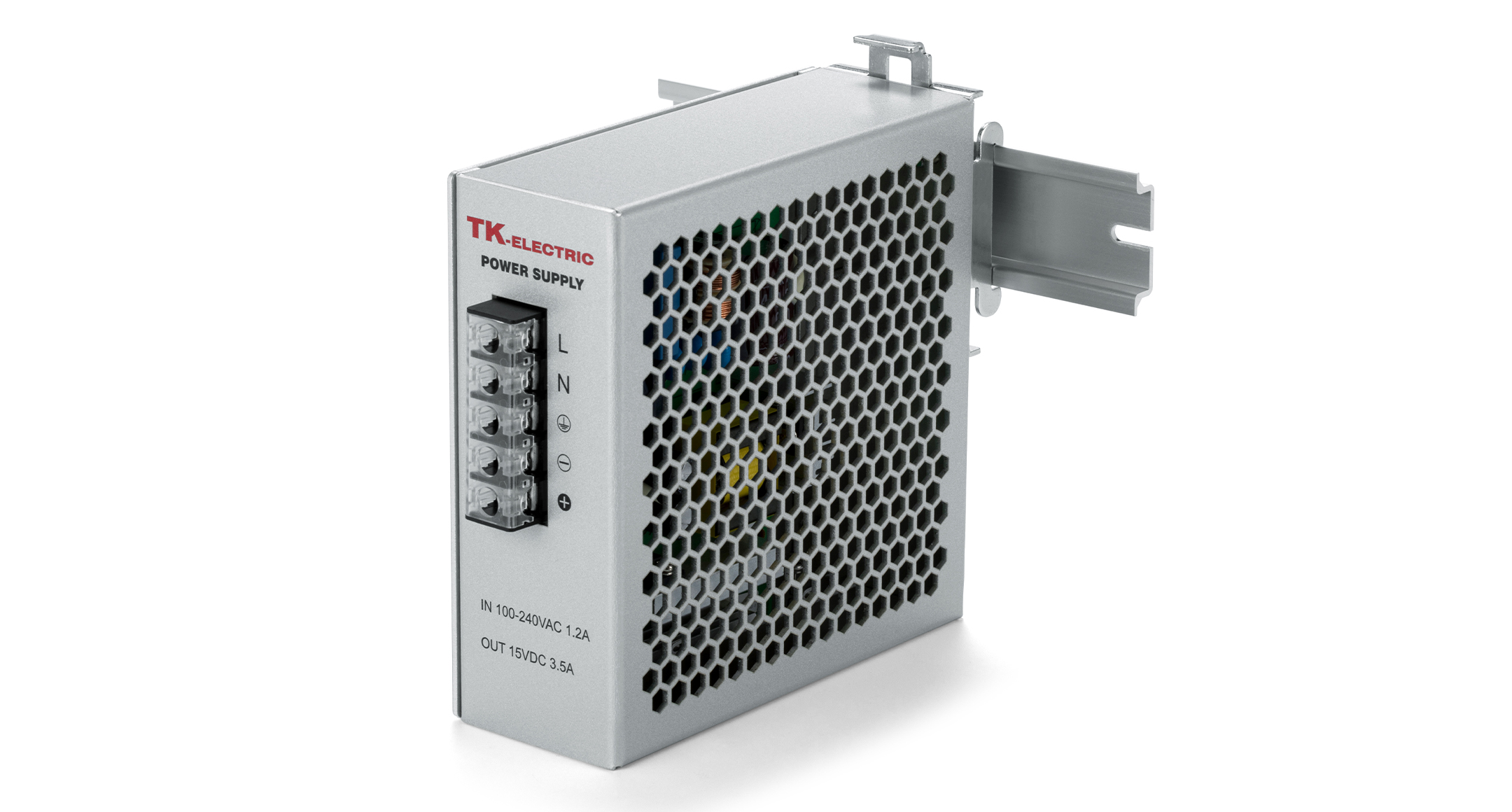

DIN-RAIL MOUNT ENCLOSURE - DRB series2

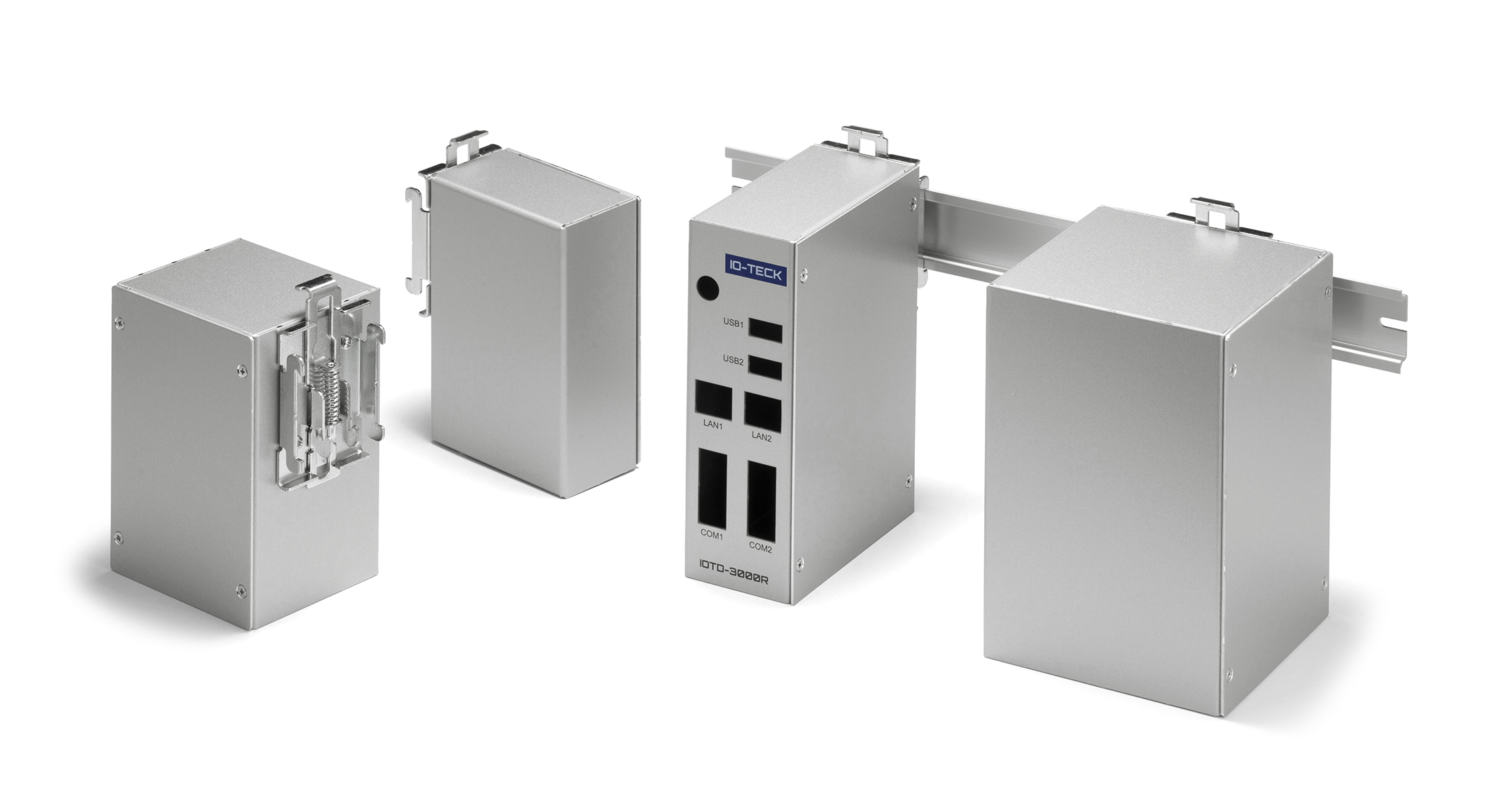

DIN-RAIL MOUNT ENCLOSURE - DRB series3
Alminium enclosure with mount bracket for 35mm DIN-rail.
Available in 6 different sizes.
Conductive finish on internal surface for conductivity and grounding.
Easy maintenance with detachable cover.
3D View - DRB12-5-8  3D View - DRB12-7-8  3D View - DRB15-5-10  3D View - DRB15-7-10  Exploded view 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
DRB12-5-8 120 50 80 104 45.5 64 220.5 PDF DXF DWG STP
DRB12-7-8 120 70 80 104 65.5 64 253 PDF DXF DWG STP
DRB12-10-8 120 100 80 104 95.5 64 301 PDF DXF DWG STP
DRB15-5-10 150 50 100 134 45.5 84 285.5 PDF DXF DWG STP
DRB15-7-10 150 70 100 134 65.5 84 326 PDF DXF DWG STP
DRB15-10-10 150 100 100 134 95.5 84 386.5 PDF DXF DWG STP
