CATEGORY：Aluminium mounting plate, Mount plate, Mounting base

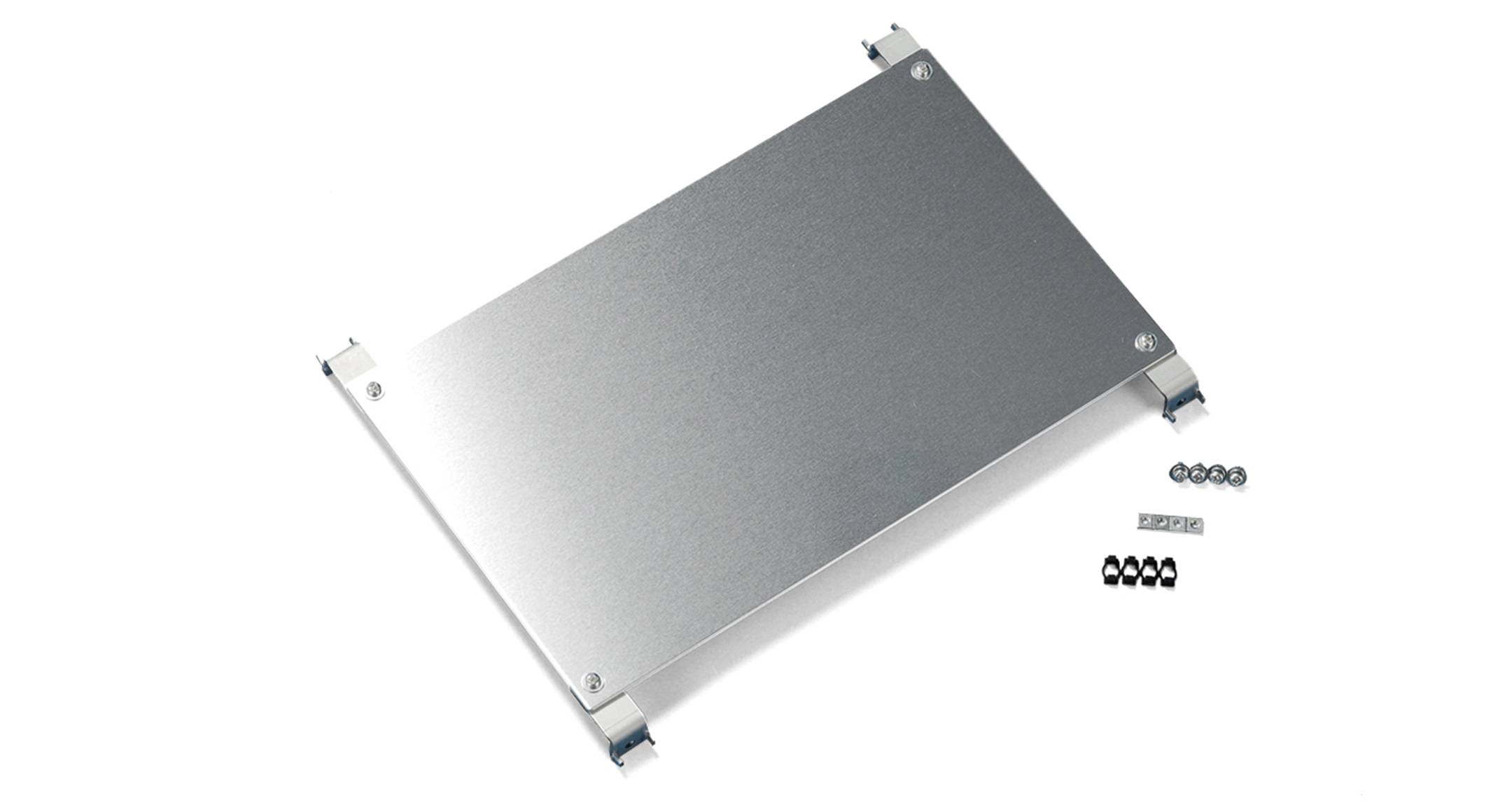

Mounting plate for FC・FCW・FCH series.
The mounting bracket comes in 2 different height versions, 12mm and 22mm.
Use 22mm height version when set on the open/close panel side of FCW series.
Not suitable for FC4 (H = 37.9mm)

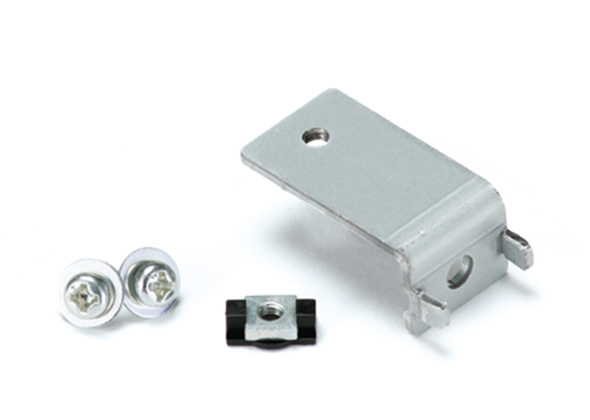

Mounting brackets (FCK) are included with FCC series.
The mounting bracket comes in 2 different height versions, 12mm and 22mm.
Use 22mm height version when set on the open/close panel side of FCW series.
Not suitable for FC4 (H = 37.9mm)
Mounting brackets (FCK) are included with FCC series.
PRODUCT NO. / DIMENSIONS
| Product No. | Box W x D or D x W | Ｈ (mm） | Weight (g) | DXF | DWG | STP | |
|---|---|---|---|---|---|---|---|
| FCC10-10-1 | 100×100 | 12 | 48.7 | DXF | DWG | ||
| FCC10-10-2 | 100×100 | 22 | 55.9 | DXF | DWG | ||
| FCC15-10-1 | 150×100 | 12 | 63.4 | DXF | DWG | ||
| FCC15-10-2 | 150×100 | 22 | 70.6 | DXF | DWG | ||
| FCC15-15-1 | 150×150 | 12 | 91.9 | DXF | DWG | ||
| FCC15-15-2 | 150×150 | 22 | 99.1 | DXF | DWG | ||
| FCC20-10-1 | 200×100 | 12 | 78.1 | DXF | DWG | ||
| FCC20-10-2 | 200×100 | 22 | 85.3 | DXF | DWG | ||
| FCC20-15-1 | 200×150 | 12 | 120.7 | DXF | DWG | ||
| FCC20-15-2 | 200×150 | 22 | 127.9 | DXF | DWG | ||
| FCC20-20-1 | 200×200 | 12 | 163.2 | DXF | DWG | ||
| FCC20-20-2 | 200×200 | 22 | 170.4 | DXF | DWG | ||
| FCC25-15-1 | 250×150 | 12 | 149.5 | DXF | DWG | ||
| FCC25-15-2 | 250×150 | 22 | 156.7 | DXF | DWG | ||
| FCC25-20-1 | 250×200 | 12 | 205 | DXF | DWG | ||
| FCC25-20-2 | 250×200 | 22 | 212.2 | DXF | DWG | ||
| FCC25-25-1 | 250×250 | 12 | 261.8 | DXF | DWG | ||
| FCC25-25-2 | 250×250 | 22 | 269 | DXF | DWG | ||
| FCC30-15-1 | 300×150 | 12 | 177.6 | DXF | DWG | ||
| FCC30-15-2 | 300×150 | 22 | 184.8 | DXF | DWG | ||
| FCC30-20-1 | 300×200 | 12 | 247 | DXF | DWG | ||
| FCC30-20-2 | 300×200 | 22 | 254.2 | DXF | DWG | ||
| FCC30-25-1 | 300×250 | 12 | 314.9 | DXF | DWG | ||
| FCC30-25-2 | 300×250 | 22 | 322.1 | DXF | DWG | ||
| FCC30-30-1 | 300×300 | 12 | 387 | DXF | DWG | ||
| FCC30-30-2 | 300×300 | 22 | 394.2 | DXF | DWG | ||
| FCC35-20-1 | 350×200 | 12 | 290.6 | DXF | DWG | ||
| FCC35-20-2 | 350×200 | 22 | 297.8 | DXF | DWG | ||
| FCC35-25-1 | 350×250 | 12 | 369.9 | DXF | DWG | ||
| FCC35-25-2 | 350×250 | 22 | 377.1 | DXF | DWG | ||
| FCC35-30-1 | 350×300 | 12 | 452.9 | DXF | DWG | ||
| FCC35-30-2 | 350×300 | 22 | 460.1 | DXF | DWG | ||
| FCC40-20-1 | 400×200 | 12 | 349.6 | DXF | DWG | ||
| FCC40-20-2 | 400×200 | 22 | 360.4 | DXF | DWG | ||
| FCC40-25-1 | 400×250 | 12 | 444.2 | DXF | DWG | ||
| FCC40-25-2 | 400×250 | 22 | 455 | DXF | DWG | ||
| FCC40-30-1 | 400×300 | 12 | 544.1 | DXF | DWG | ||
| FCC40-30-2 | 400×300 | 22 | 554.9 | DXF | DWG | ||
| FCC40-40-1 | 400×400 | 12 | 765.6 | DXF | DWG | ||
| FCC40-40-2 | 400×400 | 22 | 780 | DXF | DWG | ||
| FCC50-25-1 | 500×250 | 12 | 549.4 | DXF | DWG | ||
| FCC50-25-2 | 500×250 | 22 | 560.2 | DXF | DWG | ||
| FCC50-30-1 | 500×300 | 12 | 683.9 | DXF | DWG | ||
| FCC50-30-2 | 500×300 | 22 | 694.7 | DXF | DWG | ||
| FCC50-40-1 | 500×400 | 12 | 949.6 | DXF | DWG | ||
| FCC50-40-2 | 500×400 | 22 | 964 | DXF | DWG | ||
| FCC60-30-1 | 600×300 | 12 | 814.1 | DXF | DWG | ||
| FCC60-30-2 | 600×300 | 22 | 824.9 | DXF | DWG | ||
| FCC60-40-1 | 600×400 | 12 | 1141.2 | DXF | DWG | ||
| FCC60-40-2 | 600×400 | 22 | 1155.6 | DXF | DWG |
