ALUMINIUM MOUNTING PLATE for FCS・FCWS - FCSC series


FCSC Series -PDF

CATEGORY：Aluminium mounting plate, Mount plate, Mounting base

ALUMINIUM MOUNTING PLATE for FCS・FCWS - FCSC series

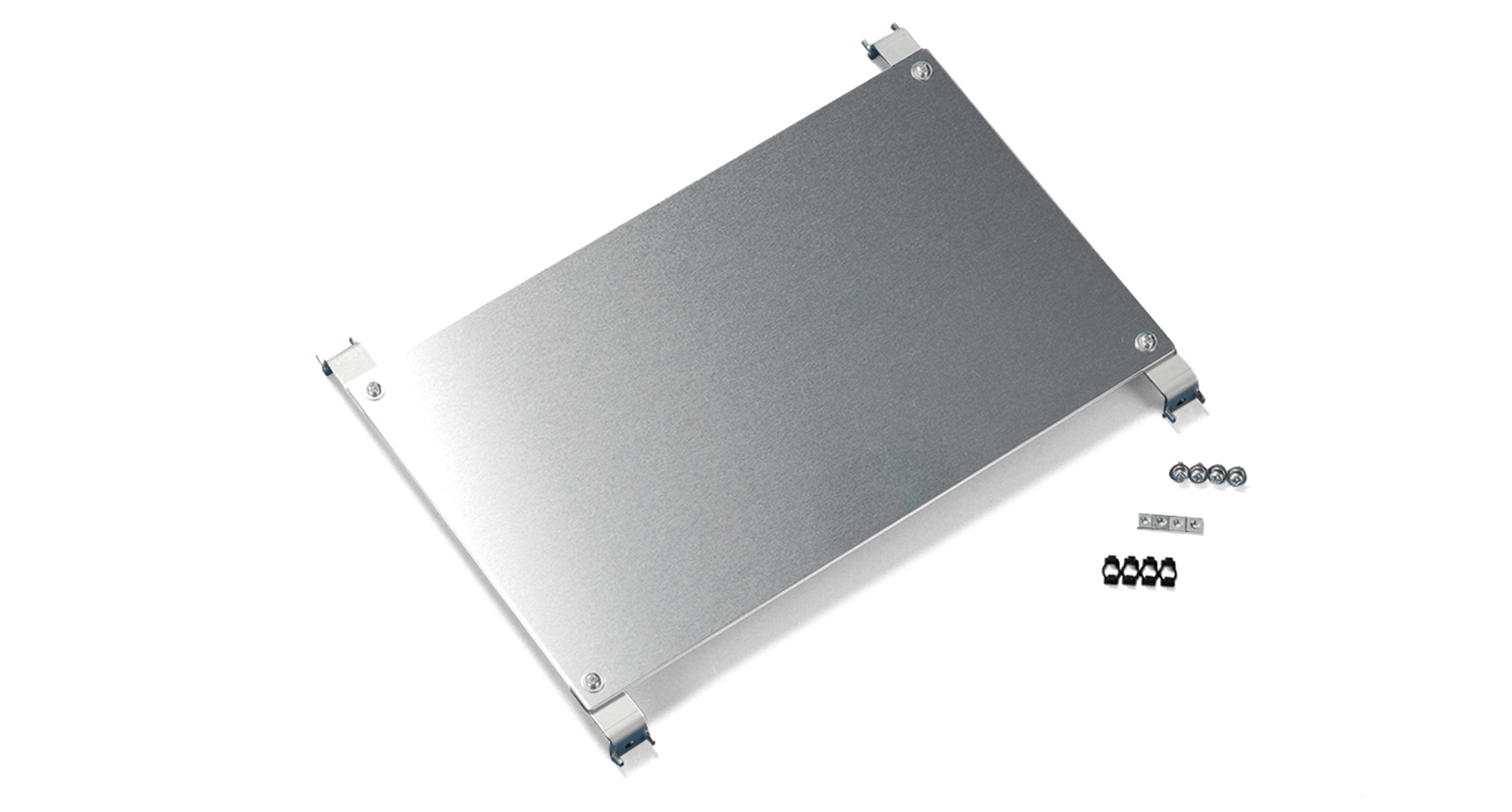

ALUMINIUM MOUNTING PLATE for FCS・FCWS - FCSC series1
Custom sized mounting plate for custom length / width FCS・FCWS series.
The mounting brackets come in 2 different height versions, 12mm and 22mm.

Fit to the specified length / width FCS・FCWS series control boxes in 1 mm intervals.
Plate material : Aluminium thickness 2.0mm

PRODUCT NO. / DIMENSIONS

Product No. PDF DXF DWG STP
FCSC□-□-1 ・ W76-399mm, D76-399mm PDF DXF DWG
FCSC□-□-1 ・ W76-399mm, D400-1000mm PDF DXF DWG
FCSC□-□-1 ・ W400-1000mm, D76-399mm PDF DXF DWG
FCSC□-□-1 ・ W400-1000mm, D400-1000mm PDF DXF DWG
FCSC□-□-2 ・ W76-399mm, D76-399mm PDF DXF DWG
FCSC□-□-2 ・ W76-399mm, D400-1000mm PDF DXF DWG
FCSC□-□-2 ・ W400-1000mm, D76-399mm PDF DXF DWG
FCSC□-□-2 ・ W400-1000mm, D400-1000mm PDF DXF DWG

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

Clinching standoff pressing

DETAILS

CNC stud welding

DETAILS
