ALUMINUM MOUNTING PLATE for BDN - FTB series


FTB_BDN Series -PDF

CATEGORY：Aluminum mounting plate, Mount plate, Mounting base

ALUMINUM MOUNTING PLATE for BDN - FTB series
ALUMINUM MOUNTING PLATE for BDN - FTB series1

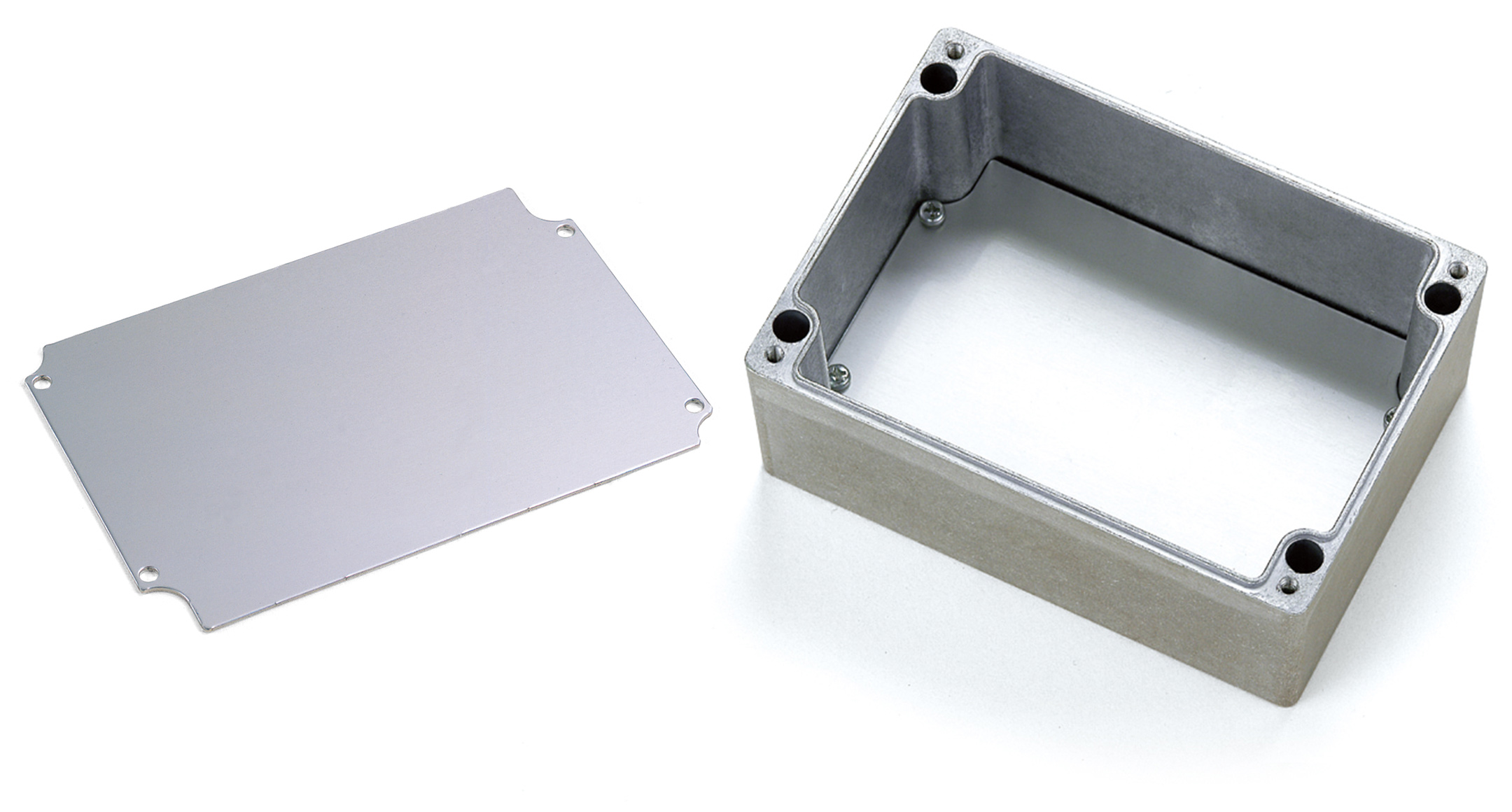

Aluminum mounting plate for BDN IP67 diecast aluminum boxes.

Mounting plate
Material/Finish：Aluminum A1100P t = 1.5 / Silver anodized
Attachment screw
Type/Material/Finish：Pan head M4-5 / Steel / Trivalent chromate

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Screw Pcs Weight (g) PDF DXF DWG
FTB5-7 BDN6-8-5 2 12.2 PDF DXF DWG
FTB6-9 BDN7-10-4 2 21.2 PDF DXF DWG
FTB8-8 BDN9-9-6 4 25 PDF DXF DWG
FTB8-12 BDN9-13-5 4 39 PDF DXF DWG
FTB9-13 BDN10-14-7 4 45 PDF DXF DWG
FTB10-15 BDN11-16-6 4 61 PDF DXF DWG
FTB10-20 BDN12-22-8 4 88 PDF DXF DWG
FTB14-24 BDN16-26-9 4 140 PDF DXF DWG
