MOUNTING PLATE for MS・MO - MSC series
MOUNTING PLATE for MS・MO - MSC series
MOUNTING PLATE for MS・MO - MSC series1
MOUNTING PLATE for MS・MO - MSC series2

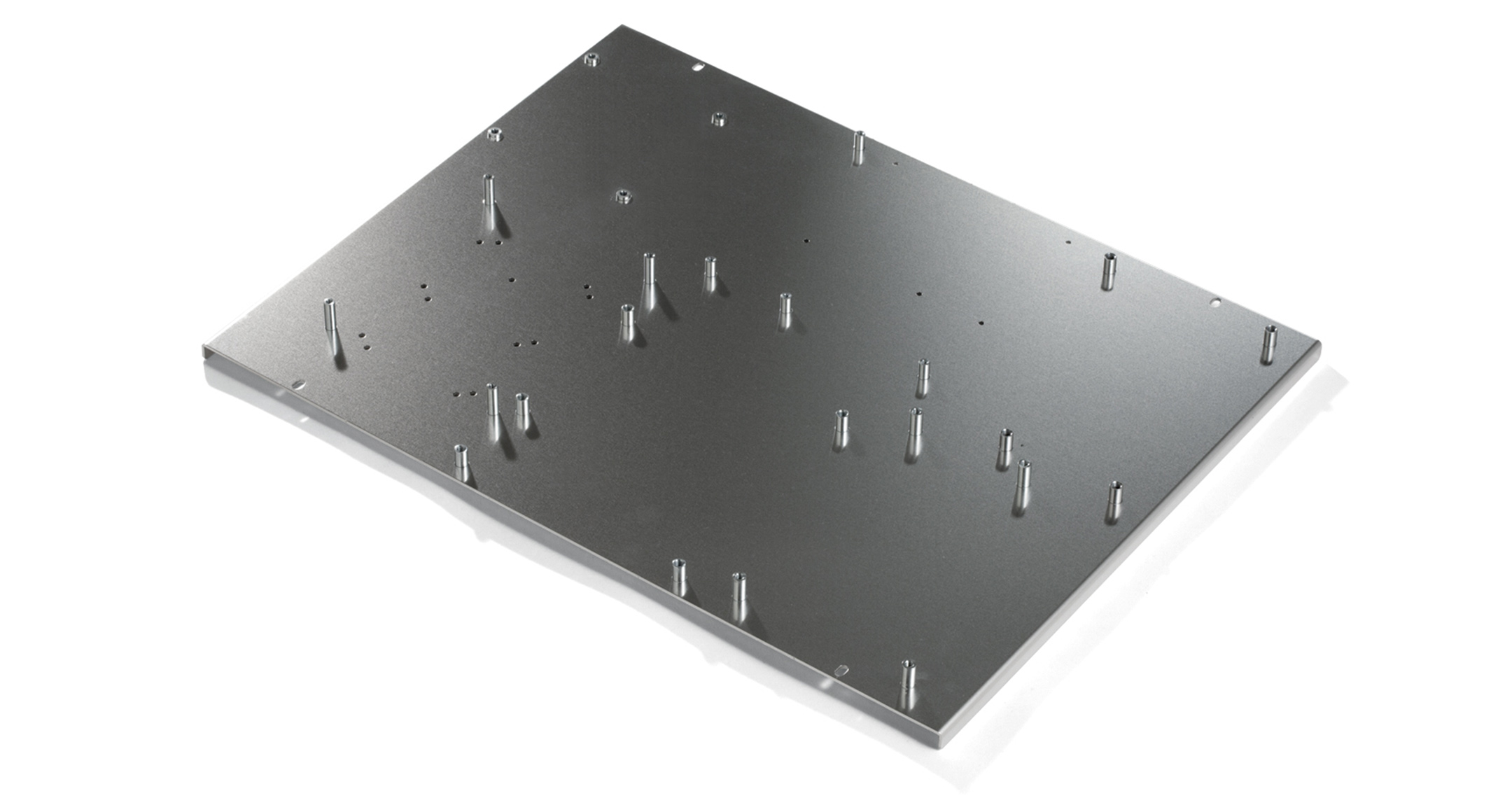

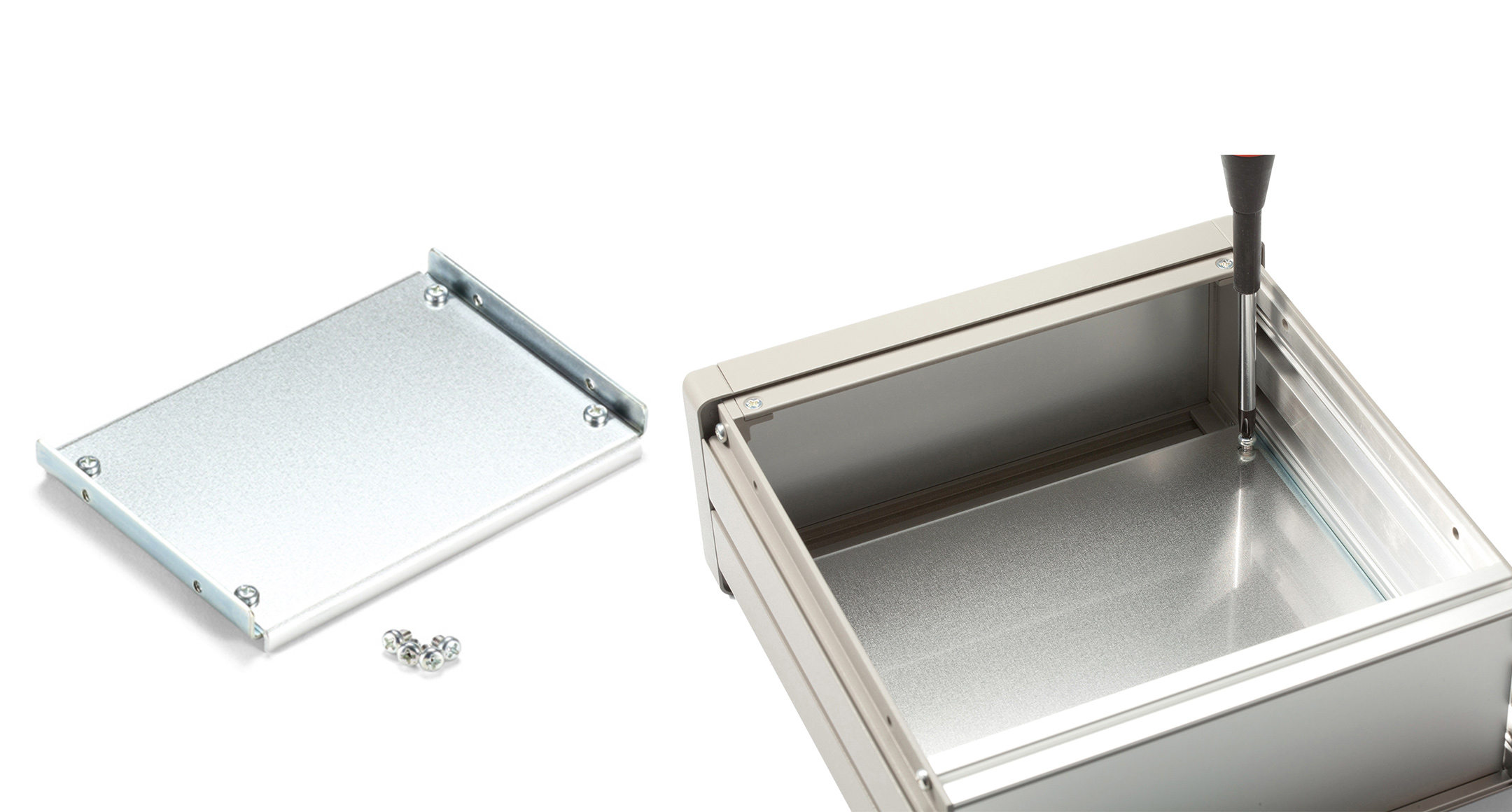

Aluminium mounting plate for MS・MSN・MSR・MSY・MO・MON・MOR・MOY series.
Plate material : Aluminium thickness 2.0mm

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure W (width) x D (depth) Weight (g) PDF DXF DWG STP
MSC16-16 160×160 120 PDF DXF DWG
MSC16-23 160×230 210 PDF DXF DWG
MSC16-28 160×280 270 PDF DXF DWG
MSC21-16 210×160 150 PDF DXF DWG
MSC21-23 210×230 250 PDF DXF DWG
MSC21-28 210×280 330 PDF DXF DWG
MSC21-35 210×350 430 PDF DXF DWG
MSC26-23 260×230 300 PDF DXF DWG
MSC26-28 260×280 390 PDF DXF DWG
MSC26-35 260×350 510 PDF DXF DWG
MSC32-23 320×230 360 PDF DXF DWG
MSC32-28 320×280 460 PDF DXF DWG
MSC32-35 320×350 600 PDF DXF DWG
MSC32-45 320×450 810 PDF DXF DWG
MSC37-23 370×230 410 PDF DXF DWG
MSC37-28 370×280 520 PDF DXF DWG
MSC37-35 370×350 680 PDF DXF DWG
MSC37-45 370×450 910 PDF DXF DWG
MSC43-23 430×230 460 PDF DXF DWG
MSC43-28 430×280 590 PDF DXF DWG
MSC43-35 430×350 770 PDF DXF DWG
MSC43-45 430×450 1040 PDF DXF DWG
