CATEGORY：Universal PCB, Printed circuit board, Prototype PCB, 2.54mm universal pcb, Universal double-sided PCB
Plated Through Holes (PTH) type universal PCB with a 2.54mm hole-to-hole pitch.
Low-cost and economical PCB made using robust, heat-resistant and non-conductive glass epoxy.
Easily mounted onto bosses or standoffs via the mounting holes at each corner.
Environmentally friendly lead-free solder. RoHS3 compliant.

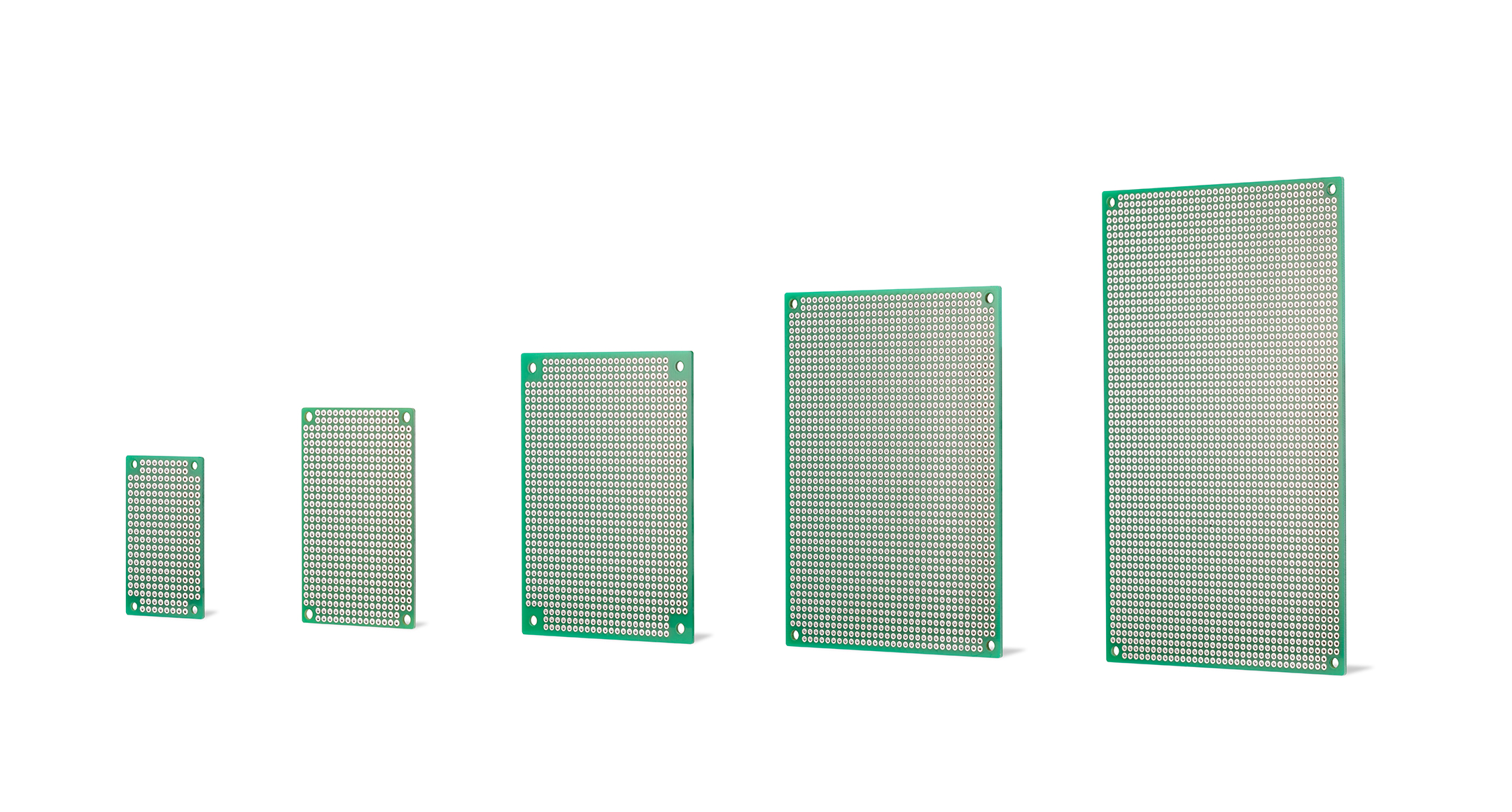

9 different sizes available, with PCB100-160 being of Eurocard (3U) format size.
4 sizes are compatible with the SIC・SIM series.

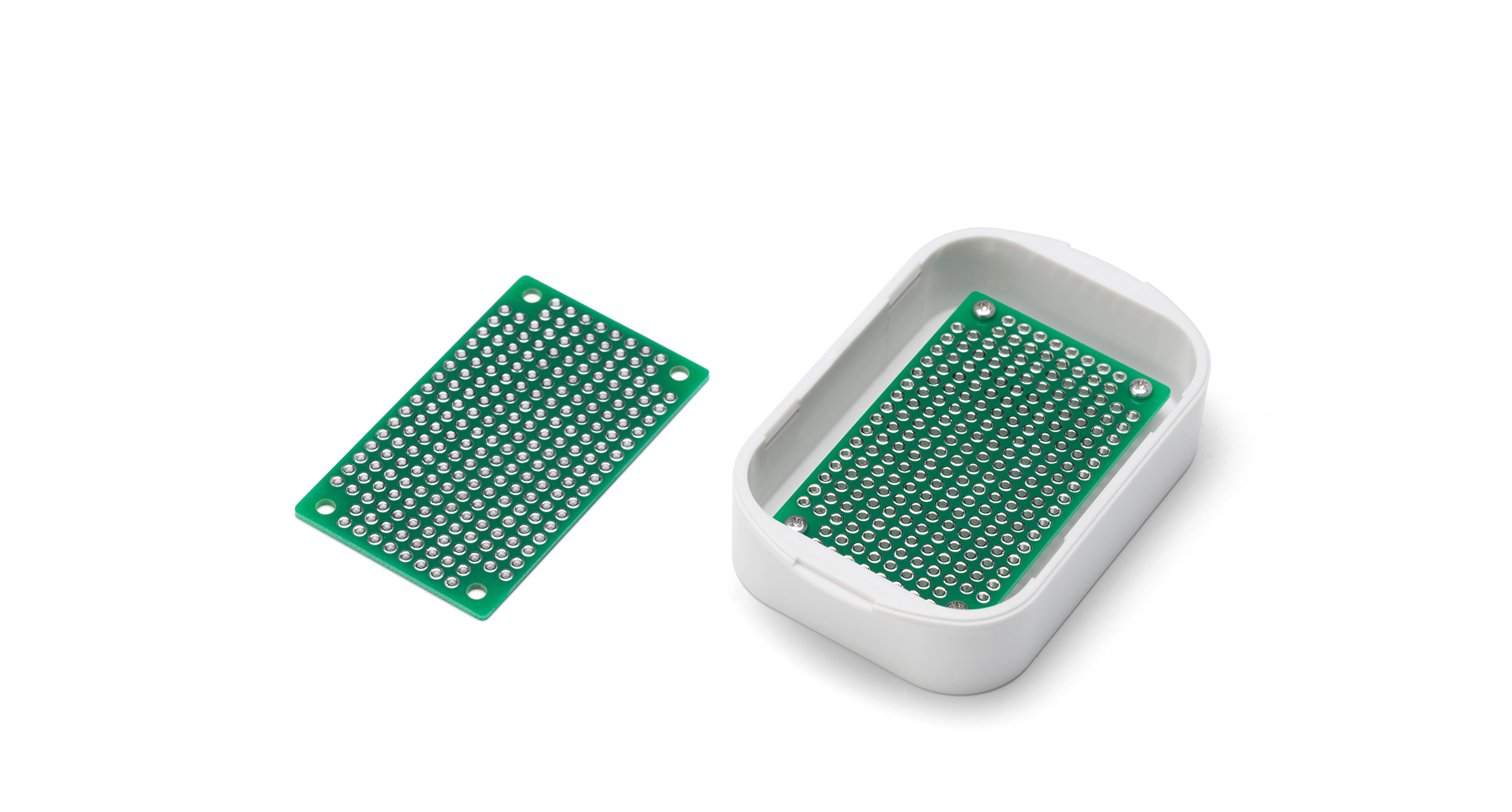

This product is a general-purpose PCB which can be mounted on other compatible metal enclosures.
Perfect for prototypes and small-lot production.
Low-cost and economical PCB made using robust, heat-resistant and non-conductive glass epoxy.
Easily mounted onto bosses or standoffs via the mounting holes at each corner.
Environmentally friendly lead-free solder. RoHS3 compliant.
9 different sizes available, with PCB100-160 being of Eurocard (3U) format size.
4 sizes are compatible with the SIC・SIM series.
This product is a general-purpose PCB which can be mounted on other compatible metal enclosures.
Perfect for prototypes and small-lot production.
PRODUCT NO. / DIMENSIONS
| Product No. | Dimensions (W×L×T) mm | Compatible SIC/SIM size | Mounting screws | Weight (g) | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|
| PCB32-53 | 32×53×1.2 | SIC・SIM5-7□ | M2/M2.5 | 3.9 | 1 pc | DXF | DWG | |
| PCB32-73 | 32×73×1.2 | SIC・SIM5-9□ | M2/M2.5 | 5.2 | 1 pc | DXF | DWG | |
| PCB36-47 | 36×47×1.2 | M2/M2.5 | 3.7 | 1 pc | DXF | DWG | ||
| PCB45-45 | 45×45×1.2 | SIC・SIM6-7□ | M2/M2.5 | 4.6 | 1 pc | DXF | DWG | |
| PCB46-101 | 46×101×1.6 | SIC・SIM6-12□ | M2/M2.5/M3 | 13.2 | 1 pc | DXF | DWG | |
| PCB47-72 | 47×72×1.2 | M3 | 7.4 | 1 pc | DXF | DWG | ||
| PCB72-95 | 72×95×1.2 | M3 | 15.7 | 1 pc | DXF | DWG | ||
| PCB90-120 | 90×120×1.6 | M3 | 32.5 | 1 pc | DXF | DWG | ||
| PCB100-160 | 100×160×1.6 | M3 | 49.2 | 1 pc | DXF | DWG |

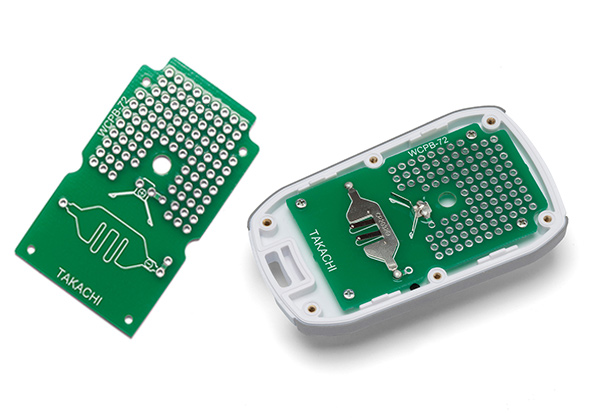

OPTIONAL PARTS
