BATTERY HOLDER with SNAP TERMINALS - SN-S series


SN-S Series -PDF

CATEGORY：Battery holder with snap terminals, AA battery holder, AAA battery holder, C cell battery holder, D cell battery holder

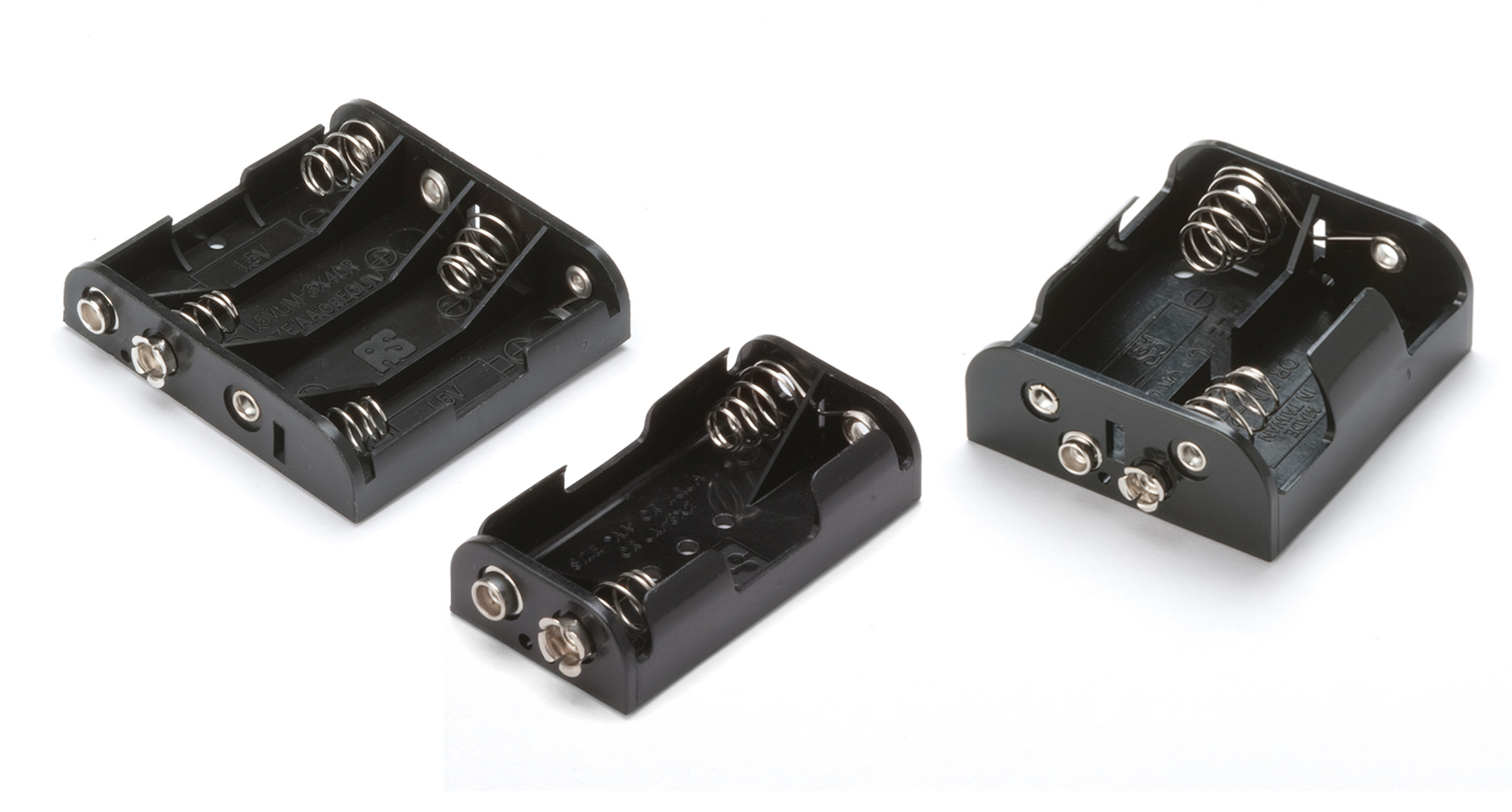

BATTERY HOLDER with SNAP TERMINALS - SN-S series
BATTERY HOLDER with SNAP TERMINALS - SN-S series1
Battery holder with snap terminal.
Recommended to be used with battery snap (MP series).

Models for 7 different battery pattern are available.

PRODUCT NO. / DIMENSIONS

Product No. Matching battery (Cell × pcs) Weight (g) Pack of PDF DXF DWG
SN1-2S D × 2 22.7 1 pcs PDF DXF DWG
SN1-4S D × 4 43.6 1 pcs PDF DXF DWG
SN2-2S C × 2 16.5 1 pcs PDF DXF DWG
SN2-4S C × 4 26 1 pcs PDF DXF DWG
SN3-2S AA × 2 7.2 1 pcs PDF DXF DWG
SN3-3S AA × 3 9.6 1 pcs PDF DXF DWG
SN3-4S AA × 4 11.8 1 pcs PDF DXF DWG
