BATTERY HOLDER with LEAD WIRE - SN・MP・BH series

BATTERY HOLDER with LEAD WIRE - SN・MP・BH series

CATEGORY：Battery holder, Battery holder with lead wire, AA battery holder, AAA battery holder, C cell battery holder, D cell battery holder

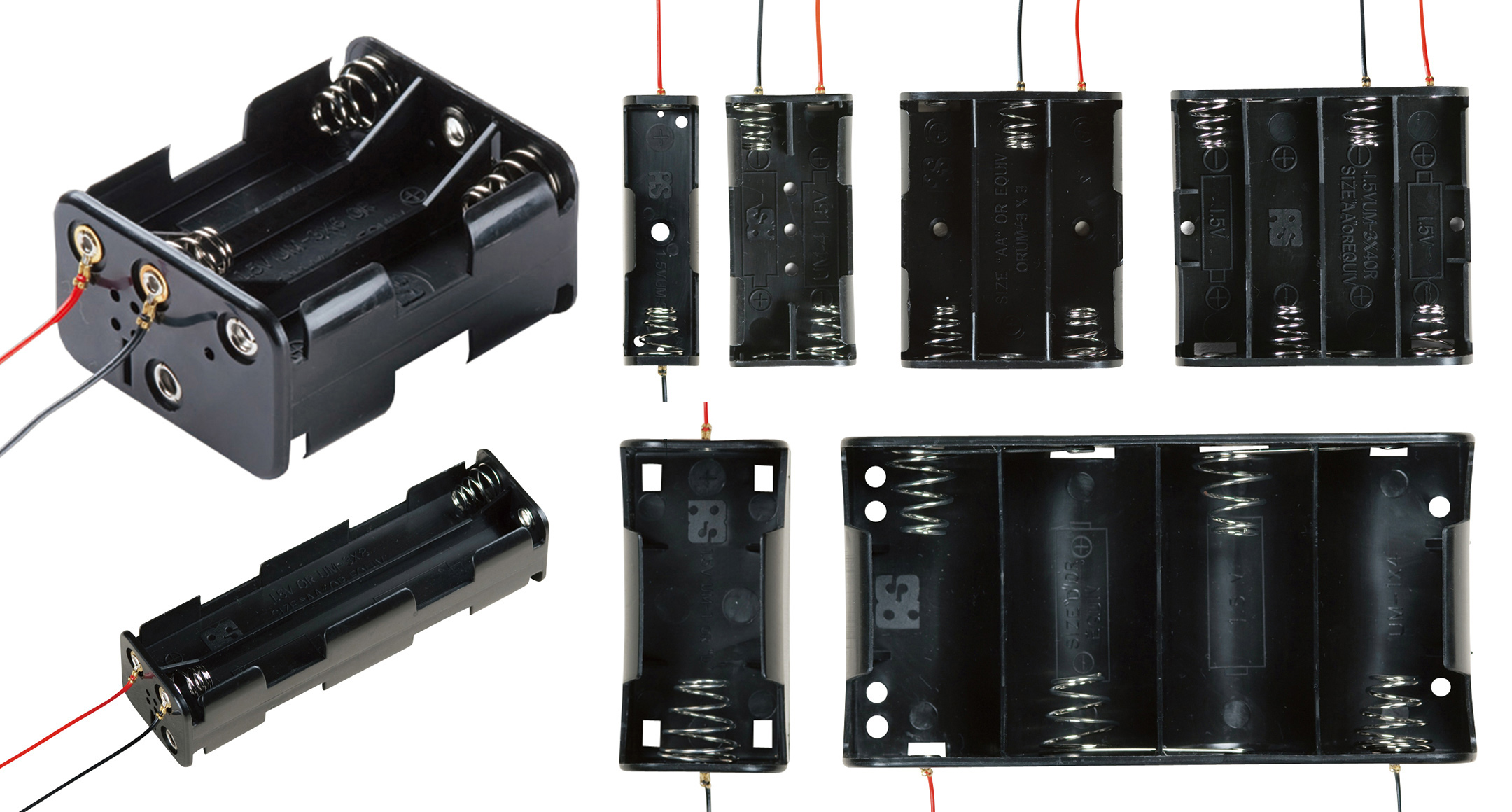

BATTERY HOLDER with LEAD WIRE - SN・MP・BH series1

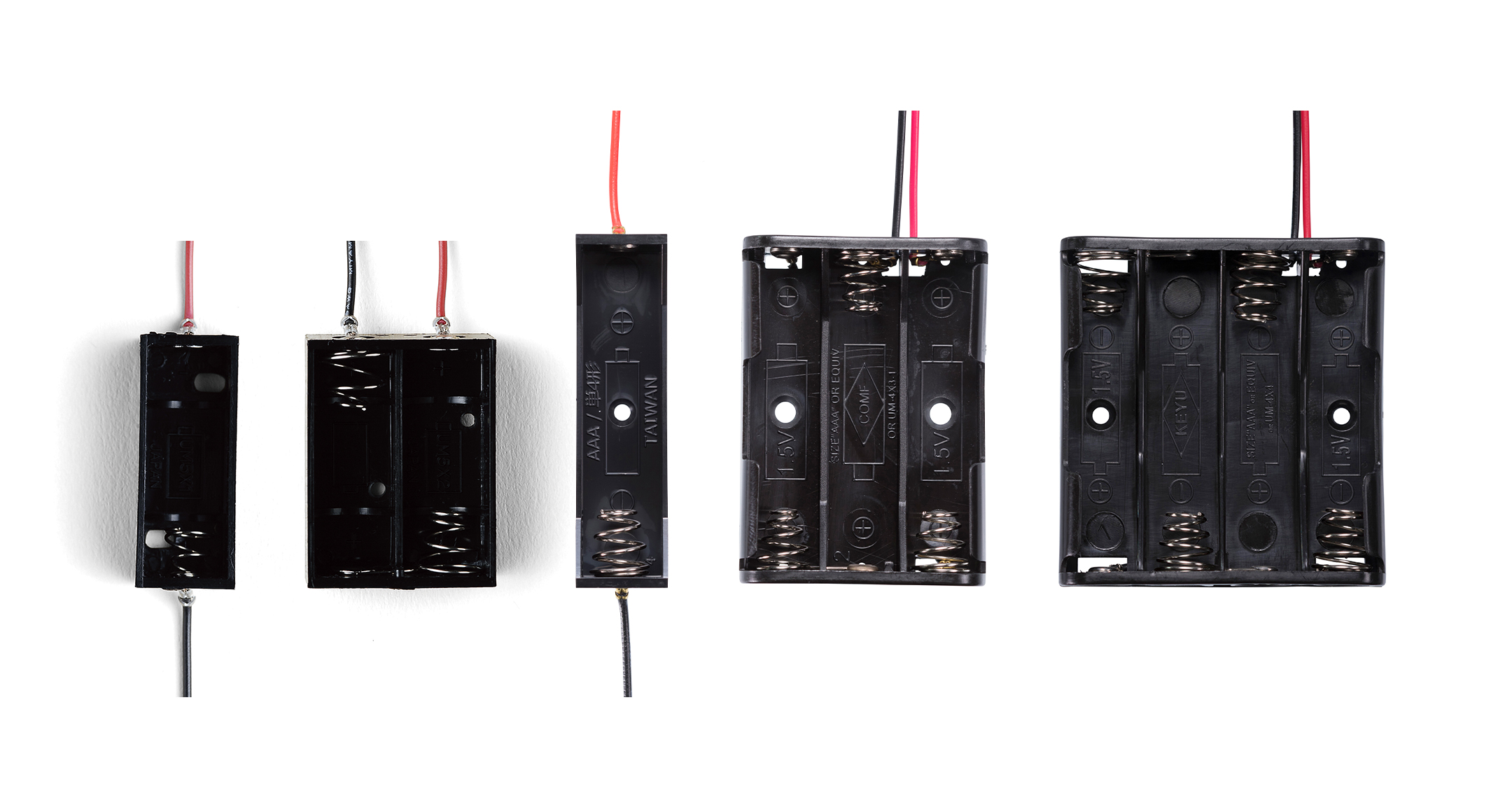

BATTERY HOLDER with LEAD WIRE - SN・MP・BH series2

Battery holder with lead wire.
23 different battery patterns are available.
Bulk packages (50 or 20 pcs) are available for some models.

PRODUCT NO. / DIMENSIONS

Product No.	Matching battery (Cell × pcs)	Lead wire	Weight (g)	Pack of	Sales Status	PDF	DXF	DWG
SN1-1	D × 1	AWG26 L=170mm	14	1 pcs		PDF	DXF	DWG
SN1-2	D × 2	AWG26 L=170mm	22.8	1 pcs		PDF	DXF	DWG
SN1-4	D × 4	AWG26 L=170mm	43	1 pcs		PDF	DXF	DWG
SN1-6	D × 6	AWG26 L=170mm	52.7	1 pcs		PDF	DXF	DWG
BH211-1	C × 1	AWG24 L=150mm	9.3	1 pcs		PDF	DXF	DWG
SN2-2	C × 2	AWG26 L=170mm	16.5	1 pcs		PDF	DXF	DWG
SN2-4	C × 4	AWG26 L=170mm	26	1 pcs		PDF	DXF	DWG
SN3-1	AA × 1	AWG26 L=160mm	4.4	1 pcs		PDF	DXF	DWG
SN3-2	AA × 2	AWG26 L=160mm	7.8	1 pcs		PDF	DXF	DWG
SN3-2A	AA × 2	AWG26 L=160mm	6.2	1 pcs		PDF	DXF	DWG
SN3-3	AA × 3	AWG26 L=160mm	10.3	1 pcs		PDF	DXF	DWG
SN3-4	AA × 4	AWG26 L=160mm	12.1	1 pcs		PDF	DXF	DWG
SN3-4A	AA × 4	AWG26 L=160mm	9.8	1 pcs		PDF	DXF	DWG
MP-3-6	AA × 6	AWG26 L=150mm	21.4	1 pcs	Limited Inventory.	PDF	DXF	DWG
SN3-6A	AA × 6	AWG26 L=160mm	12.9	1 pcs		PDF	DXF	DWG
SN3-6B	AA × 6	AWG26 L=160mm	15.3	1 pcs		PDF	DXF	DWG
SN3-8A	AA × 8	AWG26 L=160mm	14.8	1 pcs		PDF	DXF	DWG
SN4-1	AAA × 1	AWG26 L=150	3.3	1 pcs		PDF	DXF	DWG
MP-4-1	AAA × 1	AWG26 L=150mm	3.3	1 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN4-2	AAA × 2	AWG26 L=160mm	5.1	1 pcs		PDF	DXF	DWG
SN4-3	AAA × 3	AWG26 L=150	8.4	1 pcs		PDF	DXF	DWG
MP-4-3	AAA × 3	AWG26 L=150mm	6.9	1 pcs	Limited Inventory.	PDF	DXF	DWG
SN4-4	AAA × 4	AWG26 L=150	10.6	1 pcs		PDF	DXF	DWG
MP-4-4	AAA × 4	AWG26 L=150mm	8	1 pcs	Discontinued - Sold out.	PDF	DXF	DWG
MP-5-1N	N × 1	AWG26 L=150mm	2.6	1 pcs	Limited Inventory.	PDF	DXF	DWG
BH-521A	N × 2	AWG26 L=150mm	4.9	1 pcs		PDF	DXF	DWG
SN1-1-P	D × 1	AWG26 L=170mm	-	50 pcs		PDF	DXF	DWG
SN1-2-P	D × 2	AWG26 L=170mm	-	20 pcs		PDF	DXF	DWG
SN1-4-P	D × 4	AWG26 L=170mm	-	20 pcs		PDF	DXF	DWG
SN1-6-P	D × 6	AWG26 L=170mm	-	20 pcs		PDF	DXF	DWG
SN2-2-P	C × 2	AWG26 L=170mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN2-4-P	C × 4	AWG26 L=170mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN3-1-P	AA × 1	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN3-2-P	AA × 2	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN3-2A-P	AA × 2	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN3-3-P	AA × 3	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN3-4-P	AA × 4	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN3-4A-P	AA × 4	AWG26 L=160mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN3-6A-P	AA × 6	AWG26 L=160mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN3-6B-P	AA × 6	AWG26 L=160mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN3-8A-P	AA × 8	AWG26 L=160mm	-	50 pcs	Discontinued - Sold out.	PDF	DXF	DWG
SN4-1-P	AAA × 1	AWG26 L=150	-	50 pcs		PDF	DXF	DWG
SN4-2-P	AAA × 2	AWG26 L=160mm	-	50 pcs		PDF	DXF	DWG
SN4-3-P	AAA × 3	AWG26 L=160mm	-	100 pcs		PDF	DXF	DWG
SN4-4-P	AAA × 4	AWG26 L=160mm	-	100 pcs		PDF	DXF	DWG
