BATTERY HOLDER with PC PIN - SN・MP-PC series


SN_MP-PC Series -PDF

CATEGORY：Battery holder with PC pin, Battery holder with through hole pin, AA battery holder, AAA battery holder

BATTERY HOLDER with PC PIN - SN・MP-PC series
BATTERY HOLDER with PC PIN - SN・MP-PC series
BATTERY HOLDER with PC PIN - SN・MP-PC series1
BATTERY HOLDER with PC PIN - SN・MP-PC series2

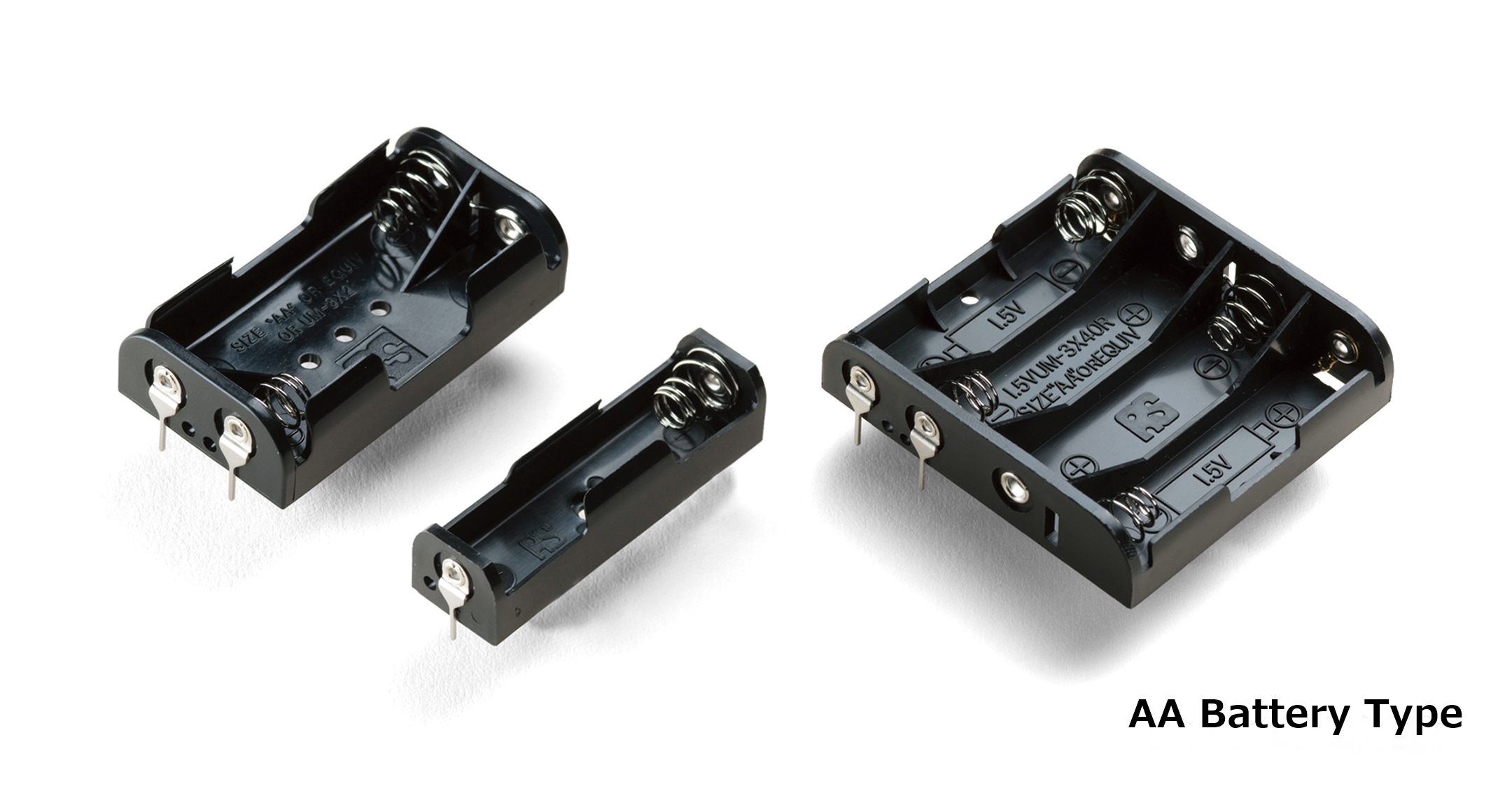

Battery holders for AA and AAA battery with PC pin.
6 different battery patterns are available.

*50 pcs bulk package is available. (Not for MP-4-1PC)

PRODUCT NO. / DIMENSIONS

Product No. Matching battery (Cell × pcs) Weight (g) Pack of Holder material Sales Status PDF DXF DWG
SN3-1PC AA × 1 3.6 1 pcs PP PDF DXF DWG
SN3-2PC AA × 2 7 1 pcs PE PDF DXF DWG
SN3-3PC AA × 3 9.4 1 pcs PP PDF DXF DWG
SN3-4PC AA × 4 11.5 1 pcs PP PDF DXF DWG
SN4-1PC AAA × 1 2.7 1 pcs ABS PDF DXF DWG
MP-4-1PC AAA × 1 2.5 1 pcs ABS Discontinued - Sold out. PDF DXF DWG
SN4-2PC AAA × 2 4.5 1 pcs PP PDF DXF DWG
SN4-3PC AAA × 3 7.4 1 pcs PP PDF DXF DWG
SN4-4PC AAA × 4 10 1 pcs PP PDF DXF DWG
SN3-1PC-P AA × 1 - 50 pcs PP PDF DXF DWG
SN3-2PC-P AA × 2 - 50 pcs PE PDF DXF DWG
SN3-3PC-P AA × 3 - 50 pcs PP PDF DXF DWG
SN3-4PC-P AA × 4 - 50 pcs PP PDF DXF DWG
SN4-1PC-P AAA × 1 - 50 pcs ABS PDF DXF DWG
SN4-2PC-P AAA × 2 - 50 pcs PP PDF DXF DWG
SN4-3PC-P AAA × 3 - 100 pcs PP PDF DXF DWG
