TUBE AMPLIFIER CHASSIS - SRDSL series

SRDSL Series -PDF

CATEGORY：Vacuum tube amplifier chassis, Tube amplifier case, Audio chassis, Gold anodized amplifier chassis

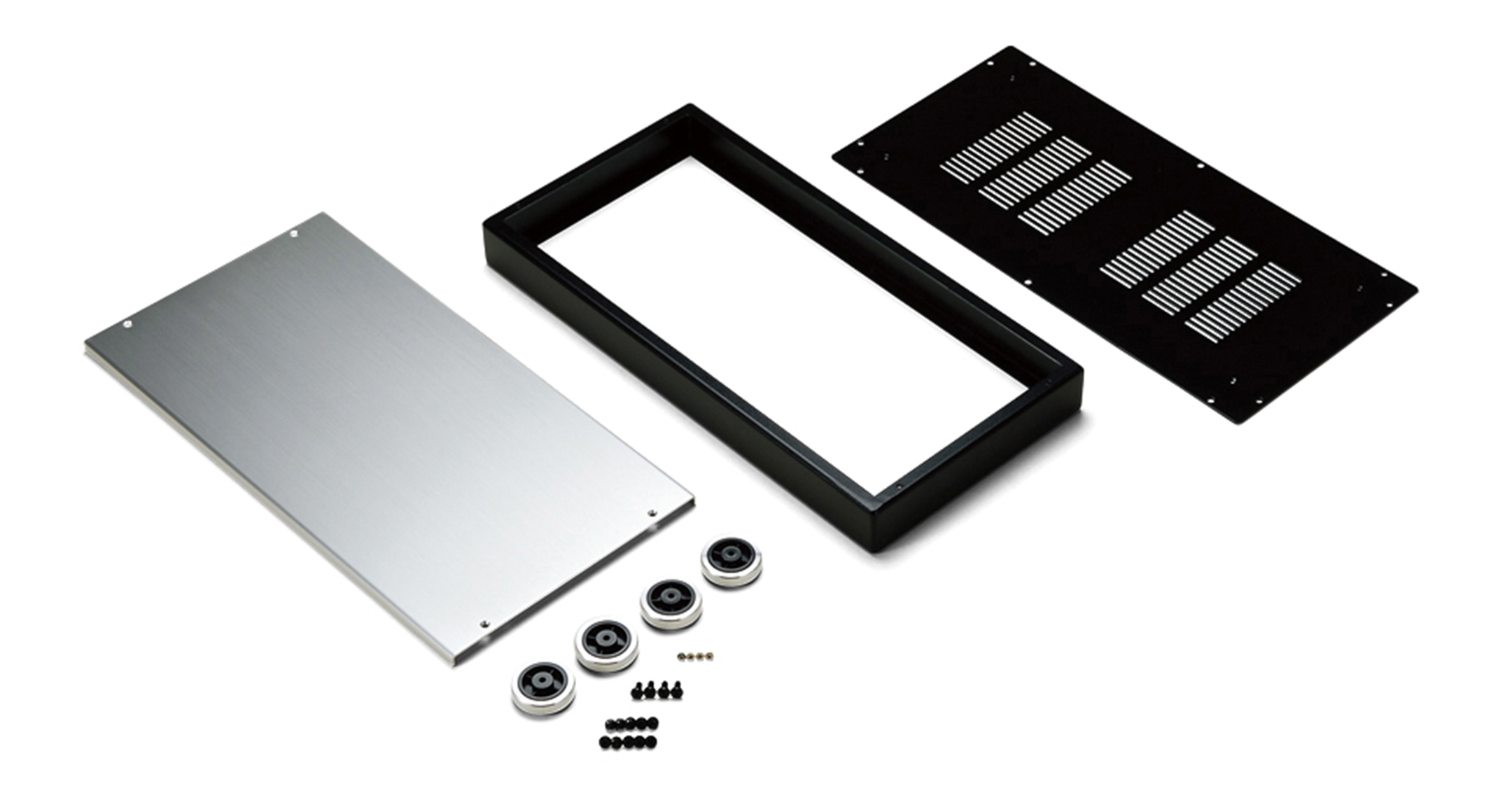

Designed with an elegant hairline brushed top cover.

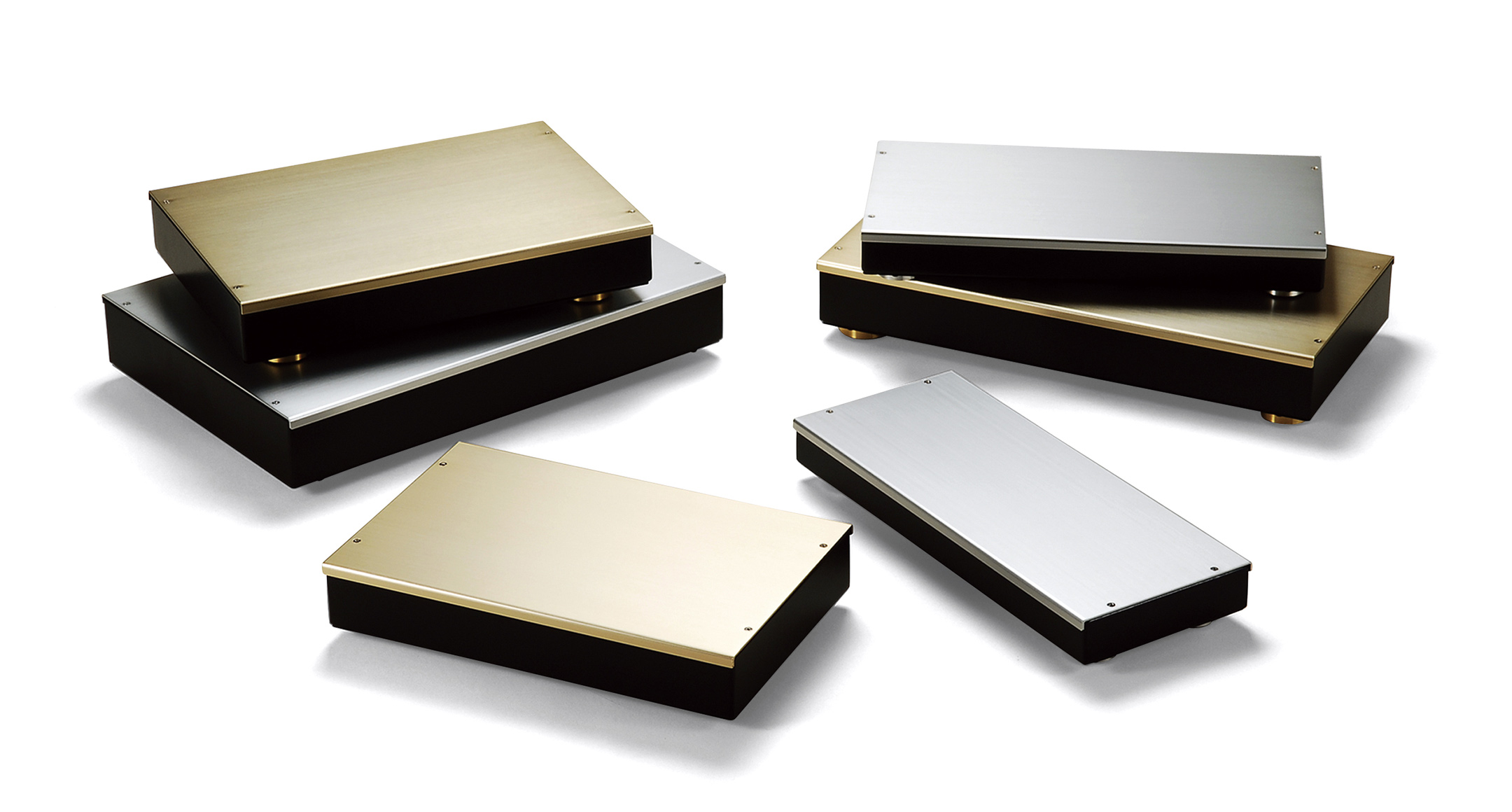

6 different sizes in champagne gold and silver top cover types are available.
Recommended for audio amplifier use.

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Top cover color	Weight (kg)	PDF	DXF	DWG
Product No.	W	H	D	w	h	d	Top cover color	Weight (kg)	PDF	DXF	DWG
SRDSL-8HG	350	58.2	224.5	326	55	196	Champagne gold	1.56	PDF	DXF	DWG
SRDSL-8HS	350	58.2	224.5	326	55	196	Silver	1.56	PDF	DXF	DWG
SRDSL-10HG	370	58.2	254.5	346	55	226	Champagne gold	1.77	PDF	DXF	DWG
SRDSL-10HS	370	58.2	254.5	346	55	226	Silver	1.77	PDF	DXF	DWG
SRDSL-20HG	450	68.2	305	426	65	276.5	Champagne gold	2.49	PDF	DXF	DWG
SRDSL-20HS	450	68.2	305	426	65	276.5	Silver	2.49	PDF	DXF	DWG
