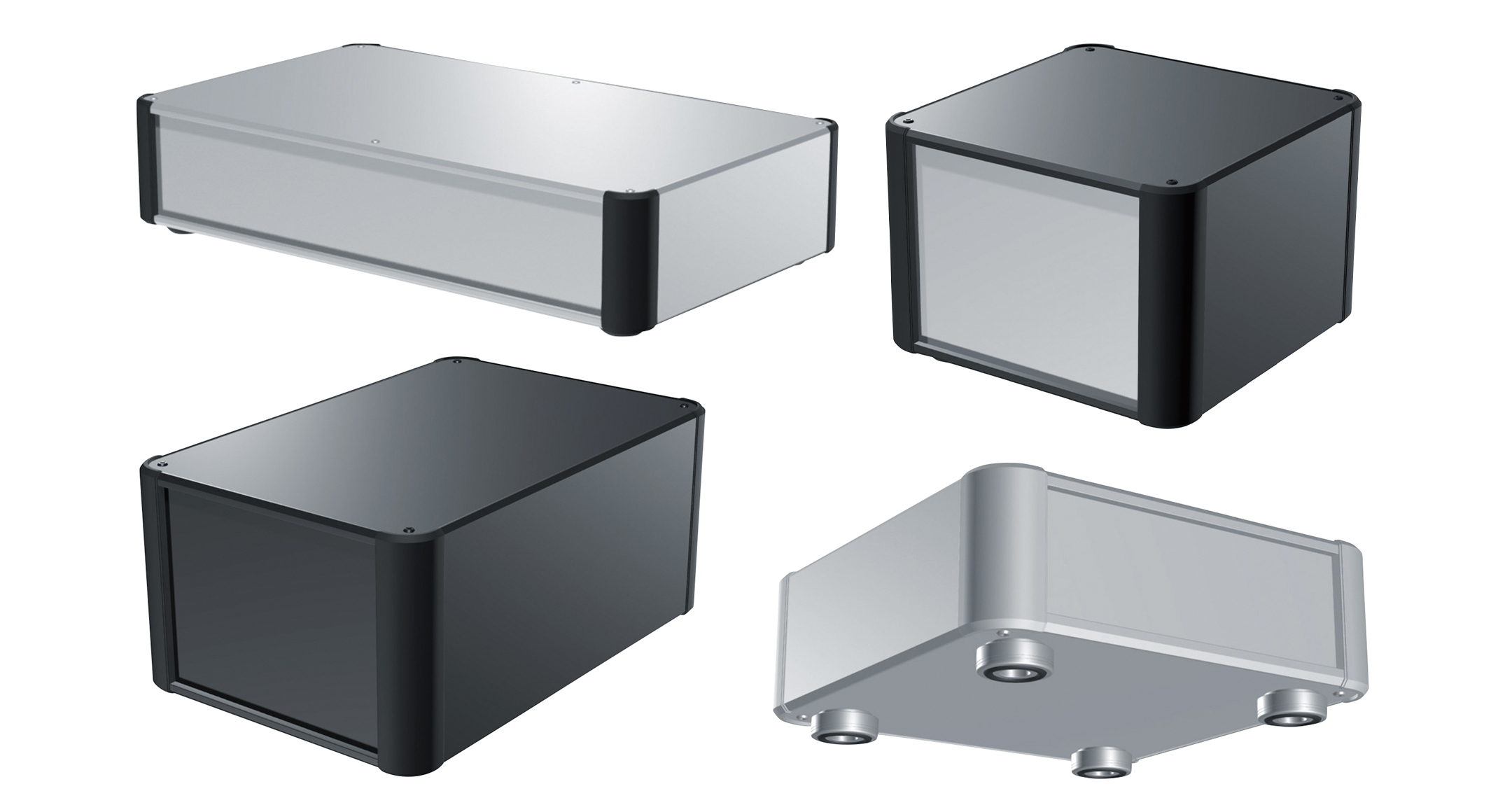

Simple and luxurious design universal aluminium enclosure with front/rear panels.

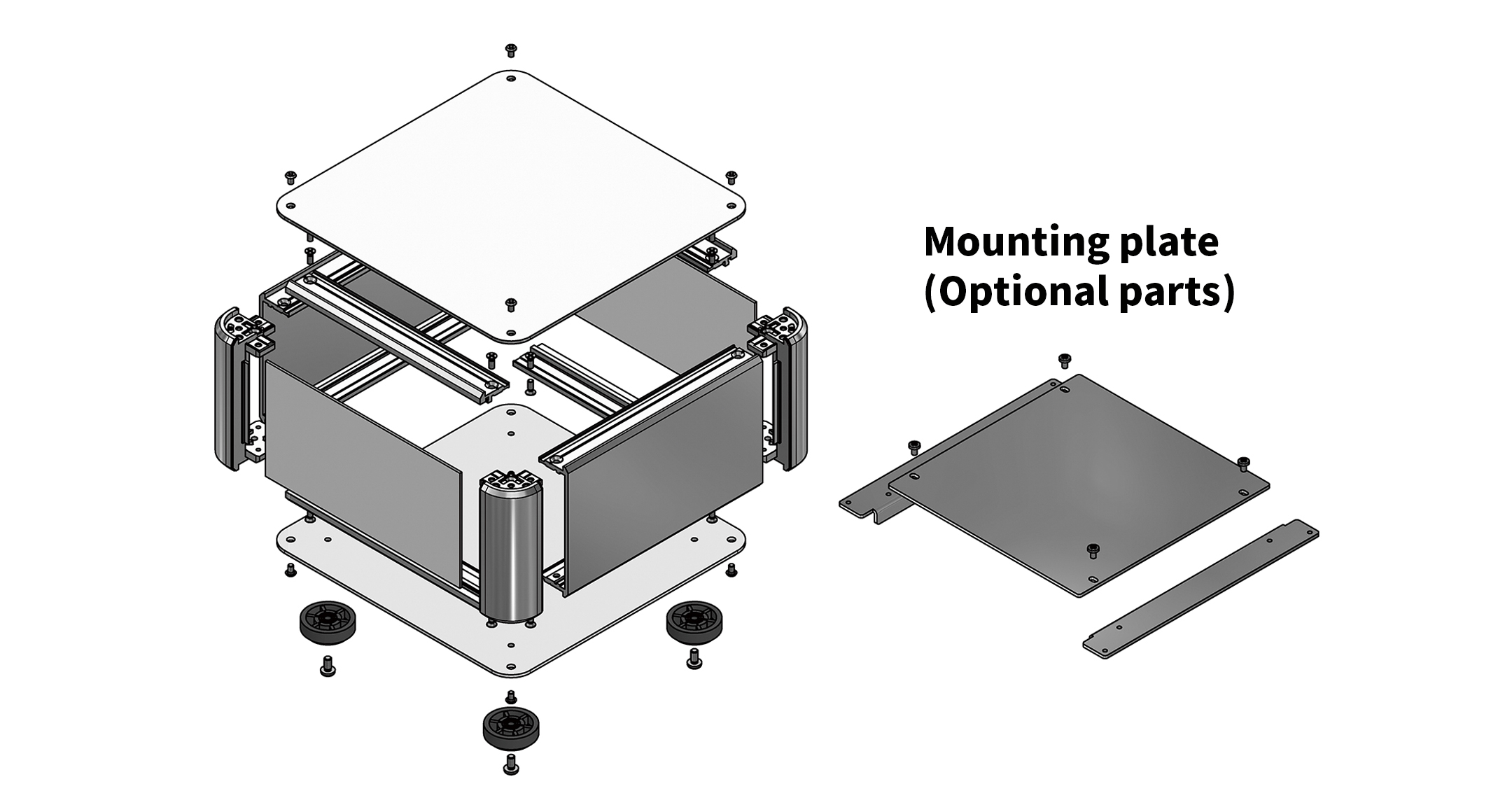

Top/bottom covers and front/rear panels are made from easily customizable sheet aluminium material.

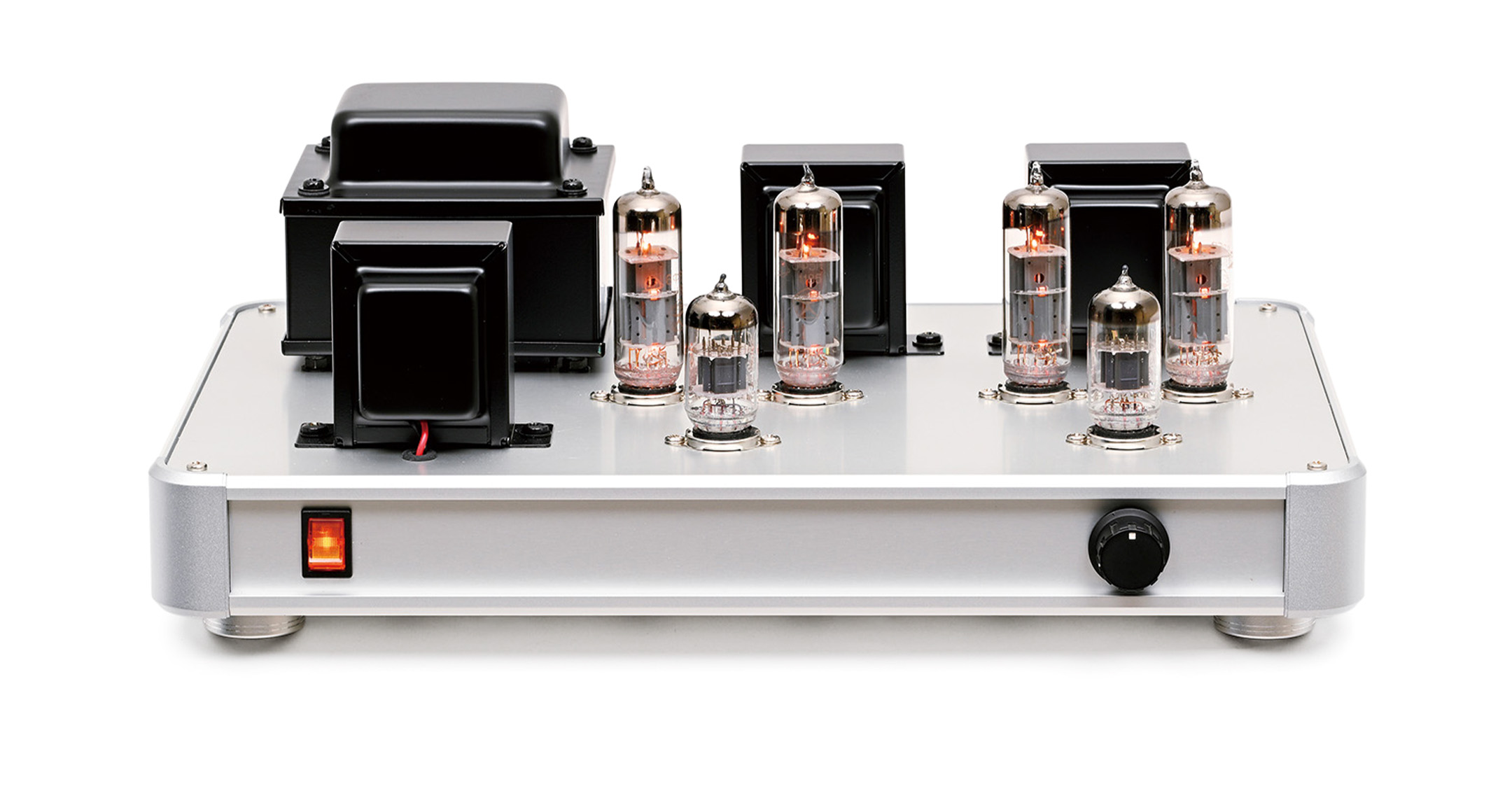

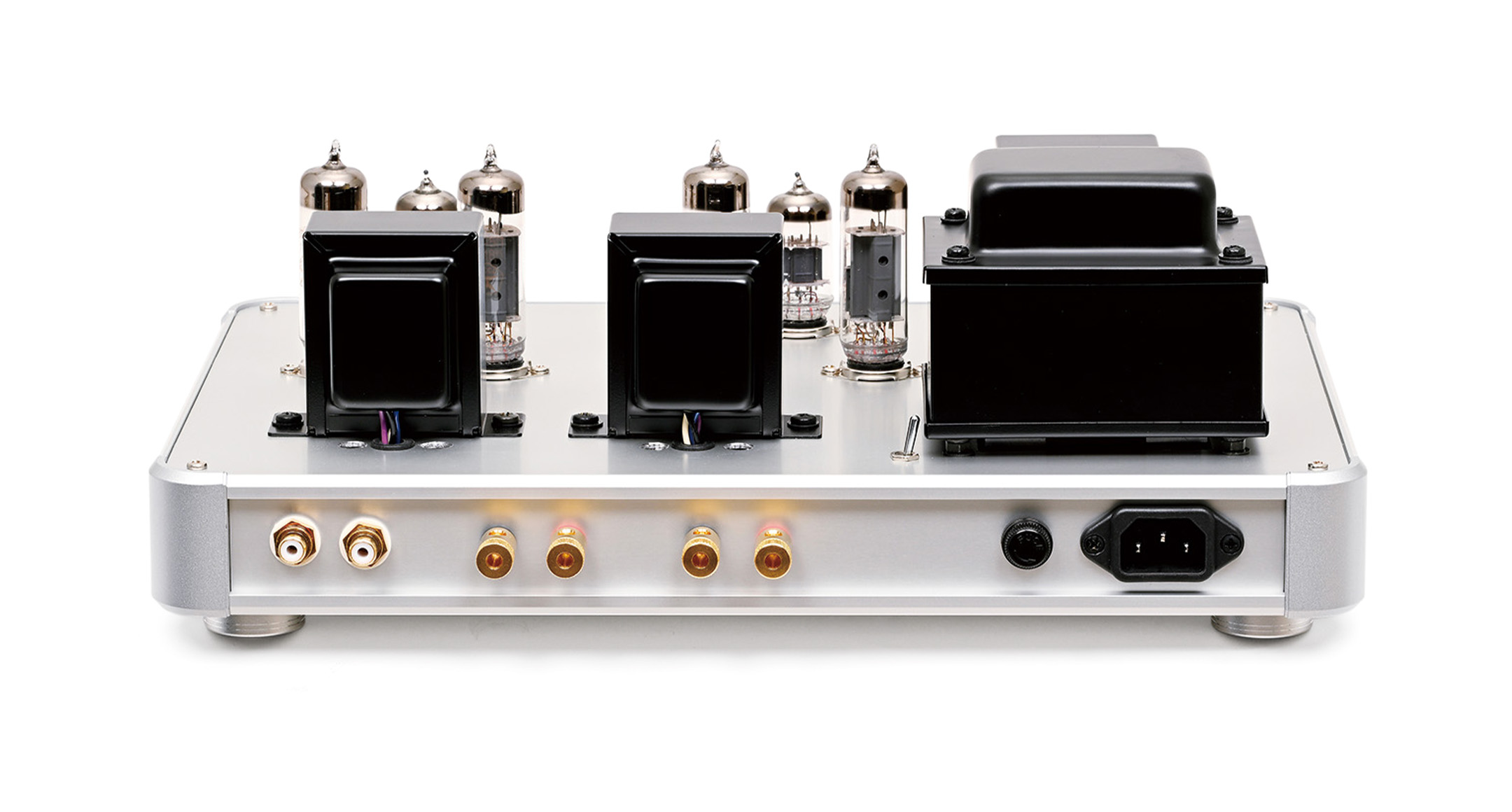

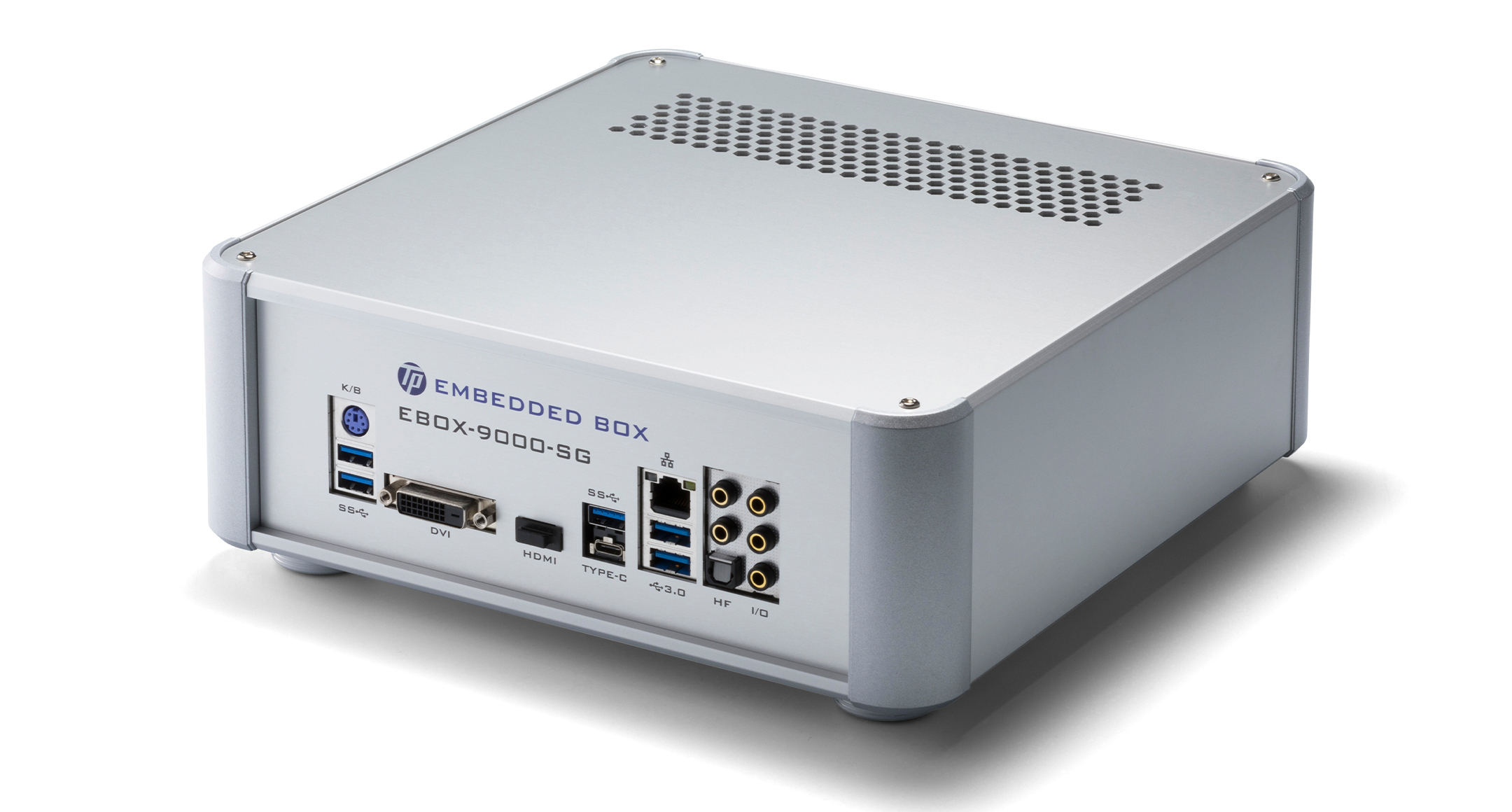

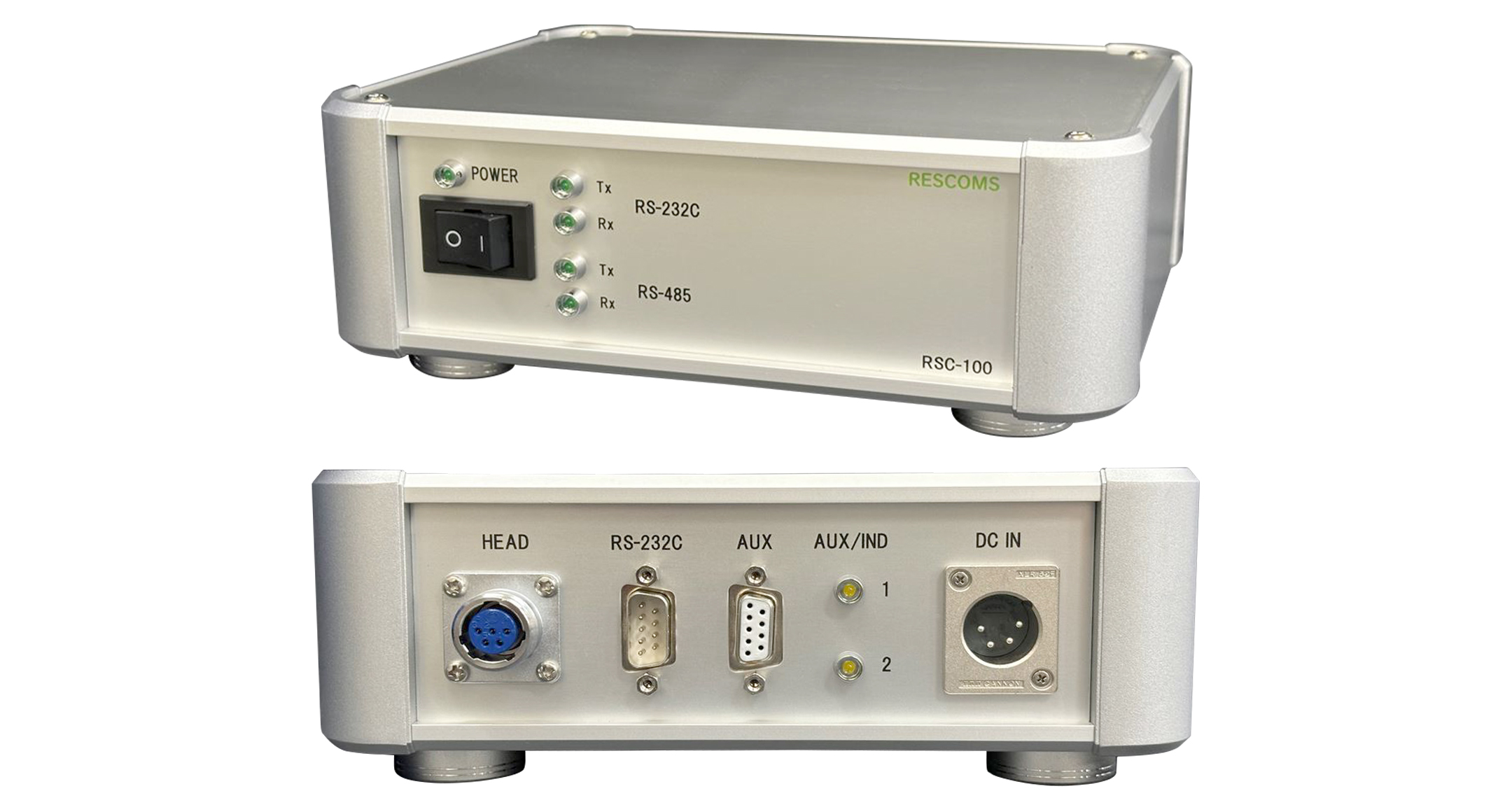

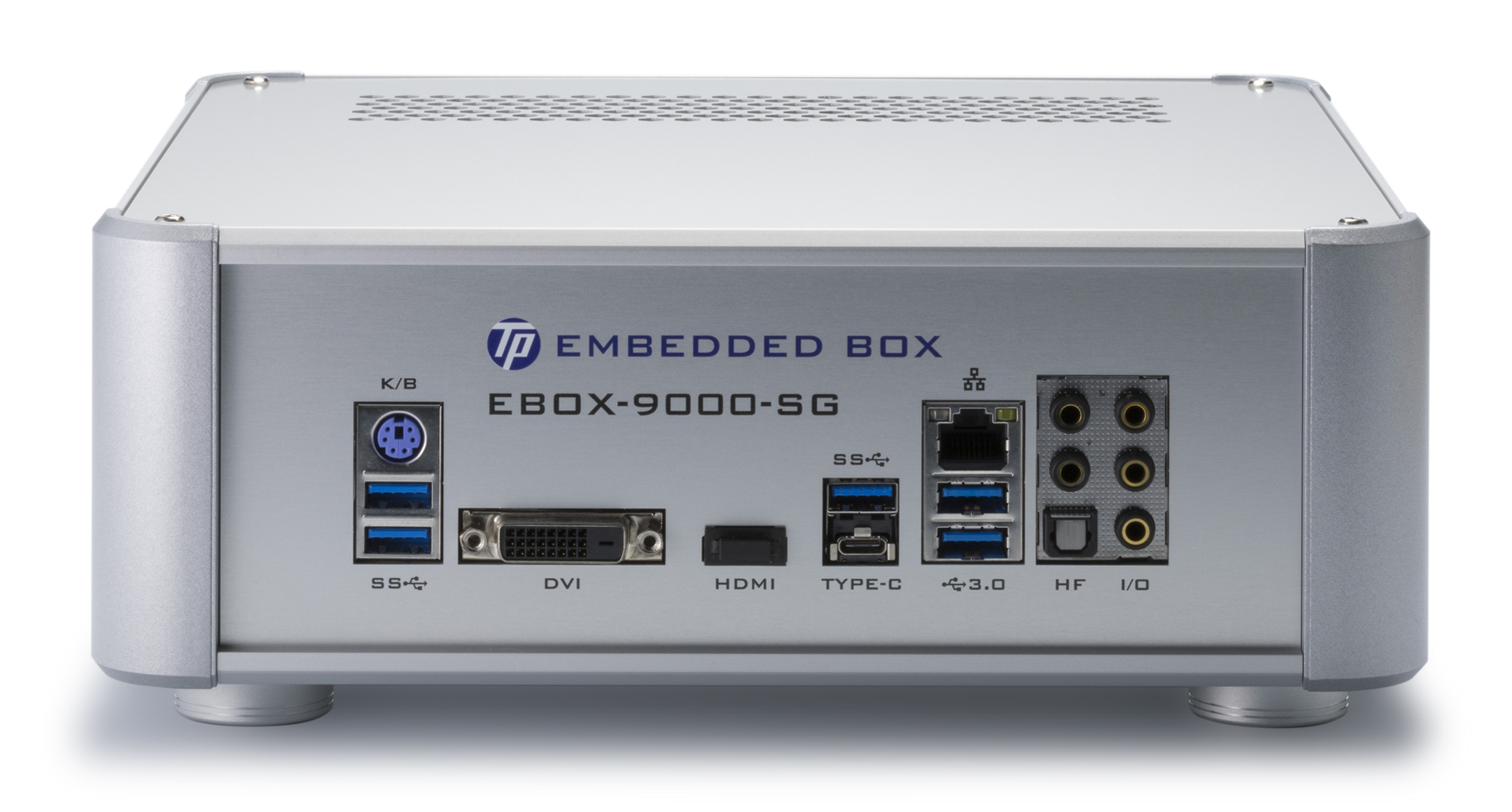

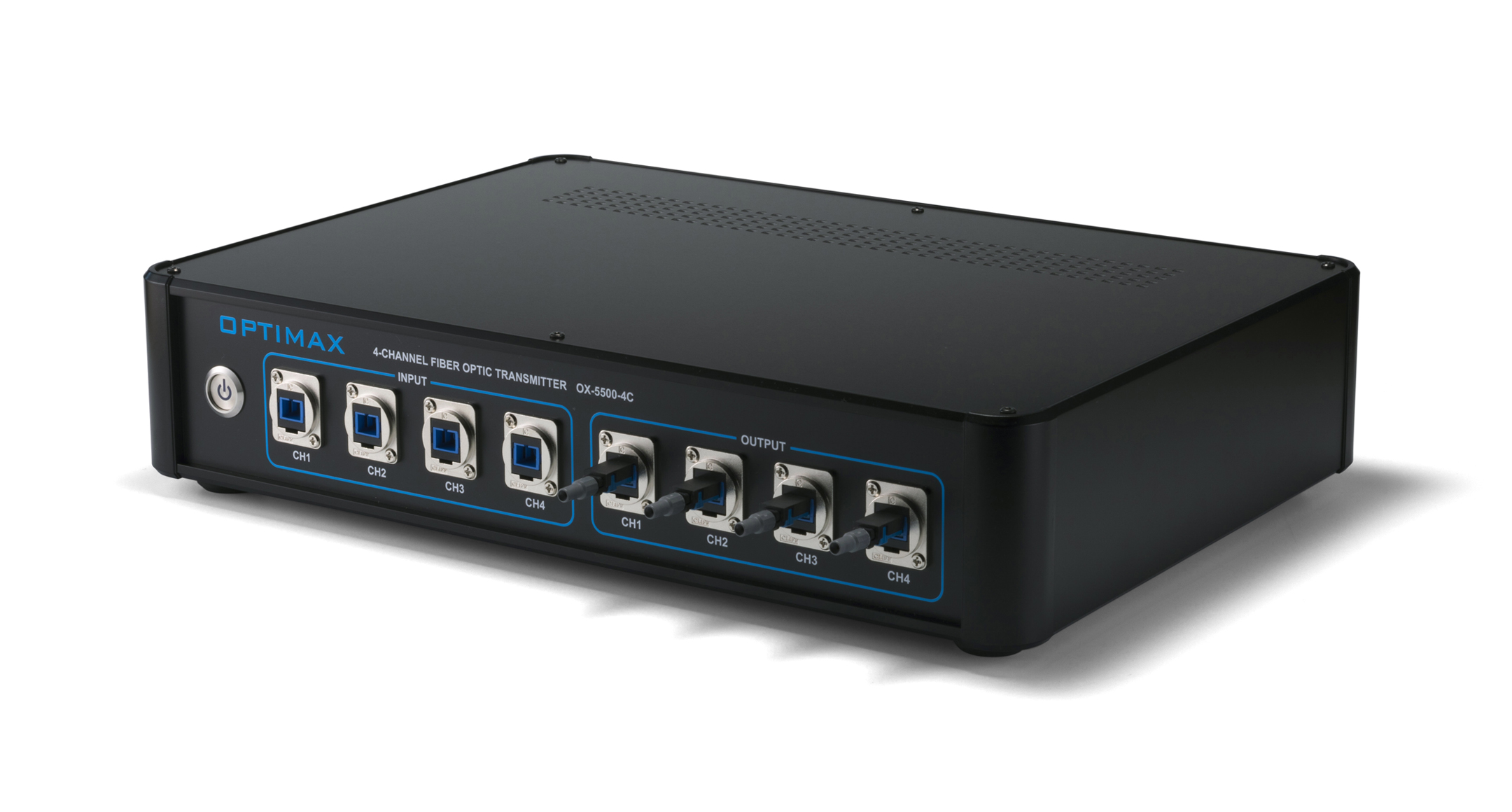

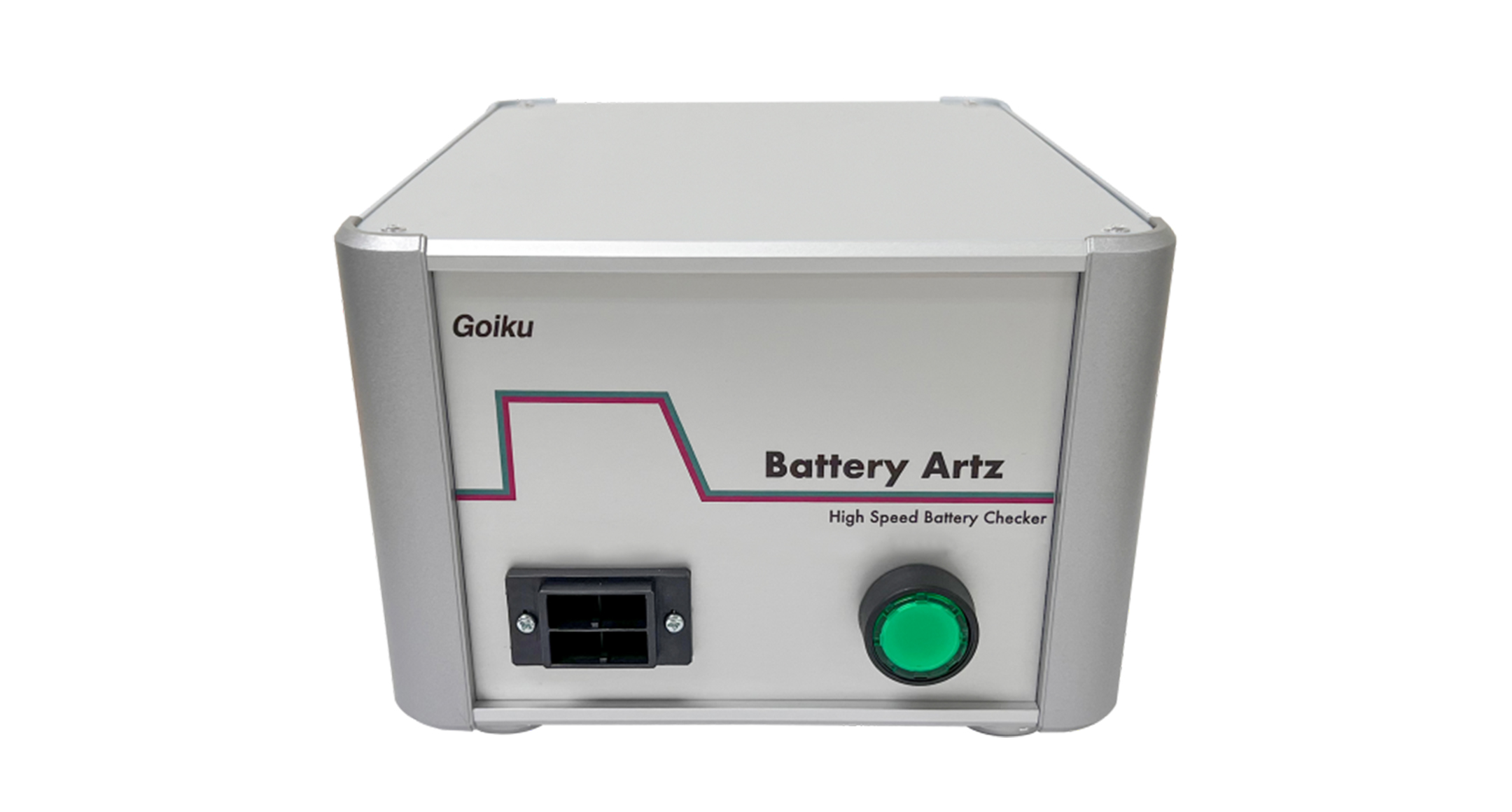

Versatile aluminium enclosure suitable for use as measuring instrument, controller, industrial embedded computer, power supply, audio amplifier, and so on.

A large selection of 172 different sizes.

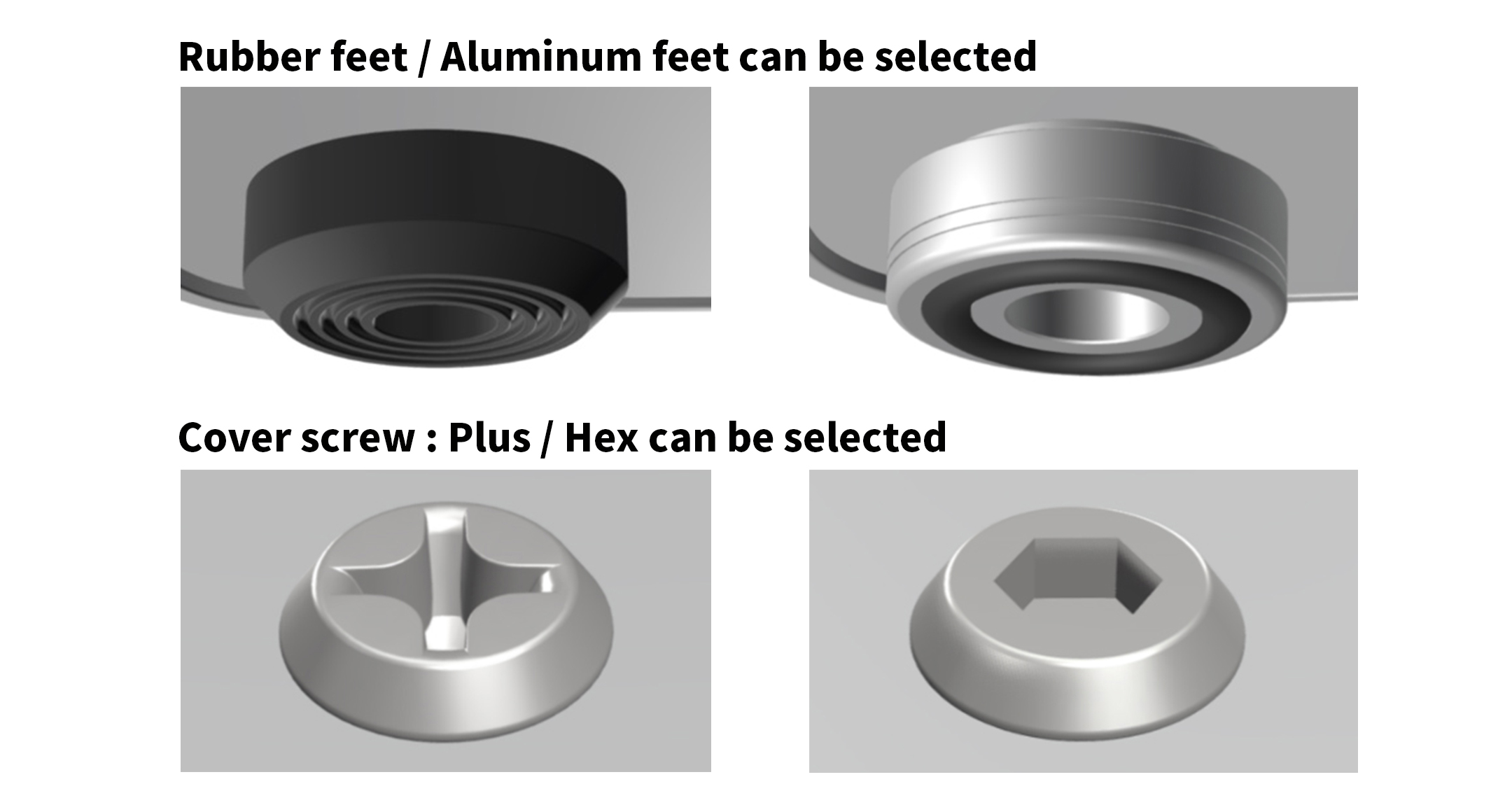

Feet is selectable between rubber or aluminium type.
Cover screw is selectable Plus head or Hex head.
3D View - AU44-20-20SS  3D View - AU66-20-20SS  3D View - AU88-43-25SB  3D View - AU133-20-20BS  3D View - AU133-20-30BB  Exploded View 

COLOR TYPE

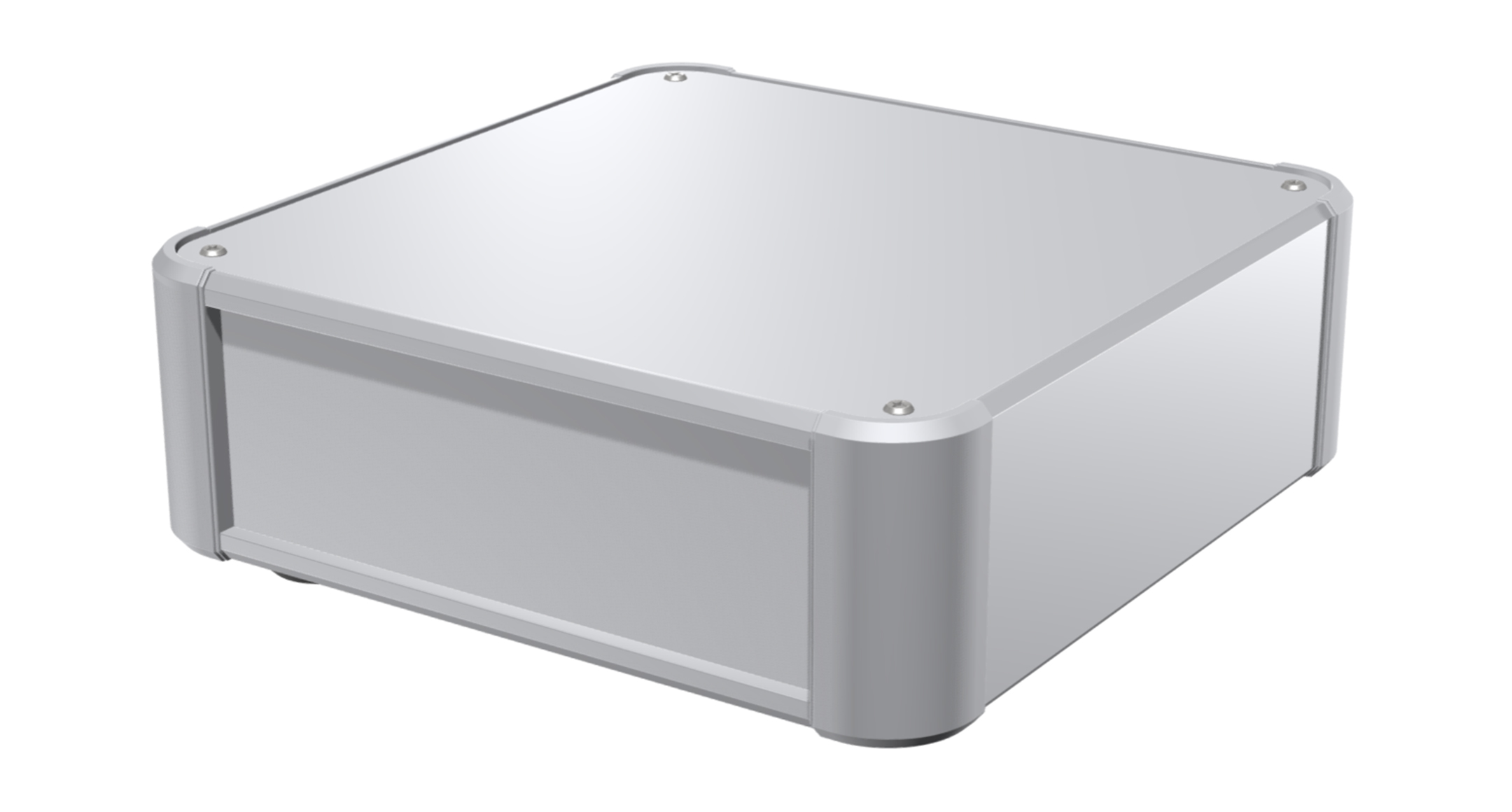

SSSilver

ALUMINIUM ENCLOSURE - AU series:Silver

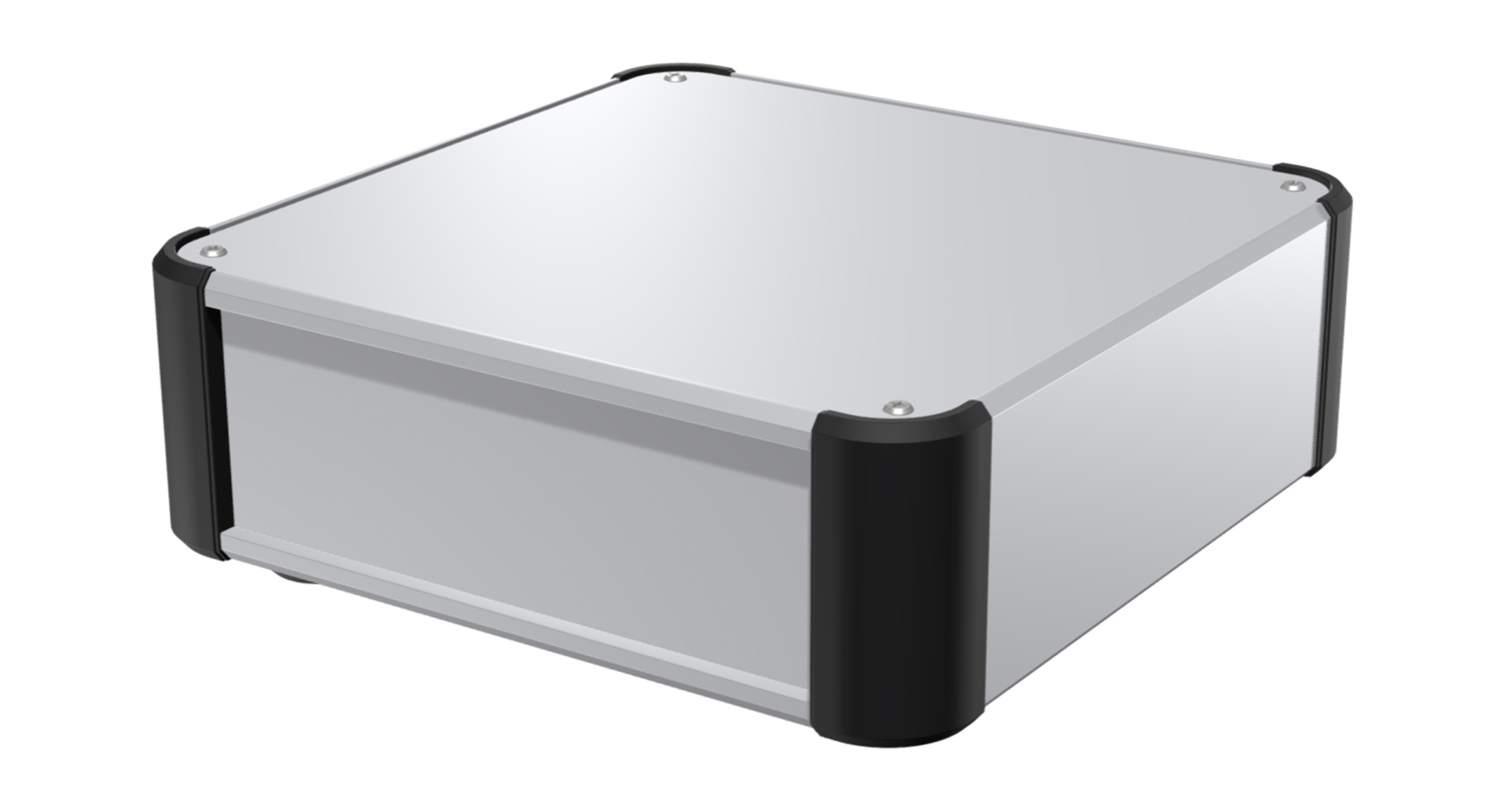

SBSilver / Black

ALUMINIUM ENCLOSURE - AU series:Silver / Black

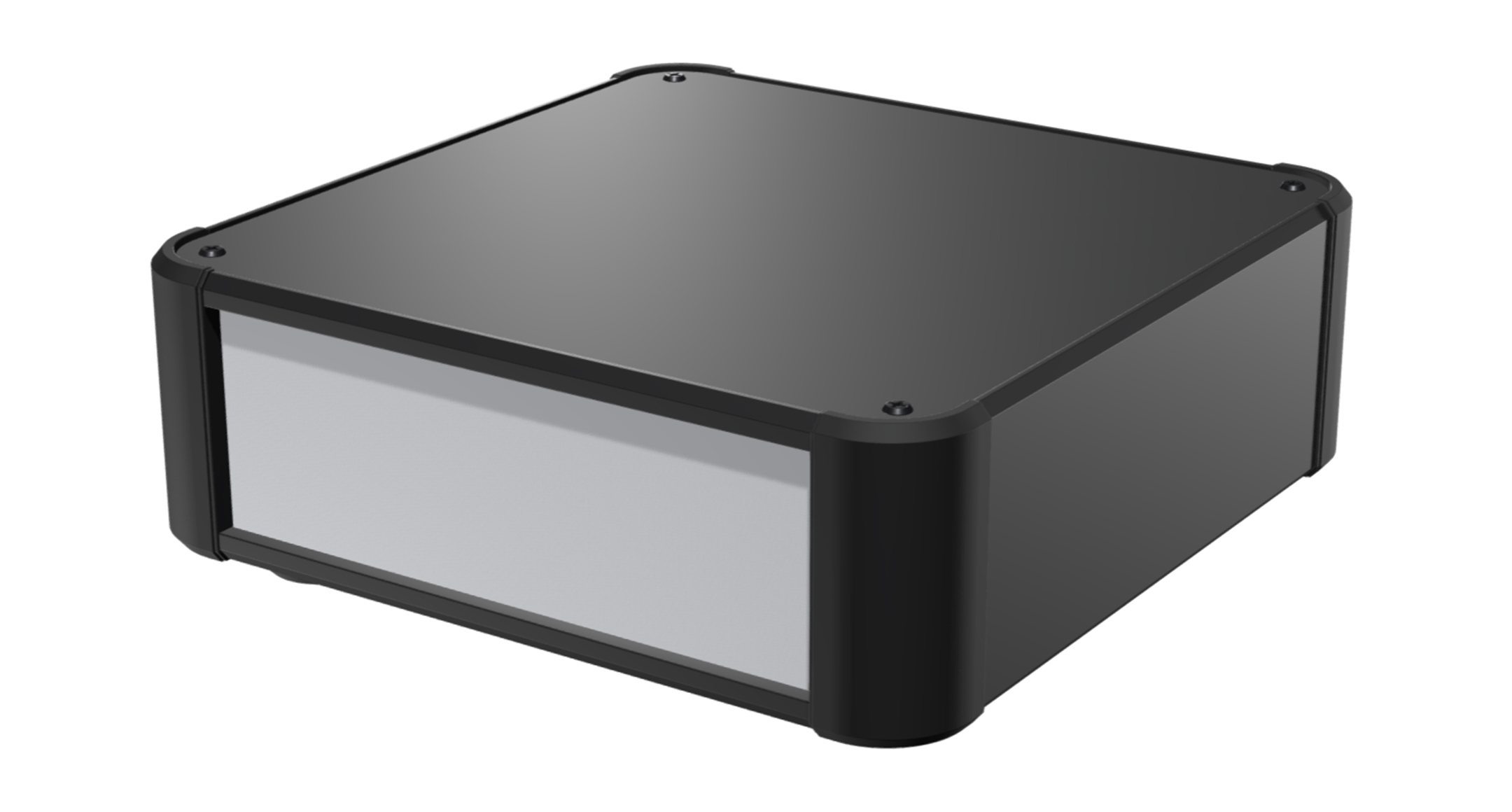

BSBlack / Silver

ALUMINIUM ENCLOSURE - AU series:Black / Silver

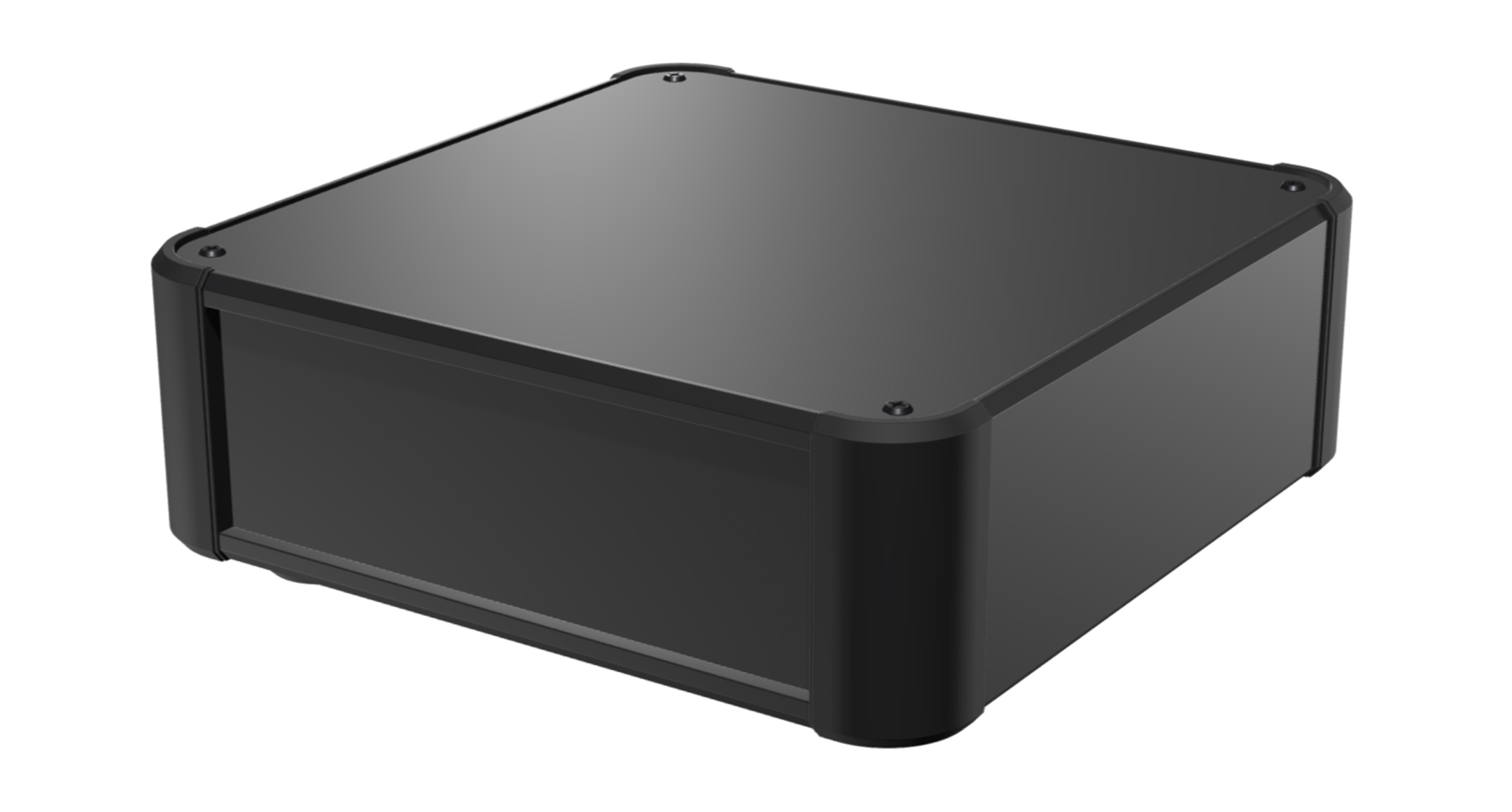

BBBlack

ALUMINIUM ENCLOSURE - AU series:Black
ALUMINIUM ENCLOSURE - AU series:Silver
ALUMINIUM ENCLOSURE - AU series:Silver / Black
ALUMINIUM ENCLOSURE - AU series:Black / Silver
ALUMINIUM ENCLOSURE - AU series:Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Feet Weight (kg) PDF DXF DWG STP
W H D w h d
AU44-16-16A□-□□ 160 44 160 153 37 146 Aluminium feet 0.7 PDF DXF DWG STP
AU44-16-16R□-□□ 160 44 160 153 37 146 Rubber feet 0.7 PDF DXF DWG STP
AU44-16-20A□-□□ 160 44 200 153 37 186 Aluminium feet 0.8 PDF DXF DWG STP
AU44-16-20R□-□□ 160 44 200 153 37 186 Rubber feet 0.8 PDF DXF DWG STP
AU44-16-25A□-□□ 160 44 250 153 37 236 Aluminium feet 1 PDF DXF DWG STP
AU44-16-25R□-□□ 160 44 250 153 37 236 Rubber feet 1 PDF DXF DWG STP
AU44-16-30A□-□□ 160 44 300 153 37 286 Aluminium feet 1.1 PDF DXF DWG STP
AU44-16-30R□-□□ 160 44 300 153 37 286 Rubber feet 1.1 PDF DXF DWG STP
AU44-16-36A□-□□ 160 44 360 153 37 346 Aluminium feet 1.3 PDF DXF DWG STP
AU44-16-36R□-□□ 160 44 360 153 37 346 Rubber feet 1.3 PDF DXF DWG STP
AU44-16-43A□-□□ 160 44 430 153 37 416 Aluminium feet 1.5 PDF DXF DWG STP
AU44-16-43R□-□□ 160 44 430 153 37 416 Rubber feet 1.5 PDF DXF DWG STP
AU44-20-16A□-□□ 200 44 160 193 37 146 Aluminium feet 0.8 PDF DXF DWG STP
AU44-20-16R□-□□ 200 44 160 193 37 146 Rubber feet 0.8 PDF DXF DWG STP
AU44-20-20A□-□□ 200 44 200 193 37 186 Aluminium feet 0.9 PDF DXF DWG STP
AU44-20-20R□-□□ 200 44 200 193 37 186 Rubber feet 0.9 PDF DXF DWG STP
AU44-20-25A□-□□ 200 44 250 193 37 236 Aluminium feet 1.1 PDF DXF DWG STP
AU44-20-25R□-□□ 200 44 250 193 37 236 Rubber feet 1.1 PDF DXF DWG STP
AU44-20-30A□-□□ 200 44 300 193 37 286 Aluminium feet 1.3 PDF DXF DWG STP
AU44-20-30R□-□□ 200 44 300 193 37 286 Rubber feet 1.3 PDF DXF DWG STP
AU44-20-36A□-□□ 200 44 360 193 37 346 Aluminium feet 1.5 PDF DXF DWG STP
AU44-20-36R□-□□ 200 44 360 193 37 346 Rubber feet 1.5 PDF DXF DWG STP
AU44-20-43A□-□□ 200 44 430 193 37 416 Aluminium feet 1.7 PDF DXF DWG STP
AU44-20-43R□-□□ 200 44 430 193 37 416 Rubber feet 1.7 PDF DXF DWG STP
AU44-25-16A□-□□ 250 44 160 243 37 146 Aluminium feet 1 PDF DXF DWG STP
AU44-25-16R□-□□ 250 44 160 243 37 146 Rubber feet 1 PDF DXF DWG STP
AU44-25-20A□-□□ 250 44 200 243 37 186 Aluminium feet 1.1 PDF DXF DWG STP
AU44-25-20R□-□□ 250 44 200 243 37 186 Rubber feet 1.1 PDF DXF DWG STP
AU44-25-25A□-□□ 250 44 250 243 37 236 Aluminium feet 1.3 PDF DXF DWG STP
AU44-25-25R□-□□ 250 44 250 243 37 236 Rubber feet 1.3 PDF DXF DWG STP
AU44-25-30A□-□□ 250 44 300 243 37 286 Aluminium feet 1.5 PDF DXF DWG STP
AU44-25-30R□-□□ 250 44 300 243 37 286 Rubber feet 1.5 PDF DXF DWG STP
AU44-25-36A□-□□ 250 44 360 243 37 346 Aluminium feet 1.7 PDF DXF DWG STP
AU44-25-36R□-□□ 250 44 360 243 37 346 Rubber feet 1.7 PDF DXF DWG STP
AU44-25-43A□-□□ 250 44 430 243 37 416 Aluminium feet 2 PDF DXF DWG STP
AU44-25-43R□-□□ 250 44 430 243 37 416 Rubber feet 2 PDF DXF DWG STP
AU44-30-16A□-□□ 300 44 160 293 37 146 Aluminium feet 1.1 PDF DXF DWG STP
AU44-30-16R□-□□ 300 44 160 293 37 146 Rubber feet 1.1 PDF DXF DWG STP
AU44-30-20A□-□□ 300 44 200 293 37 186 Aluminium feet 1.3 PDF DXF DWG STP
AU44-30-20R□-□□ 300 44 200 293 37 186 Rubber feet 1.3 PDF DXF DWG STP
AU44-30-25A□-□□ 300 44 250 293 37 236 Aluminium feet 1.5 PDF DXF DWG STP
AU44-30-25R□-□□ 300 44 250 293 37 236 Rubber feet 1.5 PDF DXF DWG STP
AU44-30-30A□-□□ 300 44 300 293 37 286 Aluminium feet 1.7 PDF DXF DWG STP
AU44-30-30R□-□□ 300 44 300 293 37 286 Rubber feet 1.7 PDF DXF DWG STP
AU44-30-36A□-□□ 300 44 360 293 37 346 Aluminium feet 2 PDF DXF DWG STP
AU44-30-36R□-□□ 300 44 360 293 37 346 Rubber feet 2 PDF DXF DWG STP
AU44-30-43A□-□□ 300 44 430 293 37 416 Aluminium feet 2.3 PDF DXF DWG STP
AU44-30-43R□-□□ 300 44 430 293 37 416 Rubber feet 2.3 PDF DXF DWG STP
AU44-30-50A□-□□ 300 44 500 293 37 486 Aluminium feet 2.6 PDF DXF DWG STP
AU44-30-50R□-□□ 300 44 500 293 37 486 Rubber feet 2.6 PDF DXF DWG STP
AU44-36-16A□-□□ 360 44 160 353 37 146 Aluminium feet 1.3 PDF DXF DWG STP
AU44-36-16R□-□□ 360 44 160 353 37 146 Rubber feet 1.3 PDF DXF DWG STP
AU44-36-20A□-□□ 360 44 200 353 37 186 Aluminium feet 1.5 PDF DXF DWG STP
AU44-36-20R□-□□ 360 44 200 353 37 186 Rubber feet 1.5 PDF DXF DWG STP
AU44-36-25A□-□□ 360 44 250 353 37 236 Aluminium feet 1.7 PDF DXF DWG STP
AU44-36-25R□-□□ 360 44 250 353 37 236 Rubber feet 1.7 PDF DXF DWG STP
AU44-36-30A□-□□ 360 44 300 353 37 286 Aluminium feet 2 PDF DXF DWG STP
AU44-36-30R□-□□ 360 44 300 353 37 286 Rubber feet 2 PDF DXF DWG STP
AU44-36-36A□-□□ 360 44 360 353 37 346 Aluminium feet 2.2 PDF DXF DWG STP
AU44-36-36R□-□□ 360 44 360 353 37 346 Rubber feet 2.2 PDF DXF DWG STP
AU44-36-43A□-□□ 360 44 430 353 37 416 Aluminium feet 2.6 PDF DXF DWG STP
AU44-36-43R□-□□ 360 44 430 353 37 416 Rubber feet 2.6 PDF DXF DWG STP
AU44-36-50A□-□□ 360 44 500 353 37 486 Aluminium feet 3 PDF DXF DWG STP
AU44-36-50R□-□□ 360 44 500 353 37 486 Rubber feet 3 PDF DXF DWG STP
AU44-43-16A□-□□ 430 44 160 423 37 146 Aluminium feet 1.5 PDF DXF DWG STP
AU44-43-16R□-□□ 430 44 160 423 37 146 Rubber feet 1.5 PDF DXF DWG STP
AU44-43-20A□-□□ 430 44 200 423 37 186 Aluminium feet 1.7 PDF DXF DWG STP
AU44-43-20R□-□□ 430 44 200 423 37 186 Rubber feet 1.7 PDF DXF DWG STP
AU44-43-25A□-□□ 430 44 250 423 37 236 Aluminium feet 2 PDF DXF DWG STP
AU44-43-25R□-□□ 430 44 250 423 37 236 Rubber feet 2 PDF DXF DWG STP
AU44-43-30A□-□□ 430 44 300 423 37 286 Aluminium feet 2.3 PDF DXF DWG STP
AU44-43-30R□-□□ 430 44 300 423 37 286 Rubber feet 2.3 PDF DXF DWG STP
AU44-43-36A□-□□ 430 44 360 423 37 346 Aluminium feet 2.6 PDF DXF DWG STP
AU44-43-36R□-□□ 430 44 360 423 37 346 Rubber feet 2.6 PDF DXF DWG STP
AU44-43-43A□-□□ 430 44 430 423 37 416 Aluminium feet 3 PDF DXF DWG STP
AU44-43-43R□-□□ 430 44 430 423 37 416 Rubber feet 3 PDF DXF DWG STP
AU44-43-50A□-□□ 430 44 500 423 37 486 Aluminium feet 3.4 PDF DXF DWG STP
AU44-43-50R□-□□ 430 44 500 423 37 486 Rubber feet 3.4 PDF DXF DWG STP
AU44-50-30A□-□□ 500 44 300 493 37 286 Aluminium feet 2.6 PDF DXF DWG STP
AU44-50-30R□-□□ 500 44 300 493 37 286 Rubber feet 2.6 PDF DXF DWG STP
AU44-50-36A□-□□ 500 44 360 493 37 346 Aluminium feet 3 PDF DXF DWG STP
AU44-50-36R□-□□ 500 44 360 493 37 346 Rubber feet 3 PDF DXF DWG STP
AU44-50-43A□-□□ 500 44 430 493 37 416 Aluminium feet 3.4 PDF DXF DWG STP
AU44-50-43R□-□□ 500 44 430 493 37 416 Rubber feet 3.4 PDF DXF DWG STP
AU44-50-50A□-□□ 500 44 500 493 37 486 Aluminium feet 3.9 PDF DXF DWG STP
AU44-50-50R□-□□ 500 44 500 493 37 486 Rubber feet 3.9 PDF DXF DWG STP
AU66-16-16A□-□□ 160 66 160 153 59 146 Aluminium feet 0.9 PDF DXF DWG STP
AU66-16-16R□-□□ 160 66 160 153 59 146 Rubber feet 0.9 PDF DXF DWG STP
AU66-16-20A□-□□ 160 66 200 153 59 186 Aluminium feet 1 PDF DXF DWG STP
AU66-16-20R□-□□ 160 66 200 153 59 186 Rubber feet 1 PDF DXF DWG STP
AU66-16-25A□-□□ 160 66 250 153 59 236 Aluminium feet 1.2 PDF DXF DWG STP
AU66-16-25R□-□□ 160 66 250 153 59 236 Rubber feet 1.2 PDF DXF DWG STP
AU66-16-30A□-□□ 160 66 300 153 59 286 Aluminium feet 1.3 PDF DXF DWG STP
AU66-16-30R□-□□ 160 66 300 153 59 286 Rubber feet 1.3 PDF DXF DWG STP
AU66-16-36A□-□□ 160 66 360 153 59 346 Aluminium feet 1.5 PDF DXF DWG STP
AU66-16-36R□-□□ 160 66 360 153 59 346 Rubber feet 1.5 PDF DXF DWG STP
AU66-16-43A□-□□ 160 66 430 153 59 416 Aluminium feet 1.7 PDF DXF DWG STP
AU66-16-43R□-□□ 160 66 430 153 59 416 Rubber feet 1.7 PDF DXF DWG STP
AU66-20-16A□-□□ 200 66 160 193 59 146 Aluminium feet 1 PDF DXF DWG STP
AU66-20-16R□-□□ 200 66 160 193 59 146 Rubber feet 1 PDF DXF DWG STP
AU66-20-20A□-□□ 200 66 200 193 59 186 Aluminium feet 1.1 PDF DXF DWG STP
AU66-20-20R□-□□ 200 66 200 193 59 186 Rubber feet 1.1 PDF DXF DWG STP
AU66-20-25A□-□□ 200 66 250 193 59 236 Aluminium feet 1.3 PDF DXF DWG STP
AU66-20-25R□-□□ 200 66 250 193 59 236 Rubber feet 1.3 PDF DXF DWG STP
AU66-20-30A□-□□ 200 66 300 193 59 286 Aluminium feet 1.5 PDF DXF DWG STP
AU66-20-30R□-□□ 200 66 300 193 59 286 Rubber feet 1.5 PDF DXF DWG STP
AU66-20-36A□-□□ 200 66 360 193 59 346 Aluminium feet 1.7 PDF DXF DWG STP
AU66-20-36R□-□□ 200 66 360 193 59 346 Rubber feet 1.7 PDF DXF DWG STP
AU66-20-43A□-□□ 200 66 430 193 59 416 Aluminium feet 2 PDF DXF DWG STP
AU66-20-43R□-□□ 200 66 430 193 59 416 Rubber feet 2 PDF DXF DWG STP
AU66-25-16A□-□□ 250 66 160 243 59 146 Aluminium feet 1.1 PDF DXF DWG STP
AU66-25-16R□-□□ 250 66 160 243 59 146 Rubber feet 1.1 PDF DXF DWG STP
AU66-25-20A□-□□ 250 66 200 243 59 186 Aluminium feet 1.3 PDF DXF DWG STP
AU66-25-20R□-□□ 250 66 200 243 59 186 Rubber feet 1.3 PDF DXF DWG STP
AU66-25-25A□-□□ 250 66 250 243 59 236 Aluminium feet 1.5 PDF DXF DWG STP
AU66-25-25R□-□□ 250 66 250 243 59 236 Rubber feet 1.5 PDF DXF DWG STP
AU66-25-30A□-□□ 250 66 300 243 59 286 Aluminium feet 1.7 PDF DXF DWG STP
AU66-25-30R□-□□ 250 66 300 243 59 286 Rubber feet 1.7 PDF DXF DWG STP
AU66-25-36A□-□□ 250 66 360 243 59 346 Aluminium feet 2 PDF DXF DWG STP
AU66-25-36R□-□□ 250 66 360 243 59 346 Rubber feet 2 PDF DXF DWG STP
AU66-25-43A□-□□ 250 66 430 243 59 416 Aluminium feet 2.3 PDF DXF DWG STP
AU66-25-43R□-□□ 250 66 430 243 59 416 Rubber feet 2.3 PDF DXF DWG STP
AU66-30-16A□-□□ 300 66 160 293 59 146 Aluminium feet 1.3 PDF DXF DWG STP
AU66-30-16R□-□□ 300 66 160 293 59 146 Rubber feet 1.3 PDF DXF DWG STP
AU66-30-20A□-□□ 300 66 200 293 59 186 Aluminium feet 1.5 PDF DXF DWG STP
AU66-30-20R□-□□ 300 66 200 293 59 186 Rubber feet 1.5 PDF DXF DWG STP
AU66-30-25A□-□□ 300 66 250 293 59 236 Aluminium feet 1.7 PDF DXF DWG STP
AU66-30-25R□-□□ 300 66 250 293 59 236 Rubber feet 1.7 PDF DXF DWG STP
AU66-30-30A□-□□ 300 66 300 293 59 286 Aluminium feet 1.9 PDF DXF DWG STP
AU66-30-30R□-□□ 300 66 300 293 59 286 Rubber feet 1.9 PDF DXF DWG STP
AU66-30-36A□-□□ 300 66 360 293 59 346 Aluminium feet 2.2 PDF DXF DWG STP
AU66-30-36R□-□□ 300 66 360 293 59 346 Rubber feet 2.2 PDF DXF DWG STP
AU66-30-43A□-□□ 300 66 430 293 59 416 Aluminium feet 2.6 PDF DXF DWG STP
AU66-30-43R□-□□ 300 66 430 293 59 416 Rubber feet 2.6 PDF DXF DWG STP
AU66-30-50A□-□□ 300 66 500 293 59 486 Aluminium feet 2.9 PDF DXF DWG STP
AU66-30-50R□-□□ 300 66 500 293 59 486 Rubber feet 2.9 PDF DXF DWG STP
AU66-36-16A□-□□ 360 66 160 353 59 146 Aluminium feet 1.5 PDF DXF DWG STP
AU66-36-16R□-□□ 360 66 160 353 59 146 Rubber feet 1.5 PDF DXF DWG STP
AU66-36-20A□-□□ 360 66 200 353 59 186 Aluminium feet 1.7 PDF DXF DWG STP
AU66-36-20R□-□□ 360 66 200 353 59 186 Rubber feet 1.7 PDF DXF DWG STP
AU66-36-25A□-□□ 360 66 250 353 59 236 Aluminium feet 1.9 PDF DXF DWG STP
AU66-36-25R□-□□ 360 66 250 353 59 236 Rubber feet 1.9 PDF DXF DWG STP
AU66-36-30A□-□□ 360 66 300 353 59 286 Aluminium feet 2.2 PDF DXF DWG STP
AU66-36-30R□-□□ 360 66 300 353 59 286 Rubber feet 2.2 PDF DXF DWG STP
AU66-36-36A□-□□ 360 66 360 353 59 346 Aluminium feet 2.5 PDF DXF DWG STP
AU66-36-36R□-□□ 360 66 360 353 59 346 Rubber feet 2.5 PDF DXF DWG STP
AU66-36-43A□-□□ 360 66 430 353 59 416 Aluminium feet 2.9 PDF DXF DWG STP
AU66-36-43R□-□□ 360 66 430 353 59 416 Rubber feet 2.9 PDF DXF DWG STP
AU66-36-50A□-□□ 360 66 500 353 59 486 Aluminium feet 3.3 PDF DXF DWG STP
AU66-36-50R□-□□ 360 66 500 353 59 486 Rubber feet 3.3 PDF DXF DWG STP
AU66-43-16A□-□□ 430 66 160 423 59 146 Aluminium feet 1.7 PDF DXF DWG STP
AU66-43-16R□-□□ 430 66 160 423 59 146 Rubber feet 1.7 PDF DXF DWG STP
AU66-43-20A□-□□ 430 66 200 423 59 186 Aluminium feet 1.9 PDF DXF DWG STP
AU66-43-20R□-□□ 430 66 200 423 59 186 Rubber feet 1.9 PDF DXF DWG STP
AU66-43-25A□-□□ 430 66 250 423 59 236 Aluminium feet 2.2 PDF DXF DWG STP
AU66-43-25R□-□□ 430 66 250 423 59 236 Rubber feet 2.2 PDF DXF DWG STP
AU66-43-30A□-□□ 430 66 300 423 59 286 Aluminium feet 2.5 PDF DXF DWG STP
AU66-43-30R□-□□ 430 66 300 423 59 286 Rubber feet 2.5 PDF DXF DWG STP
AU66-43-36A□-□□ 430 66 360 423 59 346 Aluminium feet 2.9 PDF DXF DWG STP
AU66-43-36R□-□□ 430 66 360 423 59 346 Rubber feet 2.9 PDF DXF DWG STP
AU66-43-43A□-□□ 430 66 430 423 59 416 Aluminium feet 3.3 PDF DXF DWG STP
AU66-43-43R□-□□ 430 66 430 423 59 416 Rubber feet 3.3 PDF DXF DWG STP
AU66-43-50A□-□□ 430 66 500 423 59 486 Aluminium feet 3.7 PDF DXF DWG STP
AU66-43-50R□-□□ 430 66 500 423 59 486 Rubber feet 3.7 PDF DXF DWG STP
AU66-50-30A□-□□ 500 66 300 493 59 286 Aluminium feet 2.8 PDF DXF DWG STP
AU66-50-30R□-□□ 500 66 300 493 59 286 Rubber feet 2.8 PDF DXF DWG STP
AU66-50-36A□-□□ 500 66 360 493 59 346 Aluminium feet 3.3 PDF DXF DWG STP
AU66-50-36R□-□□ 500 66 360 493 59 346 Rubber feet 3.3 PDF DXF DWG STP
AU66-50-43A□-□□ 500 66 430 493 59 416 Aluminium feet 3.7 PDF DXF DWG STP
AU66-50-43R□-□□ 500 66 430 493 59 416 Rubber feet 3.7 PDF DXF DWG STP
AU66-50-50A□-□□ 500 66 500 493 59 486 Aluminium feet 4.2 PDF DXF DWG STP
AU66-50-50R□-□□ 500 66 500 493 59 486 Rubber feet 4.2 PDF DXF DWG STP
AU88-16-16A□-□□ 160 88 160 153 81 146 Aluminium feet 0.9 PDF DXF DWG STP
AU88-16-16R□-□□ 160 88 160 153 81 146 Rubber feet 0.9 PDF DXF DWG STP
AU88-16-20A□-□□ 160 88 200 153 81 186 Aluminium feet 1.1 PDF DXF DWG STP
AU88-16-20R□-□□ 160 88 200 153 81 186 Rubber feet 1.1 PDF DXF DWG STP
AU88-16-25A□-□□ 160 88 250 153 81 236 Aluminium feet 1.3 PDF DXF DWG STP
AU88-16-25R□-□□ 160 88 250 153 81 236 Rubber feet 1.3 PDF DXF DWG STP
AU88-16-30A□-□□ 160 88 300 153 81 286 Aluminium feet 1.4 PDF DXF DWG STP
AU88-16-30R□-□□ 160 88 300 153 81 286 Rubber feet 1.4 PDF DXF DWG STP
AU88-16-36A□-□□ 160 88 360 153 81 346 Aluminium feet 1.7 PDF DXF DWG STP
AU88-16-36R□-□□ 160 88 360 153 81 346 Rubber feet 1.7 PDF DXF DWG STP
AU88-16-43A□-□□ 160 88 430 153 81 416 Aluminium feet 1.9 PDF DXF DWG STP
AU88-16-43R□-□□ 160 88 430 153 81 416 Rubber feet 1.9 PDF DXF DWG STP
AU88-20-16A□-□□ 200 88 160 193 81 146 Aluminium feet 1.1 PDF DXF DWG STP
AU88-20-16R□-□□ 200 88 160 193 81 146 Rubber feet 1.1 PDF DXF DWG STP
AU88-20-20A□-□□ 200 88 200 193 81 186 Aluminium feet 1.2 PDF DXF DWG STP
AU88-20-20R□-□□ 200 88 200 193 81 186 Rubber feet 1.2 PDF DXF DWG STP
AU88-20-25A□-□□ 200 88 250 193 81 236 Aluminium feet 1.4 PDF DXF DWG STP
AU88-20-25R□-□□ 200 88 250 193 81 236 Rubber feet 1.4 PDF DXF DWG STP
AU88-20-30A□-□□ 200 88 300 193 81 286 Aluminium feet 1.6 PDF DXF DWG STP
AU88-20-30R□-□□ 200 88 300 193 81 286 Rubber feet 1.6 PDF DXF DWG STP
AU88-20-36A□-□□ 200 88 360 193 81 346 Aluminium feet 1.8 PDF DXF DWG STP
AU88-20-36R□-□□ 200 88 360 193 81 346 Rubber feet 1.8 PDF DXF DWG STP
AU88-20-43A□-□□ 200 88 430 193 81 416 Aluminium feet 2.1 PDF DXF DWG STP
AU88-20-43R□-□□ 200 88 430 193 81 416 Rubber feet 2.1 PDF DXF DWG STP
AU88-25-16A□-□□ 250 88 160 243 81 146 Aluminium feet 1.2 PDF DXF DWG STP
AU88-25-16R□-□□ 250 88 160 243 81 146 Rubber feet 1.2 PDF DXF DWG STP
AU88-25-20A□-□□ 250 88 200 243 81 186 Aluminium feet 1.4 PDF DXF DWG STP
AU88-25-20R□-□□ 250 88 200 243 81 186 Rubber feet 1.4 PDF DXF DWG STP
AU88-25-25A□-□□ 250 88 250 243 81 236 Aluminium feet 1.6 PDF DXF DWG STP
AU88-25-25R□-□□ 250 88 250 243 81 236 Rubber feet 1.6 PDF DXF DWG STP
AU88-25-30A□-□□ 250 88 300 243 81 286 Aluminium feet 1.8 PDF DXF DWG STP
AU88-25-30R□-□□ 250 88 300 243 81 286 Rubber feet 1.8 PDF DXF DWG STP
AU88-25-36A□-□□ 250 88 360 243 81 346 Aluminium feet 2.1 PDF DXF DWG STP
AU88-25-36R□-□□ 250 88 360 243 81 346 Rubber feet 2.1 PDF DXF DWG STP
AU88-25-43A□-□□ 250 88 430 243 81 416 Aluminium feet 2.4 PDF DXF DWG STP
AU88-25-43R□-□□ 250 88 430 243 81 416 Rubber feet 2.4 PDF DXF DWG STP
AU88-30-16A□-□□ 300 88 160 293 81 146 Aluminium feet 1.4 PDF DXF DWG STP
AU88-30-16R□-□□ 300 88 160 293 81 146 Rubber feet 1.4 PDF DXF DWG STP
AU88-30-20A□-□□ 300 88 200 293 81 186 Aluminium feet 1.6 PDF DXF DWG STP
AU88-30-20R□-□□ 300 88 200 293 81 186 Rubber feet 1.6 PDF DXF DWG STP
AU88-30-25A□-□□ 300 88 250 293 81 236 Aluminium feet 1.8 PDF DXF DWG STP
AU88-30-25R□-□□ 300 88 250 293 81 236 Rubber feet 1.8 PDF DXF DWG STP
AU88-30-30A□-□□ 300 88 300 293 81 286 Aluminium feet 2.1 PDF DXF DWG STP
AU88-30-30R□-□□ 300 88 300 293 81 286 Rubber feet 2.1 PDF DXF DWG STP
AU88-30-36A□-□□ 300 88 360 293 81 346 Aluminium feet 2.4 PDF DXF DWG STP
AU88-30-36R□-□□ 300 88 360 293 81 346 Rubber feet 2.4 PDF DXF DWG STP
AU88-30-43A□-□□ 300 88 430 293 81 416 Aluminium feet 2.7 PDF DXF DWG STP
AU88-30-43R□-□□ 300 88 430 293 81 416 Rubber feet 2.7 PDF DXF DWG STP
AU88-30-50A□-□□ 300 88 500 293 81 486 Aluminium feet 3.1 PDF DXF DWG STP
AU88-30-50R□-□□ 300 88 500 293 81 486 Rubber feet 3.1 PDF DXF DWG STP
AU88-36-16A□-□□ 360 88 160 353 81 146 Aluminium feet 1.6 PDF DXF DWG STP
AU88-36-16R□-□□ 360 88 160 353 81 146 Rubber feet 1.6 PDF DXF DWG STP
AU88-36-20A□-□□ 360 88 200 353 81 186 Aluminium feet 1.8 PDF DXF DWG STP
AU88-36-20R□-□□ 360 88 200 353 81 186 Rubber feet 1.8 PDF DXF DWG STP
AU88-36-25A□-□□ 360 88 250 353 81 236 Aluminium feet 2.1 PDF DXF DWG STP
AU88-36-25R□-□□ 360 88 250 353 81 236 Rubber feet 2.1 PDF DXF DWG STP
AU88-36-30A□-□□ 360 88 300 353 81 286 Aluminium feet 2.3 PDF DXF DWG STP
AU88-36-30R□-□□ 360 88 300 353 81 286 Rubber feet 2.3 PDF DXF DWG STP
AU88-36-36A□-□□ 360 88 360 353 81 346 Aluminium feet 2.7 PDF DXF DWG STP
AU88-36-36R□-□□ 360 88 360 353 81 346 Rubber feet 2.7 PDF DXF DWG STP
AU88-36-43A□-□□ 360 88 430 353 81 416 Aluminium feet 3.1 PDF DXF DWG STP
AU88-36-43R□-□□ 360 88 430 353 81 416 Rubber feet 3.1 PDF DXF DWG STP
AU88-36-50A□-□□ 360 88 500 353 81 486 Aluminium feet 3.5 PDF DXF DWG STP
AU88-36-50R□-□□ 360 88 500 353 81 486 Rubber feet 3.5 PDF DXF DWG STP
AU88-43-16A□-□□ 430 88 160 423 81 146 Aluminium feet 1.8 PDF DXF DWG STP
AU88-43-16R□-□□ 430 88 160 423 81 146 Rubber feet 1.8 PDF DXF DWG STP
AU88-43-20A□-□□ 430 88 200 423 81 186 Aluminium feet 2.1 PDF DXF DWG STP
AU88-43-20R□-□□ 430 88 200 423 81 186 Rubber feet 2.1 PDF DXF DWG STP
AU88-43-25A□-□□ 430 88 250 423 81 236 Aluminium feet 2.4 PDF DXF DWG STP
AU88-43-25R□-□□ 430 88 250 423 81 236 Rubber feet 2.4 PDF DXF DWG STP
AU88-43-30A□-□□ 430 88 300 423 81 286 Aluminium feet 2.7 PDF DXF DWG STP
AU88-43-30R□-□□ 430 88 300 423 81 286 Rubber feet 2.7 PDF DXF DWG STP
AU88-43-36A□-□□ 430 88 360 423 81 346 Aluminium feet 3.1 PDF DXF DWG STP
AU88-43-36R□-□□ 430 88 360 423 81 346 Rubber feet 3.1 PDF DXF DWG STP
AU88-43-43A□-□□ 430 88 430 423 81 416 Aluminium feet 3.5 PDF DXF DWG STP
AU88-43-43R□-□□ 430 88 430 423 81 416 Rubber feet 3.5 PDF DXF DWG STP
AU88-43-50A□-□□ 430 88 500 423 81 486 Aluminium feet 4 PDF DXF DWG STP
AU88-43-50R□-□□ 430 88 500 423 81 486 Rubber feet 4 PDF DXF DWG STP
AU88-50-30A□-□□ 500 88 300 493 81 286 Aluminium feet 3 PDF DXF DWG STP
AU88-50-30R□-□□ 500 88 300 493 81 286 Rubber feet 3 PDF DXF DWG STP
AU88-50-36A□-□□ 500 88 360 493 81 346 Aluminium feet 3.4 PDF DXF DWG STP
AU88-50-36R□-□□ 500 88 360 493 81 346 Rubber feet 3.4 PDF DXF DWG STP
AU88-50-43A□-□□ 500 88 430 493 81 416 Aluminium feet 3.9 PDF DXF DWG STP
AU88-50-43R□-□□ 500 88 430 493 81 416 Rubber feet 3.9 PDF DXF DWG STP
AU88-50-50A□-□□ 500 88 500 493 81 486 Aluminium feet 4.4 PDF DXF DWG STP
AU88-50-50R□-□□ 500 88 500 493 81 486 Rubber feet 4.4 PDF DXF DWG STP
AU133-16-16A□-□□ 160 132.5 160 152 126 146 Aluminium feet 1.2 PDF DXF DWG STP
AU133-16-16R□-□□ 160 132.5 160 152 126 146 Rubber feet 1.2 PDF DXF DWG STP
AU133-16-20A□-□□ 160 132.5 200 152 126 186 Aluminium feet 1.4 PDF DXF DWG STP
AU133-16-20R□-□□ 160 132.5 200 152 126 186 Rubber feet 1.4 PDF DXF DWG STP
AU133-16-25A□-□□ 160 132.5 250 152 126 236 Aluminium feet 1.6 PDF DXF DWG STP
AU133-16-25R□-□□ 160 132.5 250 152 126 236 Rubber feet 1.6 PDF DXF DWG STP
AU133-16-30A□-□□ 160 132.5 300 152 126 286 Aluminium feet 1.8 PDF DXF DWG STP
AU133-16-30R□-□□ 160 132.5 300 152 126 286 Rubber feet 1.8 PDF DXF DWG STP
AU133-16-36A□-□□ 160 132.5 360 152 126 346 Aluminium feet 2.1 PDF DXF DWG STP
AU133-16-36R□-□□ 160 132.5 360 152 126 346 Rubber feet 2.1 PDF DXF DWG STP
AU133-16-43A□-□□ 160 132.5 430 152 126 416 Aluminium feet 2.4 PDF DXF DWG STP
AU133-16-43R□-□□ 160 132.5 430 152 126 416 Rubber feet 2.4 PDF DXF DWG STP
AU133-20-16A□-□□ 200 132.5 160 192 126 146 Aluminium feet 1.3 PDF DXF DWG STP
AU133-20-16R□-□□ 200 132.5 160 192 126 146 Rubber feet 1.3 PDF DXF DWG STP
AU133-20-20A□-□□ 200 132.5 200 192 126 186 Aluminium feet 1.5 PDF DXF DWG STP
AU133-20-20R□-□□ 200 132.5 200 192 126 186 Rubber feet 1.5 PDF DXF DWG STP
AU133-20-25A□-□□ 200 132.5 250 192 126 236 Aluminium feet 1.7 PDF DXF DWG STP
AU133-20-25R□-□□ 200 132.5 250 192 126 236 Rubber feet 1.7 PDF DXF DWG STP
AU133-20-30A□-□□ 200 132.5 300 192 126 286 Aluminium feet 2 PDF DXF DWG STP
AU133-20-30R□-□□ 200 132.5 300 192 126 286 Rubber feet 2 PDF DXF DWG STP
AU133-20-36A□-□□ 200 132.5 360 192 126 346 Aluminium feet 2.3 PDF DXF DWG STP
AU133-20-36R□-□□ 200 132.5 360 192 126 346 Rubber feet 2.3 PDF DXF DWG STP
AU133-20-43A□-□□ 200 132.5 430 192 126 416 Aluminium feet 2.6 PDF DXF DWG STP
AU133-20-43R□-□□ 200 132.5 430 192 126 416 Rubber feet 2.6 PDF DXF DWG STP
AU133-25-16A□-□□ 250 132.5 160 242 126 146 Aluminium feet 1.5 PDF DXF DWG STP
AU133-25-16R□-□□ 250 132.5 160 242 126 146 Rubber feet 1.5 PDF DXF DWG STP
AU133-25-20A□-□□ 250 132.5 200 242 126 186 Aluminium feet 1.7 PDF DXF DWG STP
AU133-25-20R□-□□ 250 132.5 200 242 126 186 Rubber feet 1.7 PDF DXF DWG STP
AU133-25-25A□-□□ 250 132.5 250 242 126 236 Aluminium feet 2 PDF DXF DWG STP
AU133-25-25R□-□□ 250 132.5 250 242 126 236 Rubber feet 2 PDF DXF DWG STP
AU133-25-30A□-□□ 250 132.5 300 242 126 286 Aluminium feet 2.2 PDF DXF DWG STP
AU133-25-30R□-□□ 250 132.5 300 242 126 286 Rubber feet 2.2 PDF DXF DWG STP
AU133-25-36A□-□□ 250 132.5 360 242 126 346 Aluminium feet 2.6 PDF DXF DWG STP
AU133-25-36R□-□□ 250 132.5 360 242 126 346 Rubber feet 2.6 PDF DXF DWG STP
AU133-25-43A□-□□ 250 132.5 430 242 126 416 Aluminium feet 3 PDF DXF DWG STP
AU133-25-43R□-□□ 250 132.5 430 242 126 416 Rubber feet 3 PDF DXF DWG STP
AU133-30-16A□-□□ 300 132.5 160 292 126 146 Aluminium feet 1.7 PDF DXF DWG STP
AU133-30-16R□-□□ 300 132.5 160 292 126 146 Rubber feet 1.7 PDF DXF DWG STP
AU133-30-20A□-□□ 300 132.5 200 292 126 186 Aluminium feet 1.9 PDF DXF DWG STP
AU133-30-20R□-□□ 300 132.5 200 292 126 186 Rubber feet 1.9 PDF DXF DWG STP
AU133-30-25A□-□□ 300 132.5 250 292 126 236 Aluminium feet 2.2 PDF DXF DWG STP
AU133-30-25R□-□□ 300 132.5 250 292 126 236 Rubber feet 2.2 PDF DXF DWG STP
AU133-30-30A□-□□ 300 132.5 300 292 126 286 Aluminium feet 2.5 PDF DXF DWG STP
AU133-30-30R□-□□ 300 132.5 300 292 126 286 Rubber feet 2.5 PDF DXF DWG STP
AU133-30-36A□-□□ 300 132.5 360 292 126 346 Aluminium feet 2.8 PDF DXF DWG STP
AU133-30-36R□-□□ 300 132.5 360 292 126 346 Rubber feet 2.8 PDF DXF DWG STP
AU133-30-43A□-□□ 300 132.5 430 292 126 416 Aluminium feet 3.3 PDF DXF DWG STP
AU133-30-43R□-□□ 300 132.5 430 292 126 416 Rubber feet 3.3 PDF DXF DWG STP
AU133-30-50A□-□□ 300 132.5 500 292 126 486 Aluminium feet 3.7 PDF DXF DWG STP
AU133-30-50R□-□□ 300 132.5 500 292 126 486 Rubber feet 3.7 PDF DXF DWG STP
AU133-36-16A□-□□ 360 132.5 160 352 126 146 Aluminium feet 1.9 PDF DXF DWG STP
AU133-36-16R□-□□ 360 132.5 160 352 126 146 Rubber feet 1.9 PDF DXF DWG STP
AU133-36-20A□-□□ 360 132.5 200 352 126 186 Aluminium feet 2.1 PDF DXF DWG STP
AU133-36-20R□-□□ 360 132.5 200 352 126 186 Rubber feet 2.1 PDF DXF DWG STP
AU133-36-25A□-□□ 360 132.5 250 352 126 236 Aluminium feet 2.5 PDF DXF DWG STP
AU133-36-25R□-□□ 360 132.5 250 352 126 236 Rubber feet 2.5 PDF DXF DWG STP
AU133-36-30A□-□□ 360 132.5 300 352 126 286 Aluminium feet 2.8 PDF DXF DWG STP
AU133-36-30R□-□□ 360 132.5 300 352 126 286 Rubber feet 2.8 PDF DXF DWG STP
AU133-36-36A□-□□ 360 132.5 360 352 126 346 Aluminium feet 3.2 PDF DXF DWG STP
AU133-36-36R□-□□ 360 132.5 360 352 126 346 Rubber feet 3.2 PDF DXF DWG STP
AU133-36-43A□-□□ 360 132.5 430 352 126 416 Aluminium feet 3.7 PDF DXF DWG STP
AU133-36-43R□-□□ 360 132.5 430 352 126 416 Rubber feet 3.7 PDF DXF DWG STP
AU133-36-50A□-□□ 360 132.5 500 352 126 486 Aluminium feet 4.1 PDF DXF DWG STP
AU133-36-50R□-□□ 360 132.5 500 352 126 486 Rubber feet 4.1 PDF DXF DWG STP
AU133-43-16A□-□□ 430 132.5 160 422 126 146 Aluminium feet 2.2 PDF DXF DWG STP
AU133-43-16R□-□□ 430 132.5 160 422 126 146 Rubber feet 2.2 PDF DXF DWG STP
AU133-43-20A□-□□ 430 132.5 200 422 126 186 Aluminium feet 2.4 PDF DXF DWG STP
AU133-43-20R□-□□ 430 132.5 200 422 126 186 Rubber feet 2.4 PDF DXF DWG STP
AU133-43-25A□-□□ 430 132.5 250 422 126 236 Aluminium feet 2.8 PDF DXF DWG STP
AU133-43-25R□-□□ 430 132.5 250 422 126 236 Rubber feet 2.8 PDF DXF DWG STP
AU133-43-30A□-□□ 430 132.5 300 422 126 286 Aluminium feet 3.2 PDF DXF DWG STP
AU133-43-30R□-□□ 430 132.5 300 422 126 286 Rubber feet 3.2 PDF DXF DWG STP
AU133-43-36A□-□□ 430 132.5 360 422 126 346 Aluminium feet 3.6 PDF DXF DWG STP
AU133-43-36R□-□□ 430 132.5 360 422 126 346 Rubber feet 3.6 PDF DXF DWG STP
AU133-43-43A□-□□ 430 132.5 430 422 126 416 Aluminium feet 4.1 PDF DXF DWG STP
AU133-43-43R□-□□ 430 132.5 430 422 126 416 Rubber feet 4.1 PDF DXF DWG STP
AU133-43-50A□-□□ 430 132.5 500 422 126 486 Aluminium feet 4.6 PDF DXF DWG STP
AU133-43-50R□-□□ 430 132.5 500 422 126 486 Rubber feet 4.6 PDF DXF DWG STP
AU133-50-30A□-□□ 500 132.5 300 492 126 286 Aluminium feet 3.5 PDF DXF DWG STP
AU133-50-30R□-□□ 500 132.5 300 492 126 286 Rubber feet 3.5 PDF DXF DWG STP
AU133-50-36A□-□□ 500 132.5 360 492 126 346 Aluminium feet 4 PDF DXF DWG STP
AU133-50-36R□-□□ 500 132.5 360 492 126 346 Rubber feet 4 PDF DXF DWG STP
AU133-50-43A□-□□ 500 132.5 430 492 126 416 Aluminium feet 4.6 PDF DXF DWG STP
AU133-50-43R□-□□ 500 132.5 430 492 126 416 Rubber feet 4.6 PDF DXF DWG STP
AU133-50-50A□-□□ 500 132.5 500 492 126 486 Aluminium feet 5.1 PDF DXF DWG STP
AU133-50-50R□-□□ 500 132.5 500 492 126 486 Rubber feet 5.1 PDF DXF DWG STP
Mounting plate (Option) PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-16 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-20 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-25 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-30 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-36 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC16-43 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-16 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-20 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-25 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-30 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-36 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC20-43 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-16 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-20 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-25 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-30 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-36 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC25-43 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-16 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-20 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-25 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-30 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-36 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-43 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC30-50 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-16 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-20 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-25 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-30 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-36 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-43 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC36-50 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-16 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-20 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-25 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-30 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-36 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-43 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC43-50 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-30 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-36 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-43 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP
AUC50-50 PDF DXF DWG STP

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
DETAILS
１
CORNER GUARD for AU□ series (for AU・AUP・AUPE・AUX・AUXE)
DETAILS
１
MONITOR ARM for AU□ series - MAR series
DETAILS
１
ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
１
TILT LEG - TLW series
DETAILS
１
FINGER GUARD - HF-G series
DETAILS

SIMILAR PRODUCT

１
ALUMINIUM ENCLOSURE with DETACHABLE PANELS - AUP series
DETAILS
１
EMC SHIELDED ENCLOSURE with DETACHABLE PANELS - AUPE series
DETAILS
１
ALUMINIUM CONTROL BOX - AUX series
DETAILS
１
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
DETAILS
１
HIGH-END DESIGN ALUMINUM CASE - HD series
DETAILS
１
ARC DESIGN ALUMINIUM ENCLOSURE - ALR series
DETAILS
１
EXTRUDED ALUMINUM ENCLOSURE - EX series
DETAILS
１
METAL INSTRUMENT ENCLOSURE - MS series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
