CATEGORY：IP68 SNAP-LOCK MICRO PANEL-MOUNT CONNECTOR - THB381E series

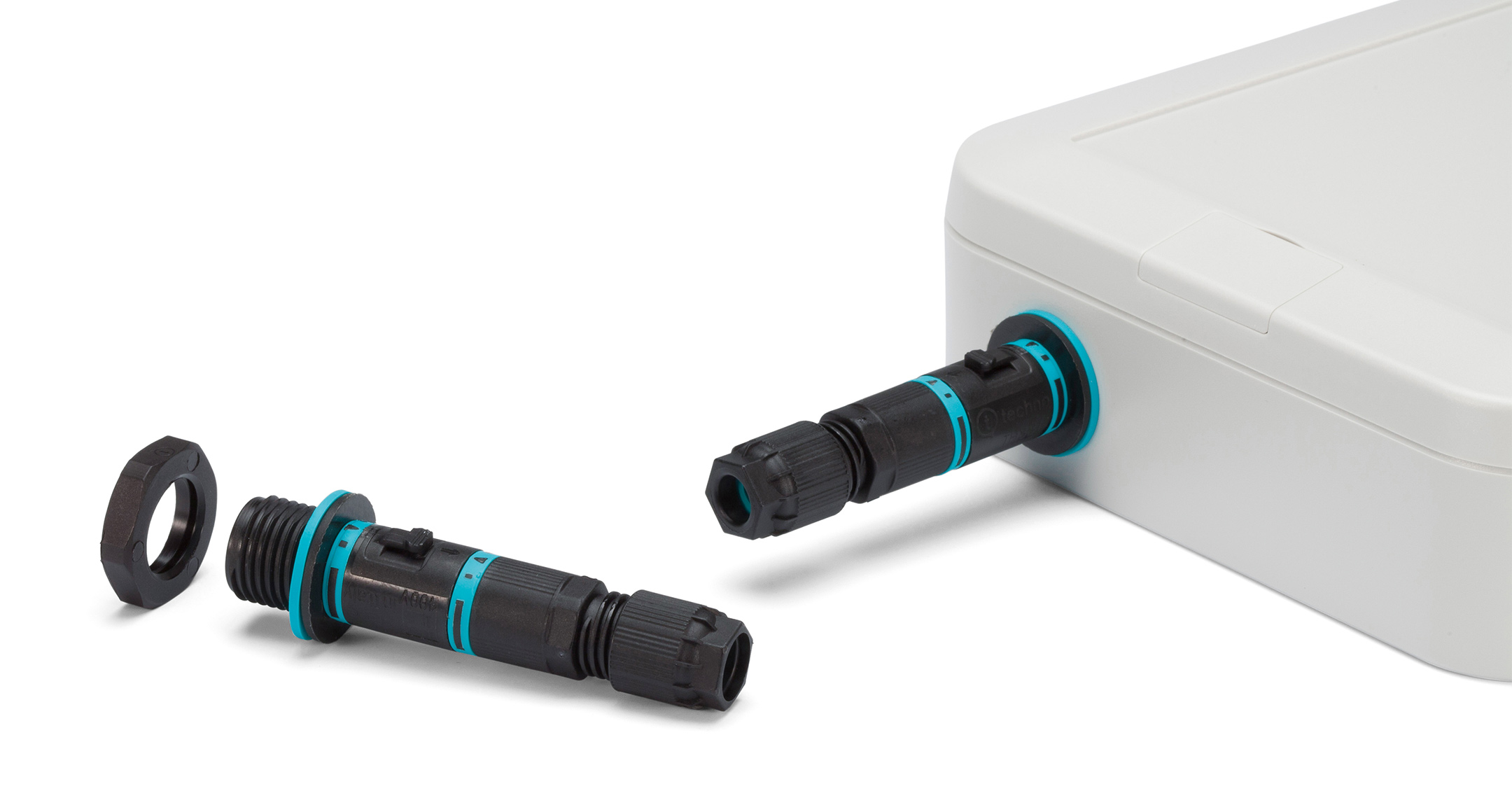

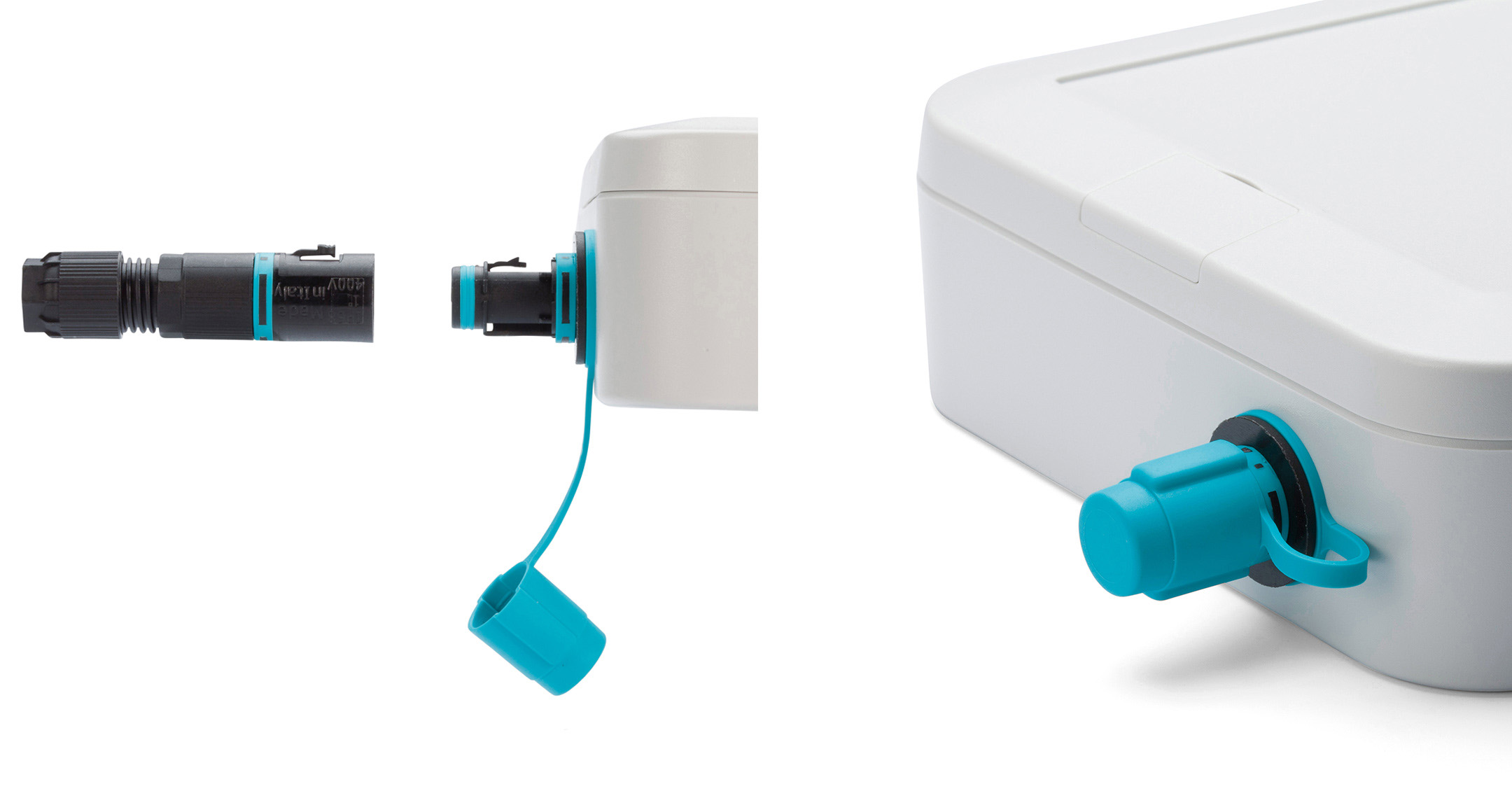

IP68 snap-lock micro panel-mount connector of just 14mm in diameter.

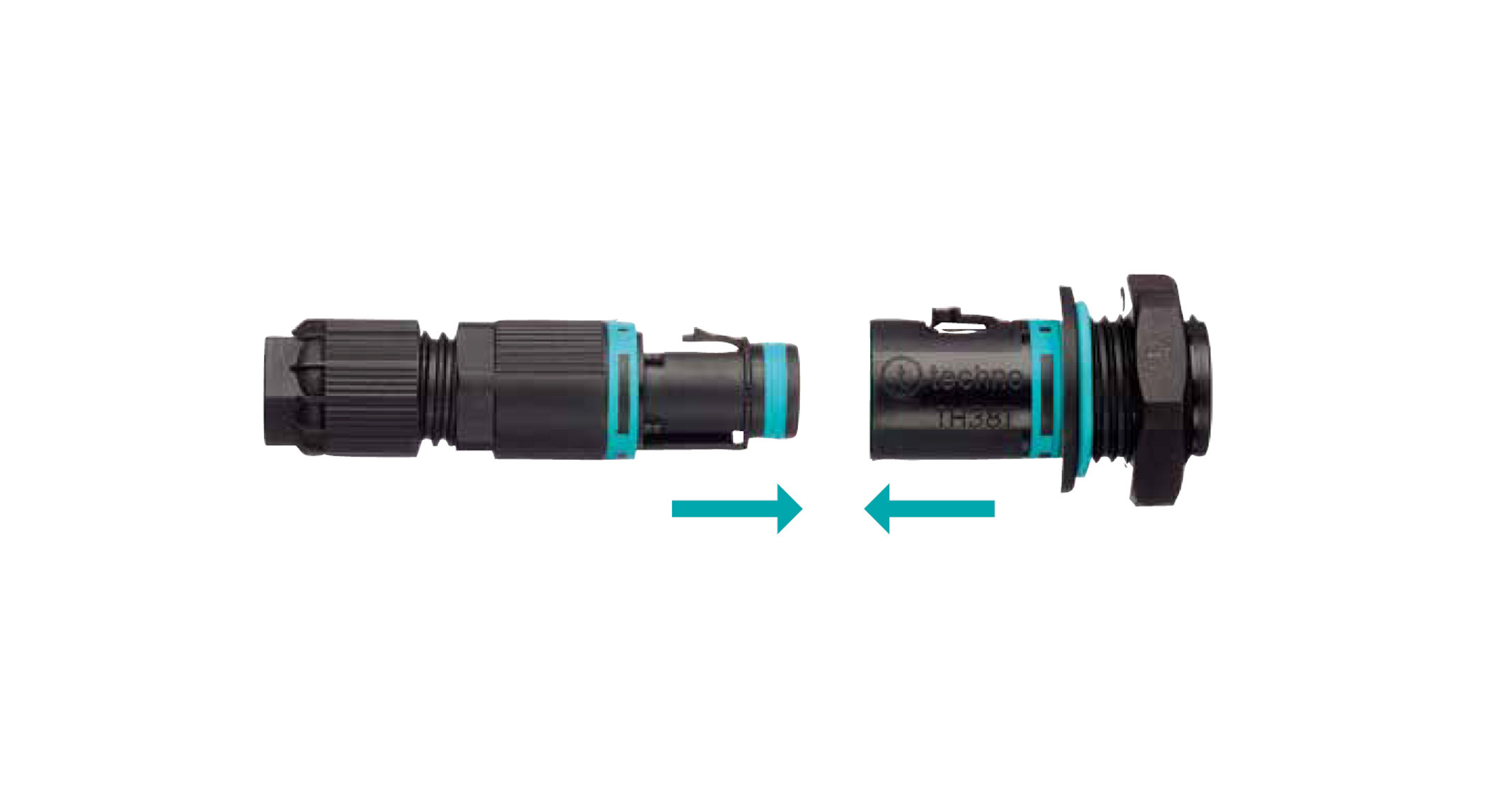

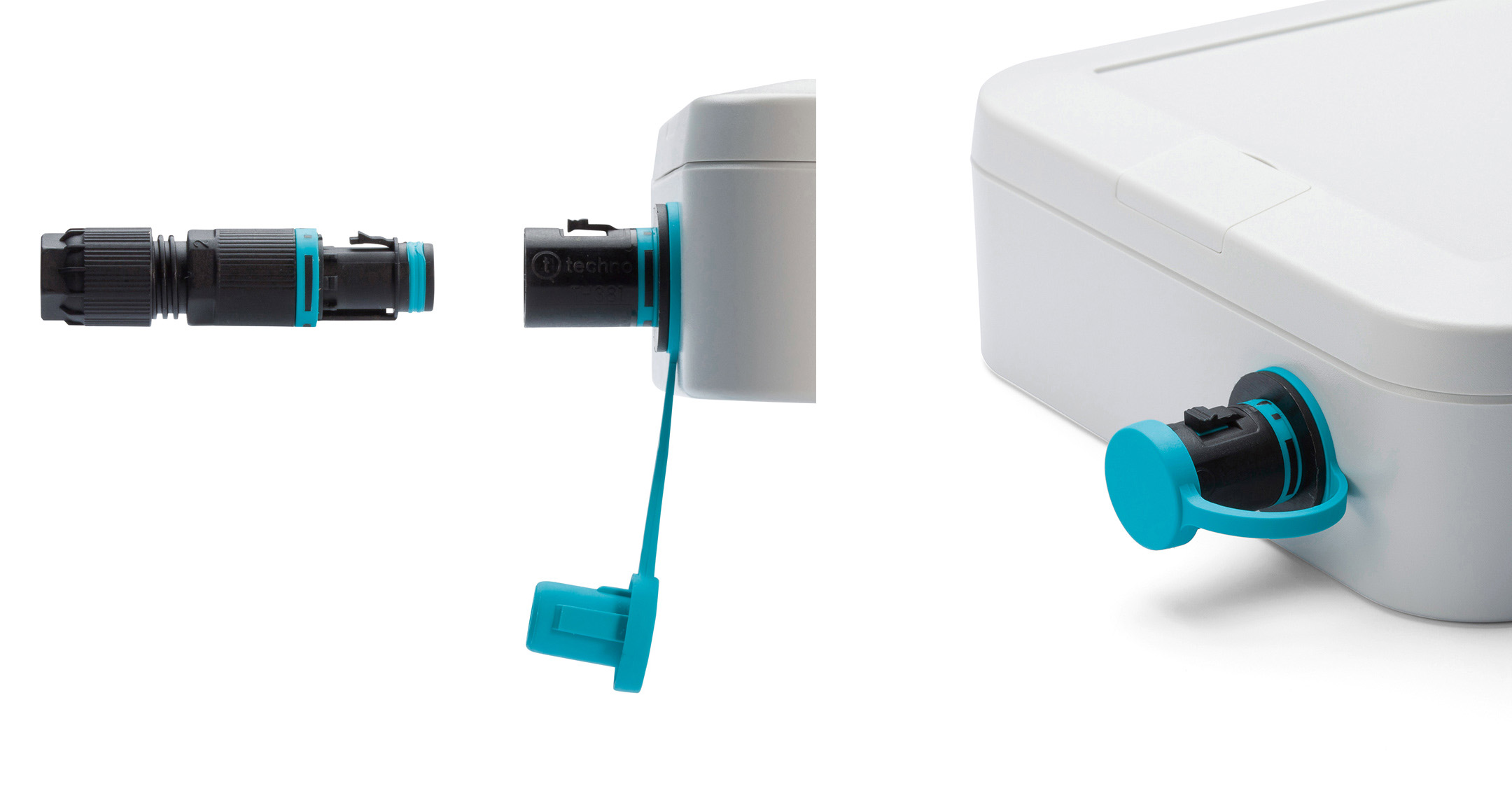

Easy connection/disconnection by simply snapping it to lock, and pulling while pressing the tab to release.
2P and 3P pole models are available.

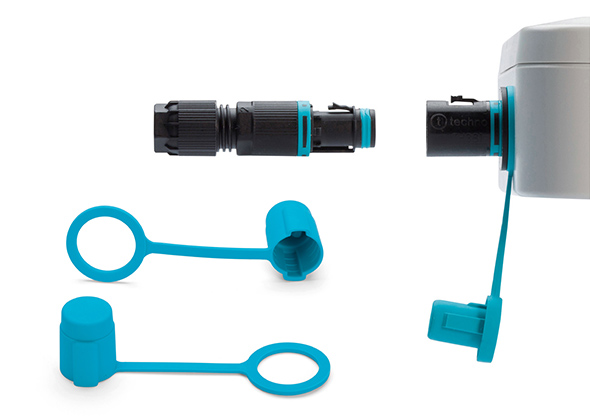

Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
For 2P models, use a flathead (minus) screwdriver of tip width 3mm.
For 3P models, use a hexagonal screwdriver (tip width of 0.9mm width across flats).
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.

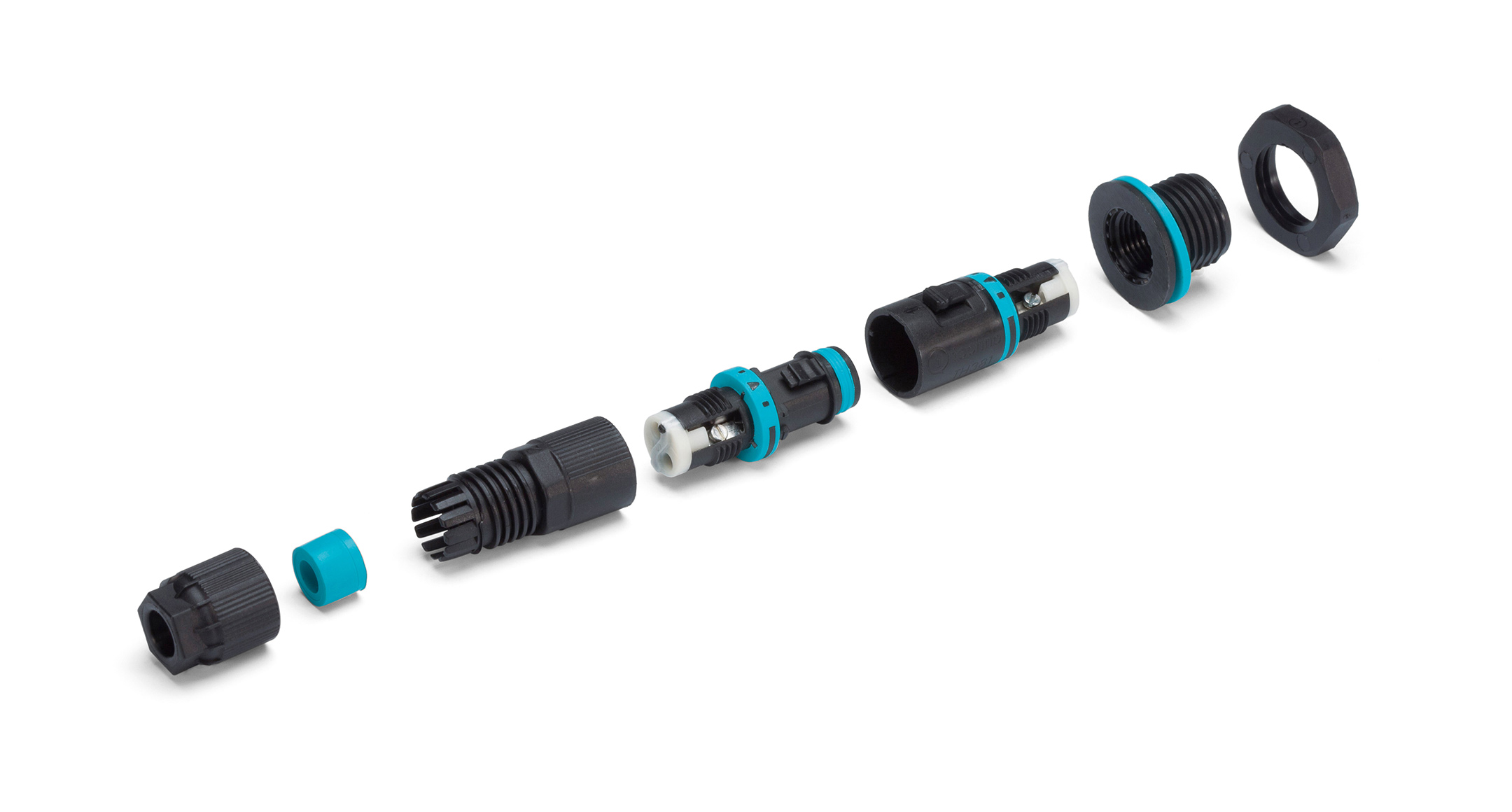

Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 3bar/1h (1 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.
Specifications
THB381-2P-7・THB381-2P-8
Rated voltage : AC500V (12V~60V DC)
Rated current : 10A AC/DC
Applicable wire : Stranded wire 0.25m㎡～1.0ｍ㎡
Impulse withstand voltage : 4kV
Number of insertion/extraction : 100 times
THB381-3P-7・THB381-3P-8
Rated voltage : AC500V
Rated current : 10A AC
Applicable wire : Stranded wire 0.25m㎡～1.0ｍ㎡
Impulse withstand voltage : 4kV
Number of insertion/extraction : 100 times
Easy connection/disconnection by simply snapping it to lock, and pulling while pressing the tab to release.
2P and 3P pole models are available.
Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
For 2P models, use a flathead (minus) screwdriver of tip width 3mm.
For 3P models, use a hexagonal screwdriver (tip width of 0.9mm width across flats).
Screws may be screwed in firmly. Use a screwdriver with proper grip handles to loosen it.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 3bar/1h (1 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.
Specifications
THB381-2P-7・THB381-2P-8
Rated voltage : AC500V (12V~60V DC)
Rated current : 10A AC/DC
Applicable wire : Stranded wire 0.25m㎡～1.0ｍ㎡
Impulse withstand voltage : 4kV
Number of insertion/extraction : 100 times
THB381-3P-7・THB381-3P-8
Rated voltage : AC500V
Rated current : 10A AC
Applicable wire : Stranded wire 0.25m㎡～1.0ｍ㎡
Impulse withstand voltage : 4kV
Number of insertion/extraction : 100 times
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Mounting thickness | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| THB381E-2P-7 | φ21×57.5mm | φ5.5～7 | 2P | 400V AC（12V～60V DC） | 10A AC/DC | 0.25～1.0m㎡ (Stranded) | Max 7.0mm | 15.5 | DXF | DWG | |
| THB381E-3P-7 | φ21×57.5mm | φ5.5～7 | 3P | 500V AC | 10A AC | 0.25～1.0m㎡ (Stranded) | Max 7.0mm | 16 | DXF | DWG | |
| THB381E-2P-8 | φ21×57.5mm | φ7～8 | 2P | 400V AC（12V～60V DC） | 10A AC/DC | 0.25～1.0m㎡ (Stranded) | Max 7.0mm | 15.1 | DXF | DWG | |
| THB381E-3P-8 | φ21×57.5mm | φ7～8 | 3P | 500V AC | 10A AC | 0.25～1.0m㎡ (Stranded) | Max 7.0mm | 16 | DXF | DWG |
