CATEGORY：Waterproof connector, Panel-mount connector, IP68 connector, Industrial connector, LED connector, Outdoor connector

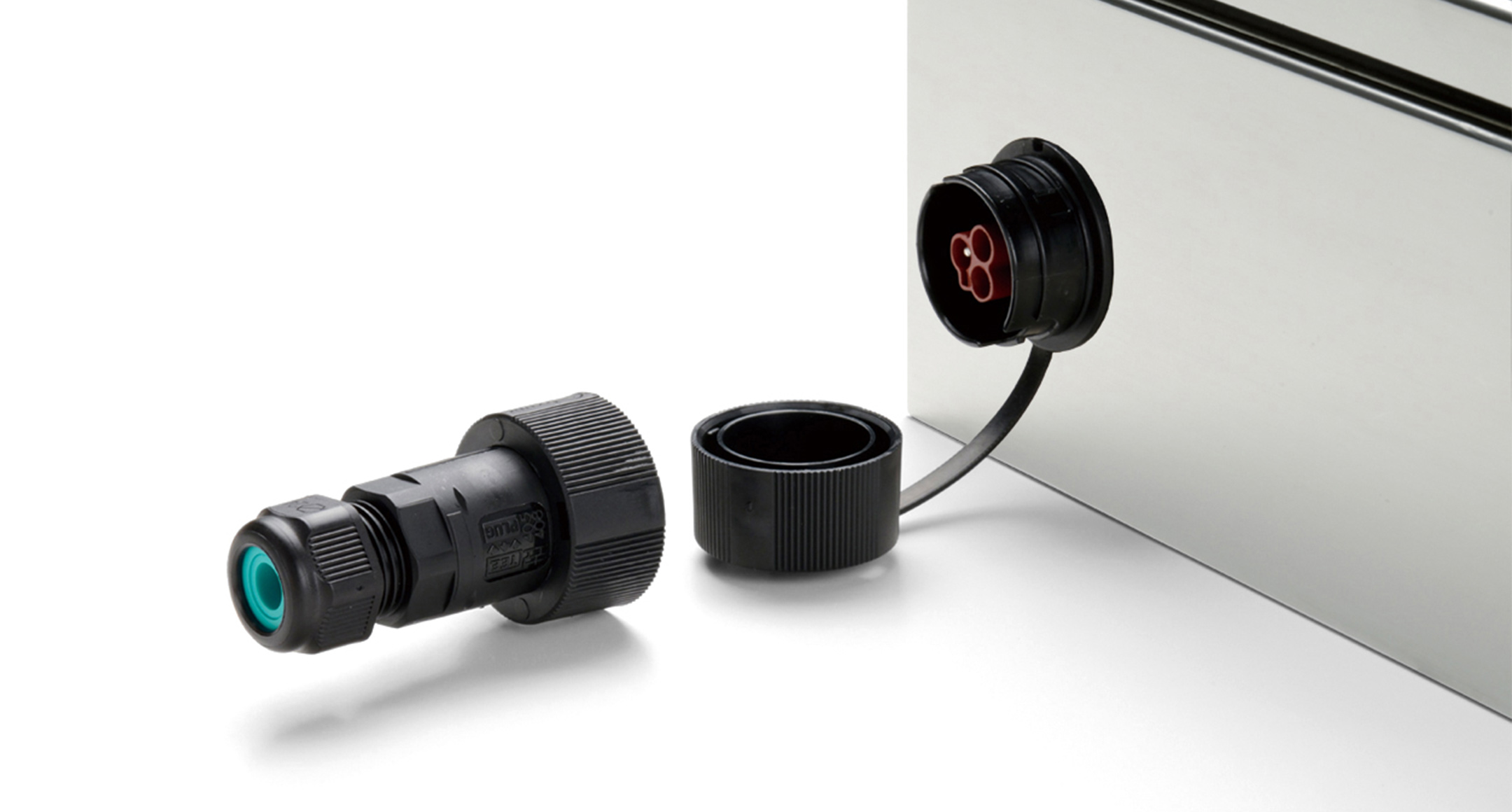

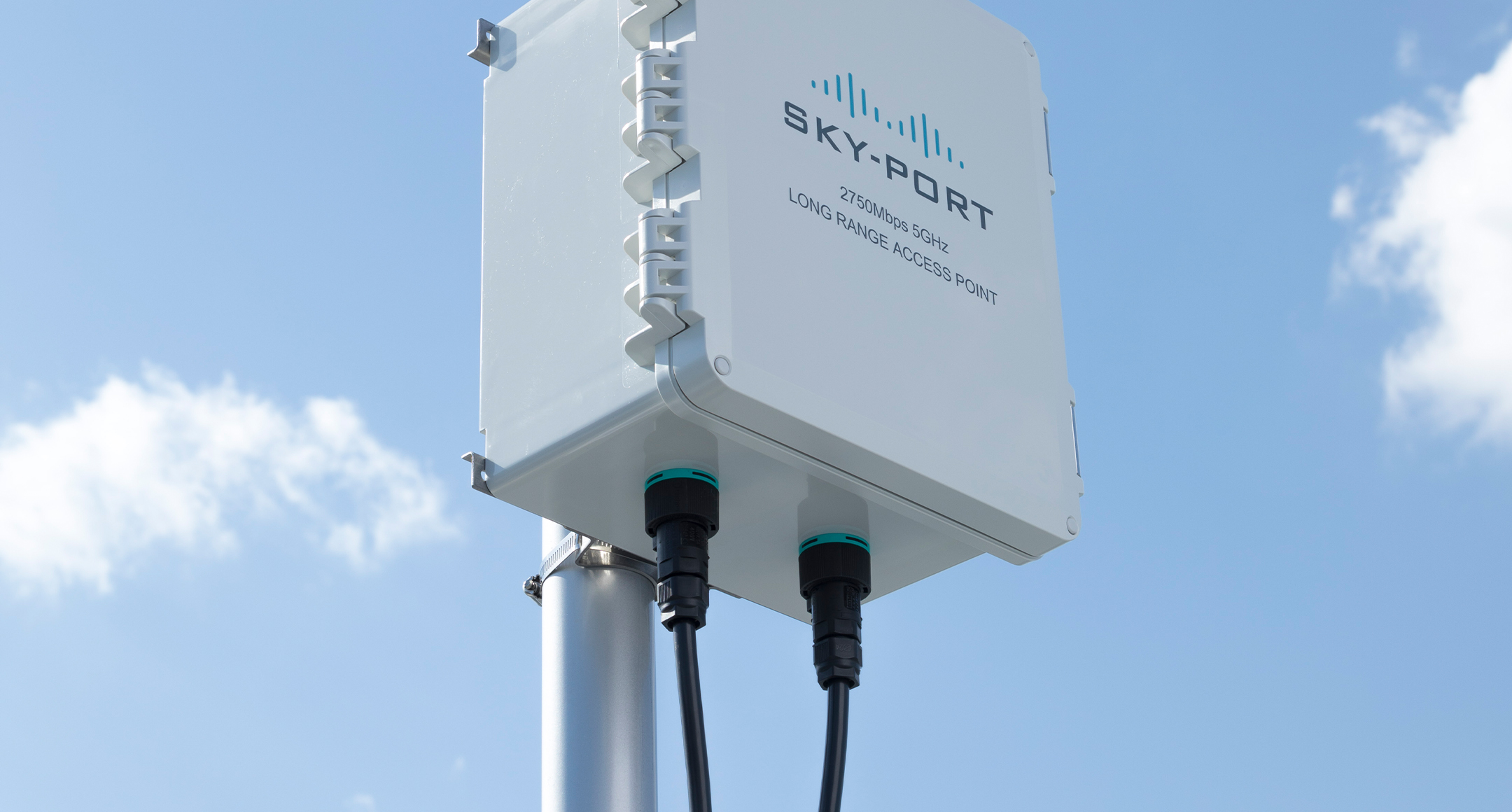

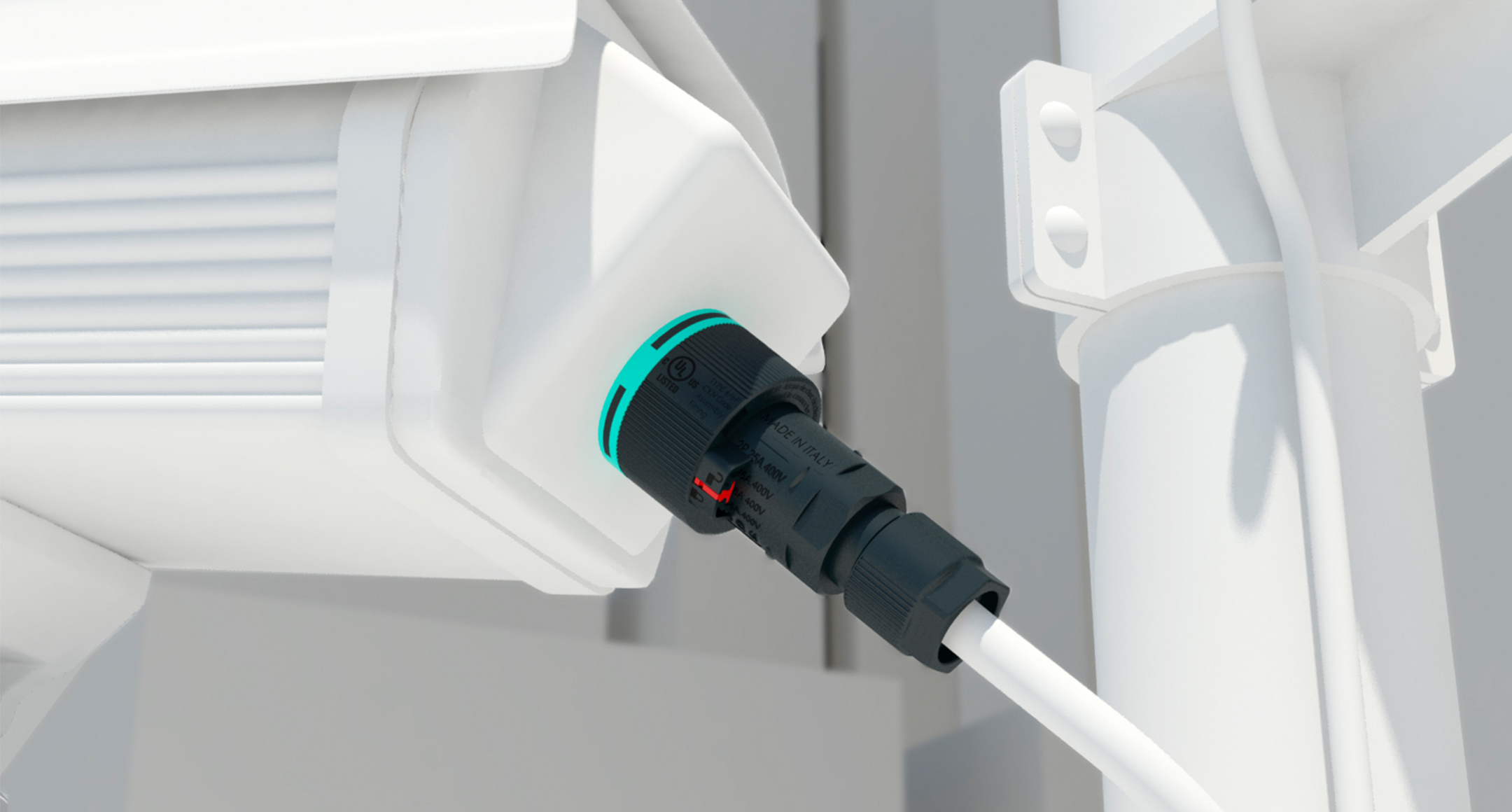

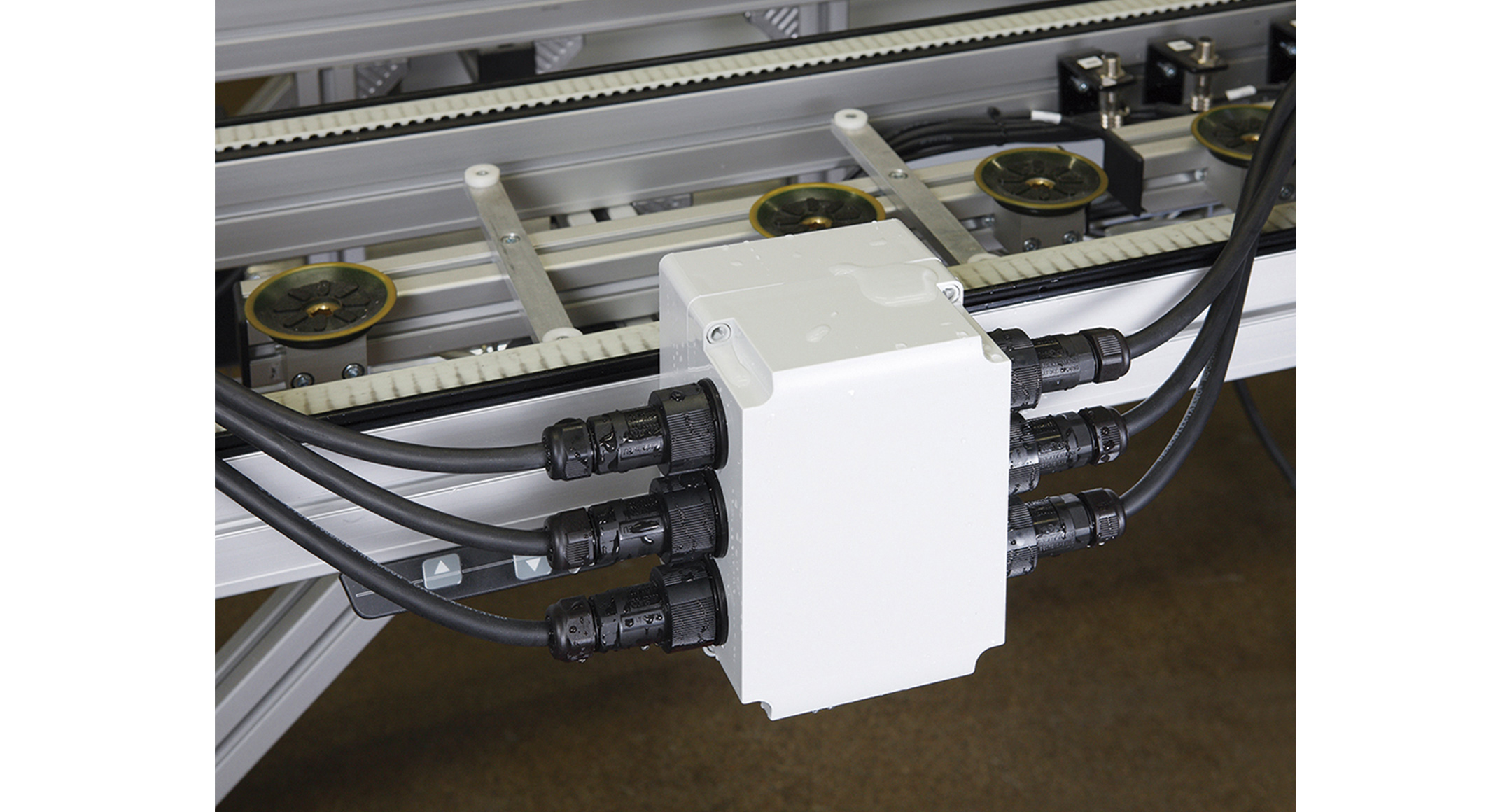

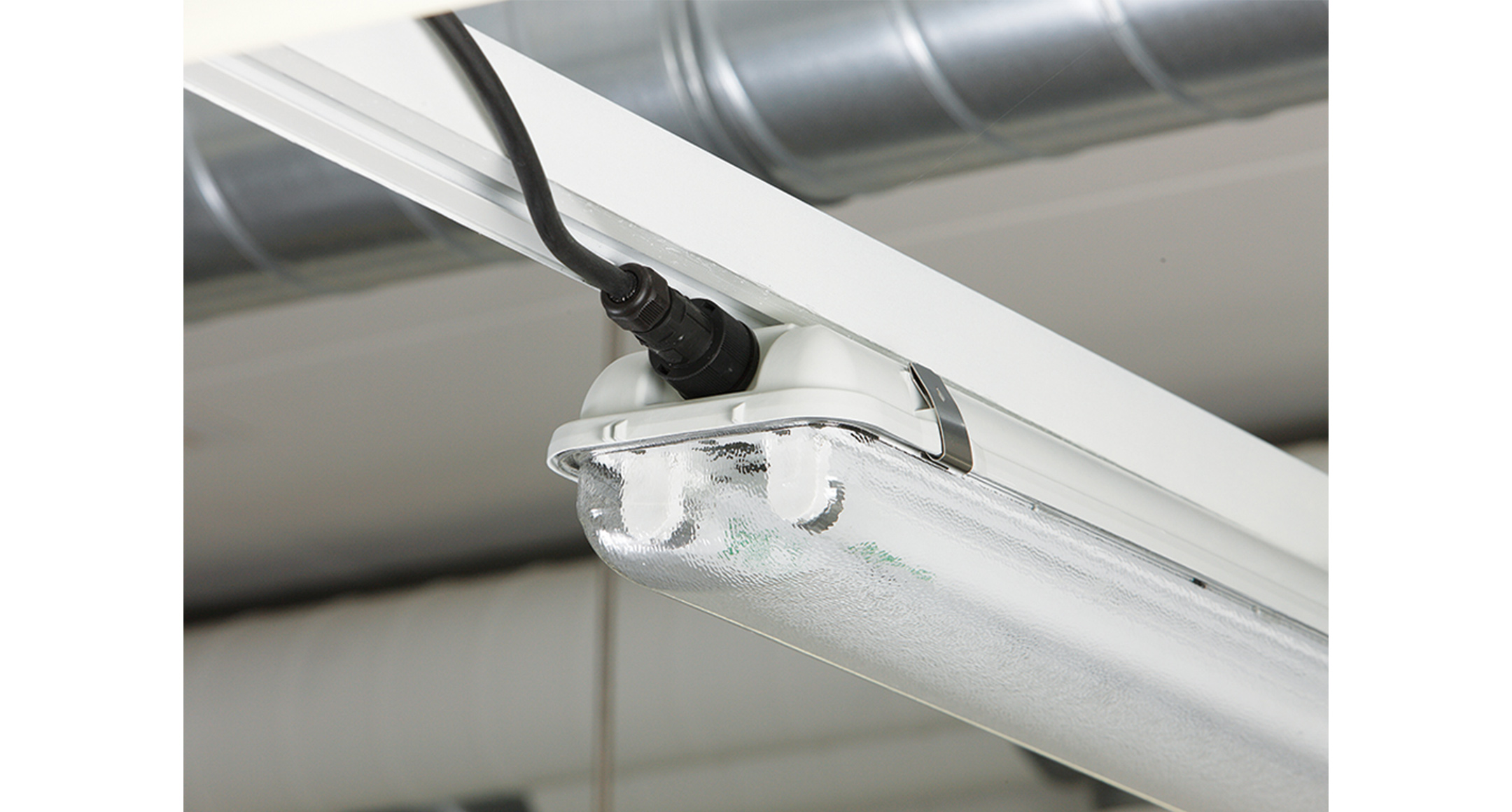

IP68 panel-mount plug-type connector for installation on panels or boxes.

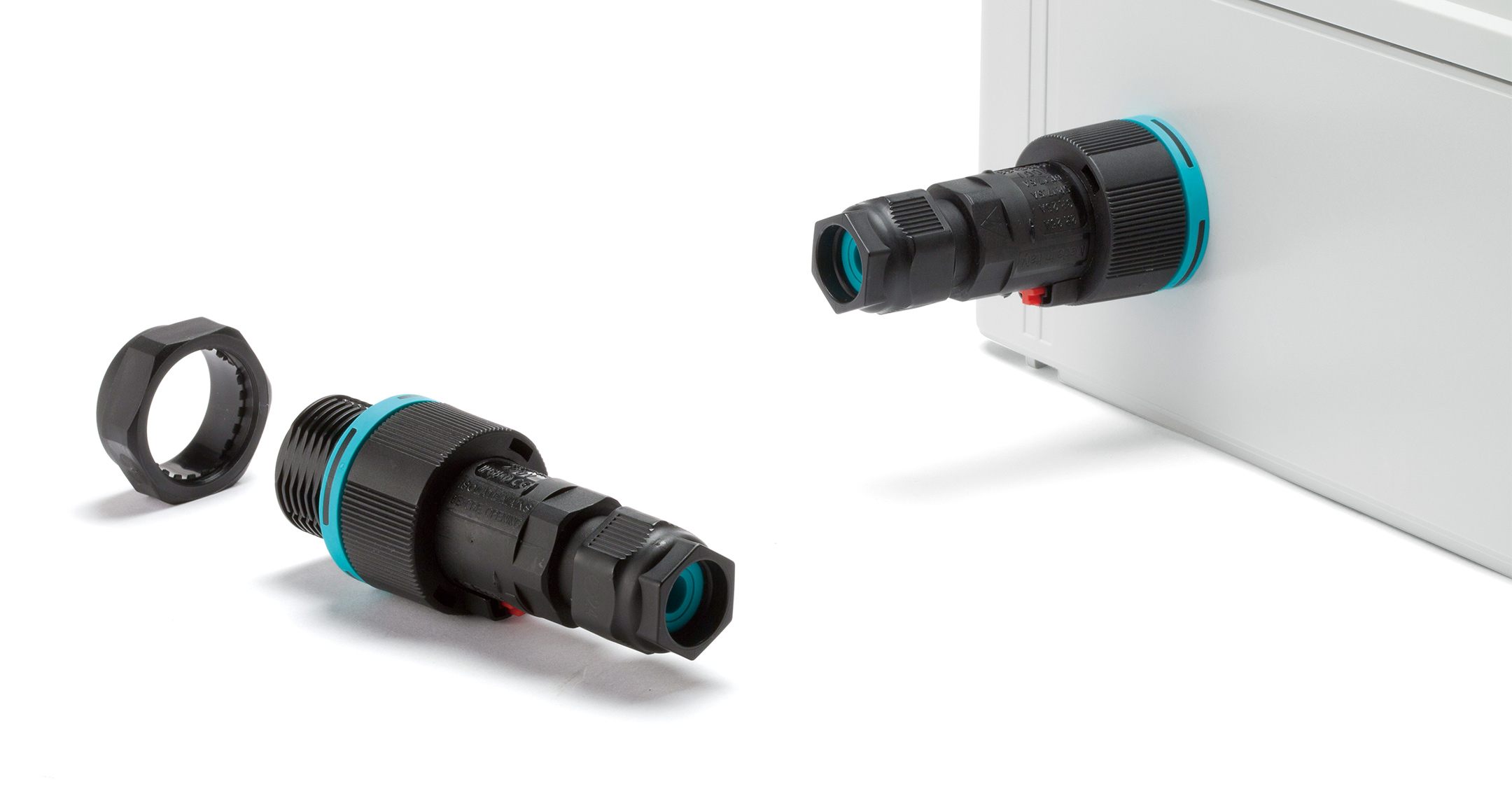

Plug-socket panel-mount type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
3P, 6P and 8P pole models are available.
THB406-3P is UL2238 / C22.2 No. 182.3 compliant product.
For safety reasons, please arrange the connector such that the primary side is female (socket side) and the secondary side is male (plug side).
Protection class : IP68 1bar/1h (1 hour / 10m depth)
Operating temperature : -40℃ ~ +125℃
EN61984 compliant.
Specifications
THB406-3P
Rated voltage : Max AC400V
Rated current : Max 25A (EN61984)・Max 20A (UL2238/C22.2No. 182.3)
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times
THB406-6P
Rated voltage : Max AC400V
Rated current : Max 17.5A
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 6kV
Number of insertion/extraction : 1,000 times
THB406-8P
Rated voltage : Max AC400V (DC60V)
Rated current : Max 10A AC/DC
Applicable wire : 0.25m㎡～1.0ｍ㎡ (stranded)
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 1,000 times
Plug-socket panel-mount type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
3P, 6P and 8P pole models are available.
THB406-3P is UL2238 / C22.2 No. 182.3 compliant product.
For safety reasons, please arrange the connector such that the primary side is female (socket side) and the secondary side is male (plug side).
Protection class : IP68 1bar/1h (1 hour / 10m depth)
Operating temperature : -40℃ ~ +125℃
EN61984 compliant.
Specifications
THB406-3P
Rated voltage : Max AC400V
Rated current : Max 25A (EN61984)・Max 20A (UL2238/C22.2No. 182.3)
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times
THB406-6P
Rated voltage : Max AC400V
Rated current : Max 17.5A
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 6kV
Number of insertion/extraction : 1,000 times
THB406-8P
Rated voltage : Max AC400V (DC60V)
Rated current : Max 10A AC/DC
Applicable wire : 0.25m㎡～1.0ｍ㎡ (stranded)
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 1,000 times
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Mounting thickness | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| THB406-3P | φ38×82mm | φ7～13.5 | 3P | Max AC400V | Max 25A | 0.5～4.0m㎡ (Stranded) | Max 10.0mm | 50.1 | DXF | DWG | |
| THB406-6P | φ38×82mm | φ7～13.5 | 6P | Max AC400V | Max 17.5A | 0.5～4.0m㎡ (Stranded) | Max 10.0mm | 32.3 | DXF | DWG | |
| THB406-8P | φ38×82mm | φ7～13.5 | 8P | Max AC400V（DC60V） | Max 10A AC/DC | 0.25～1.0m㎡ (Stranded) | Max 10.0mm | 72.5 | DXF | DWG |
