IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series1
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series2
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series3
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series4
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series5
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series6

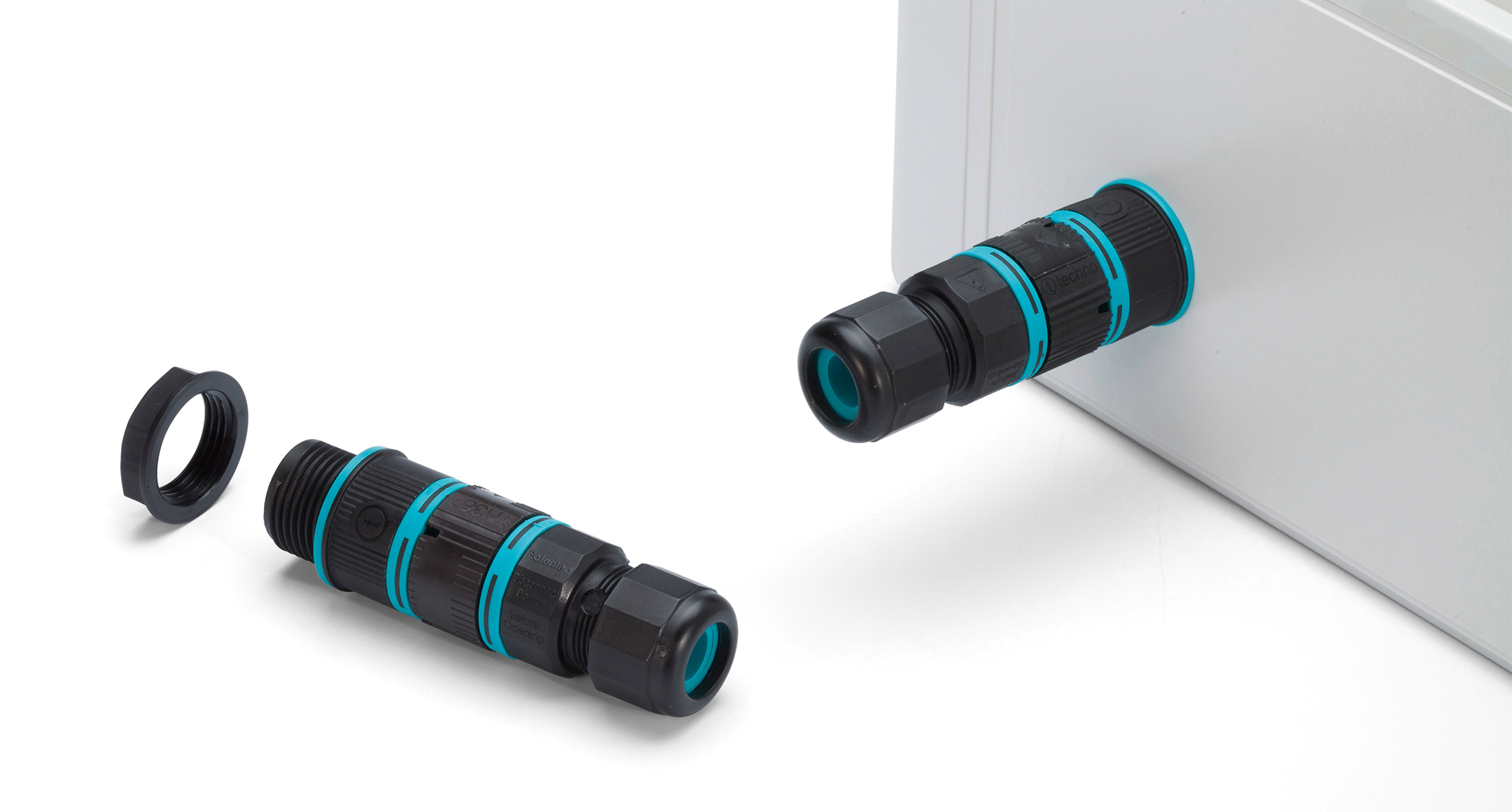

Plug-socket connector type consisting of the plug side (male) and socket side (female).
Can be attached / detached while installed on panels or enclosures.

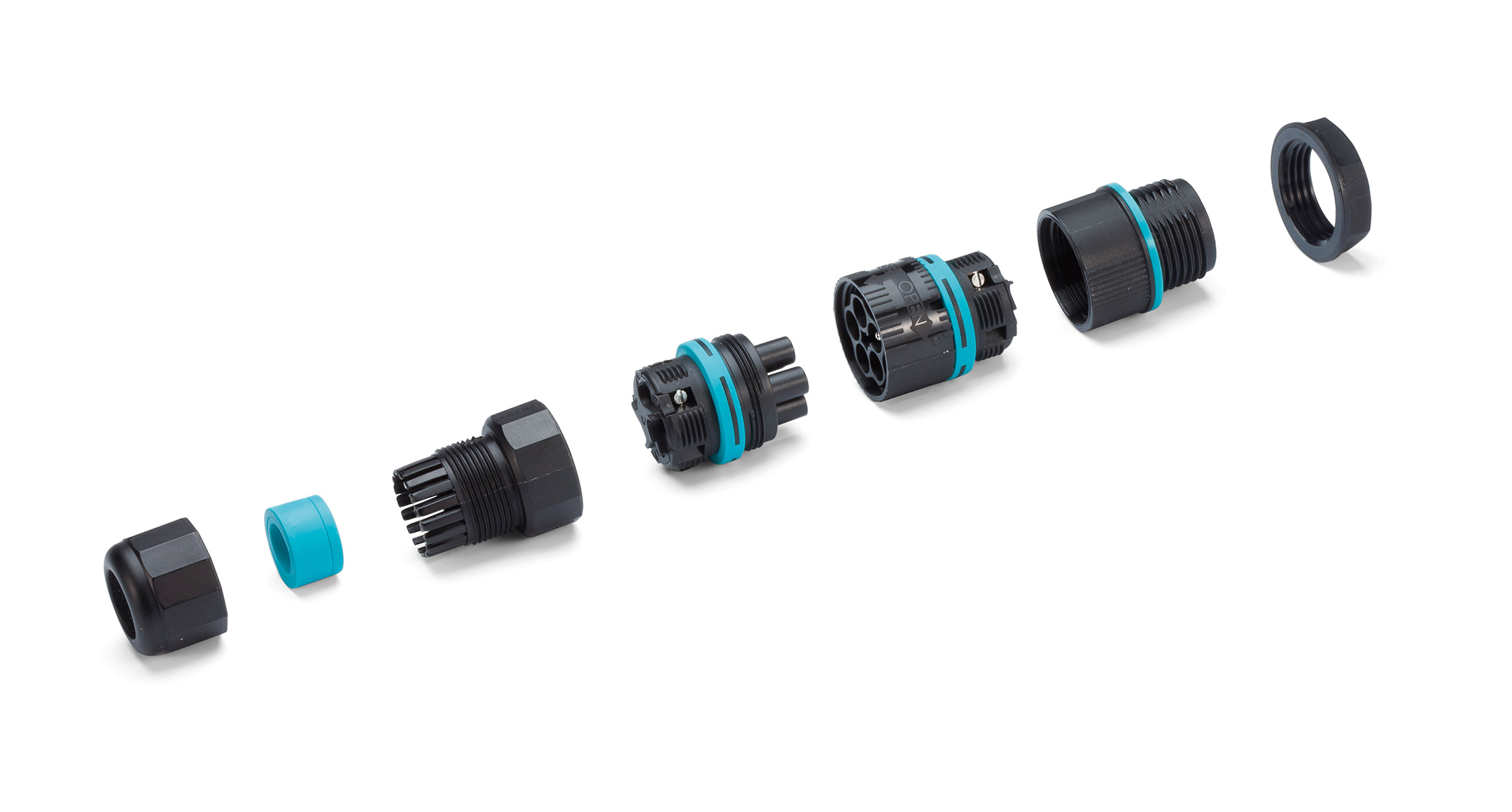

A screw type wiring connection is adopted, allowing for easy installation and removal.

3P, 4P and 5P pole models are available.
Plug / Socket can be sold separately.

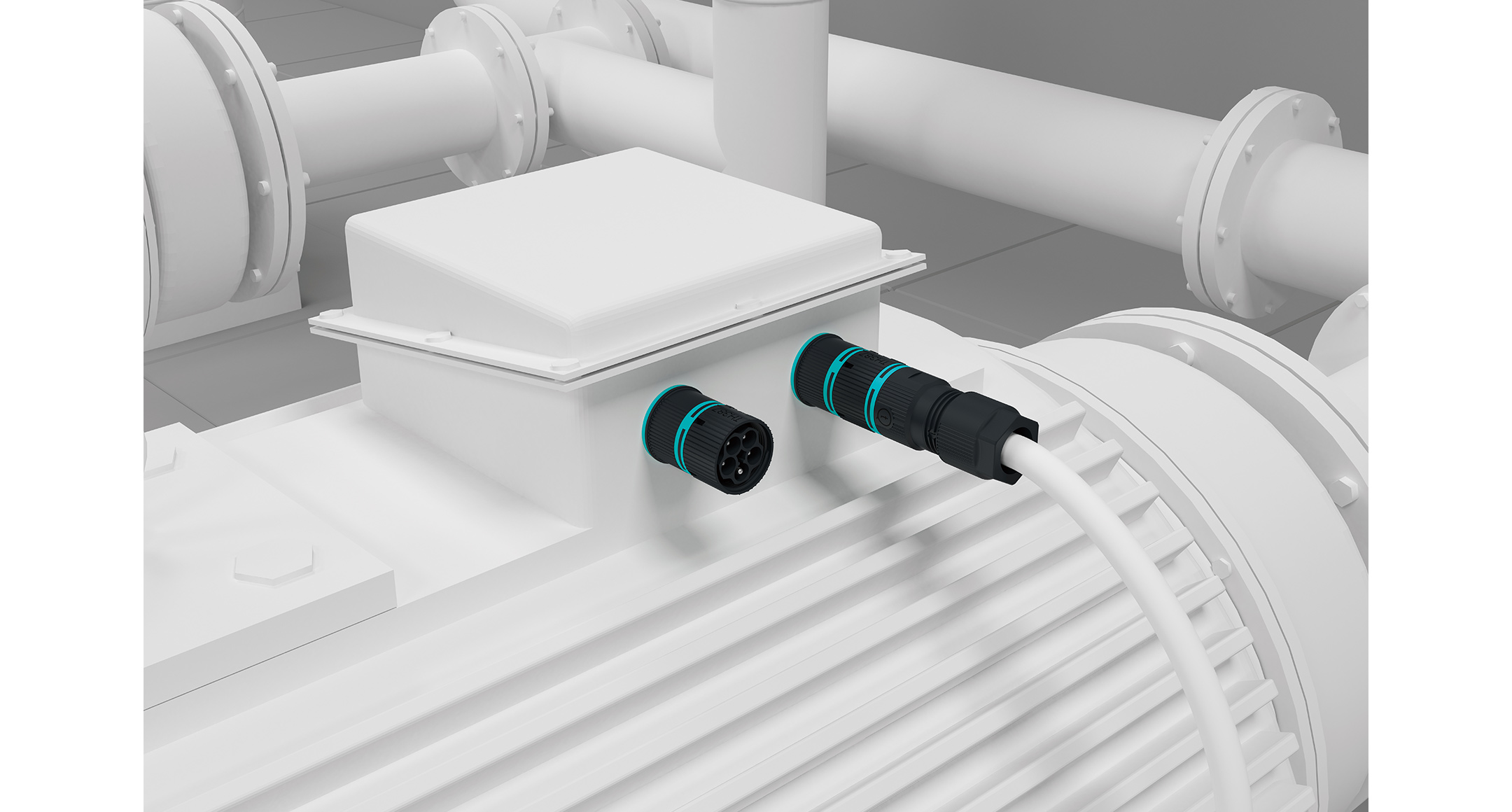

Suitable for use as ower or sensor signal relay of industrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.

Technical Data
Protection class : IP68 3bar/3h (3 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.

Specifications
Rated voltage : Max AC500V
Rated current : Max 17.5A
Applicable wire : 3P・4P models = 0.5m㎡～2.5m㎡ (stranded)・ 5P models = 0.25m㎡～1.5m㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times

PRODUCT NO. / DIMENSIONS

Product No. Components External dimensions Cable range No. of poles Rated voltage Reted current Applicable wire Mounting thickness Weight (g) PDF DXF DWG
THB387E-3P-M20 Plug + Socket φ24.5×67.6mm φ7～12 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 34.2 PDF DXF DWG
THB387E-4P-M20 Plug + Socket φ24.5×67.6mm φ7～12 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 37.9 PDF DXF DWG
THB387E-5P-M20 Plug + Socket φ24.5×67.6mm φ7～12 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) Max 6.5mm 35.7 PDF DXF DWG
THB387E-3P-M20-P Plug only φ24.5×67.6mm ─ 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 16.5
THB387 -3P-S Socket only φ24.5×67.6mm φ7～12 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 17.5
THB387E-4P-M20-P Plug only φ24.5×67.6mm ─ 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 18.5
THB387 -4P-S Socket only φ24.5×67.6mm φ7～12 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) Max 6.5mm 19.5
THB387E-5P-M20-P Plug only φ24.5×67.6mm ─ 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) Max 6.5mm 17.5
THB387 -5P-S Socket only φ24.5×67.6mm φ7～12 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) Max 6.5mm 18.5

OPTIONAL PARTS

１
SEALING INSERT for THB387・387E・391・392
DETAILS
１

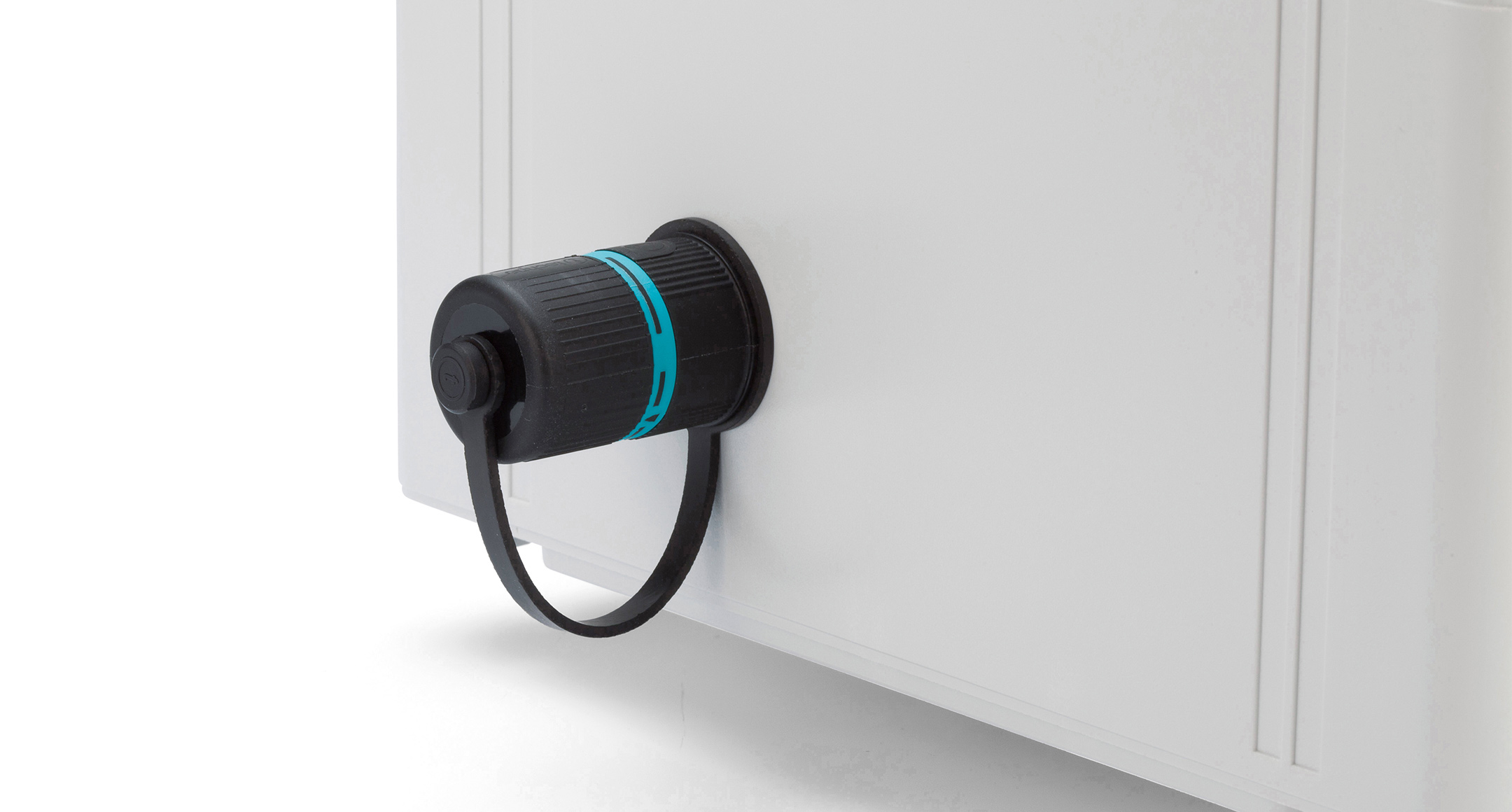

SEALING PLUG・SOCKET CAP for THB387・387E・387L・387LE
