TILT LEG for EX_series

TLW_E Series -PDF

CATEGORY：Non-slip tilt leg, Tilt stand, Tilting stand

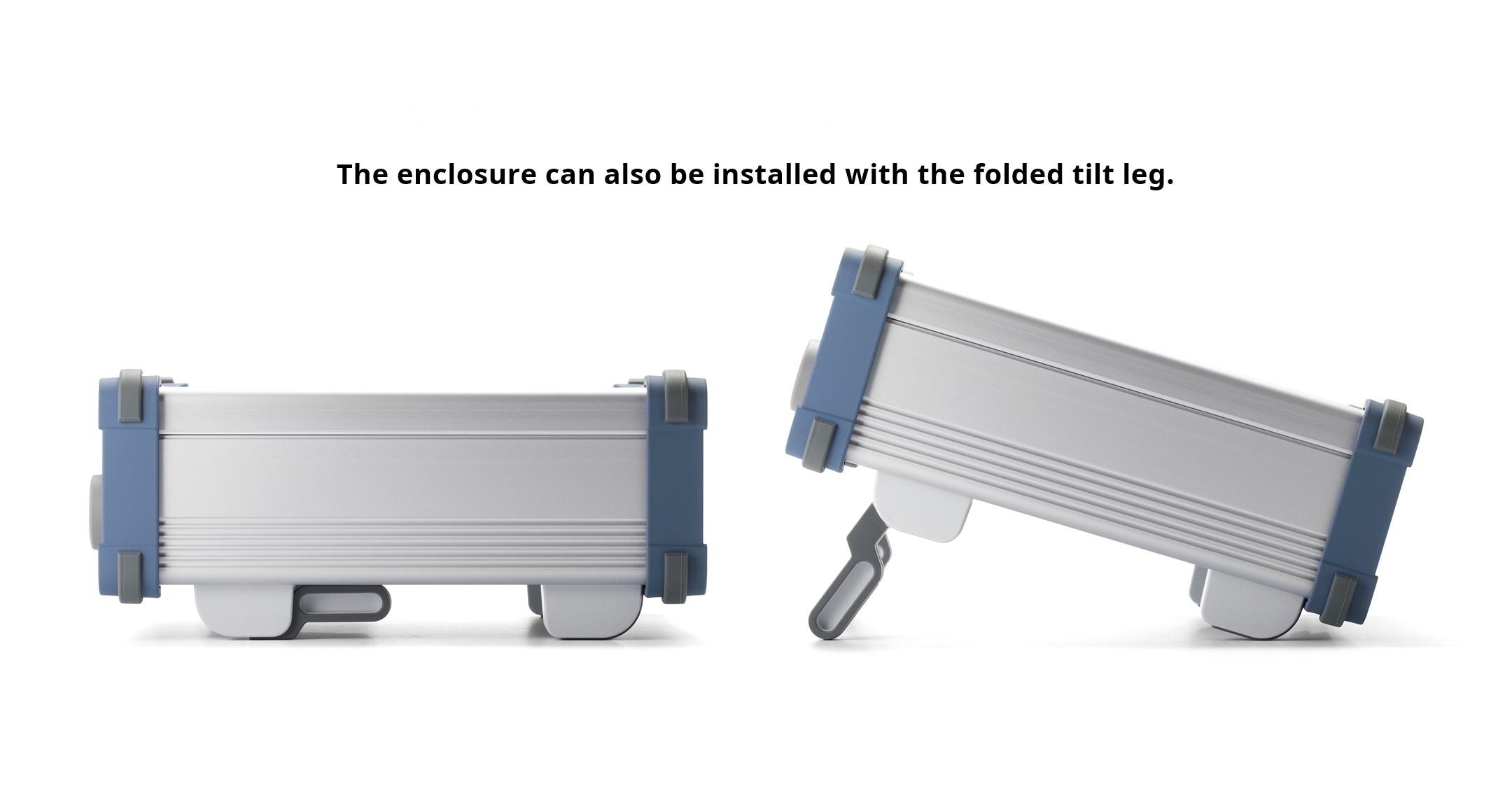

Double shot injection molded tilt stand with soft and well-designed rounded shape.
Non-slip design with Elastomer (TPE) part.

Available in 3 different color patterns.

Possible to install on Built-in groove with M3 nut for all EXP・EXPE・EXW・EX・EXH models with width 185mm or larger bottom covers.
TLW-70E models are exclusively for width 185mm or larger bottom covers

Max load : 7kg

Sold in 1 set including front fee x 2 + rear feet x 2.

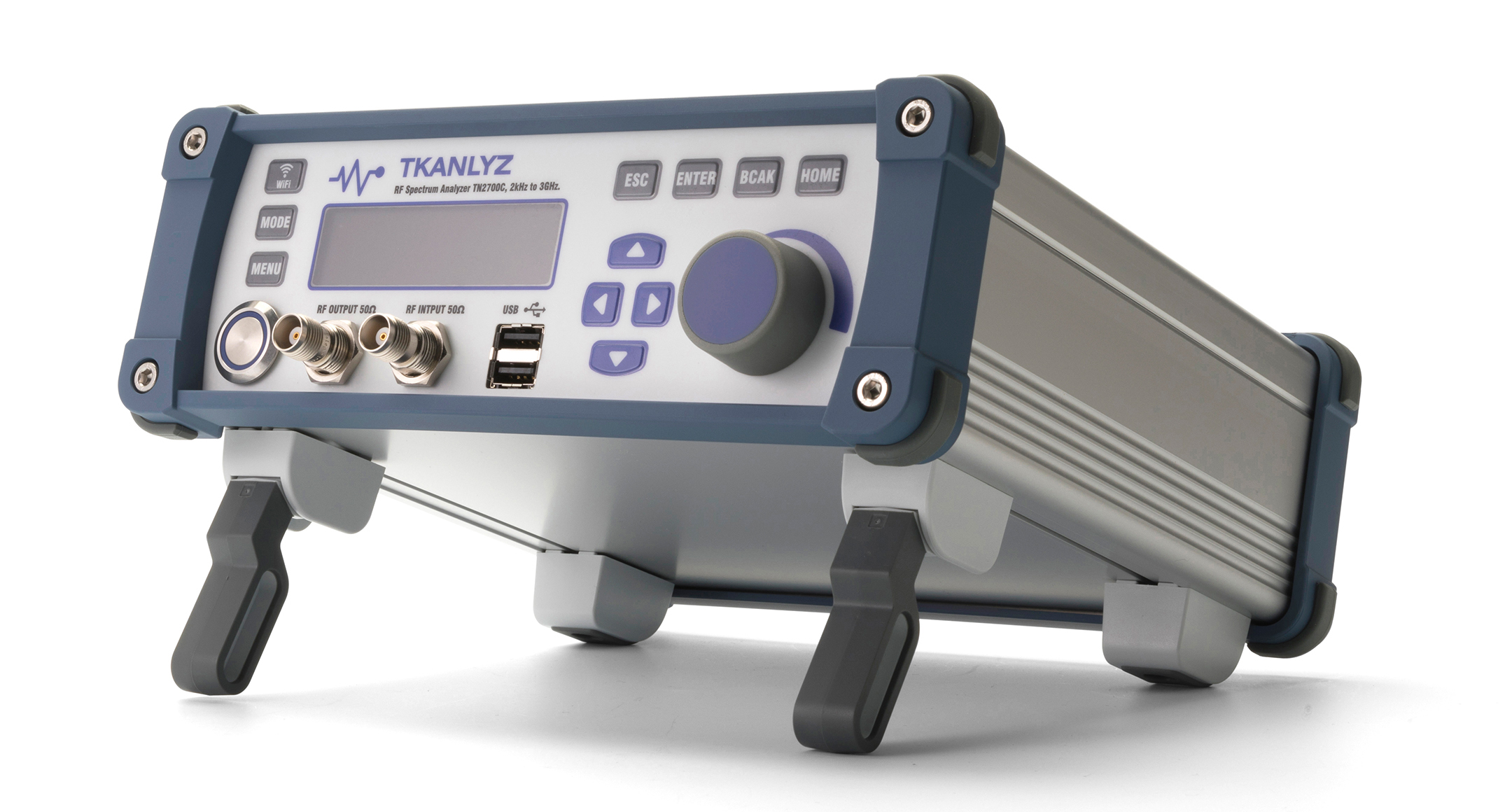

3D View 3D View - With EXP enclosure Color code

PRODUCT NO. / DIMENSIONS

Product No.	Suitable case	Color / Similar matching	Weight (g) / 1set	Sales unit	PDF	DXF	DWG	STP
TLW- 46BB	EXP・EXPE7-□-□～15-□-□ / EXPS69-□-□～151-□-□	Black(PANTONE 433C) / Black(PANTONE 433C)	23	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP
TLW- 46NG	EXP・EXPE7-□-□～15-□-□ / EXPS69-□-□～151-□-□	Navy(PANTONE 7687C ) / Gray(PANTONE 431C)	23	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP
TLW- 46LG	EXP・EXPE7-□-□～15-□-□ / EXPS69-□-□～151-□-□	Light gray(PANTONE 538C) / Gray(PANTONE 431C)	23	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP
TLW- 70EBB	EXP・EXPE20-□-□～24-□-□ / EXPS199-□-□～244-□-□	Black(PANTONE 433C) / Black(PANTONE 433C)	59	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP
TLW- 70ENG	EXP・EXPE20-□-□～24-□-□ / EXPS199-□-□～244-□-□	Navy(PANTONE 7687C ) / Gray(PANTONE 431C)	59	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP
TLW- 70ELG	EXP・EXPE20-□-□～24-□-□ / EXPS199-□-□～244-□-□	Light gray(PANTONE 538C) / Gray(PANTONE 431C)	59	1set (Front feet ×2, Rear feet ×2)	PDF	DXF	DWG	STP

SAMPLE REQUEST FORM

This product series is available as a free sample.
