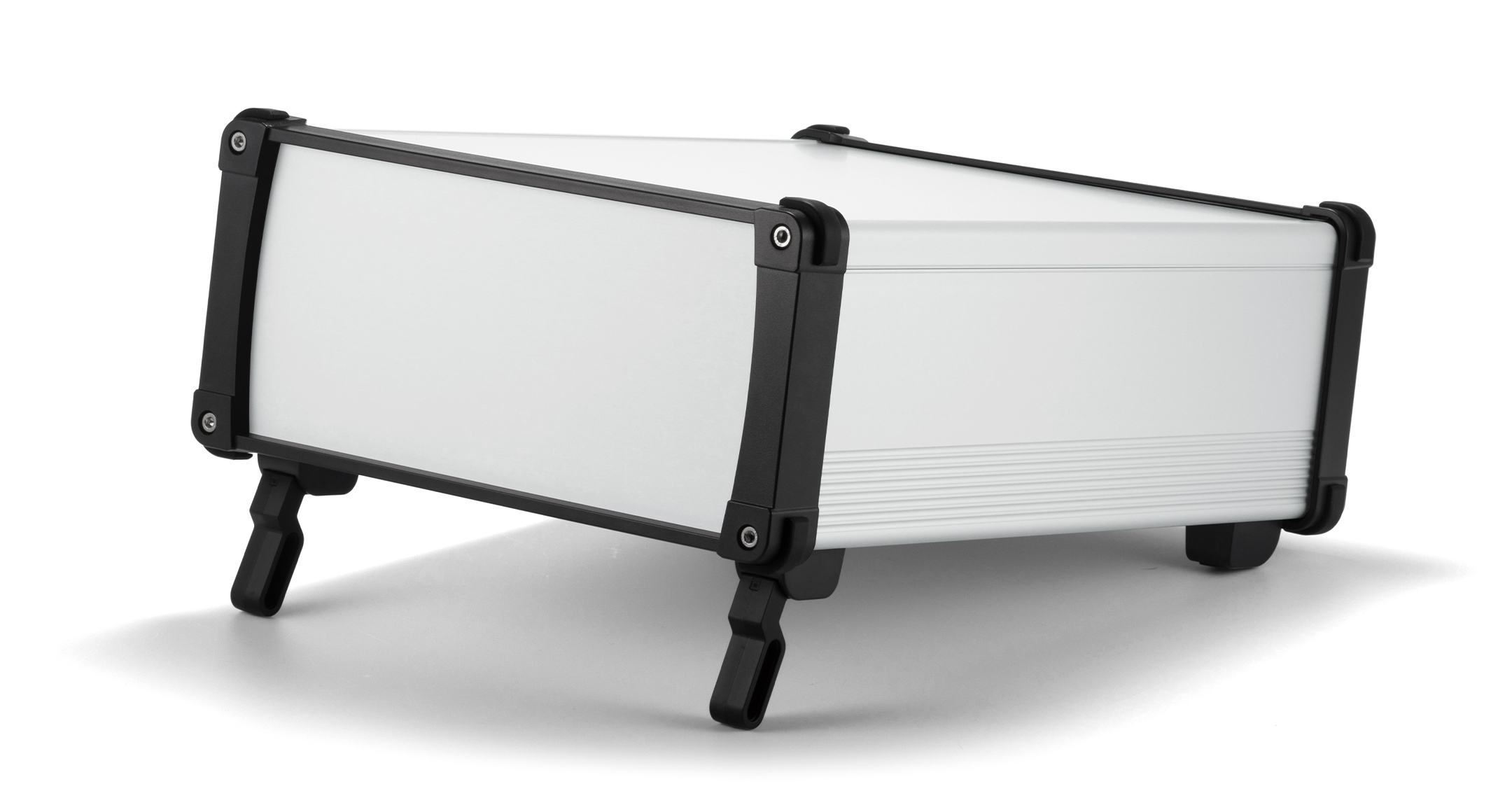

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series


EXPT Series -PDF

CATEGORY:Aluminium case with tilt leg, Design aluminium case, Aluminium profile enclosure, Shock-proof design enclosure, Instrument enclosure, Communication device enclosure, Measuring equipment case, Control box

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series1
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series2
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series3
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series4
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series5
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series6

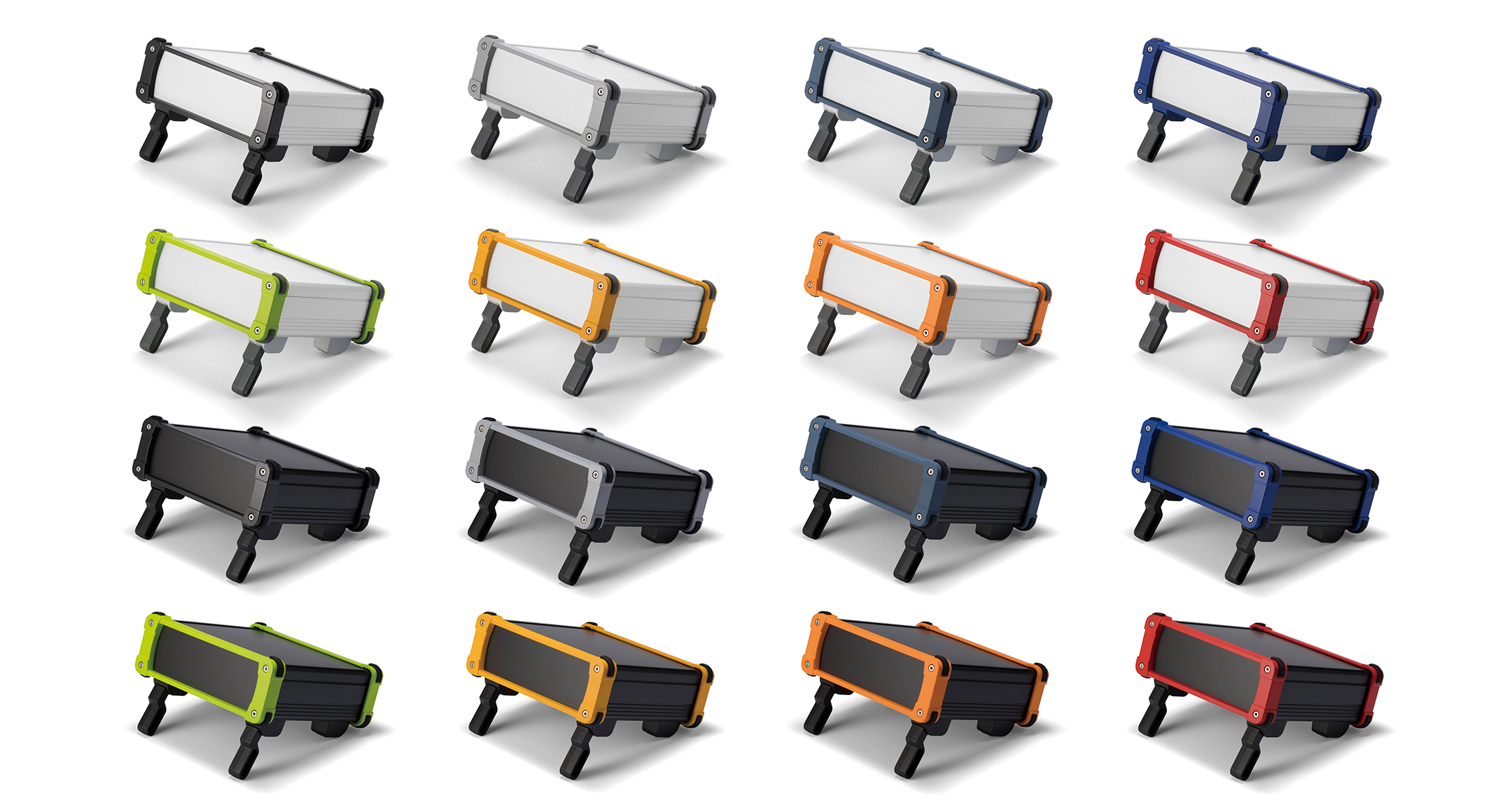

COLOR TYPE

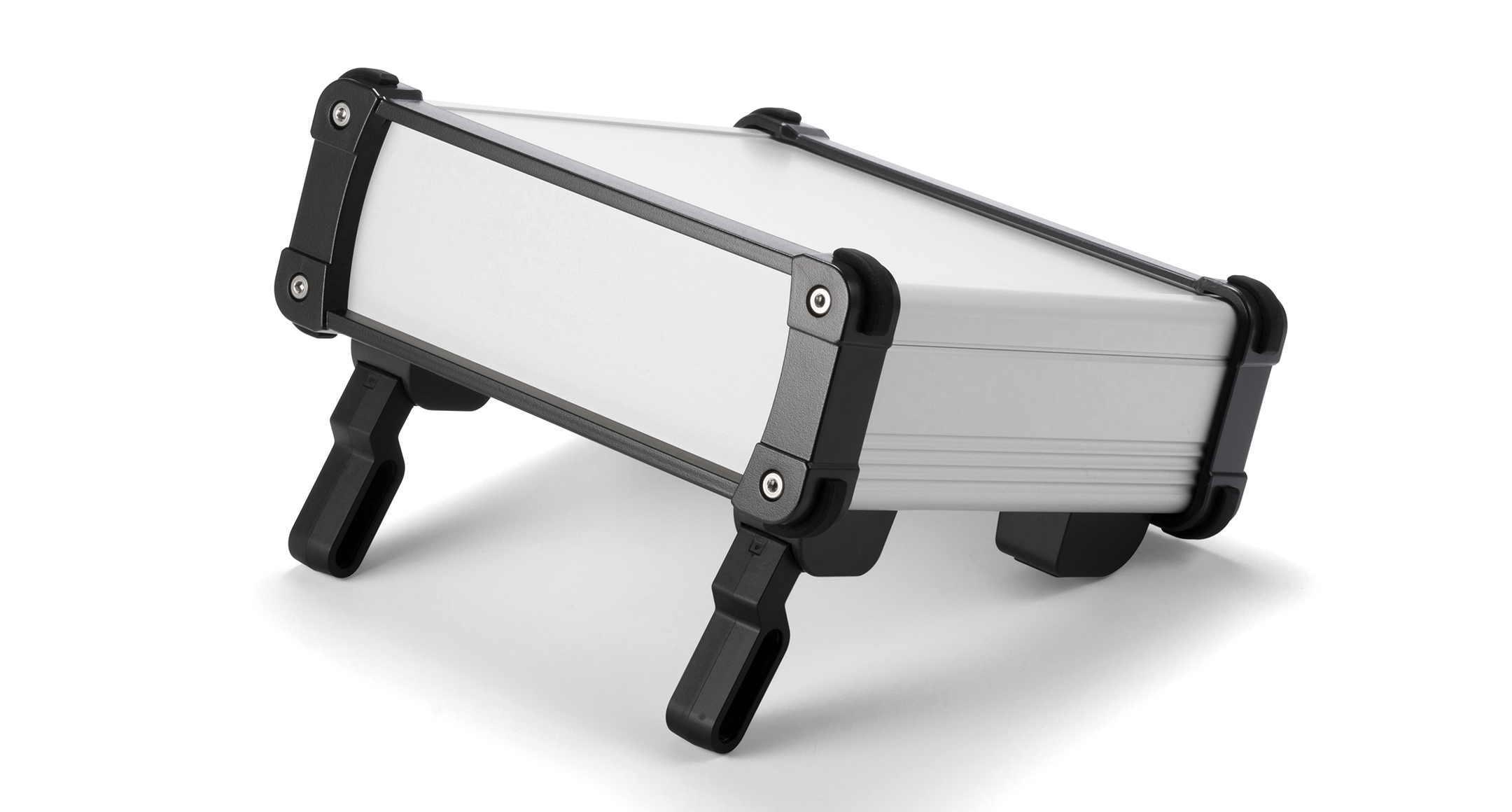

SBSilver/Black

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Black

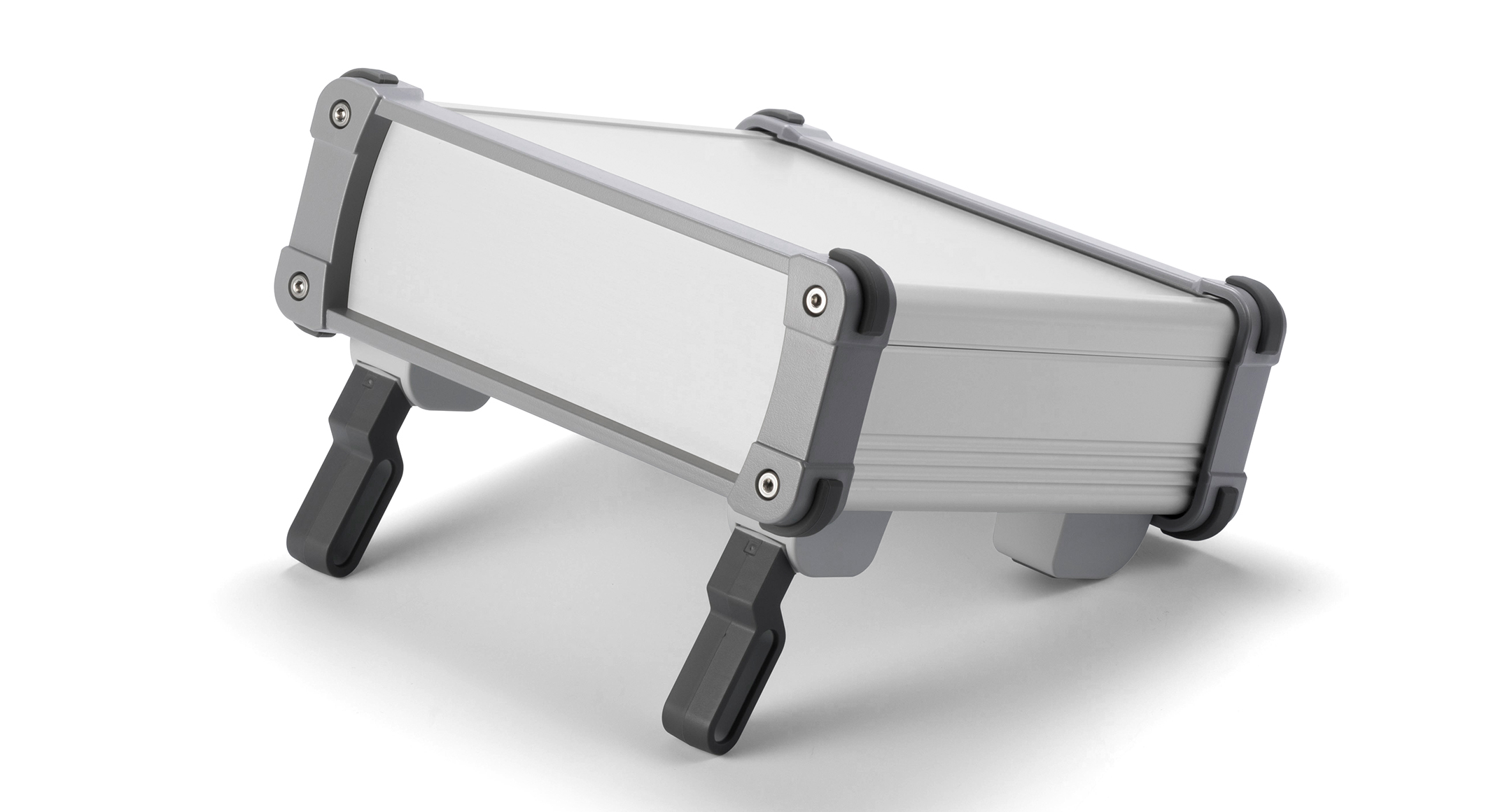

SGSilver/Gray

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Gray

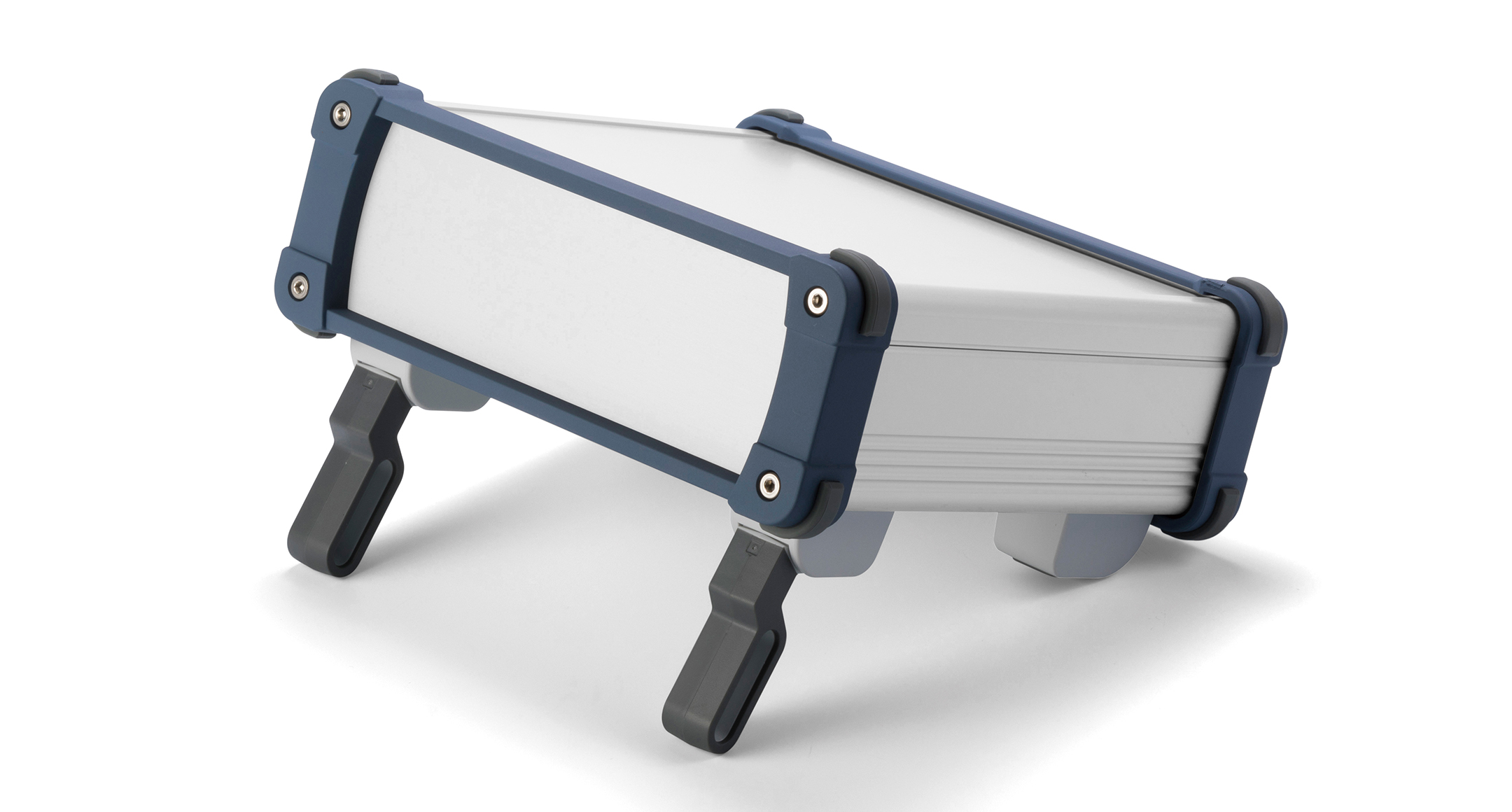

SISilver/Indigo

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Indigo

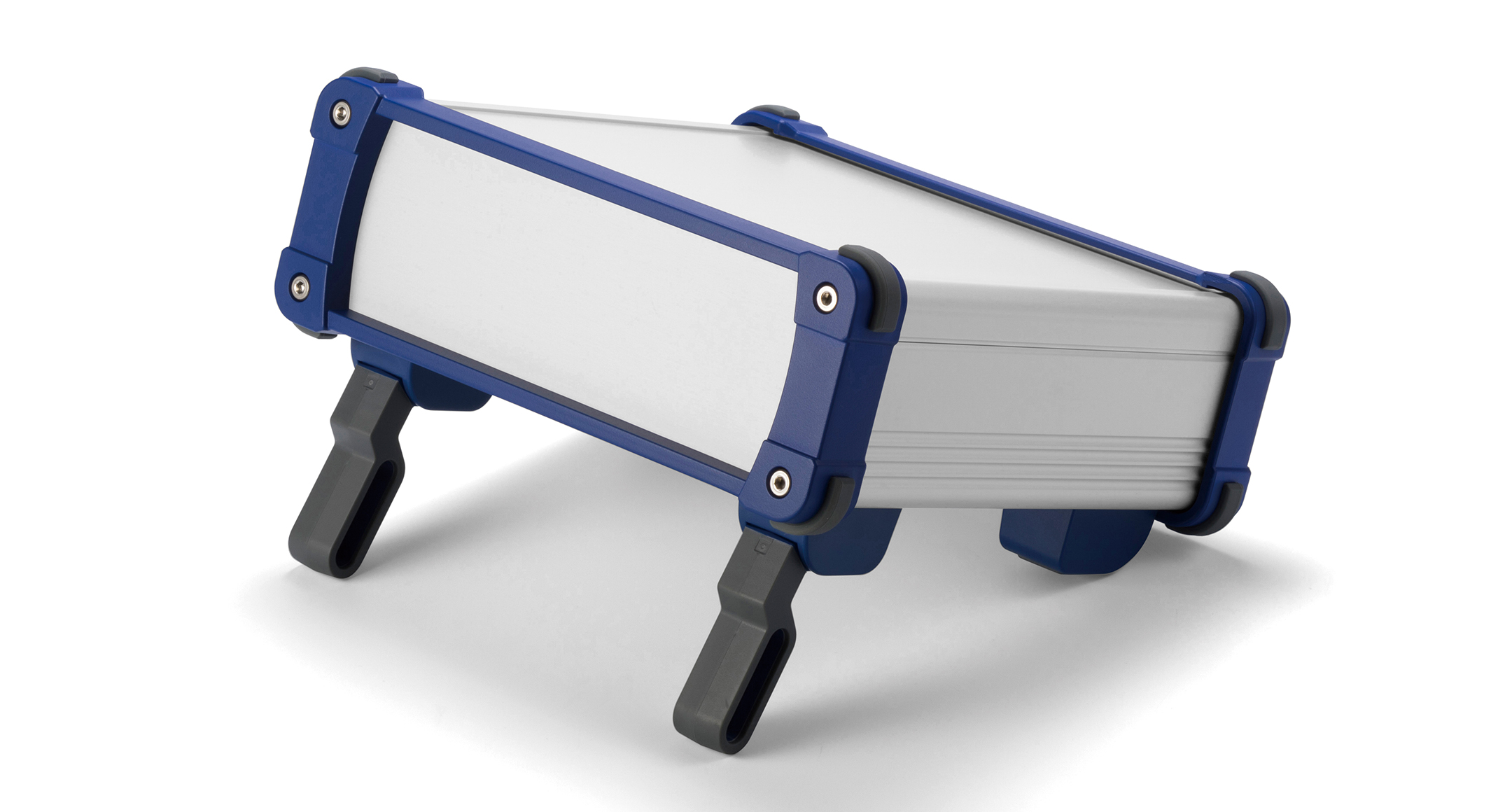

SNSilver/Navy

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Navy

SLSilver/Lime

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Lime

SYSilver/Yellow

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Yellow

SOSilver/Orange

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Orange

SRSilver/Red

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Red

BBBlack/Black

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Black

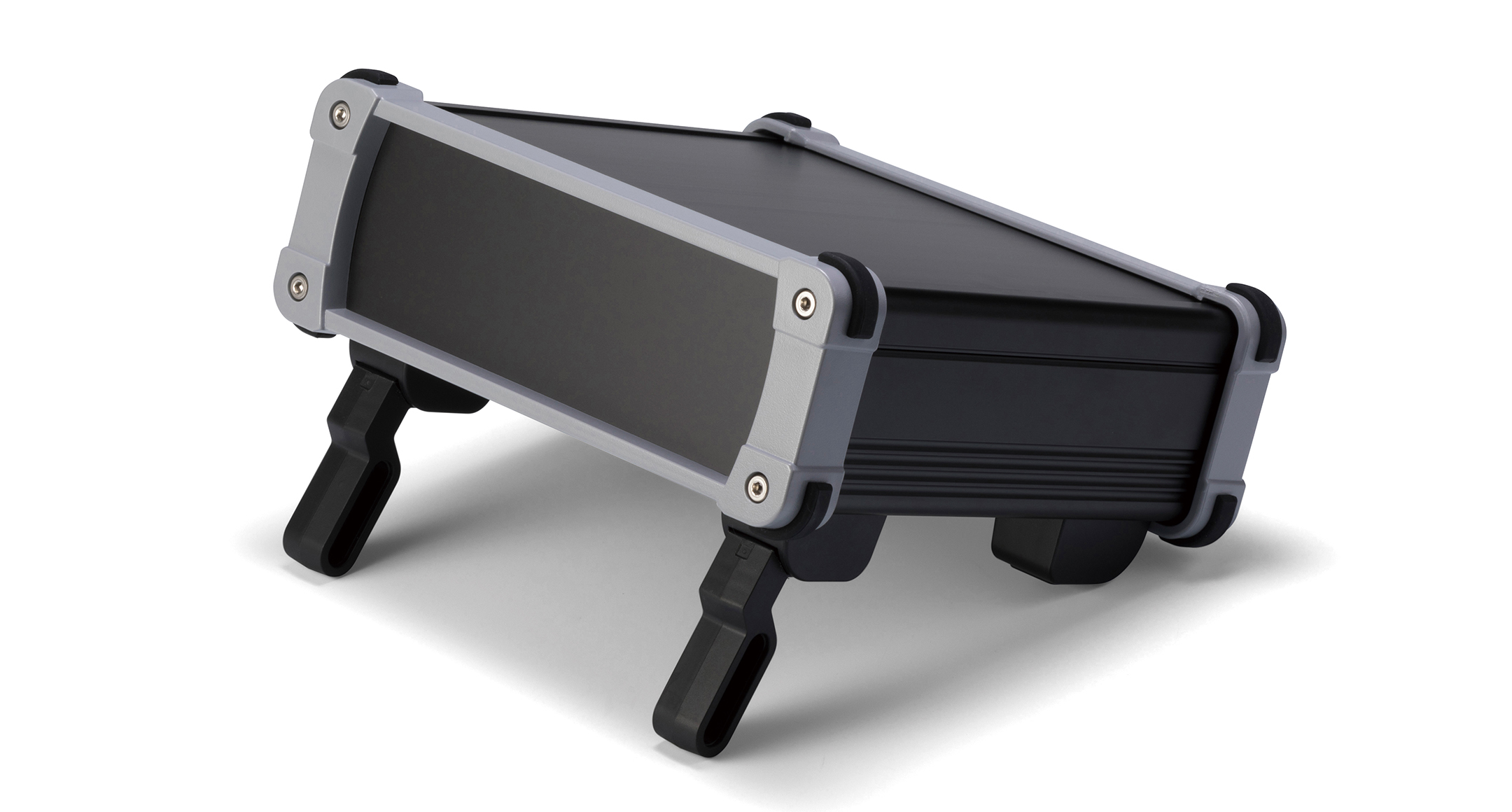

BGBlack/Gray

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Gray

BIBlack/Indigo

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Indigo

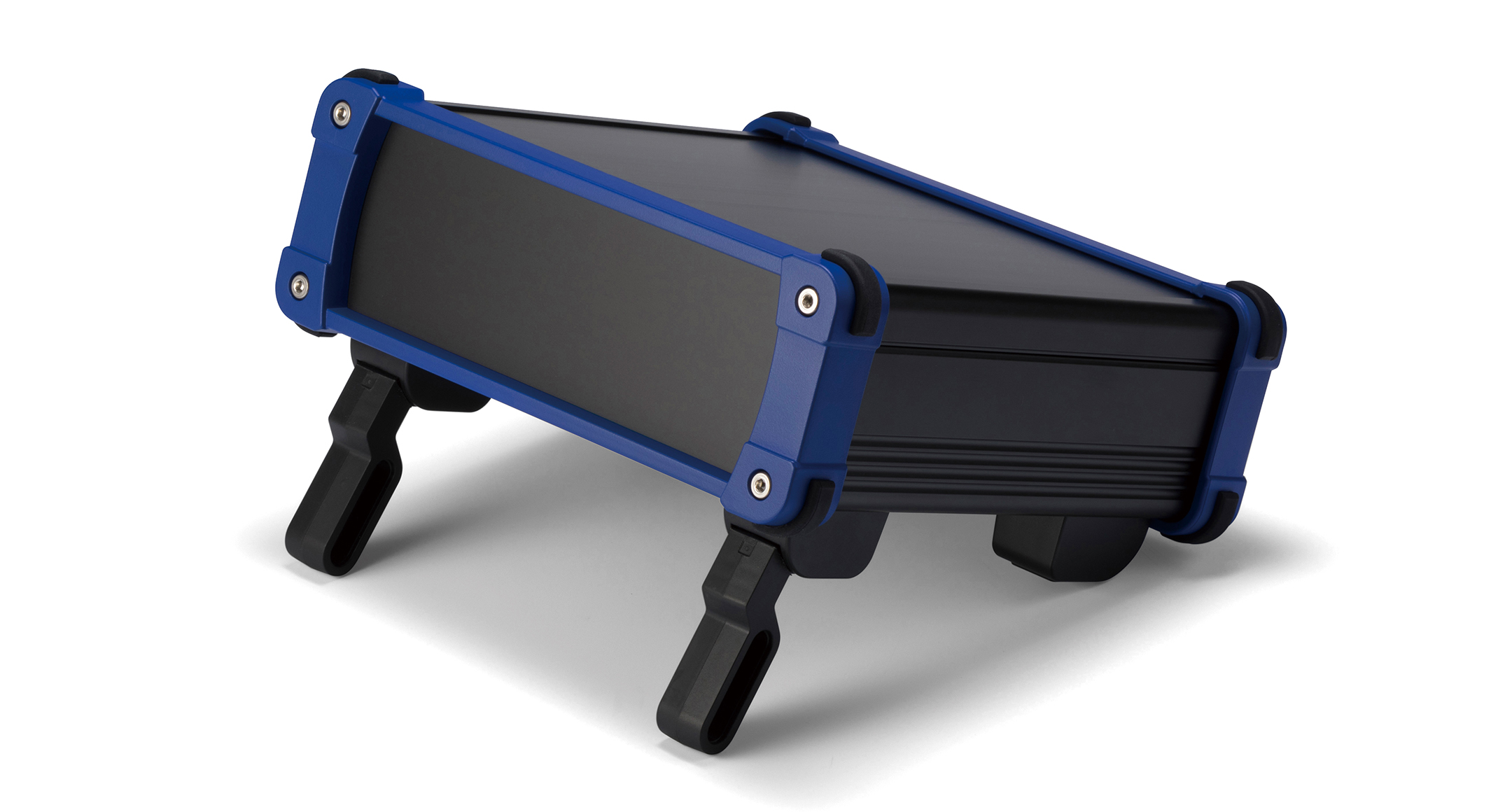

BNBlack/Navy

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Navy

BLBlack/Lime

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Lime

BYBlack/Yellow

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Yellow

BOBlack/Orange

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Orange

BRBlack/Red

ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Red
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Black
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Gray
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Indigo
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Navy
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Lime
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Yellow
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Orange
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Silver/Red
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Black
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Gray
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Indigo
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Navy
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Lime
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Yellow
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Orange
ALUMINIUM ENCLOSURE with TILT LEG - EXPT series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
EXPT20-6-19□ 199 56 192 131 35 172 873 PDF DXF DWG
EXPT20-6-25□ 199 56 245 131 35 225 1067 PDF DXF DWG
EXPT20-6-30□ 199 56 300 131 35 280 1265 PDF DXF DWG
EXPT20-7-19□ 199 74 192 131 53 172 945 PDF DXF DWG
EXPT20-7-25□ 199 74 245 131 53 225 1149 PDF DXF DWG
EXPT20-7-30□ 199 74 300 131 53 280 1364 PDF DXF DWG
EXPT20-9-19□ 199 94 192 131 73 172 1036 PDF DXF DWG
EXPT20-9-25□ 199 94 245 131 73 225 1256 PDF DXF DWG
EXPT20-9-30□ 199 94 300 131 73 280 1487 PDF DXF DWG
EXPT20-12-19□ 199 119 192 131 98 172 1142 PDF DXF DWG
EXPT20-12-25□ 199 119 245 131 98 225 1389 PDF DXF DWG
EXPT20-12-30□ 199 119 300 131 98 280 1631 PDF DXF DWG
EXPT24-6-17□ 244 64 170 176 43 147 1015 PDF DXF DWG
EXPT24-6-23□ 244 64 230 176 43 207 1305 PDF DXF DWG
EXPT24-6-29□ 244 64 290 176 43 267 1560 PDF DXF DWG
EXPT24-6-35□ 244 64 350 176 43 327 1894 PDF DXF DWG
EXPT24-9-17□ 244 89 170 176 68 147 1121 PDF DXF DWG
EXPT24-9-23□ 244 89 230 176 68 207 1430 PDF DXF DWG
EXPT24-9-29□ 244 89 290 176 68 267 1738 PDF DXF DWG
EXPT24-9-35□ 244 89 350 176 68 327 2073 PDF DXF DWG
EXPT24-11-17□ 244 114 170 176 93 147 1225 PDF DXF DWG
EXPT24-11-23□ 244 114 230 176 93 207 1568 PDF DXF DWG
EXPT24-11-29□ 244 114 290 176 93 267 1909 PDF DXF DWG
EXPT24-11-35□ 244 114 350 176 93 327 2268 PDF DXF DWG
EXPT30-9-25□ 300 90 250 230 68 228 1794 PDF DXF DWG
EXPT30-9-32□ 300 90 320 230 68 298 2218 PDF DXF DWG
EXPT30-9-40□ 300 90 400 230 68 378 2703 PDF DXF DWG
EXPT30-14-25□ 300 140 250 230 118 228 2129 PDF DXF DWG
EXPT30-14-32□ 300 140 320 230 118 298 2612 PDF DXF DWG
EXPT30-14-40□ 300 140 400 230 118 378 3163 PDF DXF DWG
