DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG ・ WGV


WGMB-2N Series -PDF

CATEGORY:Pole mounting bracket, Pole mount bracket, Pole bracket

DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG ・ WGV
DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG ・ WGV
DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG ・ WGV1
DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG ・ WGV2
Pole mount bracket made from robust diecast aluminium.
Hole milling is not required when installing the mount bracket, thus allowing the enclosure to maintain its protection class.

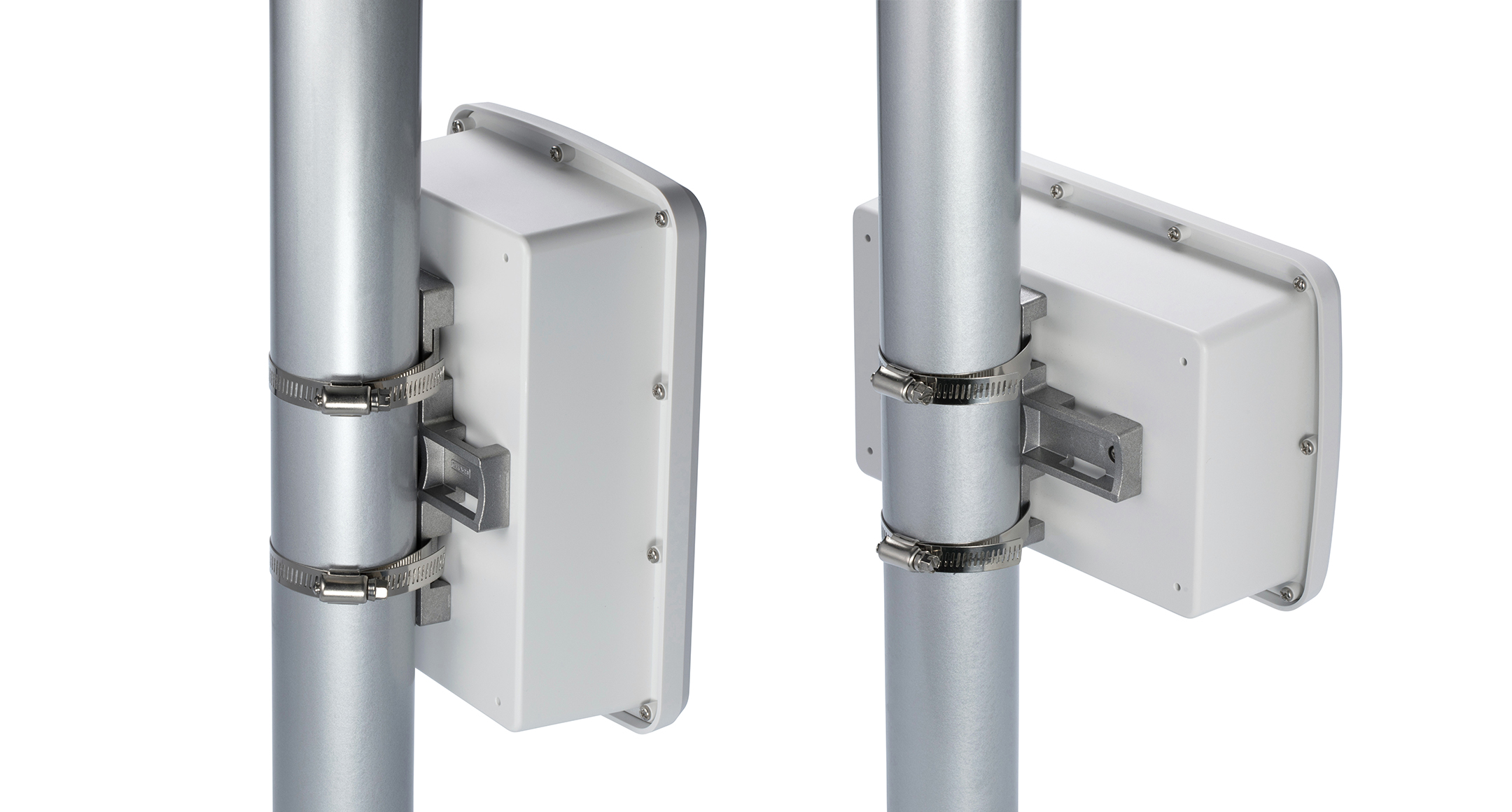

Pole mounting belt can be installed in either W or D direction.

Can be used for WG ・ WGV17-25-□, WG ・ WGV23-25-□ models.
Pole mount is possible with the use of SNB ・ PKB ・ SCT series mounting belt. (See page 323 ~ 324)

PRODUCT NO. / DIMENSIONS

Product No. Material / Finish Weight (g) Recommended torque Pack of PDF DXF DWG STP
WGMB -2N Diecast aluminium ADC12 / Shot blast 126 0.5N ・m ~ 0.6N ・m 1 PDF DXF DWG
