POLE MOUNTING BELT - SNB series


SNB Series -PDF

CATEGORY：Adjustable pole mounting belt, Stainless steel mounting strap, Pole mounting band, Stainless steel band

POLE MOUNTING BELT - SNB series
POLE MOUNTING BELT - SNB series
POLE MOUNTING BELT - SNB series1
POLE MOUNTING BELT - SNB series2
Screw adjustable type stainless steel pole mounting belt.
Belt material : SUS304
Wide lineup of 18 sizes from 52 mm to 308 mm.

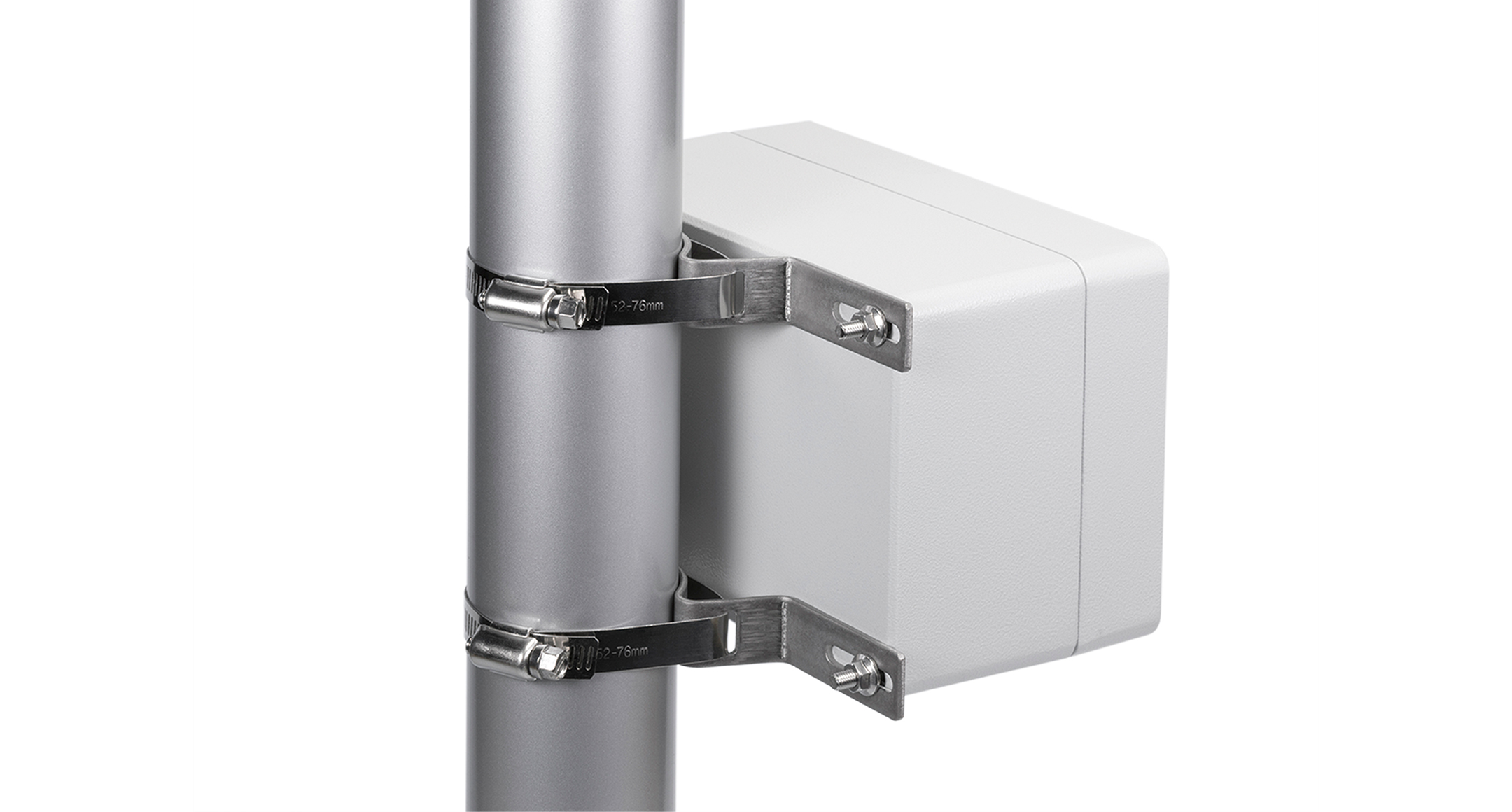

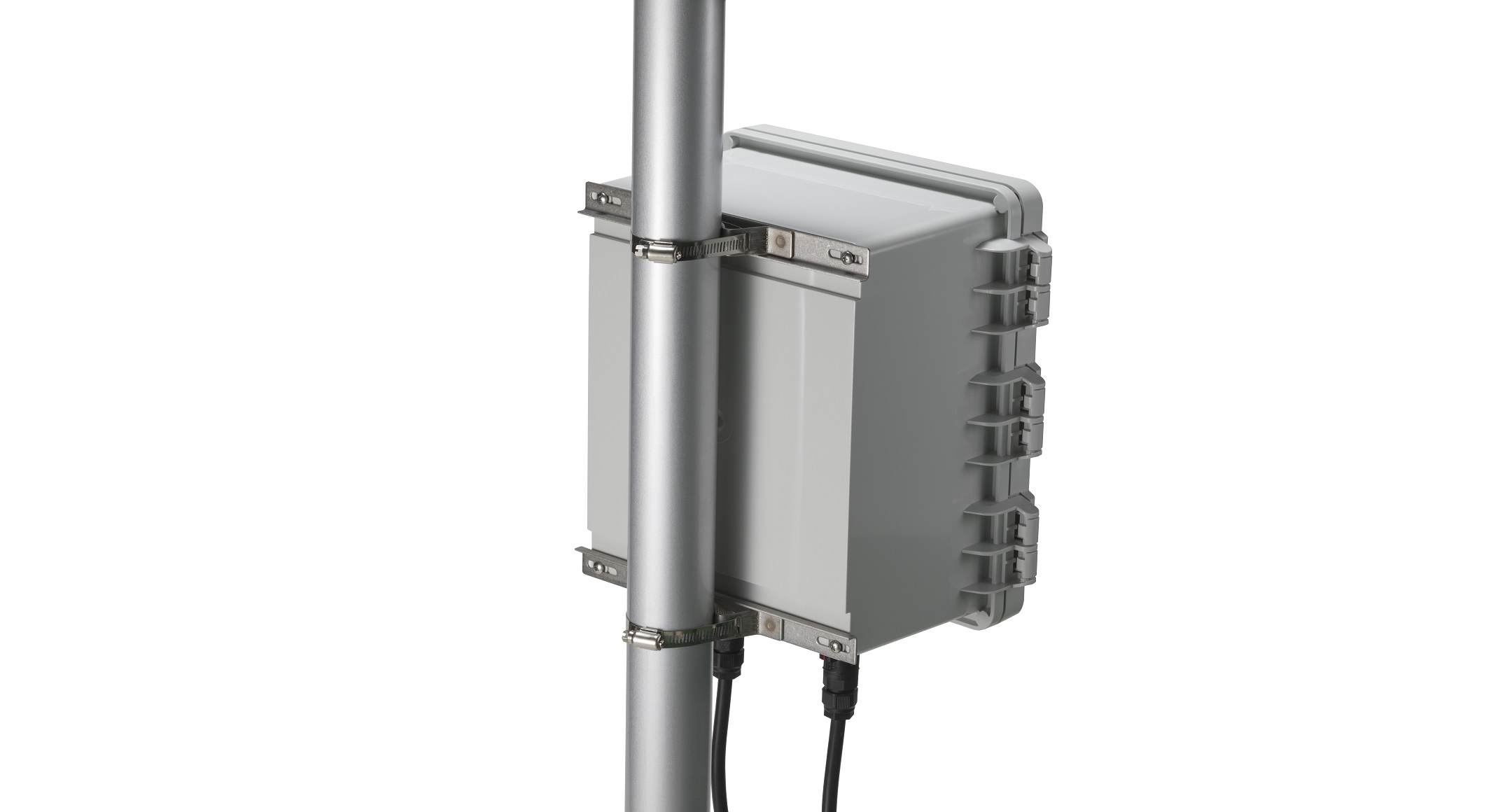

Use with mounting bracket SSK・WGMB・WPMB series for installation onto a pole.

PRODUCT NO. / DIMENSIONS

Product No. Mountable pole diameter(mm) Weight (g) Pack of PDF DXF DWG
SNB52-76 52φ～76φ 27.5 1 pcs
SNB72-95 72φ～95φ 30 1 pcs
SNB91-114 91φ～114φ 34.5 1 pcs
SNB105-127 105φ～127φ 37.5 1 pcs
SNB117-140 117φ～140φ 39.5 1 pcs
SNB130-153 130φ～153φ 41.5 1 pcs
SNB142-165 142φ～165φ 43.5 1 pcs
SNB155-178 155φ～178φ 46.5 1 pcs
SNB168-191 168φ～191φ 49 1 pcs
SNB181-204 181φ～204φ 51 1 pcs
SNB194-217 194φ～217φ 52.5 1 pcs
SNB207-230 207φ～230φ 27 1 pcs
SNB220-243 220φ～243φ 59.5 1 pcs
SNB233-256 233φ～256φ 62.5 1 pcs
SNB246-269 246φ～269φ 64 1 pcs
SNB259-282 259φ～282φ 67.5 1 pcs
SNB272-295 272φ～295φ 70 1 pcs
SNB285-308 285φ～308φ 71 1 pcs
