GROMMET・RUBBER BUSH・CABLE BUSHING・HOLE PLUG

GROMMET・RUBBER BUSH・CABLE BUSHING・HOLE PLUG -PDF

CATEGORY： RUBBER GROMMET・HOLE BUSHING・CORD PROTECTOR・BLIND PLUG

Rubber grommet to protect cables or wires on the milled holes.
Standard grommets and closed membrane grommets are available.
Hole plugs to cover the holes when not in use.

RUBBER MEMBRANE GROMMET - SG series
  • RUBBER MEMBRANE GROMMET - SG series
  • Rubber grommet to protect cables or wires on the edged holes.
  • Dustproof grommet with membrane.
  • Can be used by inserting a cable into the membrane part.
  • 17 different sizes from φ4.5～φ34mm are available.
    DETAILS
    RUBBER GROMMET - NG series
    • RUBBER GROMMET - NG series
    • Rubber grommet to protect cables or wires on the edged holes.
    • Material：EPDM, PVC, NBR
    • 40 different sizes from φ2.3～φ40mm are available.
    • NEW SIZE
    DETAILS
    RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
    • RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
    • Strain relief cord protector help relief flex stress and damage.
    • 2 types - round and flat - are available.
    • Insert from the inner side of the case / panel of the enclosure.
    • Made from high heat resistant silicone material.
    • NEW PRODUCT
    DETAILS
    CABLE BUSHING - CP series
    • CABLE BUSHING - CP series
    • Cable bushing for protection against cord twists and breakage.
    • Fixing with lock nut.
    • Sold in 10 pcs pack.
      DETAILS

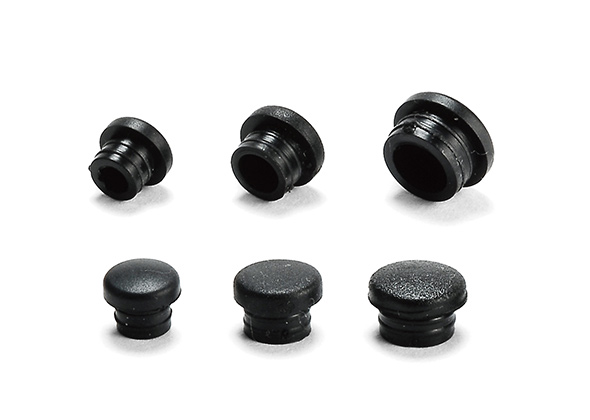

      SMALL HOLE PLUG - MHD series
      • SMALL HOLE PLUG - MHD series
      • Small hole plug for Φ5.0, Φ5.5, Φ7.0, and Φ8.0 sized holes.
      • Made from TPE (Elastomer) and silicone material.
      • Installation panel thickness : 1.0mm ~ 3.0mm.
        DETAILS

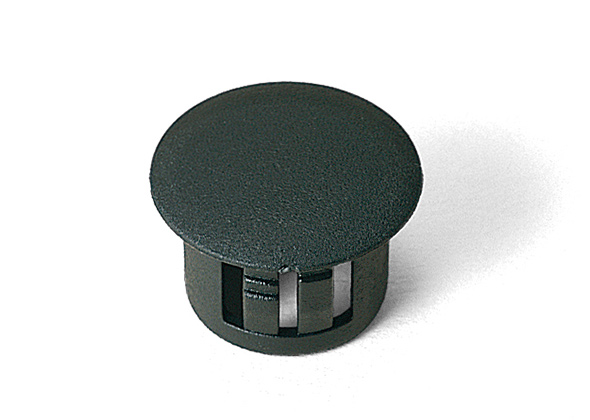

        HOLE PLUG - HPL series
        • HOLE PLUG - HPL series
        • Hole plug for the unused holes.
        • 8 different sizes for φ8~φ30 holes are available.
          DETAILS
          HOLE EDGE PROTECTOR - JKG Series
          • HOLE EDGE PROTECTOR - JKG Series
          • Grommet edging strip for protect the cables.
          • Cut into suitable lengths to fit the hole.
          • 8 different sizes are available.
            DETAILS
