RUBBER GROMMET - NG series


NG Series -PDF

CATEGORY：Rubber grommet, Rubber bushing, Cable Bushing

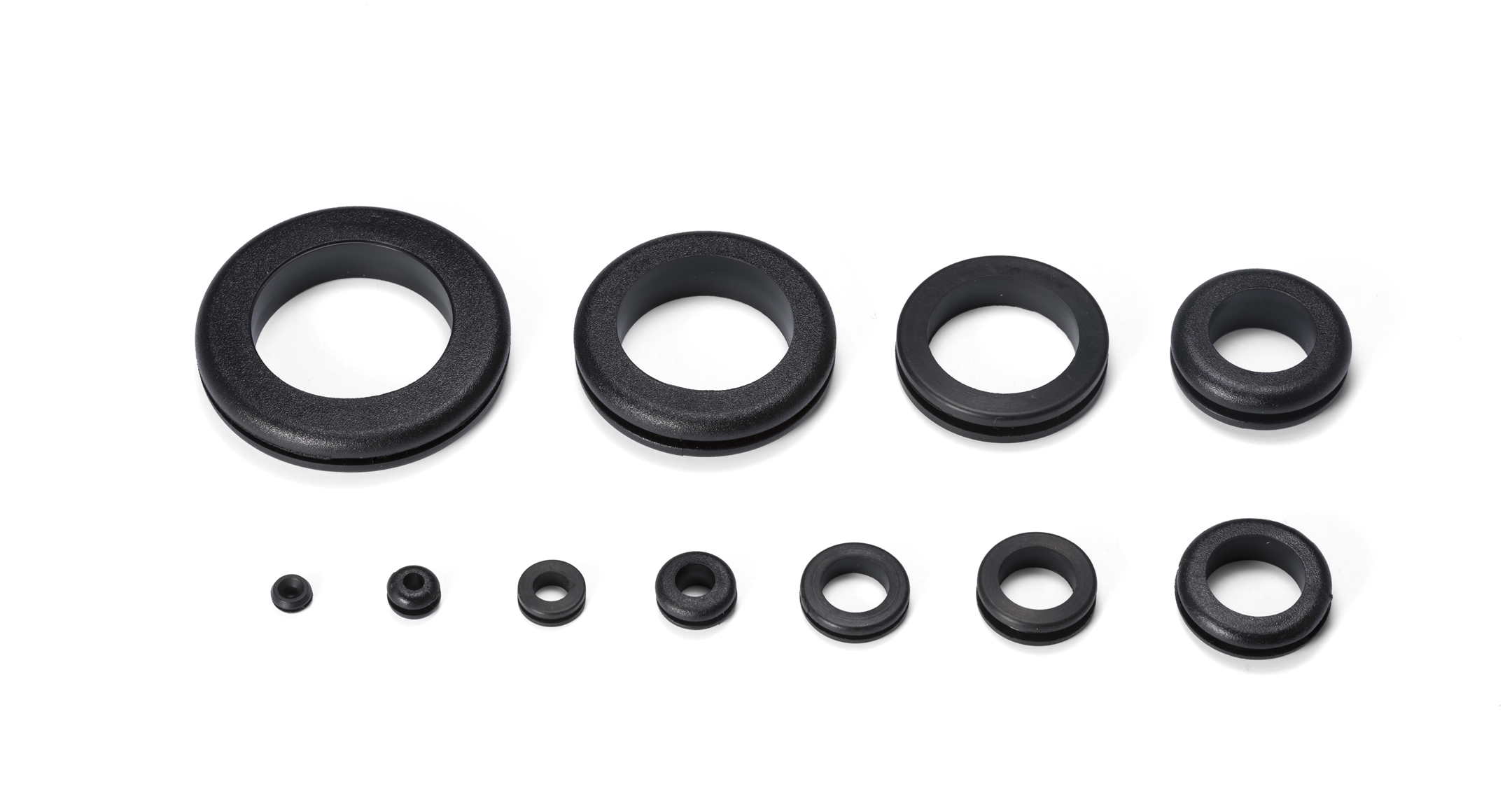

RUBBER GROMMET - NG series
RUBBER GROMMET - NG series1
Rubber grommet to protect cables or wires on the edged holes.

Material：EPDM, PVC, NBR
40 different sizes from φ2.3～φ40mm are available.

PRODUCT NO. / DIMENSIONS

Product No. Installation hole diameter (mm) Matching cable diameter (mm) Weight (g) / 1pc Pack of Material Old Product No. PDF DXF DWG
NG2.3-8 5.8 2.3 0.1 10 pcs NBR PDF DXF DWG
NG3-10 5 3 0.1 10 pcs EPDM NG-74 PDF DXF DWG
NG3-20 5 3 0.1 10 pcs EPDM NG-742 PDF DXF DWG
NG3.5-12 6 3.5 0.2 10 pcs EPDM NG-79-1 PDF DXF DWG
NG4-15 6.7 4 0.4 10 pcs PVC PDF DXF DWG
NG5-10 8 5 0.3 10 pcs EPDM NG-79-A1 PDF DXF DWG
NG5-15 8 5 0.3 10 pcs EPDM NG-79-A PDF DXF DWG
NG5-20 8 5 0.3 10 pcs EPDM NG-79-A2 PDF DXF DWG
NG5-30 8 5 0.4 10 pcs EPDM NG-79-B PDF DXF DWG
NG6.5-15 9.8 6.5 1 10 pcs PVC PDF DXF DWG
NG7-15 10 7 0.4 10 pcs EPDM NG-79-C PDF DXF DWG
NG7-20 10.2 7 0.8 10 pcs PVC PDF DXF DWG
NG7-30 10 7 0.5 10 pcs EPDM NG-79-D PDF DXF DWG
NG8-15 12 8 1.1 10 pcs PVC PDF DXF DWG
NG8-20 10 8 0.8 10 pcs PVC PDF DXF DWG
NG9-15 12 9 0.5 10 pcs EPDM NG-79-E PDF DXF DWG
NG9-20 15 9 1.7 10 pcs PVC PDF DXF DWG
NG9-30 12 9 0.6 10 pcs EPDM NG-79-F PDF DXF DWG
NG10-15 13.3 10 1.3 10 pcs PVC PDF DXF DWG
NG10-20 11.2 10 0.8 10 pcs PVC PDF DXF DWG
NG11-15 15 11 1 10 pcs EPDM NG-79-G PDF DXF DWG
NG11-30 15 11 1.2 10 pcs EPDM NG-79-H PDF DXF DWG
NG12-25 14.5 12 2 10 pcs PVC PDF DXF DWG
NG13-15 17 13 1.1 10 pcs EPDM NG-79-J PDF DXF DWG
NG13-30 17 13 1.3 10 pcs EPDM NG-79-K PDF DXF DWG
NG14-25 16.5 14 21 10 pcs PVC PDF DXF DWG
NG15-15 19 15 1.3 10 pcs EPDM NG-79-L PDF DXF DWG
NG15-30 19 15 1.5 10 pcs EPDM NG-79-M PDF DXF DWG
NG16-25 19 16 2.6 10 pcs PVC PDF DXF DWG
NG18-25 21.5 18 2.8 10 pcs PVC PDF DXF DWG
NG20-15 25 20 2.5 10 pcs EPDM NG-79-N PDF DXF DWG
NG20-25 24 20 3 10 pcs PVC PDF DXF DWG
NG20-30 25 20 2.8 10 pcs EPDM NG-79-O PDF DXF DWG
NG22-30 27 22 6.6 10 pcs PVC PDF DXF DWG
NG25-15 30 25 3.2 10 pcs EPDM NG-79-P PDF DXF DWG
NG25-30 30 25 3.4 10 pcs EPDM NG-79-Q PDF DXF DWG
NG30-15 36 30 5.5 10 pcs EPDM NG-79-R PDF DXF DWG
NG30-30 36 30 5.8 10 pcs EPDM NG-79-S PDF DXF DWG
NG35-30 38 35 24.2 10 pcs PVC PDF DXF DWG
NG40-30 48.5 40 40 10 pcs PVC PDF DXF DWG
