RUBBER MEMBRANE GROMMET - SG series


SG Series -PDF

CATEGORY：Membrane grommet, Blind grommet, Rubber grommet, Rubber bushing, Cable Bushing

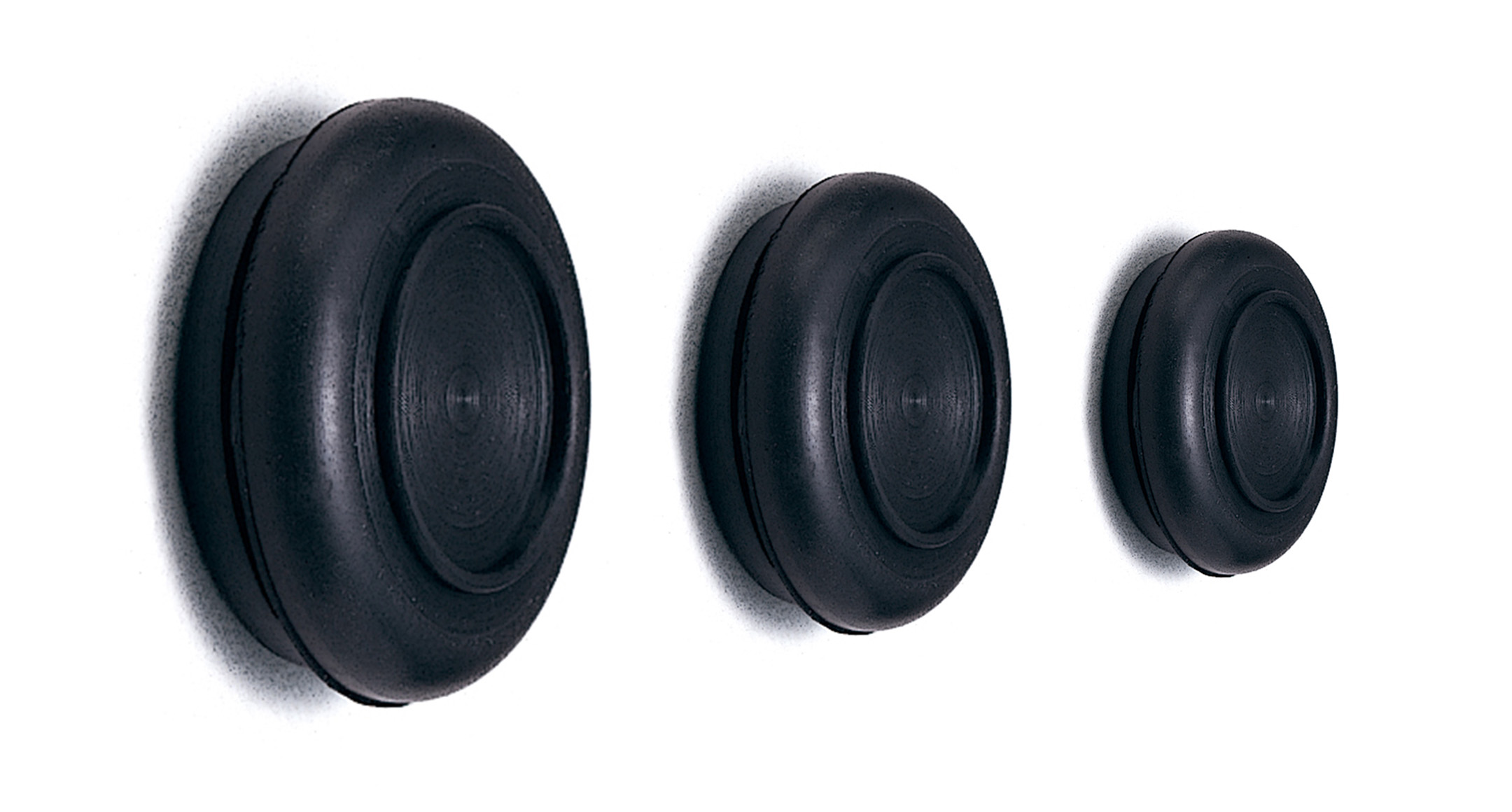

RUBBER MEMBRANE GROMMET - SG series
RUBBER MEMBRANE GROMMET - SG series1
Rubber grommet to protect cables or wires on the edged holes.
Insert the cable into closed membrane part for more dustproof purpose than normal grommet.

Material：EPDM
17 different sizes from φ4.5～φ34mm are available.

PRODUCT NO. / DIMENSIONS

Product No. Mounting thickness (mm) Installation hole diameter (φ) Weight (g) / 1pc Pack of Old Product No. PDF DXF DWG
SG4.5-23 2.0～2.3 9.0～9.5 0.8 10 pcs SG-9A PDF DXF DWG
SG7-16 1.2～1.6 12.0～12.5 1 10 pcs SG-12A PDF DXF DWG
SG9-23 2.0～2.3 14.0～14.5 1.5 10 pcs SG-14A PDF DXF DWG
SG11-16 1.2～1.6 16.0～16.5 1.9 10 pcs SG-16A PDF DXF DWG
SG13-23 2.0～2.3 18.0～18.5 2.3 10 pcs SG-18A PDF DXF DWG
SG15-16 1.2～1.6 20.0～20.5 3 10 pcs SG-20A PDF DXF DWG
SG17-23 2.0～2.3 22.0～22.5 3.4 10 pcs SG-22A PDF DXF DWG
SG19-23 2.0～2.3 24.0～24.5 4.4 10 pcs SG-24A PDF DXF DWG
SG19-32 3.0～3.2 26.0～26.5 6.2 10 pcs SG-26A PDF DXF DWG
SG21-23 2.0～2.3 28.0～28.5 6.9 10 pcs SG-28A PDF DXF DWG
SG23-32 3.0～3.2 30.0～30.5 7 10 pcs SG-30A PDF DXF DWG
SG25-16 1.2～1.6 30.0～30.5 4 10 pcs SG-30B PDF DXF DWG
SG25-23 2.0～2.3 32.0～32.5 8 10 pcs SG-32A PDF DXF DWG
SG27-32 3.0～3.2 34.0～34.5 8.1 10 pcs SG-34A PDF DXF DWG
SG28-23 2.0～2.3 36.0～36.5 11.2 10 pcs SG-36A PDF DXF DWG
SG30-32 3.0～3.2 38.0～38.5 12.6 10 pcs SG-38A PDF DXF DWG
SG34-32 3.0～3.2 42.0～42.5 14 10 pcs SG-42A PDF DXF DWG

SIMILAR PRODUCT

１
RUBBER GROMMET - NG series
DETAILS
１

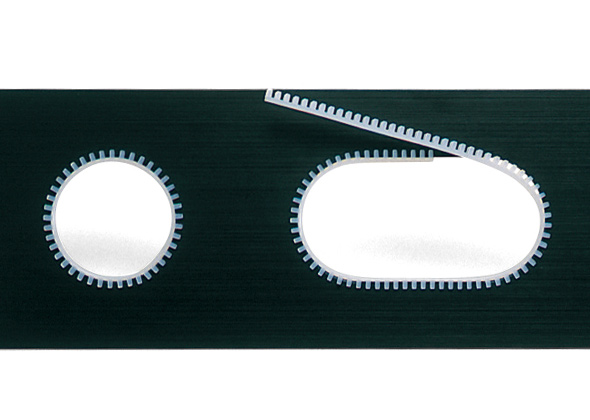

HOLE EDGE PROTECTOR - JKG Series
