CATEGORY：EMC shielding cable gland, Metal cable gland, Cable glands with contact spring, IP68 cable gland

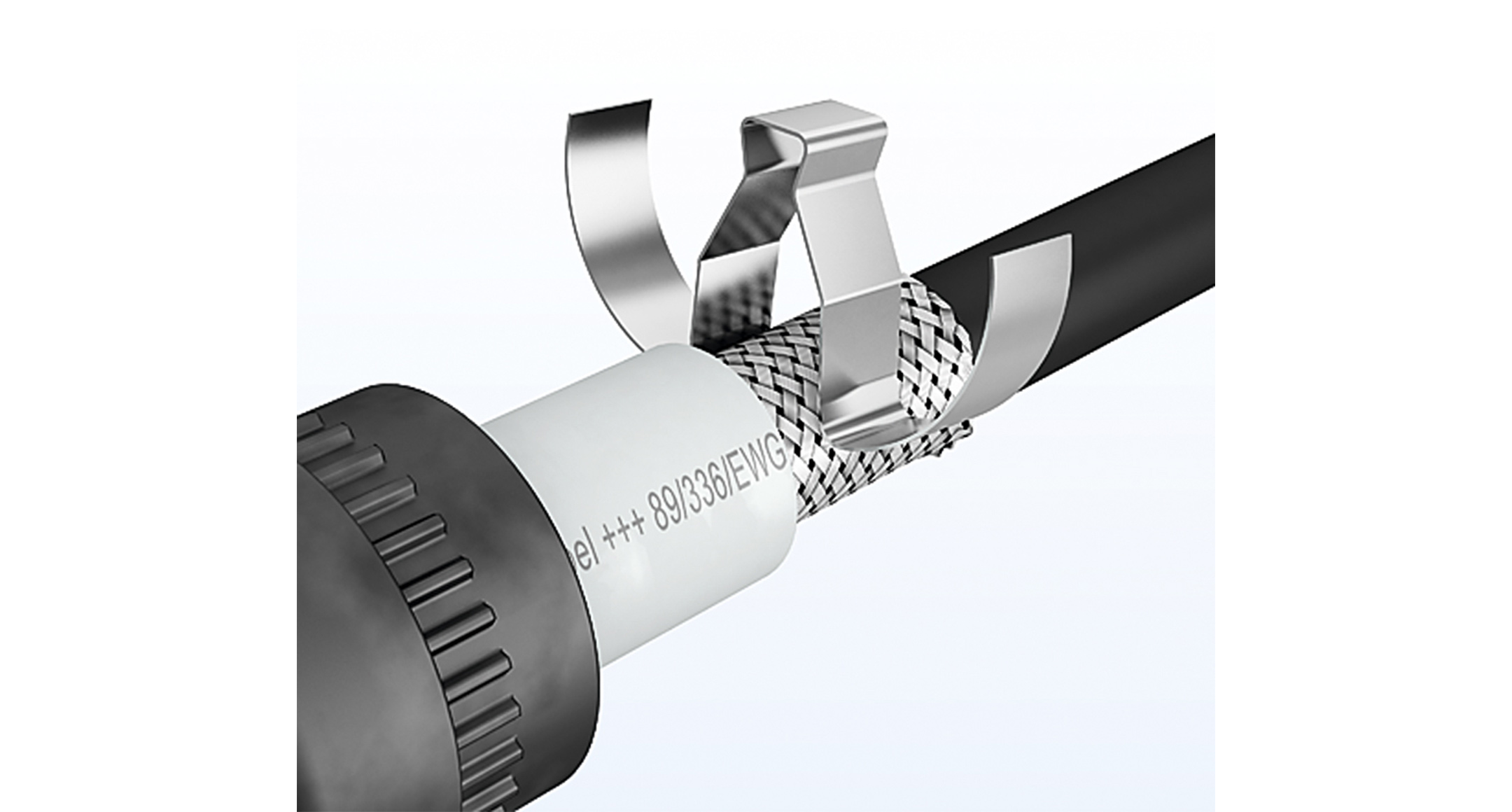

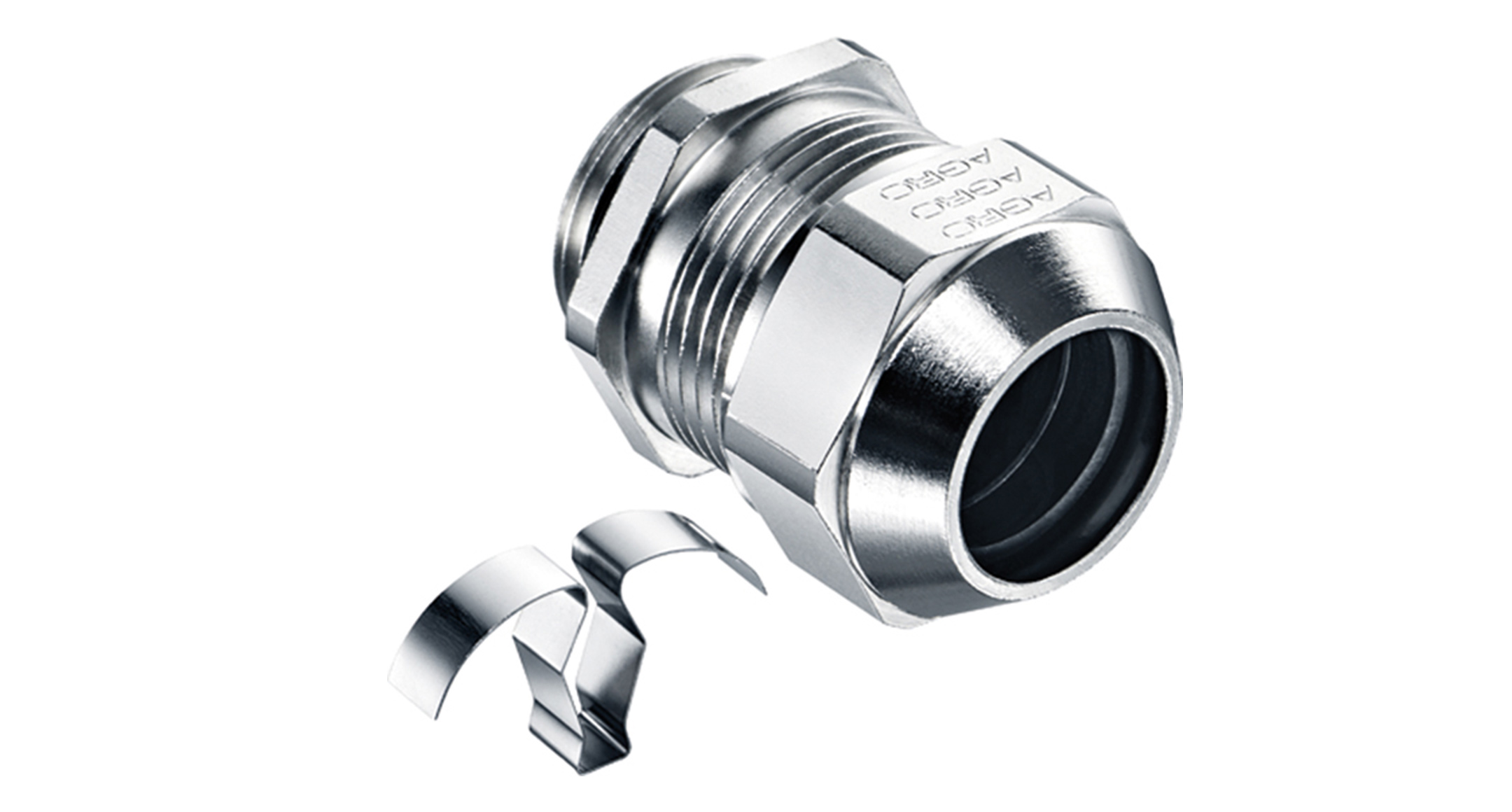

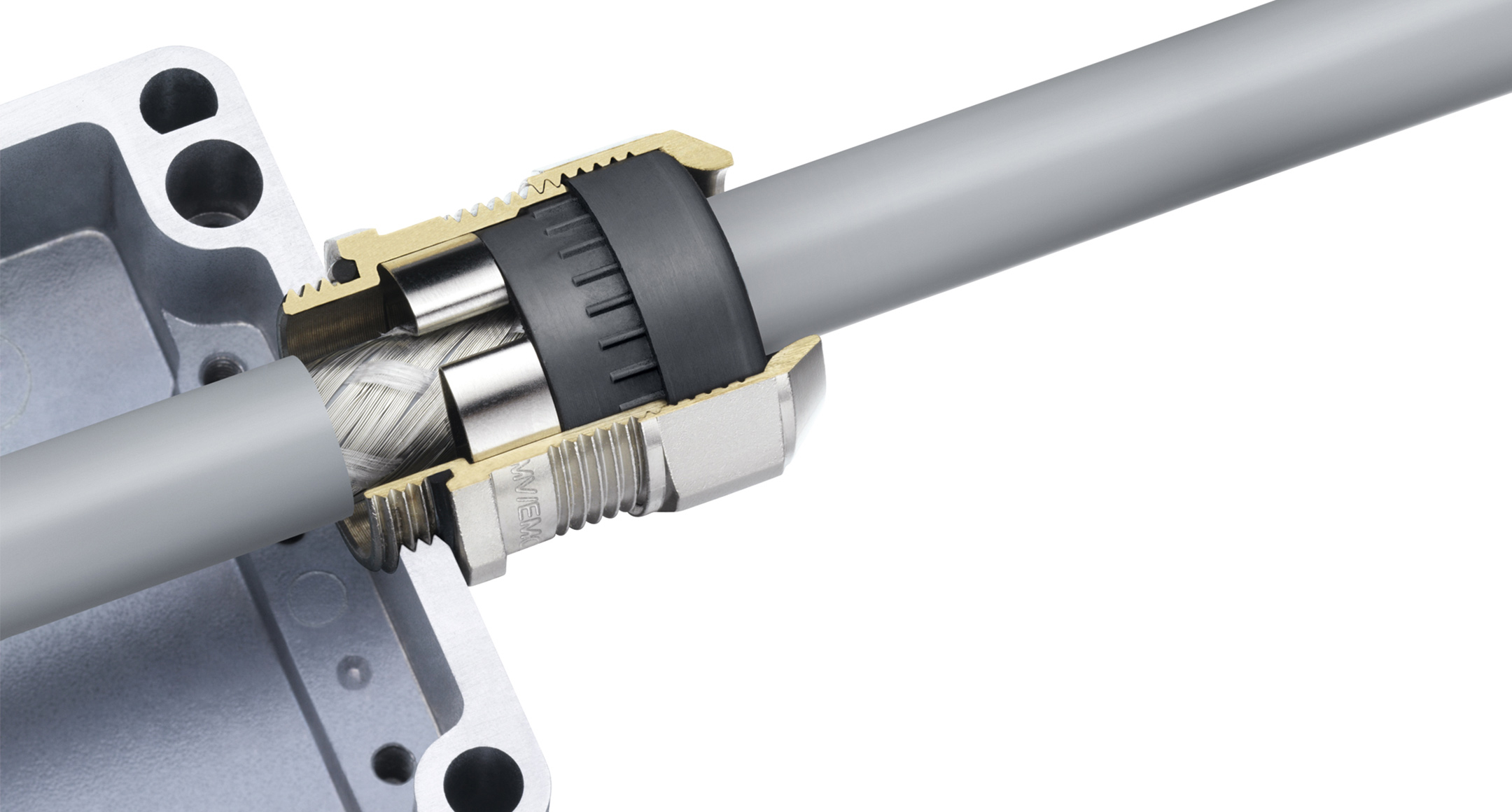

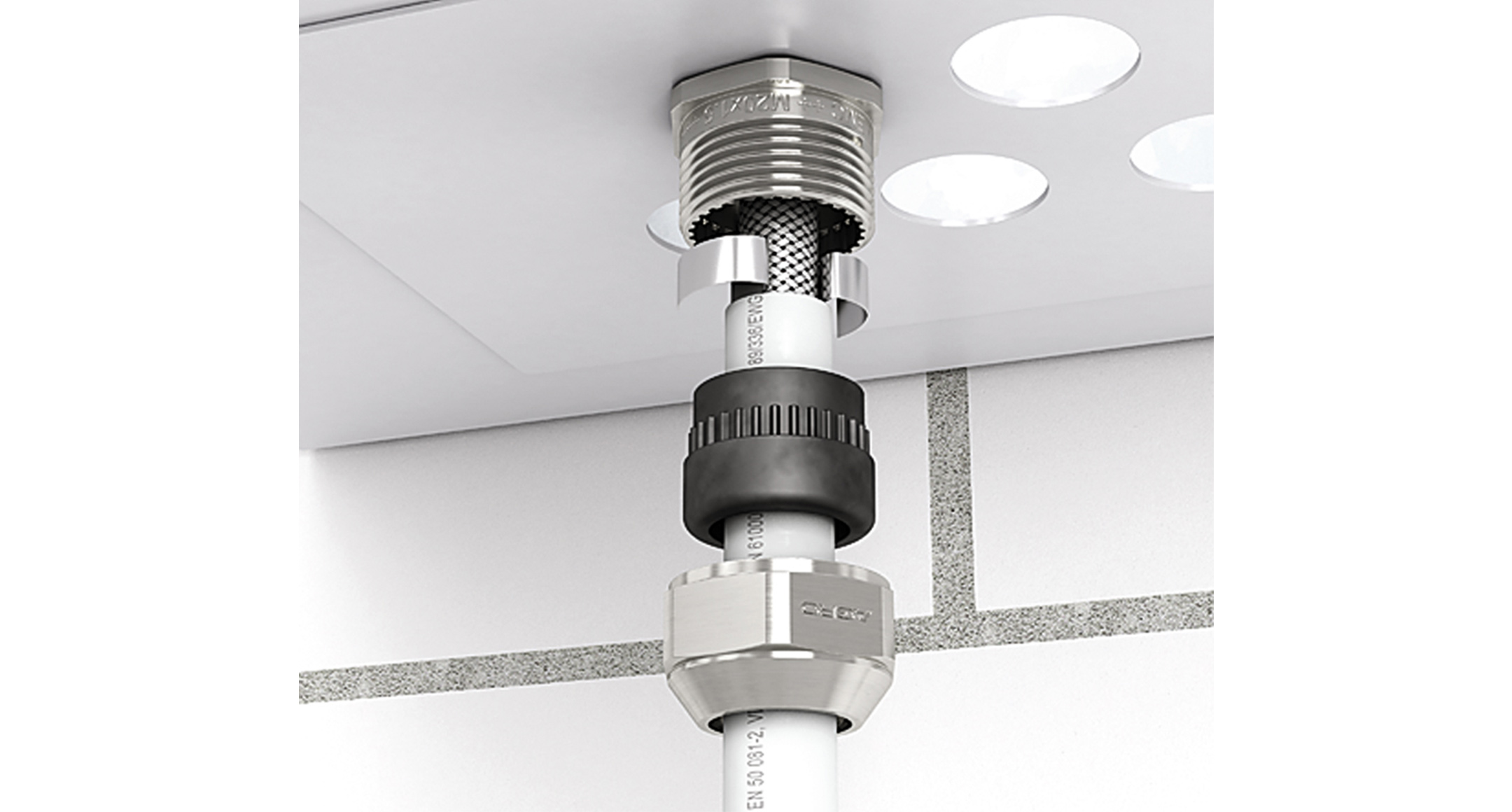

EMC spring system provides for a very good contact of partially stripped shielding cables equally as well as for the contact of completely exposed cable shields which can be routed further.

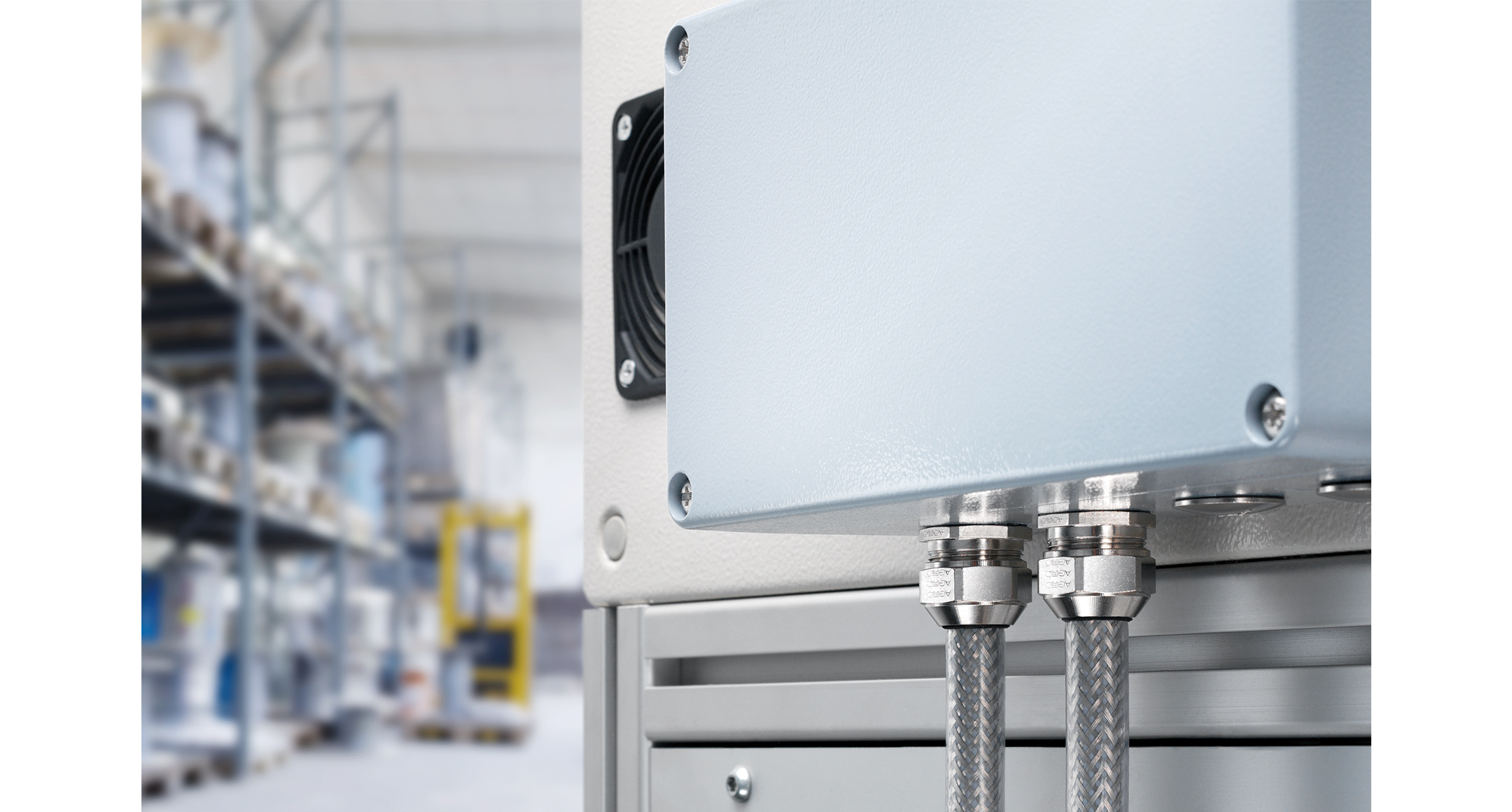

Clawed lock nut makes a good EMC shield contact possible on conductive enclosures.
Shape of the contact spring not only allows for a large clamping range to the shield but also enables easy and faster installation and re-installation.

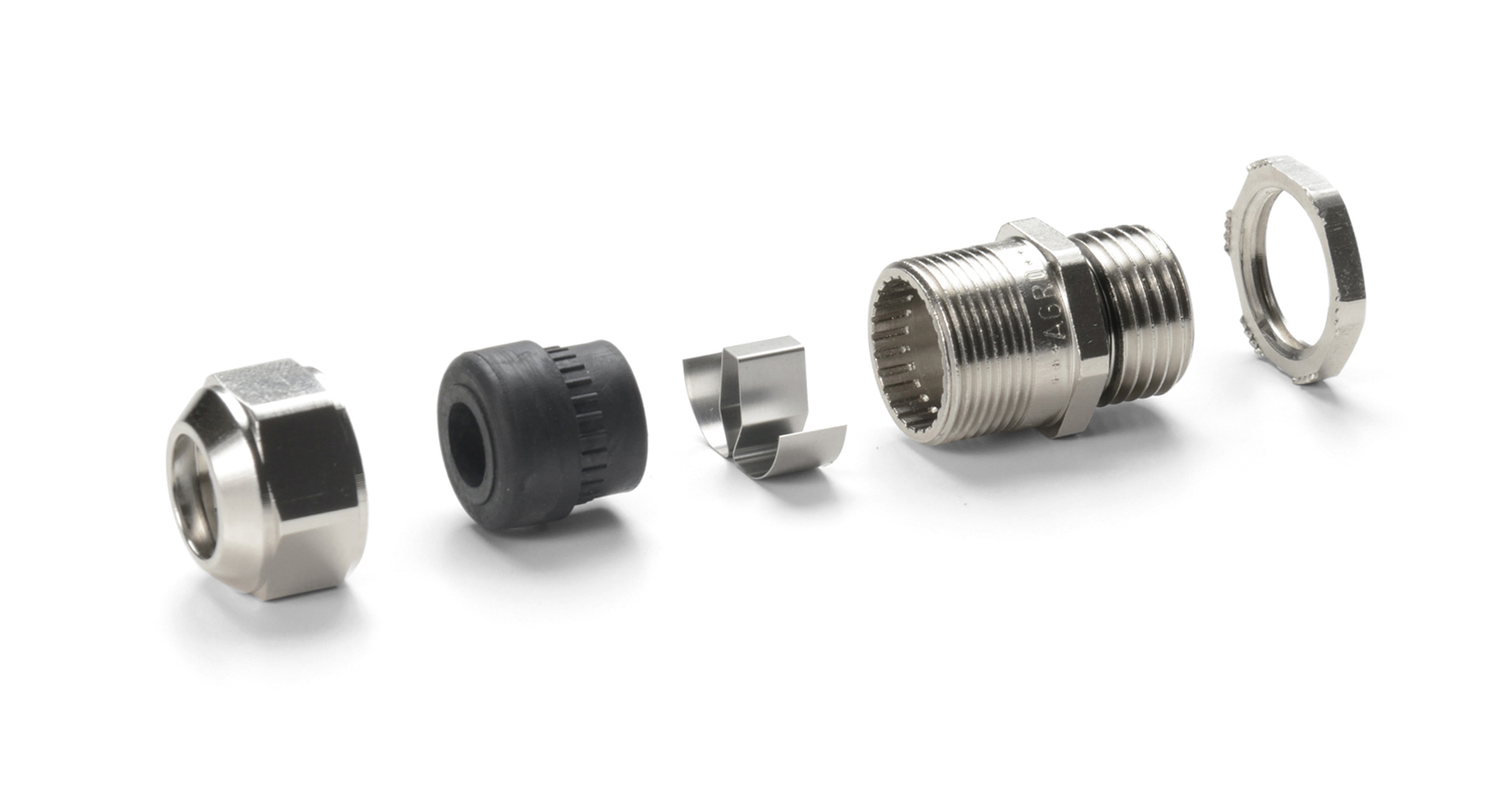

2-piece detachable sealing inserts can be adapted to the wider existing cable diameter on site.
(AGE12 available only with 1-piece sealing insert)
Protection class : IP68 2bar / 30min, IP69K
20m depth immersion in 30 minutes
Operating temperature : -60℃ ～ +100℃
Compliant with IEC62444 Var. A
Clawed lock nut makes a good EMC shield contact possible on conductive enclosures.
Shape of the contact spring not only allows for a large clamping range to the shield but also enables easy and faster installation and re-installation.
2-piece detachable sealing inserts can be adapted to the wider existing cable diameter on site.
(AGE12 available only with 1-piece sealing insert)
Protection class : IP68 2bar / 30min, IP69K
20m depth immersion in 30 minutes
Operating temperature : -60℃ ～ +100℃
Compliant with IEC62444 Var. A
PRODUCT NO. / DIMENSIONS
| Product No. | Thread size | Mounting hole | Cable range (mm) | Weight (g) | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|
| AGE12-5 | M12×1.5 | φ12.2 | φ3.5 - 5.0 mm | 19.8 | 1 pcs | DXF | DWG | |
| AGE12-6.5 | M12×1.5 | φ12.2 | φ5.0 - 6.5 mm | 19.2 | 1 pcs | DXF | DWG | |
| AGE16-10.5 | M16×1.5 | φ16.2 | φ6.0 - 10.5 mm | 29.1 | 1 pcs | DXF | DWG | |
| AGE20-15 | M20×1.5 | φ20.2 | φ8.0 - 15.0 mm | 47.5 | 1 pcs | DXF | DWG | |
| AGE25-20 | M25×1.5 | φ25.2 | φ12.5 - 20.0 mm | 79.8 | 1 pcs | DXF | DWG | |
| AGE32-25 | M32×1.5 | φ32.3 | φ17.0 - 25.0 mm | 129.8 | 1 pcs | DXF | DWG |
