LOW COST IP67 METAL CABLE GLAND - RMC series


RMC Series -PDF

CATEGORY：Metal cable gland, IP67 cable gland, Brass cable gland, Conduit connector

LOW COST IP67 METAL CABLE GLAND - RMC series
LOW COST IP67 METAL CABLE GLAND - RMC series

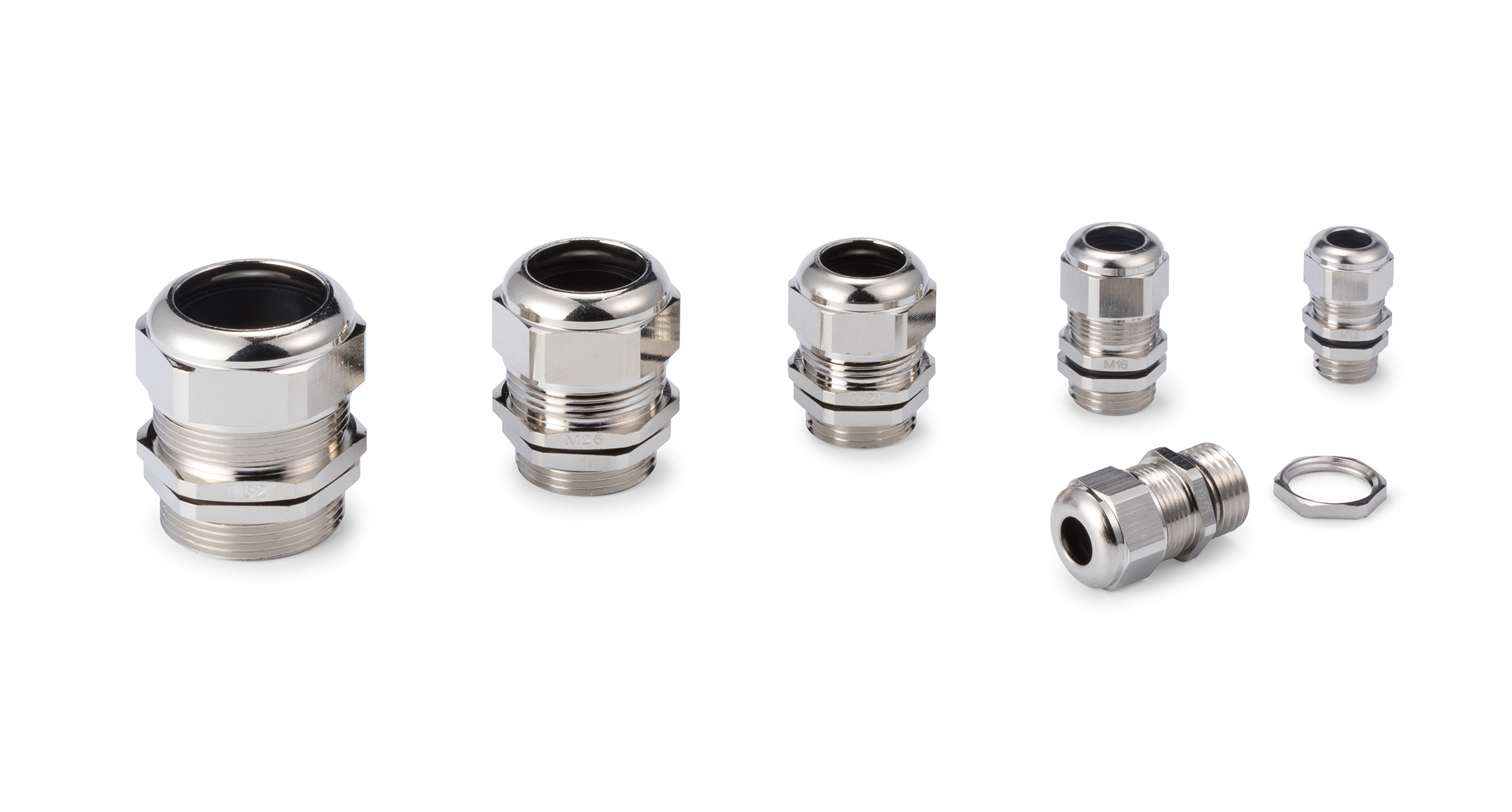

LOW COST IP67 METAL CABLE GLAND - RMC series1

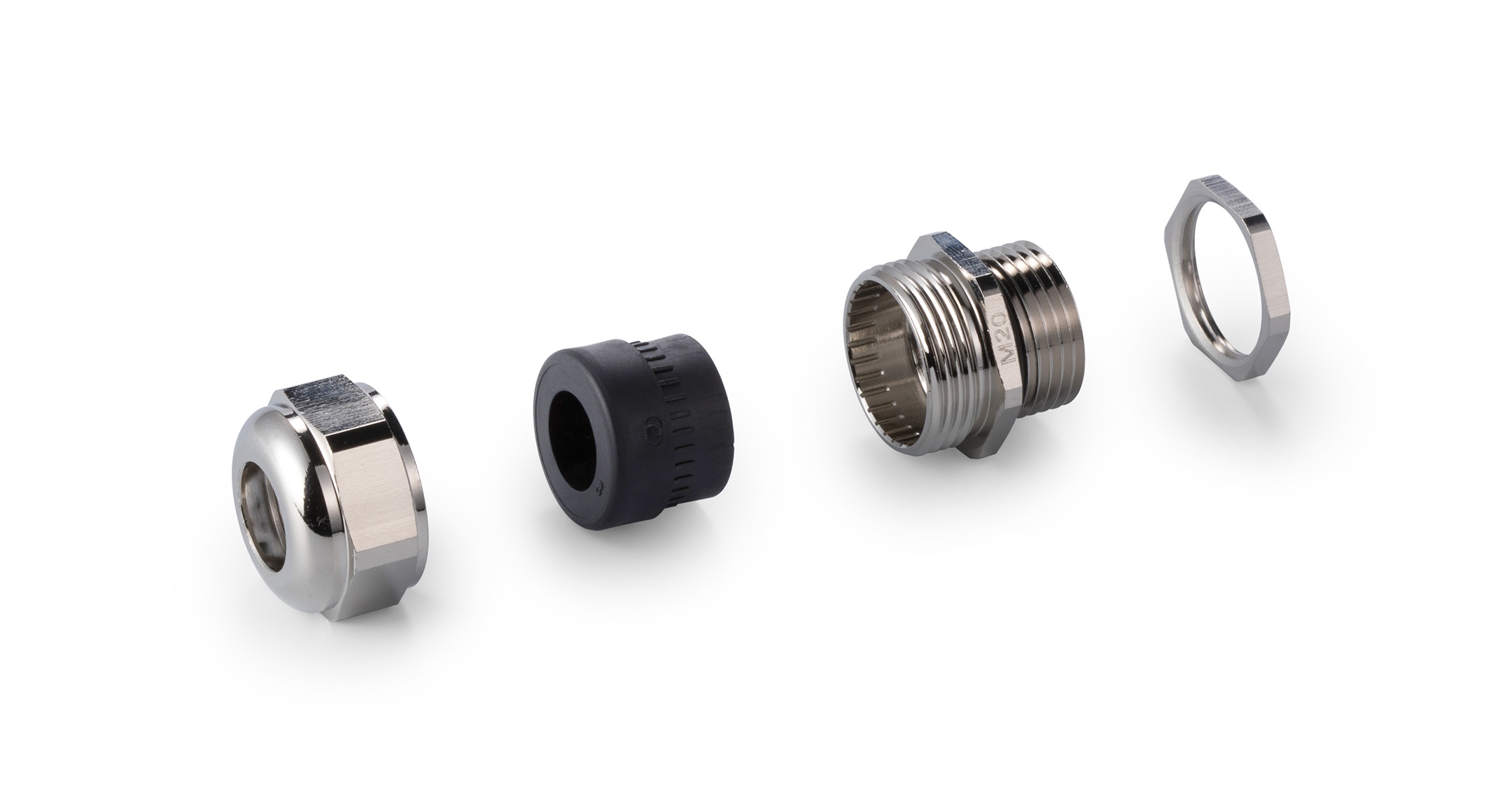

LOW COST IP67 METAL CABLE GLAND - RMC series2
Economical metal cable gland.
Wide selection available from M12 ~ M32.

Protection class: Equivalent to IP67*
Operating temperature: -20°C ~ +80°C
*In-house test

【Materials / Finish】
Cap・Connector・Lock Nut = Brass / Nickel plated
Sealing Insert = TPE
O-ring=NBR

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Weight (g) PDF DXF DWG
RMC12-6.5 M12×1.5 φ12.2 5.0～6.5 15.5 PDF DXF DWG
RMC12-7.5 M12×1.5 φ12.2 6.5～7.5 15 PDF DXF DWG
RMC16-8 M16×1.5 φ16.2 6.5～8.0 25 PDF DXF DWG
RMC16-10.5 M16×1.5 φ16.2 8.0～10.5 24 PDF DXF DWG
RMC20-11 M20×1.5 φ20.2 9.5～11.0 40.5 PDF DXF DWG
RMC20-14.5 M20×1.5 φ20.2 11.0～14.5 37.5 PDF DXF DWG
RMC25-16 M25×1.5 φ25.2 14.0～16.0 69 PDF DXF DWG
RMC25-19 M25×1.5 φ25.2 16.0～19.0 65.5 PDF DXF DWG
RMC32-21 M32×1.5 φ32.3 18.0～21.0 99 PDF DXF DWG
RMC32-25.5 M32×1.5 φ32.3 21.0～25.5 95.5 PDF DXF DWG
