CATEGORY：EMC/EMI shielding rack mounting enclosure, 19 inch rack case, Aluminum enclosure, EMC/EMI shielding box, Shielded enclosure, Metal enclosure, Universal enclosure

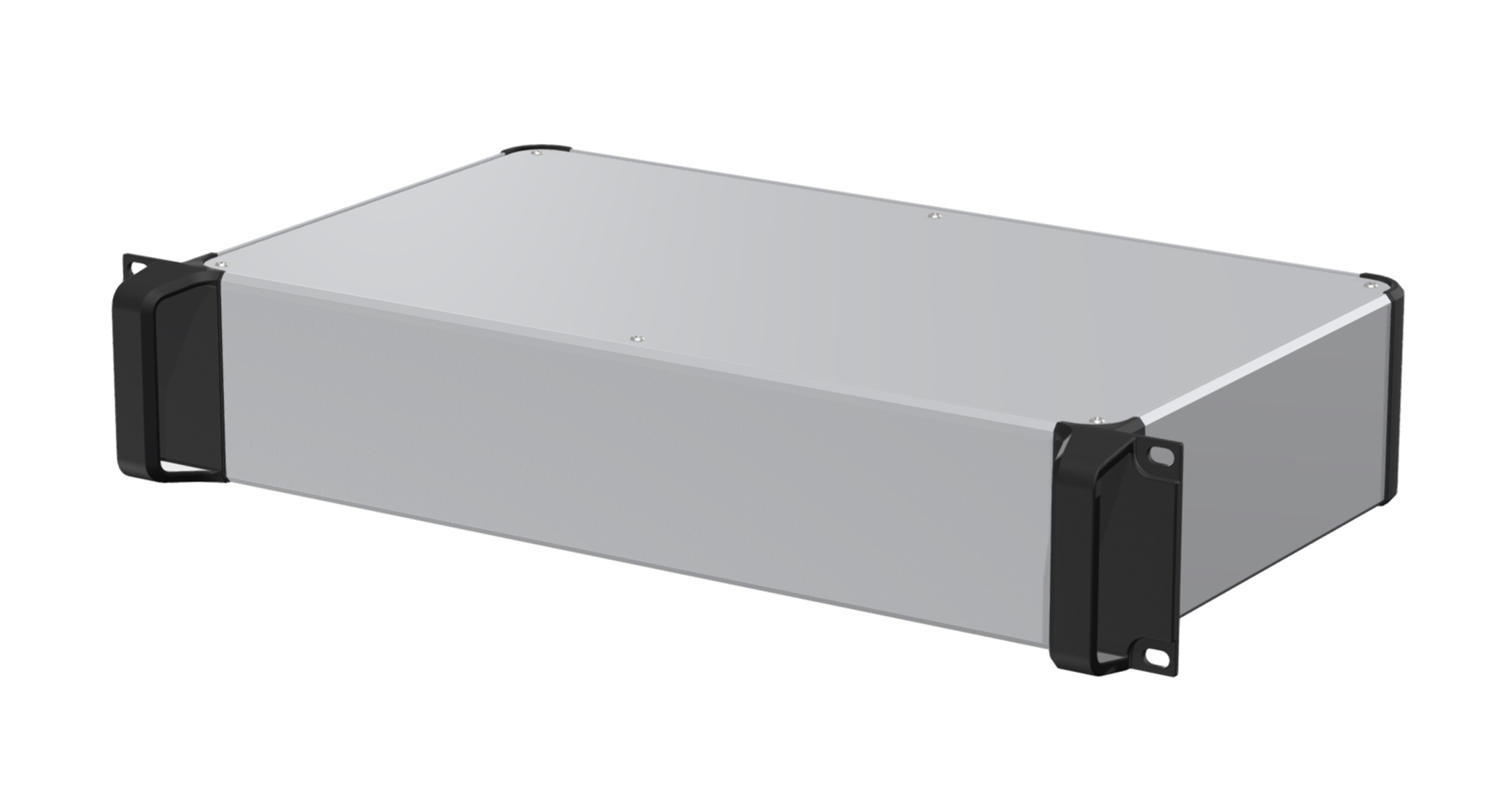

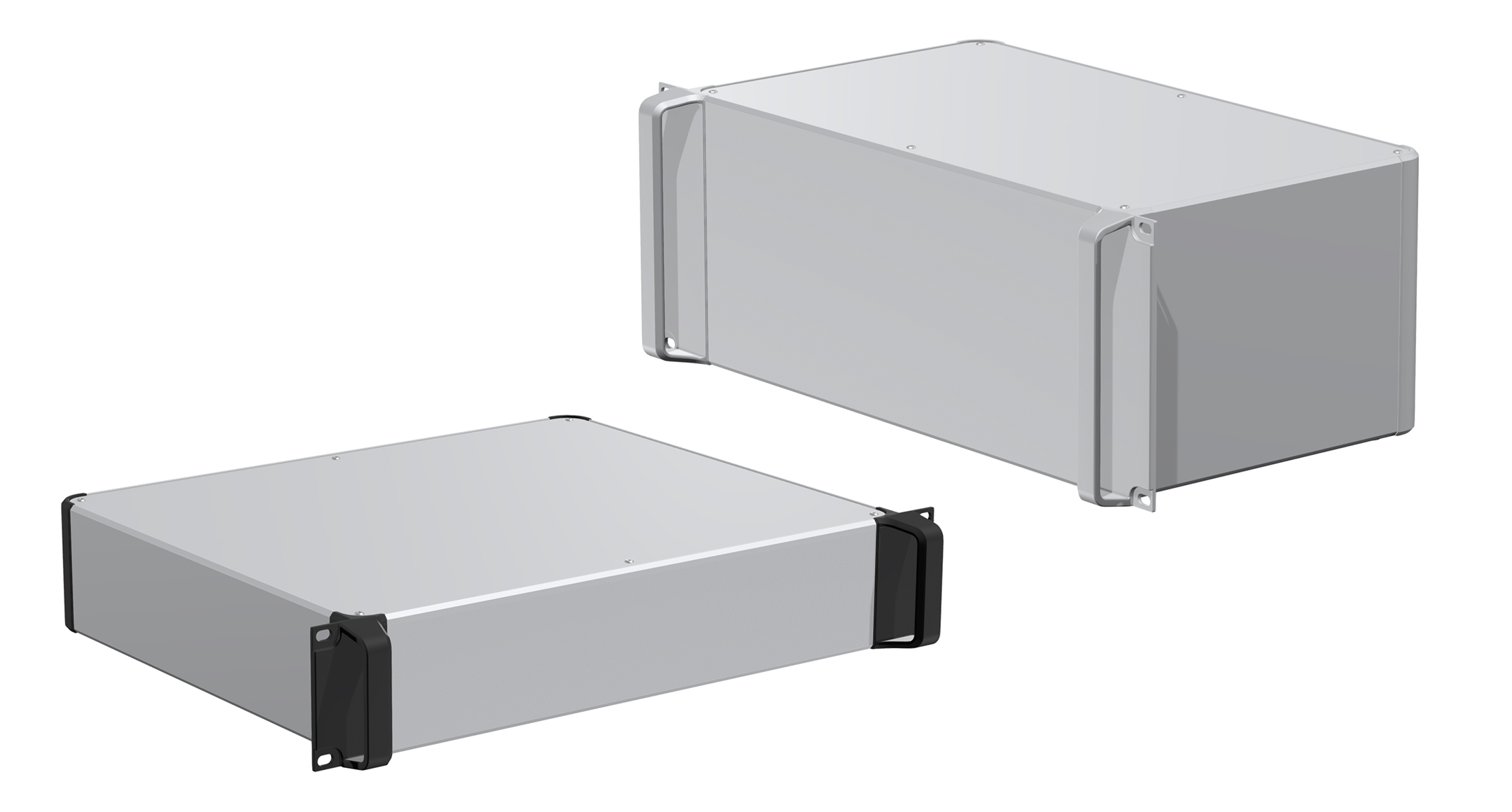

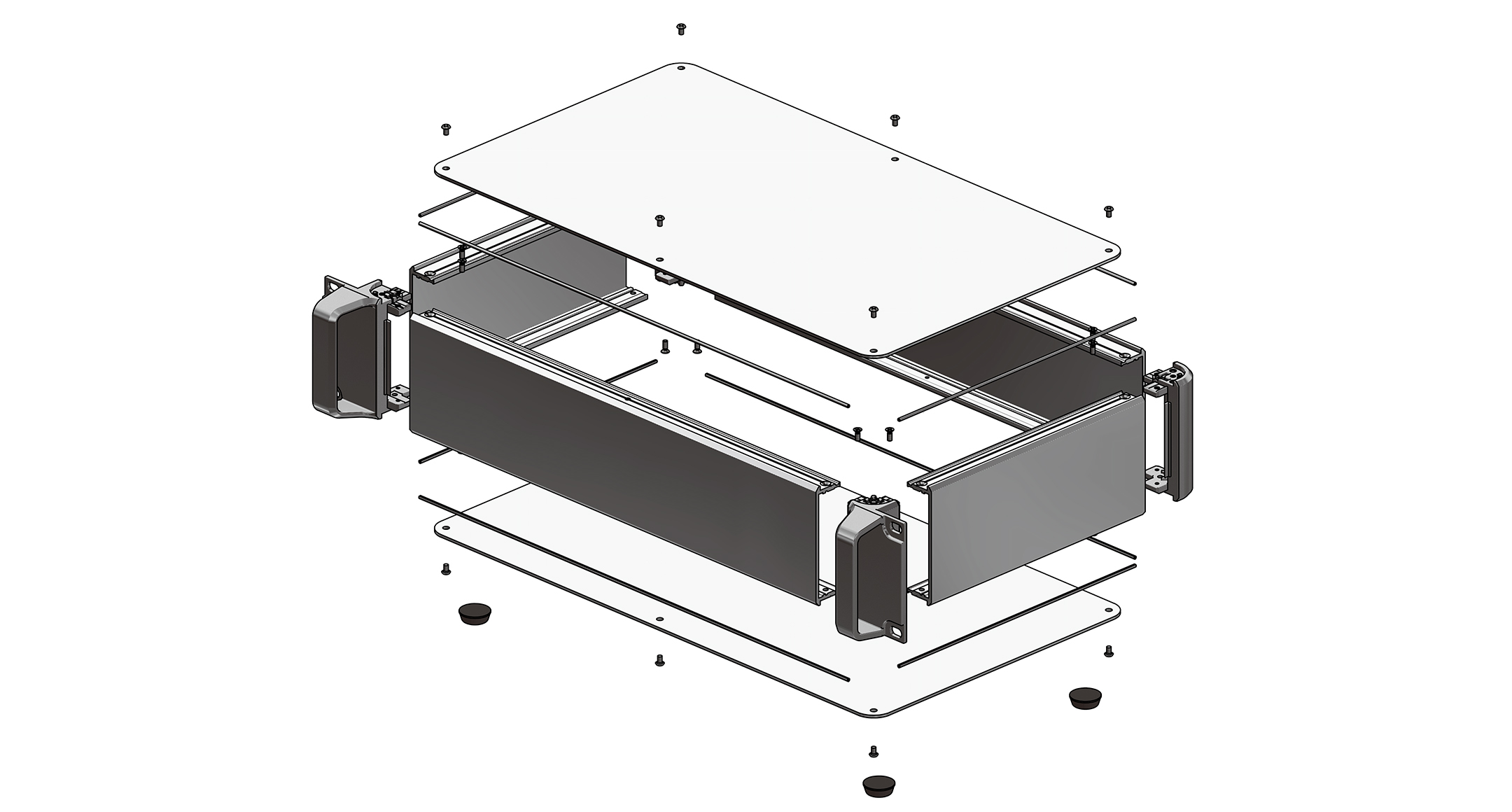

EMC shielded 19” Rack Mount Enclosure with 4 extruded aluminium frames.
Flat and rugged design rack mounting aluminium case with handles.

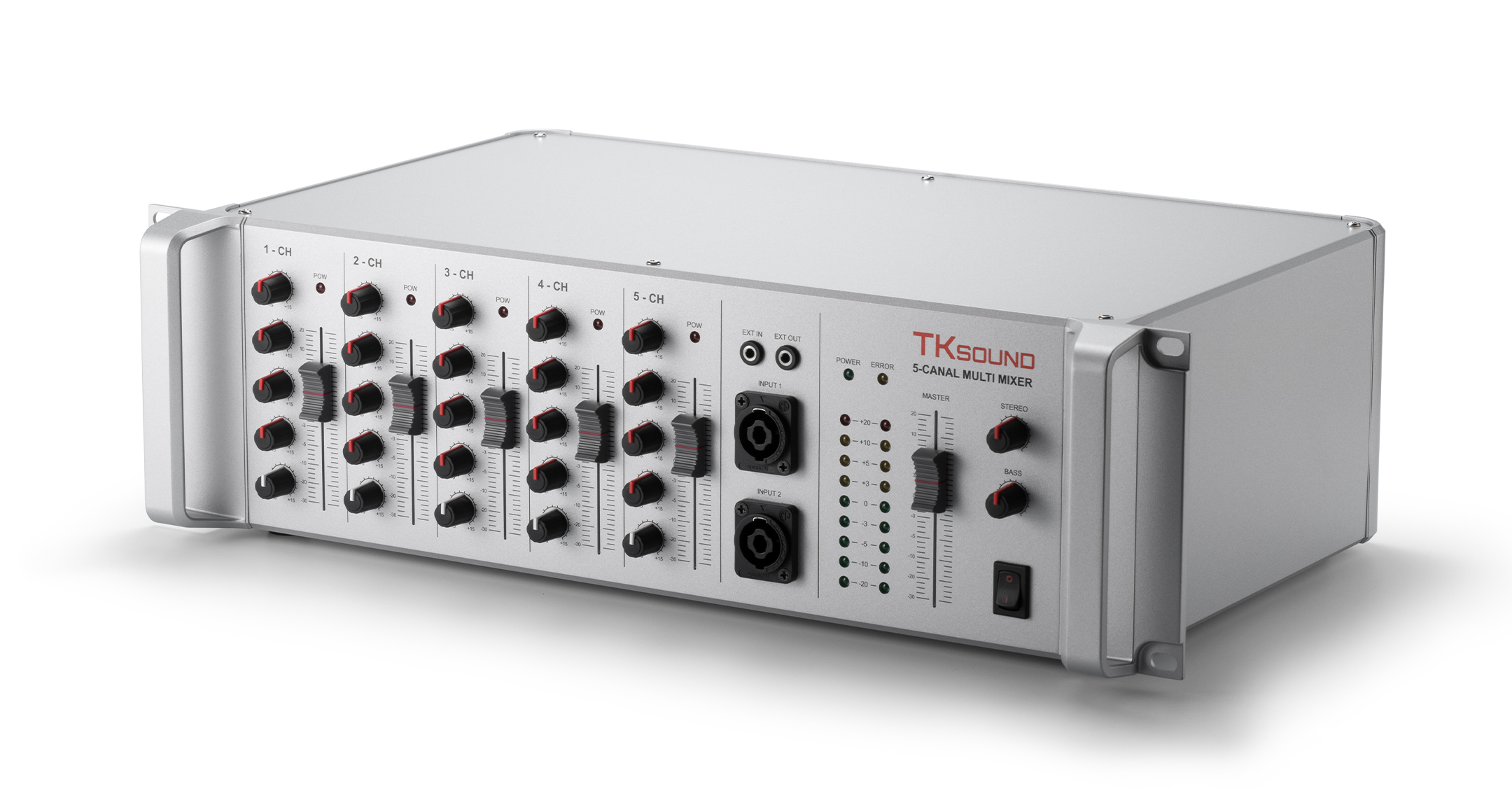

Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 28 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.
Flat and rugged design rack mounting aluminium case with handles.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.
A large selection of 28 different sizes in 2 different colors to choose from.
Screw is selectable Plus head or Hex head.
COLOR TYPE
SSSilver/Silver(Handle・Corner block)
SBSilver/Black(Handle・Corner block)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (kg) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| AUXRE44-43-16□-□□ | 430 | 44 | 160 | 423 | 37 | 153 | 2 | DXF | DWG | ||
| AUXRE44-43-20□-□□ | 430 | 44 | 200 | 423 | 37 | 193 | 2.3 | DXF | DWG | ||
| AUXRE44-43-25□-□□ | 430 | 44 | 250 | 423 | 37 | 243 | 2.6 | DXF | DWG | ||
| AUXRE44-43-30□-□□ | 430 | 44 | 300 | 423 | 37 | 293 | 2.9 | DXF | DWG | ||
| AUXRE44-43-36□-□□ | 430 | 44 | 360 | 423 | 37 | 353 | 3.3 | DXF | DWG | ||
| AUXRE44-43-43□-□□ | 430 | 44 | 430 | 423 | 37 | 423 | 3.7 | DXF | DWG | ||
| AUXRE44-43-50□-□□ | 430 | 44 | 500 | 423 | 37 | 493 | 4.2 | DXF | DWG | ||
| AUXRE88-43-16□-□□ | 430 | 88 | 160 | 423 | 81 | 153 | 2 | DXF | DWG | ||
| AUXRE88-43-20□-□□ | 430 | 88 | 200 | 423 | 81 | 193 | 2.3 | DXF | DWG | ||
| AUXRE88-43-25□-□□ | 430 | 88 | 250 | 423 | 81 | 243 | 2.6 | DXF | DWG | ||
| AUXRE88-43-30□-□□ | 430 | 88 | 300 | 423 | 81 | 293 | 2.9 | DXF | DWG | ||
| AUXRE88-43-36□-□□ | 430 | 88 | 360 | 423 | 81 | 353 | 3.3 | DXF | DWG | ||
| AUXRE88-43-43□-□□ | 430 | 88 | 430 | 423 | 81 | 423 | 3.7 | DXF | DWG | ||
| AUXRE88-43-50□-□□ | 430 | 88 | 500 | 423 | 81 | 493 | 4.2 | DXF | DWG | ||
| AUXRE133-43-16□-□□ | 430 | 132.5 | 160 | 422 | 125.5 | 152 | 2.6 | DXF | DWG | ||
| AUXRE133-43-20□-□□ | 430 | 132.5 | 200 | 422 | 125.5 | 192 | 2.9 | DXF | DWG | ||
| AUXRE133-43-25□-□□ | 430 | 132.5 | 250 | 422 | 125.5 | 242 | 3.3 | DXF | DWG | ||
| AUXRE133-43-30□-□□ | 430 | 132.5 | 300 | 422 | 125.5 | 292 | 3.6 | DXF | DWG | ||
| AUXRE133-43-36□-□□ | 430 | 132.5 | 360 | 422 | 125.5 | 352 | 4.1 | DXF | DWG | ||
| AUXRE133-43-43□-□□ | 430 | 132.5 | 430 | 422 | 125.5 | 422 | 4.6 | DXF | DWG | ||
| AUXRE133-43-50□-□□ | 430 | 132.5 | 500 | 422 | 125.5 | 492 | 5.1 | DXF | DWG | ||
| AUXRE177-43-16□-□□ | 430 | 177 | 160 | 422 | 170 | 152 | 3 | DXF | DWG | ||
| AUXRE177-43-20□-□□ | 430 | 177 | 200 | 422 | 170 | 192 | 3.4 | DXF | DWG | ||
| AUXRE177-43-25□-□□ | 430 | 177 | 250 | 422 | 170 | 242 | 3.8 | DXF | DWG | ||
| AUXRE177-43-30□-□□ | 430 | 177 | 300 | 422 | 170 | 292 | 4.2 | DXF | DWG | ||
| AUXRE177-43-36□-□□ | 430 | 177 | 360 | 422 | 170 | 352 | 4.6 | DXF | DWG | ||
| AUXRE177-43-43□-□□ | 430 | 177 | 430 | 422 | 170 | 422 | 5.2 | DXF | DWG | ||
| AUXRE177-43-50□-□□ | 430 | 177 | 500 | 422 | 170 | 492 | 5.8 | DXF | DWG | ||
| Mounting plate (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| AUC43-16 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-16 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-16 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG | ||
| AUC43-16 | DXF | DWG | ||
| AUC43-20 | DXF | DWG | ||
| AUC43-25 | DXF | DWG | ||
| AUC43-30 | DXF | DWG | ||
| AUC43-36 | DXF | DWG | ||
| AUC43-43 | DXF | DWG | ||
| AUC43-50 | DXF | DWG |
