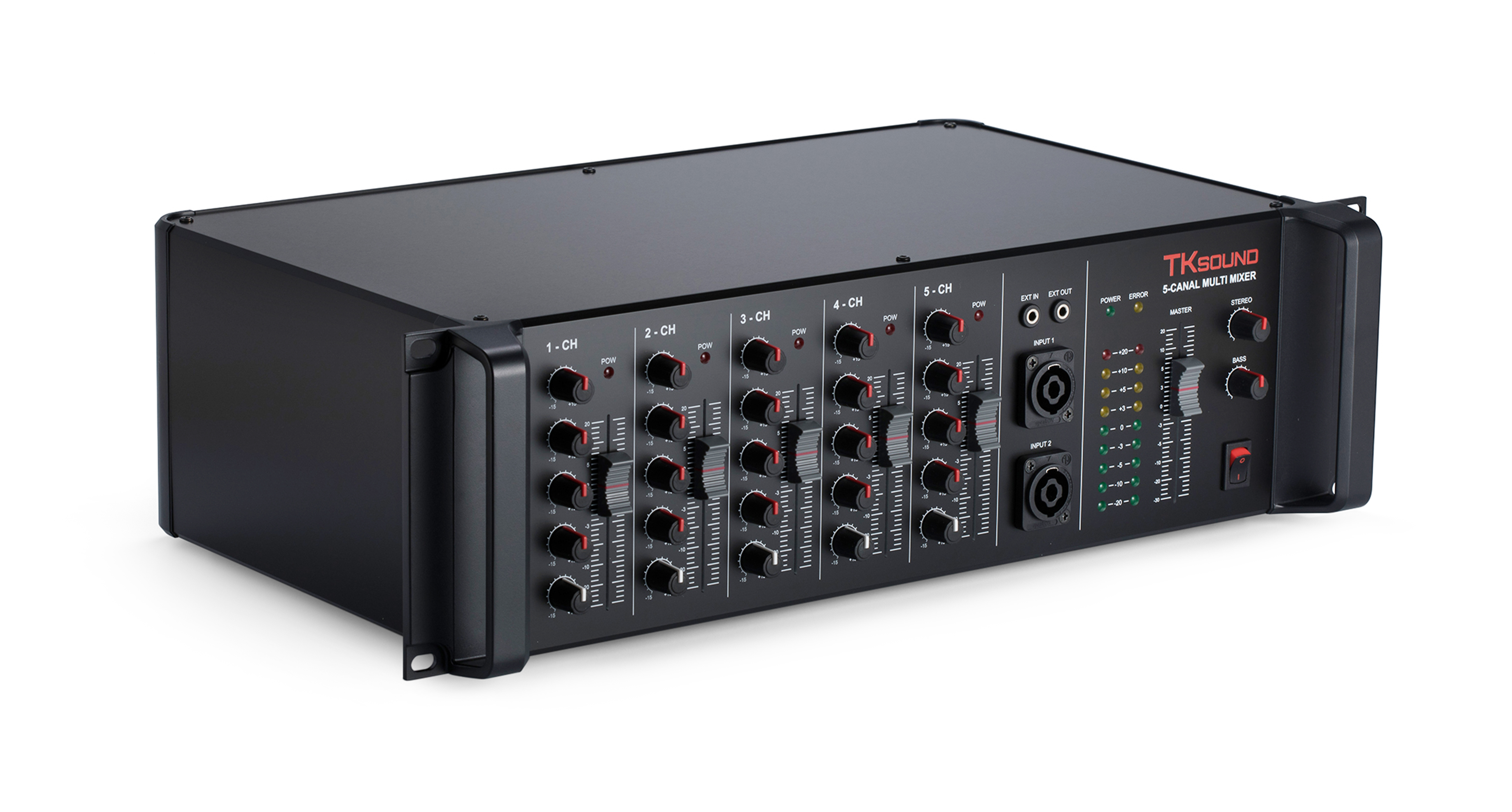

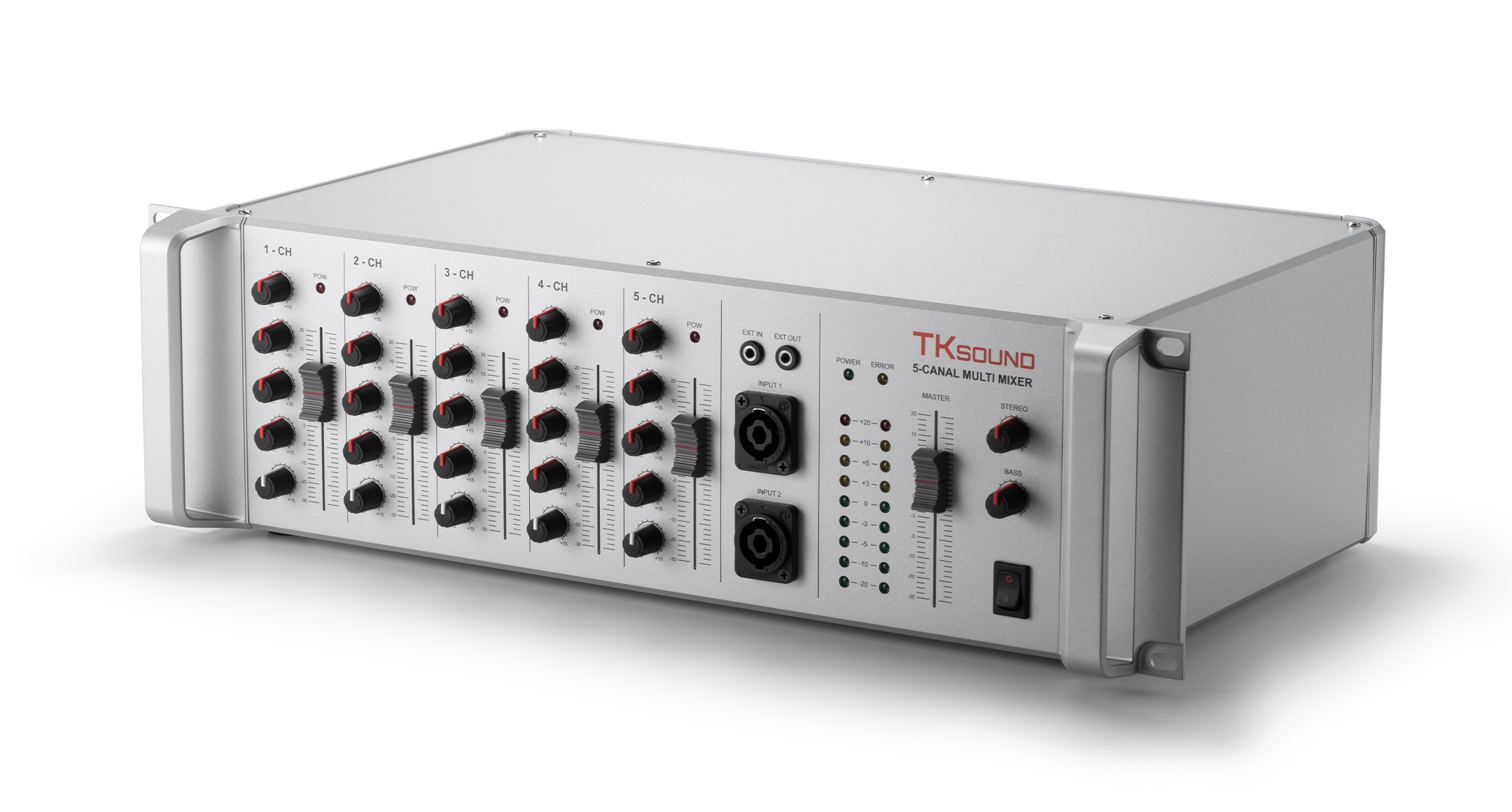

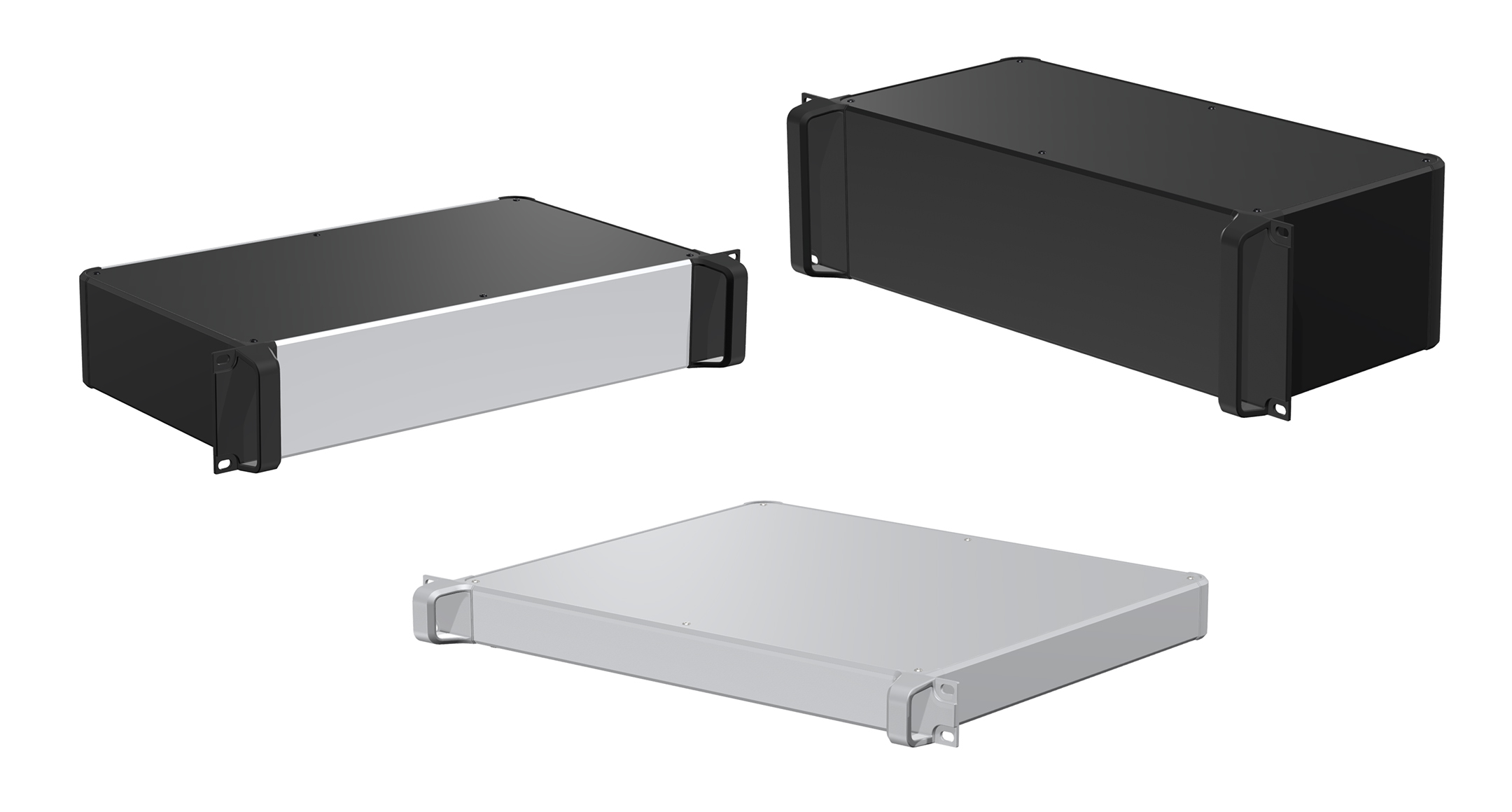

19” Rack Mount Enclosure with 4 extruded aluminium frames.
Flat and rugged design rack mounting aluminium case with handles.

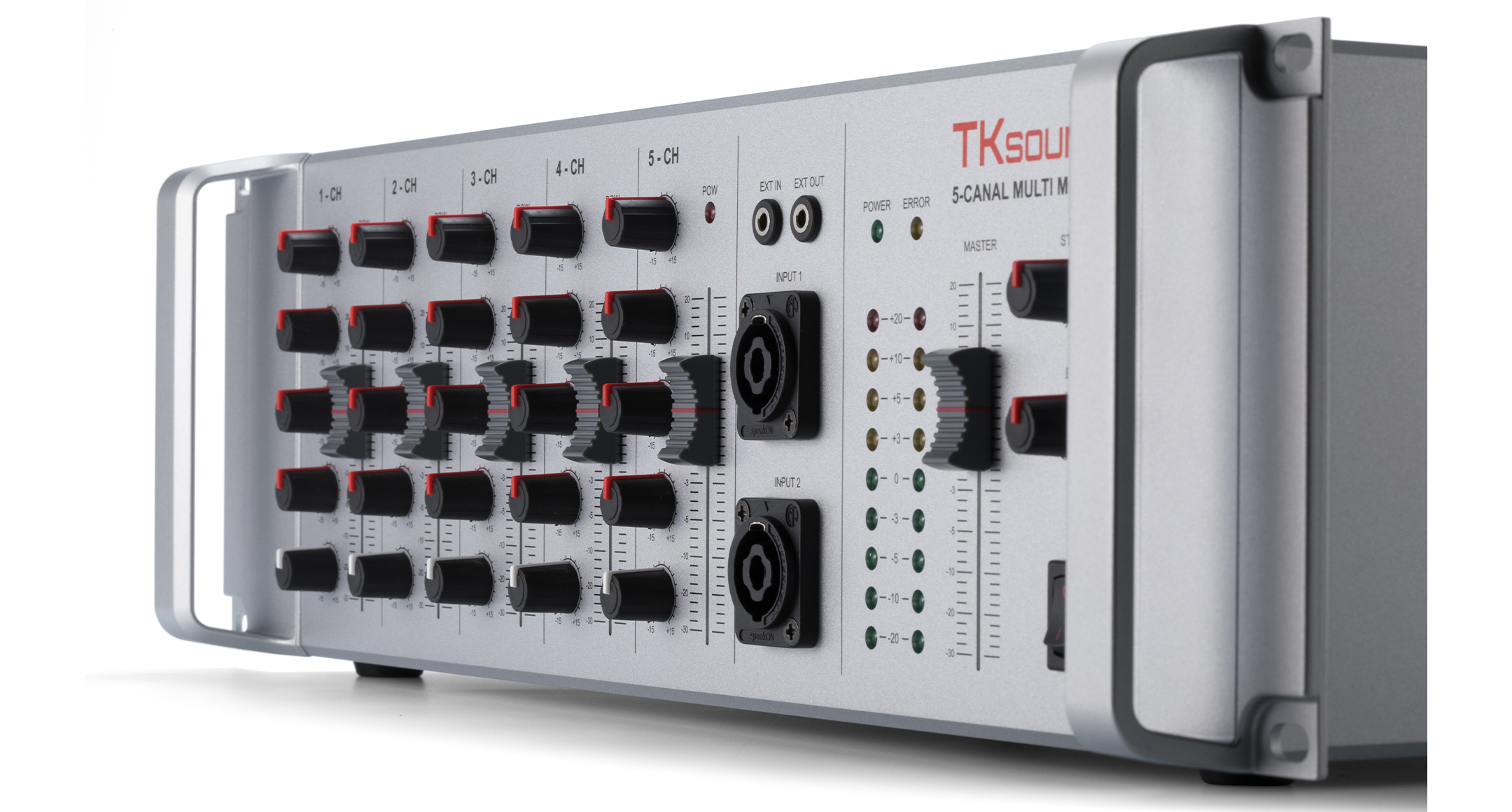

Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.

A wide selection of 28 different sizes in 4 different colors to choose from.
Screw is selectable Plus head or Hex head.

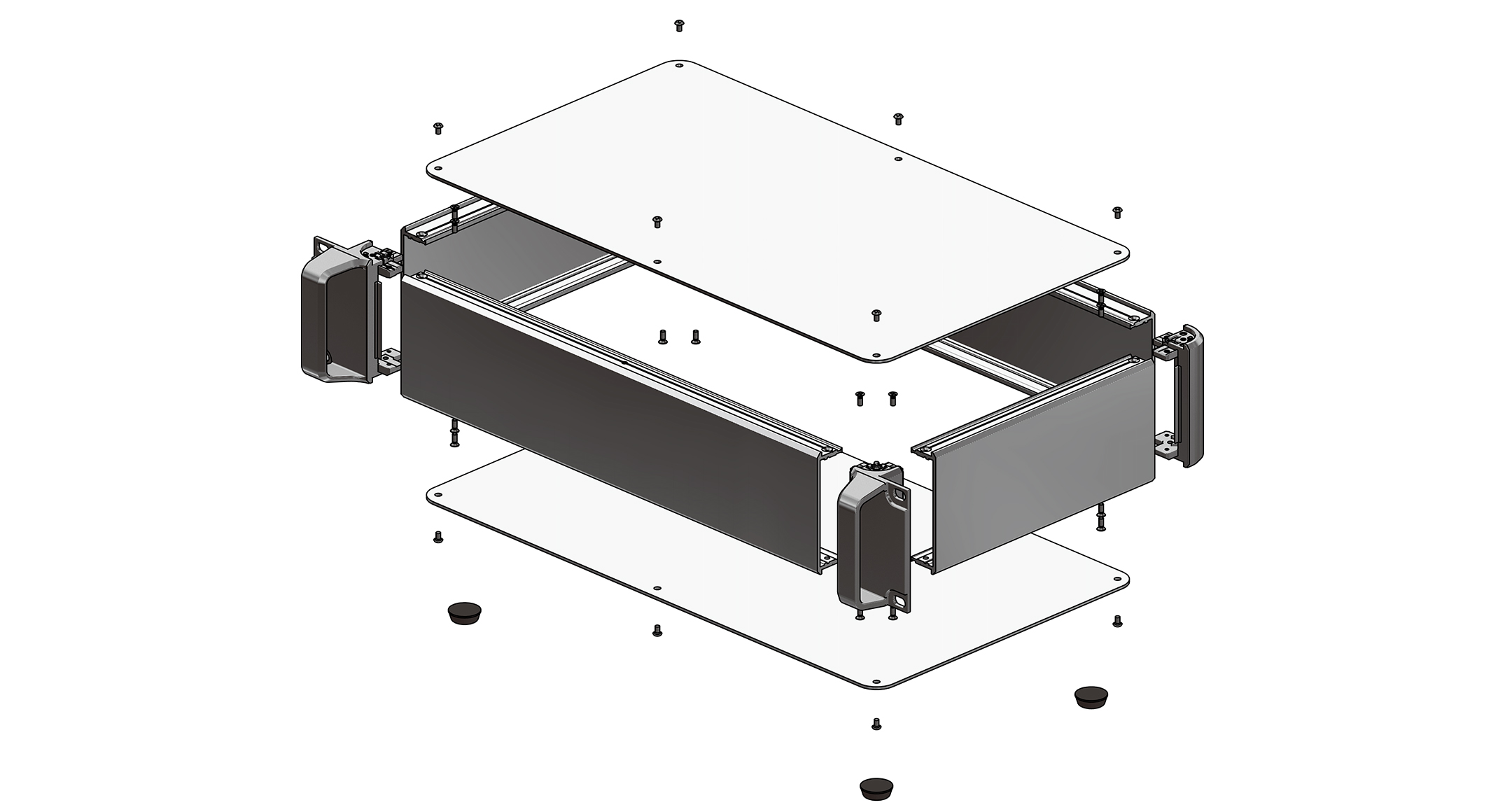

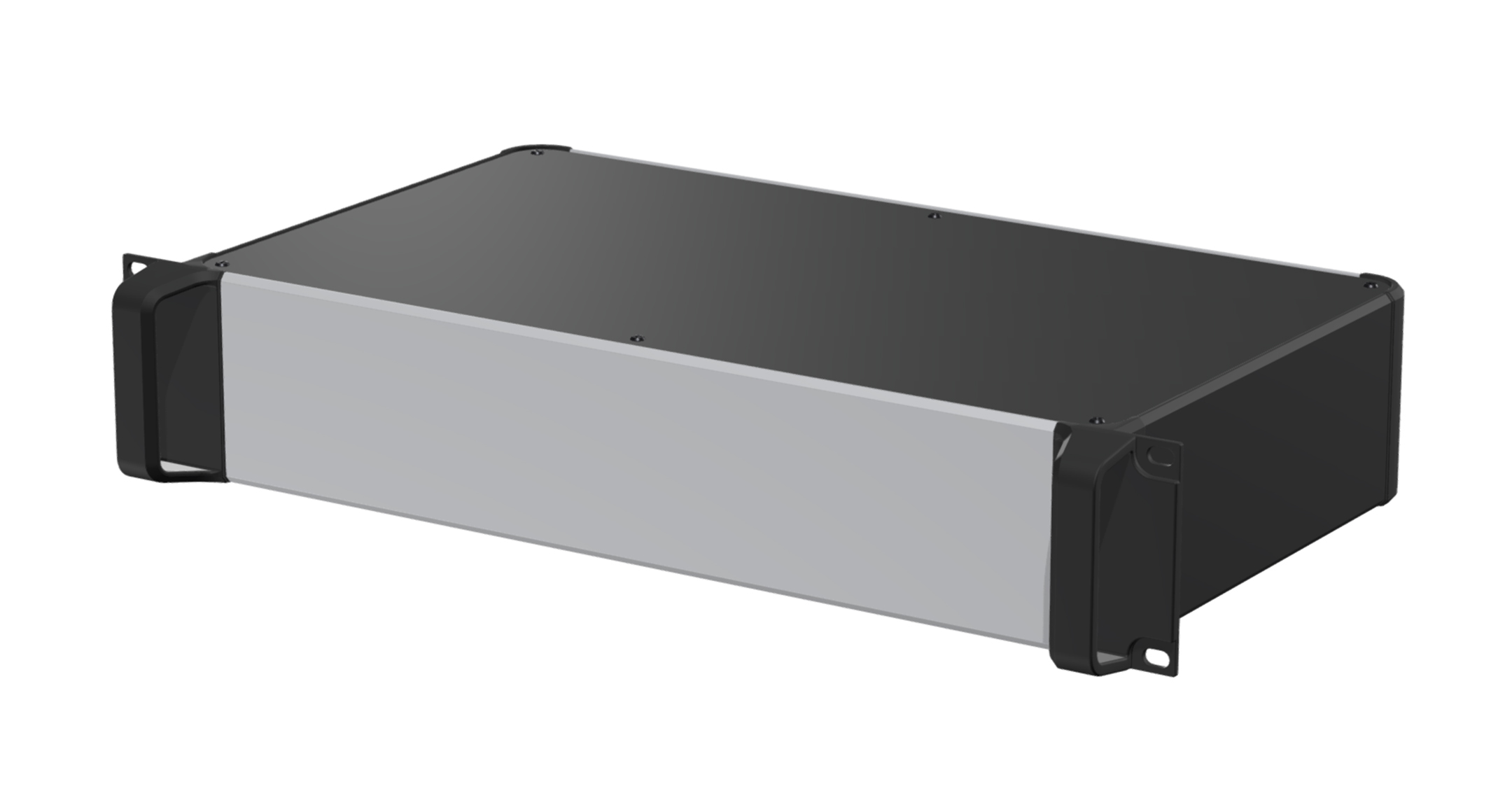

3Dview - AUXR44-43-36P-SS  3Dview - AUXR88-43-25P-BS  3Dview - AUXR133-43-20P-BB  3Dview - AUXR177-43-25P-SS  Exploded view 

COLOR TYPE

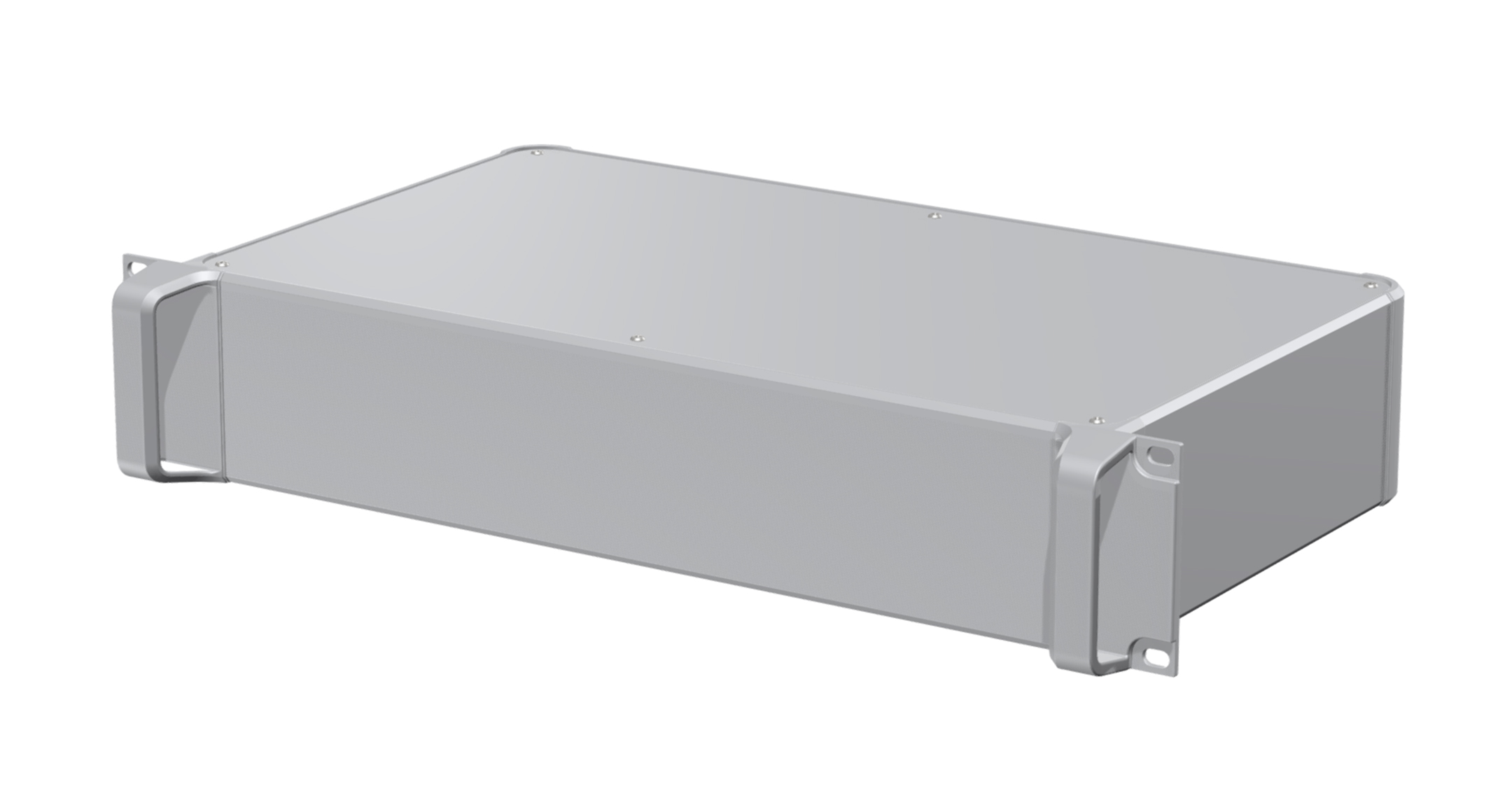

SSSilver

19” RACK MOUNT ENCLOSURE - AUXR series:Silver

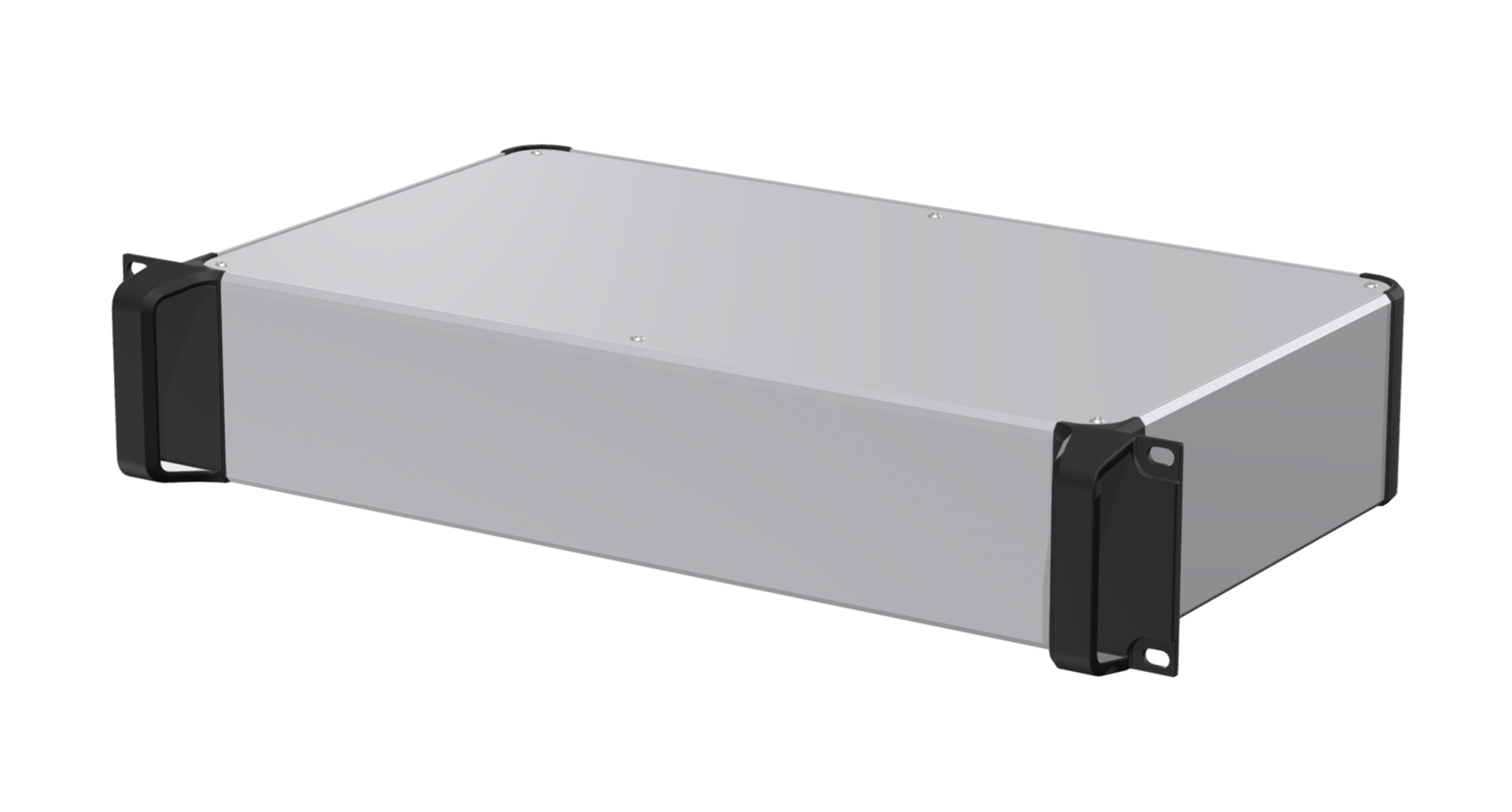

SBCover・Frame Silver / Handle・Corner block Black

19” RACK MOUNT ENCLOSURE - AUXR series:Cover・Frame Silver / Handle・Corner block Black

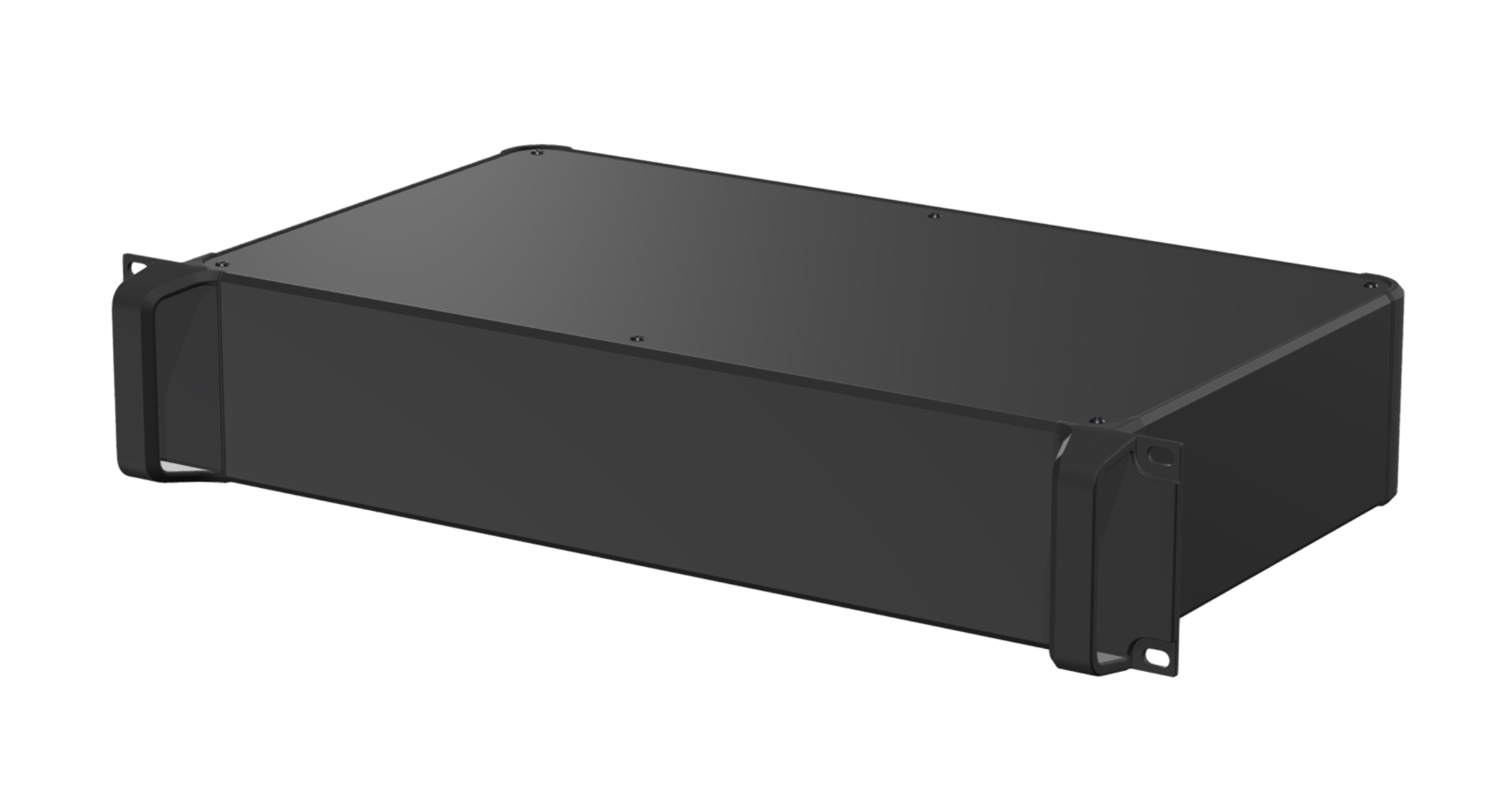

BSFrame Silver / Handle・Cover・Corner block Black

19” RACK MOUNT ENCLOSURE - AUXR series:Frame Silver / Handle・Cover・Corner block Black

BBBlack

19” RACK MOUNT ENCLOSURE - AUXR series:Black
19” RACK MOUNT ENCLOSURE - AUXR series:Silver
19” RACK MOUNT ENCLOSURE - AUXR series:Cover・Frame Silver / Handle・Corner block Black
19” RACK MOUNT ENCLOSURE - AUXR series:Frame Silver / Handle・Cover・Corner block Black
19” RACK MOUNT ENCLOSURE - AUXR series:Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (kg) PDF DXF DWG STP
W H D w h d
AUXR44-43-16□-□□ 430 44 160 423 37 153 1.6 PDF DXF DWG
AUXR44-43-20□-□□ 430 44 200 423 37 193 1.8 PDF DXF DWG
AUXR44-43-25□-□□ 430 44 250 423 37 243 2.1 PDF DXF DWG
AUXR44-43-30□-□□ 430 44 300 423 37 293 2.4 PDF DXF DWG
AUXR44-43-36□-□□ 430 44 360 423 37 353 2.7 PDF DXF DWG
AUXR44-43-43□-□□ 430 44 430 423 37 423 3.1 PDF DXF DWG
AUXR44-43-50□-□□ 430 44 500 423 37 493 3.5 PDF DXF DWG
AUXR88-43-16□-□□ 430 88 160 423 81 153 2 PDF DXF DWG
AUXR88-43-20□-□□ 430 88 200 423 81 193 2.3 PDF DXF DWG
AUXR88-43-25□-□□ 430 88 250 423 81 243 2.6 PDF DXF DWG
AUXR88-43-30□-□□ 430 88 300 423 81 293 2.9 PDF DXF DWG
AUXR88-43-36□-□□ 430 88 360 423 81 353 3.3 PDF DXF DWG
AUXR88-43-43□-□□ 430 88 430 423 81 423 3.7 PDF DXF DWG
AUXR88-43-50□-□□ 430 88 500 423 81 493 4.2 PDF DXF DWG
AUXR133-43-16□-□□ 430 132.5 160 422 125.5 152 2.6 PDF DXF DWG
AUXR133-43-20□-□□ 430 132.5 200 422 125.5 192 2.9 PDF DXF DWG
AUXR133-43-25□-□□ 430 132.5 250 422 125.5 242 3.2 PDF DXF DWG
AUXR133-43-30□-□□ 430 132.5 300 422 125.5 292 3.6 PDF DXF DWG
AUXR133-43-36□-□□ 430 132.5 360 422 125.5 352 4 PDF DXF DWG
AUXR133-43-43□-□□ 430 132.5 430 422 125.5 422 4.6 PDF DXF DWG
AUXR133-43-50□-□□ 430 132.5 500 422 125.5 492 5.1 PDF DXF DWG
AUXR177-43-16□-□□ 430 177 160 422 170 152 3 PDF DXF DWG
AUXR177-43-20□-□□ 430 177 200 422 170 192 3.4 PDF DXF DWG
AUXR177-43-25□-□□ 430 177 250 422 170 242 3.8 PDF DXF DWG
AUXR177-43-30□-□□ 430 177 300 422 170 292 4.2 PDF DXF DWG
AUXR177-43-36□-□□ 430 177 360 422 170 352 4.6 PDF DXF DWG
AUXR177-43-43□-□□ 430 177 430 422 170 422 5.2 PDF DXF DWG
AUXR177-43-50□-□□ 430 177 500 422 170 492 5.7 PDF DXF DWG
