19” RACK MOUNT ENCLOSURE - AUR series


AUR Series -PDF

CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount chassis

19” RACK MOUNT ENCLOSURE - AUR series
19” RACK MOUNT ENCLOSURE - AUR series
19” RACK MOUNT ENCLOSURE - AUR series
19” RACK MOUNT ENCLOSURE - AUR series1
19” RACK MOUNT ENCLOSURE - AUR series2
19” RACK MOUNT ENCLOSURE - AUR series3
19” rack mount enclosure with insertion type front/rear panels, giving it a beautiful appearance.
Suitable for use as audio/visual equipment, communication equipment, rack mount computers, measuring instruments and others.

A large selection of 28 different sizes in 4 different colors to choose from.
Screw is selectable Plus head or Hex head.

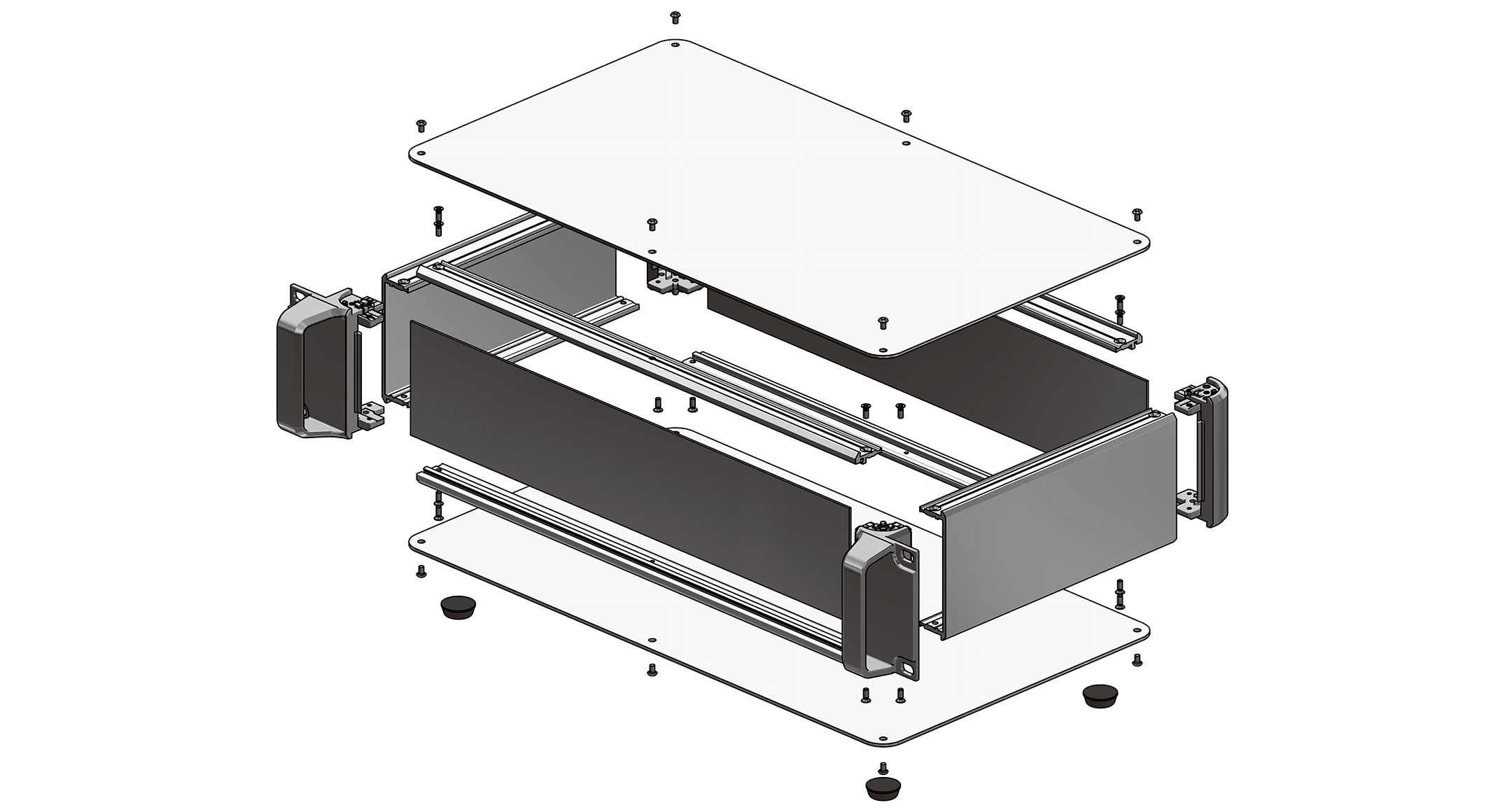

3D view - AUR44-43-25P-SS  3D view - AUR88-43-25P-BB  3D view - AUR133-43-30P-SB  Exploded view 

COLOR TYPE

SSSilver

19” RACK MOUNT ENCLOSURE - AUR series:Silver

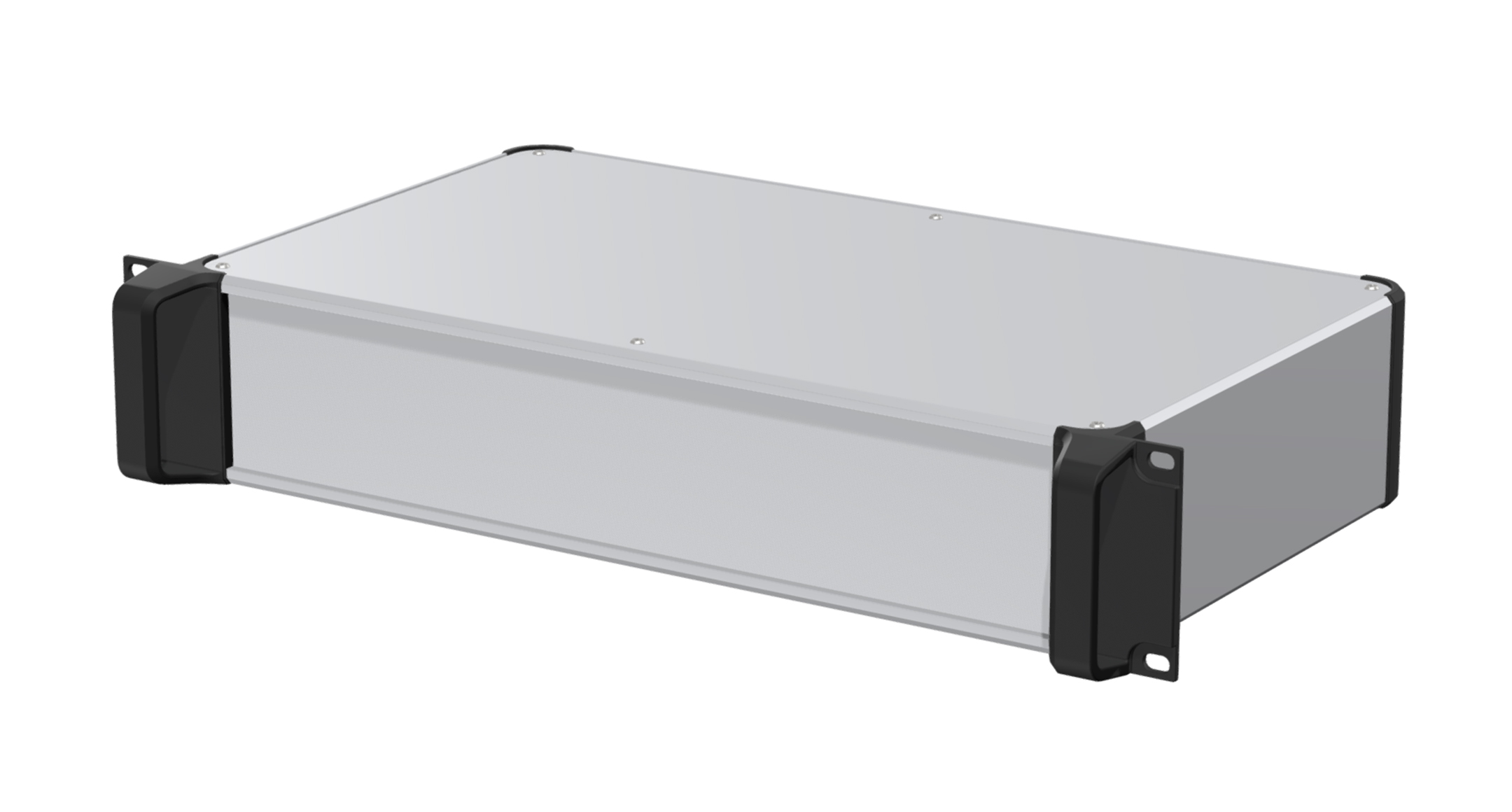

SBCovers・Panels・Frame Silver / Handle・Corner block Black

19” RACK MOUNT ENCLOSURE - AUR series:Covers・Panels・Frame Silver / Handle・Corner block Black

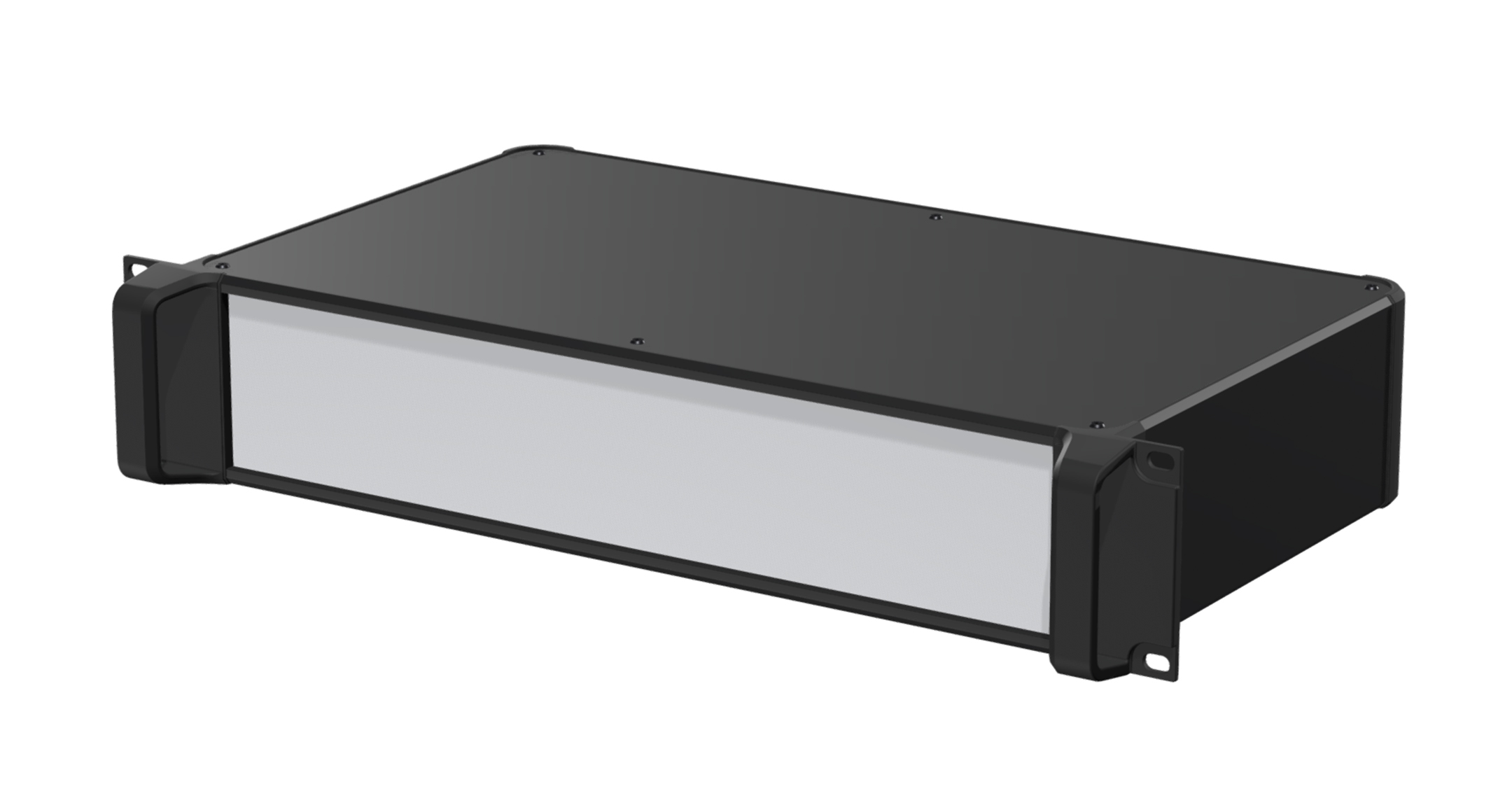

BSCovers・Panels・ Handle・Corner block Black / Panels Silver

19” RACK MOUNT ENCLOSURE - AUR series:Covers・Panels・ Handle・Corner block Black / Panels Silver

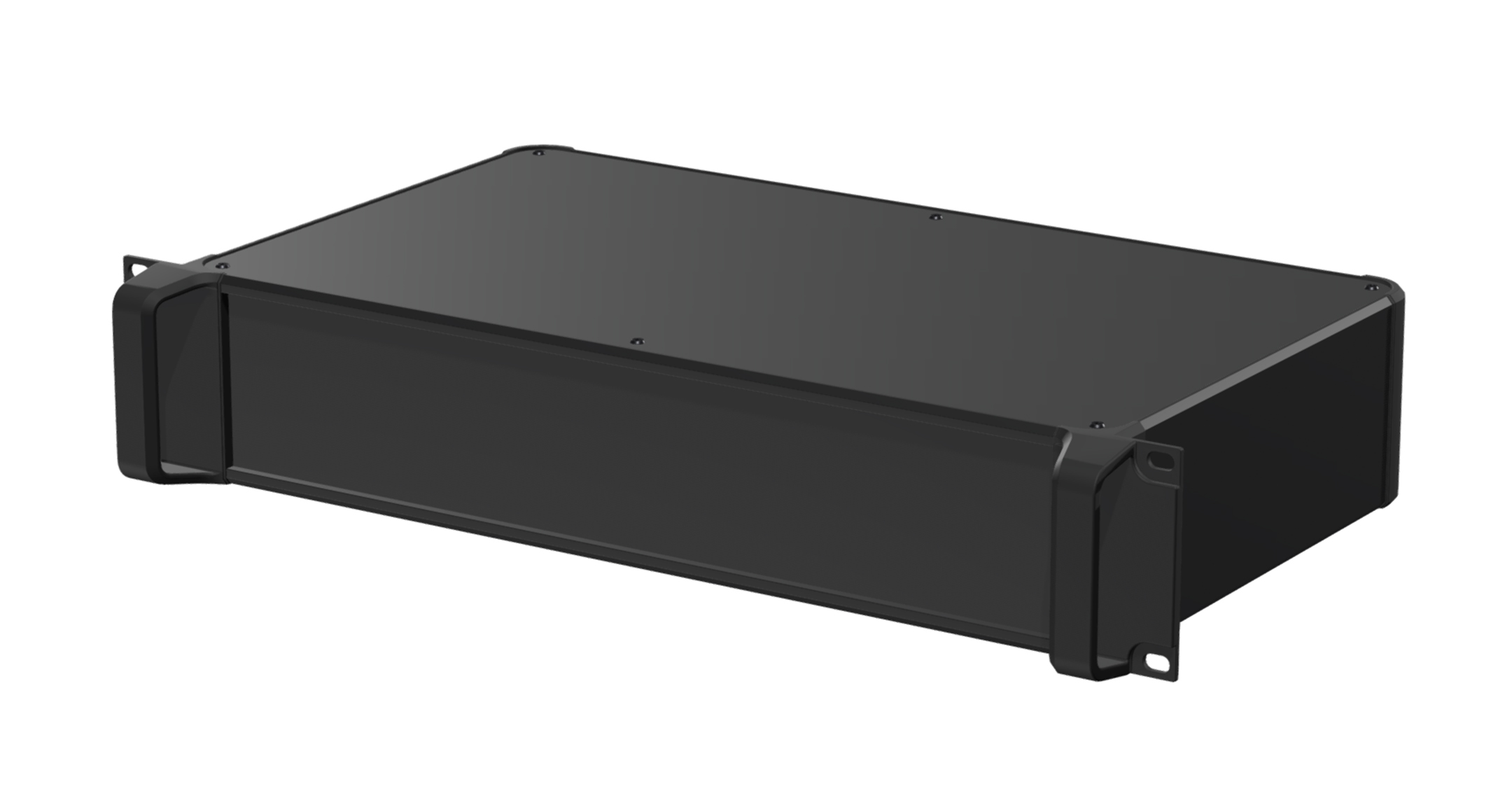

BBBlack

19” RACK MOUNT ENCLOSURE - AUR series:Black
19” RACK MOUNT ENCLOSURE - AUR series:Silver
19” RACK MOUNT ENCLOSURE - AUR series:Covers・Panels・Frame Silver / Handle・Corner block Black
19” RACK MOUNT ENCLOSURE - AUR series:Covers・Panels・ Handle・Corner block Black / Panels Silver
19” RACK MOUNT ENCLOSURE - AUR series:Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (kg) PDF DXF DWG STP
W H D w h d
AUR44-43-16□-□□ 430 44 160 423 37 146 1.5 PDF DXF DWG
AUR44-43-20□-□□ 430 44 200 423 37 186 1.8 PDF DXF DWG
AUR44-43-25□-□□ 430 44 250 423 37 236 2 PDF DXF DWG
AUR44-43-30□-□□ 430 44 300 423 37 286 2.3 PDF DXF DWG
AUR44-43-36□-□□ 430 44 360 423 37 346 2.7 PDF DXF DWG
AUR44-43-43□-□□ 430 44 430 423 37 416 3.1 PDF DXF DWG
AUR44-43-50□-□□ 430 44 500 423 37 486 3.5 PDF DXF DWG
AUR88-43-16□-□□ 430 88 160 423 81 146 1.9 PDF DXF DWG
AUR88-43-20□-□□ 430 88 200 423 81 186 2.1 PDF DXF DWG
AUR88-43-25□-□□ 430 88 250 423 81 236 2.5 PDF DXF DWG
AUR88-43-30□-□□ 430 88 300 423 81 286 2.8 PDF DXF DWG
AUR88-43-36□-□□ 430 88 360 423 81 346 3.2 PDF DXF DWG
AUR88-43-43□-□□ 430 88 430 423 81 416 3.6 PDF DXF DWG
AUR88-43-50□-□□ 430 88 500 423 81 486 4.1 PDF DXF DWG
AUR133-43-16□-□□ 430 132.5 160 422 125.5 146 2.3 PDF DXF DWG
AUR133-43-20□-□□ 430 132.5 200 422 125.5 186 2.6 PDF DXF DWG
AUR133-43-25□-□□ 430 132.5 250 422 125.5 236 2.9 PDF DXF DWG
AUR133-43-30□-□□ 430 132.5 300 422 125.5 286 3.3 PDF DXF DWG
AUR133-43-36□-□□ 430 132.5 360 422 125.5 346 3.7 PDF DXF DWG
AUR133-43-43□-□□ 430 132.5 430 422 125.5 416 4.2 PDF DXF DWG
AUR133-43-50□-□□ 430 132.5 500 422 125.5 486 4.7 PDF DXF DWG
AUR177-43-16□-□□ 430 177 160 422 170 146 2.6 PDF DXF DWG
AUR177-43-20□-□□ 430 177 200 422 170 186 2.9 PDF DXF DWG
AUR177-43-25□-□□ 430 177 250 422 170 236 3.3 PDF DXF DWG
AUR177-43-30□-□□ 430 177 300 422 170 286 3.7 PDF DXF DWG
AUR177-43-36□-□□ 430 177 360 422 170 346 4.2 PDF DXF DWG
AUR177-43-43□-□□ 430 177 430 422 170 416 4.7 PDF DXF DWG
AUR177-43-50□-□□ 430 177 500 422 170 486 5.3 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG STP
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
