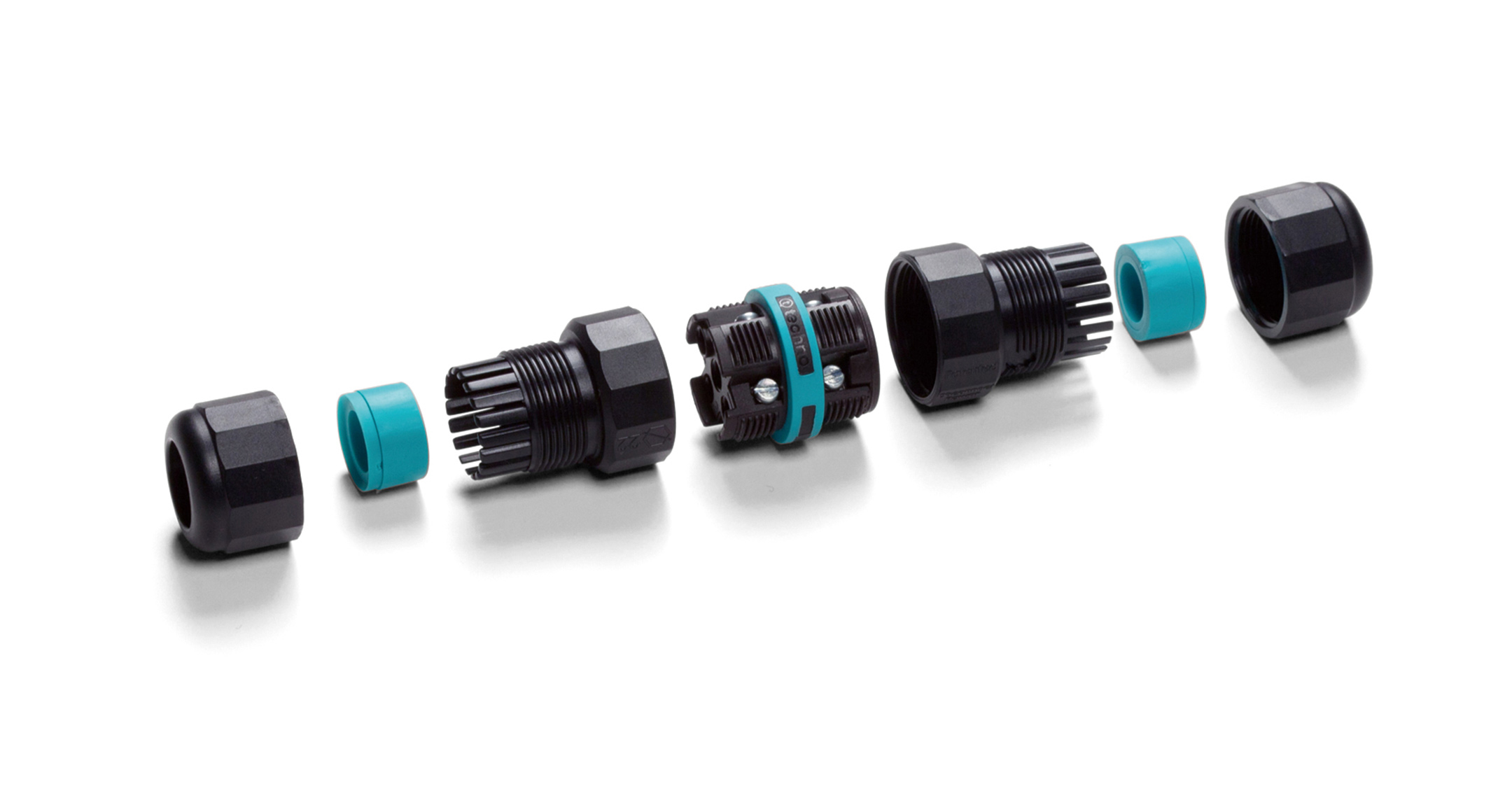

IP68 compact relay connector with an integrated cable gland and terminal block structure.

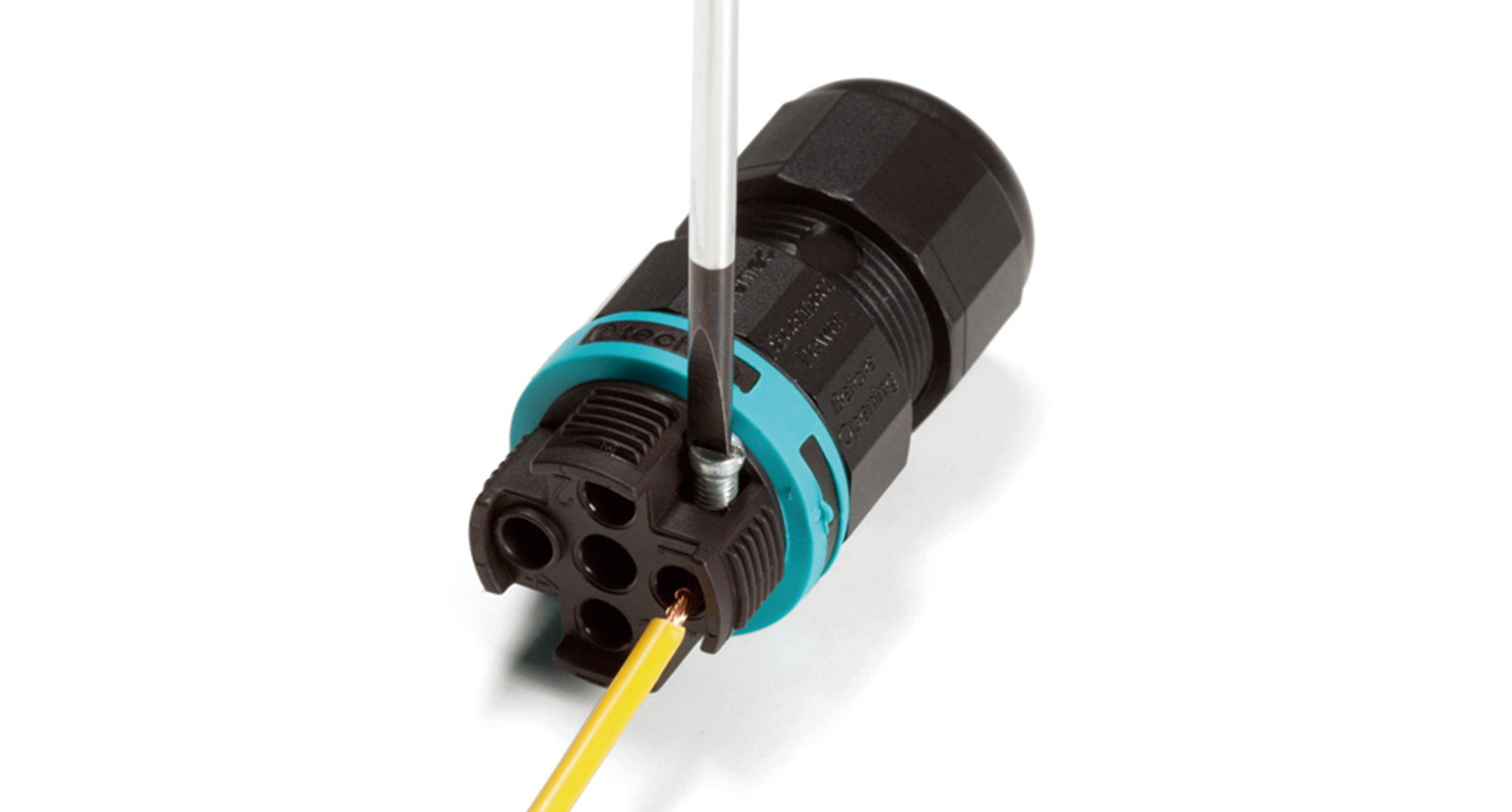

A screw type wiring connection is adopted, allowing for easy installation and removal.
2P, 3P and 4P pole terminal models are available.
Suitable for use as power or sensor signal relay of industrial plant, machining instrument,
outdoor LED lighting, underground wiring, marine equipment where waterproofing is required.
Technical Data
Protection class : IP68 2bar/3h (3hours / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529, EN60998 compliant
Specifications
Rated voltage : AC450V
Rated current : 7.5A
Applicable wire : 0.5m㎡～2.5m㎡ (stranded)
A screw type wiring connection is adopted, allowing for easy installation and removal.
2P, 3P and 4P pole terminal models are available.
Suitable for use as power or sensor signal relay of industrial plant, machining instrument,
outdoor LED lighting, underground wiring, marine equipment where waterproofing is required.
Technical Data
Protection class : IP68 2bar/3h (3hours / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529, EN60998 compliant
Specifications
Rated voltage : AC450V
Rated current : 7.5A
Applicable wire : 0.5m㎡～2.5m㎡ (stranded)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|
| THB391-2P | φ23×68mm | φ7～12 | 2P | AC450V | 17.5A | 0.5～2.5m㎡ (Stranded) | 20 | DXF | DWG | |
| THB391-3P | φ23×68mm | φ7～12 | 3P | AC450V | 17.5A | 0.5～2.5m㎡ (Stranded) | 21.7 | DXF | DWG | |
| THB391-4P | φ23×68mm | φ7～12 | 4P | AC450V | 17.5A | 0.5～1.5m㎡ (Stranded) | 23.4 | DXF | DWG |
