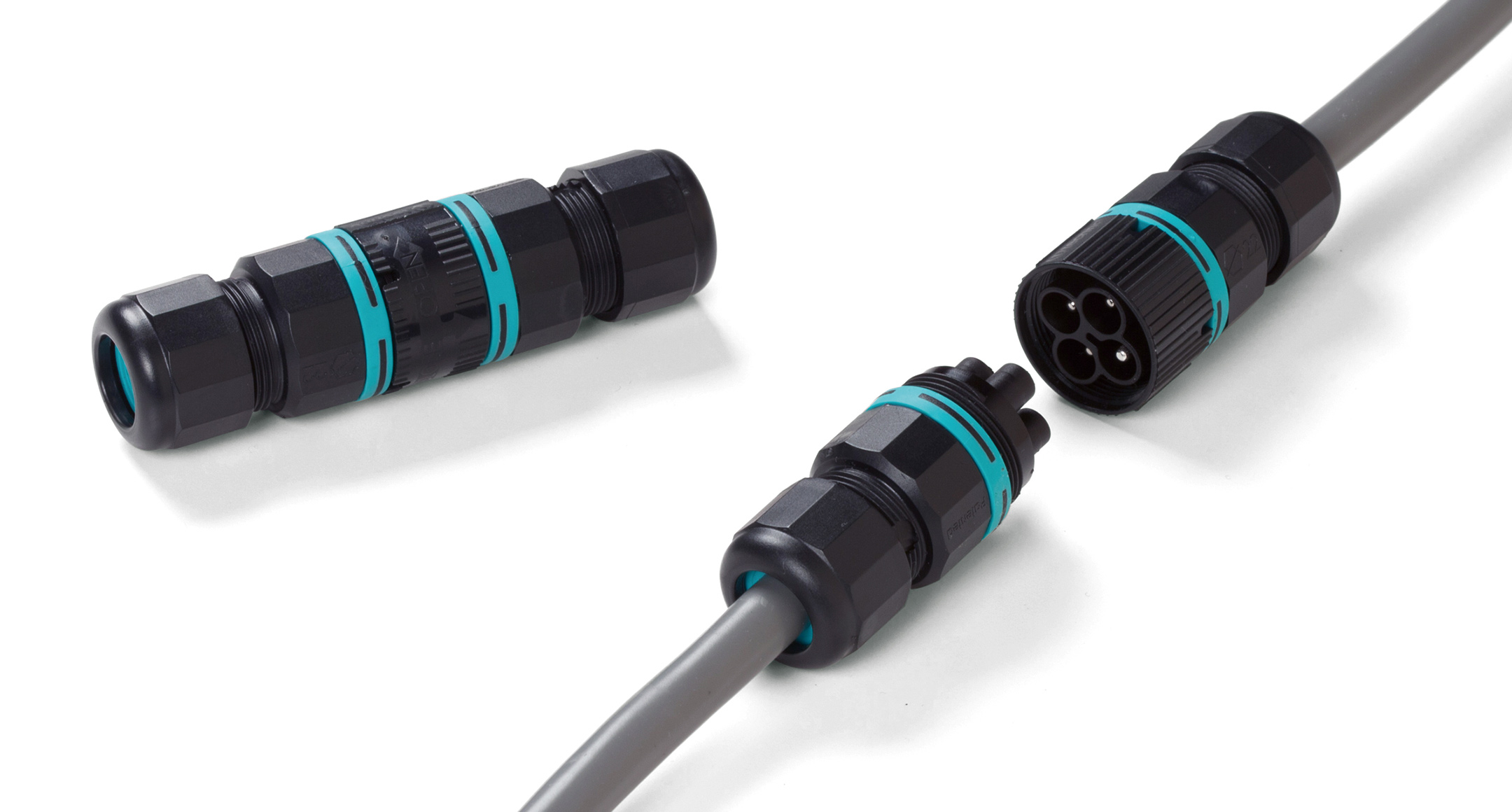

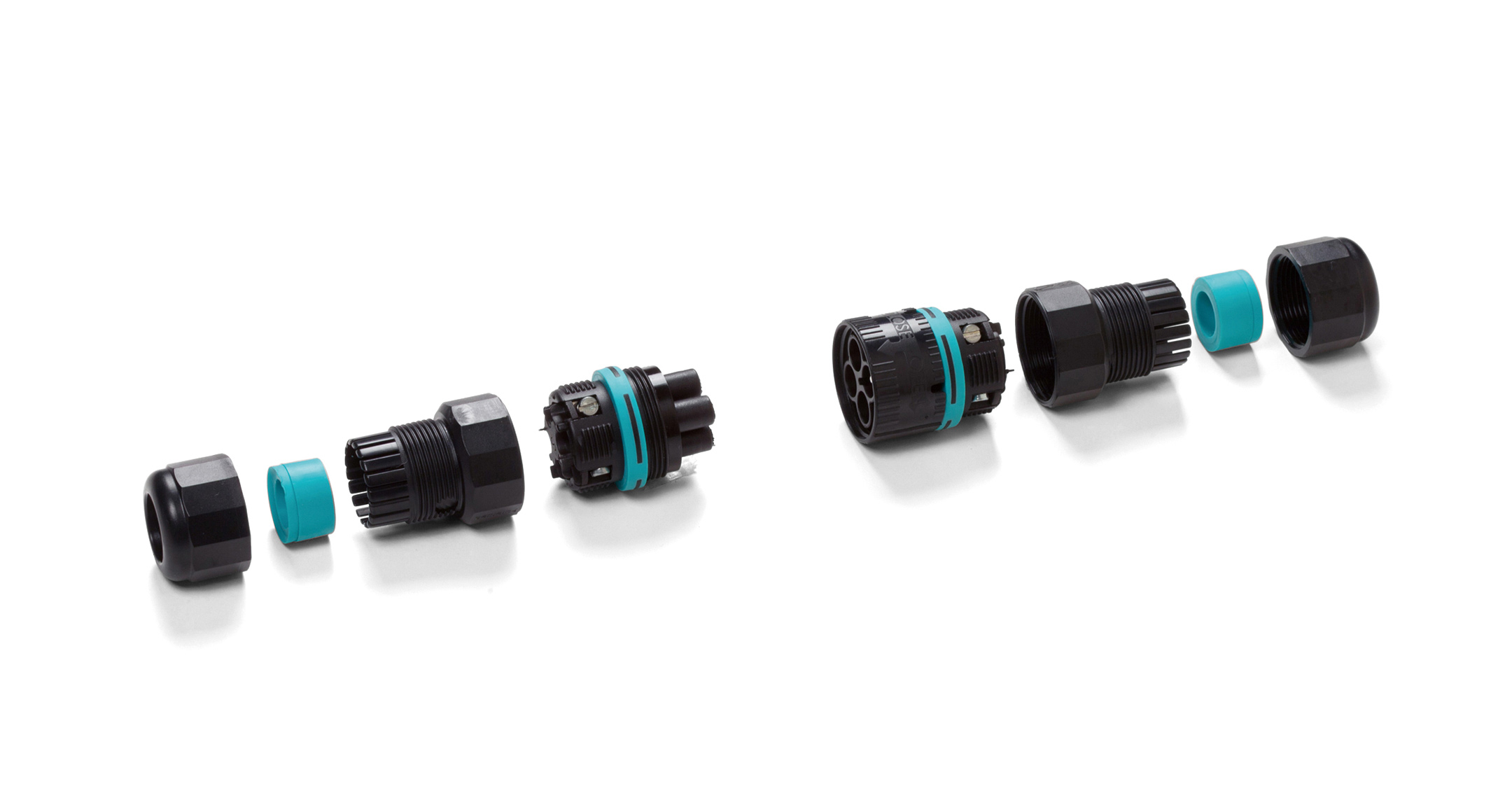

Plug-socket connector type consisting of the plug side (male) and socket side (female).

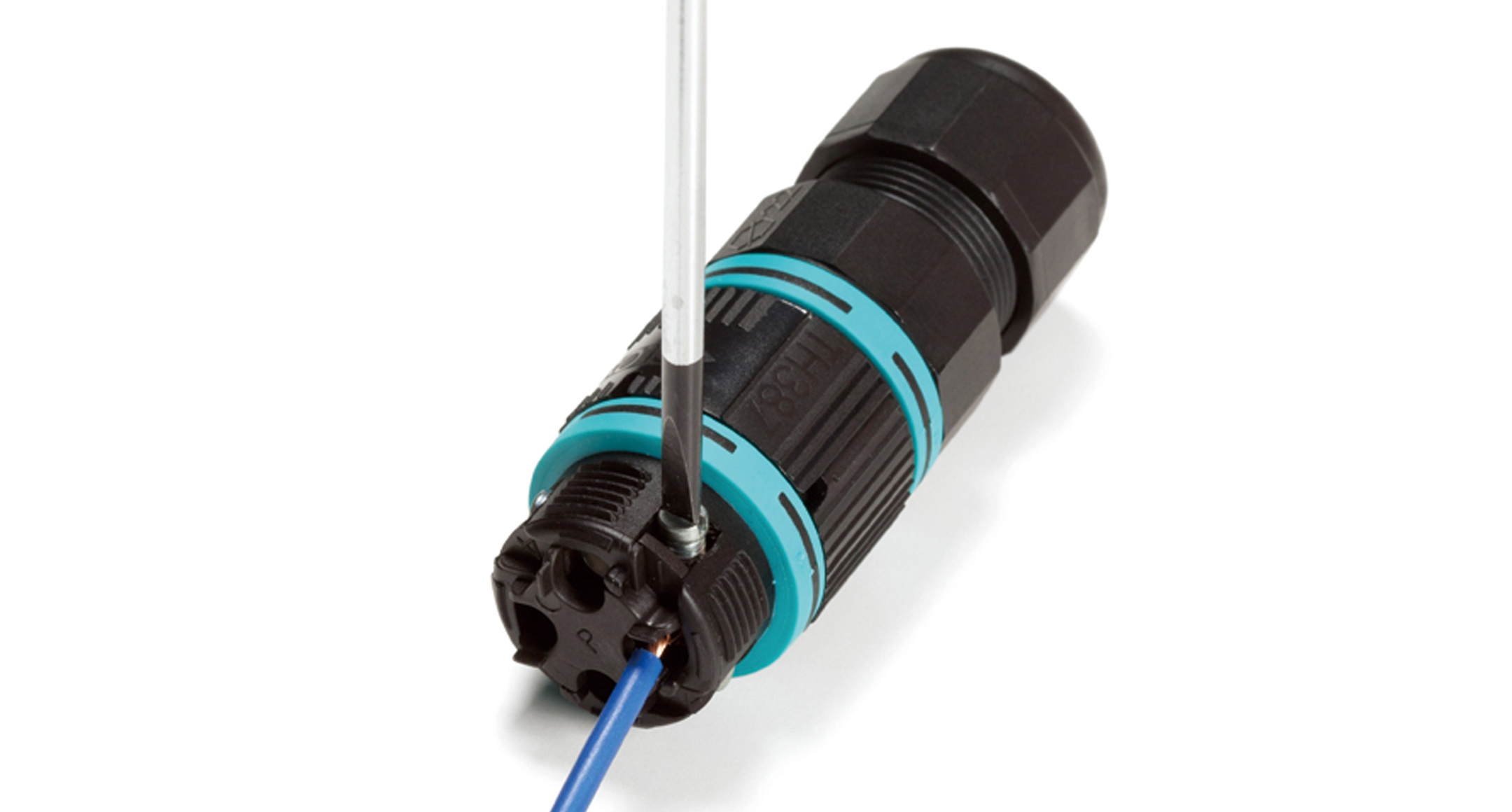

A screw type wiring connection is adopted, allowing for easy installation and removal.

3P, 4P and 5P pole models are available.
Plug / Socket can be sold separately.

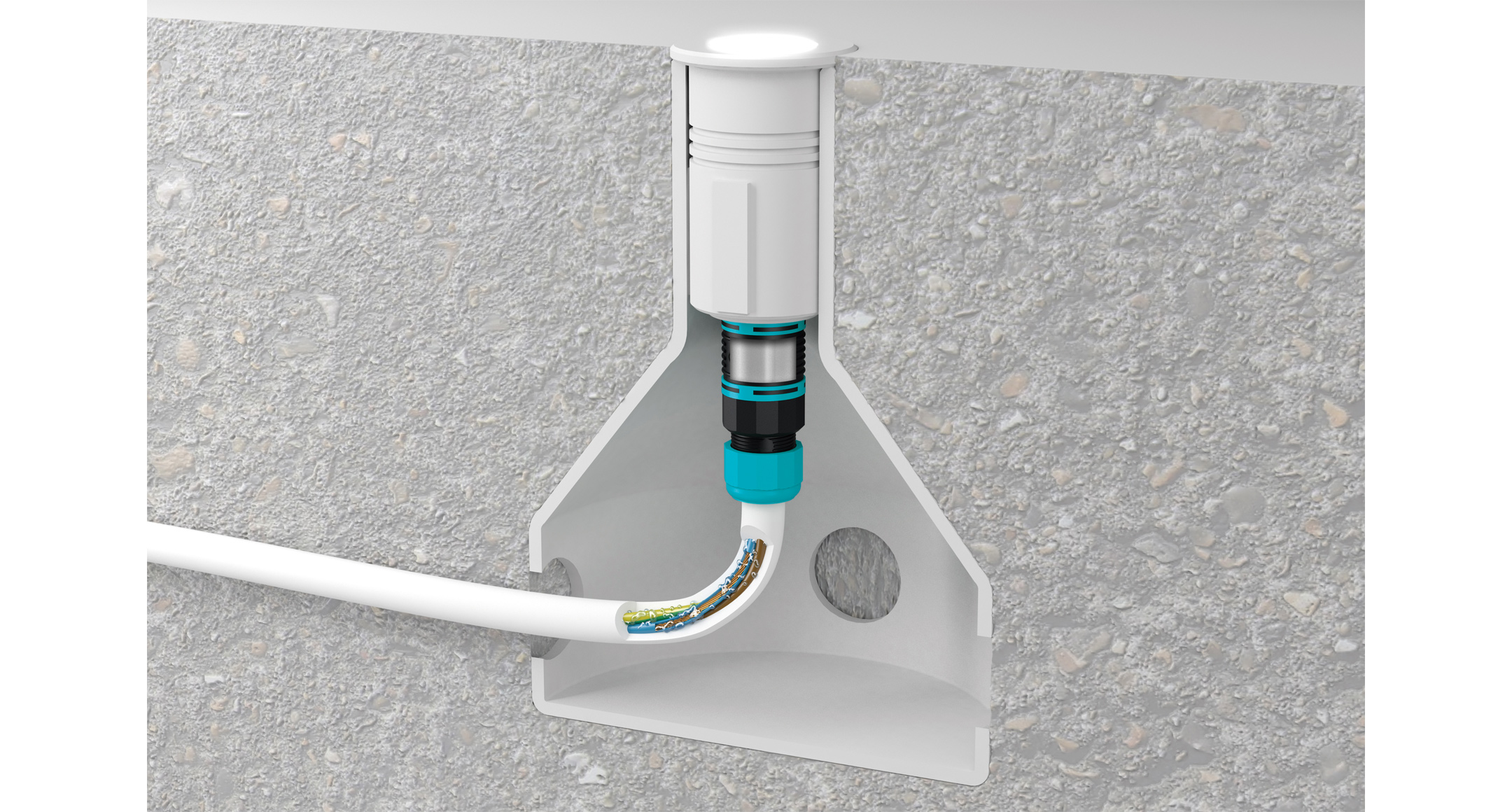

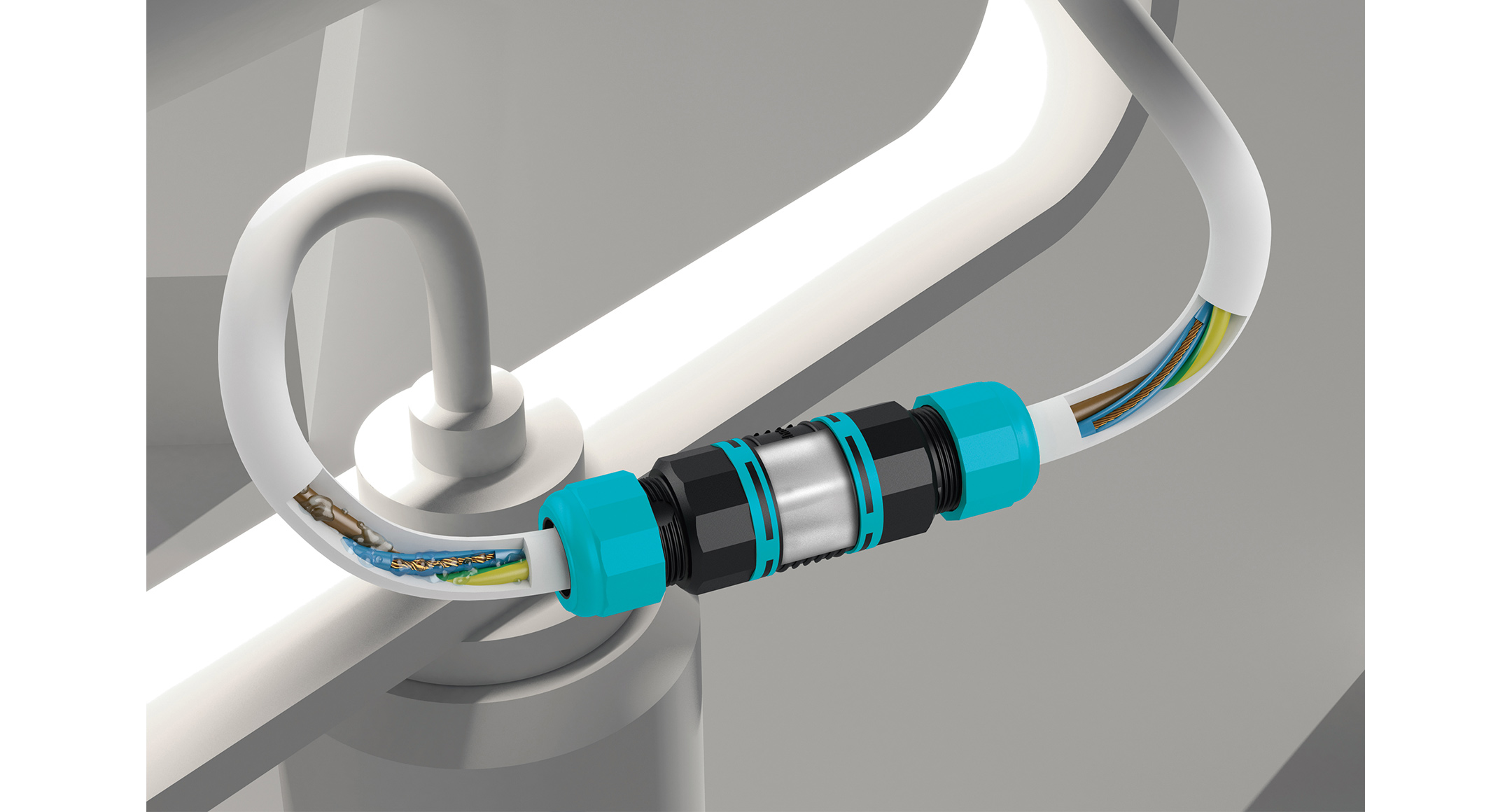

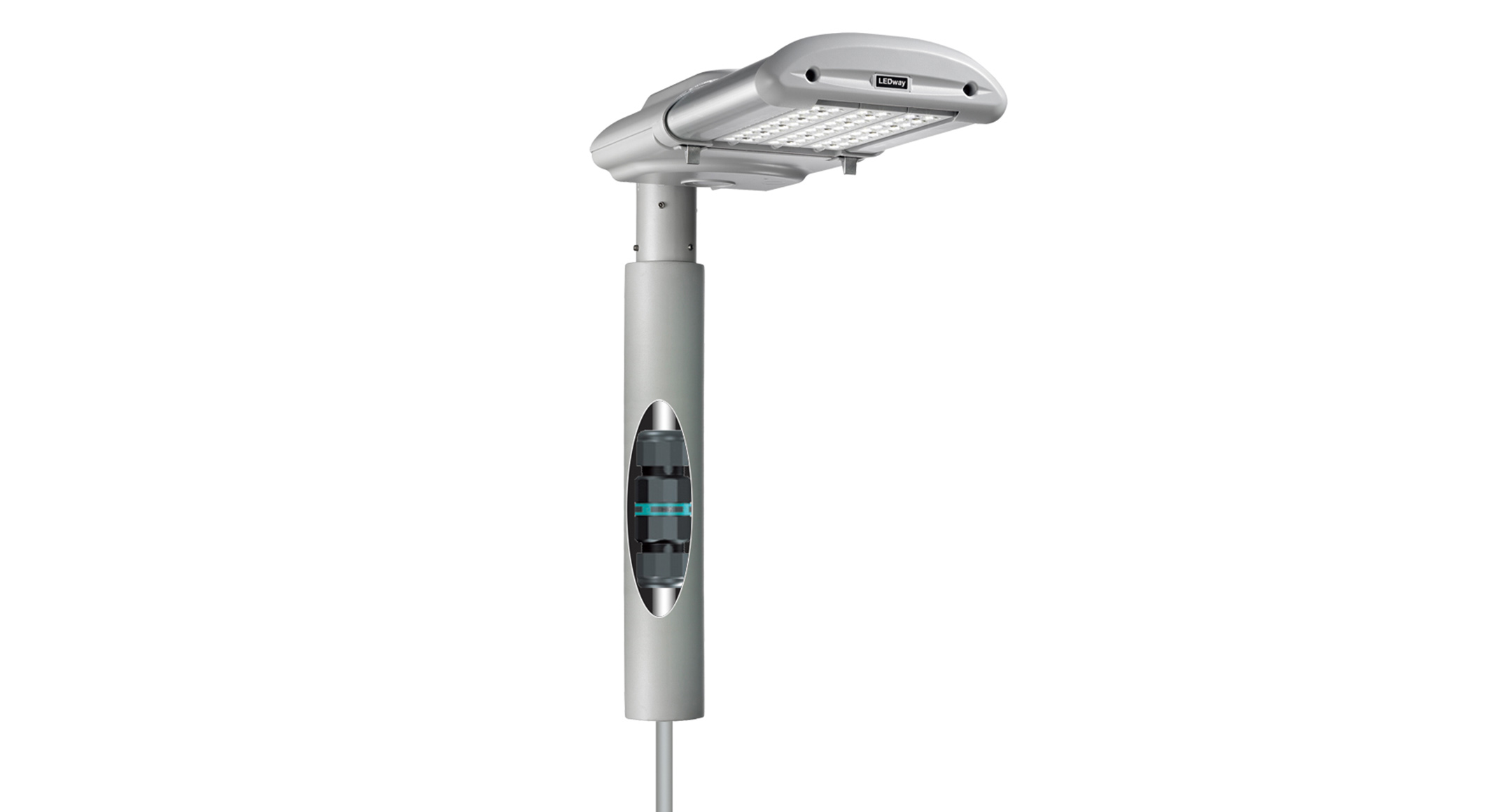

Suitable for use as ower or sensor signal relay of industrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.

Technical Data
Protection class : IP68 3bar/3h (3 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN61984 compliant.

Specifications
Rated voltage : Max AC500V
Rated current : Max 17.5A
Applicable wire : 3P・4P models = 0.5m㎡～2.5m㎡ (stranded)・ 5P models = 0.25m㎡～1.5m㎡ (stranded)
Impulse withstand voltage : 4kV
Number of insertion/extraction : 1,000 times

PRODUCT NO. / DIMENSIONS

Product No. Components External dimensions Cable range No. of poles Rated voltage Reted current Applicable wire Weight (g) PDF DXF DWG
THB387-3P Plug + Socket φ23×85mm φ7～12 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 33.9 PDF DXF DWG
THB387-4P Plug + Socket φ23×85mm φ7～12 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 37.6 PDF DXF DWG
THB387-5P Plug + Socket φ23×85mm φ7～12 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) 35.7 PDF DXF DWG
THB387-3P-P Plug only φ23×85mm φ7～12 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 17.5
THB387-3P-S Socket only φ23×85mm φ7～12 3P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 17.5
THB387-4P-P Plug only φ23×85mm φ7～12 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 19
THB387-4P-S Socket only φ23×85mm φ7～12 4P Max AC500V Max 17.5A 0.5～2.5m㎡ (Stranded) 19.5
THB387-5P-P Plug only φ23×85mm φ7～12 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) 18.5
THB387-5P-S Socket only φ23×85mm φ7～12 5P Max AC500V Max 17.5A 0.25～1.5m㎡ (Stranded) 18.5
