WATERPROOF CONNECTOR

WATERPROOF CONNECTOR -PDF

CATEGORY: WATERPROOF CONNECTOR

Suitable for use as power or sensor signal relay of industrial plant, machining instrument,
outdoor LED lighting, underground wiring, marine equipment or other severe environment where waterproof is required.
Protection class : IP68-0.5bar〜5bar

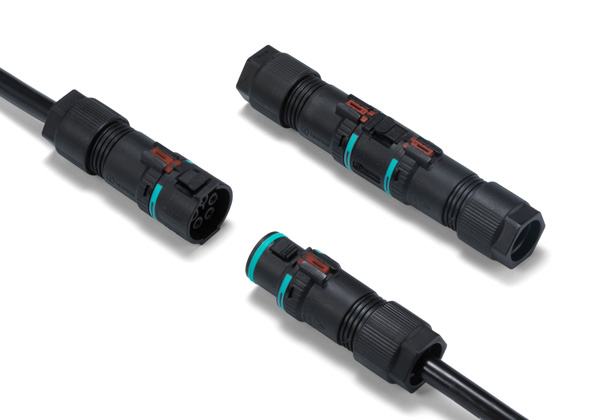

IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
  • IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
  • IP68 snap-lock mini connector for easy and frequent connection
  • /disconnection. 4P and 5P pole models are available.
  • Screwless connection method: screw, soldering or special tools
  • are not required.
  • NEW PRODUCT
DETAILS

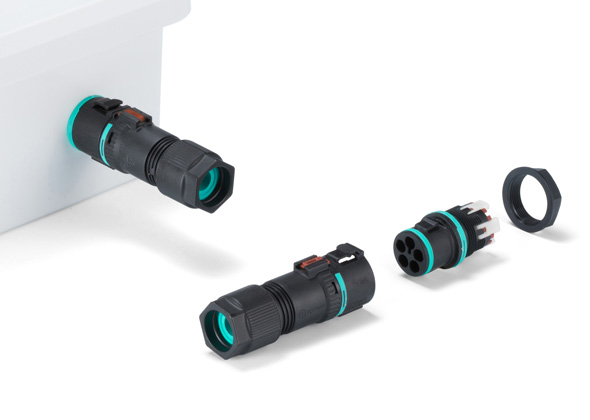

IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI PANEL-MOUNT CONNECTOR - THS389E series
  • IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI PANEL-MOUNT CONNECTOR - THS389E series
  • IP68 snap-lock mini panel-mount connector for easy and
  • frequent connection/disconnection.
  • Easy operation through the snap-lock mechanism.
  • Screw, soldering or special tools are not required.
  • NEW PRODUCT
DETAILS
IP68 SNAP-LOCK MINI CONNECTOR - THB389 series
  • IP68 SNAP-LOCK MINI CONNECTOR - THB389 series
  • IP68 snap-lock connector for easy and frequent connection
  • /disconnection. 4P and 5P pole models are available.
  • Plug-socket connector type consisting of the plug side (male)
  • and socket side (female). Screw type connection method.
  • NEW PRODUCT
DETAILS
IP68 SNAP-LOCK MINI PANEL-MOUNT CONNECTOR - THB389E series
  • IP68 SNAP-LOCK MINI PANEL-MOUNT CONNECTOR - THB389E series
  • IP68 snap-lock panel-mount connector for easy and
  • frequent connection/disconnection.
  • 4P and 5P pole models are available.
  • Soldering or special tools are not required.
  • NEW PRODUCT
DETAILS
IP68 SNAP-LOCK MICRO CONNECTOR - THB381 series
  • IP68 SNAP-LOCK MICRO CONNECTOR - THB381 series
  • IP68 snap-lock micro connector of just 14mm in diameter.
  • 2P and 3P pole models are available.
  • Plug-socket connector type consisting of the plug side
  • (male) and socket side (female).
  • NEW PRODUCT
DETAILS
IP68 SNAP-LOCK MICRO PANEL-MOUNT CONNECTOR - THB381E series
  • IP68 SNAP-LOCK MICRO PANEL-MOUNT CONNECTOR - THB381E series
  • IP68 snap-lock micro panel-mount connector of just 14mm
  • in diameter. 2P and 3P pole models are available.
  • Plug-socket connector type consisting of the plug side
  • (male) and socket side (female).
  • NEW PRODUCT
DETAILS
IP68 UL CERTIFIED PLUG-TYPE MINI RELAY CONNECTOR - THB387 series
  • IP68 UL CERTIFIED PLUG-TYPE MINI RELAY CONNECTOR - THB387 series
  • UL2238 / C22.2 No. 182.3 certified products.
  • Plug-socket connector type consisting of the plug side (male)
  • and socket side (female). Plug / Socket can be sold separately.
  • 4P and 5P pole models are available.
  • NEW PRODUCT
DETAILS
IP68 PLUG-TYPE MINI RELAY CONNECTOR - THB387 series
  • IP68 PLUG-TYPE MINI RELAY CONNECTOR - THB387 series
  • Plug-socket connector type consisting of the plug side (male)
  • and socket side (female). Plug / Socket can be sold separately.
  • 3P, 4P and 5P pole models are available.
  • Plug / Socket can be sold separately.
  • NEW PRODUCT
DETAILS
IP68 UL CERTIFIED MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387LE series
  • IP68 UL CERTIFIED MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387LE series
  • UL2238 / C22.2 No. 182.3 certified products.
  • Panel-mount, plug-socket connector type consisting of the plug
  • side(male) and socket side (female).
  • 4P and 5P pole models are available.
  • NEW PRODUCT
DETAILS
IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
  • IP68 MINI PANEL-MOUNT PLUG-TYPE RELAY CONNECTOR - THB387E series
  • Panel-mount, plug-socket connector type consisting of the plug
  • side (male) and socket side (female).
  • Plug / Socket can be sold separately.
  • 3P, 4P and 5P pole models are available.
  • NEW PRODUCT
DETAILS
IP68 COMPACT RELAY CONNECTOR - THB391 series
  • IP68 COMPACT RELAY CONNECTOR - THB391 series
  • IP68 compact relay connector with an integrated cable gland
  • and terminal block structure. A screw type wiring connection is
  • adopted for easy installation and removal.
  • 2P, 3P and 4P pole terminal models are available.
  • NEW PRODUCT
DETAILS
IP68 H-JUNCTION COMPACT RELAY CONNECTOR - THB392 series
  • IP68 H-JUNCTION COMPACT RELAY CONNECTOR - THB392 series
  • IP68 4 branch compact relay connector with an integrated
  • cable gland and terminal block structure. A screw type wiring
  • connection is adopted for easy installation and removal.
  • 4P x 4 common pole terminal model.
  • NEW PRODUCT
DETAILS
SEALING INSERT for THB387・387E・391・392
  • SEALING INSERT for THB387・387E・391・392
  • Optional sealing insert for THB387, 387E, 391 and 392 series.
  • *Not applicable to be used for THA209, THB381, 381E, 387L,
  • 387LE,389,389E,390,399Y,400,402T,405,406 series.
  • NEW PRODUCT
DETAILS
IP68 PLUG-TYPE CONNECTOR - THB405 series
  • IP68 PLUG-TYPE CONNECTOR - THB405 series
  • IP68 plug-socket connector type consisting of the plug
  • Screw type connection method.
  • 6P and 8P pole models are available.
  • NEW PRODUCT
DETAILS
IP68 PANEL-MOUNT PLUG-TYPE CONNECTOR - THB406 series
  • IP68 PANEL-MOUNT PLUG-TYPE CONNECTOR - THB406 series
  • IP68 panel-mount plug-type connector for installation on
  • panels or boxes. Plug-socket panel-mount type consisting
  • of the plug side (male) and socket side (female).
  • 3P, 6P and 8P pole models are available.
  • NEW PRODUCT
DETAILS
IP68 RELAY CONNECTOR - THB390・400 series
  • IP68 RELAY CONNECTOR - THB390・400 series
  • IP68 relay connector with screw type wiring connection
  • for easy installation and removal.
  • 3P, 6P, 2WP and 3WP pole models and no terminal model
  • are available.
  • NEW PRODUCT
DETAILS
IP68 T-SHAPED RELAY CONNECTOR - THB390T・402T series
  • IP68 T-SHAPED RELAY CONNECTOR - THB390T・402T series
  • IP68 T-shaped relay connector for branching of cables
  • or for connecting devices in a daisy chain.
  • 3P, 6P and 3WP pole terminal models and no terminal
  • model are available.
  • NEW PRODUCT
DETAILS
IP68 Y-SHAPED RELAY CONNECTOR - THB399Y series
  • IP68 Y-SHAPED RELAY CONNECTOR - THB399Y series
  • IP68 Y-shaped relay connector for branching of cables.
  • A screw type wiring connection is adopted, allowing
  • for easy installation and removal. 3P, 6P and 3WP pole
  • terminal models and no terminal model are available.
  • NEW PRODUCT
DETAILS
EXCLUSIVE BRACKET for THB
  • EXCLUSIVE BRACKET for THB
  • Optional bracket for affixing onto panels, poles etc.
  • Recommended for affixing connectors onto a surface.
  • Applicable for THB387・387L・390・390T
  • 391・399Y・400・402T・405 series.
  • NEW PRODUCT
DETAILS
IP68 RELAY JUNCTION BOX - THA209 series
  • IP68 RELAY JUNCTION BOX - THA209 series
  • IP68 relay junction box with easy screw connection with
  • an integrated cable gland and terminal block structure.
  • 3 and 4 ways types are available. 3P, 5P, 8P, 3WP, 4WP,
  • 3LP pole models and no terminal model are available.
  • NEW PRODUCT
DETAILS
SEALING INSERT for THA・THB ・THS
  • SEALING INSERT for THA・THB ・THS
  • Optional sealing insert for THA209, THB387L, 387LE, 389, 389E,
  • 390, 399Y, 400, 402T, 405, 406, THS389 and 389E series.
  • *Not applicable to be used for THB381, 381E, 387, 387E,
  • 391 and 392 series.
  • NEW PRODUCT
DETAILS
TERMINAL BLOCK JUNCTION BOX - TMC series
  • TERMINAL BLOCK JUNCTION BOX - TMC series
  • Integrated junction box of cable glands and terminal block.
  • IP65 protection class with high oil resistant PBT material.
  • Terminal block spec : 250V 15A
  • 3, 4, and 6 pole types are available.
    DETAILS
    IP68 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
    • IP68 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
    • IP68 hinged terminal juction box allows easy access for
    • maintenance or replacement of components.
    • 2, 3 and 4 way types are available.
    • 4P pole models and no terminal models are available.
    • NEW PRODUCT
    DETAILS
    IP68 WATER PROTECTION CABLE GLAND - AG series
    • IP68 WATER PROTECTION CABLE GLAND - AG series
    • High water protection IP68 cable gland.
    • Tough and heat resistant PA6FG material. (-20°C to +100°C)
    • Wide selection for M8 ~ M50 thread
    • Selectable in 15 sizes. (Φ2.5mm ~ Φ42 mm cable.)
      DETAILS
      POLYAMIDE CABLE GLAND - RM series
      • POLYAMIDE CABLE GLAND - RM series
      • Low cost cable glands made from polyamide material.
      • Wide selection, for M8 ~ M63 and Φ1mm ~ Φ44 mm cable.
      • Protection class : IP67
      • High oil resistant NBR rubber sealing and O-ring.
        DETAILS
        WEATHERPROOF CABLE GLAND - RMW series
        • WEATHERPROOF CABLE GLAND - RMW series
        • Weatherproof cable glands for long-term outdoor use.
        • High degradation resistant silicone sealing insert and O-ring.
        • Protection class : IP67
        • Thread size M8 ~ M50, Cable range Φ1mm ~ Φ38 mm.
          DETAILS
          PG CABLE GLAND - RPG series
          • PG CABLE GLAND - RPG series
          • Low cost PG thread cable glands.
          • High oil resistant NBR rubber sealing and O-ring.
          • Protection class : IP67
          • Thread size PG7 ~ PG29, Cable range Φ3mm ~ Φ25 mm.
            DETAILS
            MULTI-HOLE CABLE GLAND - RMH series
            • MULTI-HOLE CABLE GLAND - RMH series
            • Multi-hole cable gland with M type threads
            • Up to a maximum of 6 cables can be used with 1 cable gland
            • 5 thread sizes for M12・M16・M20・M25・M32
            • Cable range : φ1.5mm~φ11mm
            • NEW PRODUCT
            DETAILS
            IP68 SEAMLESS CABLE GLAND - THA45 series
            • IP68 SEAMLESS CABLE GLAND - THA45 series
            • Seamless construction of connector and sealing insert
            • for superb waterproof performance.
            • NEW PRODUCT
            DETAILS
            STRAIN RELIEF CABLE GLAND - AGSP series
            • STRAIN RELIEF CABLE GLAND - AGSP series
            • Stain relief cable gland. (Spiral cable gland.)
            • Protection class : IP67
            • 4 sizes for M12・M16・M20. (φ3.5mm~φ12mm cable)
            • Available in light gray and black colors.
              DETAILS
              STRAIN RELIEF CABLE GLAND - RSP series
              • STRAIN RELIEF CABLE GLAND - RSP series
              • Strain relief cable gland for protecting cables.
              • Protecting class : IP67
              • 6 sizes for M8・M10・M12・M16・M20・M25 in light gray / black
              • Cable range : φ1mm~φ16mm
              • NEW SIZE
              DETAILS
              RIGHT ANGLED CABLE GLAND -  REL series
              • RIGHT ANGLED CABLE GLAND - REL series
              • L-shape cable gland with M type threads
              • Allow wires to be routed vertically
              • 4 thread sizes for M16・M20・M25・M32
              • Cable range : φ3.5mm~φ16mm
              • NEW PRODUCT
              DETAILS
              RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
              • RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
              • Strain relief cord protector help relief flex stress and damage.
              • 2 types - round and flat - are available.
              • Insert from the inner side of the case / panel of the enclosure.
              • Made from high heat resistant silicone material.
              • NEW PRODUCT
              DETAILS
              BLIND PLUG with O-ring - SHP series
              • BLIND PLUG with O-ring - SHP series
              • Hole plug for sealing holes that are not in use.
              • IP67 rating is achieved through the use of a lock nut.
              • Available in 6 sized for φ12.2 to φ40.3 holes in Black.
              • Light gray colors.
              • NEW PRODUCT
              DETAILS
              SEALING PLUG - SP series
              • SEALING PLUG - SP series
              • Sealing plug for cable glands when not in use.
              • 6 different sizes for M12 ~ M50 cable glands.
                DETAILS
                IP68 METAL CABLE GLAND - AGM series
                • IP68 METAL CABLE GLAND - AGM series
                • High water protection IP68 metal cable gland.
                • Protection class: IP68 1bar / 30min
                • Wide selection, for M6 ~ M50 and PG7 ~ PG16.
                • Suitable in 19 sizes. (Φ2 mm ~ Φ42 mm cable)
                  DETAILS
                  EMC CABLE GLAND - AGE series
                  • EMC CABLE GLAND - AGE series
                  • Easy installation EMC shielding metal cable gland.
                  • EMC spring provides for good contact of shielding cables.
                  • Protection class : IP68 2bar / 30min, IP69K
                  • 6 different sizes for cable range φ3.5mm ~ 25.0mm.
                    DETAILS
                    HEAT RESISTANT CABLE GLAND - AGH series
                    • HEAT RESISTANT CABLE GLAND - AGH series
                    • Heat resistant sealing insert made of FPM material.
                    • Operating temperature : -40℃ ~ +200℃
                    • Protection class : IP68 1bar / 30min
                    • 6 different sizes available for cable range φ4~φ25.5mm.
                      DETAILS
                      HINGED INSPECTION WINDOW - IW series
                      • HINGED INSPECTION WINDOW - IW series
                      • IP64/54 water resistant see-through hinged inspection window
                      • Smartly designed window for protection of switches and
                      • displays, etc. Knurled thumb screws for easy securing.
                      • 10 different sizes available.
                      • NEW PRODUCT
                      DETAILS
                      INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
                      • INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
                      • Torque wrench with interchangeable head.
                      • Suitable for the tightening of cable glands
                      • Open end interchangeable head (spanner head)
                      • TWE series available separately.
                      • NEW PRODUCT
                      DETAILS
                      STAINLESS STEEL HOSE CLAMP - SNB series
                      • STAINLESS STEEL HOSE CLAMP - SNB series
                      • Screw adjustable type stainless steel hose clamp.
                      • Clamp band for hoses for air, liquid, and oil.
                      • Belt material : SUS304
                      • Wide lineup of 23 sizes from 8 mm to 308 mm.
                      • NEW PRODUCT
                      DETAILS
                      STAINLESS STEEL TIES for CABLE BUNDLING - SCT series
                      • STAINLESS STEEL TIES for CABLE BUNDLING - SCT series
                      • Corrosion resistant stainless steel cable tie.
                      • Can be used to bundle cables or mounting enclosures to poles.
                      • Self-locking bracket allows easy cable bundling / mounting.
                      • For firm tightening, Use of Tighten gun G3388 is recommended.
                      • NEW PRODUCT
                      DETAILS
                      TIGHTEN GUN for SCT
                      • TIGHTEN GUN for SCT
                      • Tool for cutting and tightening stainless steel strap.
                      • *Be careful of the sharp cut-edge of strap.
                      • Note: this product is not subject to RoHS regulations.
                      • NEW PRODUCT
                      DETAILS
