CATEGORY：H-junction connector, 4-way connector, 4 branch connector, H connector, Waterproof connector, Relay connector

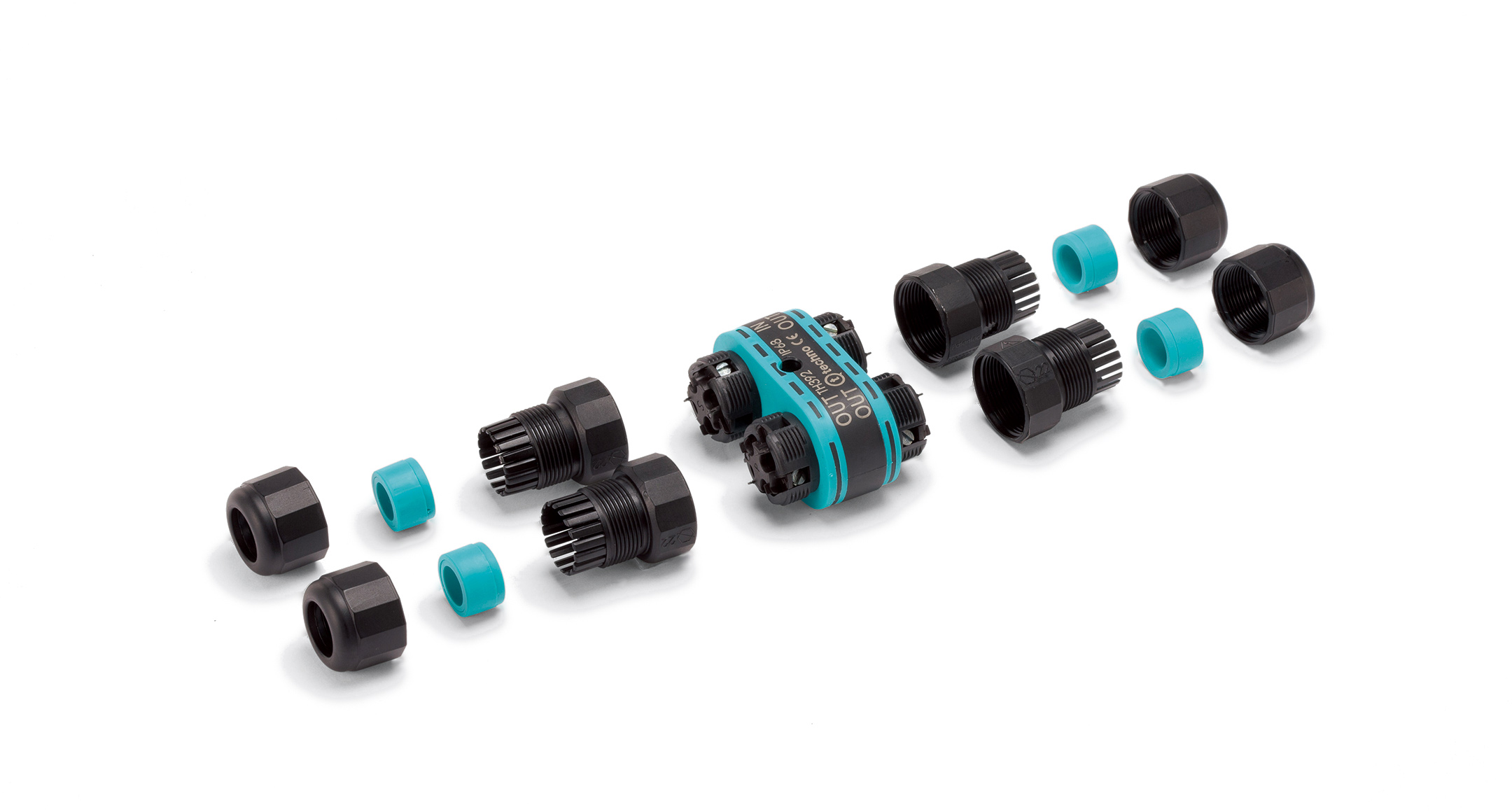

IP68 4 branch compact relay connector with an integrated cable gland and terminal block structure.

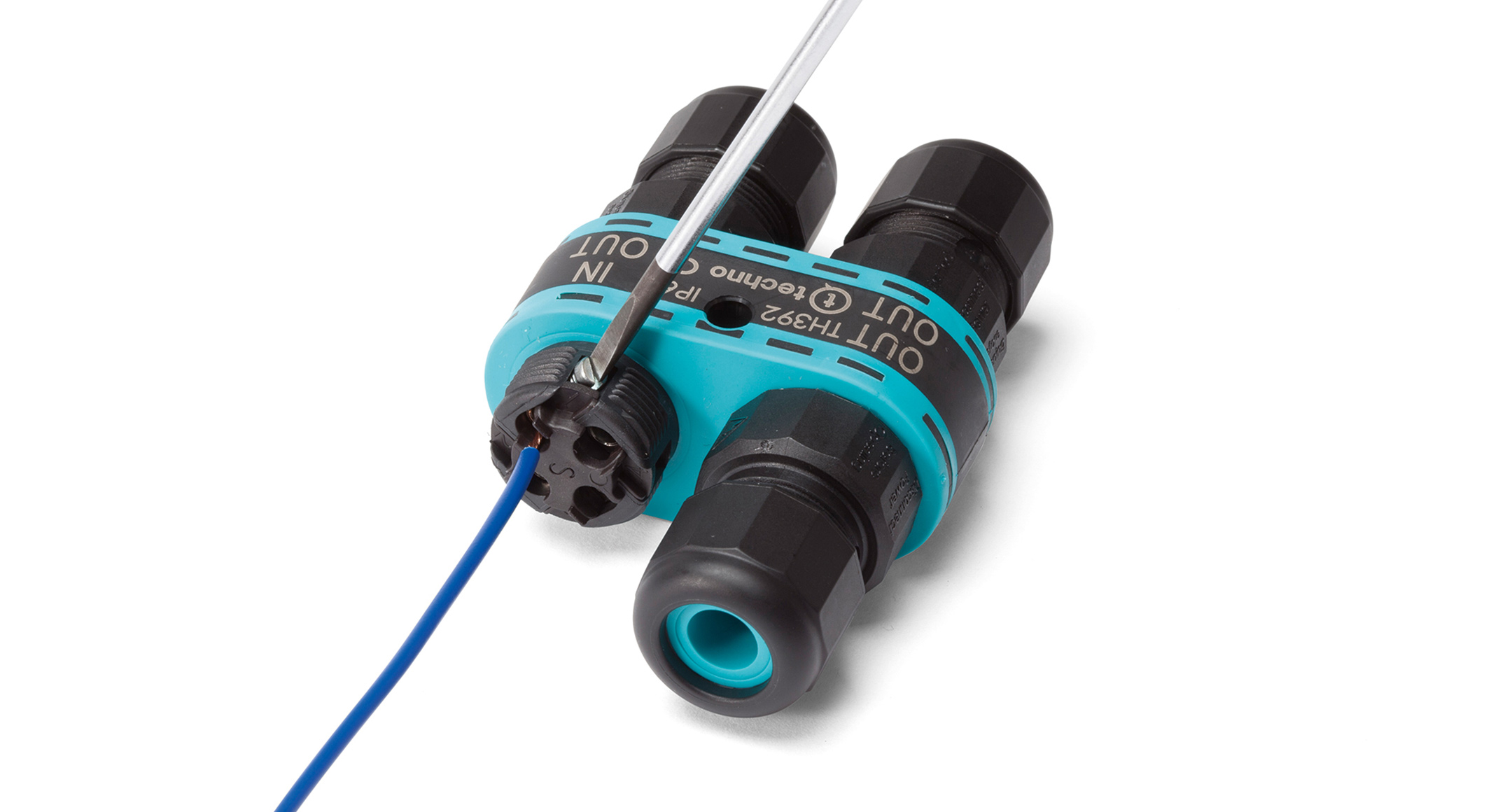

A screw type wiring connection is adopted, allowing for easy installation and removal.
4P x 4 common pole terminal model.

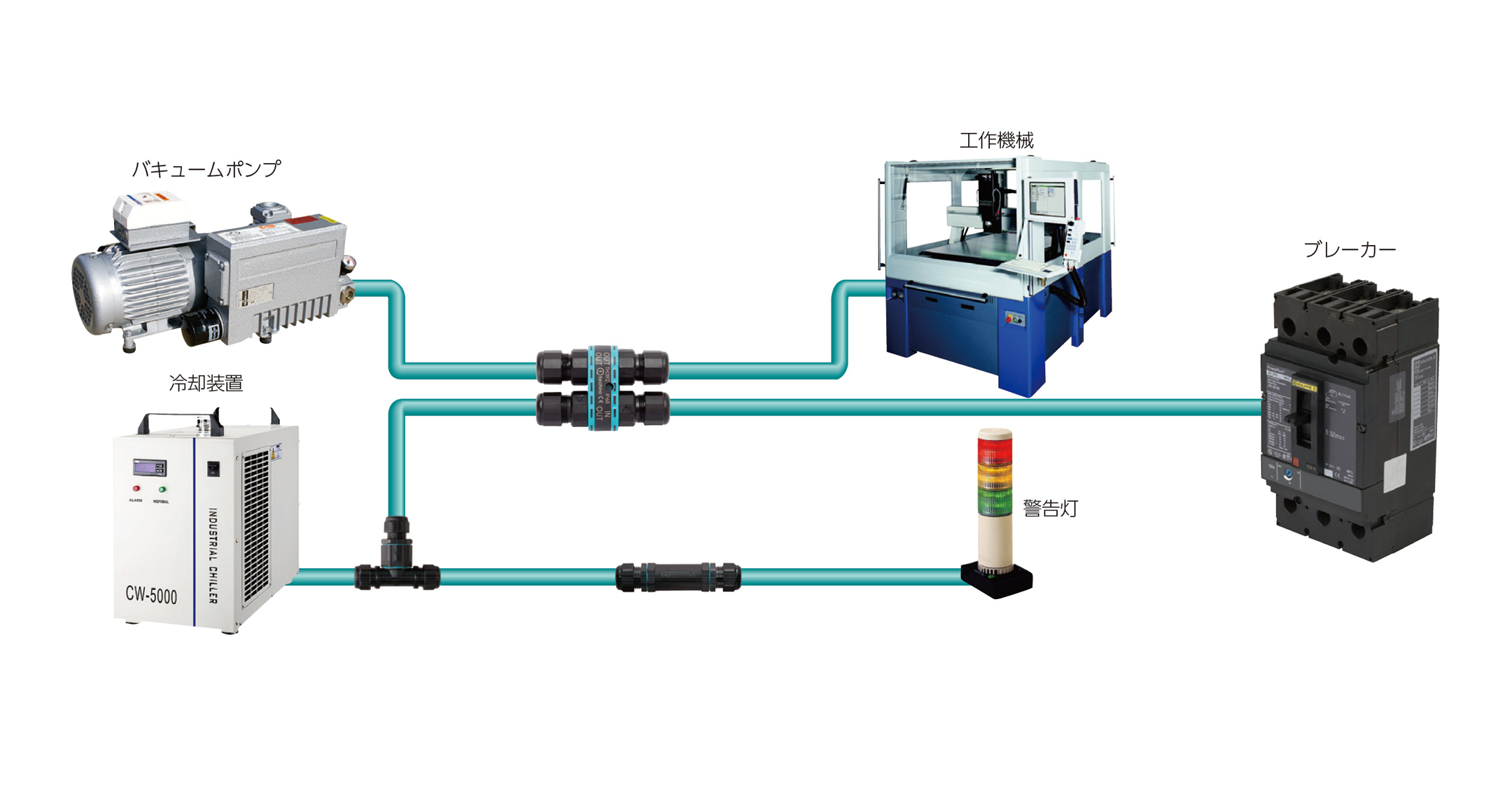

Suitable for use as power or sensor signal relay of industrial plant, machining instrument,
outdoor LED lighting, underground wiring, marine equipment where waterproofing is required.
Technical Data
Protection class : IP68 3bar/2h (2 hour / 30m depth)
Operating temperature : -40°C ~ +125°C
EN60529 and EN60998 compliant
Specifications
Rated voltage：AC450V
Rated current：17.5A
Applicable wire：0.5m㎡～4.0m㎡ (Stranded)
