IP68 T-shaped relay connector for branching of cables or for connecting devices in a daisy chain.

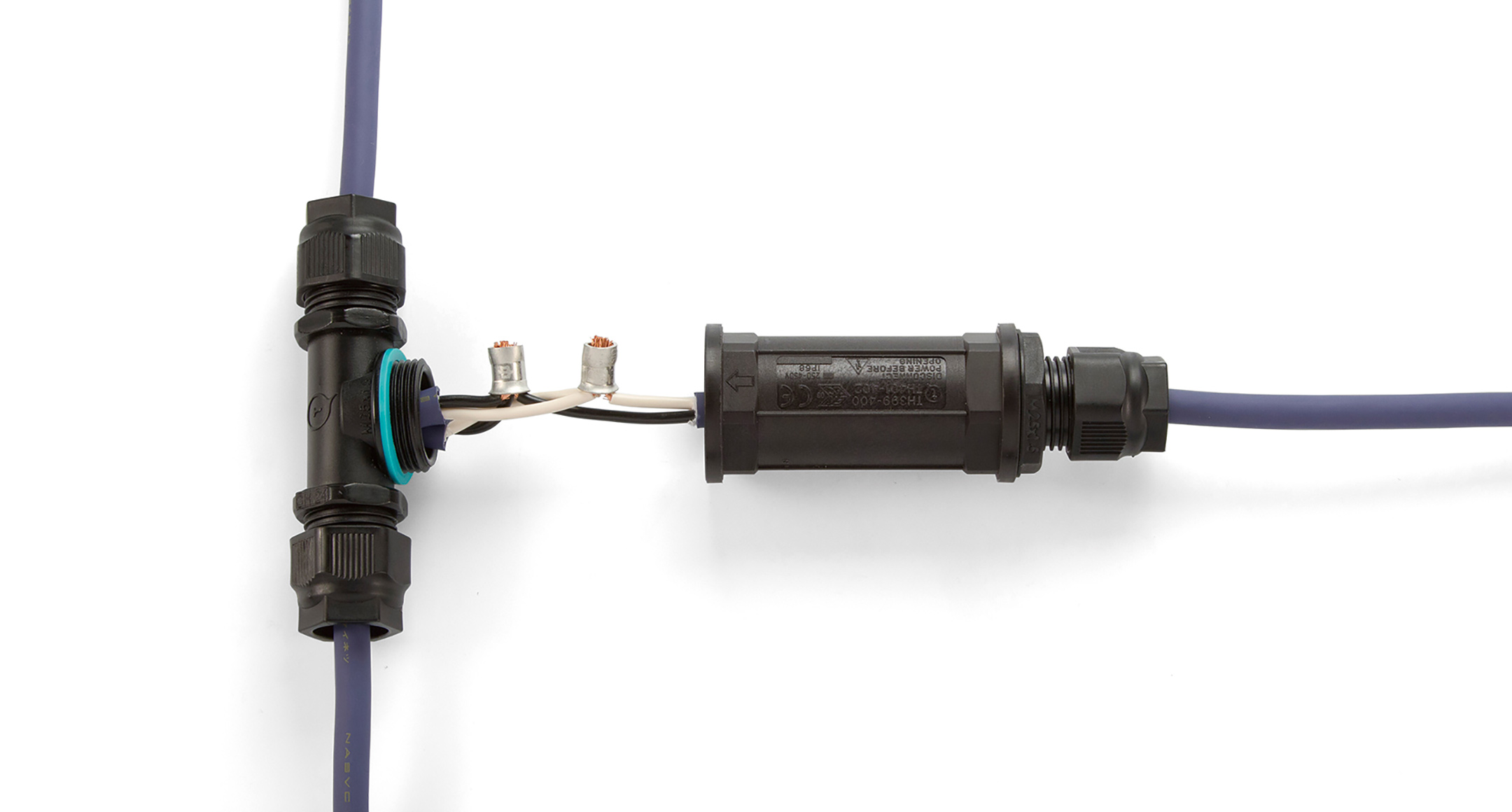

A screw type wiring connection is adopted, allowing for easy installation and removal.
3P, 6P and 3WP pole terminal models and no terminal model are available.

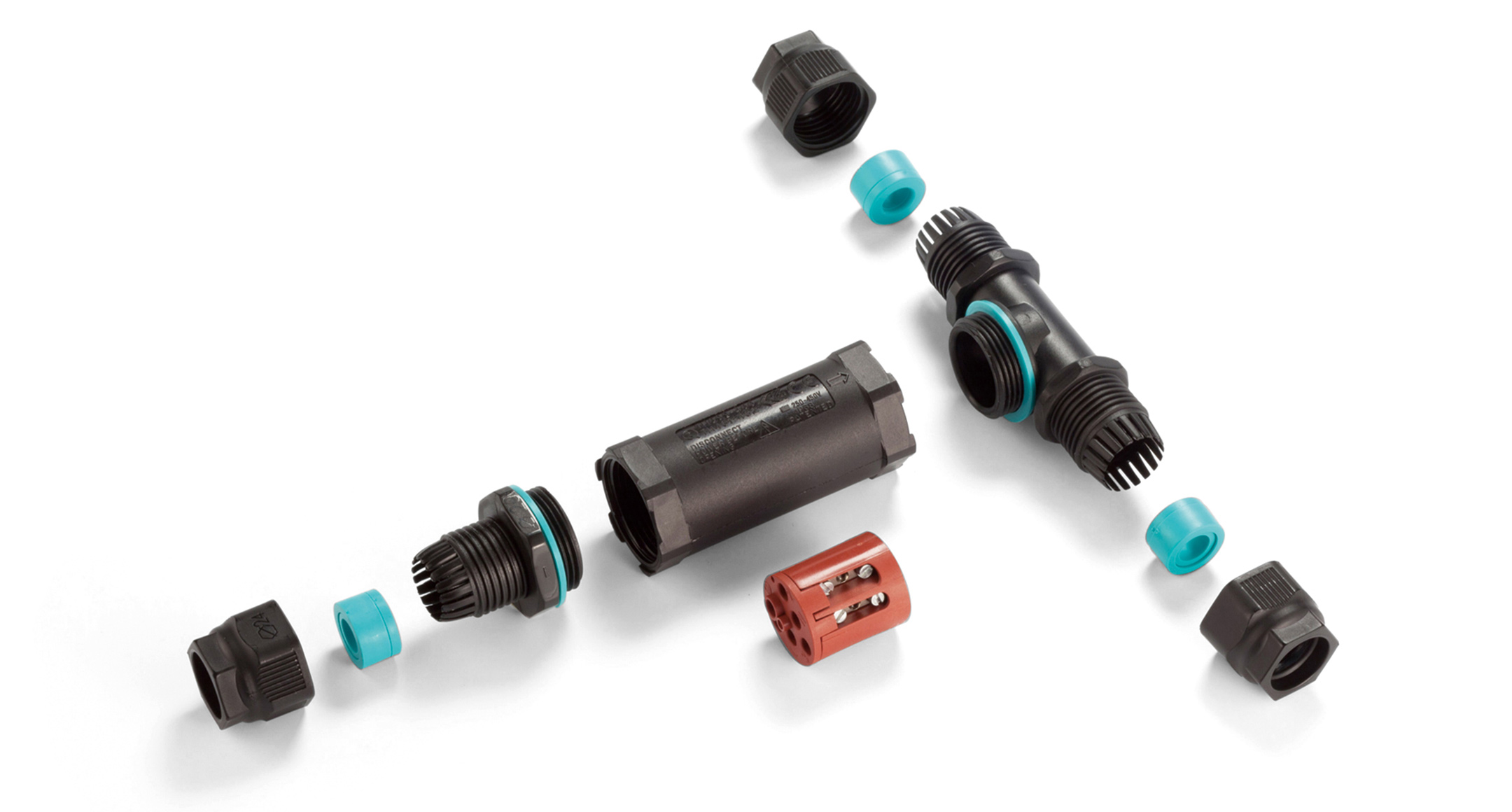

Possible to adopt wide cable range with the optional sealing insert.
Applicable cable size range can be expanded by removing the inner sealing insert.

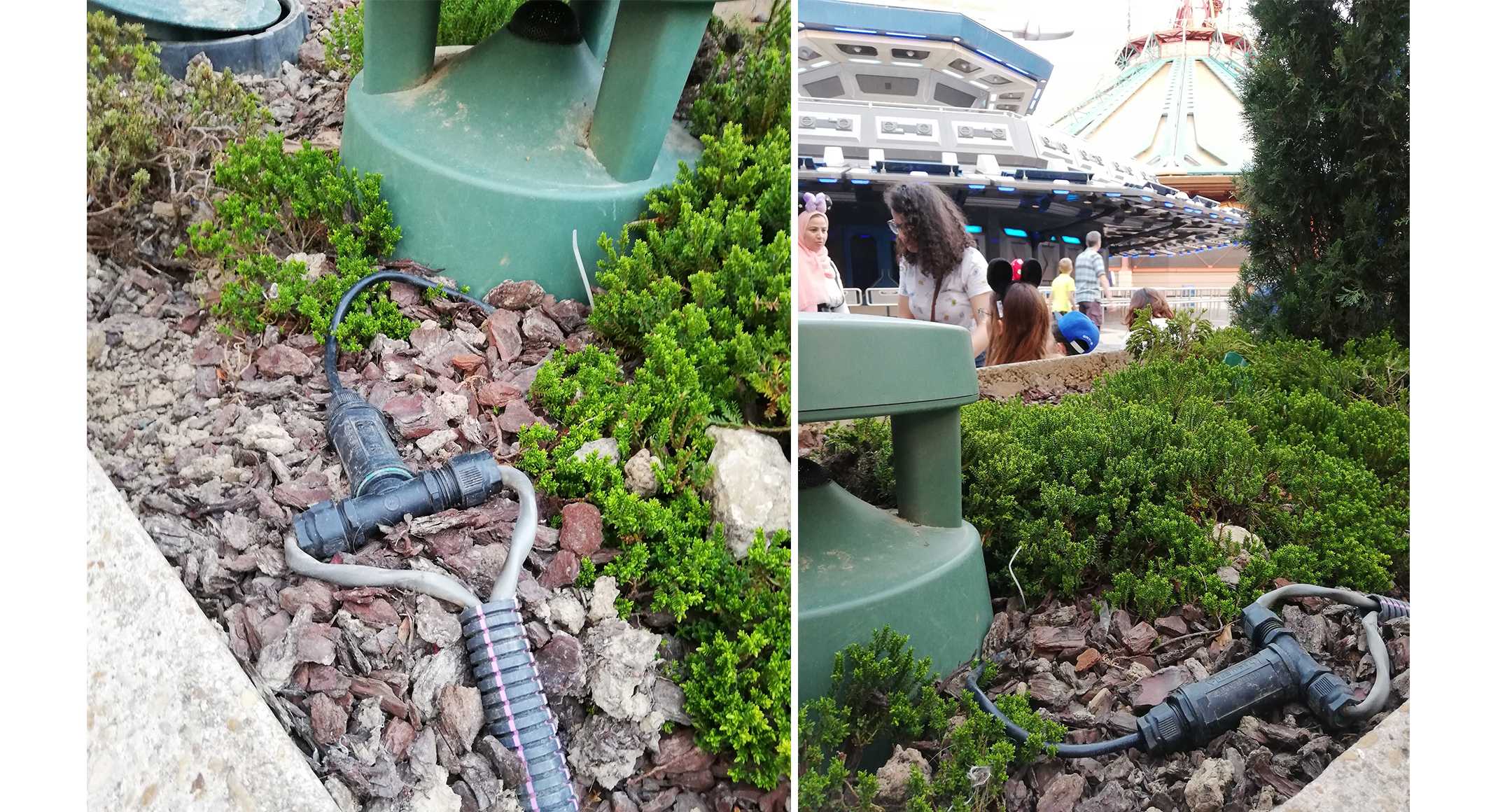

Suitable for use as power or sensor signal relay of ndustrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.
Technical Data
Protection class : IP68 2bar/1h (1 hour / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529 : 1991＋A1：2000, EN60998-1：2004, EN60998-2-1：2004 compliant
Specifications
THB390T-3P・THB402T-6P
Rated voltage：AC250V
Rated current：24A
Applicable wire：0.5m㎡～2.5m㎡ (Stranded)
THB402T-3WP
Terminal : Two poles are divided into three.(Each is common.)
Rated voltage：AC250V
Rated current：32A
Applicable wire：0.5m㎡～4.0m㎡ (Stranded)
A screw type wiring connection is adopted, allowing for easy installation and removal.
3P, 6P and 3WP pole terminal models and no terminal model are available.
Possible to adopt wide cable range with the optional sealing insert.
Applicable cable size range can be expanded by removing the inner sealing insert.
Suitable for use as power or sensor signal relay of ndustrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.
Technical Data
Protection class : IP68 2bar/1h (1 hour / 20m depth)
Operating temperature : -40°C ~ +125°C
EN60529 : 1991＋A1：2000, EN60998-1：2004, EN60998-2-1：2004 compliant
Specifications
THB390T-3P・THB402T-6P
Rated voltage：AC250V
Rated current：24A
Applicable wire：0.5m㎡～2.5m㎡ (Stranded)
THB402T-3WP
Terminal : Two poles are divided into three.(Each is common.)
Rated voltage：AC250V
Rated current：32A
Applicable wire：0.5m㎡～4.0m㎡ (Stranded)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|
| THB390T-3P | φ32×79×97mm | φ7～13.5 | 3P | AC250V | 24A | 0.5～2.5m㎡ (Stranded) | 76.9 | DXF | DWG | |
| THB402T-3WP | φ32×124×97mm | φ7～13.5 | 3P (Common) | AC250V | 24A | 0.5～2.5m㎡ (Stranded) | 76.9 | DXF | DWG | |
| THB402T-6P | φ32×124×97mm | φ7～13.5 | 6P | AC250V | 32A | 0.5～4.0m㎡ (Stranded) | 76.7 | DXF | DWG | |
| THB402T-N | φ32×124×97mm | φ7～13.5 | None | - | - | - | 60.2 | DXF | DWG |
