CATEGORY：Relay junction box, Waterproof relay box, Terminal box, IP68 junction box, 3-way, 4-way

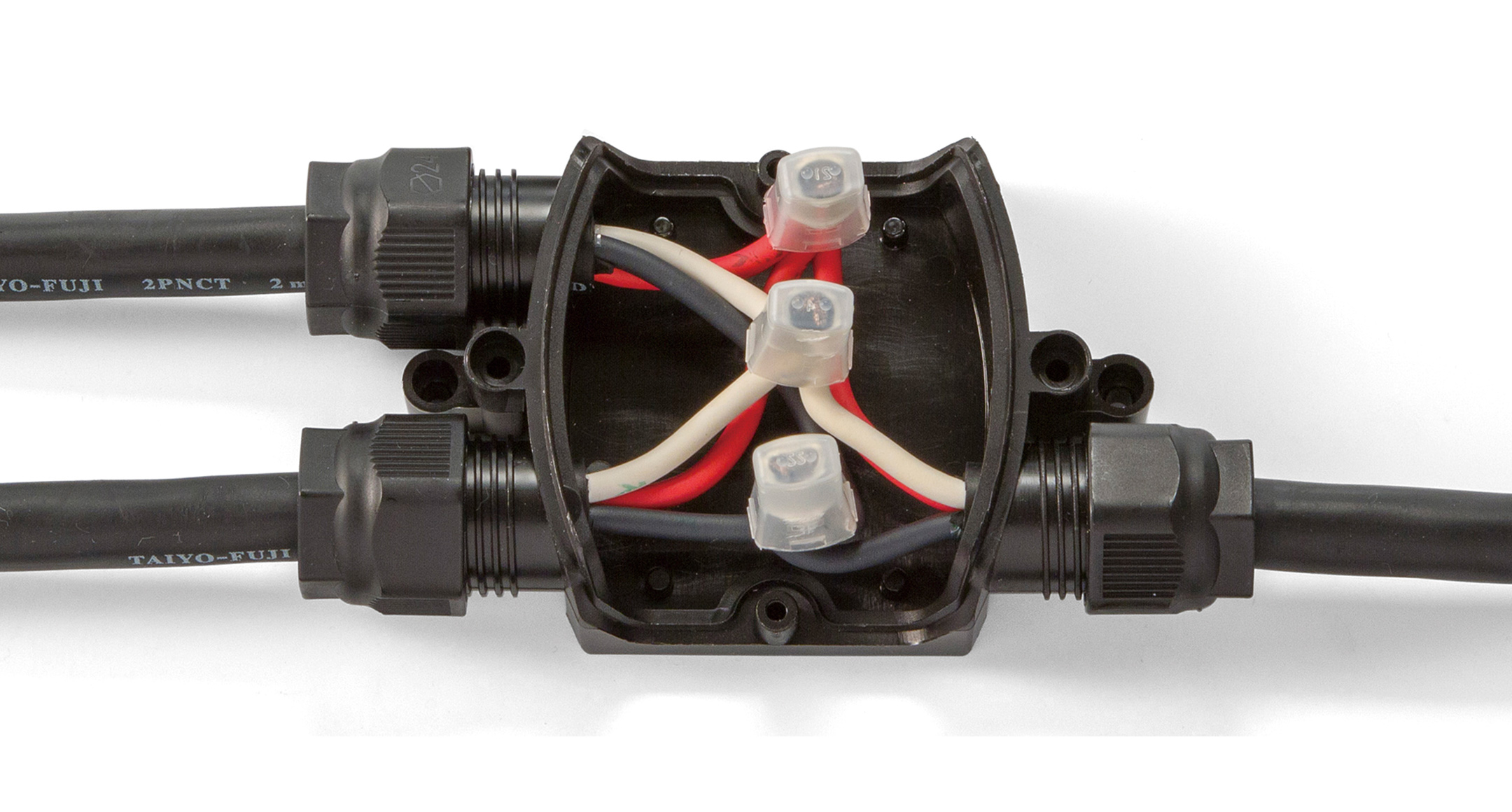

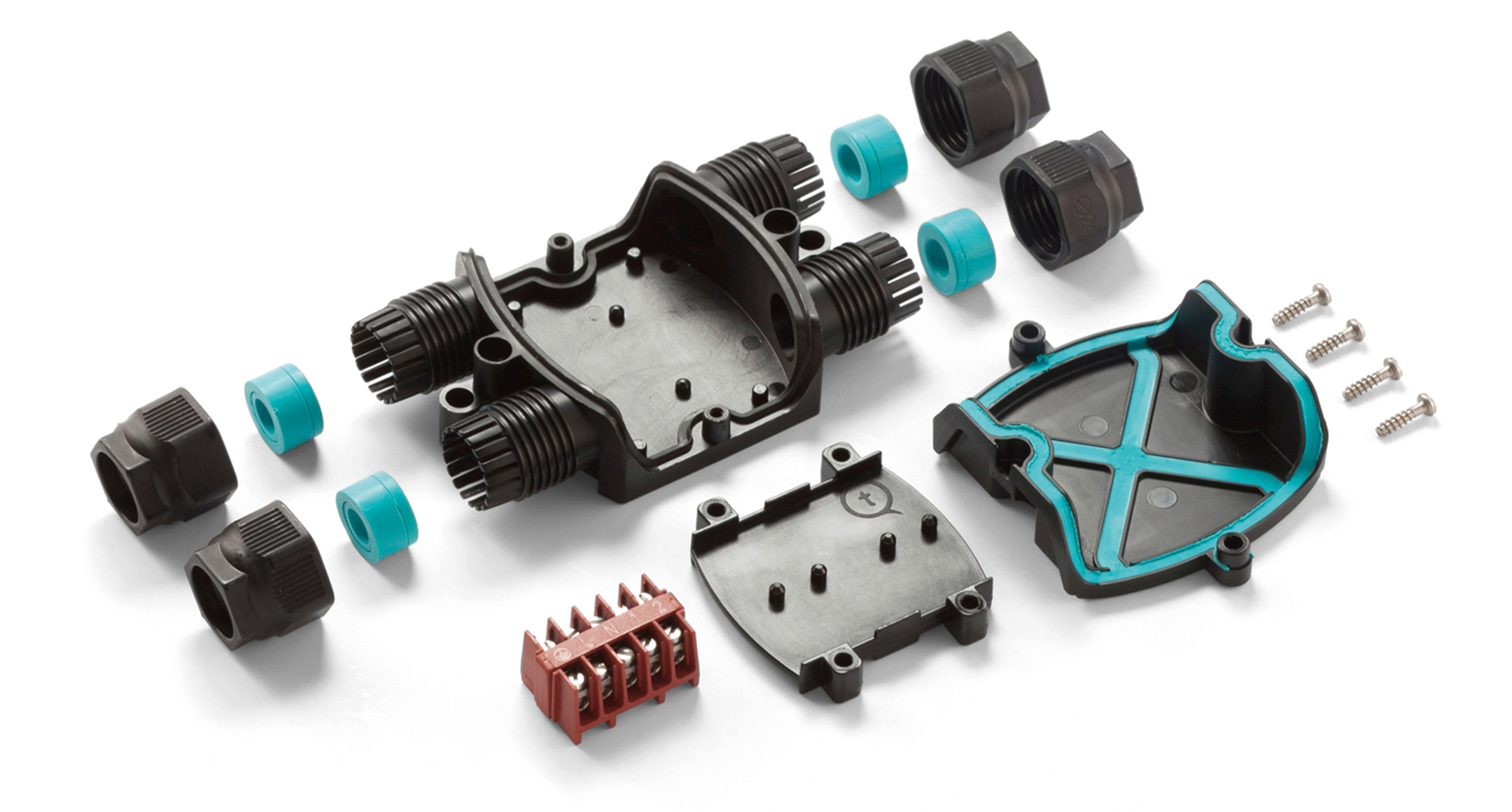

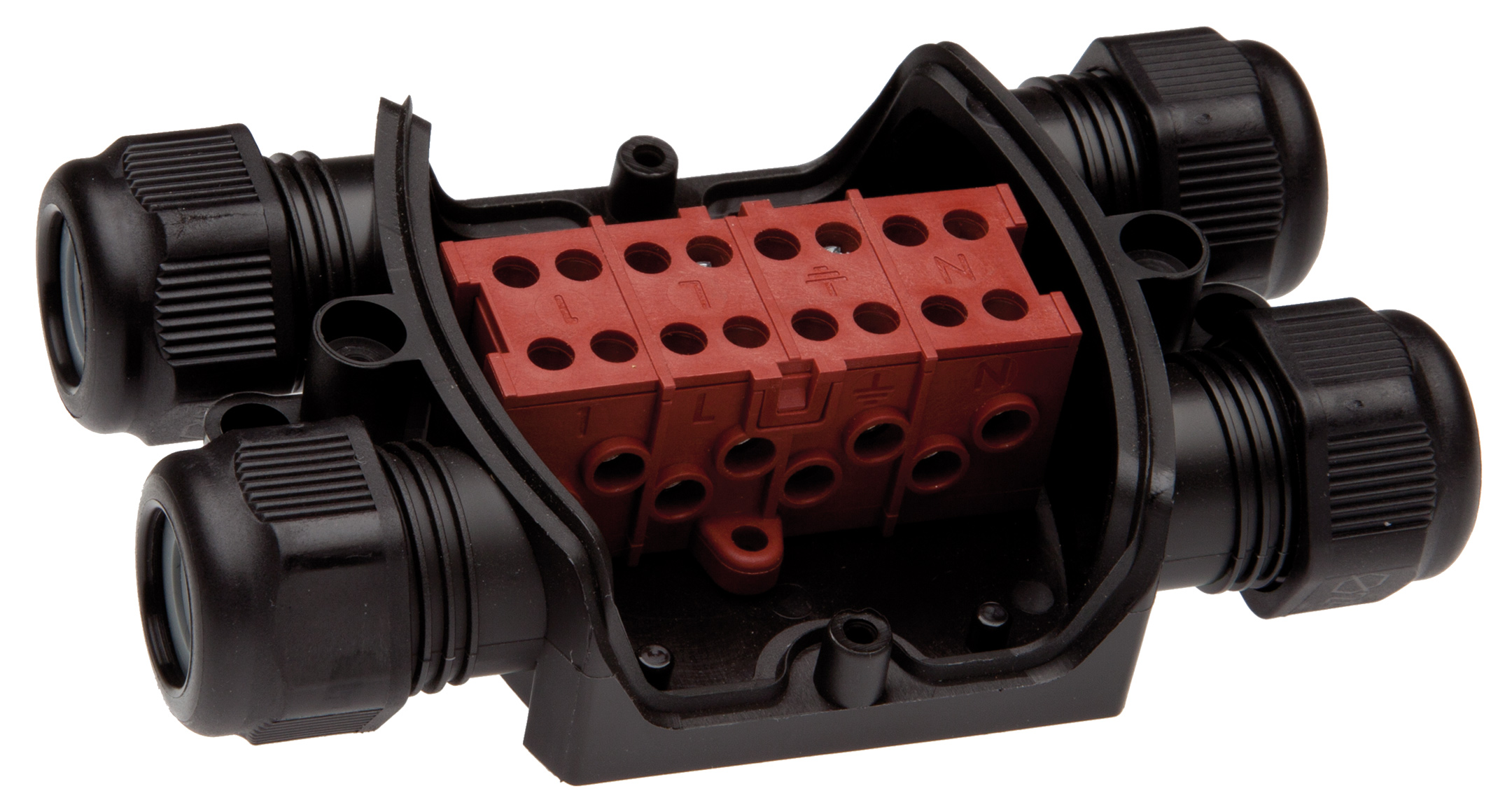

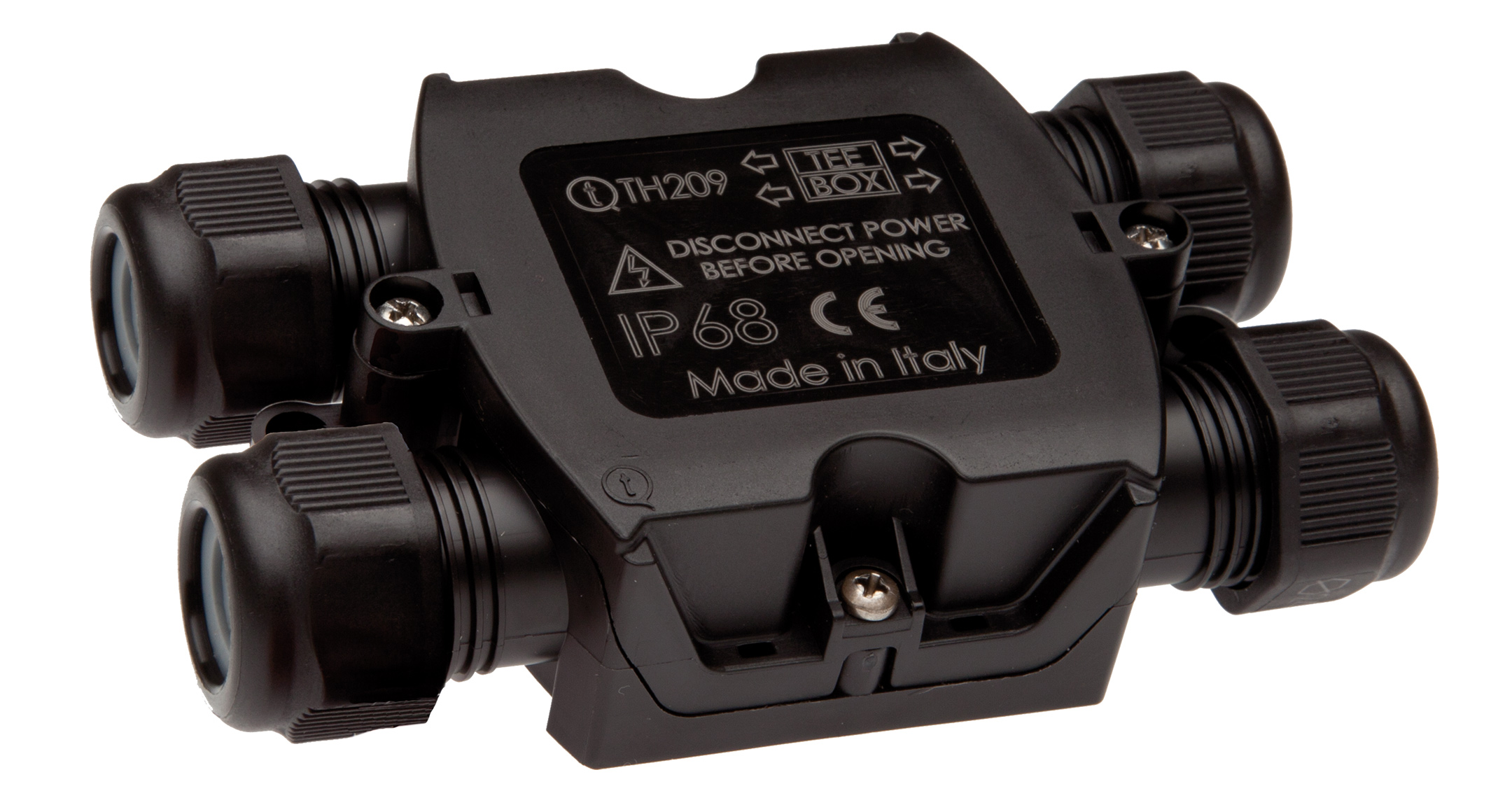

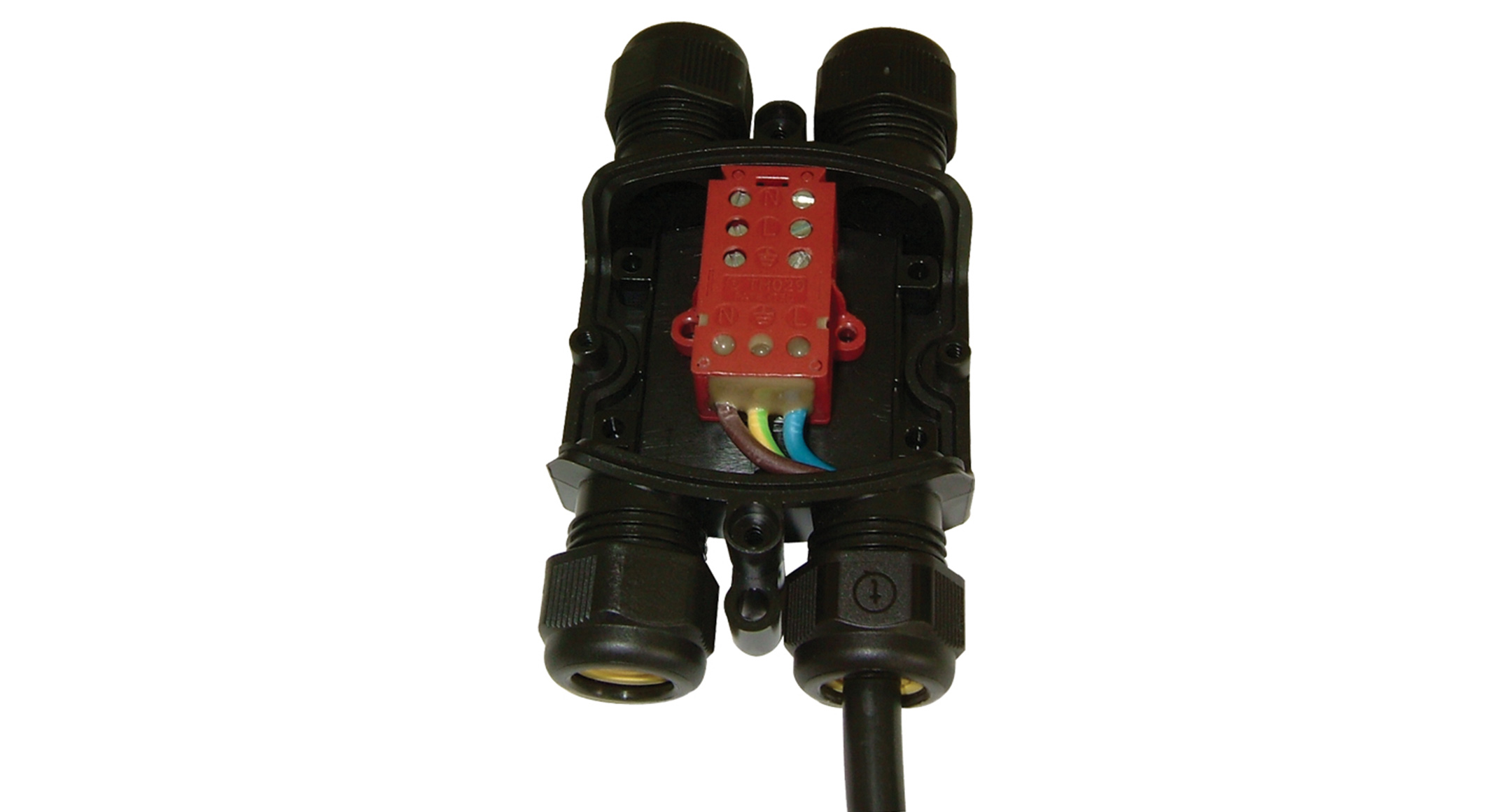

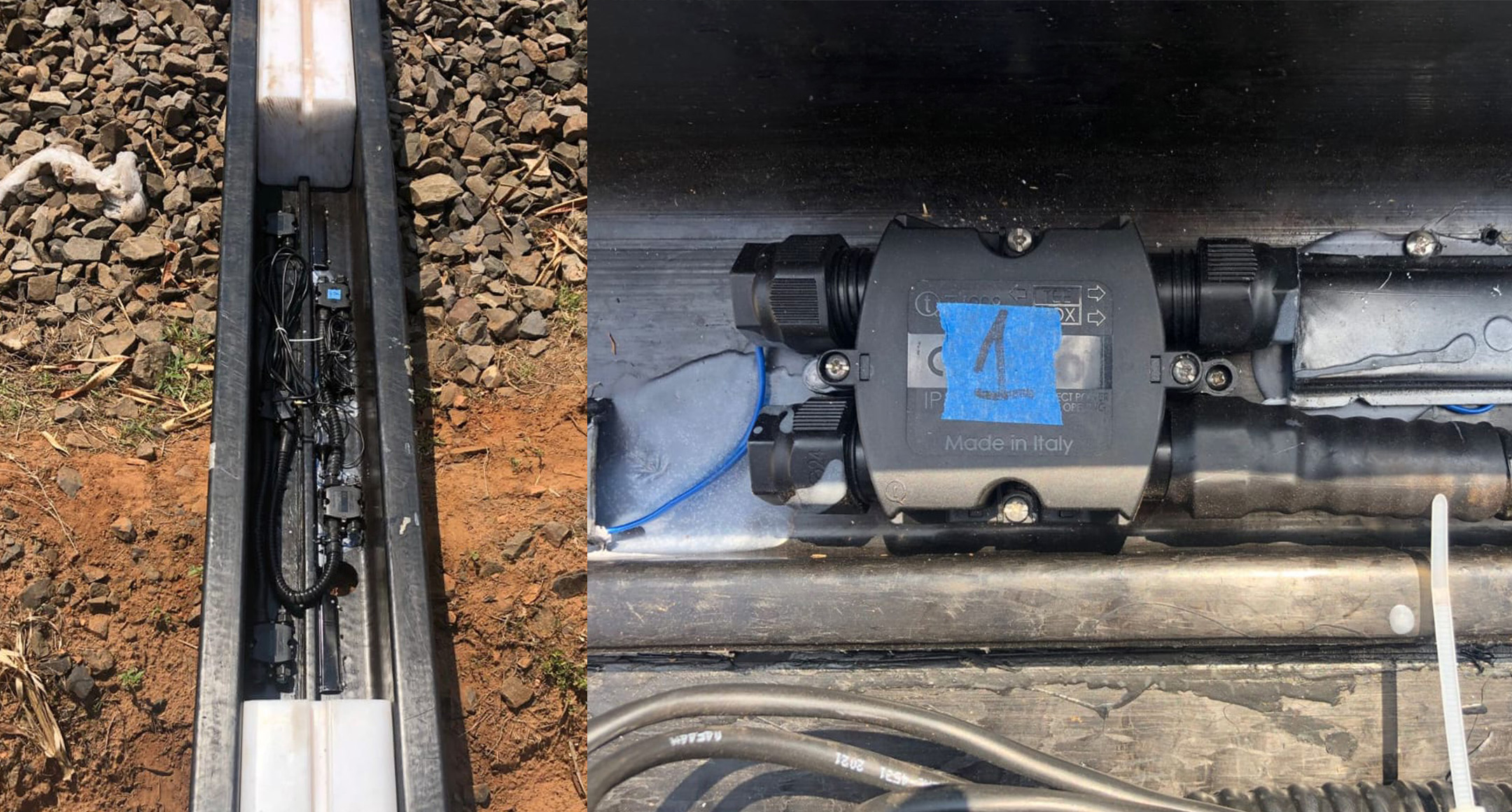

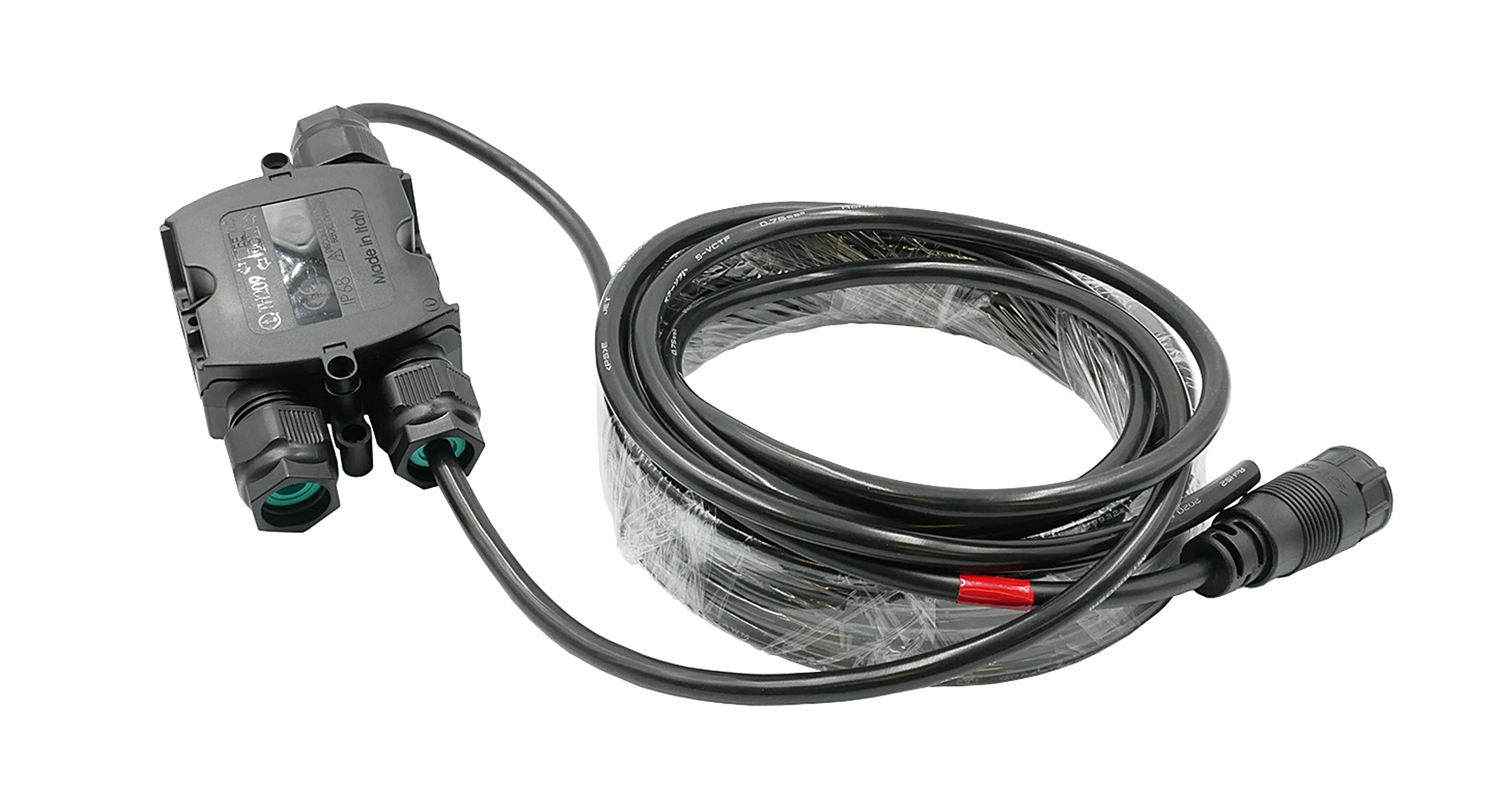

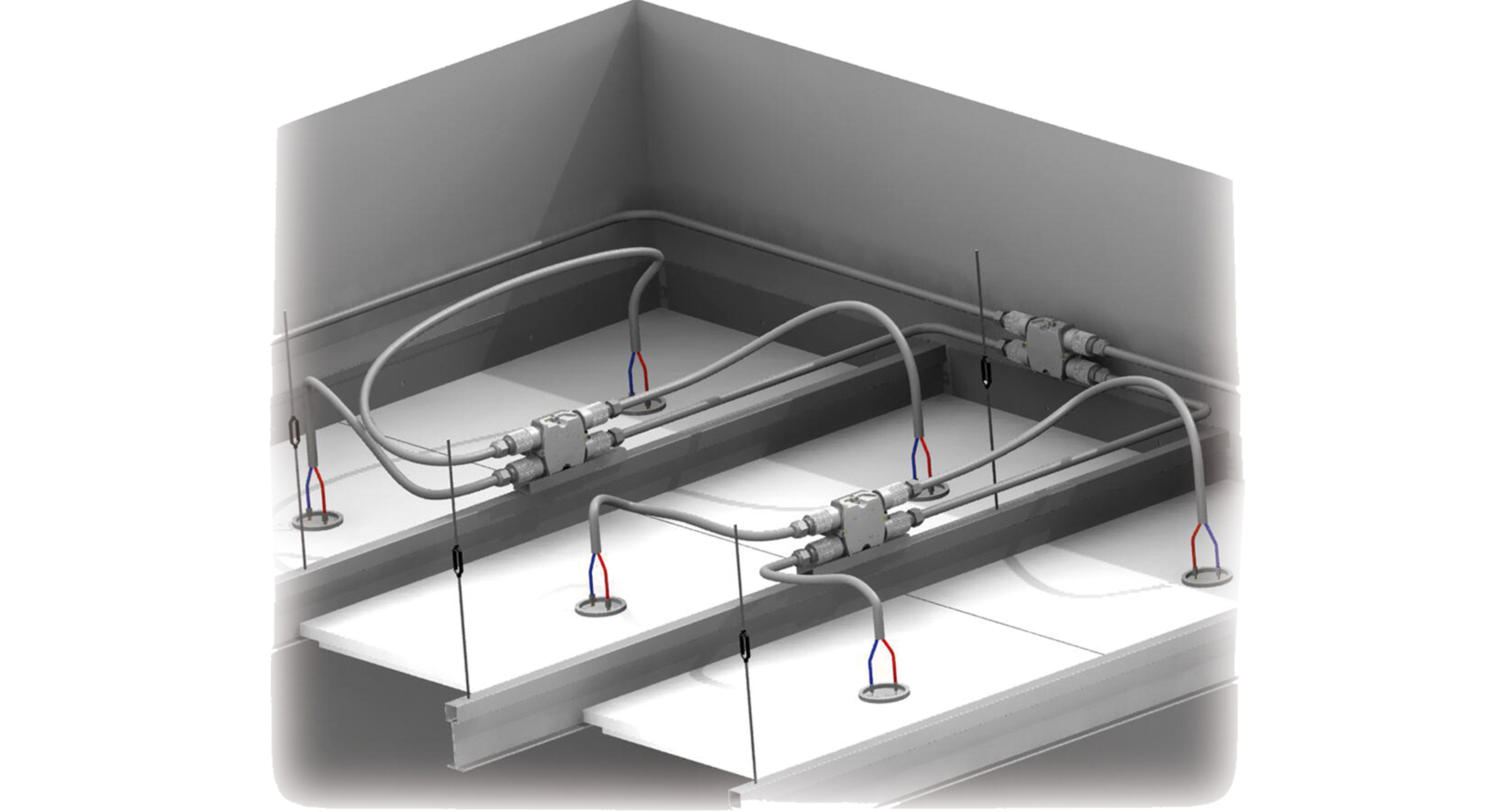

IP68 relay junction box with easy screw connection with an integrated cable gland and terminal block structure.
A screw type wiring connection is adopted, allowing for easy installation and removal.

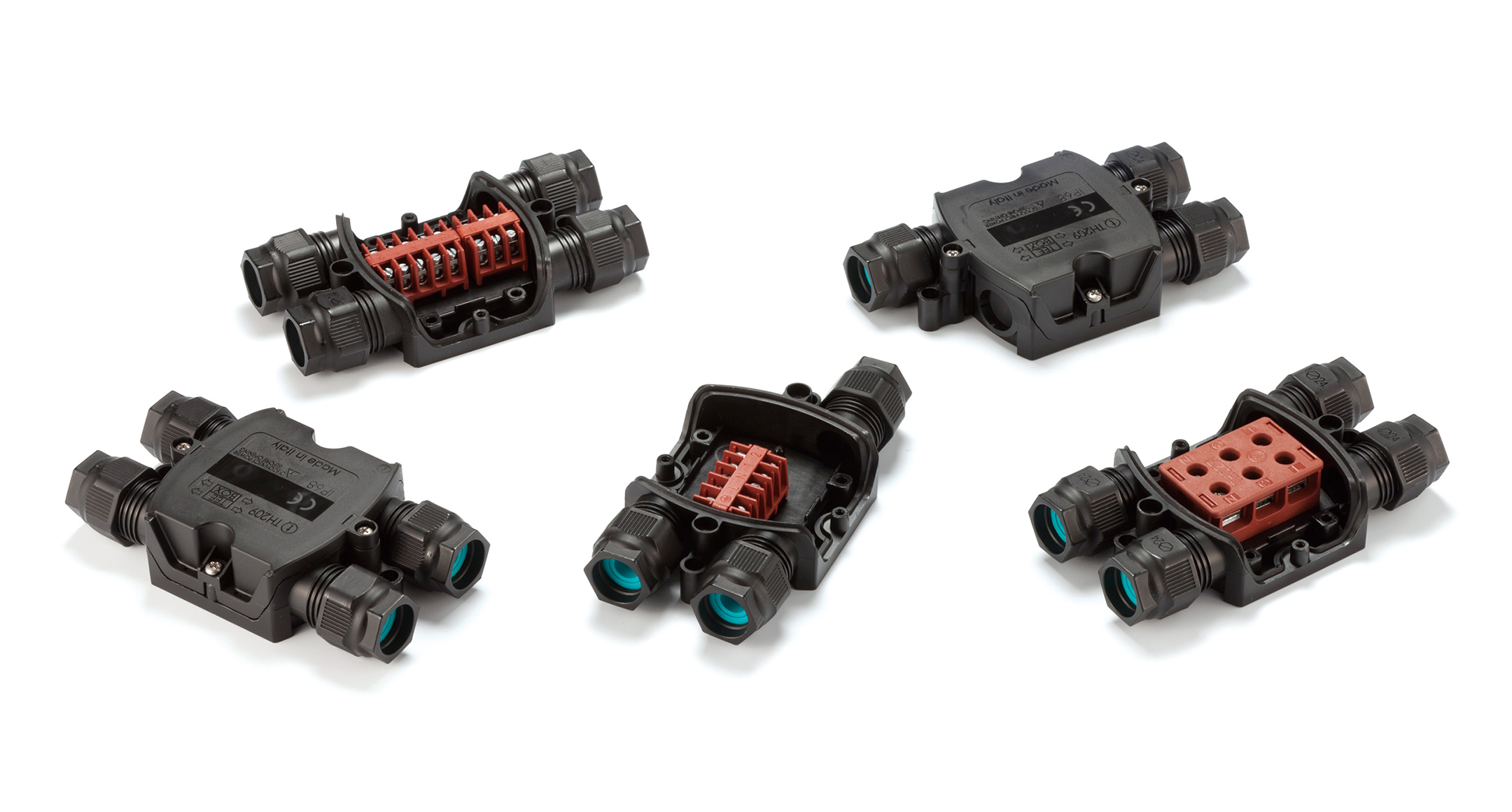

3 and 4 ways types are available.
3P, 5P, 8P, 3WP, 4WP, 3LP pole models and no terminal model are available.
Possible to adopt wide cable range with the optional sealing insert.
Technical Data
Protection class : IP68 0.5bar/3h (3 hour / 5m depth)
Operating temperature : -40°C ~ +125°C
EN60529 : 1991＋A1：2000, EN60998-1：2004 compliant
3P・5P・8P terminal block
Terminal screw : M3 minus head
Rated voltage / current : AC450V / 24A
Applicable wire : 0.5m㎡～2.5m㎡ (stranded)
3WP・4WP terminal block
Terminal screw : M3 minus head
Rated voltage / current : AC450V / 32A
Applicable wire : Max 4.0m㎡ (stranded)
3LP terminal block
Terminal screw : M3.5 plus head
Rated voltage / current : AC450V / 41A
Applicable wire : Max 6.0m㎡ (stranded)
A screw type wiring connection is adopted, allowing for easy installation and removal.
3 and 4 ways types are available.
3P, 5P, 8P, 3WP, 4WP, 3LP pole models and no terminal model are available.
Possible to adopt wide cable range with the optional sealing insert.
Technical Data
Protection class : IP68 0.5bar/3h (3 hour / 5m depth)
Operating temperature : -40°C ~ +125°C
EN60529 : 1991＋A1：2000, EN60998-1：2004 compliant
3P・5P・8P terminal block
Terminal screw : M3 minus head
Rated voltage / current : AC450V / 24A
Applicable wire : 0.5m㎡～2.5m㎡ (stranded)
3WP・4WP terminal block
Terminal screw : M3 minus head
Rated voltage / current : AC450V / 32A
Applicable wire : Max 4.0m㎡ (stranded)
3LP terminal block
Terminal screw : M3.5 plus head
Rated voltage / current : AC450V / 41A
Applicable wire : Max 6.0m㎡ (stranded)
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | No. of branch | No. of poles | Rated Voltage / Current | Applicable wire | Weight (g) | DXF | DWG | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | |||||||||
| THA209A-N | 120 | 28 | 65 | 3 | None | - | - | 61.6 | DXF | DWG | |
| THA209A-3P | 120 | 28 | 65 | 3 | 3P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 74.7 | DXF | DWG | |
| THA209A-5P | 120 | 28 | 65 | 3 | 5P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 79.2 | DXF | DWG | |
| THA209A-8P | 120 | 28 | 65 | 3 | 8P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 87.9 | DXF | DWG | |
| THA209A-3LP | 120 | 28 | 65 | 3 | 3P | AC450V 41A | Max 6.0m㎡ (Stranded) | 94.9 | DXF | DWG | |
| THA209A-3WP | 120 | 28 | 65 | 3 | 3WP(Common) | AC450V 32A | Max 4.0m㎡ (Stranded) | 82.1 | DXF | DWG | |
| THA209A-4WP | 120 | 28 | 65 | 3 | 4WP(Common) | AC450V 32A | Max 4.0m㎡ (Stranded) | 89.6 | DXF | DWG | |
| THA209B-N | 120 | 28 | 65 | 4 | None | - | - | 70 | DXF | DWG | |
| THA209B-3P | 120 | 28 | 65 | 4 | 3P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 82.7 | DXF | DWG | |
| THA209B-5P | 120 | 28 | 65 | 4 | 5P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 86.8 | DXF | DWG | |
| THA209B-8P | 120 | 28 | 65 | 4 | 8P | AC450V 24A | 0.5～2.5m㎡ (Stranded) | 95.7 | DXF | DWG | |
| THA209B-3LP | 120 | 28 | 65 | 4 | 3P | AC450V 41A | Max 6.0m㎡ (Stranded) | 103.1 | DXF | DWG | |
| THA209B-3WP | 120 | 28 | 65 | 4 | 3WP(Common) | AC450V 32A | Max 4.0m㎡ (Stranded) | 90.1 | DXF | DWG | |
| THA209B-4WP | 120 | 28 | 65 | 4 | 4WP(Common) | AC450V 32A | Max 4.0m㎡ (Stranded) | 97.6 | DXF | DWG | |
OPTIONAL PARTS
