CATEGORY：Waterproof connector, Panel-mount connector, IP68 connector, Industrial connector, LED connector, Outdoor connector

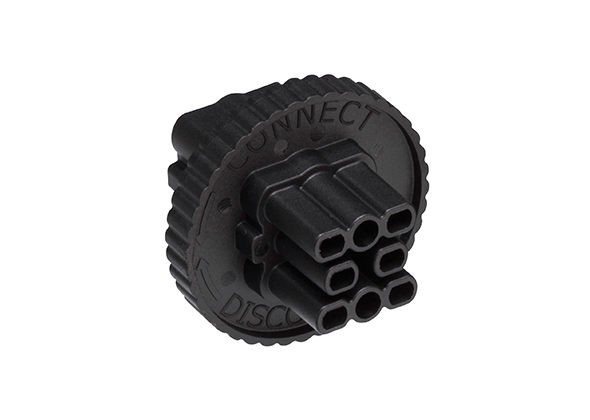

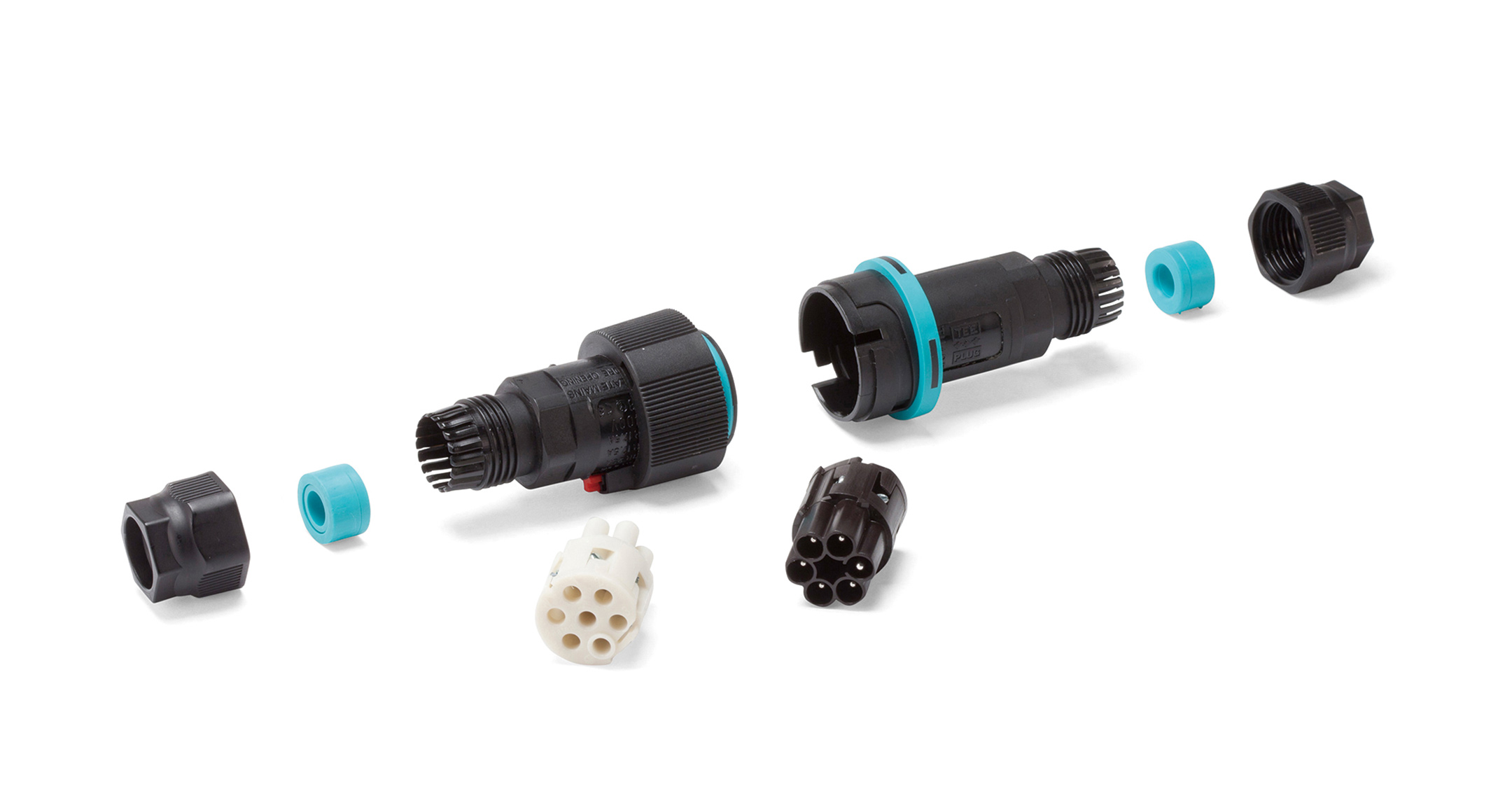

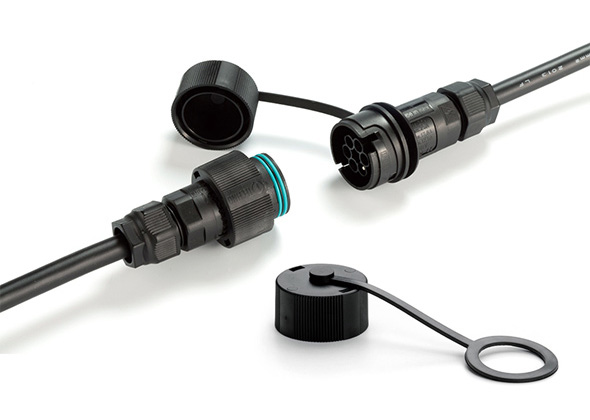

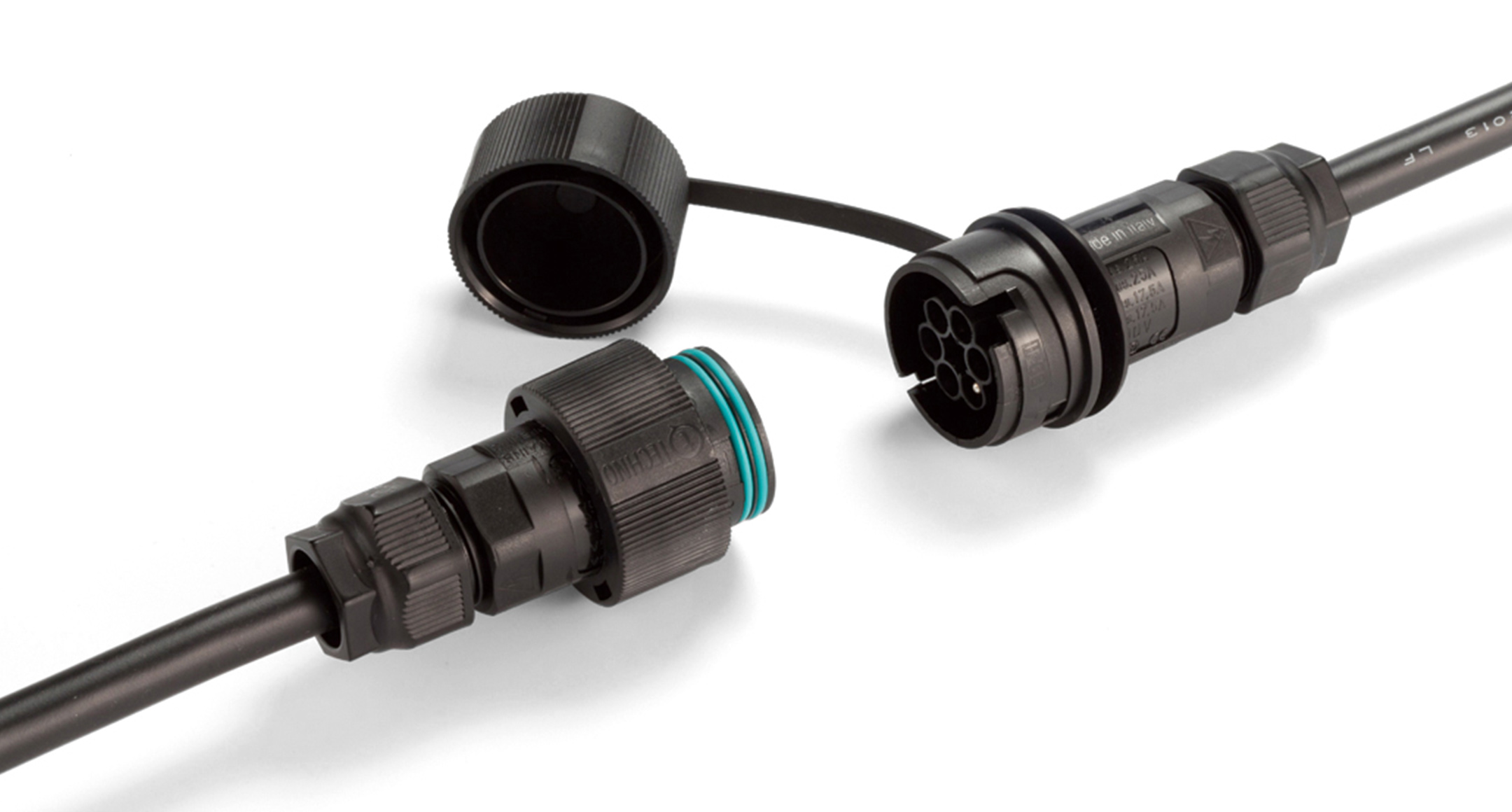

IP68 plug-socket connector type consisting of the plug side (male) and socket side (female).
Screw type connection method; soldering or special tools are not required.
6P and 8P pole models are available.
For safety reasons, please arrange the connector such that the primary side is female (socket side) and the secondary side is male (plug side).
Protection class : IP68 1bar/1h (1 hour / 10m depth)
Operating temperature : -40℃ ~ +125℃
EN61984 compliant.
Specifications
THB406-6P
Rated voltage : Max AC400V
Rated current : Max 17.5A
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 6kV
Number of insertion/extraction : 1,000 times
THB406-8P
Rated voltage : Max AC400V (DC60V)
Rated current : Max 10A AC/DC
Applicable wire : 0.25m㎡～1.0ｍ㎡ (stranded)
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 1,000 times
Screw type connection method; soldering or special tools are not required.
6P and 8P pole models are available.
For safety reasons, please arrange the connector such that the primary side is female (socket side) and the secondary side is male (plug side).
Protection class : IP68 1bar/1h (1 hour / 10m depth)
Operating temperature : -40℃ ~ +125℃
EN61984 compliant.
Specifications
THB406-6P
Rated voltage : Max AC400V
Rated current : Max 17.5A
Applicable wire : 0.5m㎡～4.0ｍ㎡ (stranded)
Impulse withstand voltage : 6kV
Number of insertion/extraction : 1,000 times
THB406-8P
Rated voltage : Max AC400V (DC60V)
Rated current : Max 10A AC/DC
Applicable wire : 0.25m㎡～1.0ｍ㎡ (stranded)
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 1,000 times
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Cable range | No. of poles | Rated voltage | Reted current | Applicable wire | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|
| THB405-6P | φ38×142.5mm | φ7～13.5 | 6P | Max AC400V | Max 17.5A | 0.5～4.0m㎡ (Stranded) | 76.8 | DXF | DWG | |
| THB405-8P | φ38×142.5mm | φ7～13.5 | 8P | Max AC400V（DC60V） | Max 10A AC/DC | 0.25～1.0m㎡ (Stranded) | 75.5 | DXF | DWG |
