MOUNTING PLATE for UPC


UMP Series -PDF

CATEGORY：Attachment plate for UPC series, Attachment plate, Aluminium attachment plate, Aluminium chassis, Aluminium panel, Mounting plate

MOUNTING PLATE for UPC
MOUNTING PLATE for UPC
MOUNTING PLATE for UPC1
MOUNTING PLATE for UPC2

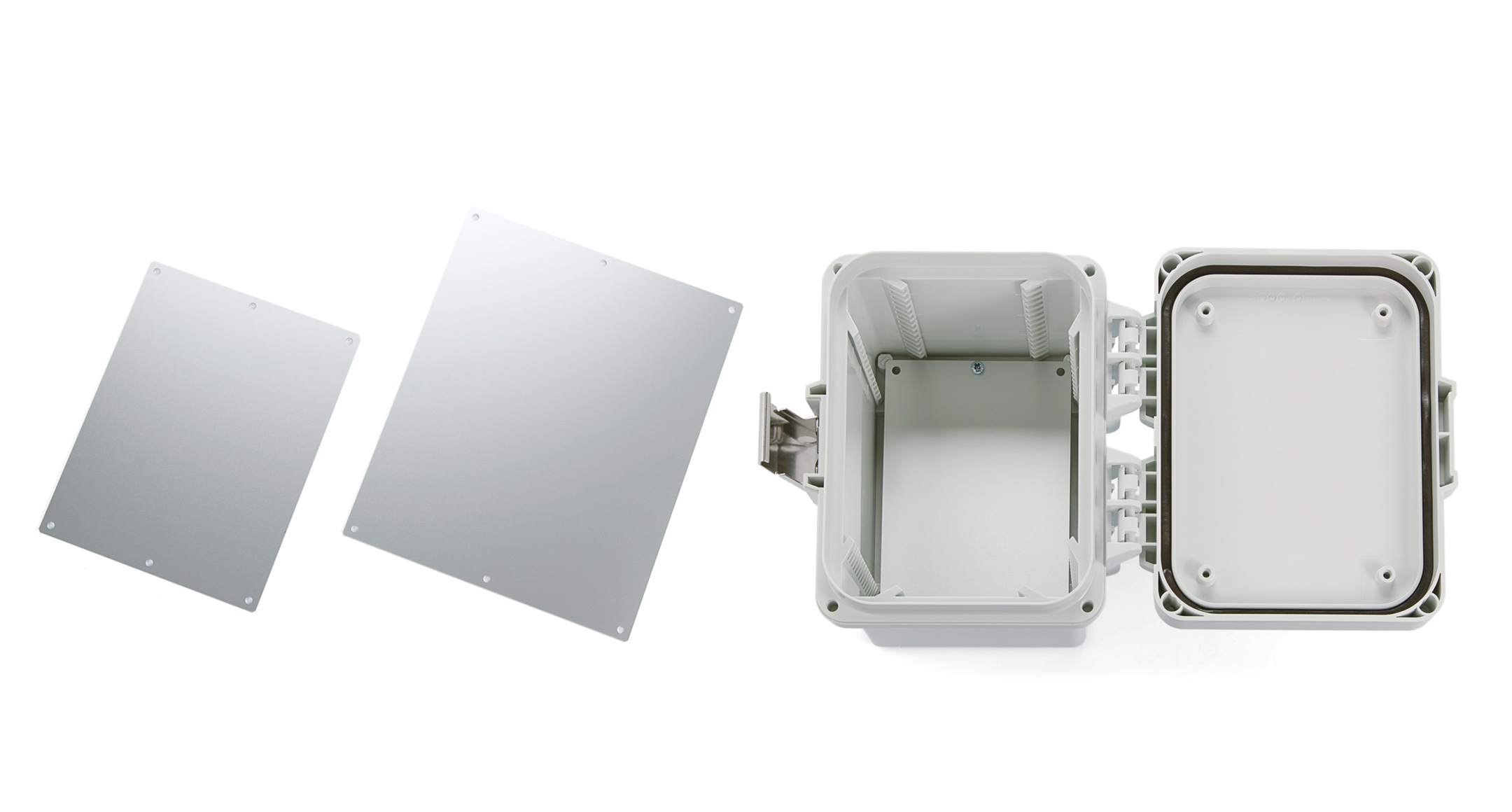

Exclusive mounting plate for UPC series.

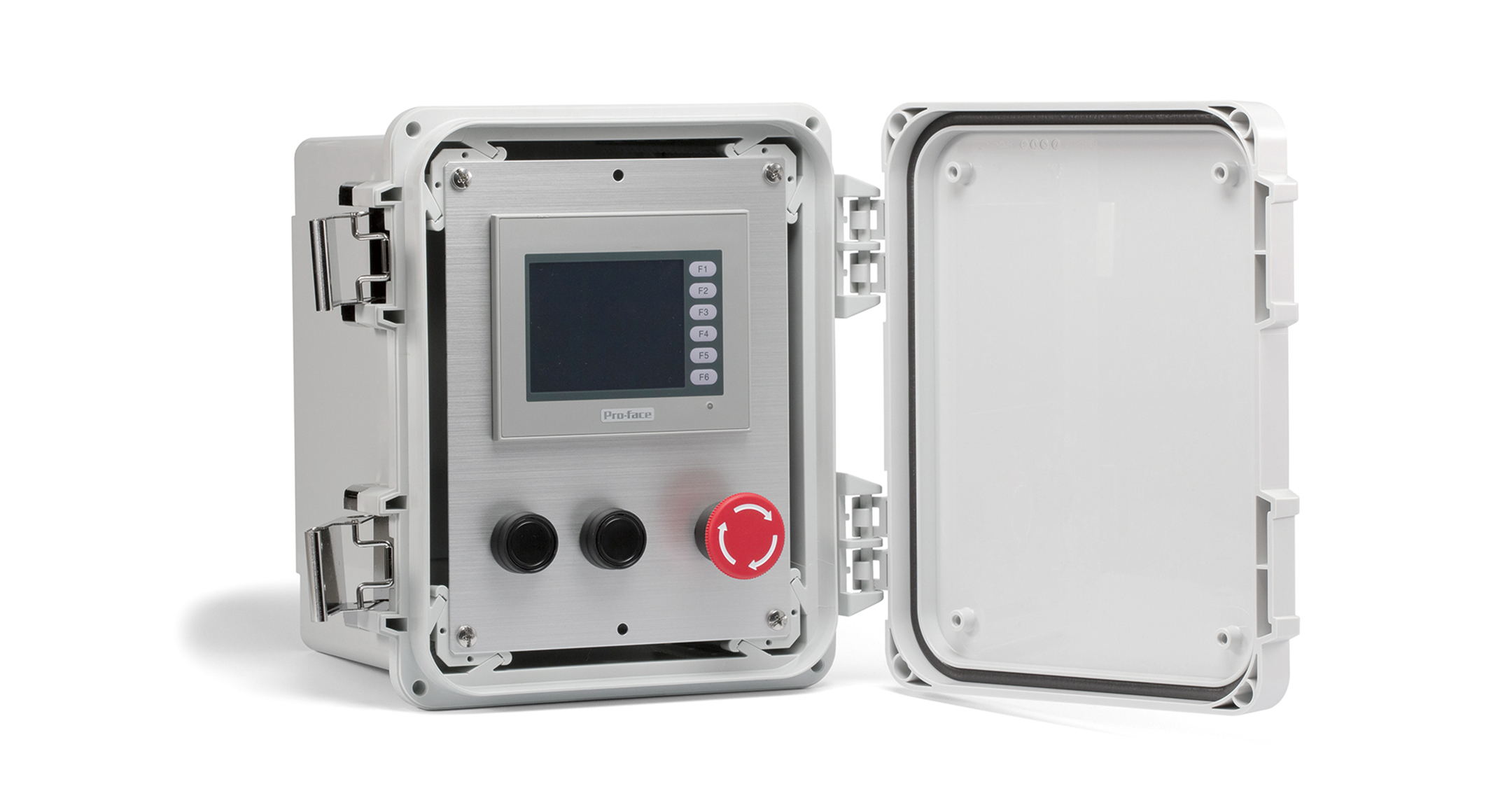

Installation can be done directly into the enclosure, or through the use of the UEL-1 series mounting plate corner bracket.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Weight (g) PDF DXF DWG STP
UMP1722 UPC172213G 82.5 PDF DXF DWG
UMP2328 UPC232818G 153 PDF DXF DWG
UMP2833 UPC283318G 243 PDF DXF DWG
UMP3338 UPC333818G 352 PDF DXF DWG
UMP3843 UPC384323G 482 PDF DXF DWG
UMP4348 UPC434829G 635 PDF DXF DWG

OPTIONAL PARTS

１
UEL-1 MOUNTING PLATE CORNER BRACKET for UPC
DETAILS
１
INSERT NUT ADHESIVE STANDOFF - AST series
DETAILS
１
CUBE STANDOFF - CUBE series
DETAILS
