VENTILATION LOUVER - V series


V Series -PDF

CATEGORY：Ventilation louver, Louvered Vent, Air vent louver

VENTILATION LOUVER - V series
VENTILATION LOUVER - V series
VENTILATION LOUVER - V series
VENTILATION LOUVER - V series1
VENTILATION LOUVER - V series2
VENTILATION LOUVER - V series3

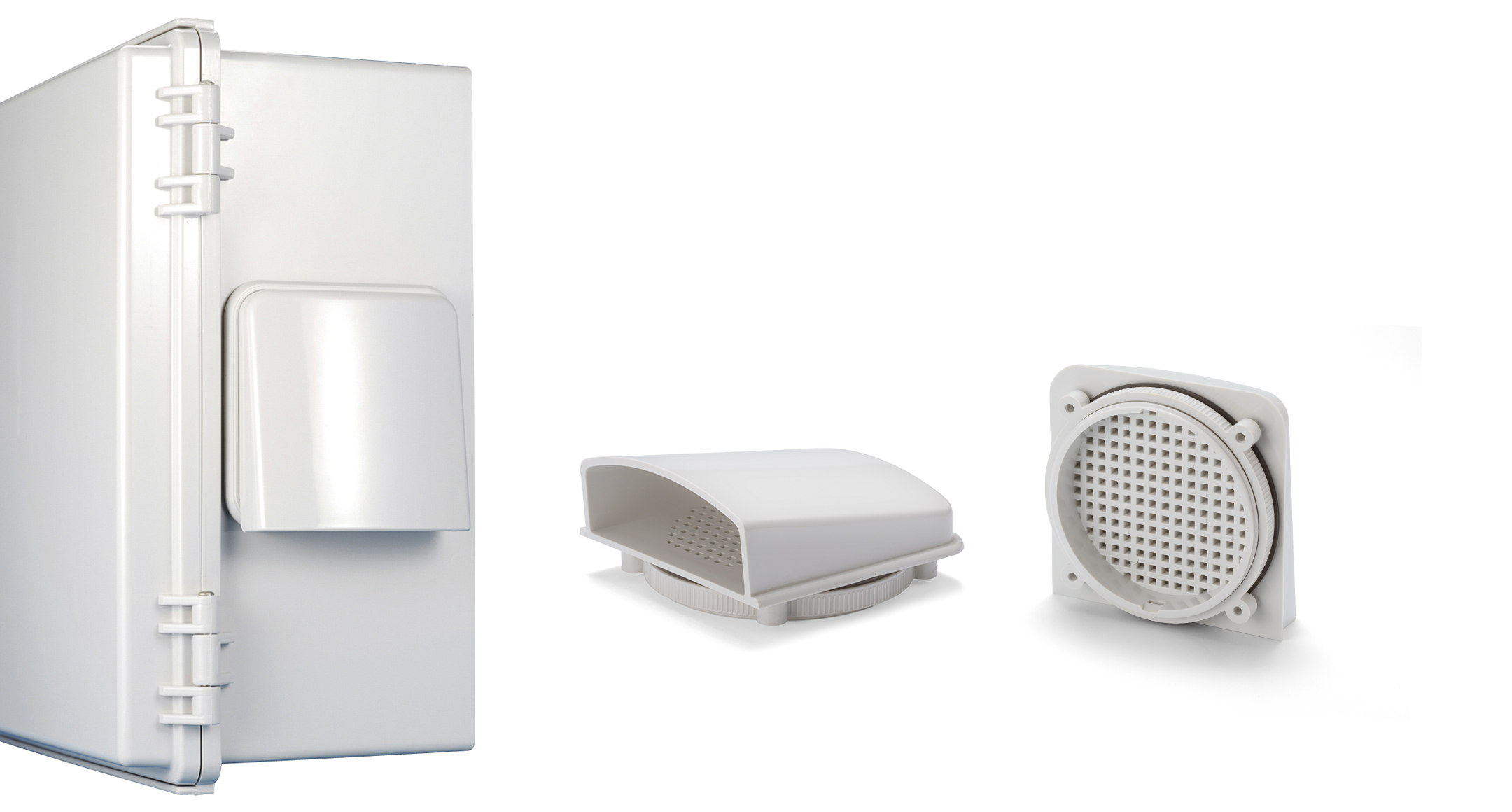

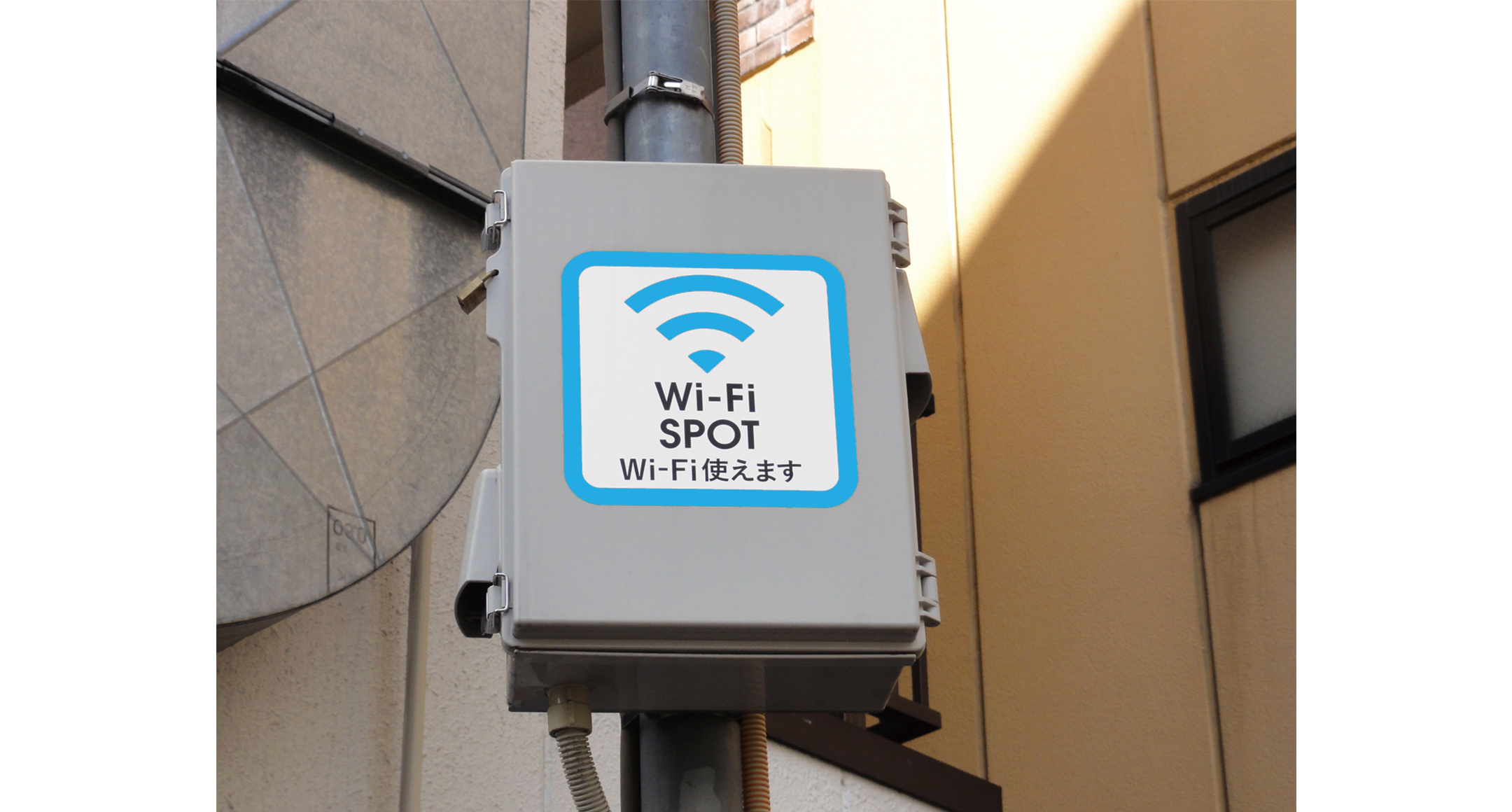

Ventilation louver for outdoor enclosure.
Recommended for condensation prevention and heat dissipation.

2 colors available
ABS white gray color - V60, V80 : For BCAP and BCAR series
Polycarbonate light gray color - V60S, V80S : For BCPC, BCPK and BCAR series

Can be used not only for TAKACHI plastic box but also for other enclosures.

PRODUCT NO. / DIMENSIONS

Product No. Installation hole (mm) Ｍaterial Color Weight (g) PDF DXF DWG
V60 φ63 ABS White gray / Munsell 5R8/0.5 55.5 PDF DXF DWG
V60S φ63 Polycarbonate Light gray / Munsell 5GY8.5/0.5 55.5 PDF DXF DWG
V80 φ88 ABS White gray / Munsell 5R8/0.5 89.5 PDF DXF DWG
V80S φ88 Polycarbonate Light gray / Munsell 5GY8.5/0.5 89.5 PDF DXF DWG
