VENTILATION PARTS - VF series


VF Series -PDF

CATEGORY：Ventilation, Air vent

VENTILATION PARTS - VF series
VENTILATION PARTS - VF series
VENTILATION PARTS - VF series
VENTILATION PARTS - VF series1
VENTILATION PARTS - VF series2
VENTILATION PARTS - VF series3

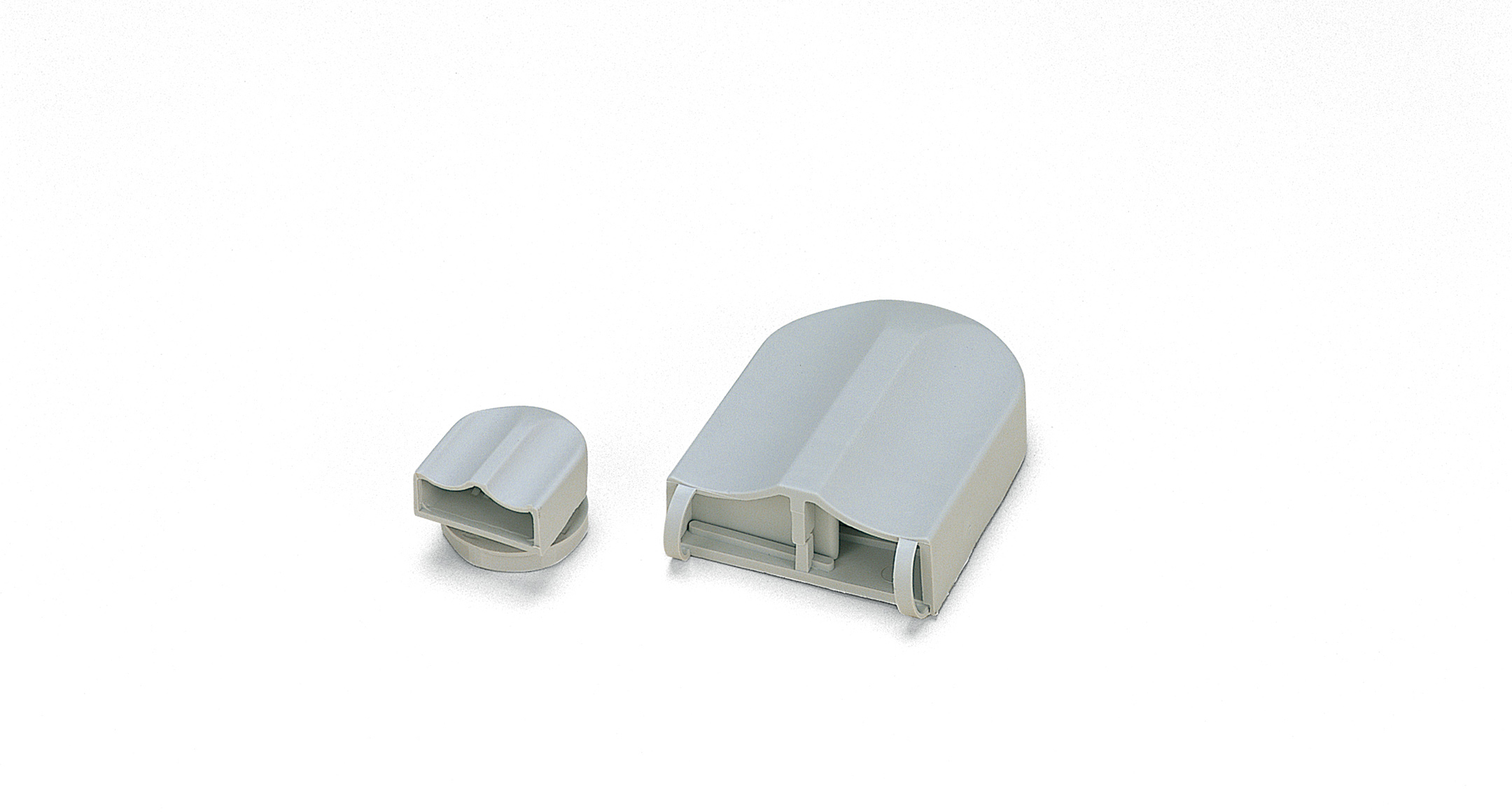

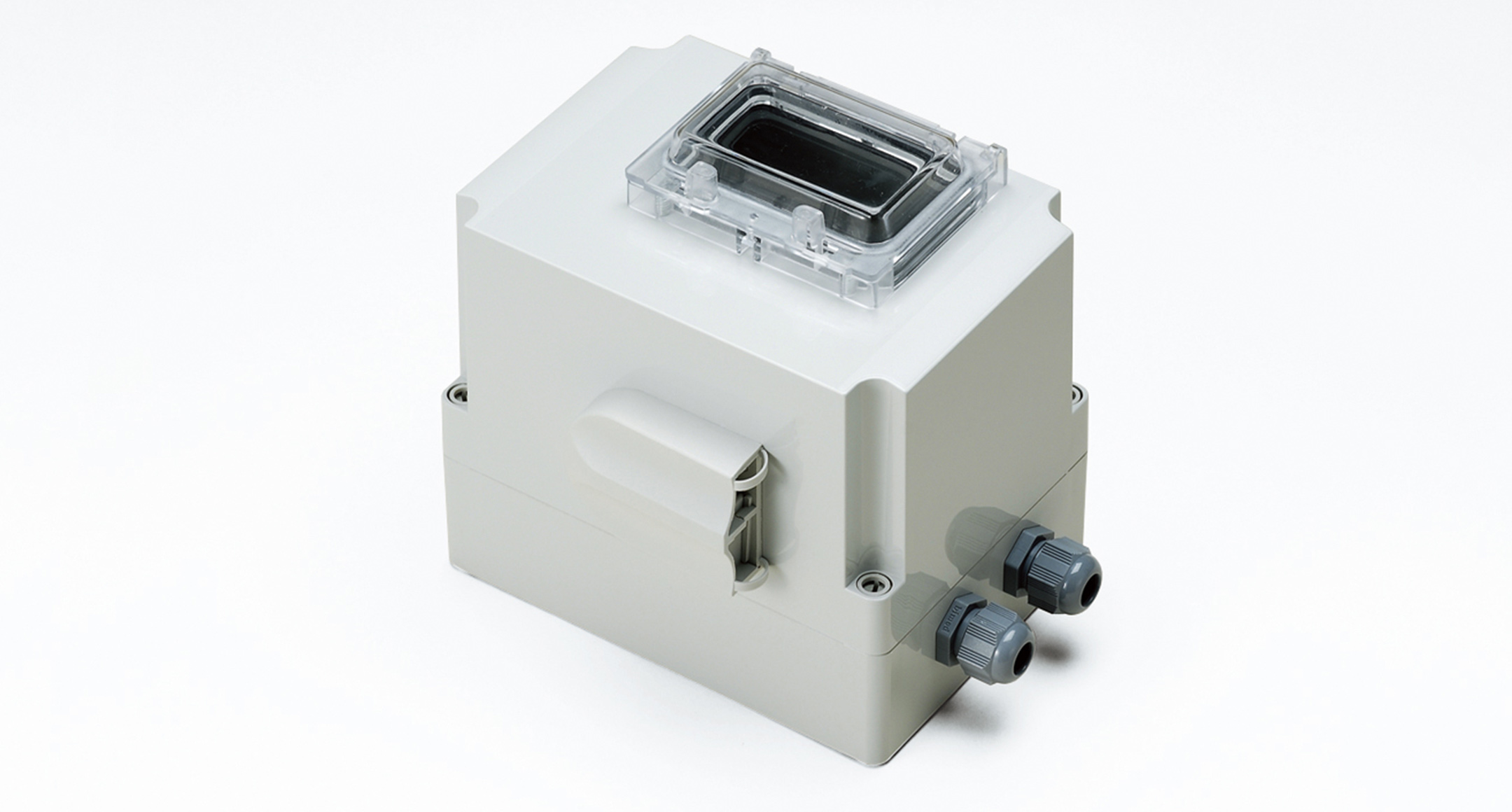

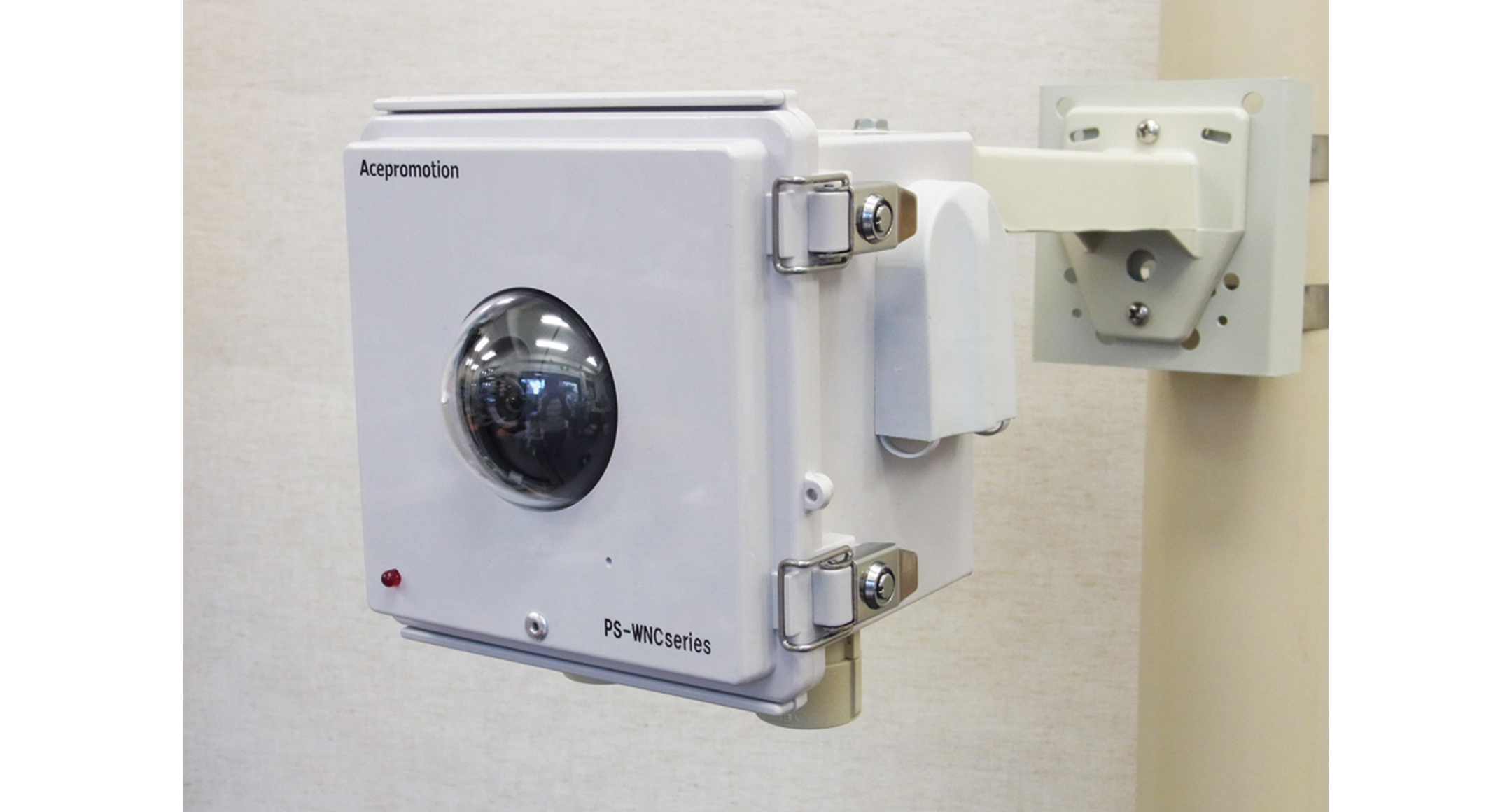

Hooded ventilation parts.
Recommended for condensation prevention and heat dissipation.

2 sizes are available.
Color：White gray / Similar to RAL7035

PRODUCT NO. / DIMENSIONS

Product No. Size (Ｄ×Ｗ×Ｈ) Protection class Weight (g) PDF DXF DWG
VF-1 28×25×12mm IP33 5.5 PDF DXF DWG
VF-2 68×50×21.5mm IP24 30.0 PDF DXF DWG
