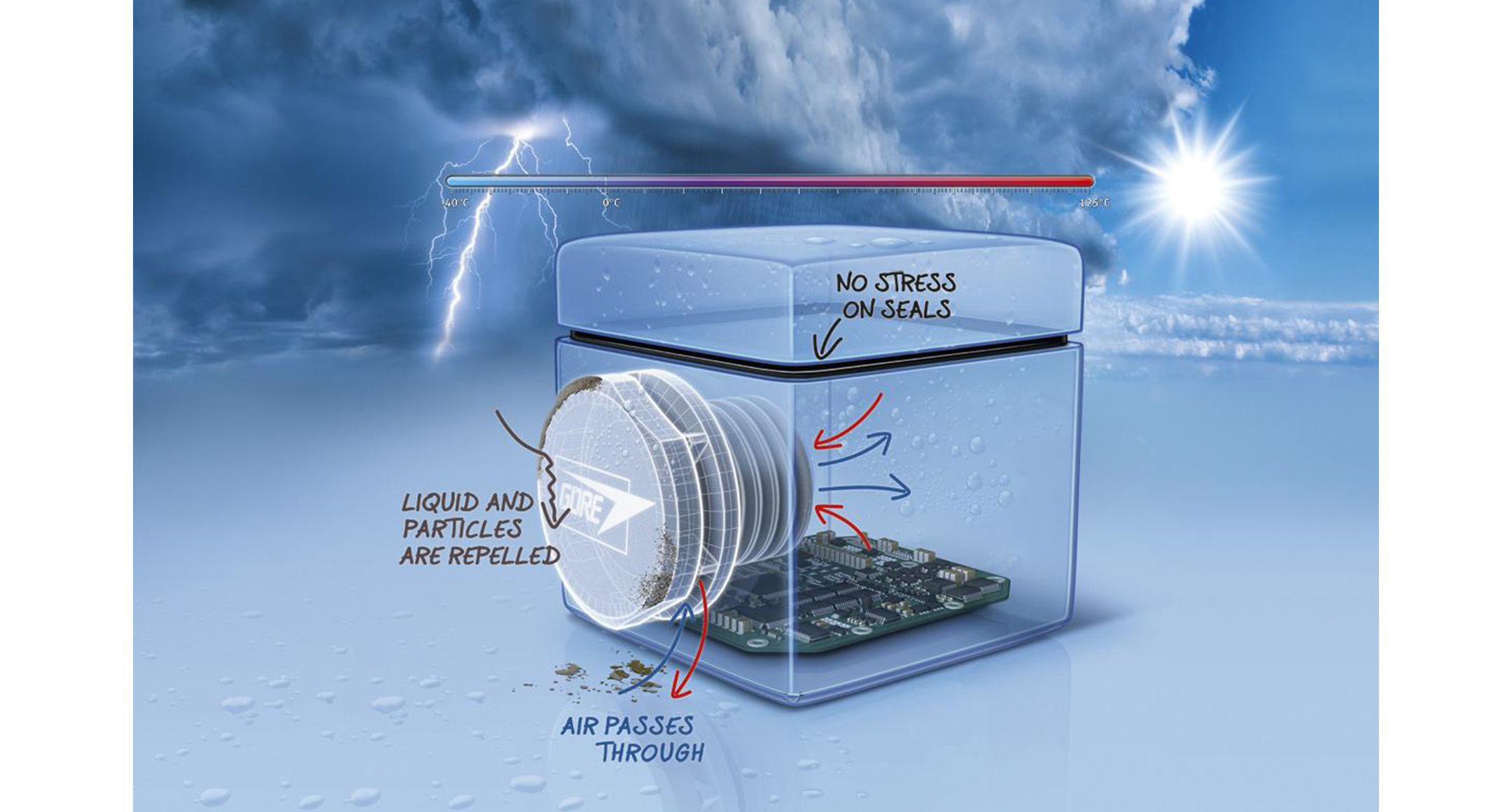

Protective vents prevents the ingression of a variety of contaminants, such as water, dust and other particles while allowing water vapor molecules to diffuse through the microporous membrane.
Equalize pressure and reduce condensation by allowing airflow into and out of sealed enclosures.
With an IP68 protection class (water depth 2 meters / 60 mins) and -40℃ ~ +125℃ operating temperature range, it can be used in harsh environmental conditions.

PMF-6B works up to 2 liters capacity enclosures. Whereas, PMF-12 models work for up to 5 liters and PMF-12HS models work for up to 50 liters.
Larger PMF-32 is also available.

For outdoor use, more efficient to install on the side(s). Recommended to use for industrial, electric, electronics purpose only.

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure capacities Lock nut size Housing material Color / Similar matching Weight (g) Pack of PDF DXF DWG
PMF-6B Within 2 liters None PA6 Black / RAL9004 0.6 1 pcs PDF DXF DWG
PMF-12B Within 5 liters M12 PA6 Black / RAL9011 3 1 pcs PDF DXF DWG
PMF-12S Within 5 liters M12 PA6 Light gray / RAL7035 3 1 pcs PDF DXF DWG
PMF-12HAB Within 50 liters M12 PA6 Black / RAL9011 2.8 1 pcs PDF DXF DWG
PMF-12HAS Within 50 liters M12 PA6 Light gray / RAL7035 2.8 1 pcs PDF DXF DWG
PMF-12M Within 20 liters M12 Stainless steel Silver / RAL7035 11.2 1 pcs PDF DXF DWG
PMF-32S Within 200 liters M32 Polycarbonate Light gray / RAL7035 36.8 1 pcs PDF DXF DWG
