CATEGORY：Adhesive vent, PTFE venting membrane, PTFE waterproof membrane vent

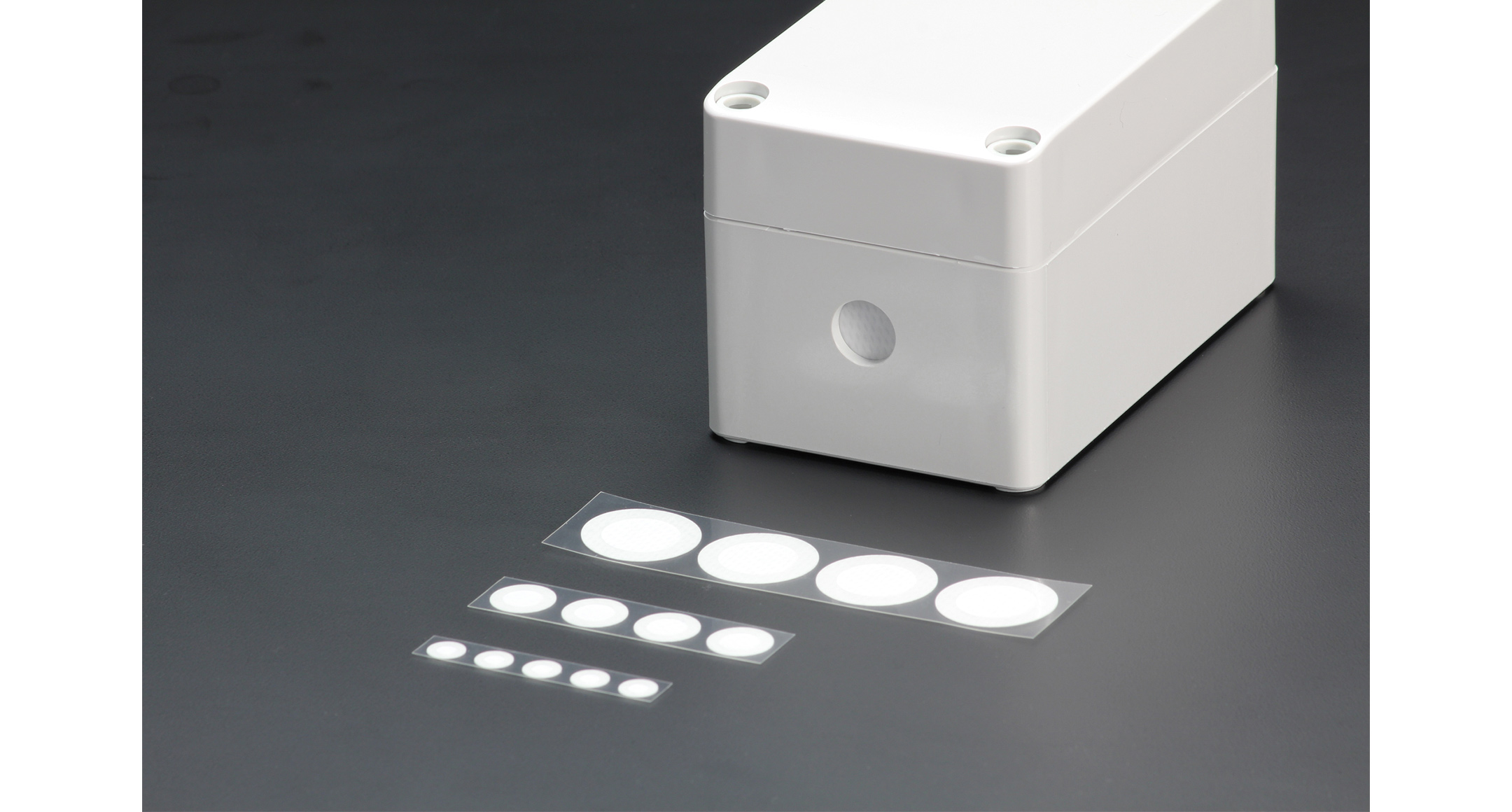

Adhesive type vent filter sheet.
Prevents ingression of a variety of contaminants, such as water, dust and other particles.
Allows water vapor molecules to diffuse through the microporous membrane.
Recommended to be adhered onto flat plastic or metallic surfaces.
Surface must be wiped dry before adhering.
An initial period of a few hours is required for the adhesive to properly bond to the surface.
Please do not adhere onto the top-side of enclosures. Rain water etc. will collect on the filter, which will weaken the adhesive seal and prevent ventilation.
Water Entry Pressure (WEP): ≧ 20.0kPa
Airflow: 450cc/cm2 ・ min at 1.29Kpa
3 different sizes from φ7.5, φ13 and φ24mm are available.
Prevents ingression of a variety of contaminants, such as water, dust and other particles.
Allows water vapor molecules to diffuse through the microporous membrane.
Recommended to be adhered onto flat plastic or metallic surfaces.
Surface must be wiped dry before adhering.
An initial period of a few hours is required for the adhesive to properly bond to the surface.
Please do not adhere onto the top-side of enclosures. Rain water etc. will collect on the filter, which will weaken the adhesive seal and prevent ventilation.
Water Entry Pressure (WEP): ≧ 20.0kPa
Airflow: 450cc/cm2 ・ min at 1.29Kpa
3 different sizes from φ7.5, φ13 and φ24mm are available.
PRODUCT NO. / DIMENSIONS
| Product No. | Outer diameter | Filter effective diameter | Weight (g) | Sales unit | Sales status | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|
| VSC075 | φ7.5 mm | φ4.0 mm | 0.3 | 5pcs | Discontinued - Sold out. | |||
| VSC130 | φ13 mm | φ8.0 mm | 0.4 | 4pcs | Limited inventory. | |||
| VSC240 | φ24 mm | φ16.0 mm | 0.5 | 4pcs | Discontinued - Sold out. | |||
| VSC075-S | φ7.5 mm | φ4.0 mm | 6 | 100pcs / sheet | Discontinued - Sold out. | |||
| VSC130-S | φ13 mm | φ8.0 mm | 5.6 | 56pcs / sheet | Discontinued - Sold out. | |||
| VSC240-S | φ24 mm | φ16.0 mm | 2.5 | 20pcs / sheet | Discontinued - Sold out. |
