STAINLESS STEEL PROTECTIVE VENT - PMF-12M


PMF_METAL Series -PDF

CATEGORY:IP68 Stainless steel protective vent, Ventilation plug, Pressure balance elements, Breather plug

STAINLESS STEEL PROTECTIVE VENT - PMF-12M
STAINLESS STEEL PROTECTIVE VENT - PMF-12M
STAINLESS STEEL PROTECTIVE VENT - PMF-12M1
STAINLESS STEEL PROTECTIVE VENT - PMF-12M2

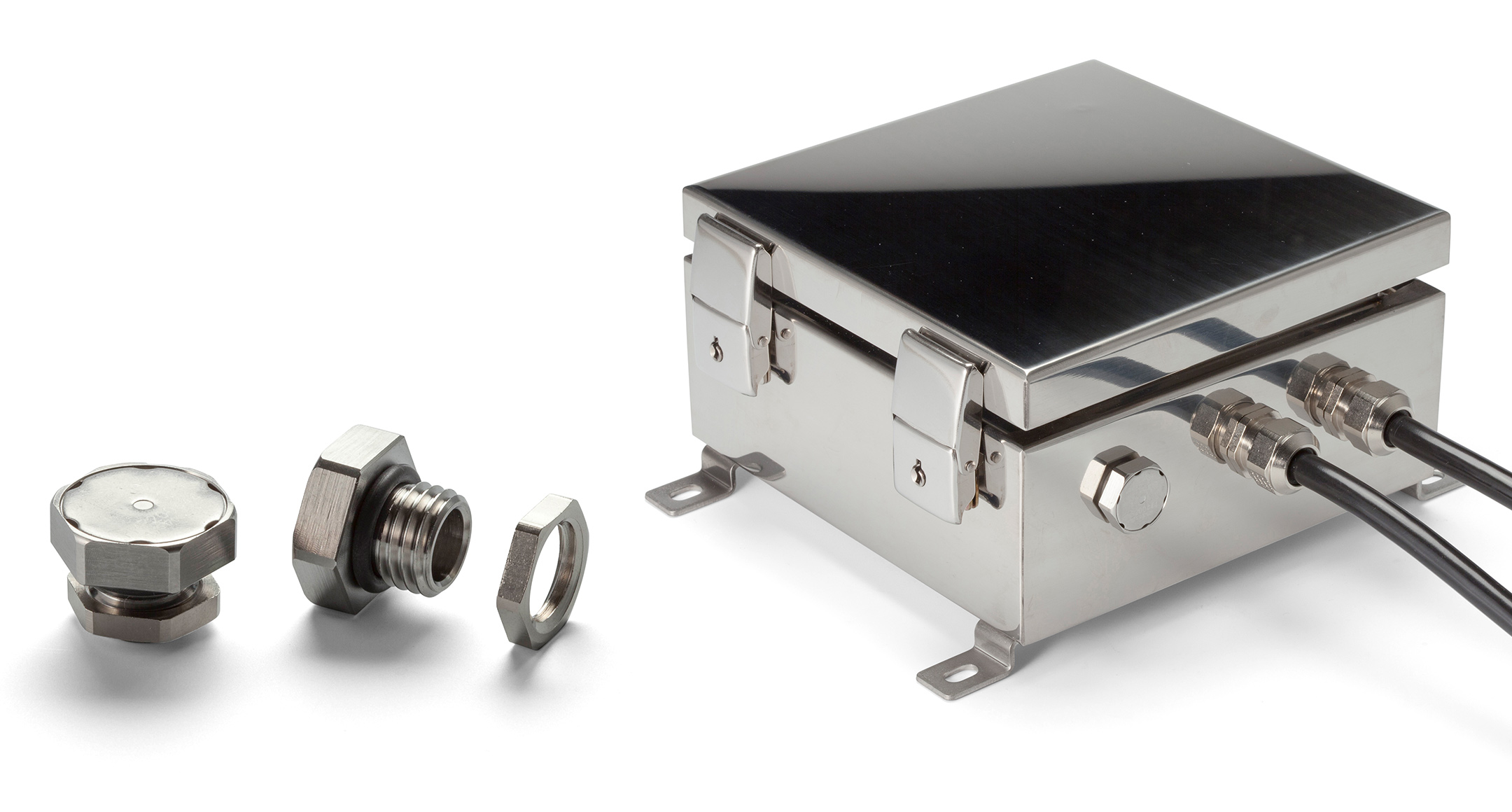

Stainless steel protective vent for superior durability and chemical resistance.
IP68 protection class (water depth 2 meters / 60 mins) and -40℃ ~ +125℃ operating temperature range allows it to be used in various environments.
Suitable for enclosures with capacities of 20 liters or under.

For outdoor use, installation on the side of the enclosure unit is recommended.

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure capacities Lock nut size Housing material Weight (g) Pack of PDF DXF DWG
PMF -12M Within 20 liters M12 Stainless steel 11.2 1 pcs PDF DXF DWG

SIMILAR PRODUCT

1
LOW-COST METAL VENTILATION PLUG - CVP-M series
DETAILS
1
LOW-COST VENTILATION PLUG - CVP series
DETAILS
1
GORETEX PROTECTIVE VENT - PMF series
DETAILS
1
ADHESIVE PROTECTIVE VENT FILTER - VE8 series
DETAILS
1
VENTILATION LOUVER - V series
DETAILS
1
VENTILATION - VF series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

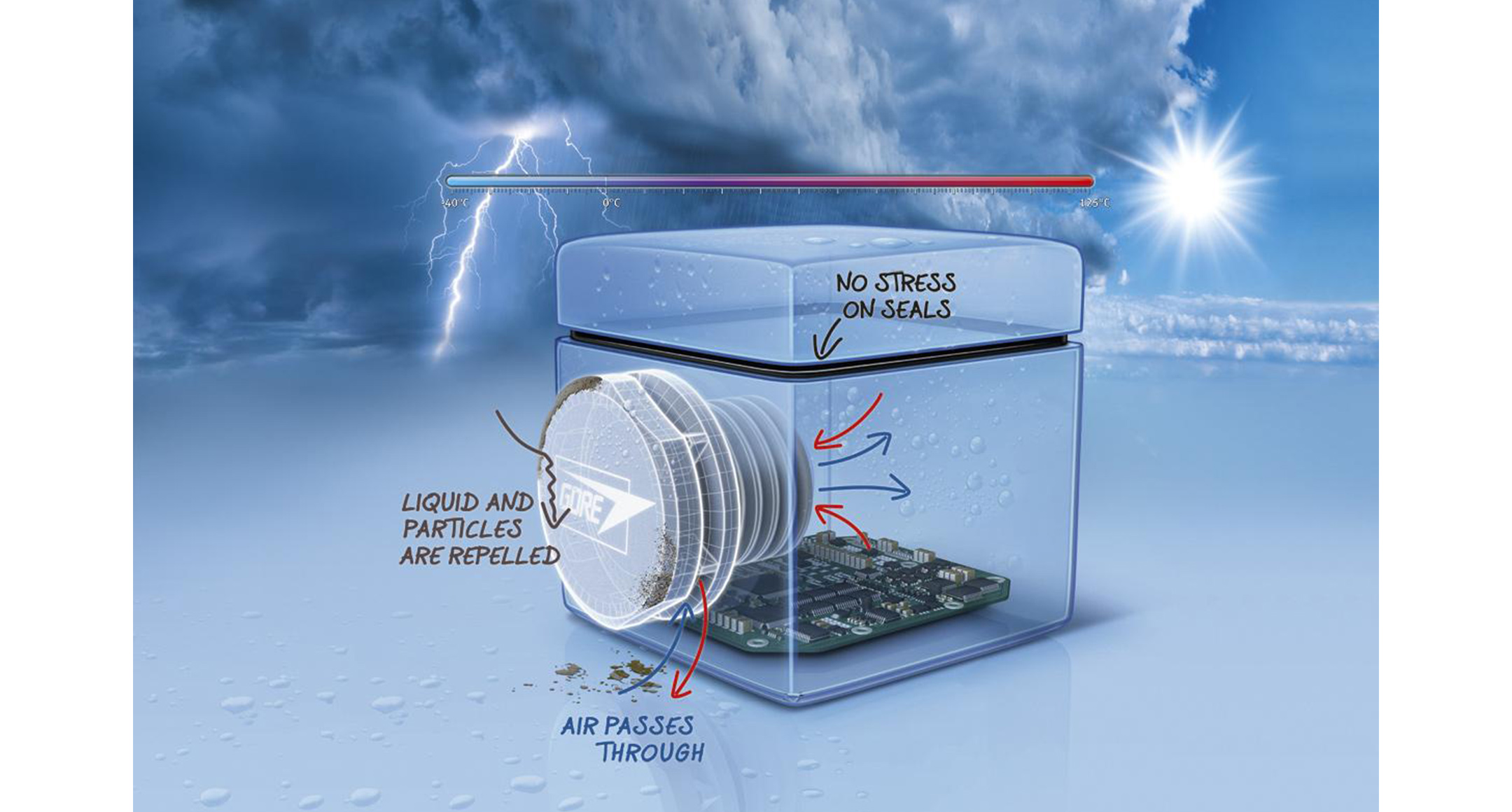

Function of equalizing pressure 1
