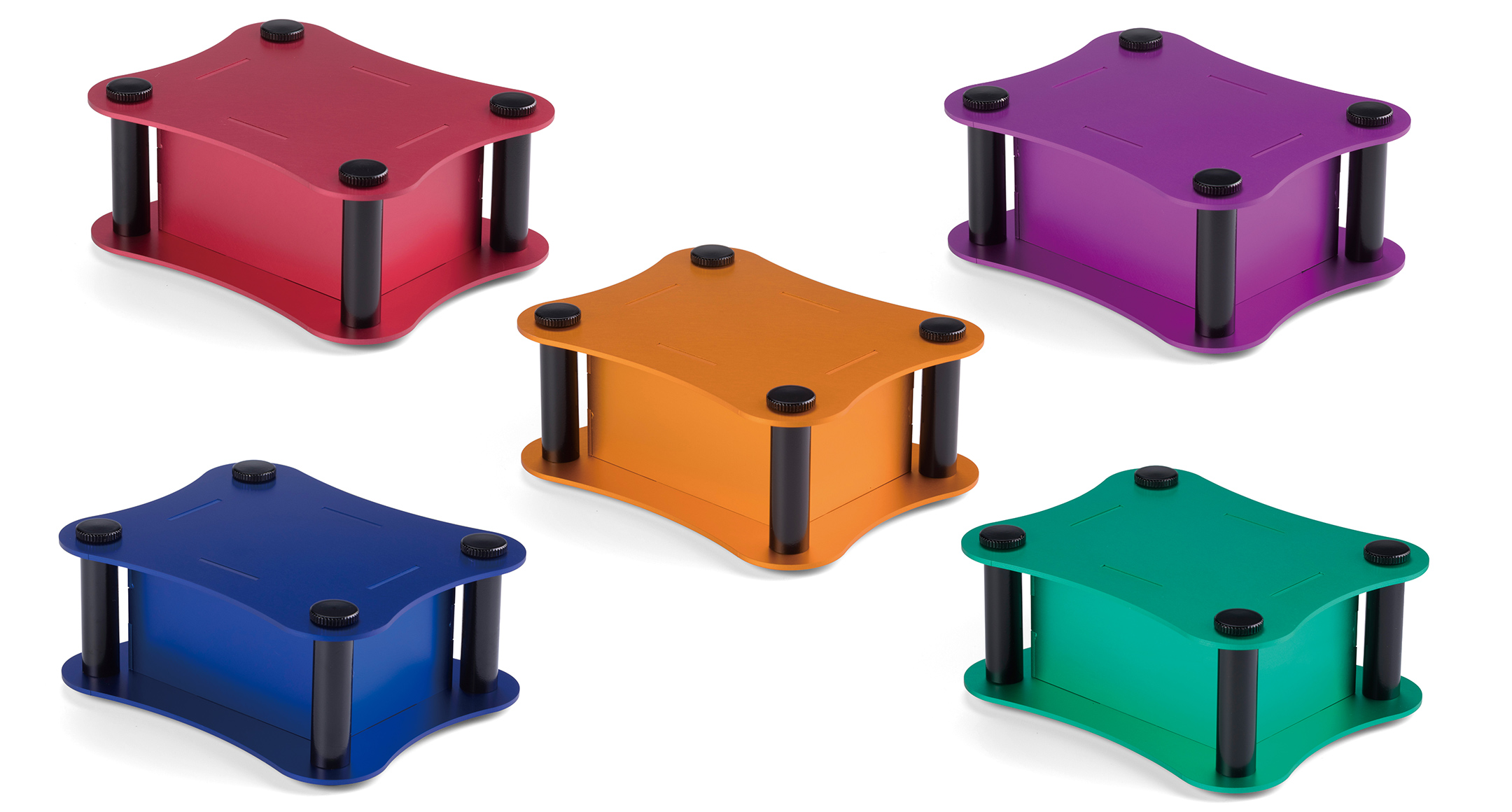

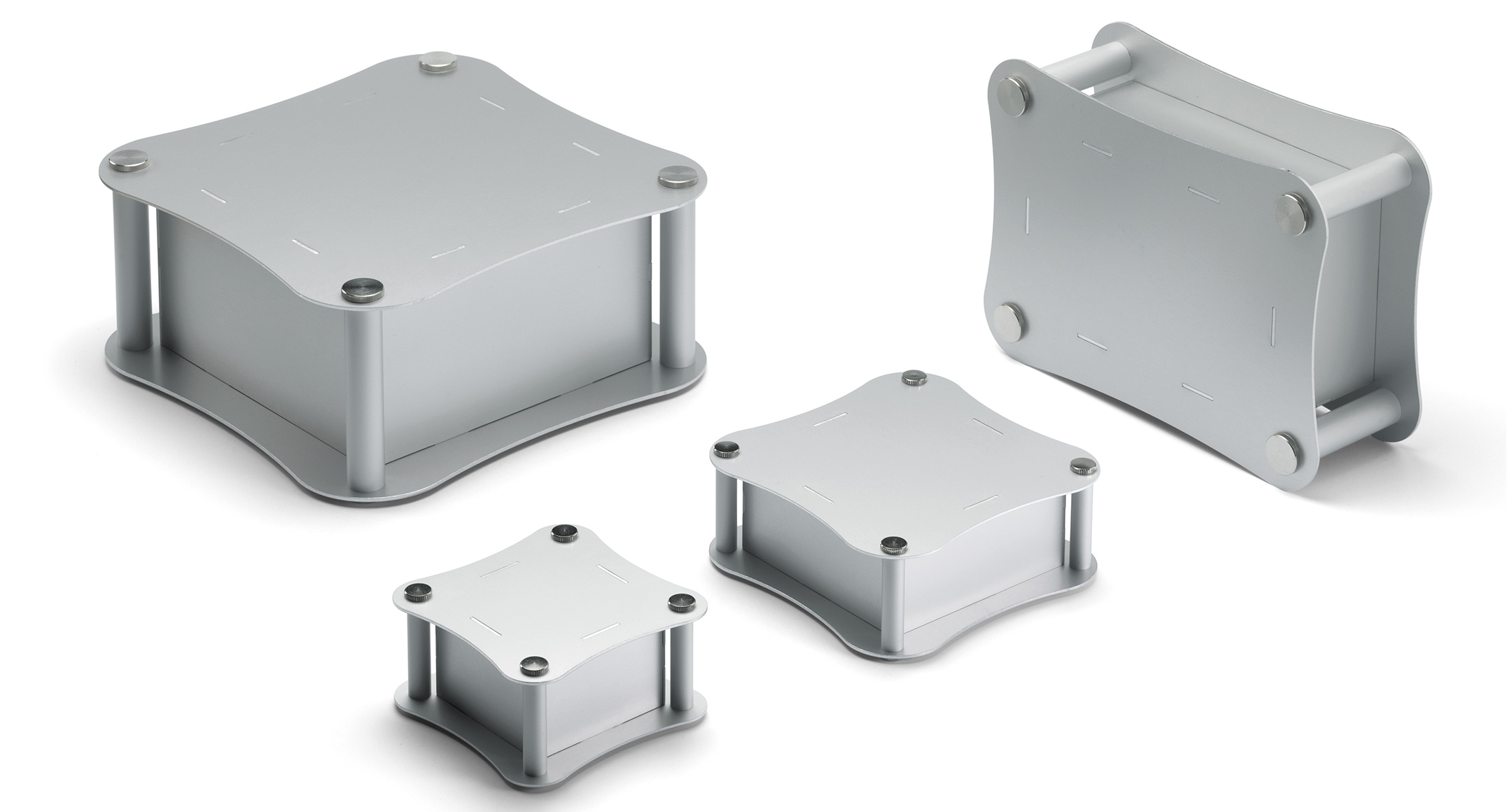

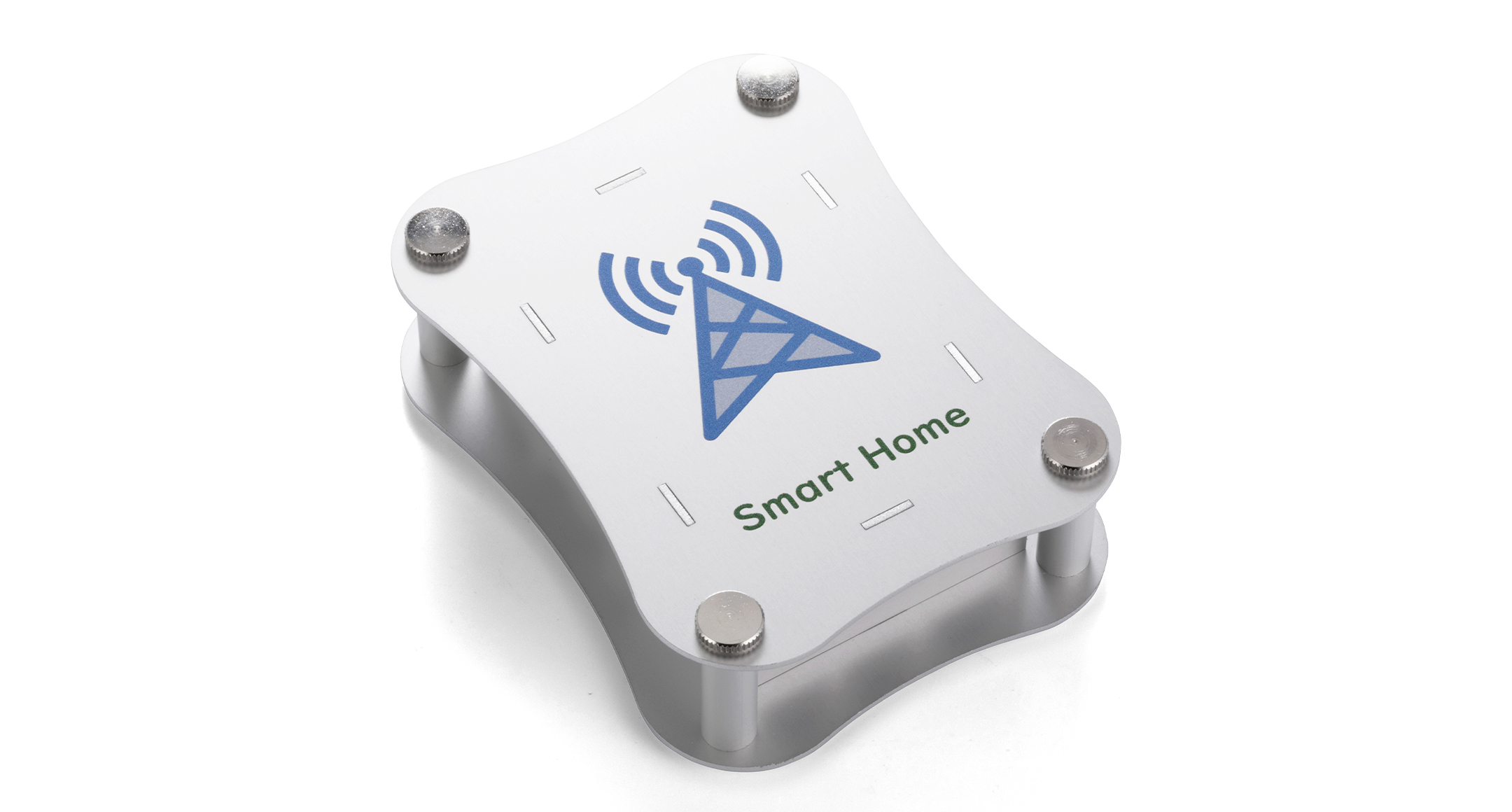

Custom sized aluminium case in curved arc design with corner support columns.

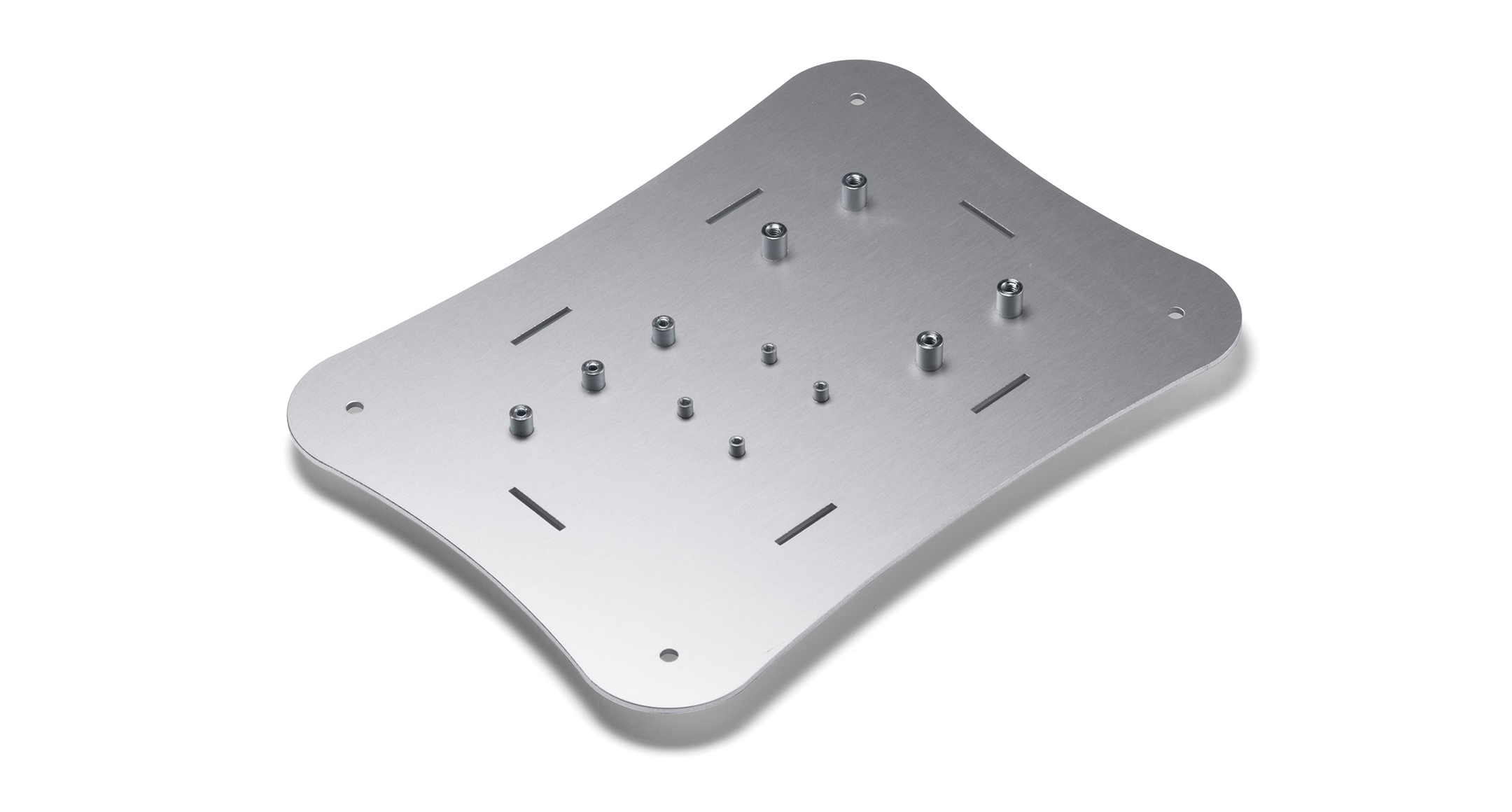

While elegantly designed, the flat panel structure allows for easy usage and customization.

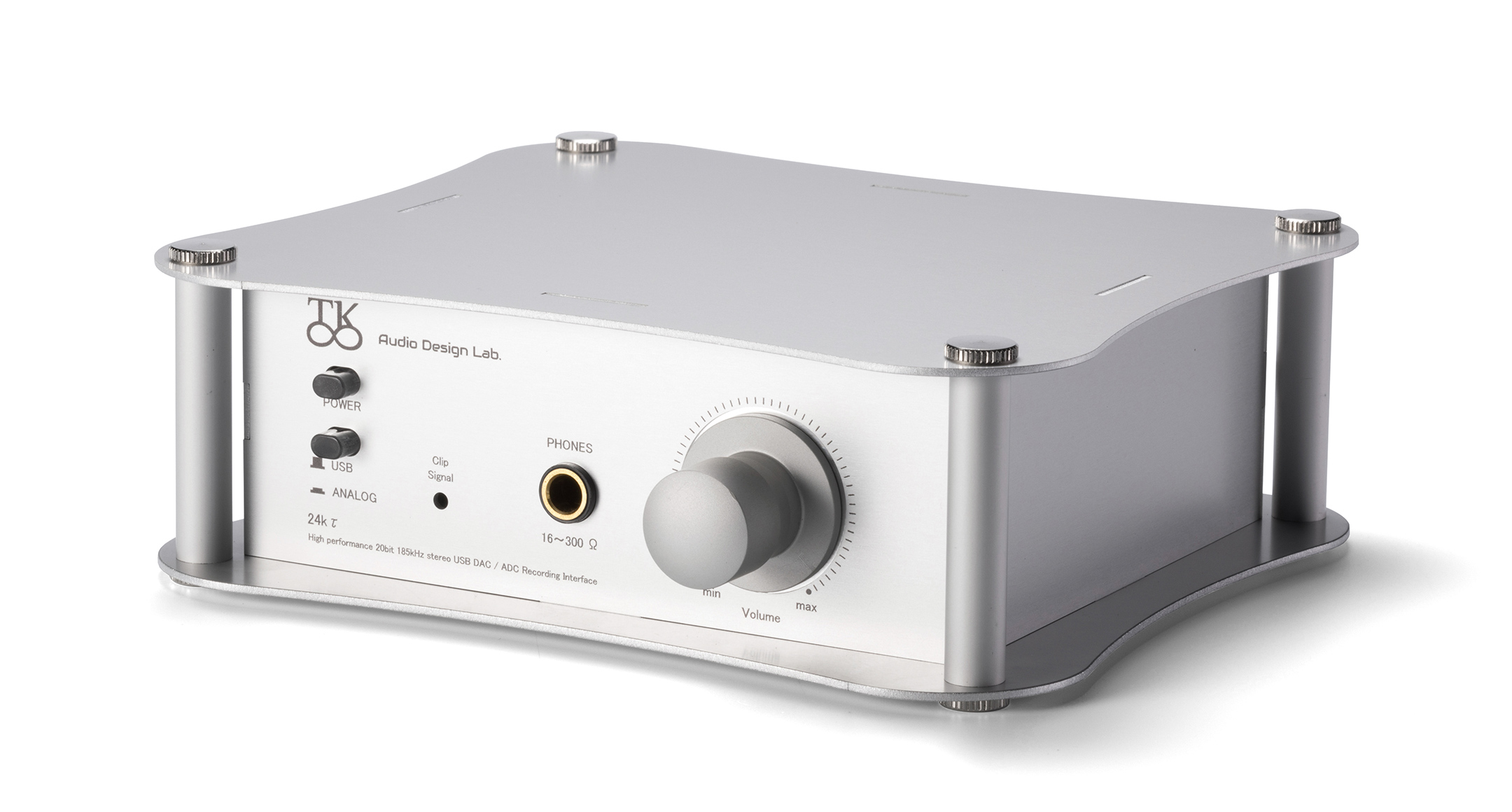

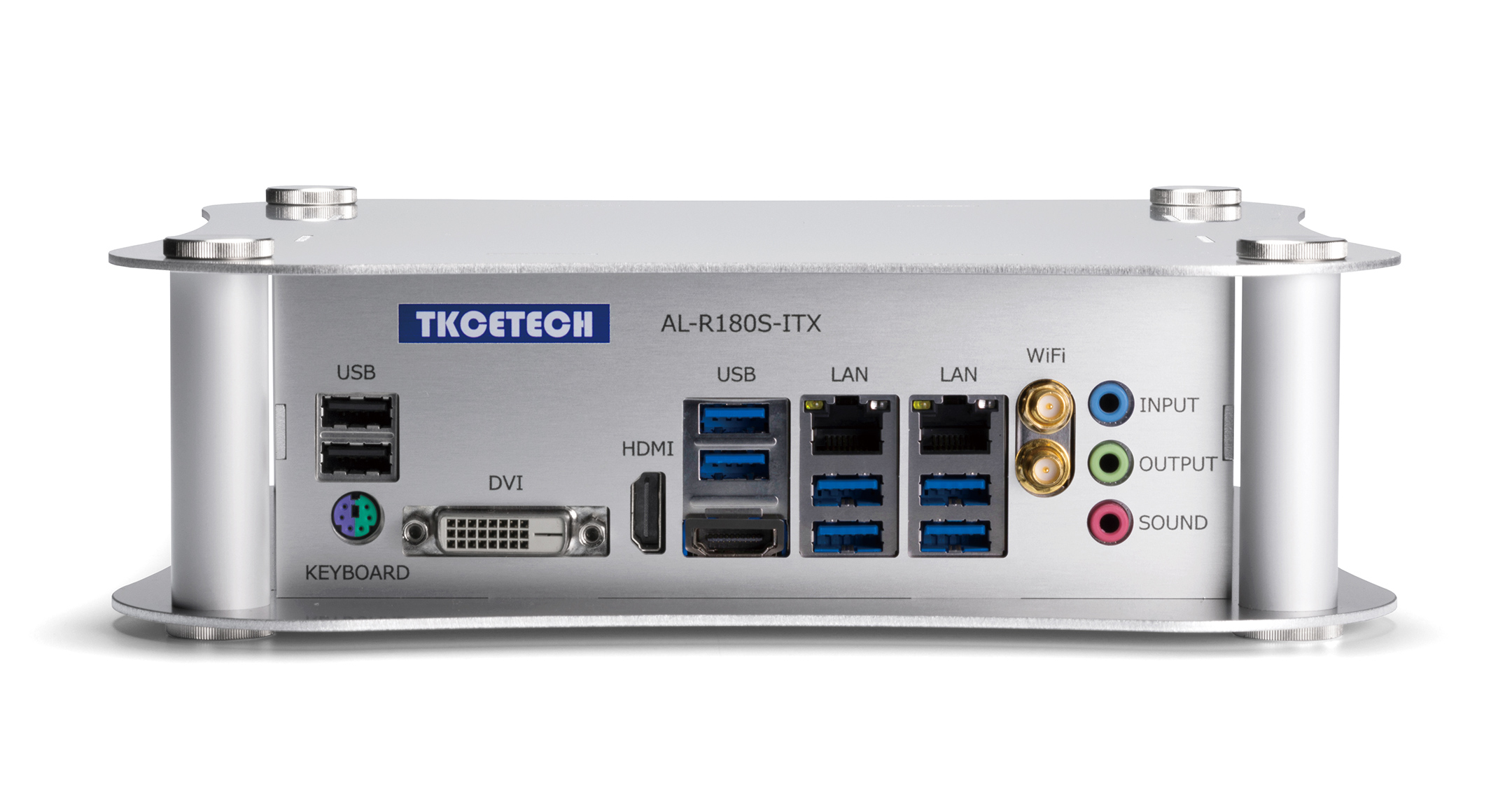

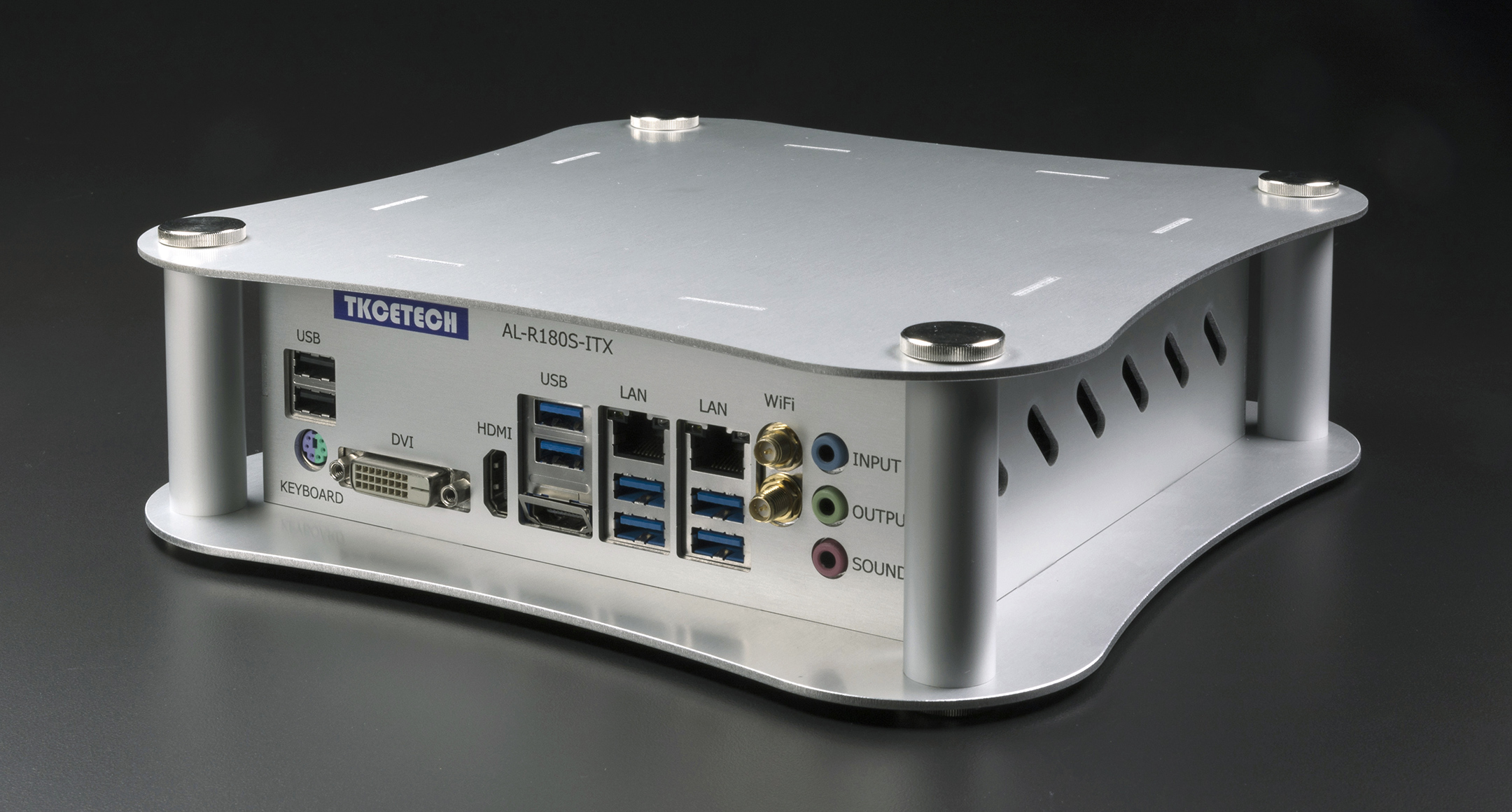

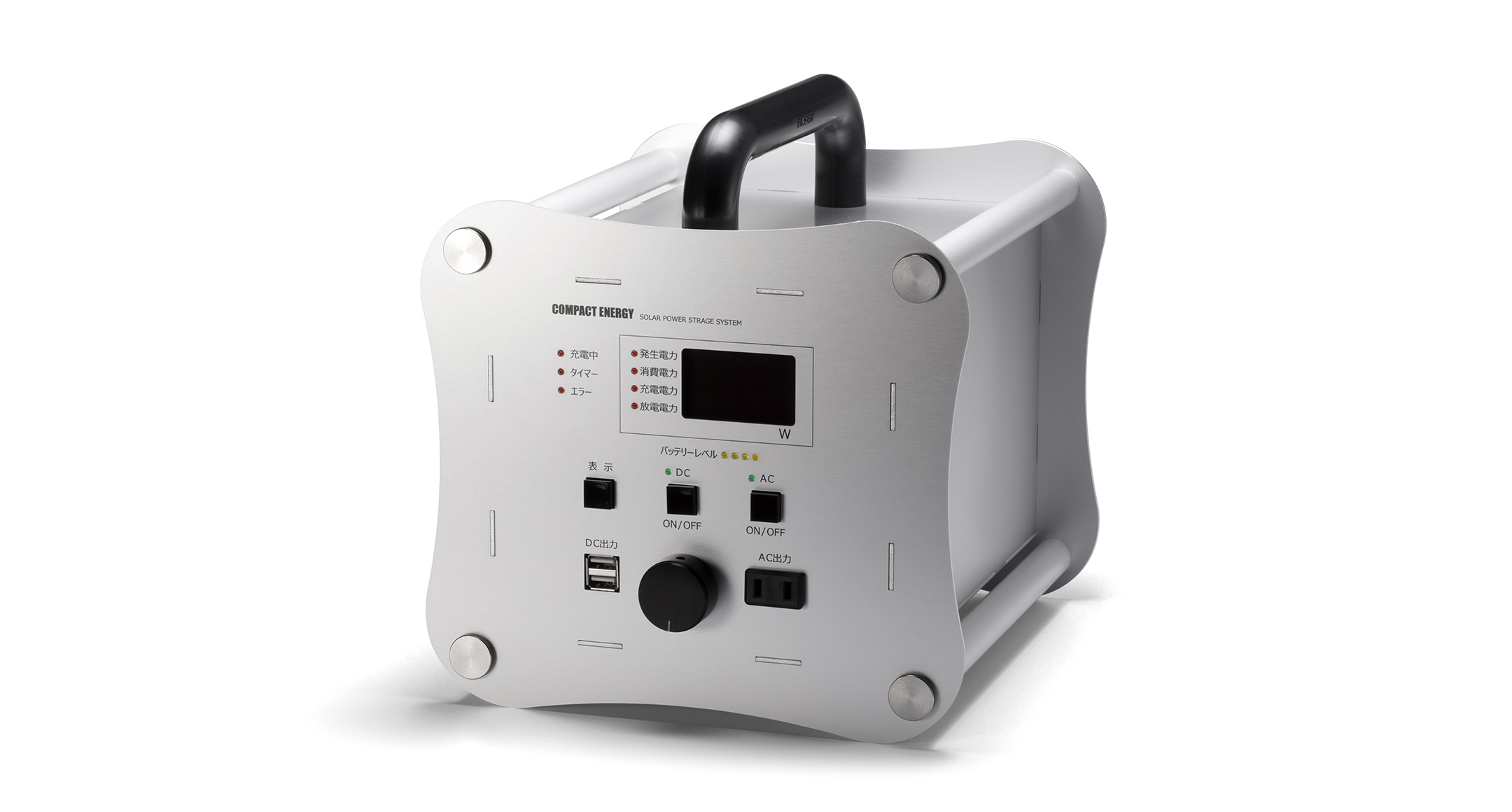

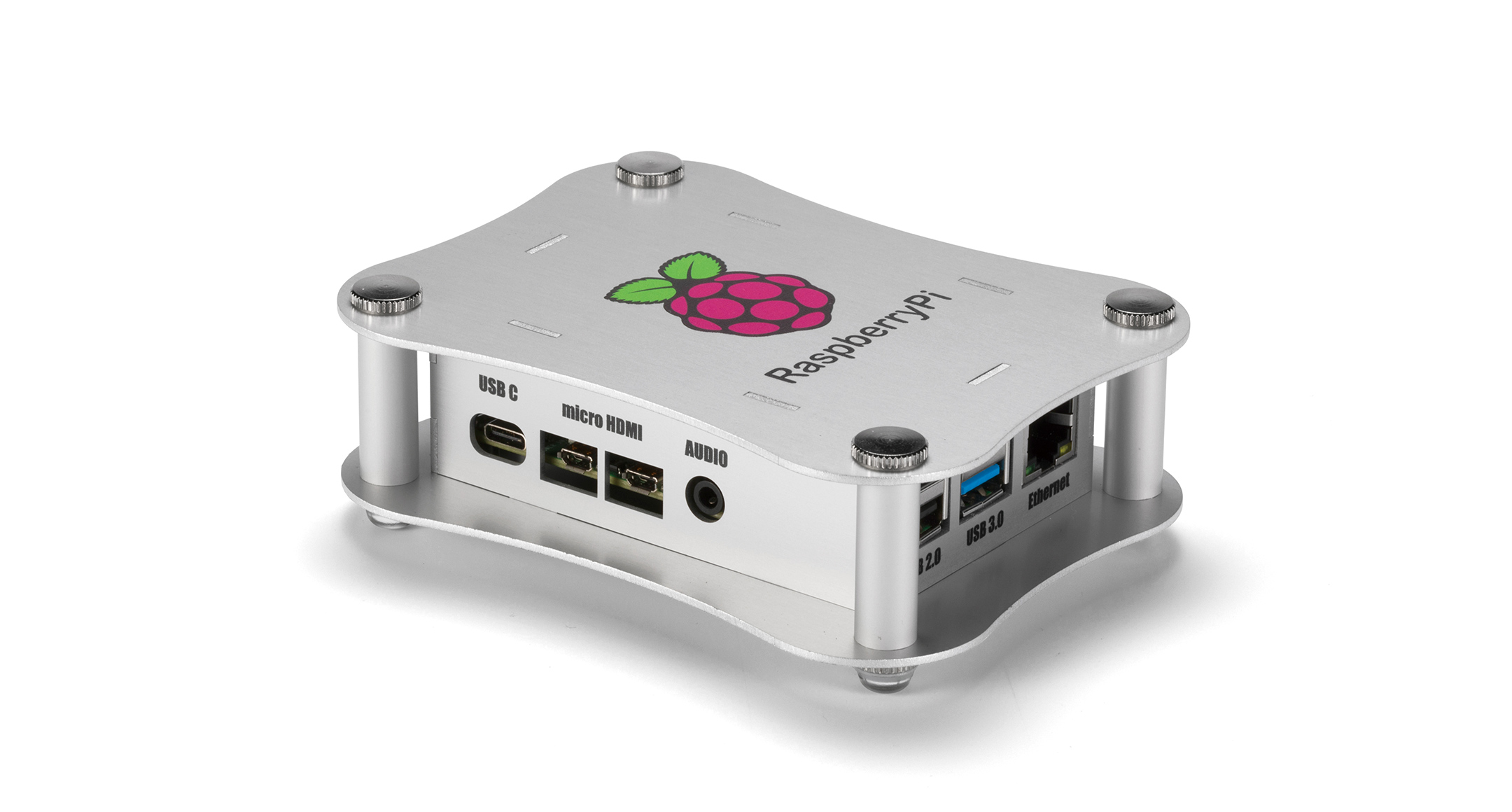

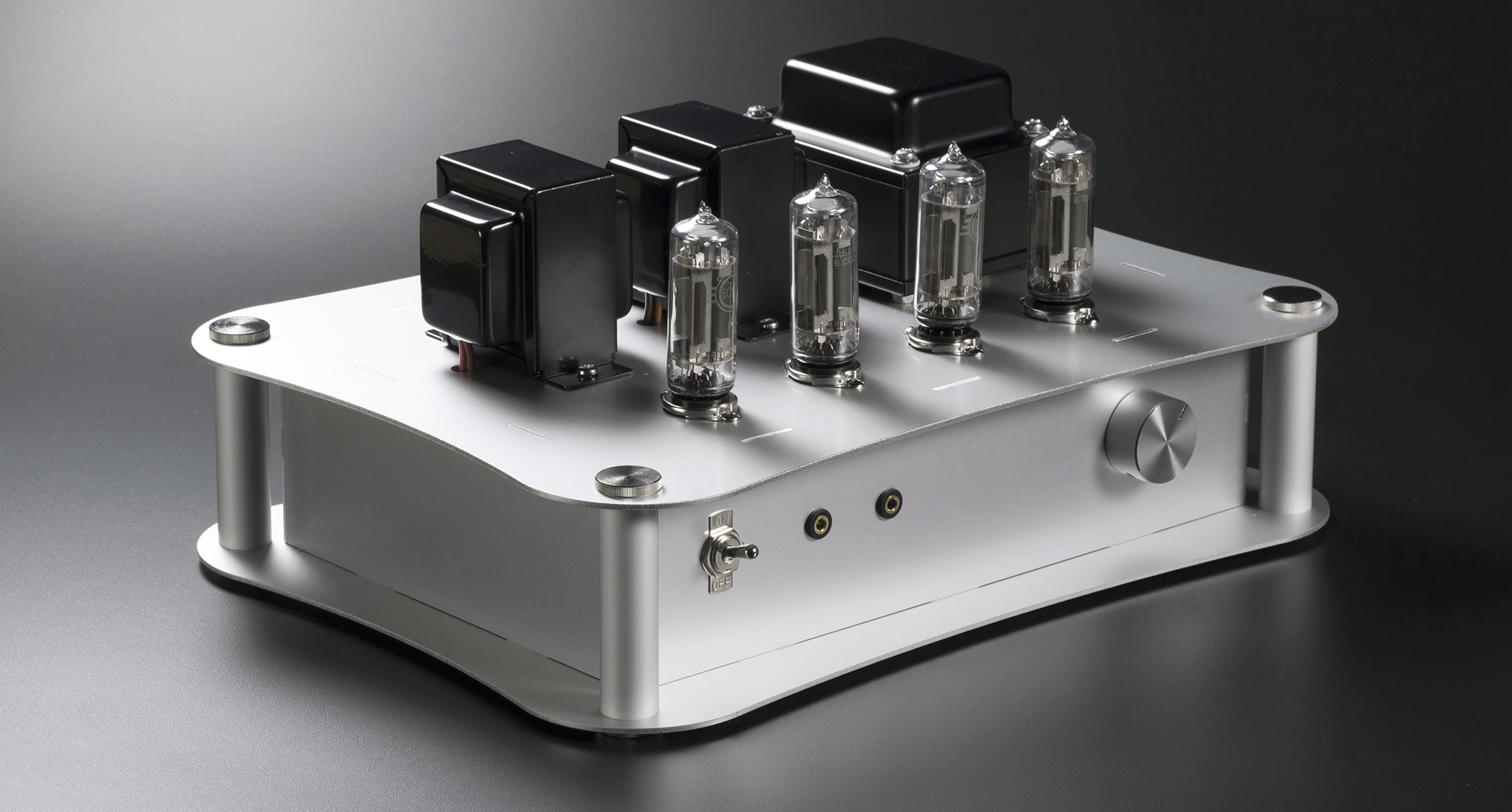

Suitable to be used for embedded computers, audio amplifiers and power supply enclosures.

All W, H, and D dimensions can be specified as 50～500mm for W and D dimensions and 30～5000mm for H dimension in 1mm intervals.

Knurled thumb screws for easy hand assembly.

Rubber feet can be provided if required in S (Φ11.2mm) or L (Φ15.7mm) sizes.

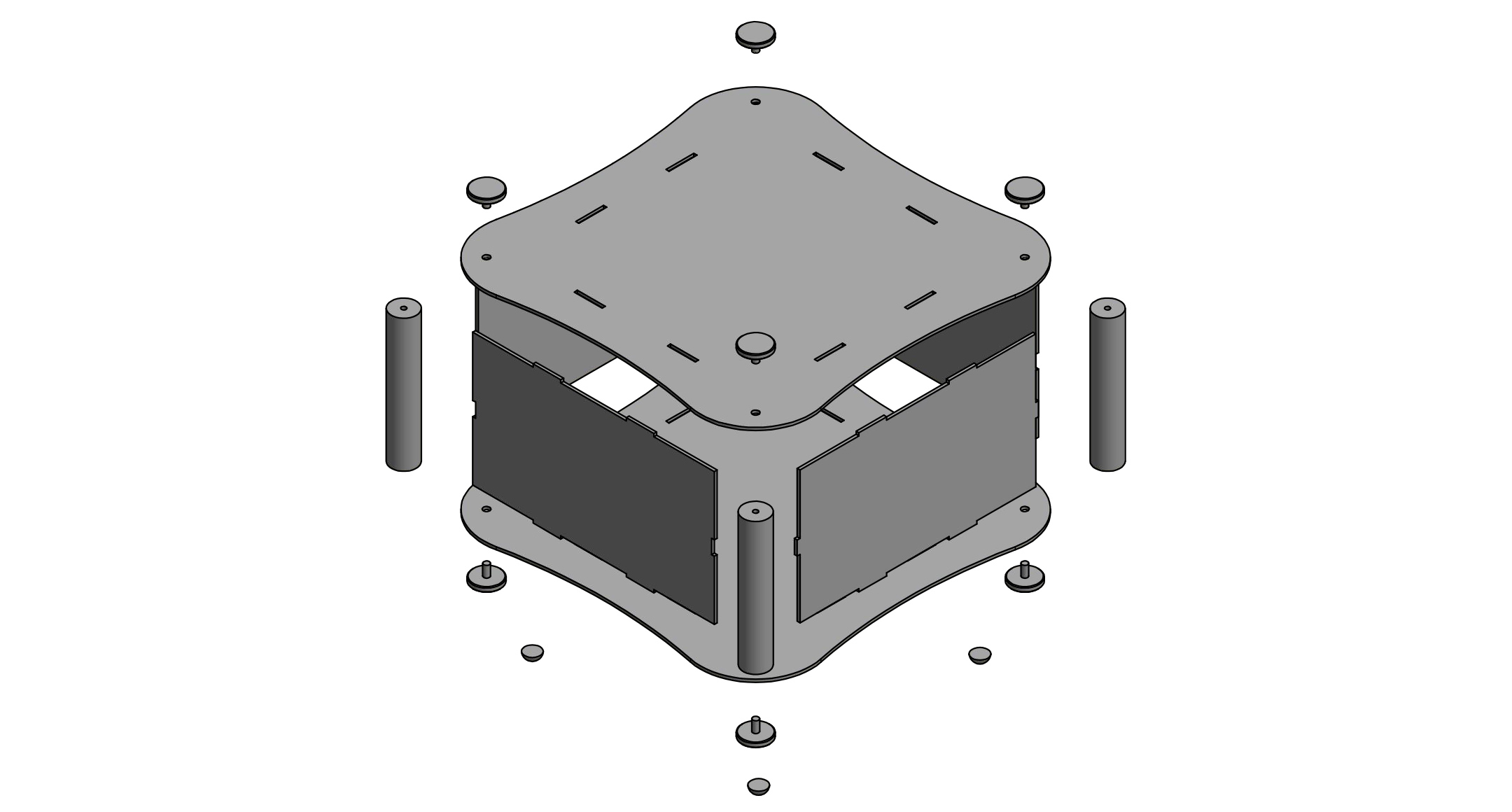

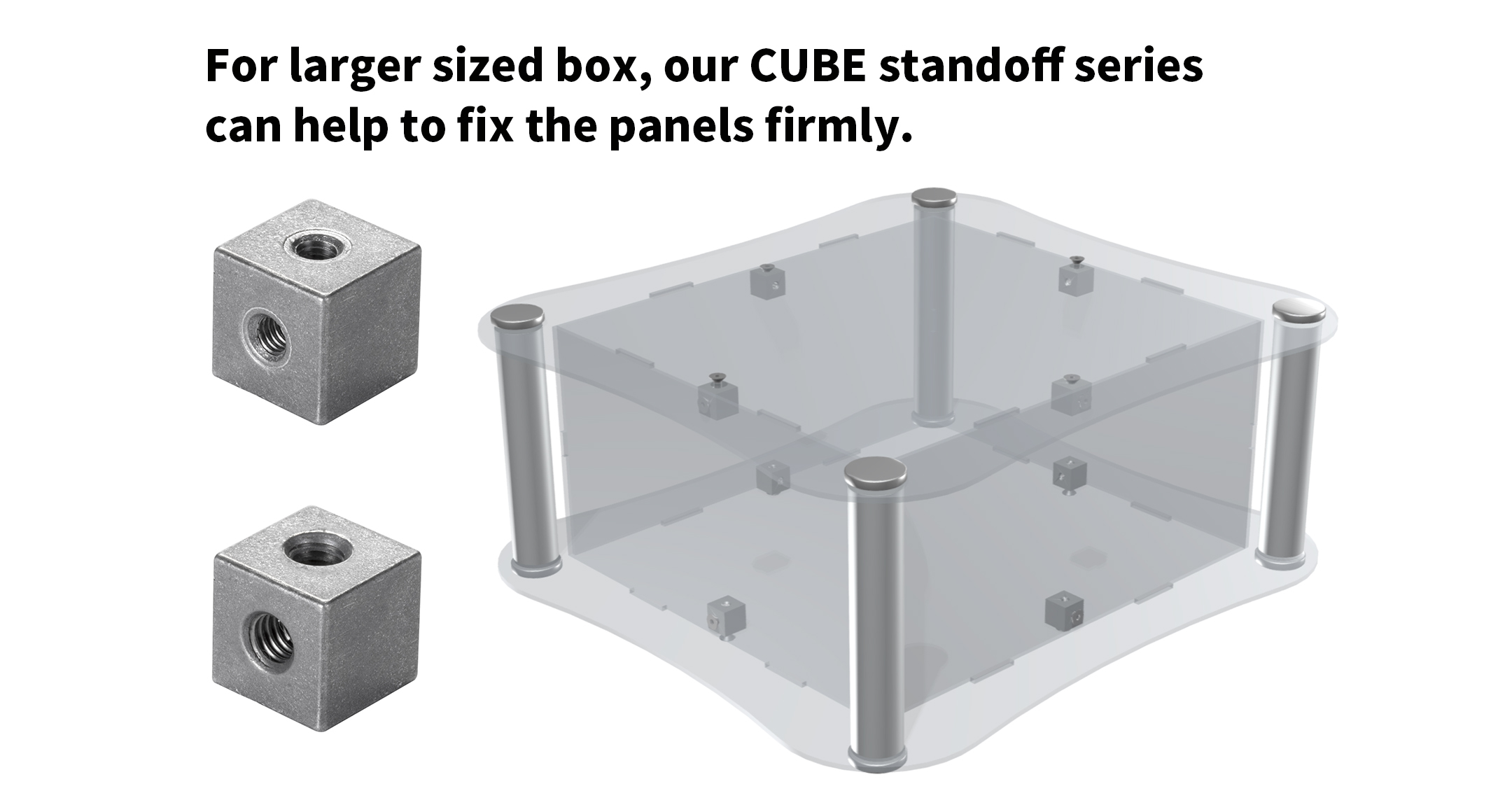

3D View - ALRF100-50-100  3D View - ALRF165-45-105  3D View - ALRF175-65-175  3D View - ALRF300-70-200  Exploded View  Example - reinforcement by CUBE standoff 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Panel thickness PDF DXF DWG
W D H
ALRF□-□-□S10○ ・ W50-100mm, D50-100mm 50～100mm 50～100mm 30～500mm 1.5mm PDF DXF DWG
ALRF□-□-□S10○ ・ W50-100mm, D101-150mm 50～100mm 101～150mm 30～500mm 1.5mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D151-200mm 50～100mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D201-250mm 50～100mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D251-300mm 50～100mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D301-350mm 50～100mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D351-400mm 50～100mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D401-450mm 50～100mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W50-100mm, D451-500mm 50～100mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S10○ ・ W101-150mm, D50-100mm 101～150mm 50～100mm 30～500mm 1.5mm PDF DXF DWG
ALRF□-□-□S10○ ・ W101-150mm, D101-150mm 101～150mm 101～150mm 30～500mm 1.5mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D151-200mm 101～150mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D201-250mm 101～150mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D251-300mm 101～150mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D301-350mm 101～150mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D351-400mm 101～150mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D401-450mm 101～150mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W101-150mm, D451-500mm 101～150mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D50-100mm 151～200mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D101-150mm 151～200mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D151-200mm 151～200mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D201-250mm 151～200mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D251-300mm 151～200mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D301-350mm 151～200mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D351-400mm 151～200mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D401-450mm 151～200mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W151-200mm, D451-500mm 151～200mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D50-100mm 201～250mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D101-150mm 201～250mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D151-200mm 201～250mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D201-250mm 201～250mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D251-300mm 201～250mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D301-350mm 201～250mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D351-400mm 201～250mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D401-450mm 201～250mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W201-250mm, D451-500mm 201～250mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D50-100mm 251～300mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D101-150mm 251～300mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D151-200mm 251～300mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D201-250mm 251～300mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D251-300mm 251～300mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D301-350mm 251～300mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D351-400mm 251～300mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D401-450mm 251～300mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W251-300mm, D451-500mm 251～300mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D50-100mm 301～350mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D101-150mm 301～350mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D151-200mm 301～350mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D201-250mm 301～350mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D251-300mm 301～350mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D301-350mm 301～350mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D351-400mm 301～350mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D401-450mm 301～350mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W301-350mm, D451-500mm 301～350mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D50-100mm 351～400mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D101-150mm 351～400mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D151-200mm 351～400mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D201-250mm 351～400mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D251-300mm 351～400mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D301-350mm 351～400mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D351-400mm 351～400mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D401-450mm 351～400mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W351-400mm, D451-500mm 351～400mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D50-100mm 401～450mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D101-150mm 401～450mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D151-200mm 401～450mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D201-250mm 401～450mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D251-300mm 401～450mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D301-350mm 401～450mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D351-400mm 401～450mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D401-450mm 401～450mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W401-450mm, D451-500mm 401～450mm 451～500mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D50-100mm 451～500mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D101-150mm 451～500mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D151-200mm 451～500mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D201-250mm 451～500mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D251-300mm 451～500mm 251～300mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D301-350mm 451～500mm 301～350mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D351-400mm 451～500mm 351～400mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D401-450mm 451～500mm 401～450mm 30～500mm 2.0mm PDF DXF DWG
ALRF□-□-□S18○ ・ W451-500mm, D451-500mm 451～500mm 451～500mm 30～500mm 2.0mm PDF DXF DWG

OPTIONAL PARTS

１
ADHESIVE STANDOFF - AST series
DETAILS

SIMILAR PRODUCT

１
ARC DESIGN ALUMINIUM ENCLOSURE - ALR series
DETAILS
１
HIGH-END DESIGN ALUMINUM CASE - HD series
DETAILS
１
CUSTOM SIZED SKELETON CASE - SKLF series
DETAILS
１
CUSTOM SIZED ALUMINUM FRAME BOX - ALSF series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

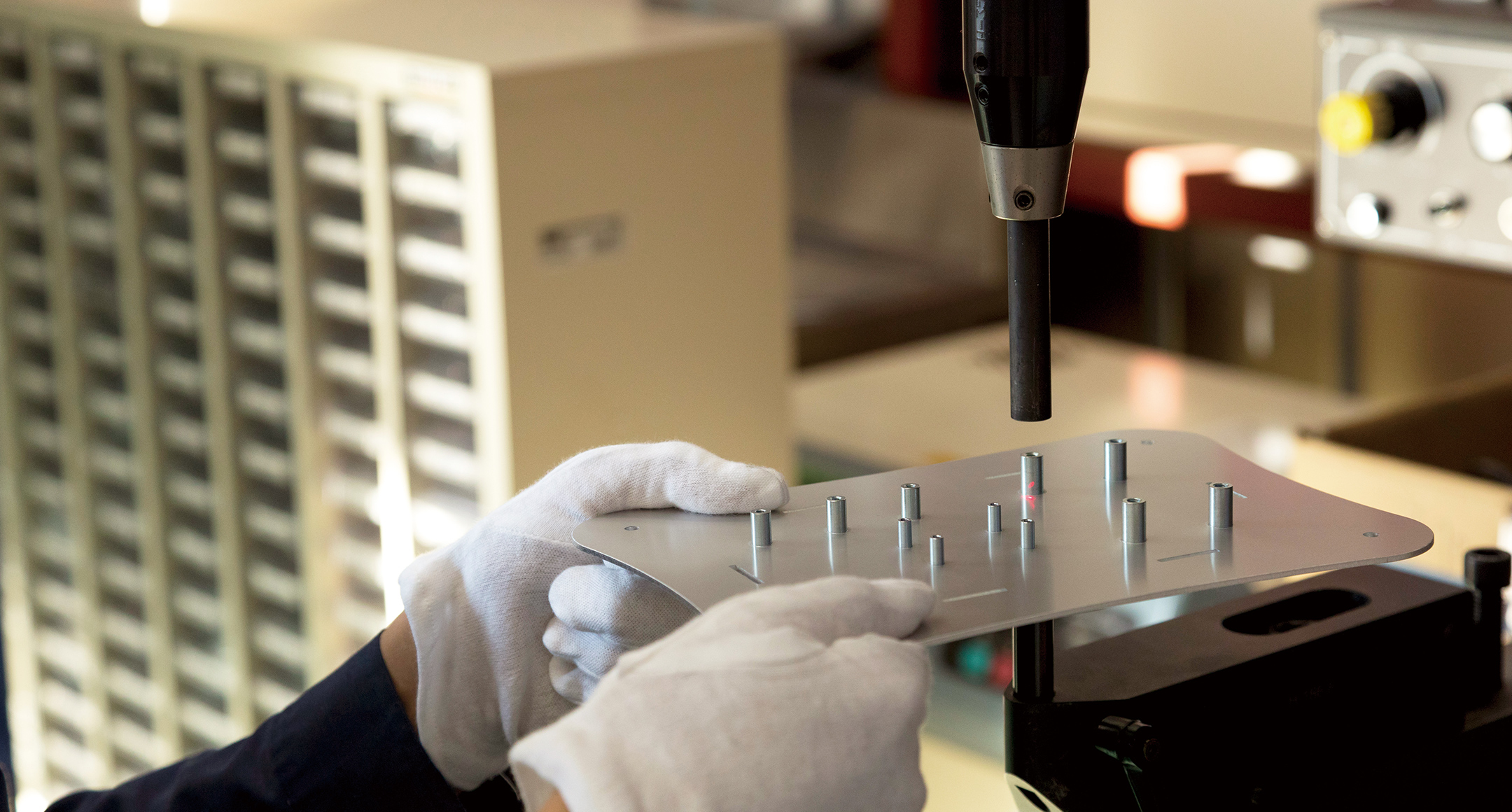

Clinching standoff pressing

DETAILS

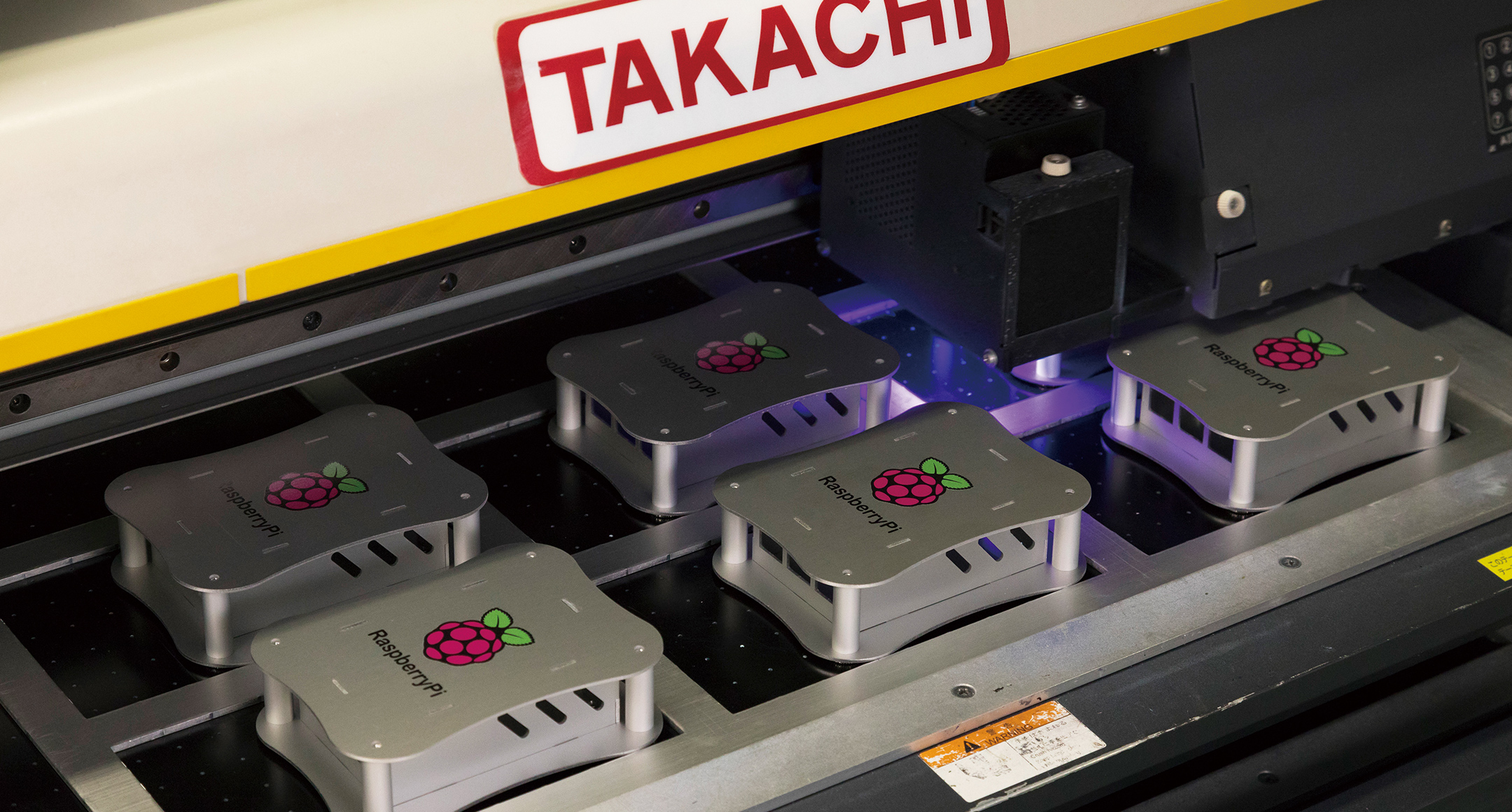

Digital inkjet printing
