ALUMINIUM CONTROL BOX - AUX series


AUX- Series -PDF

CATEGORY：Aluminum box, Aluminium enclosure, Control box, Command panel enclosure, Universal enclosure, Amplifier chassis

ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series
ALUMINIUM CONTROL BOX - AUX series1
ALUMINIUM CONTROL BOX - AUX series2
ALUMINIUM CONTROL BOX - AUX series3
ALUMINIUM CONTROL BOX - AUX series4
ALUMINIUM CONTROL BOX - AUX series5
ALUMINIUM CONTROL BOX - AUX series6
ALUMINIUM CONTROL BOX - AUX series7
ALUMINIUM CONTROL BOX - AUX series8

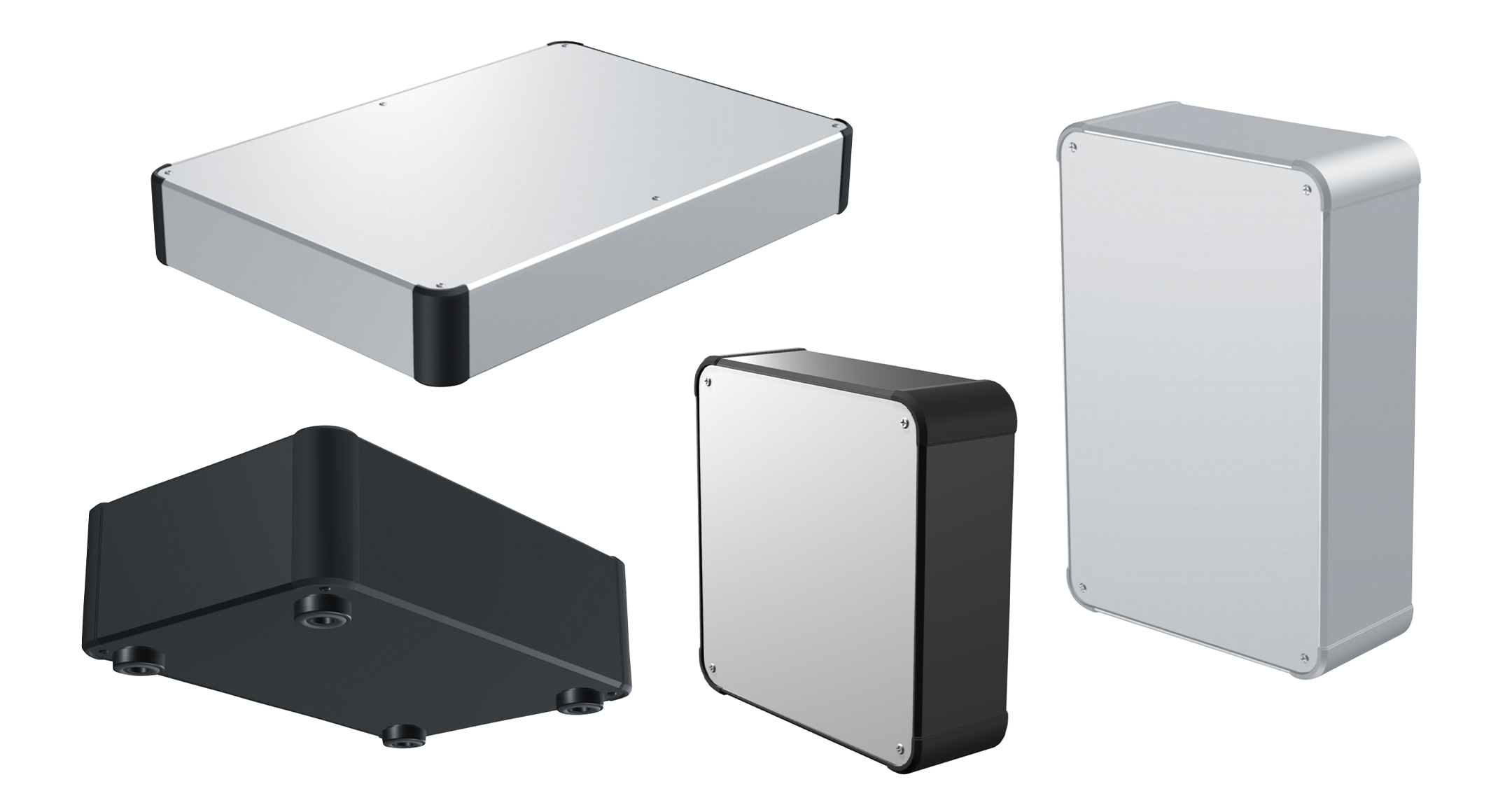

Roundedge designed aluminium enclosure with 4 extruded aluminium frames.

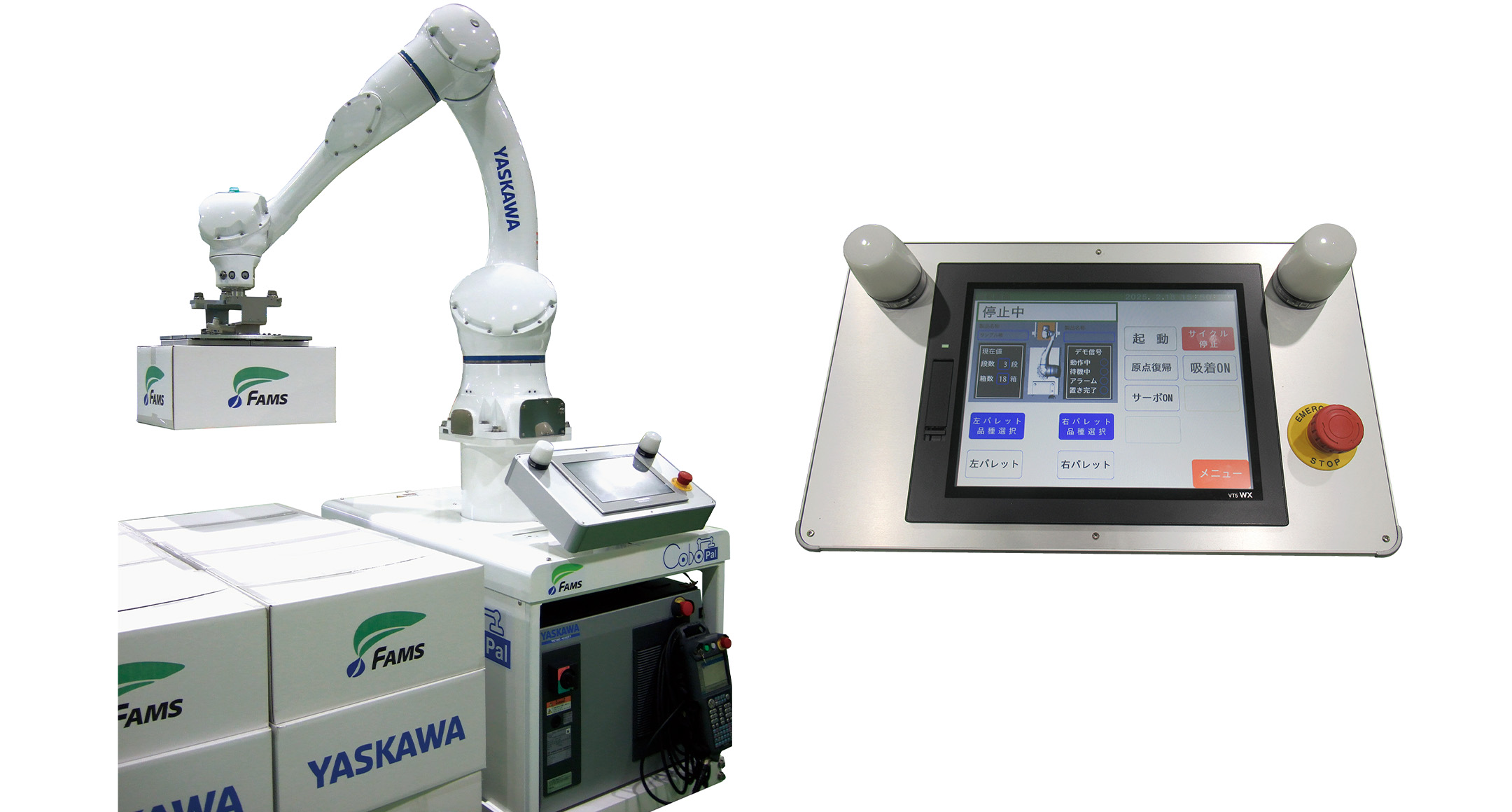

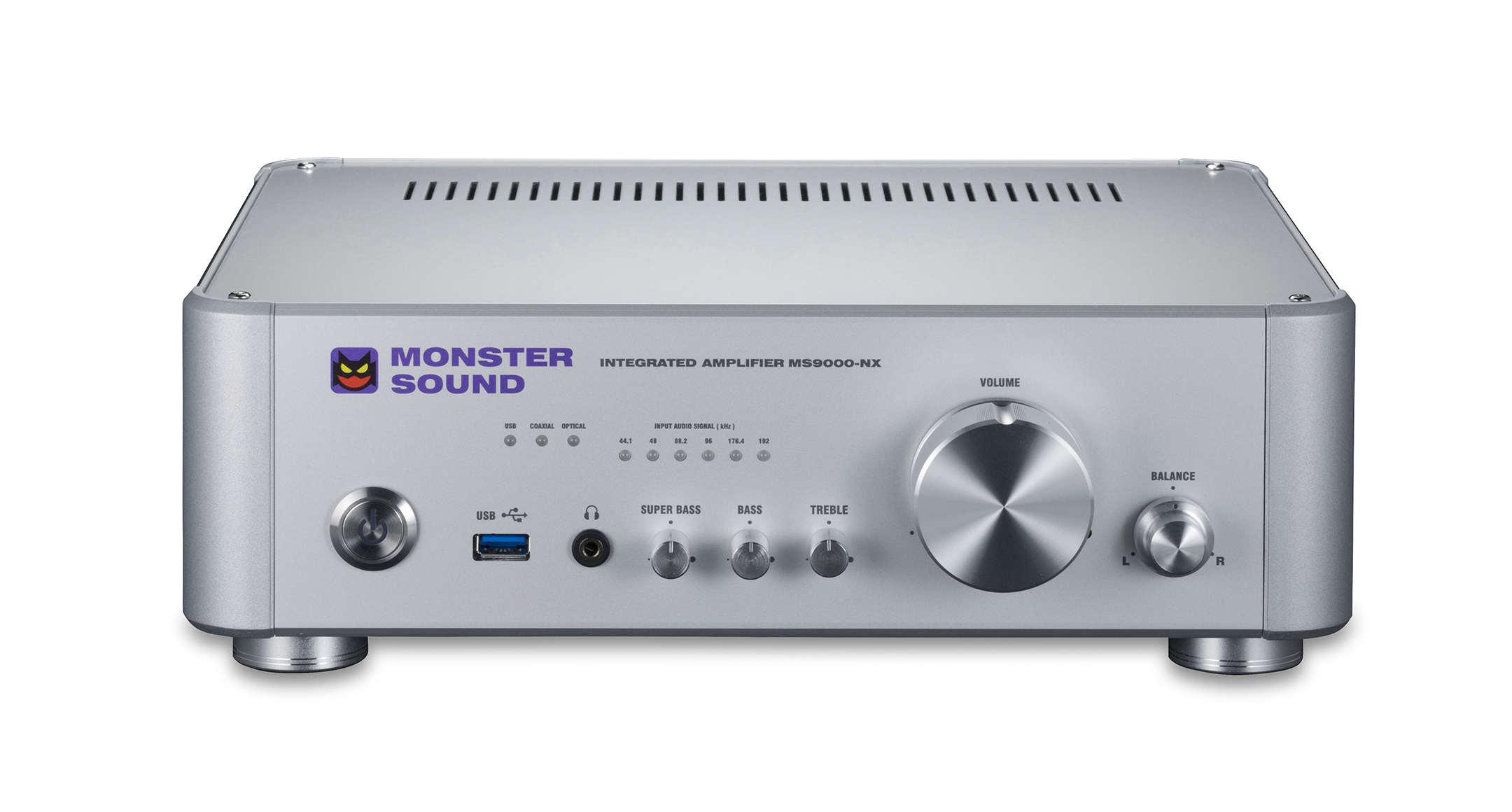

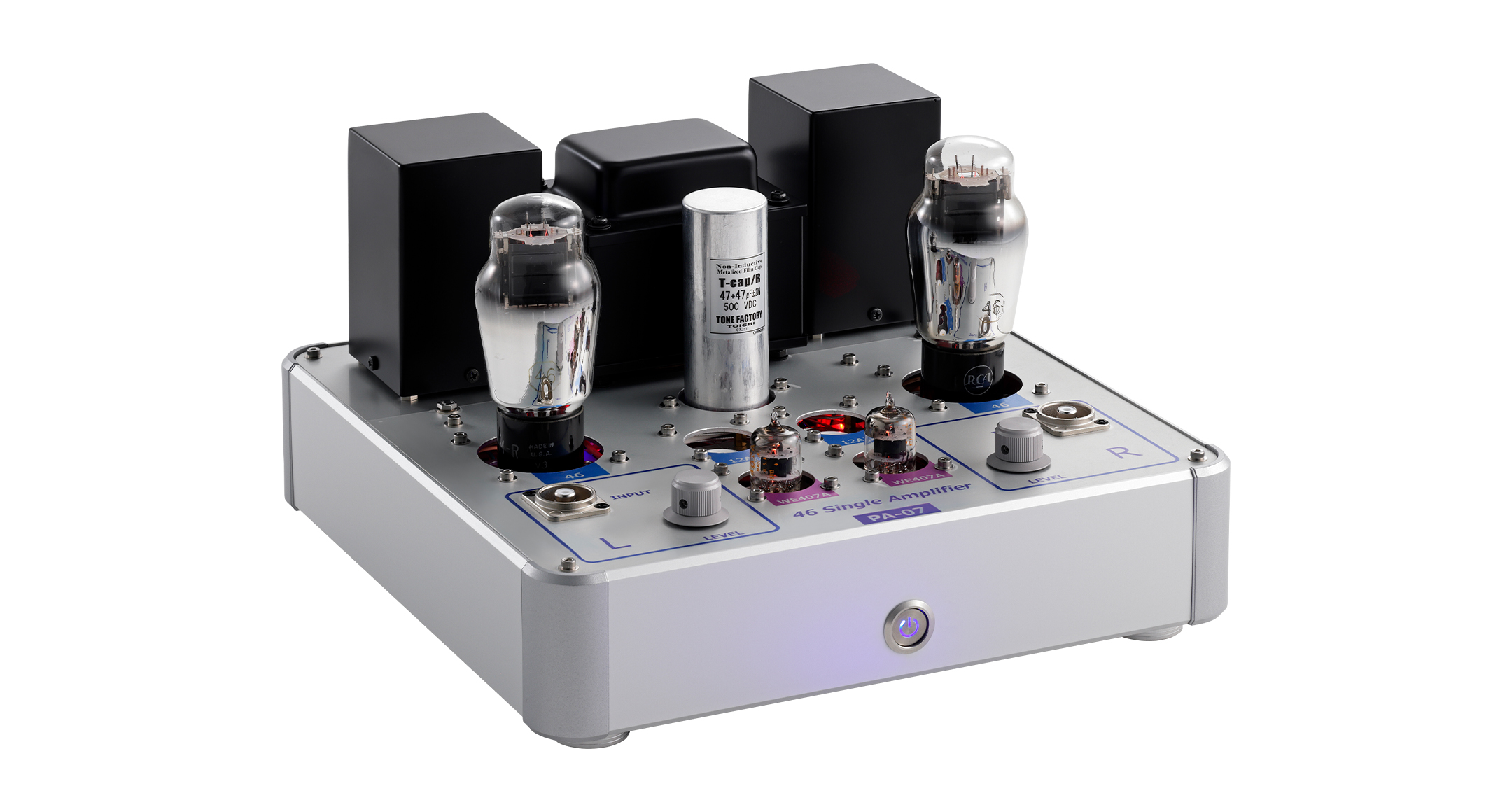

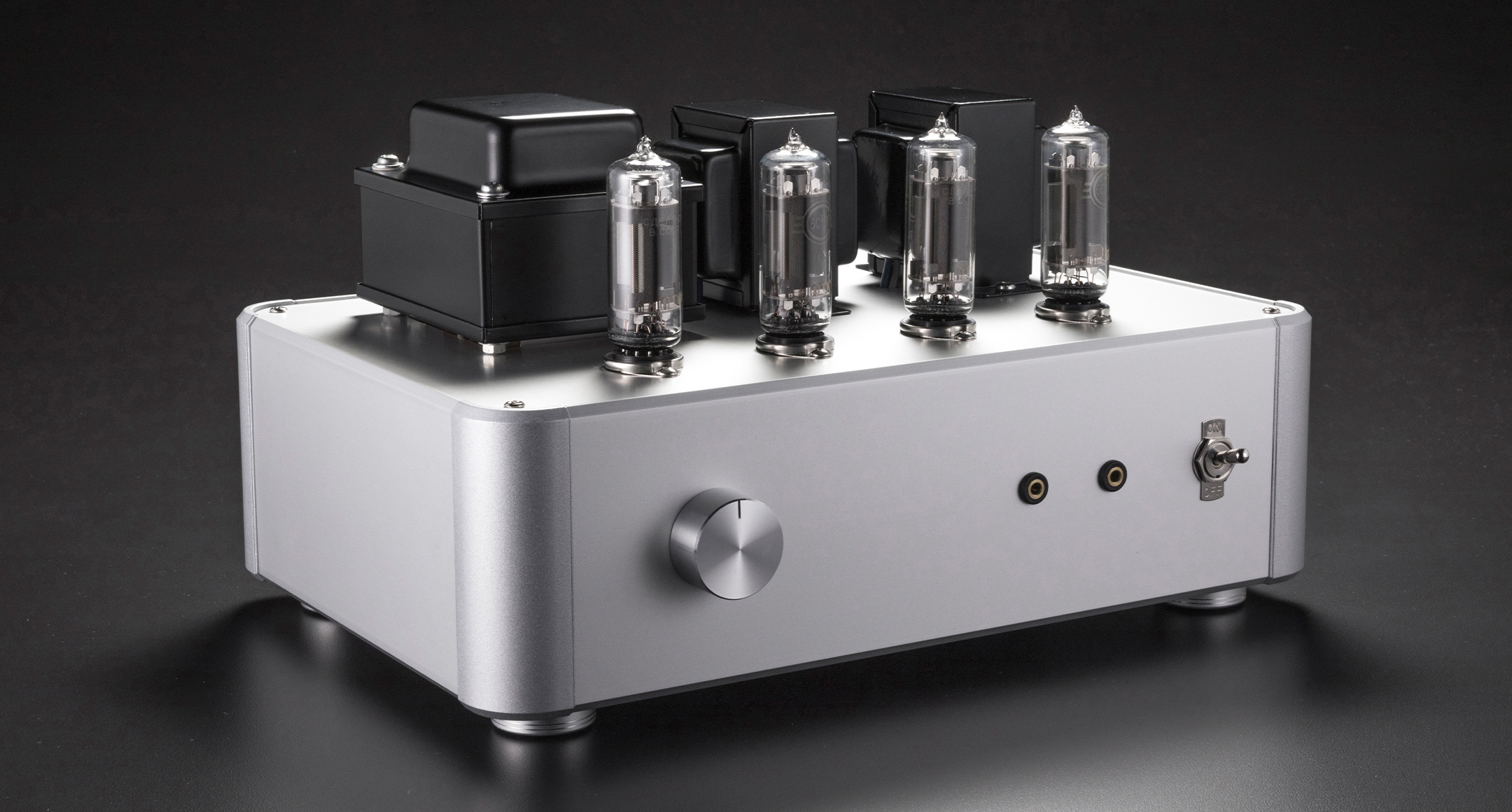

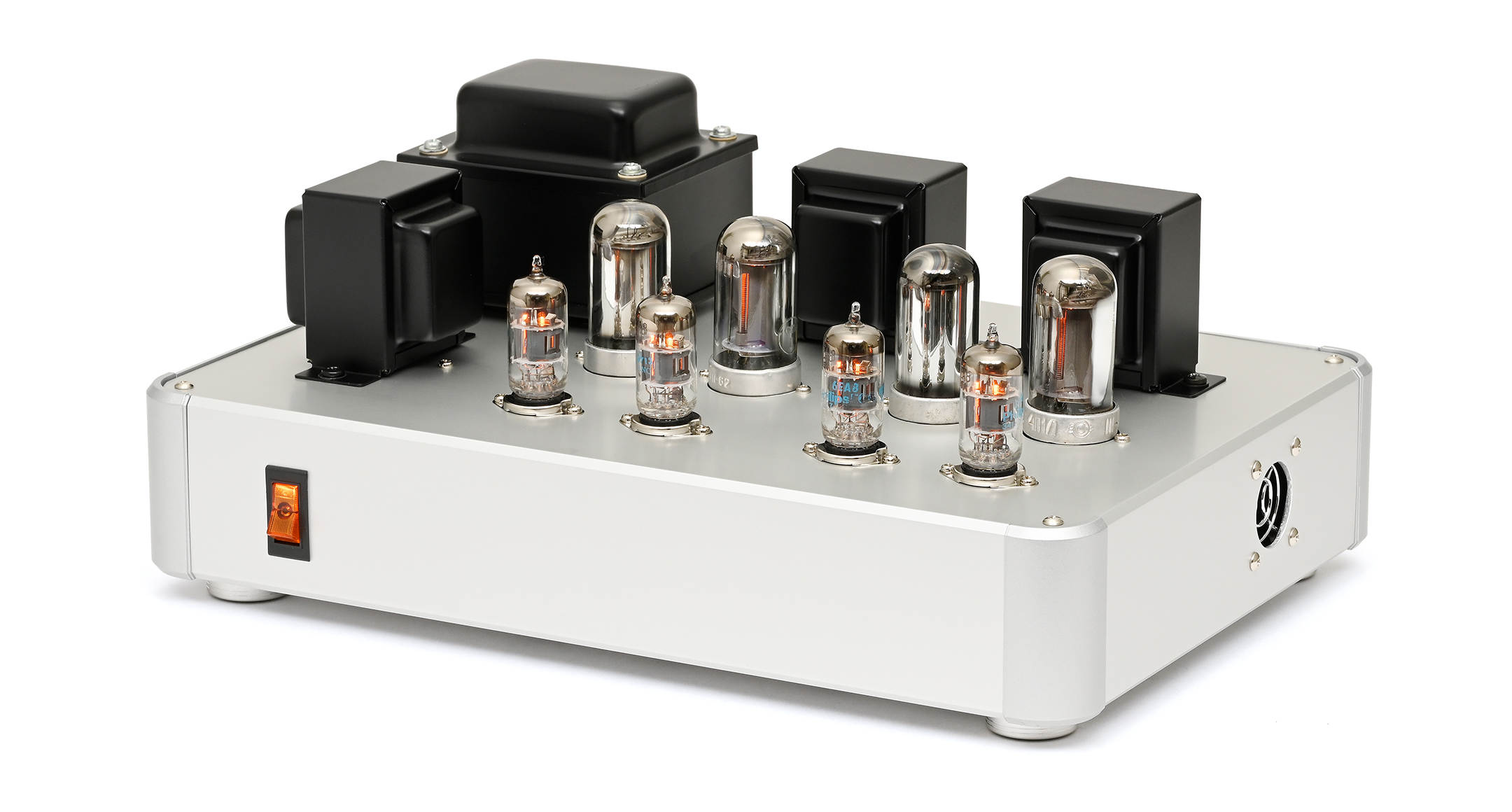

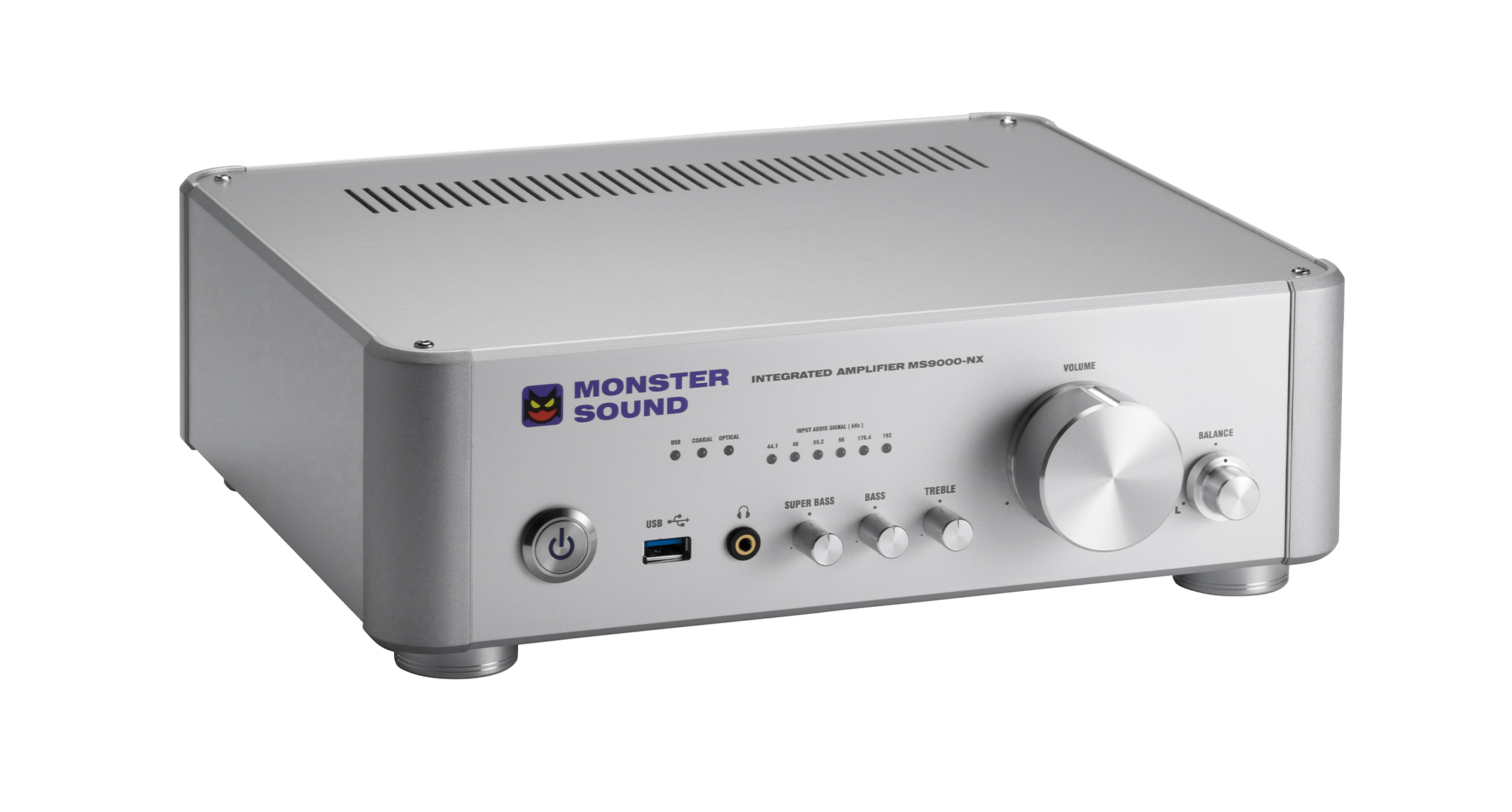

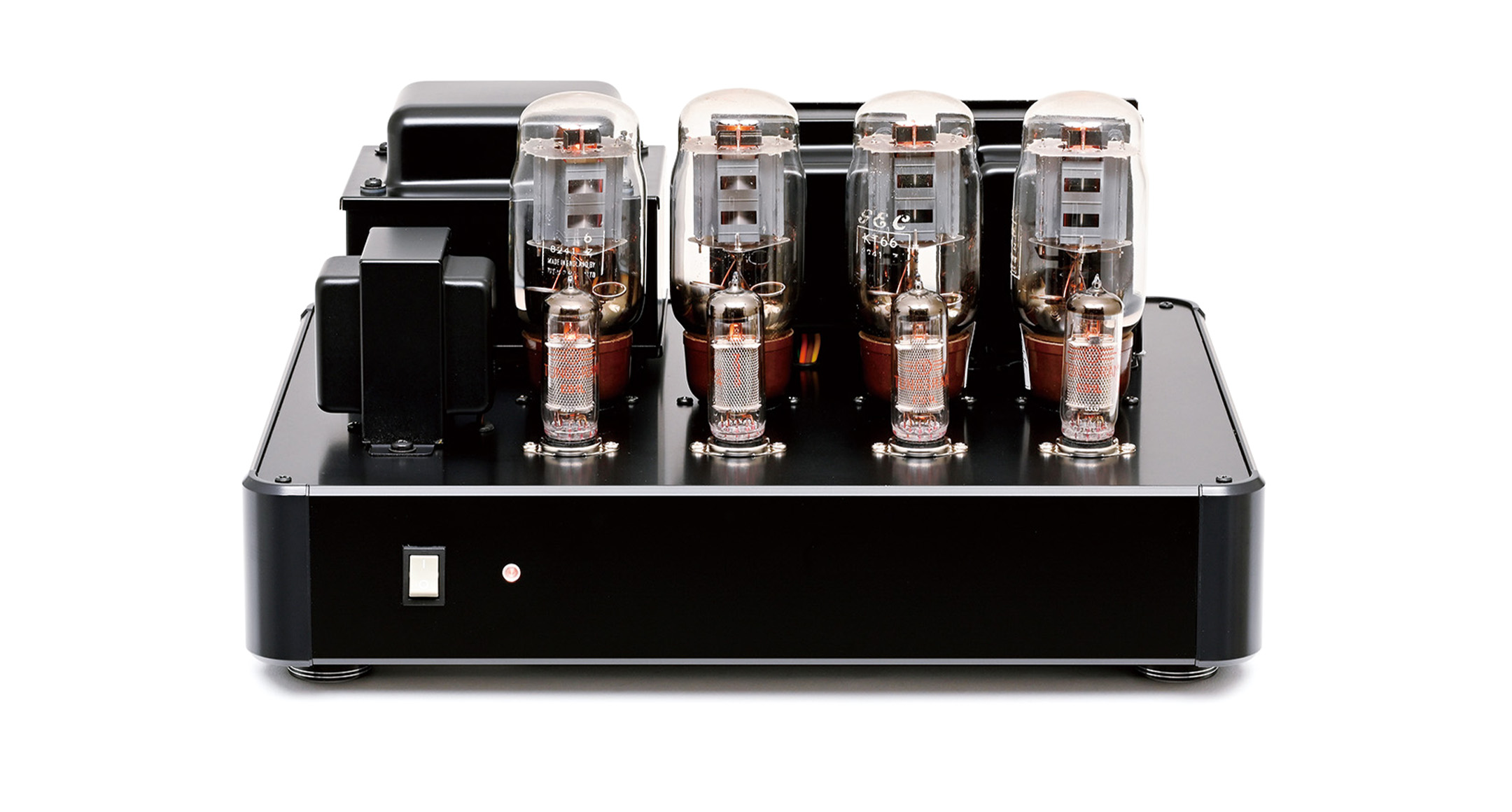

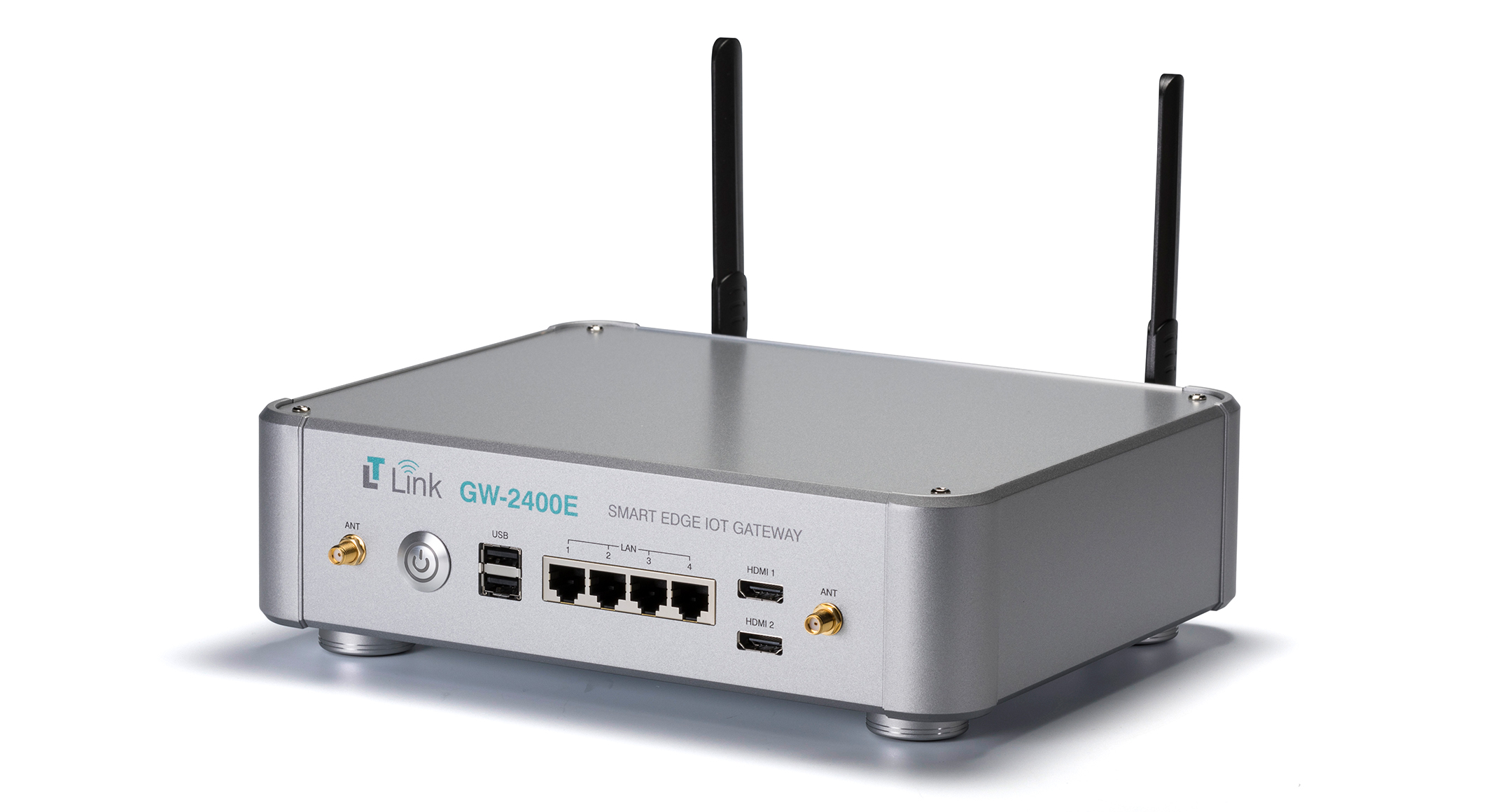

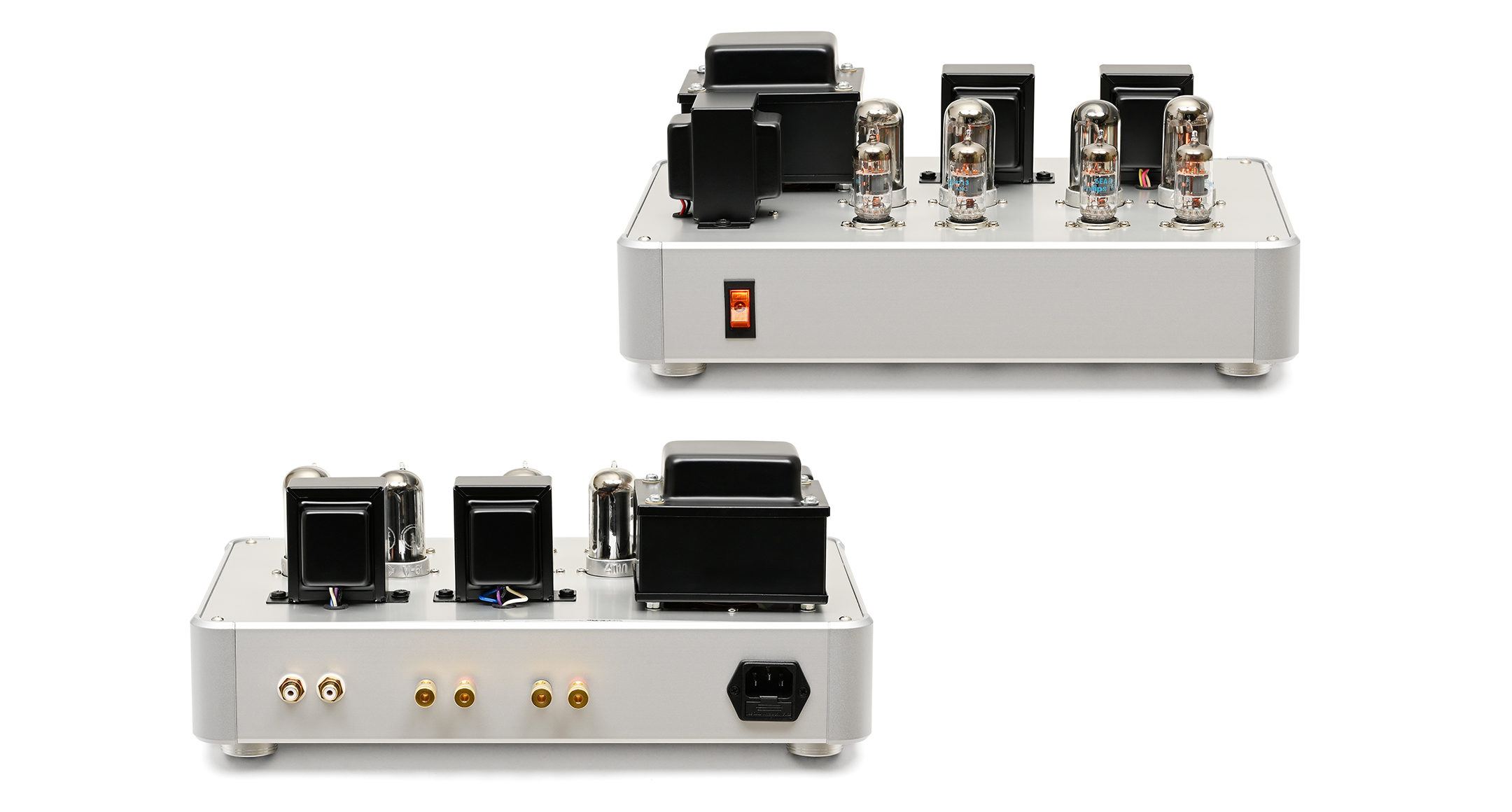

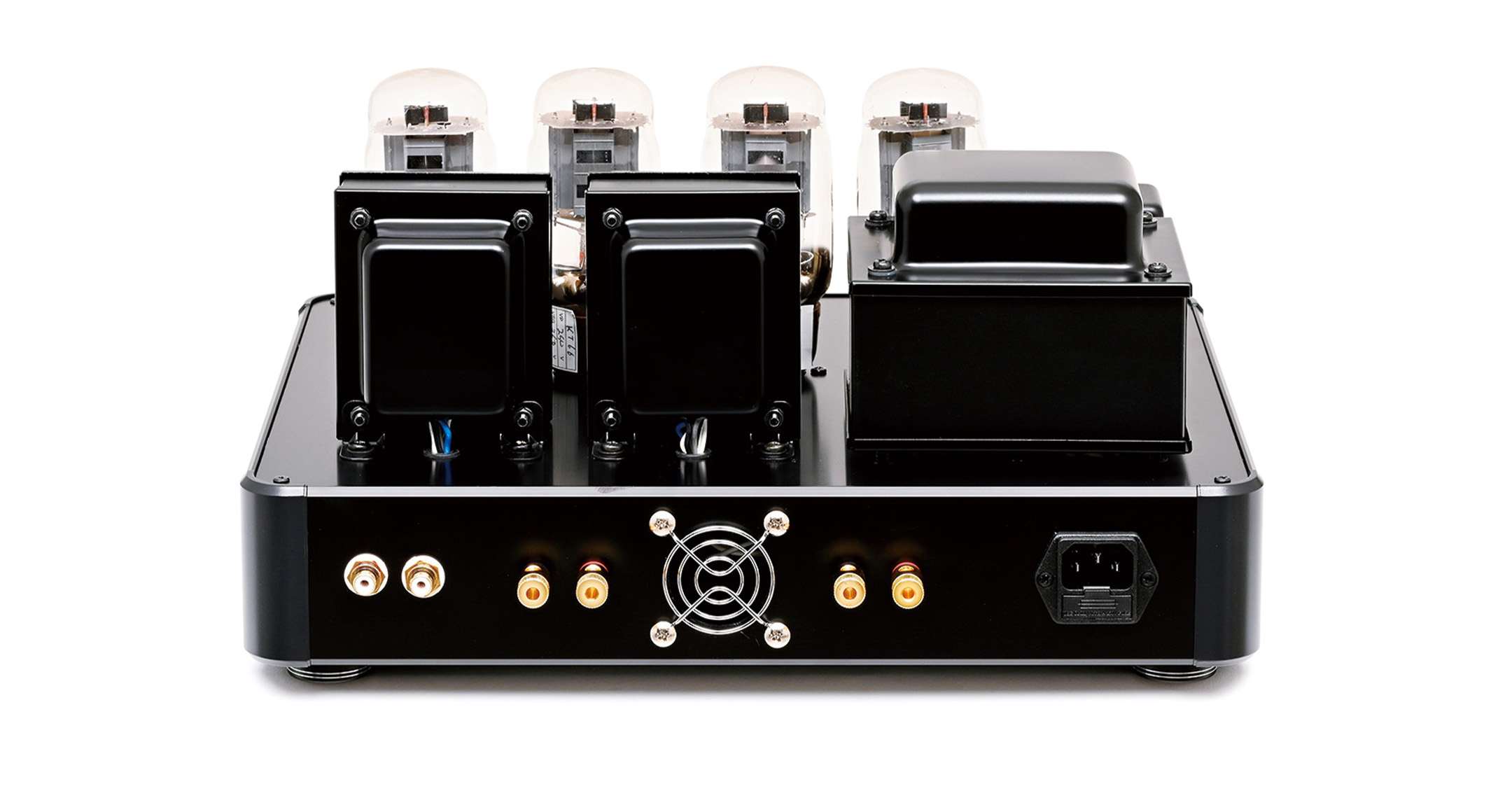

Suitable for use as industrial control box, command panel, audio amplifier, power supply, and so on.

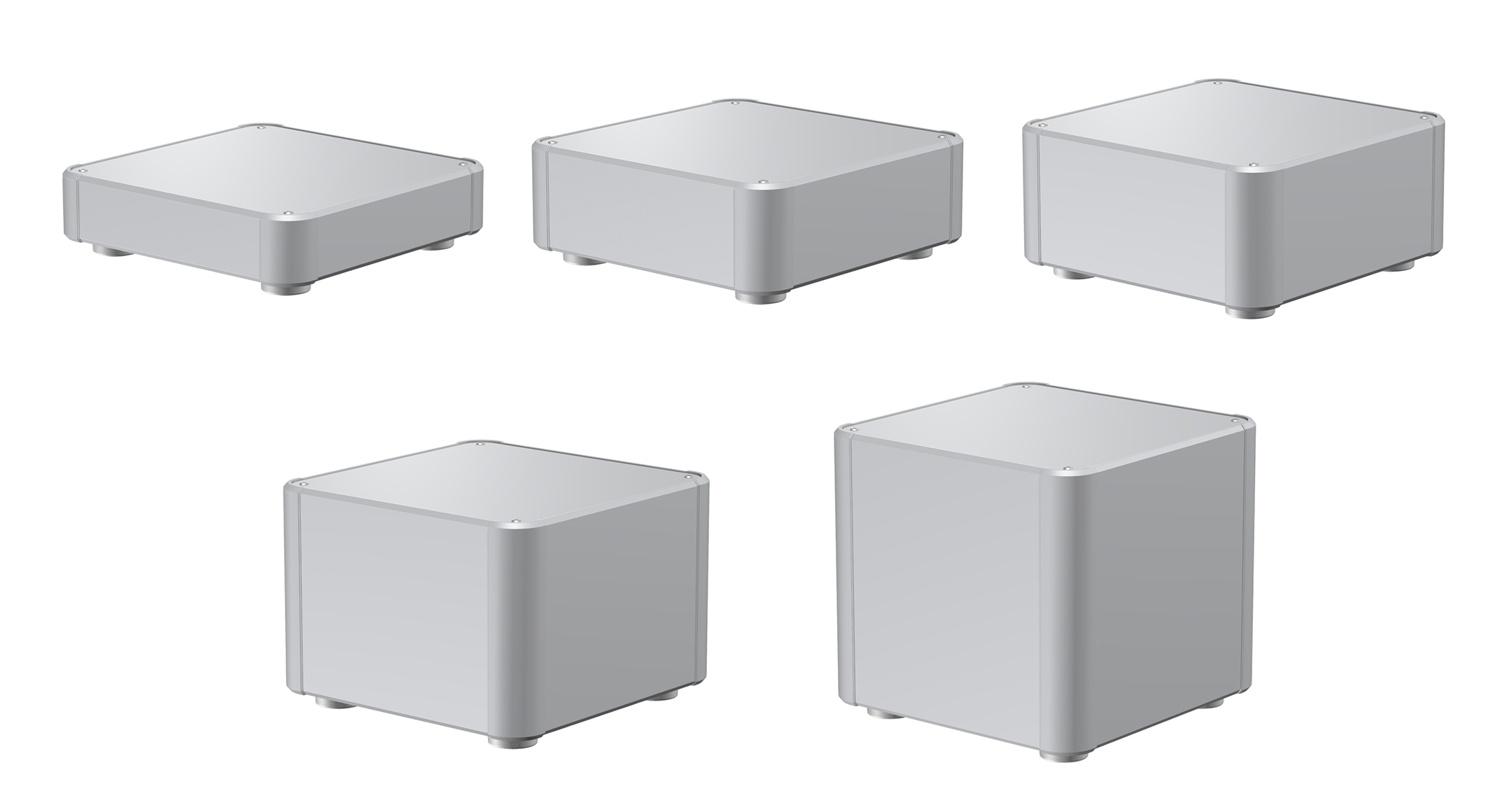

A wide selection of 135 different sizes to choose from.
Feet is selectable between adhesive rubber or aluminium type.
Cover screw is selectable Plus head or Hex head.
3D View - AUX88-30-20SS  3D View - AUX66-43-30SB  3D View - AUX66-20-20BX  3D View - AUX133-30-20BB  Exploded View 

COLOR TYPE

SSSilver

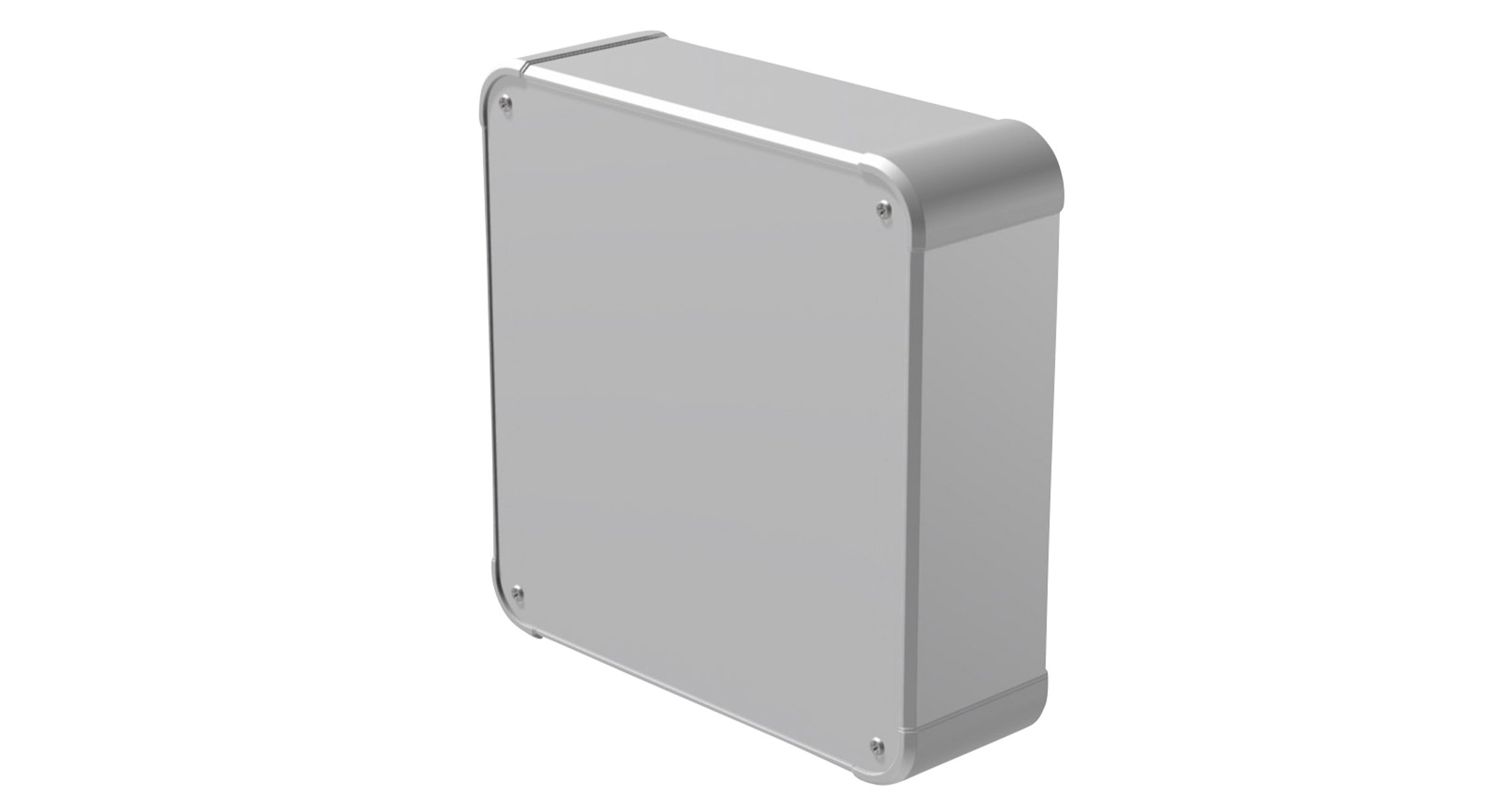

ALUMINIUM CONTROL BOX - AUX series:Silver

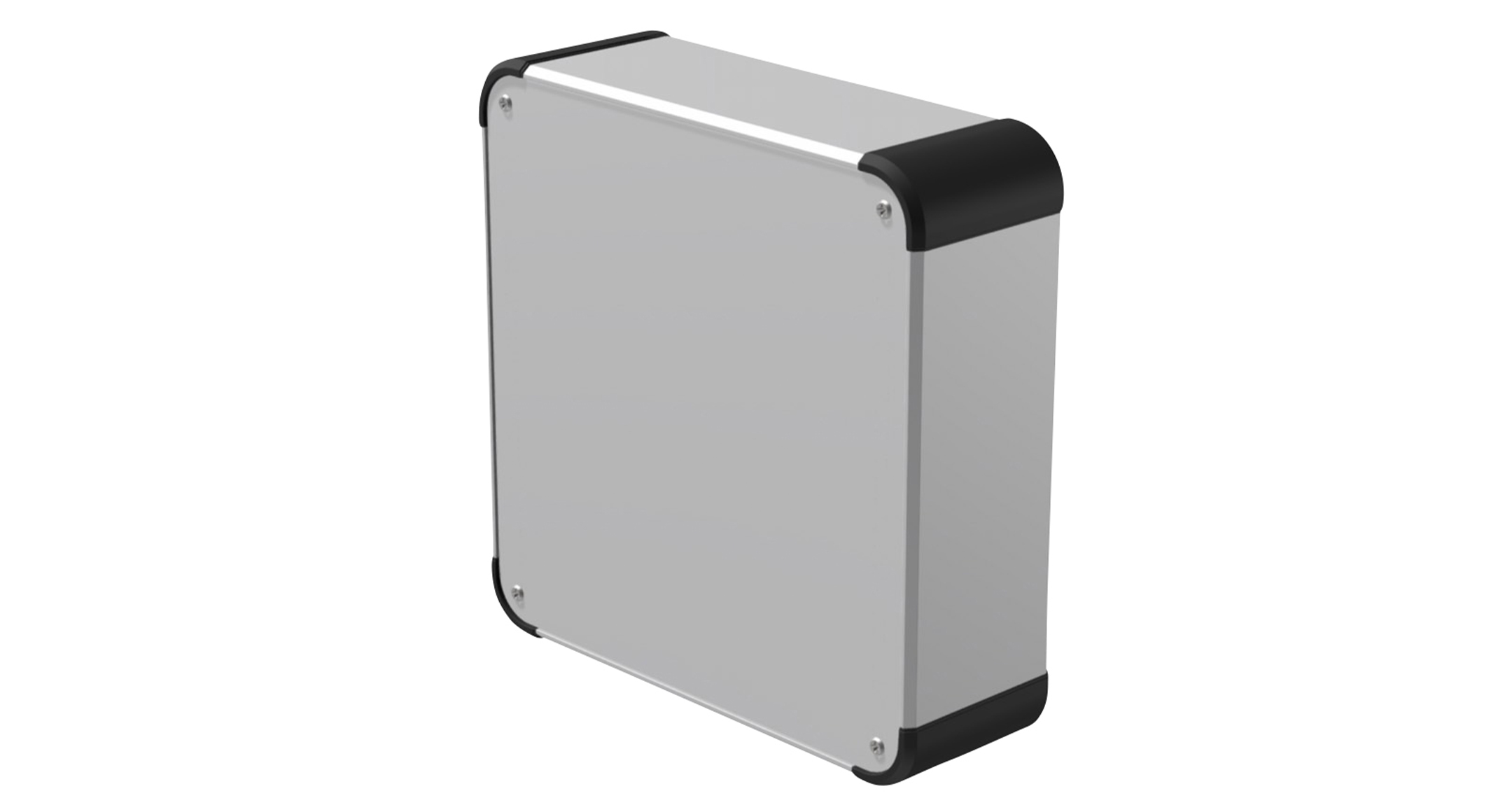

SBSilver / Corner : Black

ALUMINIUM CONTROL BOX - AUX series:Silver / Corner : Black

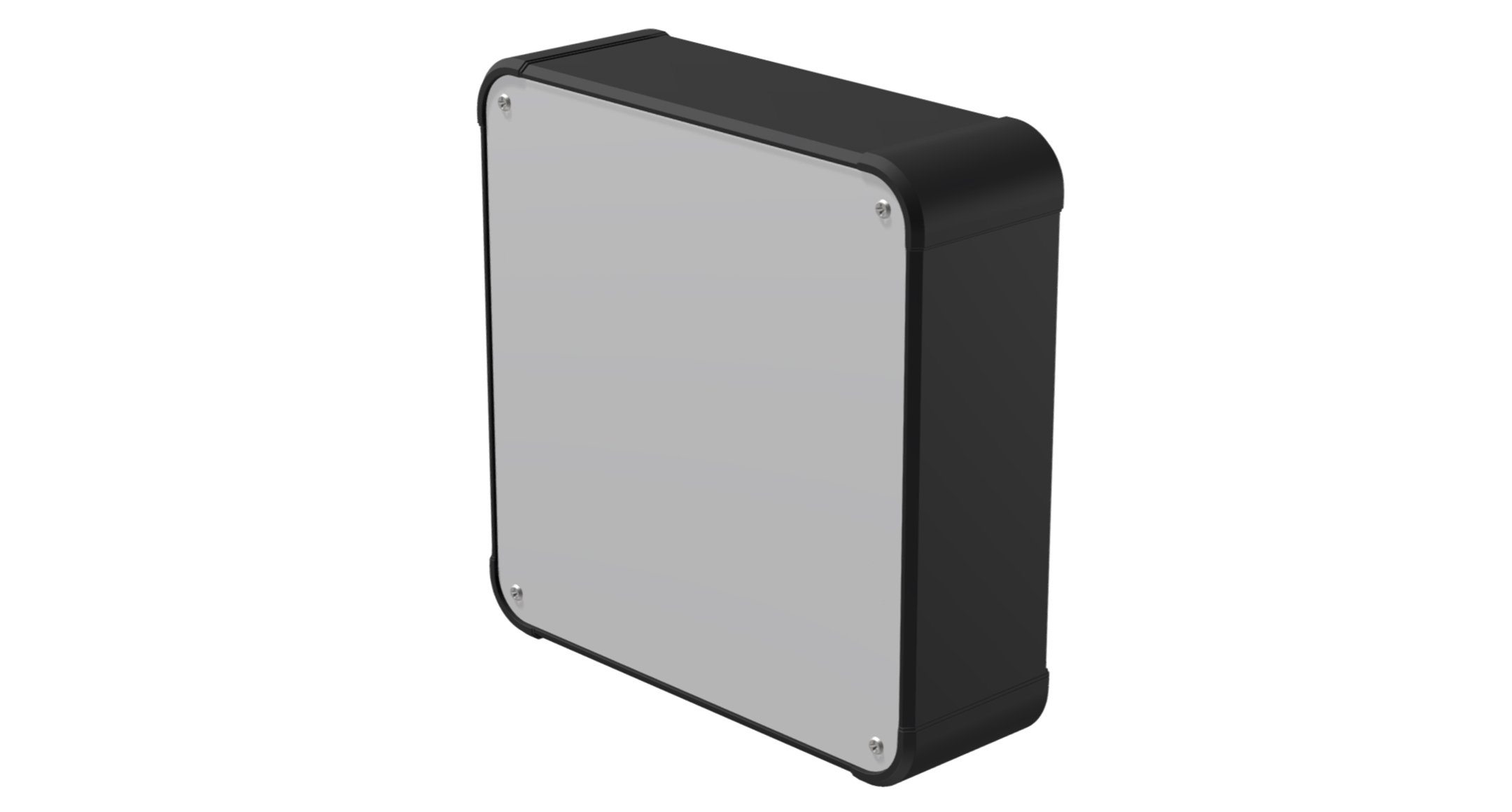

BXSilver / Side : Black

ALUMINIUM CONTROL BOX - AUX series:Silver / Side : Black

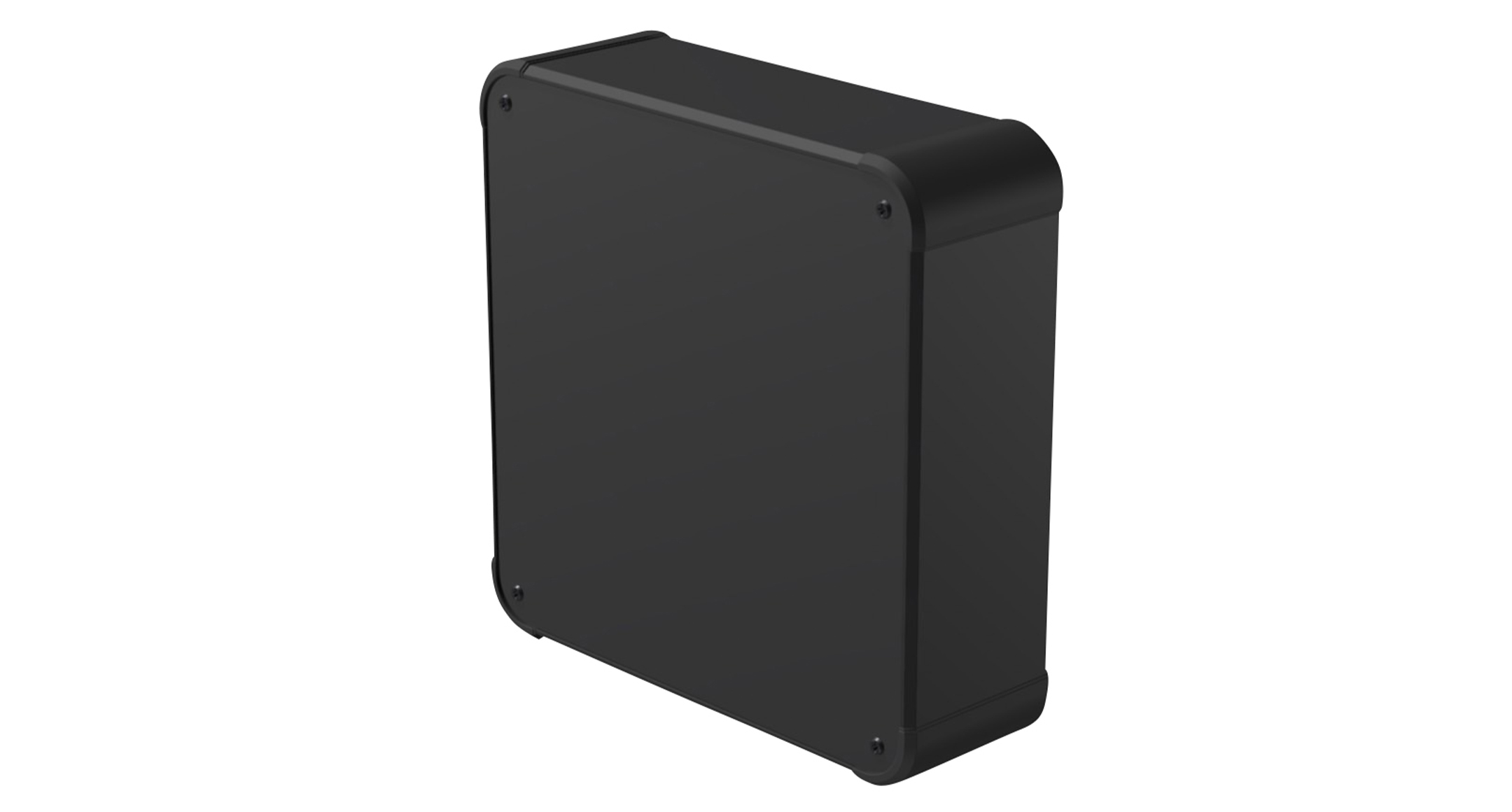

BBBlack

ALUMINIUM CONTROL BOX - AUX series:Black
ALUMINIUM CONTROL BOX - AUX series:Silver
ALUMINIUM CONTROL BOX - AUX series:Silver / Corner : Black
ALUMINIUM CONTROL BOX - AUX series:Silver / Side : Black
ALUMINIUM CONTROL BOX - AUX series:Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Feet Weight (kg) PDF DXF DWG STP
W H D w h d
AUX44-16-16A□-□□ 160 44 160 153 37 153 Aluminium feet 0.7 PDF DXF DWG
AUX44-16-16R□-□□ 160 44 160 153 37 153 Rubber feet 0.7 PDF DXF DWG
AUX44-20-16A□-□□ 200 44 160 193 37 153 Aluminium feet 0.8 PDF DXF DWG
AUX44-20-16R□-□□ 200 44 160 193 37 153 Rubber feet 0.8 PDF DXF DWG
AUX44-20-20A□-□□ 200 44 200 193 37 193 Aluminium feet 0.9 PDF DXF DWG
AUX44-20-20R□-□□ 200 44 200 193 37 193 Rubber feet 0.9 PDF DXF DWG
AUX44-25-16A□-□□ 250 44 160 243 37 153 Aluminium feet 1 PDF DXF DWG
AUX44-25-16R□-□□ 250 44 160 243 37 153 Rubber feet 1 PDF DXF DWG
AUX44-25-20A□-□□ 250 44 200 243 37 193 Aluminium feet 1.1 PDF DXF DWG
AUX44-25-20R□-□□ 250 44 200 243 37 193 Rubber feet 1.1 PDF DXF DWG
AUX44-25-25A□-□□ 250 44 250 243 37 243 Aluminium feet 1.3 PDF DXF DWG
AUX44-25-25R□-□□ 250 44 250 243 37 243 Rubber feet 1.3 PDF DXF DWG
AUX44-30-16A□-□□ 300 44 160 293 37 153 Aluminium feet 1.1 PDF DXF DWG
AUX44-30-16R□-□□ 300 44 160 293 37 153 Rubber feet 1.1 PDF DXF DWG
AUX44-30-20A□-□□ 300 44 200 293 37 193 Aluminium feet 1.3 PDF DXF DWG
AUX44-30-20R□-□□ 300 44 200 293 37 193 Rubber feet 1.3 PDF DXF DWG
AUX44-30-25A□-□□ 300 44 250 293 37 243 Aluminium feet 1.5 PDF DXF DWG
AUX44-30-25R□-□□ 300 44 250 293 37 243 Rubber feet 1.5 PDF DXF DWG
AUX44-30-30A□-□□ 300 44 300 293 37 293 Aluminium feet 1.7 PDF DXF DWG
AUX44-30-30R□-□□ 300 44 300 293 37 293 Rubber feet 1.7 PDF DXF DWG
AUX44-36-16A□-□□ 360 44 160 353 37 153 Aluminium feet 1.3 PDF DXF DWG
AUX44-36-16R□-□□ 360 44 160 353 37 153 Rubber feet 1.3 PDF DXF DWG
AUX44-36-20A□-□□ 360 44 200 353 37 193 Aluminium feet 1.5 PDF DXF DWG
AUX44-36-20R□-□□ 360 44 200 353 37 193 Rubber feet 1.5 PDF DXF DWG
AUX44-36-25A□-□□ 360 44 250 353 37 243 Aluminium feet 1.7 PDF DXF DWG
AUX44-36-25R□-□□ 360 44 250 353 37 243 Rubber feet 1.7 PDF DXF DWG
AUX44-36-30A□-□□ 360 44 300 353 37 293 Aluminium feet 2 PDF DXF DWG
AUX44-36-30R□-□□ 360 44 300 353 37 293 Rubber feet 2 PDF DXF DWG
AUX44-36-36A□-□□ 360 44 360 353 37 353 Aluminium feet 2.2 PDF DXF DWG
AUX44-36-36R□-□□ 360 44 360 353 37 353 Rubber feet 2.2 PDF DXF DWG
AUX44-43-16A□-□□ 430 44 160 423 37 153 Aluminium feet 1.5 PDF DXF DWG
AUX44-43-16R□-□□ 430 44 160 423 37 153 Rubber feet 1.5 PDF DXF DWG
AUX44-43-20A□-□□ 430 44 200 423 37 193 Aluminium feet 1.7 PDF DXF DWG
AUX44-43-20R□-□□ 430 44 200 423 37 193 Rubber feet 1.7 PDF DXF DWG
AUX44-43-25A□-□□ 430 44 250 423 37 243 Aluminium feet 2 PDF DXF DWG
AUX44-43-25R□-□□ 430 44 250 423 37 243 Rubber feet 2 PDF DXF DWG
AUX44-43-30A□-□□ 430 44 300 423 37 293 Aluminium feet 2.3 PDF DXF DWG
AUX44-43-30R□-□□ 430 44 300 423 37 293 Rubber feet 2.3 PDF DXF DWG
AUX44-43-36A□-□□ 430 44 360 423 37 353 Aluminium feet 2.6 PDF DXF DWG
AUX44-43-36R□-□□ 430 44 360 423 37 353 Rubber feet 2.6 PDF DXF DWG
AUX44-43-43A□-□□ 430 44 430 423 37 423 Aluminium feet 3 PDF DXF DWG
AUX44-43-43R□-□□ 430 44 430 423 37 423 Rubber feet 3 PDF DXF DWG
AUX44-50-30A□-□□ 500 44 300 493 37 293 Aluminium feet 2.6 PDF DXF DWG
AUX44-50-30R□-□□ 500 44 300 493 37 293 Rubber feet 2.6 PDF DXF DWG
AUX44-50-36A□-□□ 500 44 360 493 37 353 Aluminium feet 3 PDF DXF DWG
AUX44-50-36R□-□□ 500 44 360 493 37 353 Rubber feet 3 PDF DXF DWG
AUX44-50-43A□-□□ 500 44 430 493 37 423 Aluminium feet 3.4 PDF DXF DWG
AUX44-50-43R□-□□ 500 44 430 493 37 423 Rubber feet 3.4 PDF DXF DWG
AUX44-50-50A□-□□ 500 44 500 493 37 493 Aluminium feet 3.9 PDF DXF DWG
AUX44-50-50R□-□□ 500 44 500 493 37 493 Rubber feet 3.9 PDF DXF DWG
AUX44-60-36A□-□□ 600 44 360 593 37 353 Aluminium feet 3.5 PDF DXF DWG
AUX44-60-36R□-□□ 600 44 360 593 37 353 Rubber feet 3.5 PDF DXF DWG
AUX44-60-43A□-□□ 600 44 430 593 37 423 Aluminium feet 4 PDF DXF DWG
AUX44-60-43R□-□□ 600 44 430 593 37 423 Rubber feet 4 PDF DXF DWG
AUX66-16-16A□-□□ 160 66 160 153 59 153 Aluminium feet 0.9 PDF DXF DWG
AUX66-16-16R□-□□ 160 66 160 153 59 153 Rubber feet 0.9 PDF DXF DWG
AUX66-20-16A□-□□ 200 66 160 193 59 153 Aluminium feet 1 PDF DXF DWG
AUX66-20-16R□-□□ 200 66 160 193 59 153 Rubber feet 1 PDF DXF DWG
AUX66-20-20A□-□□ 200 66 200 193 59 193 Aluminium feet 1.1 PDF DXF DWG
AUX66-20-20R□-□□ 200 66 200 193 59 193 Rubber feet 1.1 PDF DXF DWG
AUX66-25-16A□-□□ 250 66 160 243 59 153 Aluminium feet 1.2 PDF DXF DWG
AUX66-25-16R□-□□ 250 66 160 243 59 153 Rubber feet 1.2 PDF DXF DWG
AUX66-25-20A□-□□ 250 66 200 243 59 193 Aluminium feet 1.3 PDF DXF DWG
AUX66-25-20R□-□□ 250 66 200 243 59 193 Rubber feet 1.3 PDF DXF DWG
AUX66-25-25A□-□□ 250 66 250 243 59 243 Aluminium feet 1.5 PDF DXF DWG
AUX66-25-25R□-□□ 250 66 250 243 59 243 Rubber feet 1.5 PDF DXF DWG
AUX66-30-16A□-□□ 300 66 160 293 59 153 Aluminium feet 1.3 PDF DXF DWG
AUX66-30-16R□-□□ 300 66 160 293 59 153 Rubber feet 1.3 PDF DXF DWG
AUX66-30-20A□-□□ 300 66 200 293 59 193 Aluminium feet 1.5 PDF DXF DWG
AUX66-30-20R□-□□ 300 66 200 293 59 193 Rubber feet 1.5 PDF DXF DWG
AUX66-30-25A□-□□ 300 66 250 293 59 243 Aluminium feet 1.7 PDF DXF DWG
AUX66-30-25R□-□□ 300 66 250 293 59 243 Rubber feet 1.7 PDF DXF DWG
AUX66-30-30A□-□□ 300 66 300 293 59 293 Aluminium feet 2 PDF DXF DWG
AUX66-30-30R□-□□ 300 66 300 293 59 293 Rubber feet 2 PDF DXF DWG
AUX66-36-16A□-□□ 360 66 160 353 59 153 Aluminium feet 1.4 PDF DXF DWG
AUX66-36-16R□-□□ 360 66 160 353 59 153 Rubber feet 1.4 PDF DXF DWG
AUX66-36-20A□-□□ 360 66 200 353 59 193 Aluminium feet 1.7 PDF DXF DWG
AUX66-36-20R□-□□ 360 66 200 353 59 193 Rubber feet 1.7 PDF DXF DWG
AUX66-36-25A□-□□ 360 66 250 353 59 243 Aluminium feet 2 PDF DXF DWG
AUX66-36-25R□-□□ 360 66 250 353 59 243 Rubber feet 2 PDF DXF DWG
AUX66-36-30A□-□□ 360 66 300 353 59 293 Aluminium feet 2.2 PDF DXF DWG
AUX66-36-30R□-□□ 360 66 300 353 59 293 Rubber feet 2.2 PDF DXF DWG
AUX66-36-36A□-□□ 360 66 360 353 59 353 Aluminium feet 2.6 PDF DXF DWG
AUX66-36-36R□-□□ 360 66 360 353 59 353 Rubber feet 2.6 PDF DXF DWG
AUX66-43-16A□-□□ 430 66 160 423 59 153 Aluminium feet 1.7 PDF DXF DWG
AUX66-43-16R□-□□ 430 66 160 423 59 153 Rubber feet 1.7 PDF DXF DWG
AUX66-43-20A□-□□ 430 66 200 423 59 193 Aluminium feet 2 PDF DXF DWG
AUX66-43-20R□-□□ 430 66 200 423 59 193 Rubber feet 2 PDF DXF DWG
AUX66-43-25A□-□□ 430 66 250 423 59 243 Aluminium feet 2.3 PDF DXF DWG
AUX66-43-25R□-□□ 430 66 250 423 59 243 Rubber feet 2.3 PDF DXF DWG
AUX66-43-30A□-□□ 430 66 300 423 59 293 Aluminium feet 2.6 PDF DXF DWG
AUX66-43-30R□-□□ 430 66 300 423 59 293 Rubber feet 2.6 PDF DXF DWG
AUX66-43-36A□-□□ 430 66 360 423 59 353 Aluminium feet 3 PDF DXF DWG
AUX66-43-36R□-□□ 430 66 360 423 59 353 Rubber feet 3 PDF DXF DWG
AUX66-43-43A□-□□ 430 66 430 423 59 423 Aluminium feet 3.4 PDF DXF DWG
AUX66-43-43R□-□□ 430 66 430 423 59 423 Rubber feet 3.4 PDF DXF DWG
AUX66-50-30A□-□□ 500 66 300 493 59 293 Aluminium feet 2.9 PDF DXF DWG
AUX66-50-30R□-□□ 500 66 300 493 59 293 Rubber feet 2.9 PDF DXF DWG
AUX66-50-36A□-□□ 500 66 360 493 59 353 Aluminium feet 3.3 PDF DXF DWG
AUX66-50-36R□-□□ 500 66 360 493 59 353 Rubber feet 3.3 PDF DXF DWG
AUX66-50-43A□-□□ 500 66 430 493 59 423 Aluminium feet 3.8 PDF DXF DWG
AUX66-50-43R□-□□ 500 66 430 493 59 423 Rubber feet 3.8 PDF DXF DWG
AUX66-50-50A□-□□ 500 66 500 493 59 493 Aluminium feet 4.3 PDF DXF DWG
AUX66-50-50R□-□□ 500 66 500 493 59 493 Rubber feet 4.3 PDF DXF DWG
AUX66-60-36A□-□□ 600 66 360 593 59 353 Aluminium feet 3.8 PDF DXF DWG
AUX66-60-36R□-□□ 600 66 360 593 59 353 Rubber feet 3.8 PDF DXF DWG
AUX66-60-43A□-□□ 600 66 430 593 59 423 Aluminium feet 4.4 PDF DXF DWG
AUX66-60-43R□-□□ 600 66 430 593 59 423 Rubber feet 4.4 PDF DXF DWG
AUX88-16-16A□-□□ 160 88 160 153 81 153 Aluminium feet 1 PDF DXF DWG
AUX88-16-16R□-□□ 160 88 160 153 81 153 Rubber feet 1 PDF DXF DWG
AUX88-20-16A□-□□ 200 88 160 193 81 153 Aluminium feet 1.1 PDF DXF DWG
AUX88-20-16R□-□□ 200 88 160 193 81 153 Rubber feet 1.1 PDF DXF DWG
AUX88-20-20A□-□□ 200 88 200 193 81 193 Aluminium feet 1.3 PDF DXF DWG
AUX88-20-20R□-□□ 200 88 200 193 81 193 Rubber feet 1.3 PDF DXF DWG
AUX88-25-16A□-□□ 250 88 160 243 81 153 Aluminium feet 1.3 PDF DXF DWG
AUX88-25-16R□-□□ 250 88 160 243 81 153 Rubber feet 1.3 PDF DXF DWG
AUX88-25-20A□-□□ 250 88 200 243 81 193 Aluminium feet 1.5 PDF DXF DWG
AUX88-25-20R□-□□ 250 88 200 243 81 193 Rubber feet 1.5 PDF DXF DWG
AUX88-25-25A□-□□ 250 88 250 243 81 243 Aluminium feet 1.7 PDF DXF DWG
AUX88-25-25R□-□□ 250 88 250 243 81 243 Rubber feet 1.7 PDF DXF DWG
AUX88-30-16A□-□□ 300 88 160 293 81 153 Aluminium feet 1.5 PDF DXF DWG
AUX88-30-16R□-□□ 300 88 160 293 81 153 Rubber feet 1.5 PDF DXF DWG
AUX88-30-20A□-□□ 300 88 200 293 81 193 Aluminium feet 1.7 PDF DXF DWG
AUX88-30-20R□-□□ 300 88 200 293 81 193 Rubber feet 1.7 PDF DXF DWG
AUX88-30-25A□-□□ 300 88 250 293 81 243 Aluminium feet 1.9 PDF DXF DWG
AUX88-30-25R□-□□ 300 88 250 293 81 243 Rubber feet 1.9 PDF DXF DWG
AUX88-30-30A□-□□ 300 88 300 293 81 293 Aluminium feet 2.2 PDF DXF DWG
AUX88-30-30R□-□□ 300 88 300 293 81 293 Rubber feet 2.2 PDF DXF DWG
AUX88-36-16A□-□□ 360 88 160 353 81 153 Aluminium feet 1.6 PDF DXF DWG
AUX88-36-16R□-□□ 360 88 160 353 81 153 Rubber feet 1.6 PDF DXF DWG
AUX88-36-20A□-□□ 360 88 200 353 81 193 Aluminium feet 1.9 PDF DXF DWG
AUX88-36-20R□-□□ 360 88 200 353 81 193 Rubber feet 1.9 PDF DXF DWG
AUX88-36-25A□-□□ 360 88 250 353 81 243 Aluminium feet 2.2 PDF DXF DWG
AUX88-36-25R□-□□ 360 88 250 353 81 243 Rubber feet 2.2 PDF DXF DWG
AUX88-36-30A□-□□ 360 88 300 353 81 293 Aluminium feet 2.4 PDF DXF DWG
AUX88-36-30R□-□□ 360 88 300 353 81 293 Rubber feet 2.4 PDF DXF DWG
AUX88-36-36A□-□□ 360 88 360 353 81 353 Aluminium feet 2.8 PDF DXF DWG
AUX88-36-36R□-□□ 360 88 360 353 81 353 Rubber feet 2.8 PDF DXF DWG
AUX88-43-16A□-□□ 430 88 160 423 81 153 Aluminium feet 1.9 PDF DXF DWG
AUX88-43-16R□-□□ 430 88 160 423 81 153 Rubber feet 1.9 PDF DXF DWG
AUX88-43-20A□-□□ 430 88 200 423 81 193 Aluminium feet 2.2 PDF DXF DWG
AUX88-43-20R□-□□ 430 88 200 423 81 193 Rubber feet 2.2 PDF DXF DWG
AUX88-43-25A□-□□ 430 88 250 423 81 243 Aluminium feet 2.5 PDF DXF DWG
AUX88-43-25R□-□□ 430 88 250 423 81 243 Rubber feet 2.5 PDF DXF DWG
AUX88-43-30A□-□□ 430 88 300 423 81 293 Aluminium feet 2.8 PDF DXF DWG
AUX88-43-30R□-□□ 430 88 300 423 81 293 Rubber feet 2.8 PDF DXF DWG
AUX88-43-36A□-□□ 430 88 360 423 81 353 Aluminium feet 3.2 PDF DXF DWG
AUX88-43-36R□-□□ 430 88 360 423 81 353 Rubber feet 3.2 PDF DXF DWG
AUX88-43-43A□-□□ 430 88 430 423 81 423 Aluminium feet 3.6 PDF DXF DWG
AUX88-43-43R□-□□ 430 88 430 423 81 423 Rubber feet 3.6 PDF DXF DWG
AUX88-50-30A□-□□ 500 88 300 493 81 293 Aluminium feet 3.2 PDF DXF DWG
AUX88-50-30R□-□□ 500 88 300 493 81 293 Rubber feet 3.2 PDF DXF DWG
AUX88-50-36A□-□□ 500 88 360 493 81 353 Aluminium feet 3.6 PDF DXF DWG
AUX88-50-36R□-□□ 500 88 360 493 81 353 Rubber feet 3.6 PDF DXF DWG
AUX88-50-43A□-□□ 500 88 430 493 81 423 Aluminium feet 4.1 PDF DXF DWG
AUX88-50-43R□-□□ 500 88 430 493 81 423 Rubber feet 4.1 PDF DXF DWG
AUX88-50-50A□-□□ 500 88 500 493 81 493 Aluminium feet 4.6 PDF DXF DWG
AUX88-50-50R□-□□ 500 88 500 493 81 493 Rubber feet 4.6 PDF DXF DWG
AUX88-60-36A□-□□ 600 88 360 593 81 353 Aluminium feet 4.1 PDF DXF DWG
AUX88-60-36R□-□□ 600 88 360 593 81 353 Rubber feet 4.1 PDF DXF DWG
AUX88-60-43A□-□□ 600 88 430 593 81 423 Aluminium feet 4.7 PDF DXF DWG
AUX88-60-43R□-□□ 600 88 430 593 81 423 Rubber feet 4.7 PDF DXF DWG
AUX133-16-16A□-□□ 160 132.5 160 152 125.5 152 Aluminium feet 1.3 PDF DXF DWG
AUX133-16-16R□-□□ 160 132.5 160 152 125.5 152 Rubber feet 1.3 PDF DXF DWG
AUX133-20-16A□-□□ 200 132.5 160 192 125.5 152 Aluminium feet 1.5 PDF DXF DWG
AUX133-20-16R□-□□ 200 132.5 160 192 125.5 152 Rubber feet 1.5 PDF DXF DWG
AUX133-20-20A□-□□ 200 132.5 200 192 125.5 192 Aluminium feet 1.7 PDF DXF DWG
AUX133-20-20R□-□□ 200 132.5 200 192 125.5 192 Rubber feet 1.7 PDF DXF DWG
AUX133-25-16A□-□□ 250 132.5 160 242 125.5 152 Aluminium feet 1.7 PDF DXF DWG
AUX133-25-16R□-□□ 250 132.5 160 242 125.5 152 Rubber feet 1.7 PDF DXF DWG
AUX133-25-20A□-□□ 250 132.5 200 242 125.5 192 Aluminium feet 1.9 PDF DXF DWG
AUX133-25-20R□-□□ 250 132.5 200 242 125.5 192 Rubber feet 1.9 PDF DXF DWG
AUX133-25-25A□-□□ 250 132.5 250 242 125.5 242 Aluminium feet 2.2 PDF DXF DWG
AUX133-25-25R□-□□ 250 132.5 250 242 125.5 242 Rubber feet 2.2 PDF DXF DWG
AUX133-30-16A□-□□ 300 132.5 160 292 125.5 152 Aluminium feet 1.9 PDF DXF DWG
AUX133-30-16R□-□□ 300 132.5 160 292 125.5 152 Rubber feet 1.9 PDF DXF DWG
AUX133-30-20A□-□□ 300 132.5 200 292 125.5 192 Aluminium feet 2.1 PDF DXF DWG
AUX133-30-20R□-□□ 300 132.5 200 292 125.5 192 Rubber feet 2.1 PDF DXF DWG
AUX133-30-25A□-□□ 300 132.5 250 292 125.5 242 Aluminium feet 2.4 PDF DXF DWG
AUX133-30-25R□-□□ 300 132.5 250 292 125.5 242 Rubber feet 2.4 PDF DXF DWG
AUX133-30-30A□-□□ 300 132.5 300 292 125.5 292 Aluminium feet 2.7 PDF DXF DWG
AUX133-30-30R□-□□ 300 132.5 300 292 125.5 292 Rubber feet 2.7 PDF DXF DWG
AUX133-36-16A□-□□ 360 132.5 160 352 125.5 152 Aluminium feet 2.2 PDF DXF DWG
AUX133-36-16R□-□□ 360 132.5 160 352 125.5 152 Rubber feet 2.2 PDF DXF DWG
AUX133-36-20A□-□□ 360 132.5 200 352 125.5 192 Aluminium feet 2.4 PDF DXF DWG
AUX133-36-20R□-□□ 360 132.5 200 352 125.5 192 Rubber feet 2.4 PDF DXF DWG
AUX133-36-25A□-□□ 360 132.5 250 352 125.5 242 Aluminium feet 2.7 PDF DXF DWG
AUX133-36-25R□-□□ 360 132.5 250 352 125.5 242 Rubber feet 2.7 PDF DXF DWG
AUX133-36-30A□-□□ 360 132.5 300 352 125.5 292 Aluminium feet 3.1 PDF DXF DWG
AUX133-36-30R□-□□ 360 132.5 300 352 125.5 292 Rubber feet 3.1 PDF DXF DWG
AUX133-36-36A□-□□ 360 132.5 360 352 125.5 352 Aluminium feet 3.4 PDF DXF DWG
AUX133-36-36R□-□□ 360 132.5 360 352 125.5 352 Rubber feet 3.4 PDF DXF DWG
AUX133-43-16A□-□□ 430 132.5 160 422 125.5 152 Aluminium feet 2.5 PDF DXF DWG
AUX133-43-16R□-□□ 430 132.5 160 422 125.5 152 Rubber feet 2.5 PDF DXF DWG
AUX133-43-20A□-□□ 430 132.5 200 422 125.5 192 Aluminium feet 2.8 PDF DXF DWG
AUX133-43-20R□-□□ 430 132.5 200 422 125.5 192 Rubber feet 2.8 PDF DXF DWG
AUX133-43-25A□-□□ 430 132.5 250 422 125.5 242 Aluminium feet 3.1 PDF DXF DWG
AUX133-43-25R□-□□ 430 132.5 250 422 125.5 242 Rubber feet 3.1 PDF DXF DWG
AUX133-43-30A□-□□ 430 132.5 300 422 125.5 292 Aluminium feet 3.5 PDF DXF DWG
AUX133-43-30R□-□□ 430 132.5 300 422 125.5 292 Rubber feet 3.5 PDF DXF DWG
AUX133-43-36A□-□□ 430 132.5 360 422 125.5 352 Aluminium feet 3.9 PDF DXF DWG
AUX133-43-36R□-□□ 430 132.5 360 422 125.5 352 Rubber feet 3.9 PDF DXF DWG
AUX133-43-43A□-□□ 430 132.5 430 422 125.5 422 Aluminium feet 4.4 PDF DXF DWG
AUX133-43-43R□-□□ 430 132.5 430 422 125.5 422 Rubber feet 4.4 PDF DXF DWG
AUX133-50-30A□-□□ 500 132.5 300 492 125.5 292 Aluminium feet 3.9 PDF DXF DWG
AUX133-50-30R□-□□ 500 132.5 300 492 125.5 292 Rubber feet 3.9 PDF DXF DWG
AUX133-50-36A□-□□ 500 132.5 360 492 125.5 352 Aluminium feet 4.4 PDF DXF DWG
AUX133-50-36R□-□□ 500 132.5 360 492 125.5 352 Rubber feet 4.4 PDF DXF DWG
AUX133-50-43A□-□□ 500 132.5 430 492 125.5 422 Aluminium feet 4.9 PDF DXF DWG
AUX133-50-43R□-□□ 500 132.5 430 492 125.5 422 Rubber feet 4.9 PDF DXF DWG
AUX133-50-50A□-□□ 500 132.5 500 492 125.5 492 Aluminium feet 5.5 PDF DXF DWG
AUX133-50-50R□-□□ 500 132.5 500 492 125.5 492 Rubber feet 5.5 PDF DXF DWG
AUX133-60-36A□-□□ 600 132.5 360 592 125.5 352 Aluminium feet 5 PDF DXF DWG
AUX133-60-36R□-□□ 600 132.5 360 592 125.5 352 Rubber feet 5 PDF DXF DWG
AUX133-60-43A□-□□ 600 132.5 430 592 125.5 422 Aluminium feet 5.7 PDF DXF DWG
AUX133-60-43R□-□□ 600 132.5 430 592 125.5 422 Rubber feet 5.7 PDF DXF DWG
AUX177-16-16A□-□□ 160 177 160 152 170 152 Aluminium feet 1.5 PDF DXF DWG
AUX177-16-16R□-□□ 160 177 160 152 170 152 Rubber feet 1.5 PDF DXF DWG
AUX177-20-16A□-□□ 200 177 160 192 170 152 Aluminium feet 1.7 PDF DXF DWG
AUX177-20-16R□-□□ 200 177 160 192 170 152 Rubber feet 1.7 PDF DXF DWG
AUX177-20-20A□-□□ 200 177 200 192 170 192 Aluminium feet 1.9 PDF DXF DWG
AUX177-20-20R□-□□ 200 177 200 192 170 192 Rubber feet 1.9 PDF DXF DWG
AUX177-25-16A□-□□ 250 177 160 242 170 152 Aluminium feet 1.9 PDF DXF DWG
AUX177-25-16R□-□□ 250 177 160 242 170 152 Rubber feet 1.9 PDF DXF DWG
AUX177-25-20A□-□□ 250 177 200 242 170 192 Aluminium feet 2.2 PDF DXF DWG
AUX177-25-20R□-□□ 250 177 200 242 170 192 Rubber feet 2.2 PDF DXF DWG
AUX177-25-25A□-□□ 250 177 250 242 170 242 Aluminium feet 2.5 PDF DXF DWG
AUX177-25-25R□-□□ 250 177 250 242 170 242 Rubber feet 2.5 PDF DXF DWG
AUX177-30-16A□-□□ 300 177 160 292 170 152 Aluminium feet 2.2 PDF DXF DWG
AUX177-30-16R□-□□ 300 177 160 292 170 152 Rubber feet 2.2 PDF DXF DWG
AUX177-30-20A□-□□ 300 177 200 292 170 192 Aluminium feet 2.4 PDF DXF DWG
AUX177-30-20R□-□□ 300 177 200 292 170 192 Rubber feet 2.4 PDF DXF DWG
AUX177-30-25A□-□□ 300 177 250 292 170 242 Aluminium feet 2.8 PDF DXF DWG
AUX177-30-25R□-□□ 300 177 250 292 170 242 Rubber feet 2.8 PDF DXF DWG
AUX177-30-30A□-□□ 300 177 300 292 170 292 Aluminium feet 3.1 PDF DXF DWG
AUX177-30-30R□-□□ 300 177 300 292 170 292 Rubber feet 3.1 PDF DXF DWG
AUX177-36-16A□-□□ 360 177 160 352 170 152 Aluminium feet 2.5 PDF DXF DWG
AUX177-36-16R□-□□ 360 177 160 352 170 152 Rubber feet 2.5 PDF DXF DWG
AUX177-36-20A□-□□ 360 177 200 352 170 192 Aluminium feet 2.8 PDF DXF DWG
AUX177-36-20R□-□□ 360 177 200 352 170 192 Rubber feet 2.8 PDF DXF DWG
AUX177-36-25A□-□□ 360 177 250 352 170 242 Aluminium feet 3.1 PDF DXF DWG
AUX177-36-25R□-□□ 360 177 250 352 170 242 Rubber feet 3.1 PDF DXF DWG
AUX177-36-30A□-□□ 360 177 300 352 170 292 Aluminium feet 3.5 PDF DXF DWG
AUX177-36-30R□-□□ 360 177 300 352 170 292 Rubber feet 3.5 PDF DXF DWG
AUX177-36-36A□-□□ 360 177 360 352 170 352 Aluminium feet 3.9 PDF DXF DWG
AUX177-36-36R□-□□ 360 177 360 352 170 352 Rubber feet 3.9 PDF DXF DWG
AUX177-43-16A□-□□ 430 177 160 422 170 152 Aluminium feet 2.9 PDF DXF DWG
AUX177-43-16R□-□□ 430 177 160 422 170 152 Rubber feet 2.9 PDF DXF DWG
AUX177-43-20A□-□□ 430 177 200 422 170 192 Aluminium feet 3.2 PDF DXF DWG
AUX177-43-20R□-□□ 430 177 200 422 170 192 Rubber feet 3.2 PDF DXF DWG
AUX177-43-25A□-□□ 430 177 250 422 170 242 Aluminium feet 3.6 PDF DXF DWG
AUX177-43-25R□-□□ 430 177 250 422 170 242 Rubber feet 3.6 PDF DXF DWG
AUX177-43-30A□-□□ 430 177 300 422 170 292 Aluminium feet 4 PDF DXF DWG
AUX177-43-30R□-□□ 430 177 300 422 170 292 Rubber feet 4 PDF DXF DWG
AUX177-43-36A□-□□ 430 177 360 422 170 352 Aluminium feet 4.5 PDF DXF DWG
AUX177-43-36R□-□□ 430 177 360 422 170 352 Rubber feet 4.5 PDF DXF DWG
AUX177-43-43A□-□□ 430 177 430 422 170 422 Aluminium feet 5 PDF DXF DWG
AUX177-43-43R□-□□ 430 177 430 422 170 422 Rubber feet 5 PDF DXF DWG
AUX177-50-30A□-□□ 500 177 300 492 170 292 Aluminium feet 4.4 PDF DXF DWG
AUX177-50-30R□-□□ 500 177 300 492 170 292 Rubber feet 4.4 PDF DXF DWG
AUX177-50-36A□-□□ 500 177 360 492 170 352 Aluminium feet 5 PDF DXF DWG
AUX177-50-36R□-□□ 500 177 360 492 170 352 Rubber feet 5 PDF DXF DWG
AUX177-50-43A□-□□ 500 177 430 492 170 422 Aluminium feet 5.6 PDF DXF DWG
AUX177-50-43R□-□□ 500 177 430 492 170 422 Rubber feet 5.6 PDF DXF DWG
AUX177-50-50A□-□□ 500 177 500 492 170 492 Aluminium feet 6.2 PDF DXF DWG
AUX177-50-50R□-□□ 500 177 500 492 170 492 Rubber feet 6.2 PDF DXF DWG
AUX177-60-36A□-□□ 600 177 360 592 170 352 Aluminium feet 5.7 PDF DXF DWG
AUX177-60-36R□-□□ 600 177 360 592 170 352 Rubber feet 5.7 PDF DXF DWG
AUX177-60-43A□-□□ 600 177 430 592 170 422 Aluminium feet 6.4 PDF DXF DWG
AUX177-60-43R□-□□ 600 177 430 592 170 422 Rubber feet 6.4 PDF DXF DWG

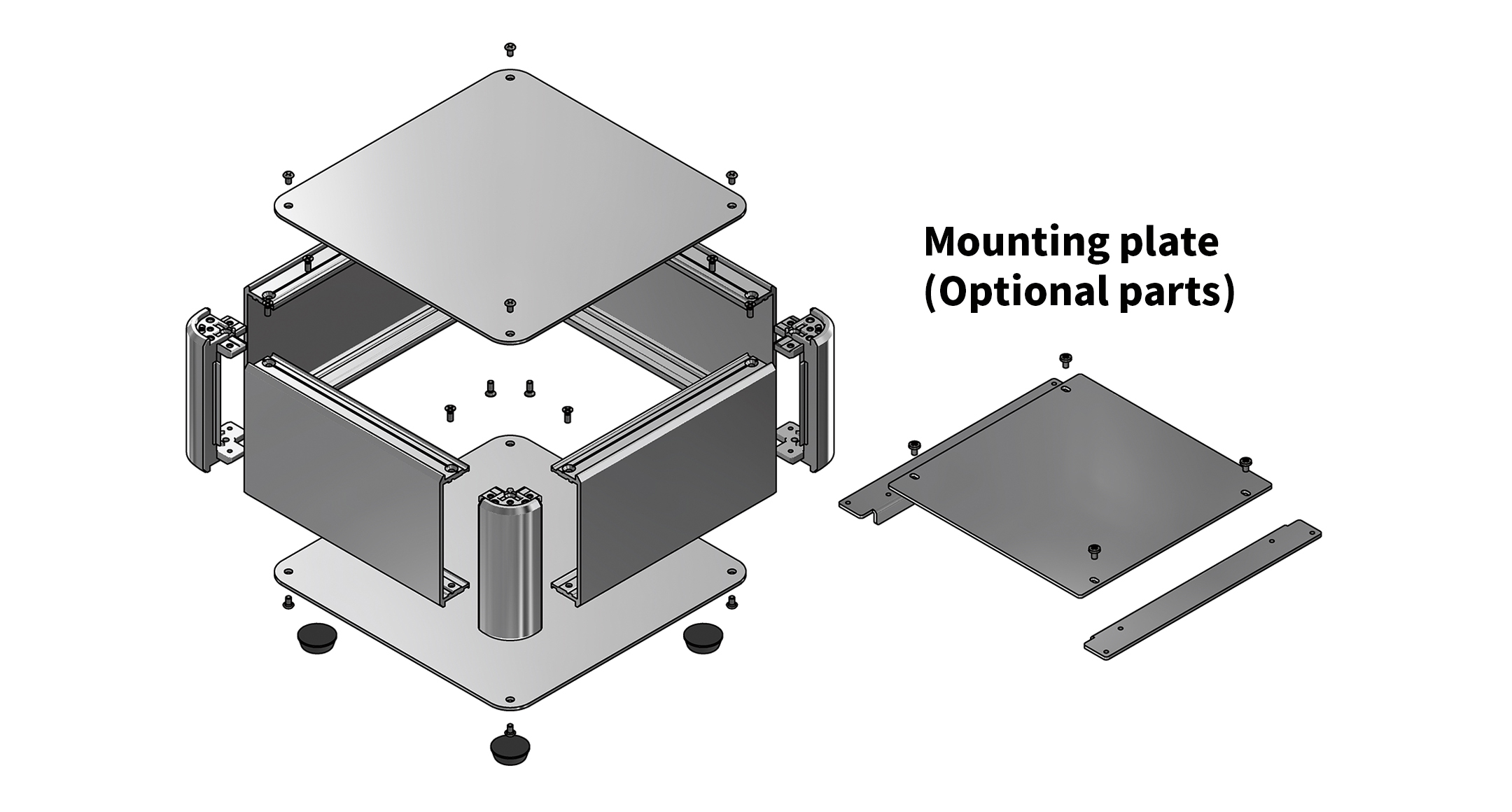

Mounting plate (Option) PDF DXF DWG STP
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
DETAILS
１
MONITOR ARM for AU□ series - MAR series
DETAILS
１
ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
１
ALUMINIUM HANDLE - OH series
DETAILS
１
ALUMINIUM ISOLATION FEET - AFM・AFS series
DETAILS
１
CORNER GUARD for AU□ series (for AU・AUP・AUPE・AUX・AUXE)
DETAILS

SIMILAR PRODUCT

１
EMC SHIELDED ALUMINIUM BOX - AUXE series
DETAILS
１
ALUMINIUM ENCLOSURE - AU series
DETAILS
１
ALUMINUM CONTROL BOX - FC series
DETAILS
１
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series
DETAILS
１
ALUMINIUM CONTROL BOX - CH series
DETAILS
１
CUSTOM SIZED ALUMINUM FRAME BOX - ALSF series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
