ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series


AUG Series -PDF

CATEGORY：Rugged enclosure, Robust enclosure, Aluminum enclosure with corner guard, Enclosure with corner bumper, Protective case, Instrument enclosure

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series1
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series2
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series3
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series4
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series5
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series6
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series7
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series8

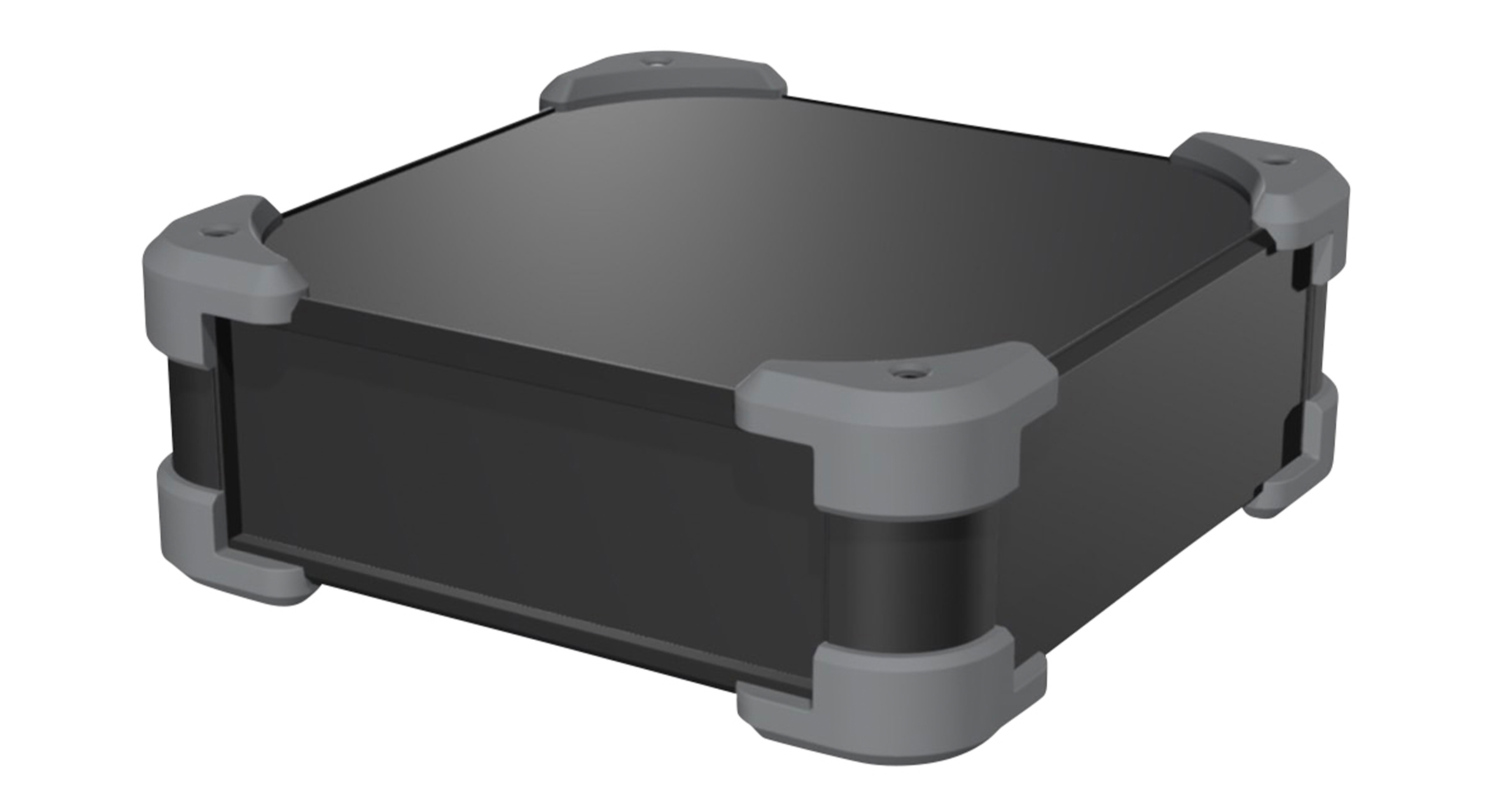

Rugged designed aluminium enclosure with TPE (Elastomer) corner guards.
Corner guards also act as non-slip rubber feet.

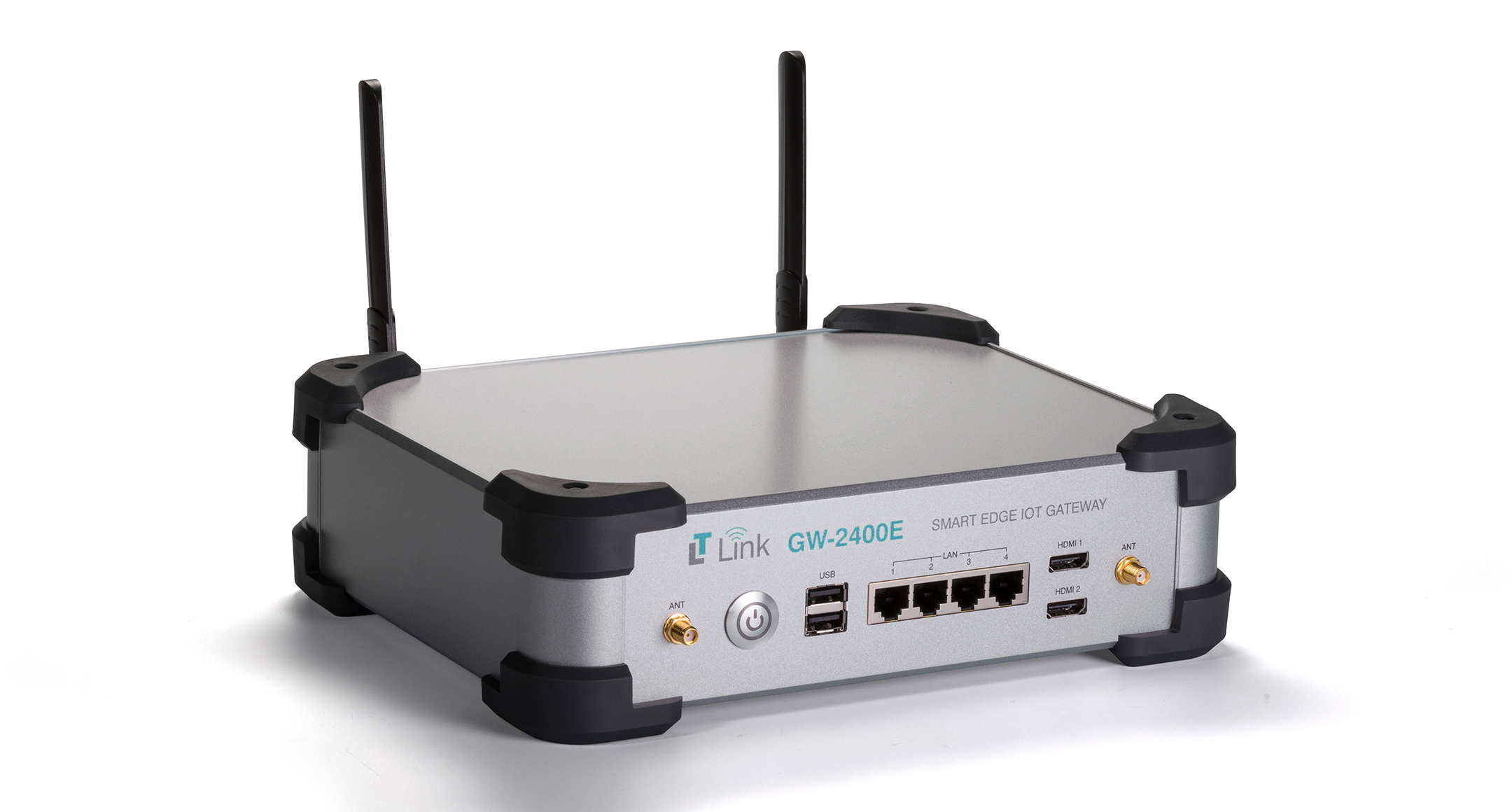

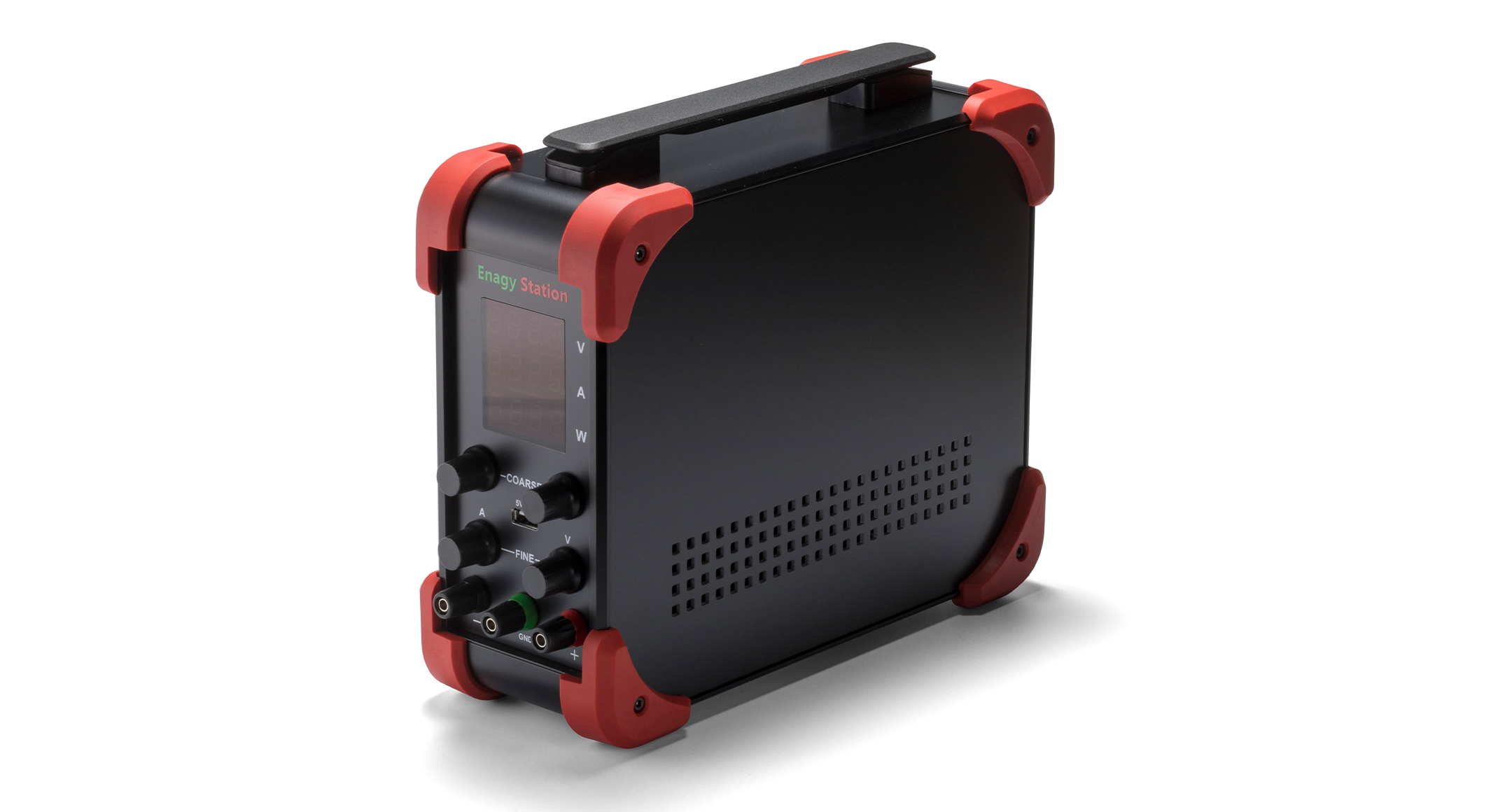

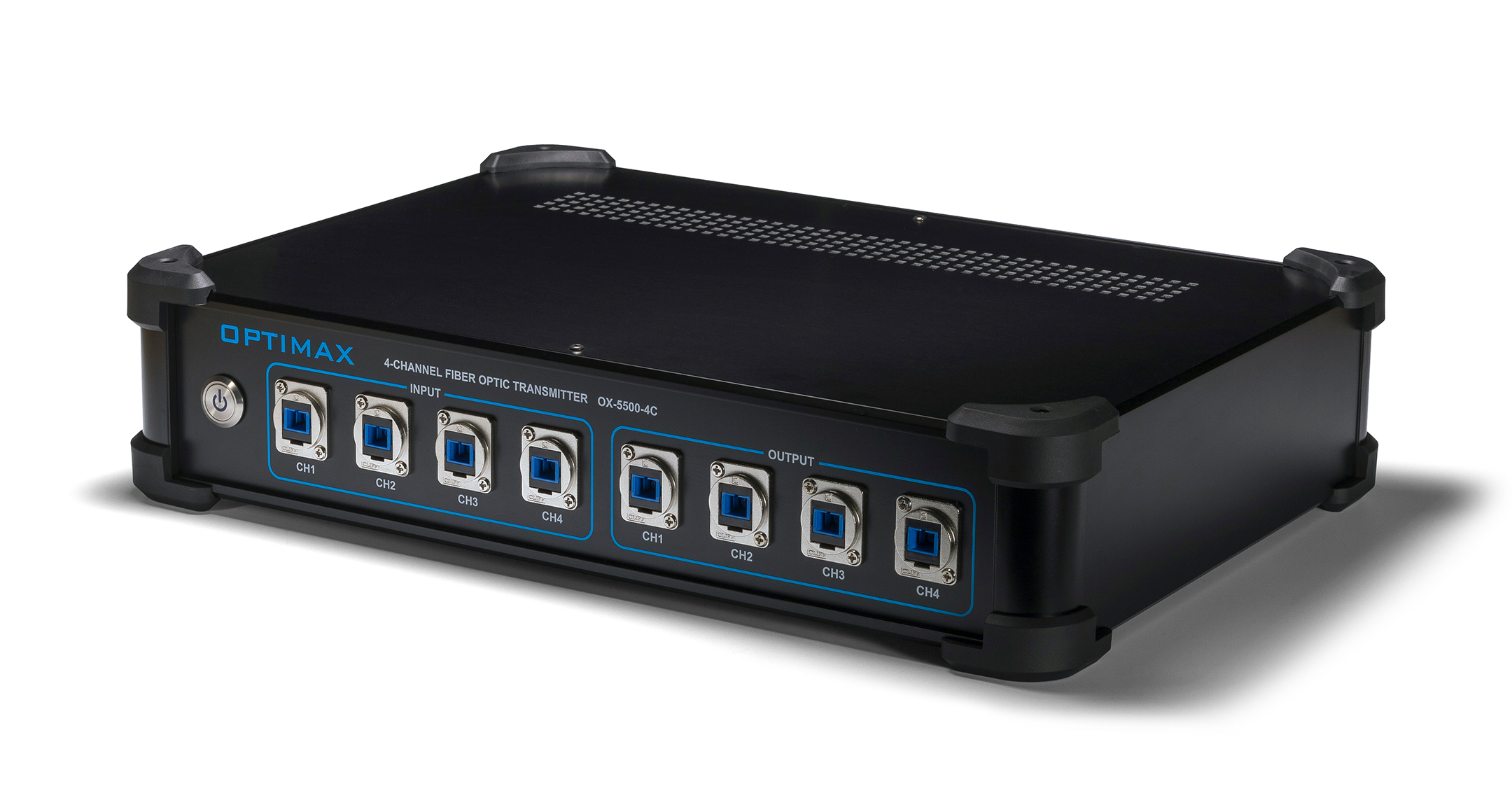

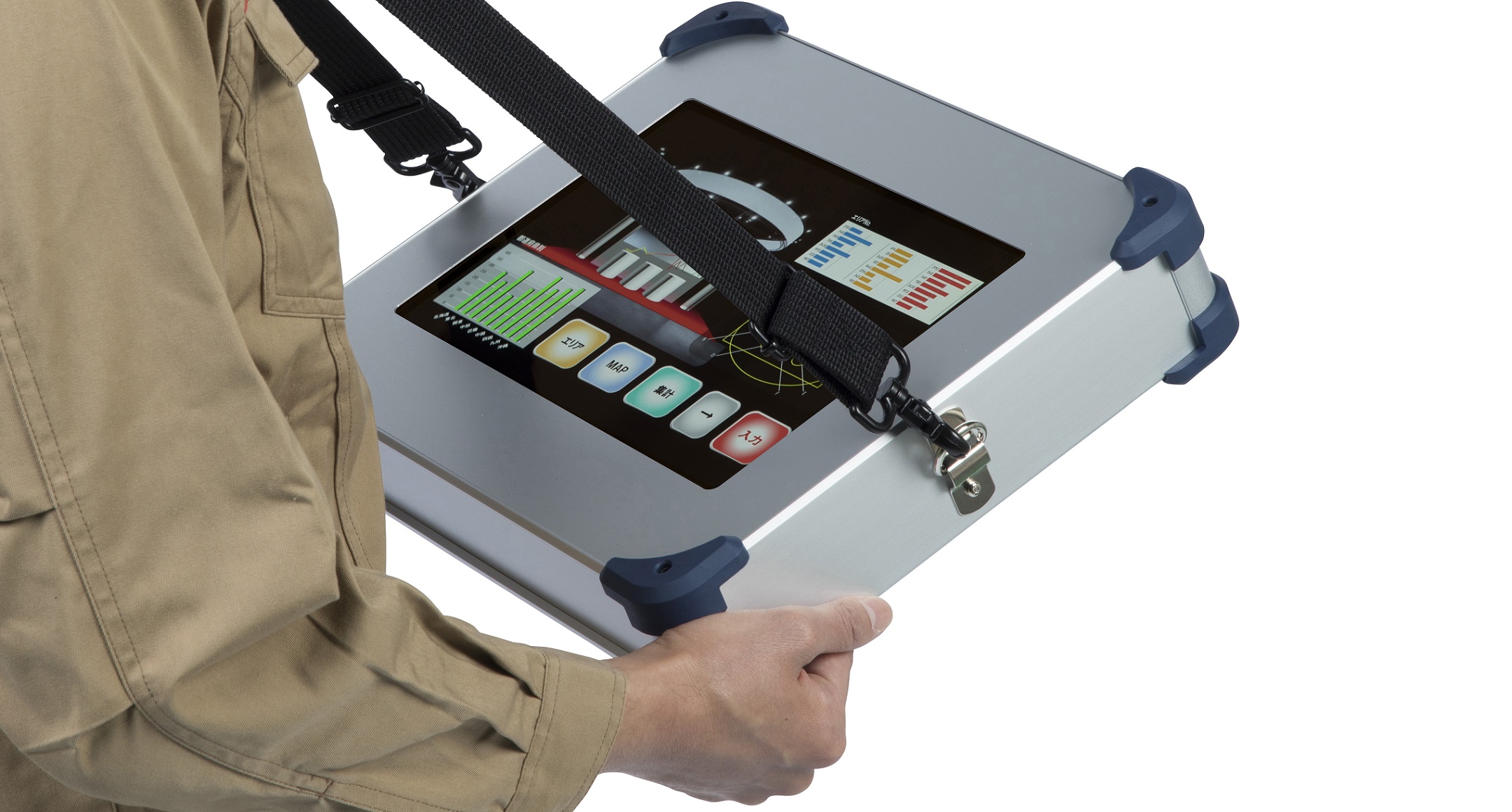

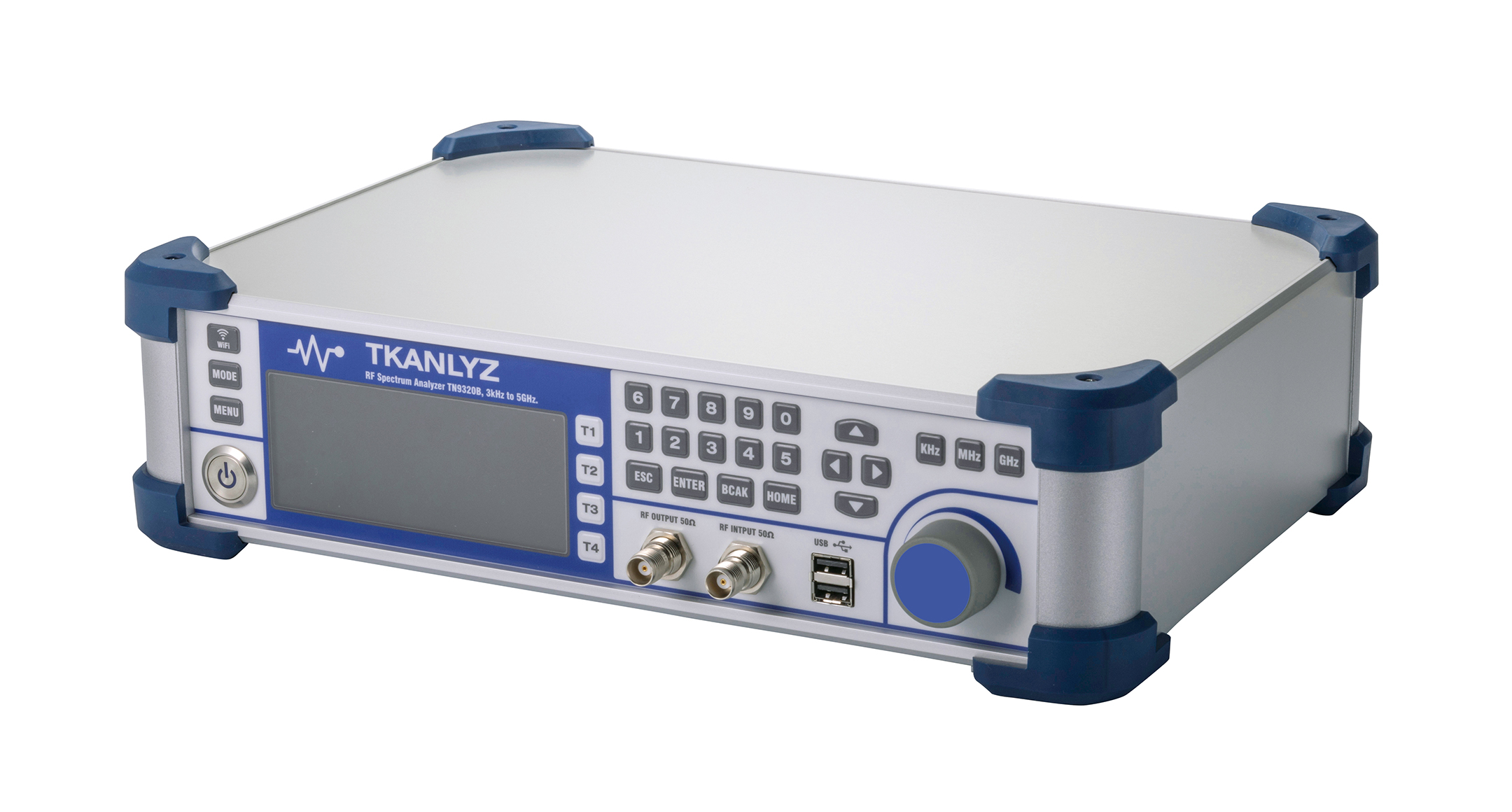

Versatile aluminium case suitable for use as measuring instrument, controller, industrial embedded computer, power supply, audio amplifier, and more.

A large selection of 430 different sizes.
A total of 8 selectable color combinations with 4 corner guard colors - Black, Gray, Navy and Red - and 2 enclosure colors - Silver and Black anodized.

【Launch Date】 *New size
Height H=266 is scheduled for launch in February 2026.

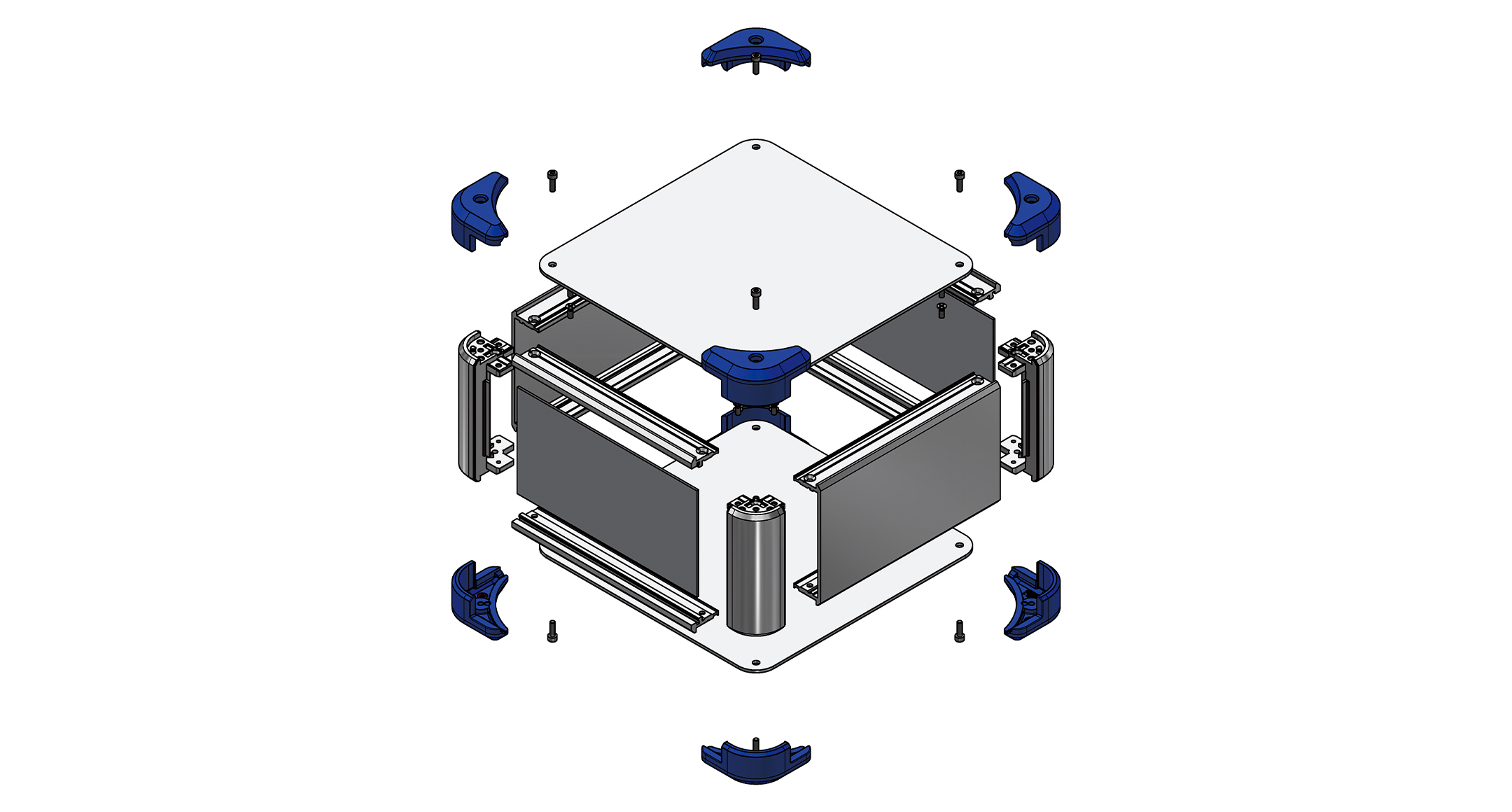

3D View - Silver/Navy  3D View - silver/Gray (With handle)  3D View - Black  3D View - Black/Red  3D View - Black/Navy  Exploded view  Color code 

COLOR TYPE

SBSilver / Black

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Black

SGSilver / Gray

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Gray

SNSilver / Navy

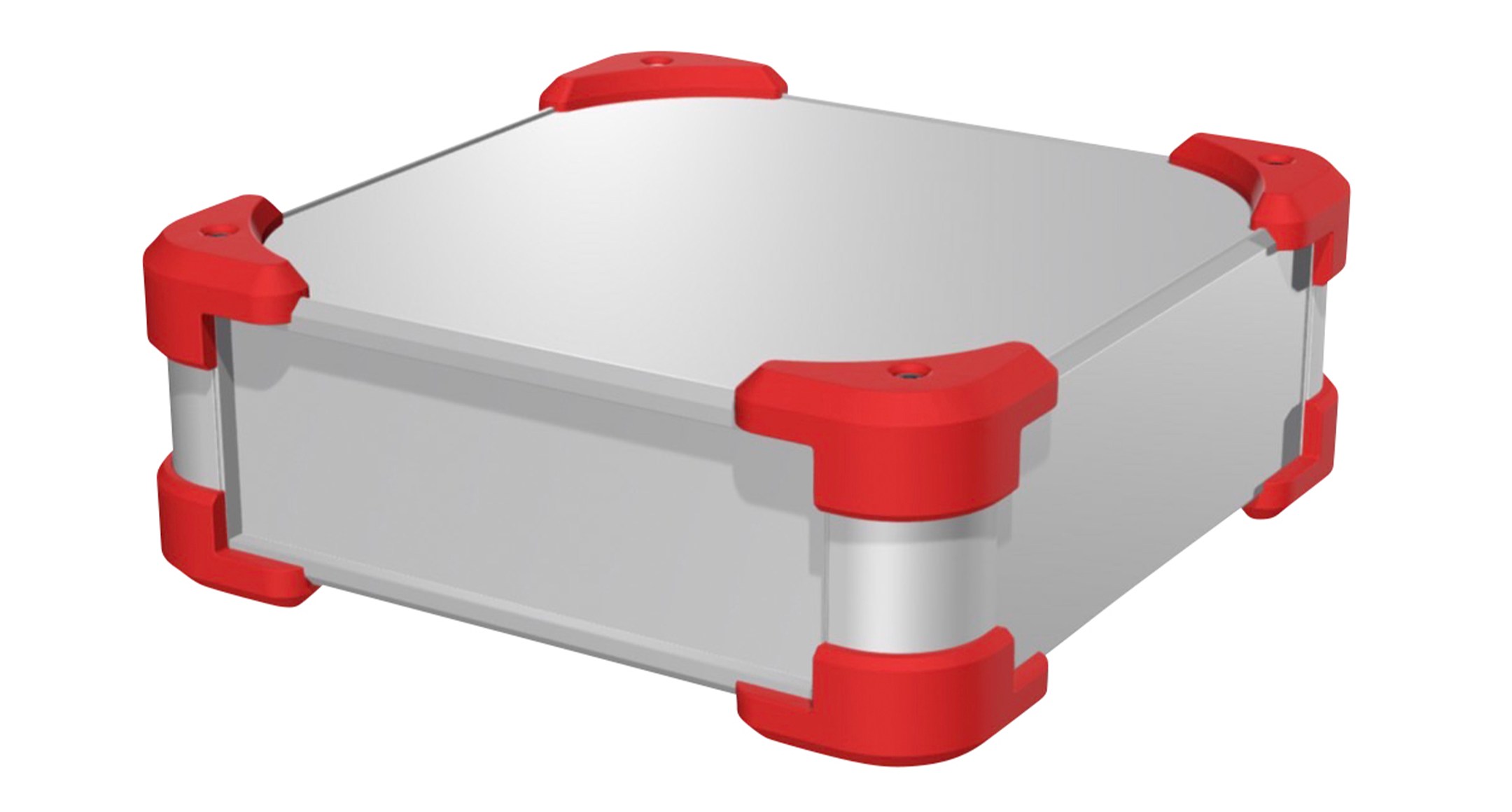

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Navy

SRSilver / Red

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Red

BBBlack / Black

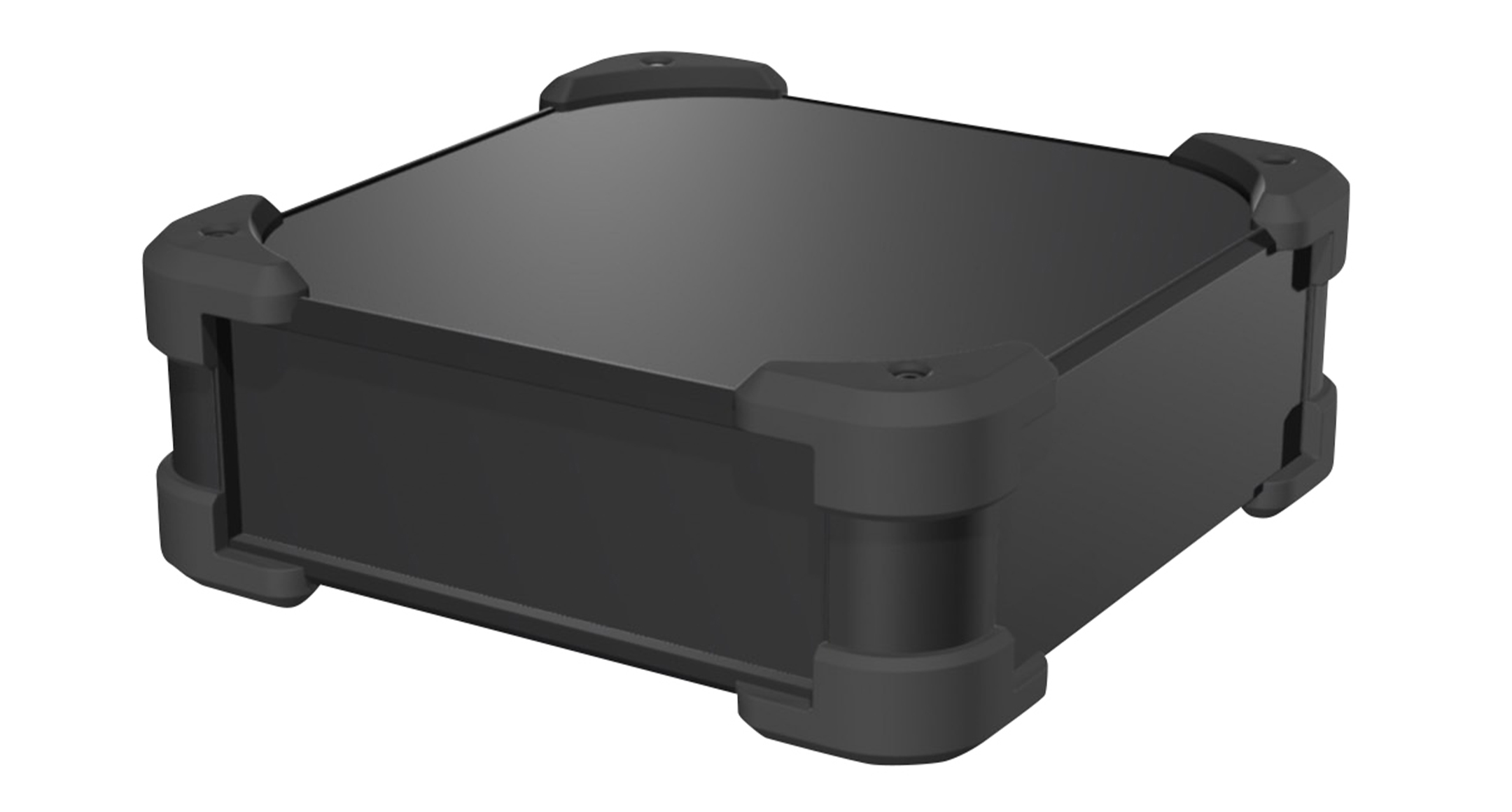

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Black

BGBlack / Gray

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Gray

BNBlack / Navy

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Navy

BRBlack / Red

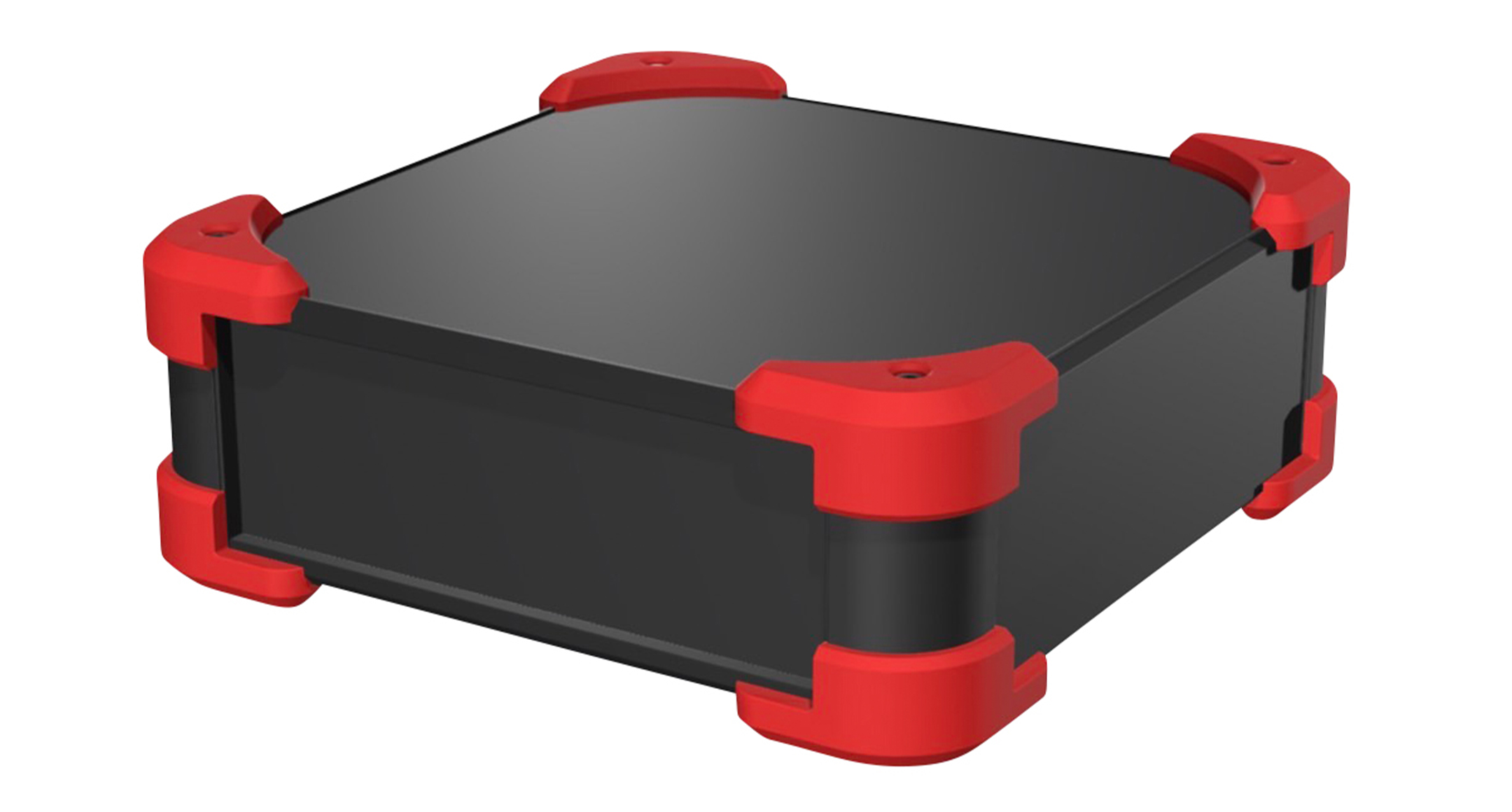

ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Red
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Black
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Gray
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Navy
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Silver / Red
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Black
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Gray
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Navy
ALUMINIUM ENCLOSURE with CORNER GUARD - AUG series:Black / Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (kg) PDF DXF DWG STP
W H D w h d
AUG44-16-16-□□ 168 56 168 153 37 146 0.7 PDF DXF DWG
AUG44-16-20-□□ 168 56 208 153 37 186 0.8 PDF DXF DWG
AUG44-16-25-□□ 168 56 258 153 37 236 1 PDF DXF DWG
AUG44-16-30-□□ 168 56 308 153 37 286 1.1 PDF DXF DWG
AUG44-16-36-□□ 168 56 368 153 37 346 1.3 PDF DXF DWG
AUG44-16-43-□□ 168 56 438 153 37 416 1.5 PDF DXF DWG
AUG44-20-16-□□ 208 56 168 193 37 146 0.8 PDF DXF DWG
AUG44-20-20-□□ 208 56 208 193 37 186 1 PDF DXF DWG
AUG44-20-25-□□ 208 56 258 193 37 236 1.1 PDF DXF DWG
AUG44-20-30-□□ 208 56 308 193 37 286 1.3 PDF DXF DWG
AUG44-20-36-□□ 208 56 368 193 37 346 1.5 PDF DXF DWG
AUG44-20-43-□□ 208 56 438 193 37 416 1.7 PDF DXF DWG
AUG44-25-16-□□ 258 56 168 243 37 146 1 PDF DXF DWG
AUG44-25-20-□□ 258 56 208 243 37 186 1.1 PDF DXF DWG
AUG44-25-25-□□ 258 56 258 243 37 236 1.3 PDF DXF DWG
AUG44-25-30-□□ 258 56 308 243 37 286 1.5 PDF DXF DWG
AUG44-25-36-□□ 258 56 368 243 37 346 1.7 PDF DXF DWG
AUG44-25-43-□□ 258 56 438 243 37 416 2 PDF DXF DWG
AUG44-30-16-□□ 308 56 168 293 37 146 1.1 PDF DXF DWG
AUG44-30-20-□□ 308 56 208 293 37 186 1.3 PDF DXF DWG
AUG44-30-25-□□ 308 56 258 293 37 236 1.5 PDF DXF DWG
AUG44-30-30-□□ 308 56 308 293 37 286 1.7 PDF DXF DWG
AUG44-30-36-□□ 308 56 368 293 37 346 2 PDF DXF DWG
AUG44-30-43-□□ 308 56 438 293 37 416 2.3 PDF DXF DWG
AUG44-30-50-□□ 308 56 508 293 37 486 2.6 PDF DXF DWG
AUG44-36-16-□□ 368 56 168 353 37 146 1.3 PDF DXF DWG
AUG44-36-20-□□ 368 56 208 353 37 186 1.5 PDF DXF DWG
AUG44-36-25-□□ 368 56 258 353 37 236 1.7 PDF DXF DWG
AUG44-36-30-□□ 368 56 308 353 37 286 2 PDF DXF DWG
AUG44-36-36-□□ 368 56 368 353 37 346 2.3 PDF DXF DWG
AUG44-36-43-□□ 368 56 438 353 37 416 2.7 PDF DXF DWG
AUG44-36-50-□□ 368 56 508 353 37 486 3 PDF DXF DWG
AUG44-43-16-□□ 438 56 168 423 37 146 1.5 PDF DXF DWG
AUG44-43-20-□□ 438 56 208 423 37 186 1.7 PDF DXF DWG
AUG44-43-25-□□ 438 56 258 423 37 236 2 PDF DXF DWG
AUG44-43-30-□□ 438 56 308 423 37 286 2.3 PDF DXF DWG
AUG44-43-36-□□ 438 56 368 423 37 346 2.6 PDF DXF DWG
AUG44-43-43-□□ 438 56 438 423 37 416 3 PDF DXF DWG
AUG44-43-50-□□ 438 56 508 423 37 486 3.4 PDF DXF DWG
AUG44-50-30-□□ 508 56 308 493 37 286 2.6 PDF DXF DWG
AUG44-50-36-□□ 508 56 368 493 37 346 3 PDF DXF DWG
AUG44-50-43-□□ 508 56 438 493 37 416 3.4 PDF DXF DWG
AUG44-50-50-□□ 508 56 508 493 37 486 3.9 PDF DXF DWG
AUG66-16-16-□□ 168 78 168 153 59 146 0.9 PDF DXF DWG
AUG66-16-20-□□ 168 78 208 153 59 186 1 PDF DXF DWG
AUG66-16-25-□□ 168 78 258 153 59 236 1.2 PDF DXF DWG
AUG66-16-30-□□ 168 78 308 153 59 286 1.3 PDF DXF DWG
AUG66-16-36-□□ 168 78 368 153 59 346 1.5 PDF DXF DWG
AUG66-16-43-□□ 168 78 438 153 59 416 1.8 PDF DXF DWG
AUG66-20-16-□□ 208 78 168 193 59 146 1 PDF DXF DWG
AUG66-20-20-□□ 208 78 208 193 59 186 1.2 PDF DXF DWG
AUG66-20-25-□□ 208 78 258 193 59 236 1.3 PDF DXF DWG
AUG66-20-30-□□ 208 78 308 193 59 286 1.5 PDF DXF DWG
AUG66-20-36-□□ 208 78 368 193 59 346 1.7 PDF DXF DWG
AUG66-20-43-□□ 208 78 438 193 59 416 2 PDF DXF DWG
AUG66-25-16-□□ 258 78 168 243 59 146 1.2 PDF DXF DWG
AUG66-25-20-□□ 258 78 208 243 59 186 1.3 PDF DXF DWG
AUG66-25-25-□□ 258 78 258 243 59 236 1.5 PDF DXF DWG
AUG66-25-30-□□ 258 78 308 243 59 286 1.7 PDF DXF DWG
AUG66-25-36-□□ 258 78 368 243 59 346 2 PDF DXF DWG
AUG66-25-43-□□ 258 78 438 243 59 416 2.3 PDF DXF DWG
AUG66-30-16-□□ 308 78 168 293 59 146 1.3 PDF DXF DWG
AUG66-30-20-□□ 308 78 208 293 59 186 1.5 PDF DXF DWG
AUG66-30-25-□□ 308 78 258 293 59 236 1.7 PDF DXF DWG
AUG66-30-30-□□ 308 78 308 293 59 286 2 PDF DXF DWG
AUG66-30-36-□□ 308 78 368 293 59 346 2.2 PDF DXF DWG
AUG66-30-43-□□ 308 78 438 293 59 416 2.6 PDF DXF DWG
AUG66-30-50-□□ 308 78 508 293 59 486 2.9 PDF DXF DWG
AUG66-36-16-□□ 368 78 168 353 59 146 1.5 PDF DXF DWG
AUG66-36-20-□□ 368 78 208 353 59 186 1.7 PDF DXF DWG
AUG66-36-25-□□ 368 78 258 353 59 236 2 PDF DXF DWG
AUG66-36-30-□□ 368 78 308 353 59 286 2.2 PDF DXF DWG
AUG66-36-36-□□ 368 78 368 353 59 346 2.5 PDF DXF DWG
AUG66-36-43-□□ 368 78 438 353 59 416 2.9 PDF DXF DWG
AUG66-36-50-□□ 368 78 508 353 59 486 3.3 PDF DXF DWG
AUG66-43-16-□□ 438 78 168 423 59 146 1.7 PDF DXF DWG
AUG66-43-20-□□ 438 78 208 423 59 186 2 PDF DXF DWG
AUG66-43-25-□□ 438 78 258 423 59 236 2.3 PDF DXF DWG
AUG66-43-30-□□ 438 78 308 423 59 286 2.6 PDF DXF DWG
AUG66-43-36-□□ 438 78 368 423 59 346 2.9 PDF DXF DWG
AUG66-43-43-□□ 438 78 438 423 59 416 3.3 PDF DXF DWG
AUG66-43-50-□□ 438 78 508 423 59 486 3.8 PDF DXF DWG
AUG66-50-30-□□ 508 78 308 493 59 286 2.9 PDF DXF DWG
AUG66-50-36-□□ 508 78 368 493 59 346 3.3 PDF DXF DWG
AUG66-50-43-□□ 508 78 438 493 59 416 3.8 PDF DXF DWG
AUG66-50-50-□□ 508 78 508 493 59 486 4.2 PDF DXF DWG
AUG88-16-16-□□ 168 100 168 153 81 146 1 PDF DXF DWG
AUG88-16-20-□□ 168 100 208 153 81 186 1.1 PDF DXF DWG
AUG88-16-25-□□ 168 100 258 153 81 236 1.3 PDF DXF DWG
AUG88-16-30-□□ 168 100 308 153 81 286 1.5 PDF DXF DWG
AUG88-16-36-□□ 168 100 368 153 81 346 1.7 PDF DXF DWG
AUG88-16-43-□□ 168 100 438 153 81 416 1.9 PDF DXF DWG
AUG88-20-16-□□ 208 100 168 193 81 146 1.1 PDF DXF DWG
AUG88-20-20-□□ 208 100 208 193 81 186 1.3 PDF DXF DWG
AUG88-20-25-□□ 208 100 258 193 81 236 1.5 PDF DXF DWG
AUG88-20-30-□□ 208 100 308 193 81 286 1.7 PDF DXF DWG
AUG88-20-36-□□ 208 100 368 193 81 346 1.9 PDF DXF DWG
AUG88-20-43-□□ 208 100 438 193 81 416 2.2 PDF DXF DWG
AUG88-25-16-□□ 258 100 168 243 81 146 1.3 PDF DXF DWG
AUG88-25-20-□□ 258 100 208 243 81 186 1.5 PDF DXF DWG
AUG88-25-25-□□ 258 100 258 243 81 236 1.7 PDF DXF DWG
AUG88-25-30-□□ 258 100 308 243 81 286 1.9 PDF DXF DWG
AUG88-25-36-□□ 258 100 368 243 81 346 2.2 PDF DXF DWG
AUG88-25-43-□□ 258 100 438 243 81 416 2.5 PDF DXF DWG
AUG88-30-16-□□ 308 100 168 293 81 146 1.4 PDF DXF DWG
AUG88-30-20-□□ 308 100 208 293 81 186 1.6 PDF DXF DWG
AUG88-30-25-□□ 308 100 258 293 81 236 1.9 PDF DXF DWG
AUG88-30-30-□□ 308 100 308 293 81 286 2.1 PDF DXF DWG
AUG88-30-36-□□ 308 100 368 293 81 346 2.4 PDF DXF DWG
AUG88-30-43-□□ 308 100 438 293 81 416 2.8 PDF DXF DWG
AUG88-30-50-□□ 308 100 508 293 81 486 3.1 PDF DXF DWG
AUG88-36-16-□□ 368 100 168 353 81 146 1.6 PDF DXF DWG
AUG88-36-20-□□ 368 100 208 353 81 186 1.8 PDF DXF DWG
AUG88-36-25-□□ 368 100 258 353 81 236 2.1 PDF DXF DWG
AUG88-36-30-□□ 368 100 308 353 81 286 2.4 PDF DXF DWG
AUG88-36-36-□□ 368 100 368 353 81 346 2.7 PDF DXF DWG
AUG88-36-43-□□ 368 100 438 353 81 416 3.2 PDF DXF DWG
AUG88-36-50-□□ 368 100 508 353 81 486 3.5 PDF DXF DWG
AUG88-43-16-□□ 438 100 168 423 81 146 1.9 PDF DXF DWG
AUG88-43-20-□□ 438 100 208 423 81 186 2.1 PDF DXF DWG
AUG88-43-25-□□ 438 100 258 423 81 236 2.4 PDF DXF DWG
AUG88-43-30-□□ 438 100 308 423 81 286 2.8 PDF DXF DWG
AUG88-43-36-□□ 438 100 368 423 81 346 3.1 PDF DXF DWG
AUG88-43-43-□□ 438 100 438 423 81 416 3.6 PDF DXF DWG
AUG88-43-50-□□ 438 100 508 423 81 486 4 PDF DXF DWG
AUG88-50-30-□□ 508 100 308 493 81 286 3.1 PDF DXF DWG
AUG88-50-36-□□ 508 100 368 493 81 346 3.5 PDF DXF DWG
AUG88-50-43-□□ 508 100 438 493 81 416 4 PDF DXF DWG
AUG88-50-50-□□ 508 100 508 493 81 486 4.5 PDF DXF DWG
AUG99-16-16-□□ 168 111 168 153 92 146 1 PDF DXF DWG
AUG99-16-20-□□ 168 111 208 153 92 186 1.1 PDF DXF DWG
AUG99-16-25-□□ 168 111 258 153 92 236 1.3 PDF DXF DWG
AUG99-16-30-□□ 168 111 308 153 92 286 1.5 PDF DXF DWG
AUG99-16-36-□□ 168 111 368 153 92 346 1.7 PDF DXF DWG
AUG99-16-43-□□ 168 111 438 153 92 416 2 PDF DXF DWG
AUG99-20-16-□□ 208 111 168 193 92 146 1.1 PDF DXF DWG
AUG99-20-20-□□ 208 111 208 193 92 186 1.3 PDF DXF DWG
AUG99-20-25-□□ 208 111 258 193 92 236 1.5 PDF DXF DWG
AUG99-20-30-□□ 208 111 308 193 92 286 1.7 PDF DXF DWG
AUG99-20-36-□□ 208 111 368 193 92 346 1.9 PDF DXF DWG
AUG99-20-43-□□ 208 111 438 193 92 416 2.2 PDF DXF DWG
AUG99-25-16-□□ 258 111 168 243 92 146 1.3 PDF DXF DWG
AUG99-25-20-□□ 258 111 208 243 92 186 1.4 PDF DXF DWG
AUG99-25-25-□□ 258 111 258 243 92 236 1.7 PDF DXF DWG
AUG99-25-30-□□ 258 111 308 243 92 286 1.9 PDF DXF DWG
AUG99-25-36-□□ 258 111 368 243 92 346 2.2 PDF DXF DWG
AUG99-25-43-□□ 258 111 438 243 92 416 2.5 PDF DXF DWG
AUG99-30-16-□□ 308 111 168 293 92 146 1.4 PDF DXF DWG
AUG99-30-20-□□ 308 111 208 293 92 186 1.6 PDF DXF DWG
AUG99-30-25-□□ 308 111 258 293 92 236 1.9 PDF DXF DWG
AUG99-30-30-□□ 308 111 308 293 92 286 2.1 PDF DXF DWG
AUG99-30-36-□□ 308 111 368 293 92 346 2.4 PDF DXF DWG
AUG99-30-43-□□ 308 111 438 293 92 416 2.8 PDF DXF DWG
AUG99-30-50-□□ 308 111 508 293 92 486 3.2 PDF DXF DWG
AUG99-36-16-□□ 368 111 168 353 92 146 1.6 PDF DXF DWG
AUG99-36-20-□□ 368 111 208 353 92 186 1.8 PDF DXF DWG
AUG99-36-25-□□ 368 111 258 353 92 236 2.1 PDF DXF DWG
AUG99-36-30-□□ 368 111 308 353 92 286 2.4 PDF DXF DWG
AUG99-36-36-□□ 368 111 368 353 92 346 2.8 PDF DXF DWG
AUG99-36-43-□□ 368 111 438 353 92 416 3.2 PDF DXF DWG
AUG99-36-50-□□ 368 111 508 353 92 486 3.6 PDF DXF DWG
AUG99-43-16-□□ 438 111 168 423 92 146 1.9 PDF DXF DWG
AUG99-43-20-□□ 438 111 208 423 92 186 2.1 PDF DXF DWG
AUG99-43-25-□□ 438 111 258 423 92 236 2.5 PDF DXF DWG
AUG99-43-30-□□ 438 111 308 423 92 286 2.8 PDF DXF DWG
AUG99-43-36-□□ 438 111 368 423 92 346 3.2 PDF DXF DWG
AUG99-43-43-□□ 438 111 438 423 92 416 3.6 PDF DXF DWG
AUG99-43-50-□□ 438 111 508 423 92 486 4.1 PDF DXF DWG
AUG99-50-30-□□ 508 111 308 493 92 286 3.1 PDF DXF DWG
AUG99-50-36-□□ 508 111 368 493 92 346 3.5 PDF DXF DWG
AUG99-50-43-□□ 508 111 438 493 92 416 4 PDF DXF DWG
AUG99-50-50-□□ 508 111 508 493 92 486 4.5 PDF DXF DWG
AUG115-16-16-□□ 168 127 168 153 108 146 1 PDF DXF DWG
AUG115-16-20-□□ 168 127 208 153 108 186 1.2 PDF DXF DWG
AUG115-16-25-□□ 168 127 258 153 108 236 1.4 PDF DXF DWG
AUG115-16-30-□□ 168 127 308 153 108 286 1.6 PDF DXF DWG
AUG115-16-36-□□ 168 127 368 153 108 346 1.8 PDF DXF DWG
AUG115-16-43-□□ 168 127 438 153 108 416 2.1 PDF DXF DWG
AUG115-20-16-□□ 208 127 168 193 108 146 1.2 PDF DXF DWG
AUG115-20-20-□□ 208 127 208 193 108 186 1.4 PDF DXF DWG
AUG115-20-25-□□ 208 127 258 193 108 236 1.6 PDF DXF DWG
AUG115-20-30-□□ 208 127 308 193 108 286 1.8 PDF DXF DWG
AUG115-20-36-□□ 208 127 368 193 108 346 2 PDF DXF DWG
AUG115-20-43-□□ 208 127 438 193 108 416 2.3 PDF DXF DWG
AUG115-25-16-□□ 258 127 168 243 108 146 1.3 PDF DXF DWG
AUG115-25-20-□□ 258 127 208 243 108 186 1.5 PDF DXF DWG
AUG115-25-25-□□ 258 127 258 243 108 236 1.8 PDF DXF DWG
AUG115-25-30-□□ 258 127 308 243 108 286 2 PDF DXF DWG
AUG115-25-36-□□ 258 127 368 243 108 346 2.3 PDF DXF DWG
AUG115-25-43-□□ 258 127 438 243 108 416 2.7 PDF DXF DWG
AUG115-30-16-□□ 308 127 168 293 108 146 1.5 PDF DXF DWG
AUG115-30-20-□□ 308 127 208 293 108 186 1.7 PDF DXF DWG
AUG115-30-25-□□ 308 127 258 293 108 236 2 PDF DXF DWG
AUG115-30-30-□□ 308 127 308 293 108 286 2.3 PDF DXF DWG
AUG115-30-36-□□ 308 127 368 293 108 346 2.6 PDF DXF DWG
AUG115-30-43-□□ 308 127 438 293 108 416 3 PDF DXF DWG
AUG115-30-50-□□ 308 127 508 293 108 486 3.3 PDF DXF DWG
AUG115-36-16-□□ 368 127 168 353 108 146 1.7 PDF DXF DWG
AUG115-36-20-□□ 368 127 208 353 108 186 2 PDF DXF DWG
AUG115-36-25-□□ 368 127 258 353 108 236 2.2 PDF DXF DWG
AUG115-36-30-□□ 368 127 308 353 108 286 2.5 PDF DXF DWG
AUG115-36-36-□□ 368 127 368 353 108 346 2.9 PDF DXF DWG
AUG115-36-43-□□ 368 127 438 353 108 416 3.3 PDF DXF DWG
AUG115-36-50-□□ 368 127 508 353 108 486 3.8 PDF DXF DWG
AUG115-43-16-□□ 438 127 168 423 108 146 2 PDF DXF DWG
AUG115-43-20-□□ 438 127 208 423 108 186 2.2 PDF DXF DWG
AUG115-43-25-□□ 438 127 258 423 108 236 2.6 PDF DXF DWG
AUG115-43-30-□□ 438 127 308 423 108 286 2.9 PDF DXF DWG
AUG115-43-36-□□ 438 127 368 423 108 346 3.3 PDF DXF DWG
AUG115-43-43-□□ 438 127 438 423 108 416 3.8 PDF DXF DWG
AUG115-43-50-□□ 438 127 508 423 108 486 4.2 PDF DXF DWG
AUG115-50-30-□□ 508 127 308 493 108 286 3.3 PDF DXF DWG
AUG115-50-36-□□ 508 127 368 493 108 346 3.7 PDF DXF DWG
AUG115-50-43-□□ 508 127 438 493 108 416 4.2 PDF DXF DWG
AUG115-50-50-□□ 508 127 508 493 108 486 4.7 PDF DXF DWG
AUG133-16-16-□□ 168 144.5 168 152 125.5 146 1.2 PDF DXF DWG
AUG133-16-20-□□ 168 144.5 208 152 125.5 186 1.4 PDF DXF DWG
AUG133-16-25-□□ 168 144.5 258 152 125.5 236 1.6 PDF DXF DWG
AUG133-16-30-□□ 168 144.5 308 152 125.5 286 1.8 PDF DXF DWG
AUG133-16-36-□□ 168 144.5 368 152 125.5 346 2.1 PDF DXF DWG
AUG133-16-43-□□ 168 144.5 438 152 125.5 416 2.4 PDF DXF DWG
AUG133-20-16-□□ 208 144.5 168 192 125.5 146 1.4 PDF DXF DWG
AUG133-20-20-□□ 208 144.5 208 192 125.5 186 1.6 PDF DXF DWG
AUG133-20-25-□□ 208 144.5 258 192 125.5 236 1.8 PDF DXF DWG
AUG133-20-30-□□ 208 144.5 308 192 125.5 286 2 PDF DXF DWG
AUG133-20-36-□□ 208 144.5 368 192 125.5 346 2.3 PDF DXF DWG
AUG133-20-43-□□ 208 144.5 438 192 125.5 416 2.7 PDF DXF DWG
AUG133-25-16-□□ 258 144.5 168 242 125.5 146 1.5 PDF DXF DWG
AUG133-25-20-□□ 258 144.5 208 242 125.5 186 1.8 PDF DXF DWG
AUG133-25-25-□□ 258 144.5 258 242 125.5 236 2 PDF DXF DWG
AUG133-25-30-□□ 258 144.5 308 242 125.5 286 2.3 PDF DXF DWG
AUG133-25-36-□□ 258 144.5 368 242 125.5 346 2.6 PDF DXF DWG
AUG133-25-43-□□ 258 144.5 438 242 125.5 416 3 PDF DXF DWG
AUG133-30-16-□□ 308 144.5 168 292 125.5 146 1.7 PDF DXF DWG
AUG133-30-20-□□ 308 144.5 208 292 125.5 186 2 PDF DXF DWG
AUG133-30-25-□□ 308 144.5 258 292 125.5 236 2.2 PDF DXF DWG
AUG133-30-30-□□ 308 144.5 308 292 125.5 286 2.5 PDF DXF DWG
AUG133-30-36-□□ 308 144.5 368 292 125.5 346 2.9 PDF DXF DWG
AUG133-30-43-□□ 308 144.5 438 292 125.5 416 3.3 PDF DXF DWG
AUG133-30-50-□□ 308 144.5 508 292 125.5 486 3.7 PDF DXF DWG
AUG133-36-16-□□ 368 144.5 168 352 125.5 146 1.9 PDF DXF DWG
AUG133-36-20-□□ 368 144.5 208 352 125.5 186 2.2 PDF DXF DWG
AUG133-36-25-□□ 368 144.5 258 352 125.5 236 2.5 PDF DXF DWG
AUG133-36-30-□□ 368 144.5 308 352 125.5 286 2.8 PDF DXF DWG
AUG133-36-36-□□ 368 144.5 368 352 125.5 346 3.2 PDF DXF DWG
AUG133-36-43-□□ 368 144.5 438 352 125.5 416 3.7 PDF DXF DWG
AUG133-36-50-□□ 368 144.5 508 352 125.5 486 4.2 PDF DXF DWG
AUG133-43-16-□□ 438 144.5 168 422 125.5 146 2.2 PDF DXF DWG
AUG133-43-20-□□ 438 144.5 208 422 125.5 186 2.5 PDF DXF DWG
AUG133-43-25-□□ 438 144.5 258 422 125.5 236 2.9 PDF DXF DWG
AUG133-43-30-□□ 438 144.5 308 422 125.5 286 3.2 PDF DXF DWG
AUG133-43-36-□□ 438 144.5 368 422 125.5 346 3.6 PDF DXF DWG
AUG133-43-43-□□ 438 144.5 438 422 125.5 416 4.2 PDF DXF DWG
AUG133-43-50-□□ 438 144.5 508 422 125.5 486 4.7 PDF DXF DWG
AUG133-50-30-□□ 508 144.5 308 492 125.5 286 3.6 PDF DXF DWG
AUG133-50-36-□□ 508 144.5 368 492 125.5 346 4 PDF DXF DWG
AUG133-50-43-□□ 508 144.5 438 492 125.5 416 4.6 PDF DXF DWG
AUG133-50-50-□□ 508 144.5 508 492 125.5 486 5.2 PDF DXF DWG
AUG149-16-16-□□ 168 161 168 152 142 146 1.2 PDF DXF DWG
AUG149-16-20-□□ 168 161 208 152 142 186 1.4 PDF DXF DWG
AUG149-16-25-□□ 168 161 258 152 142 236 1.7 PDF DXF DWG
AUG149-16-30-□□ 168 161 308 152 142 286 1.9 PDF DXF DWG
AUG149-16-36-□□ 168 161 368 152 142 346 2.2 PDF DXF DWG
AUG149-16-43-□□ 168 161 438 152 142 416 2.5 PDF DXF DWG
AUG149-20-16-□□ 208 161 168 192 142 146 1.4 PDF DXF DWG
AUG149-20-20-□□ 208 161 208 192 142 186 1.6 PDF DXF DWG
AUG149-20-25-□□ 208 161 258 192 142 236 1.8 PDF DXF DWG
AUG149-20-30-□□ 208 161 308 192 142 286 2.1 PDF DXF DWG
AUG149-20-36-□□ 208 161 368 192 142 346 2.4 PDF DXF DWG
AUG149-20-43-□□ 208 161 438 192 142 416 2.8 PDF DXF DWG
AUG149-25-16-□□ 258 161 168 242 142 146 1.6 PDF DXF DWG
AUG149-25-20-□□ 258 161 208 242 142 186 1.8 PDF DXF DWG
AUG149-25-25-□□ 258 161 258 242 142 236 2.1 PDF DXF DWG
AUG149-25-30-□□ 258 161 308 242 142 286 2.3 PDF DXF DWG
AUG149-25-36-□□ 258 161 368 242 142 346 2.7 PDF DXF DWG
AUG149-25-43-□□ 258 161 438 242 142 416 3.1 PDF DXF DWG
AUG149-30-16-□□ 308 161 168 292 142 146 1.7 PDF DXF DWG
AUG149-30-20-□□ 308 161 208 292 142 186 2 PDF DXF DWG
AUG149-30-25-□□ 308 161 258 292 142 236 2.3 PDF DXF DWG
AUG149-30-30-□□ 308 161 308 292 142 286 2.6 PDF DXF DWG
AUG149-30-36-□□ 308 161 368 292 142 346 3 PDF DXF DWG
AUG149-30-43-□□ 308 161 438 292 142 416 3.4 PDF DXF DWG
AUG149-30-50-□□ 308 161 508 292 142 486 3.9 PDF DXF DWG
AUG149-36-16-□□ 368 161 168 352 142 146 2 PDF DXF DWG
AUG149-36-20-□□ 368 161 208 352 142 186 2.2 PDF DXF DWG
AUG149-36-25-□□ 368 161 258 352 142 236 2.6 PDF DXF DWG
AUG149-36-30-□□ 368 161 308 352 142 286 2.9 PDF DXF DWG
AUG149-36-36-□□ 368 161 368 352 142 346 3.3 PDF DXF DWG
AUG149-36-43-□□ 368 161 438 352 142 416 3.8 PDF DXF DWG
AUG149-36-50-□□ 368 161 508 352 142 486 4.3 PDF DXF DWG
AUG149-43-16-□□ 438 161 168 422 142 146 2.2 PDF DXF DWG
AUG149-43-20-□□ 438 161 208 422 142 186 2.5 PDF DXF DWG
AUG149-43-25-□□ 438 161 258 422 142 236 2.9 PDF DXF DWG
AUG149-43-30-□□ 438 161 308 422 142 286 3.3 PDF DXF DWG
AUG149-43-36-□□ 438 161 368 422 142 346 3.7 PDF DXF DWG
AUG149-43-43-□□ 438 161 438 422 142 416 4.3 PDF DXF DWG
AUG149-43-50-□□ 438 161 508 422 142 486 4.8 PDF DXF DWG
AUG149-50-30-□□ 508 161 308 492 142 286 3.7 PDF DXF DWG
AUG149-50-36-□□ 508 161 368 492 142 346 4.1 PDF DXF DWG
AUG149-50-43-□□ 508 161 438 492 142 416 4.7 PDF DXF DWG
AUG149-50-50-□□ 508 161 508 492 142 486 5.3 PDF DXF DWG
AUG177-16-16-□□ 168 189 168 152 170 146 1.4 PDF DXF DWG
AUG177-16-20-□□ 168 189 208 152 170 186 1.6 PDF DXF DWG
AUG177-16-25-□□ 168 189 258 152 170 236 1.8 PDF DXF DWG
AUG177-16-30-□□ 168 189 308 152 170 286 2.1 PDF DXF DWG
AUG177-16-36-□□ 168 189 368 152 170 346 2.4 PDF DXF DWG
AUG177-16-43-□□ 168 189 438 152 170 416 2.8 PDF DXF DWG
AUG177-20-16-□□ 208 189 168 192 170 146 1.5 PDF DXF DWG
AUG177-20-20-□□ 208 189 208 192 170 186 1.8 PDF DXF DWG
AUG177-20-25-□□ 208 189 258 192 170 236 2 PDF DXF DWG
AUG177-20-30-□□ 208 189 308 192 170 286 2.3 PDF DXF DWG
AUG177-20-36-□□ 208 189 368 192 170 346 2.6 PDF DXF DWG
AUG177-20-43-□□ 208 189 438 192 170 416 3 PDF DXF DWG
AUG177-25-16-□□ 258 189 168 242 170 146 1.7 PDF DXF DWG
AUG177-25-20-□□ 258 189 208 242 170 186 2 PDF DXF DWG
AUG177-25-25-□□ 258 189 258 242 170 236 2.3 PDF DXF DWG
AUG177-25-30-□□ 258 189 308 242 170 286 2.6 PDF DXF DWG
AUG177-25-36-□□ 258 189 368 242 170 346 2.9 PDF DXF DWG
AUG177-25-43-□□ 258 189 438 242 170 416 3.4 PDF DXF DWG
AUG177-30-16-□□ 308 189 168 292 170 146 1.9 PDF DXF DWG
AUG177-30-20-□□ 308 189 208 292 170 186 2.2 PDF DXF DWG
AUG177-30-25-□□ 308 189 258 292 170 236 2.5 PDF DXF DWG
AUG177-30-30-□□ 308 189 308 292 170 286 2.8 PDF DXF DWG
AUG177-30-36-□□ 308 189 368 292 170 346 3.2 PDF DXF DWG
AUG177-30-43-□□ 308 189 438 292 170 416 3.7 PDF DXF DWG
AUG177-30-50-□□ 308 189 508 292 170 486 4.2 PDF DXF DWG
AUG177-36-16-□□ 368 189 168 352 170 146 2.1 PDF DXF DWG
AUG177-36-20-□□ 368 189 208 352 170 186 2.4 PDF DXF DWG
AUG177-36-25-□□ 368 189 258 352 170 236 2.8 PDF DXF DWG
AUG177-36-30-□□ 368 189 308 352 170 286 3.2 PDF DXF DWG
AUG177-36-36-□□ 368 189 368 352 170 346 3.6 PDF DXF DWG
AUG177-36-43-□□ 368 189 438 352 170 416 4.1 PDF DXF DWG
AUG177-36-50-□□ 368 189 508 352 170 486 4.6 PDF DXF DWG
AUG177-43-16-□□ 438 189 168 422 170 146 2.4 PDF DXF DWG
AUG177-43-20-□□ 438 189 208 422 170 186 2.8 PDF DXF DWG
AUG177-43-25-□□ 438 189 258 422 170 236 3.2 PDF DXF DWG
AUG177-43-30-□□ 438 189 308 422 170 286 3.6 PDF DXF DWG
AUG177-43-36-□□ 438 189 368 422 170 346 4 PDF DXF DWG
AUG177-43-43-□□ 438 189 438 422 170 416 4.6 PDF DXF DWG
AUG177-43-50-□□ 438 189 508 422 170 486 5.1 PDF DXF DWG
AUG177-50-30-□□ 508 189 308 492 170 286 3.9 PDF DXF DWG
AUG177-50-36-□□ 508 189 368 492 170 346 4.5 PDF DXF DWG
AUG177-50-43-□□ 508 189 438 492 170 416 5.1 PDF DXF DWG
AUG177-50-50-□□ 508 189 508 492 170 486 5.7 PDF DXF DWG
AUG222-16-16-□□ 168 233.5 168 152 213.5 146 1.6 PDF DXF DWG
AUG222-16-20-□□ 168 233.5 208 152 213.5 186 1.8 PDF DXF DWG
AUG222-16-25-□□ 168 233.5 258 152 213.5 236 2.1 PDF DXF DWG
AUG222-16-30-□□ 168 233.5 308 152 213.5 286 2.4 PDF DXF DWG
AUG222-16-36-□□ 168 233.5 368 152 213.5 346 2.8 PDF DXF DWG
AUG222-16-43-□□ 168 233.5 438 152 213.5 416 3.2 PDF DXF DWG
AUG222-20-16-□□ 208 233.5 168 192 213.5 146 1.8 PDF DXF DWG
AUG222-20-20-□□ 208 233.5 208 192 213.5 186 2 PDF DXF DWG
AUG222-20-25-□□ 208 233.5 258 192 213.5 236 2.3 PDF DXF DWG
AUG222-20-30-□□ 208 233.5 308 192 213.5 286 2.6 PDF DXF DWG
AUG222-20-36-□□ 208 233.5 368 192 213.5 346 3 PDF DXF DWG
AUG222-20-43-□□ 208 233.5 438 192 213.5 416 3.5 PDF DXF DWG
AUG222-25-16-□□ 258 233.5 168 242 213.5 146 2 PDF DXF DWG
AUG222-25-20-□□ 258 233.5 208 242 213.5 186 2.3 PDF DXF DWG
AUG222-25-25-□□ 258 233.5 258 242 213.5 236 2.6 PDF DXF DWG
AUG222-25-30-□□ 258 233.5 308 242 213.5 286 2.9 PDF DXF DWG
AUG222-25-36-□□ 258 233.5 368 242 213.5 346 3.3 PDF DXF DWG
AUG222-25-43-□□ 258 233.5 438 242 213.5 416 3.8 PDF DXF DWG
AUG222-30-16-□□ 308 233.5 168 292 213.5 146 2.2 PDF DXF DWG
AUG222-30-20-□□ 308 233.5 208 292 213.5 186 2.5 PDF DXF DWG
AUG222-30-25-□□ 308 233.5 258 292 213.5 236 2.8 PDF DXF DWG
AUG222-30-30-□□ 308 233.5 308 292 213.5 286 3.2 PDF DXF DWG
AUG222-30-36-□□ 308 233.5 368 292 213.5 346 3.6 PDF DXF DWG
AUG222-30-43-□□ 308 233.5 438 292 213.5 416 4.2 PDF DXF DWG
AUG222-30-50-□□ 308 233.5 508 292 213.5 486 4.7 PDF DXF DWG
AUG222-36-16-□□ 368 233.5 168 352 213.5 146 2.4 PDF DXF DWG
AUG222-36-20-□□ 368 233.5 208 352 213.5 186 2.8 PDF DXF DWG
AUG222-36-25-□□ 368 233.5 258 352 213.5 236 3.2 PDF DXF DWG
AUG222-36-30-□□ 368 233.5 308 352 213.5 286 3.6 PDF DXF DWG
AUG222-36-36-□□ 368 233.5 368 352 213.5 346 4 PDF DXF DWG
AUG222-36-43-□□ 368 233.5 438 352 213.5 416 4.6 PDF DXF DWG
AUG222-36-50-□□ 368 233.5 508 352 213.5 486 5.2 PDF DXF DWG
AUG222-43-16-□□ 438 233.5 168 422 213.5 146 2.8 PDF DXF DWG
AUG222-43-20-□□ 438 233.5 208 422 213.5 186 3.1 PDF DXF DWG
AUG222-43-25-□□ 438 233.5 258 422 213.5 236 3.5 PDF DXF DWG
AUG222-43-30-□□ 438 233.5 308 422 213.5 286 4 PDF DXF DWG
AUG222-43-36-□□ 438 233.5 368 422 213.5 346 4.5 PDF DXF DWG
AUG222-43-43-□□ 438 233.5 438 422 213.5 416 5.1 PDF DXF DWG
AUG222-43-50-□□ 438 233.5 508 422 213.5 486 5.7 PDF DXF DWG
AUG222-50-30-□□ 508 233.5 308 492 213.5 286 4.4 PDF DXF DWG
AUG222-50-36-□□ 508 233.5 368 492 213.5 346 4.9 PDF DXF DWG
AUG222-50-43-□□ 508 233.5 438 492 213.5 416 5.6 PDF DXF DWG
AUG222-50-50-□□ 508 233.5 508 492 213.5 486 6.3 PDF DXF DWG
AUG266-16-16-□□ 168 277.9 168 151 257.9 146 1.9
AUG266-16-20-□□ 168 277.9 208 151 257.9 186 2.2
AUG266-16-25-□□ 168 277.9 258 151 257.9 236 2.5
AUG266-16-30-□□ 168 277.9 308 151 257.9 286 2.9
AUG266-16-36-□□ 168 277.9 368 151 257.9 346 3.3
AUG266-16-43-□□ 168 277.9 438 151 257.9 416 3.9
AUG266-20-16-□□ 208 277.9 168 191 257.9 146 2.1
AUG266-20-20-□□ 208 277.9 208 191 257.9 186 2.4
AUG266-20-25-□□ 208 277.9 258 191 257.9 236 2.8
AUG266-20-30-□□ 208 277.9 308 191 257.9 286 3.1
AUG266-20-36-□□ 208 277.9 368 191 257.9 346 3.6
AUG266-20-43-□□ 208 277.9 438 191 257.9 416 4.2
AUG266-25-16-□□ 258 277.9 168 241 257.9 146 2.3
AUG266-25-20-□□ 258 277.9 208 241 257.9 186 2.6
AUG266-25-25-□□ 258 277.9 258 241 257.9 236 3
AUG266-25-30-□□ 258 277.9 308 241 257.9 286 3.4
AUG266-25-36-□□ 258 277.9 368 241 257.9 346 3.9
AUG266-25-43-□□ 258 277.9 438 241 257.9 416 4.5
AUG266-30-16-□□ 308 277.9 168 291 257.9 146 2.5
AUG266-30-20-□□ 308 277.9 208 291 257.9 186 2.9
AUG266-30-25-□□ 308 277.9 258 291 257.9 236 3.3
AUG266-30-30-□□ 308 277.9 308 291 257.9 286 3.7
AUG266-30-36-□□ 308 277.9 368 291 257.9 346 4.3
AUG266-30-43-□□ 308 277.9 438 291 257.9 416 4.9
AUG266-30-50-□□ 308 277.9 508 291 257.9 486 5.5
AUG266-36-16-□□ 368 277.9 168 351 257.9 146 2.8
AUG266-36-20-□□ 368 277.9 208 351 257.9 186 3.2
AUG266-36-25-□□ 368 277.9 258 351 257.9 236 3.6
AUG266-36-30-□□ 368 277.9 308 351 257.9 286 4.1
AUG266-36-36-□□ 368 277.9 368 351 257.9 346 4.7
AUG266-36-43-□□ 368 277.9 438 351 257.9 416 5.4
AUG266-36-50-□□ 368 277.9 508 351 257.9 486 6
AUG266-43-16-□□ 438 277.9 168 421 257.9 146 3.2
AUG266-43-20-□□ 438 277.9 208 421 257.9 186 3.6
AUG266-43-25-□□ 438 277.9 258 421 257.9 236 4.1
AUG266-43-30-□□ 438 277.9 308 421 257.9 286 4.6
AUG266-43-36-□□ 438 277.9 368 421 257.9 346 5.2
AUG266-43-43-□□ 438 277.9 438 421 257.9 416 5.9
AUG266-43-50-□□ 438 277.9 508 421 257.9 486 6.6
AUG266-50-30-□□ 508 277.9 308 491 257.9 286 5
AUG266-50-36-□□ 508 277.9 368 491 257.9 346 5.6
AUG266-50-43-□□ 508 277.9 438 491 257.9 416 6.4
AUG266-50-50-□□ 508 277.9 508 491 257.9 486 7.2
Mounting plate (Option) PDF DXF DWG STP
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG
AUC16-16 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-36 PDF DXF DWG
AUC16-43 PDF DXF DWG
AUC20-16 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-43 PDF DXF DWG
AUC25-16 PDF DXF DWG
AUC25-20 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-16 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-16 PDF DXF DWG
AUC36-20 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC43-16 PDF DXF DWG
AUC43-20 PDF DXF DWG
AUC43-25 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC50-30 PDF DXF DWG
AUC50-36 PDF DXF DWG
AUC50-43 PDF DXF DWG
AUC50-50 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series
DETAILS
１

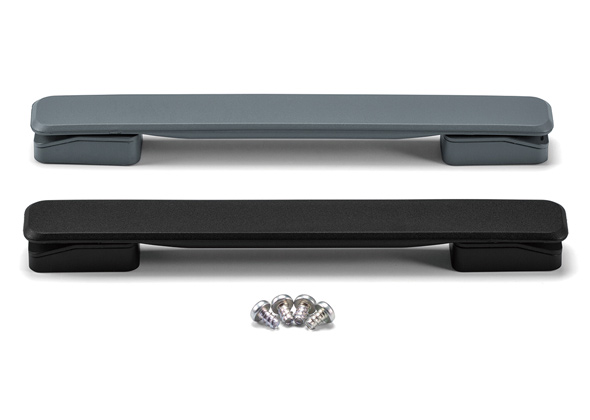

ELASTOMER CARRYING HANDLE - FM200 series
DETAILS
１
TILT LEG - TLW series
DETAILS
１
MONITOR ARM for AU□ series - MAR series
DETAILS
１
BOLT-ON D-RING - GF-30
DETAILS
１
SHOULDER STRAP SB1250
DETAILS

SIMILAR PRODUCT

１
EMC SHIELDED RUGGED ENCLOSURE with CORNER GUARDS - AUGE series
DETAILS
１
ALUMINIUM ENCLOSURE - AU series
DETAILS
１
UNIVERSAL ALUMINIUM CASE with CORNER GUARD - UCG series
DETAILS
１
PORTABLE ALUMINIUM INSTRUMENT CASE with HANDLE - AUGH series
DETAILS
１
METAL CASE with CORNER GUARD - MCG series
DETAILS
１
ALUMINIUM PANEL CASE with CORNER GUARD - EXP series
DETAILS
１
ALUMINIUM EMC SHIELDED CASE with CORNER GUARD - EXPE series
DETAILS
１
CUSTOM SIZED ALUMINUM FRAME BOX with CORNER GUARD - ALGF series
DETAILS
１
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS

Graphic overlay making

DETAILS
