SHOCKPROOF PLASTIC ENCLOSURE - PFG series


PFG Series -PDF

CATEGORY:Plastic enclosure, Network enclosure, IOT enclosure, Wireless router enclosure, Access point box, Sensor box

SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series
SHOCKPROOF PLASTIC ENCLOSURE - PFG series1
SHOCKPROOF PLASTIC ENCLOSURE - PFG series2
SHOCKPROOF PLASTIC ENCLOSURE - PFG series3
SHOCKPROOF PLASTIC ENCLOSURE - PFG series4
SHOCKPROOF PLASTIC ENCLOSURE - PFG series5
SHOCKPROOF PLASTIC ENCLOSURE - PFG series6
SHOCKPROOF PLASTIC ENCLOSURE - PFG series7

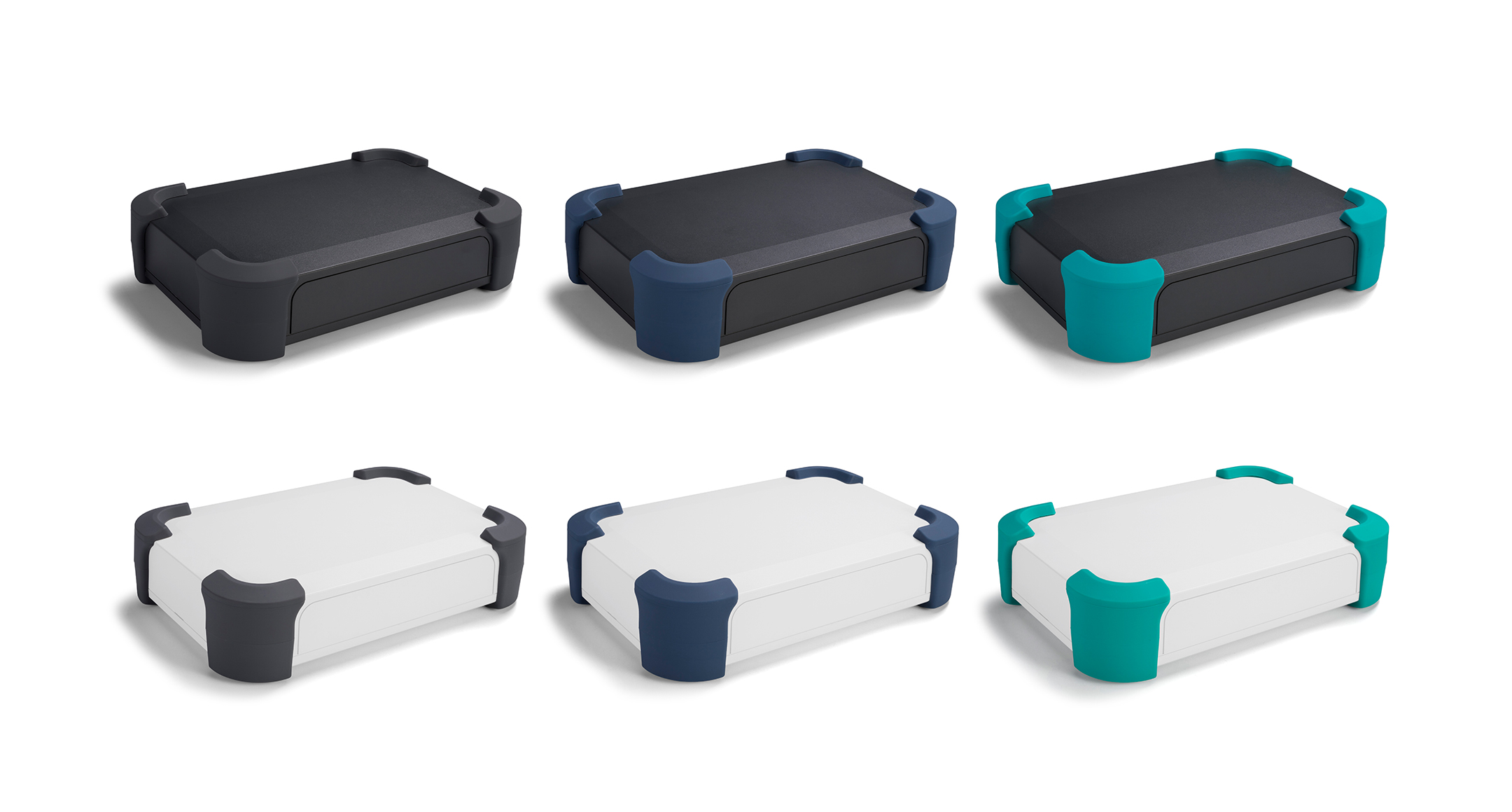

COLOR TYPE

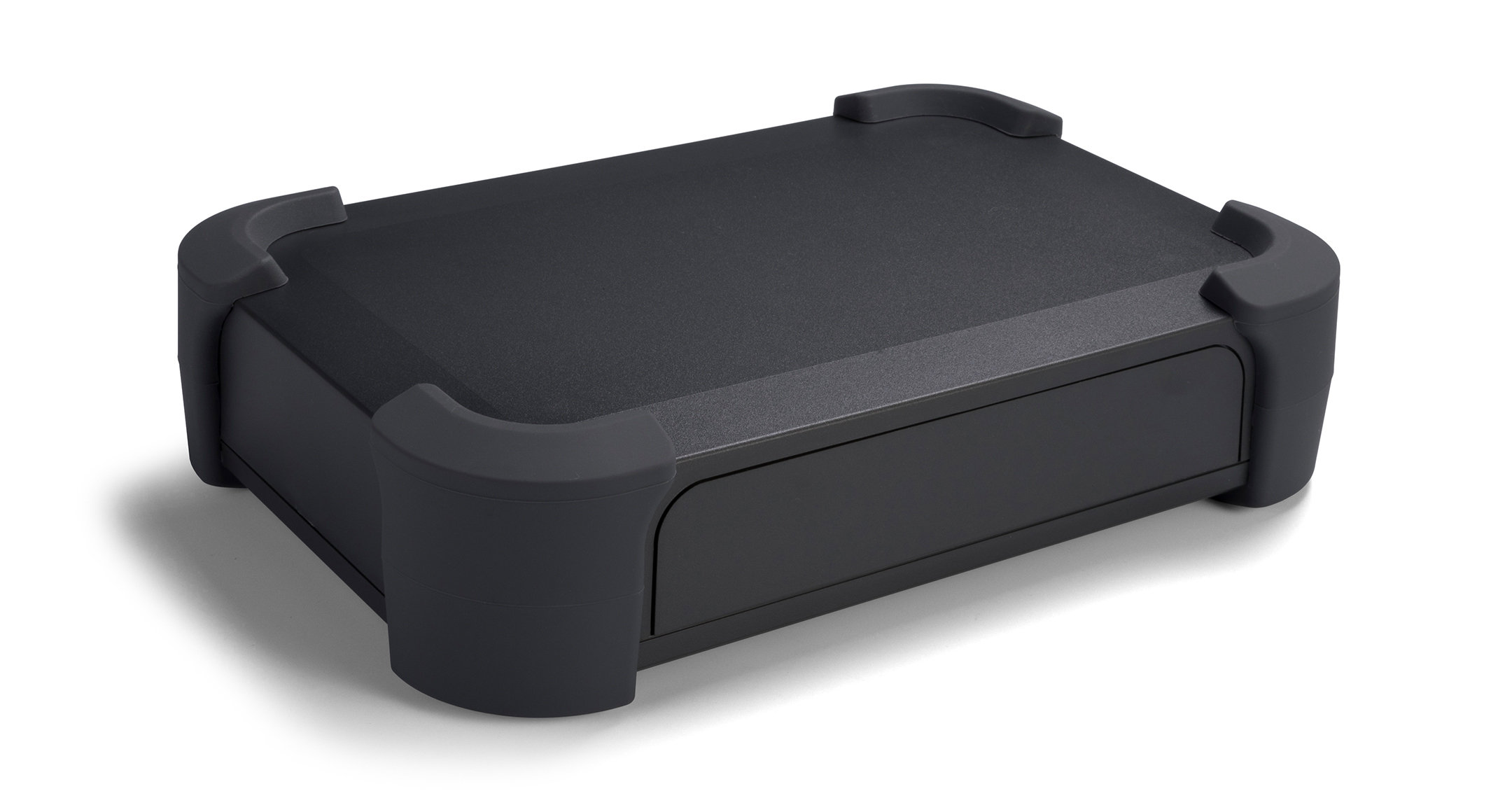

DDDark gray/Dark gray

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Dark gray

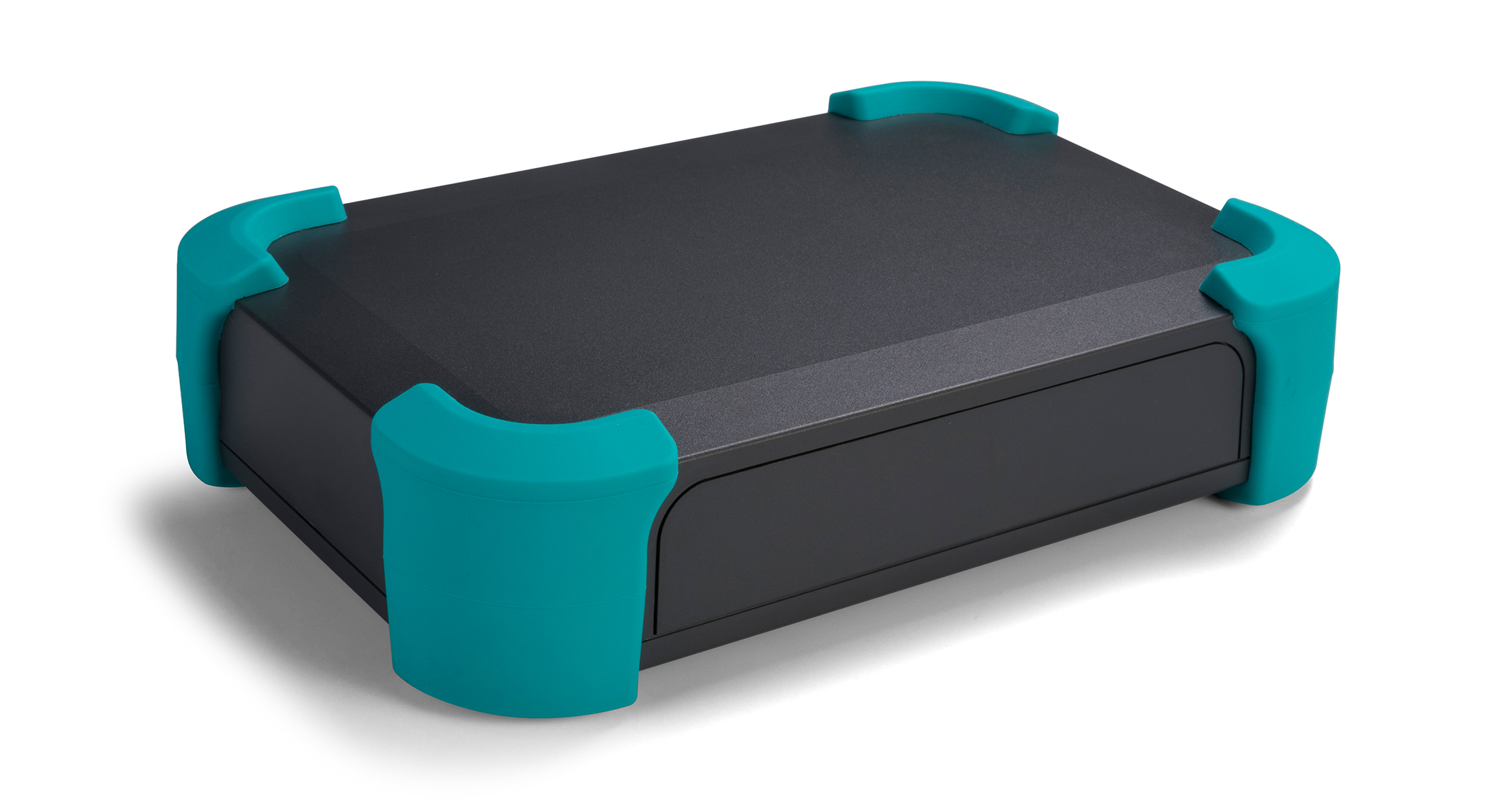

DEDark gray/Emerald

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Emerald

DIDark gray/Indigo

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Indigo

WDOff-white/Dark gray

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Dark gray

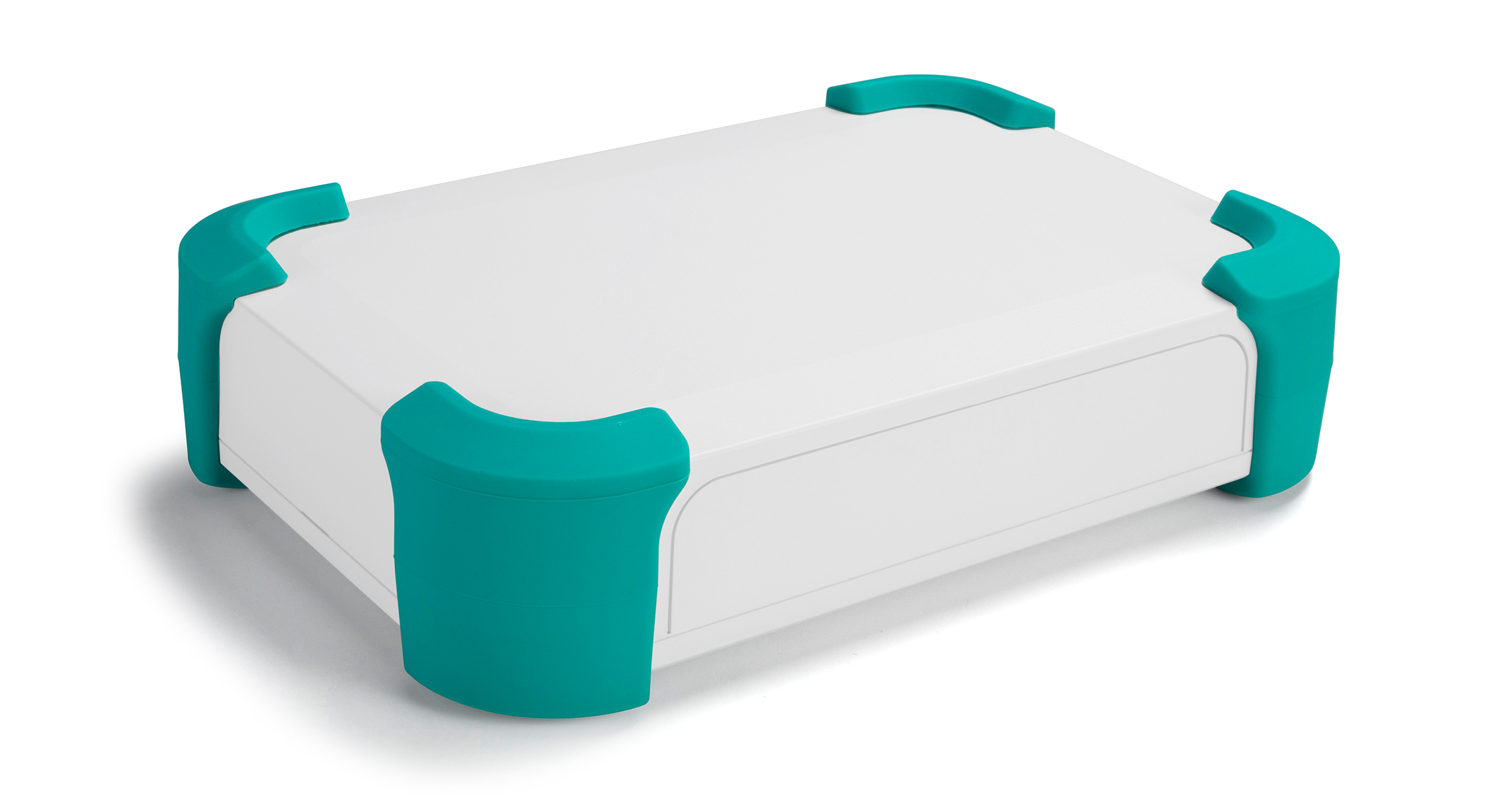

WEOff-white/Emerald

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Emerald

WIOff-white/Indigo

SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Indigo
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Dark gray
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Emerald
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Dark gray/Indigo
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Dark gray
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Emerald
SHOCKPROOF PLASTIC ENCLOSURE - PFG series:Off-white/Indigo

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
PFG20-4-13□□ 208 51 143 151.6 27.3 124.4 346 PDF DXF DWG
PFG20-4-20□□ 208 51 208 151.6 27.3 189.4 450 PDF DXF DWG
PFG24-6-17□□ 248 72 173 187.6 47 153.2 520 PDF DXF DWG
PFG24-6-24□□ 248 72 248 187.6 47 228.2 696.5 PDF DXF DWG

OPTIONAL PARTS

1
WALL SUSPENSION BRACKET - WM series
DETAILS
1

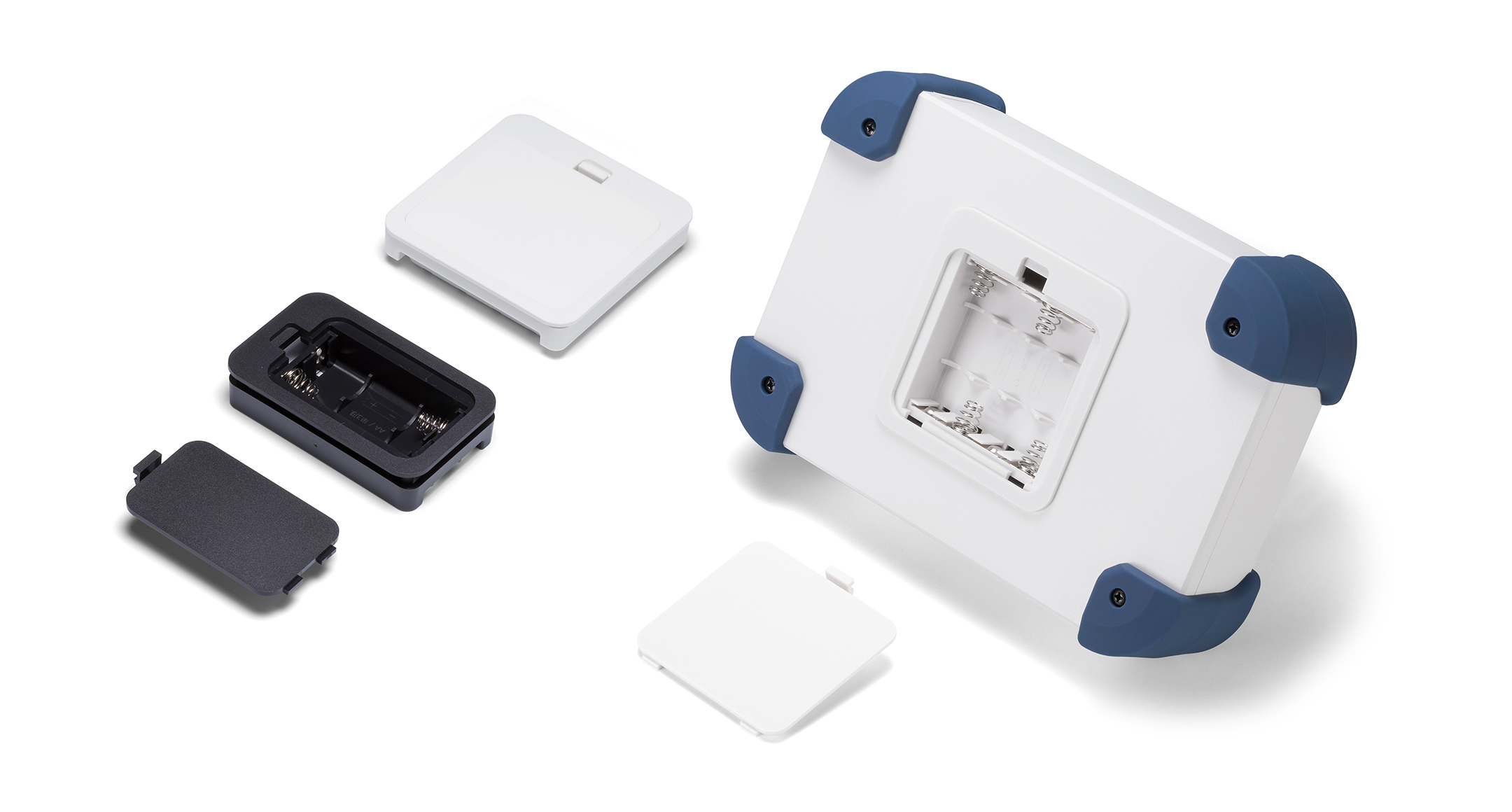

EMBEDDED BATTERY BOX - BC series
