METAL CASE with CORNER GUARD - MCG series


MCG Series -PDF

CATEGORY：Metal enclosure with corner guard, Enclosure with corner bumper, Protective case, Rugged enclosure, Portable power supply case

METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series
METAL CASE with CORNER GUARD - MCG series1
METAL CASE with CORNER GUARD - MCG series2
METAL CASE with CORNER GUARD - MCG series3
METAL CASE with CORNER GUARD - MCG series4
METAL CASE with CORNER GUARD - MCG series5
METAL CASE with CORNER GUARD - MCG series6
METAL CASE with CORNER GUARD - MCG series7
METAL CASE with CORNER GUARD - MCG series8
METAL CASE with CORNER GUARD - MCG series9
Metal enclosure equipped with shockproof and anti-slip elastomer corner guards.

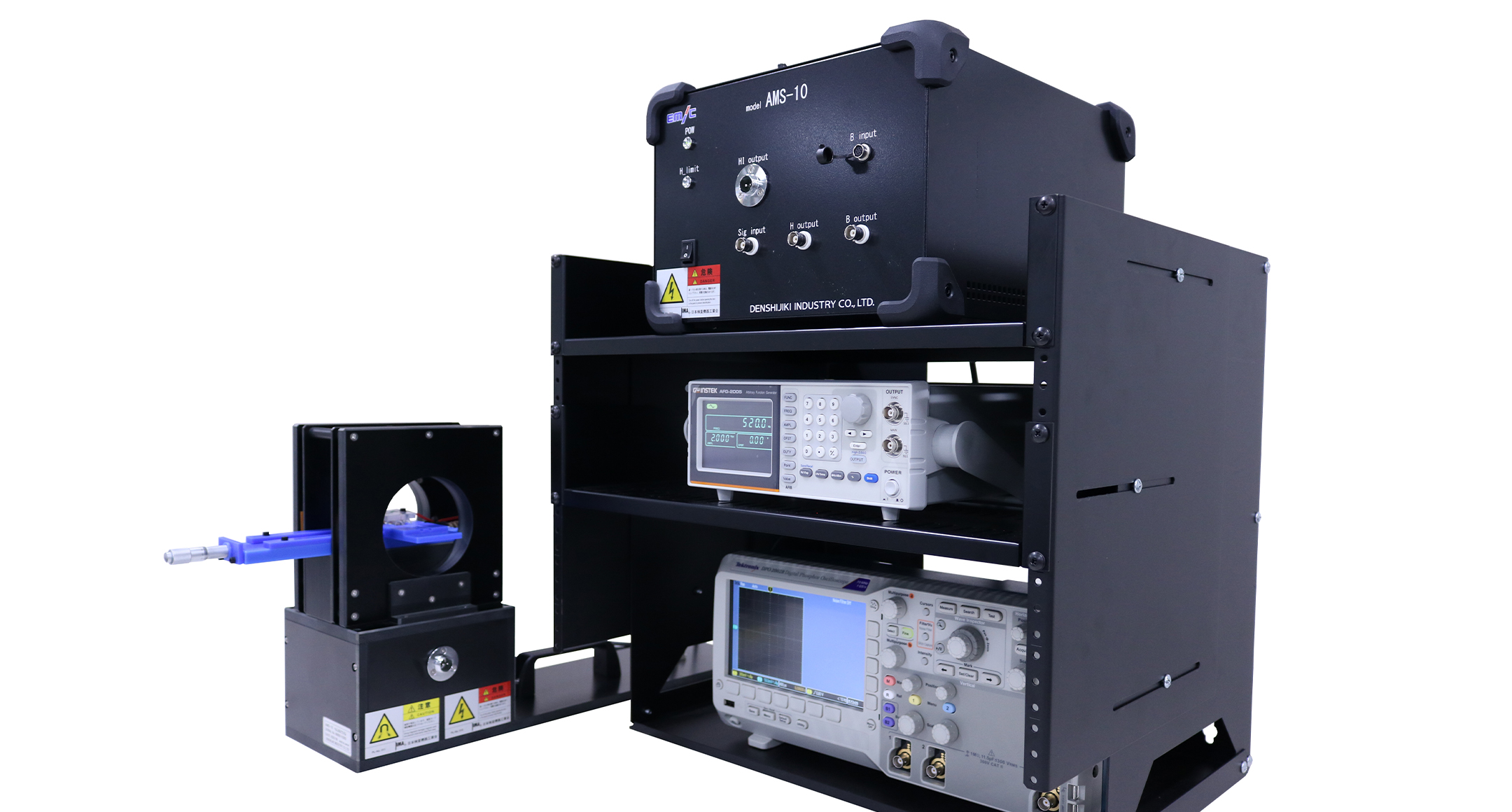

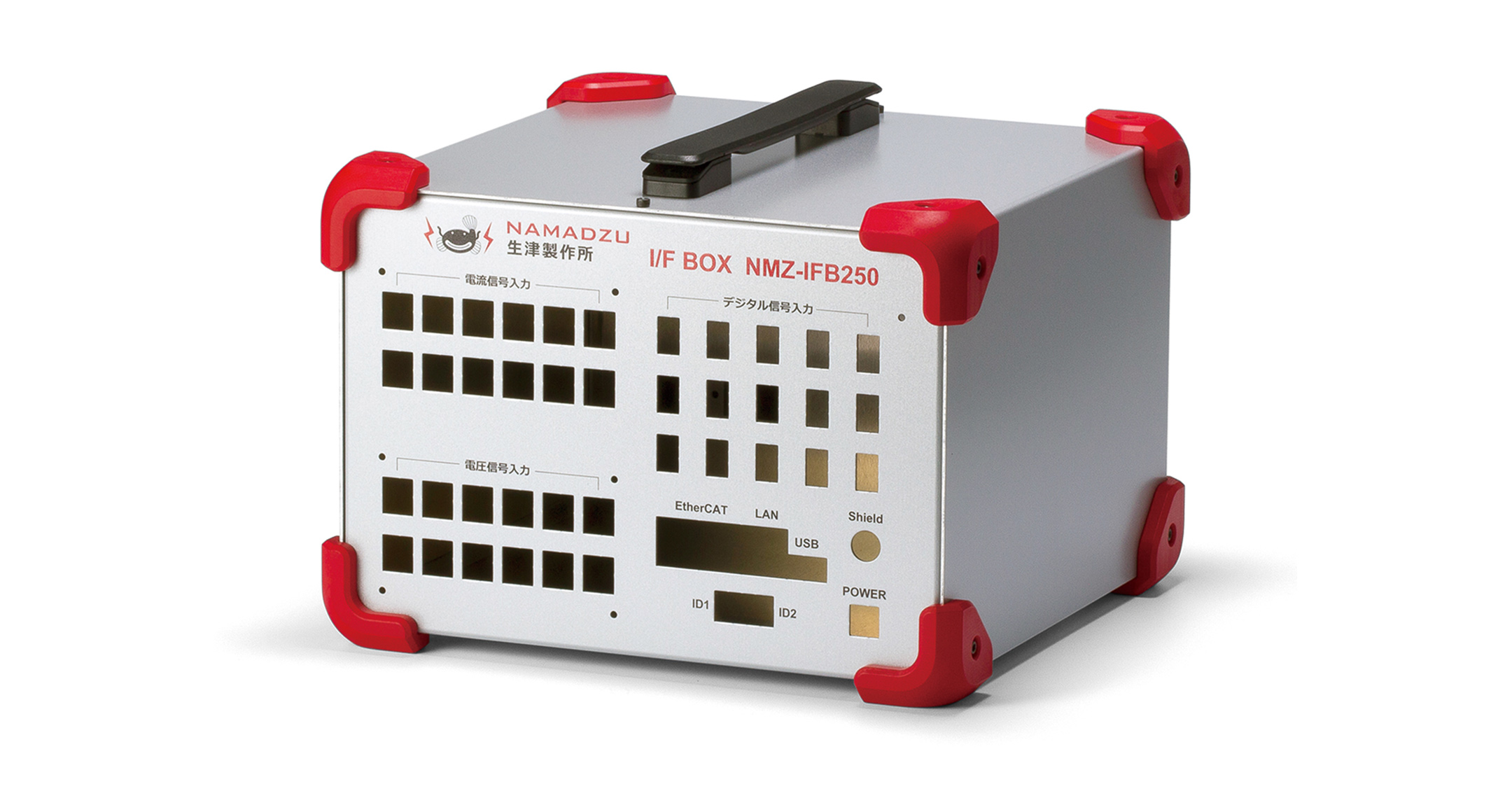

Suitable to be used as a fanless PC, power supply, power storage device etc.
Carrying handle can withstand a maximum load up to 30.0 kg.

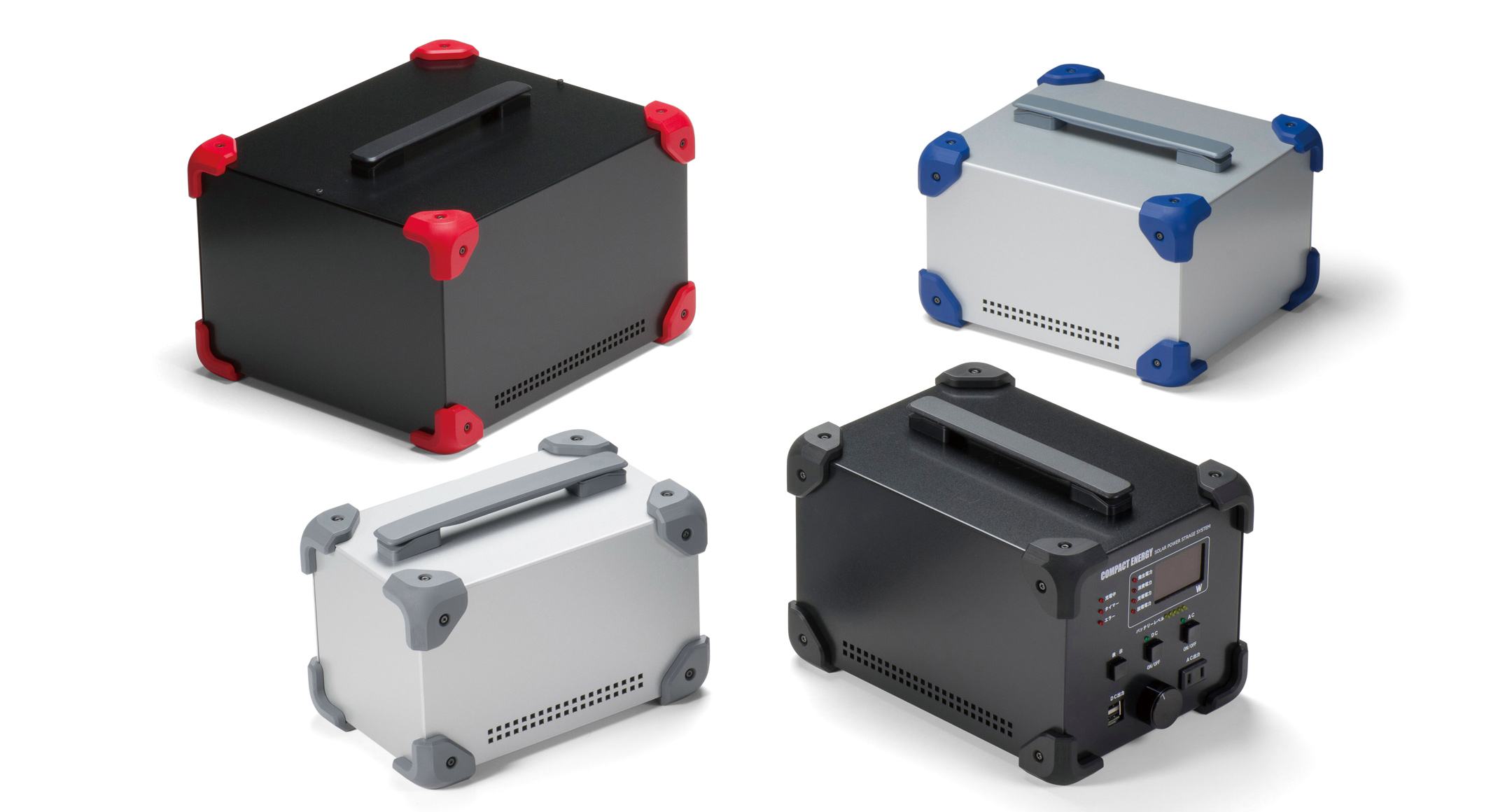

Available in 4 sizes, 2 enclosure colors and 4 different corner guard colors.

Custom length is available.
↓Go MCGF series page for the custom W, H, and D dimensions can be specified as 50～500mm for W dimension, 50～400mm for D dimension, and 20～250mm for H dimension in 1mm intervals.
CUSTOM LENGTH ENCLOSURE - MCGF series  3D View (Black & Red)  3D View (Silver & Gray)  3D View - 8 color types  Exploded view  Color code 

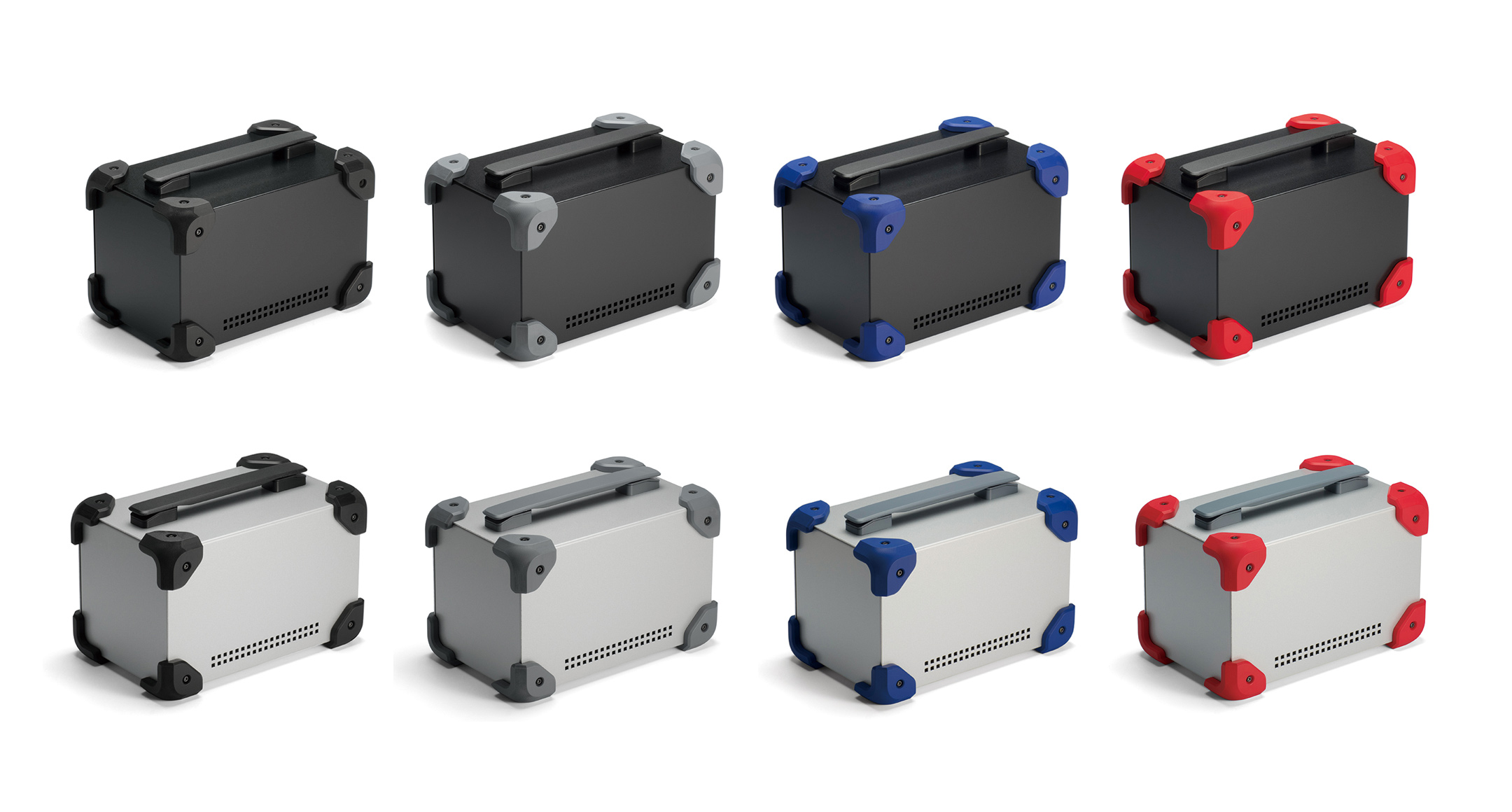

COLOR TYPE

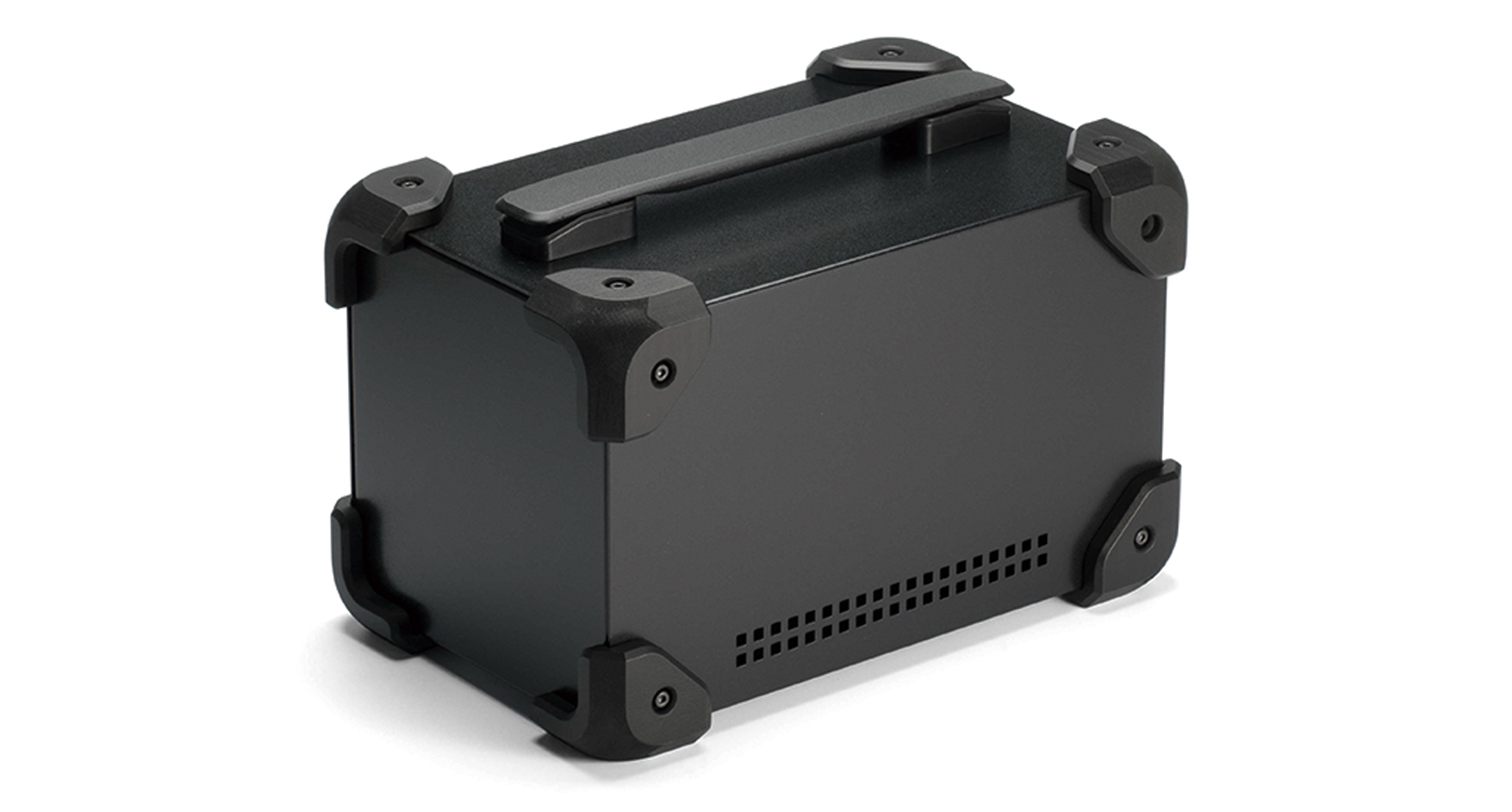

BBBlack/Black

METAL CASE with CORNER GUARD - MCG series:Black/Black

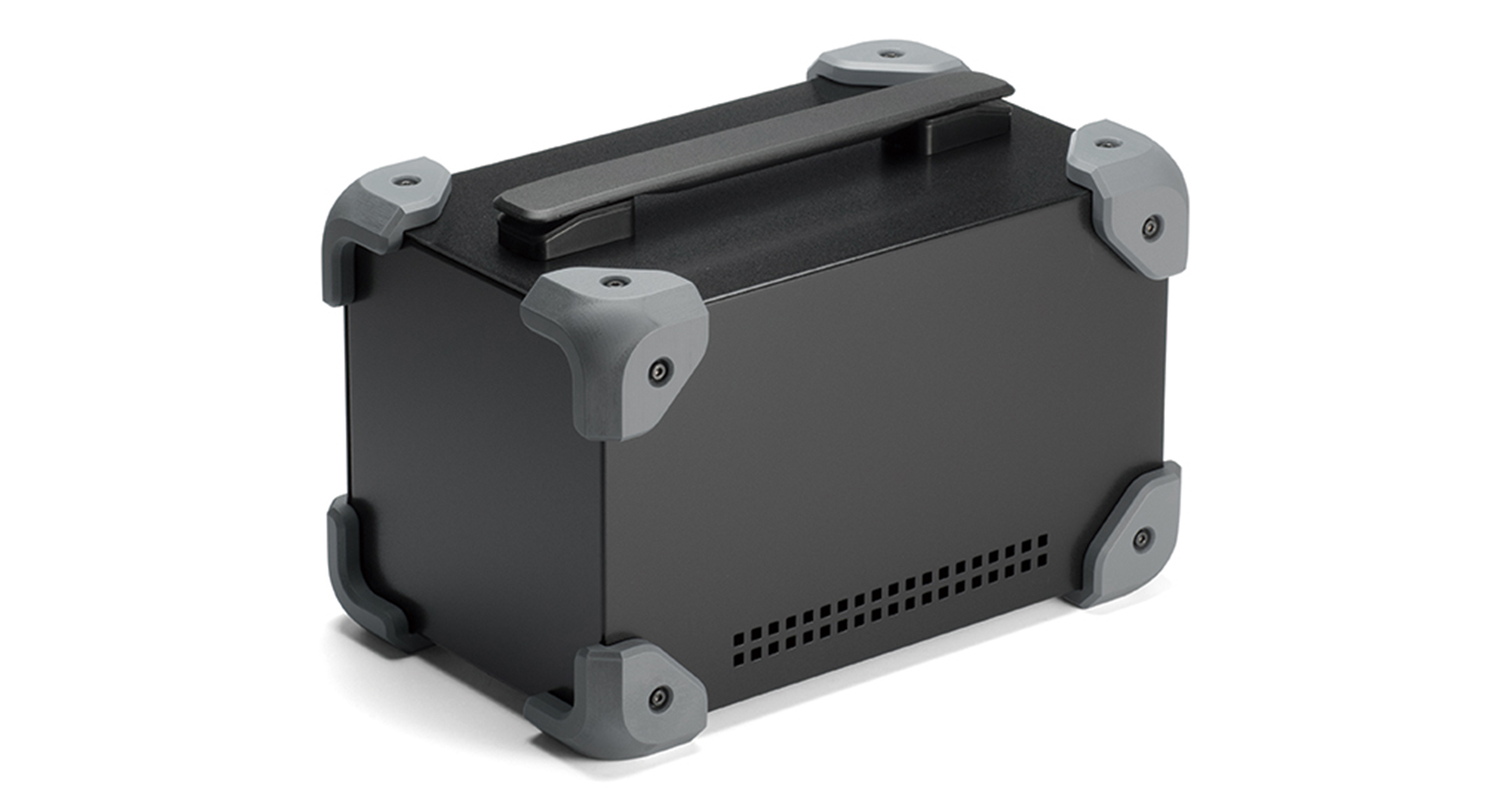

BGBlack/Gray

METAL CASE with CORNER GUARD - MCG series:Black/Gray

BNBlack/Navy

METAL CASE with CORNER GUARD - MCG series:Black/Navy

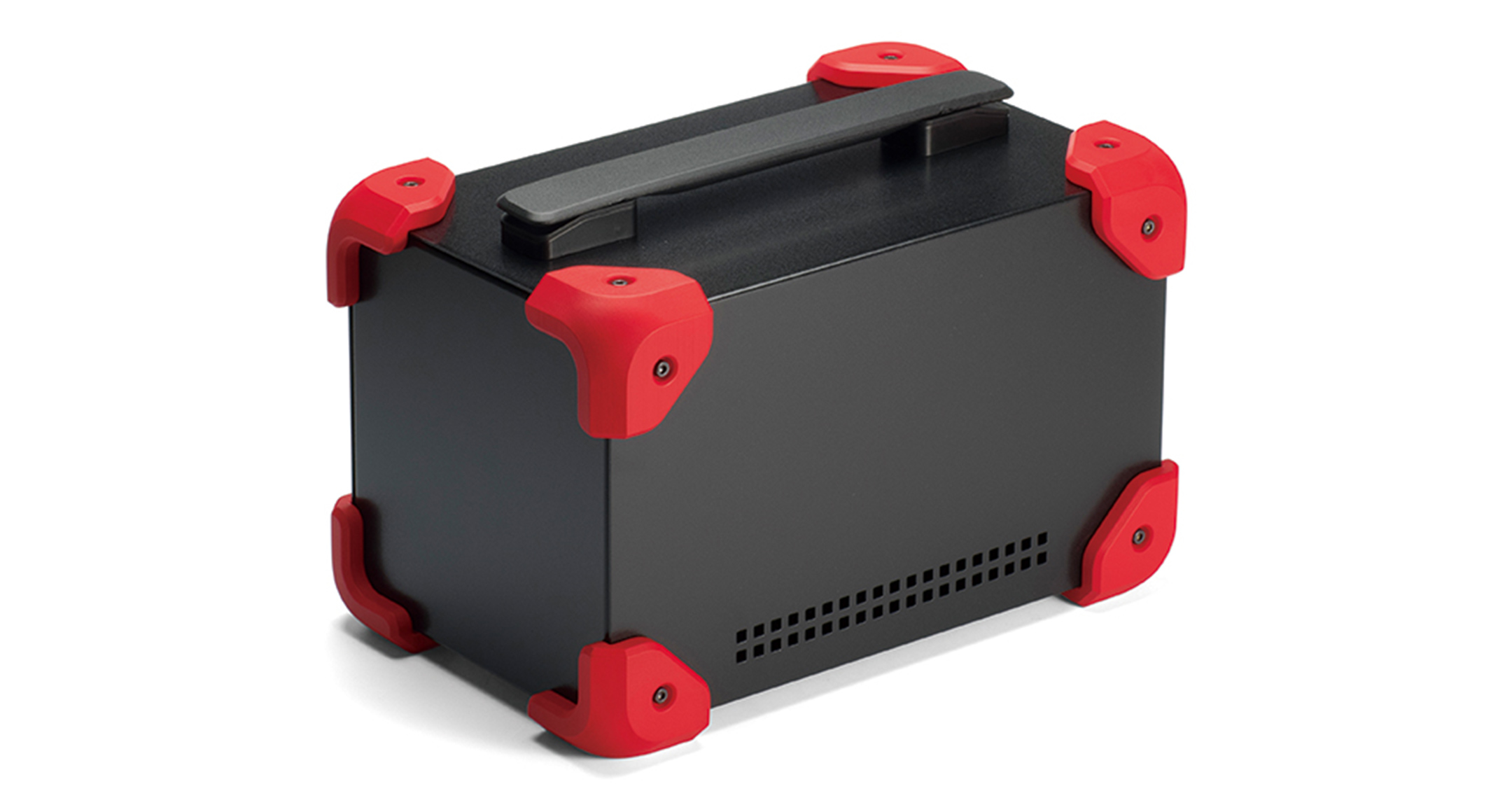

BRBlack/Red

METAL CASE with CORNER GUARD - MCG series:Black/Red

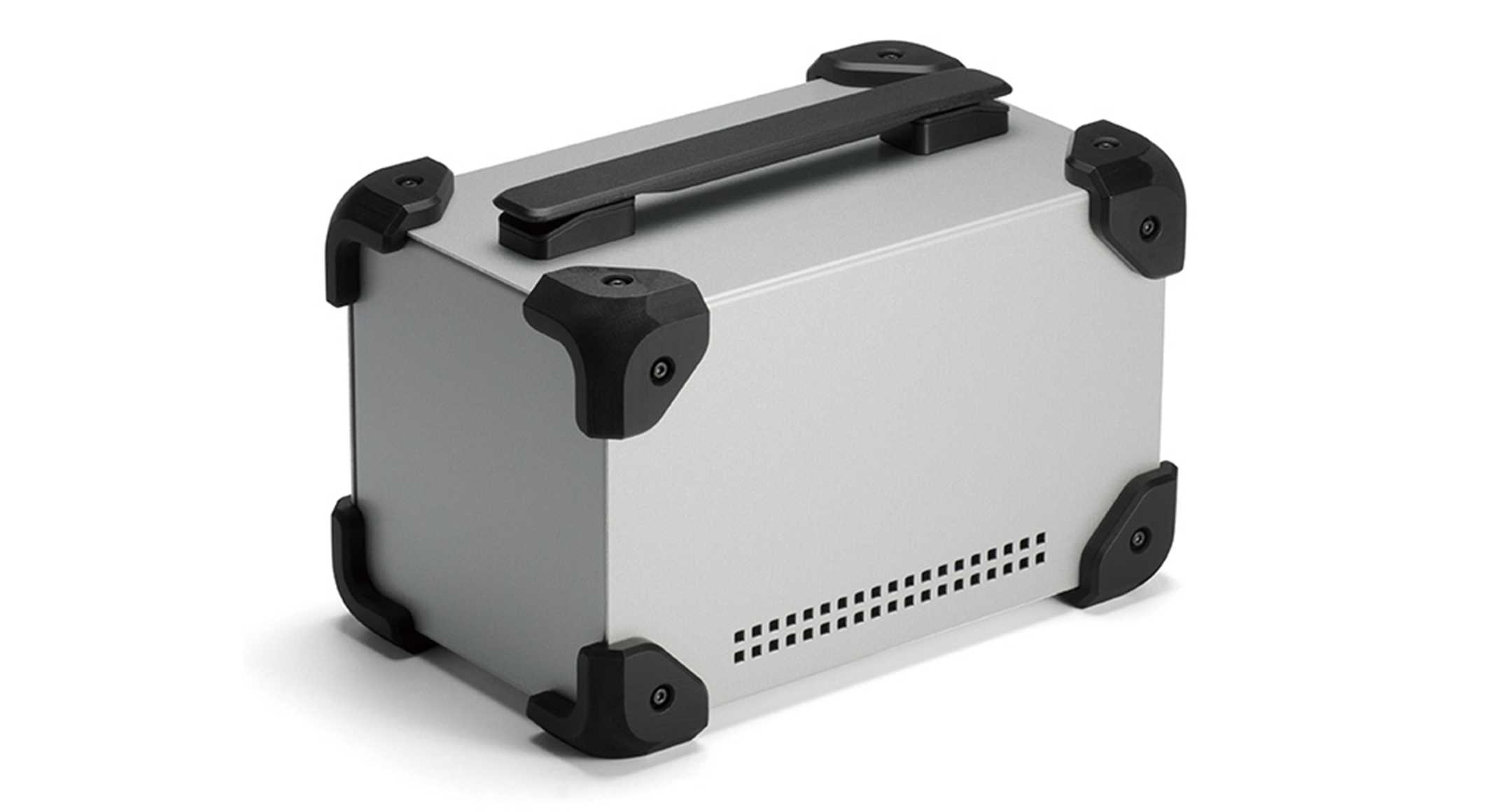

SBSilver/Black

METAL CASE with CORNER GUARD - MCG series:Silver/Black

SGSilver/Gray

METAL CASE with CORNER GUARD - MCG series:Silver/Gray

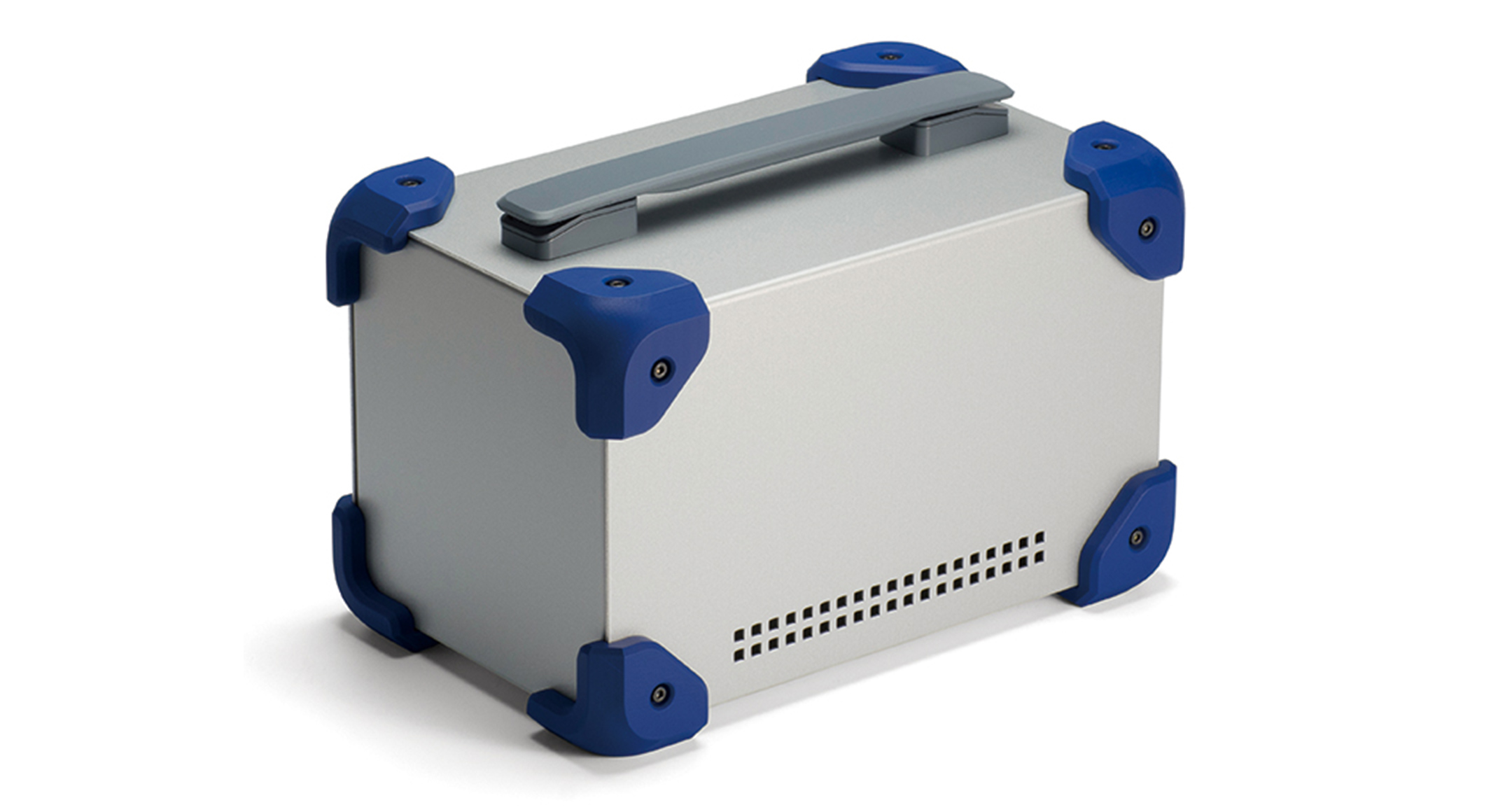

SNSilver/Navy

METAL CASE with CORNER GUARD - MCG series:Silver/Navy

SRSilver/Red

METAL CASE with CORNER GUARD - MCG series:Silver/Red
METAL CASE with CORNER GUARD - MCG series:Black/Black
METAL CASE with CORNER GUARD - MCG series:Black/Gray
METAL CASE with CORNER GUARD - MCG series:Black/Navy
METAL CASE with CORNER GUARD - MCG series:Black/Red
METAL CASE with CORNER GUARD - MCG series:Silver/Black
METAL CASE with CORNER GUARD - MCG series:Silver/Gray
METAL CASE with CORNER GUARD - MCG series:Silver/Navy
METAL CASE with CORNER GUARD - MCG series:Silver/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF 3D PDF DXF DWG STP
W H D w h d
MCG14-14-23□ 156 156 246 132.5 134.5 227 B□ type : 1200・S□ type : 900 PDF 3D PDF DXF DWG
MCG18-16-28□ 196 176 296 172.5 154.5 277 B□ type : 1800・S□ type : 1300 PDF 3D PDF DXF DWG
MCG21-14-24□ 226 156 256 202.5 134.5 237 B□ type : 1600・S□ type : 1200 PDF 3D PDF DXF DWG
MCG26-18-30□ 276 196 316 252.5 174.5 297 B□ type : 2300・S□ type : 1600 PDF 3D PDF DXF DWG

OPTIONAL PARTS

１
ADHESIVE STANDOFF - AST series
DETAILS

SIMILAR PRODUCT

１
CUSTOM SIZED METAL CASE with CORNER GUARD - MCGF series
DETAILS
１
CUSTOM SIZED STAINLESS STEEL CASE with CORNER GUARD - MCGS series
DETAILS
１
INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
DETAILS
１
ALUMINIUM ENCLOSURE with CORNER GUARD - EXP series
DETAILS
１
INSTRUMENT ENCLOSURE with CARRYING HANDLE - MSY series
DETAILS
１
ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

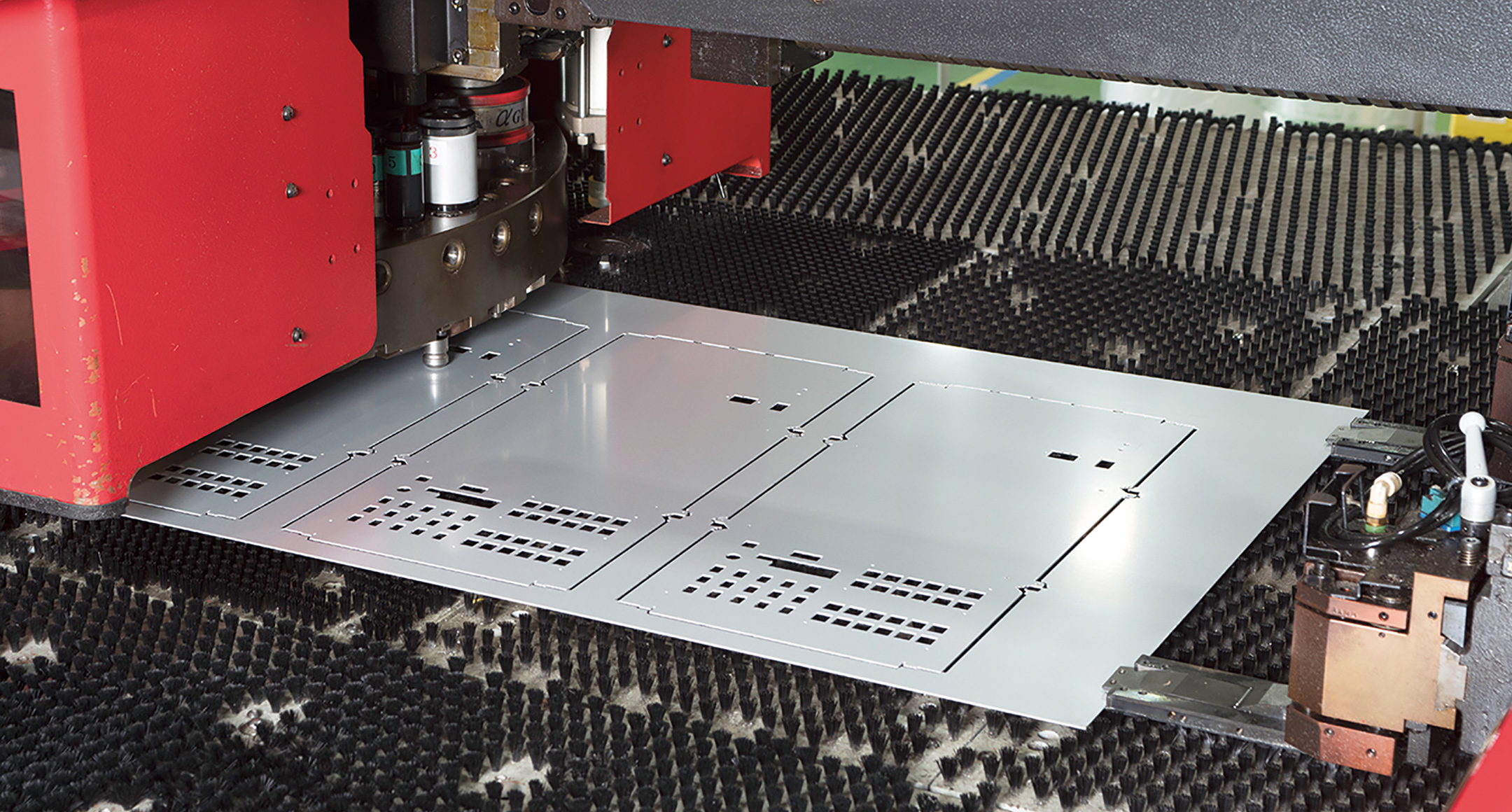

CNC punch pressing

DETAILS

Fiber laser cutting

DETAILS

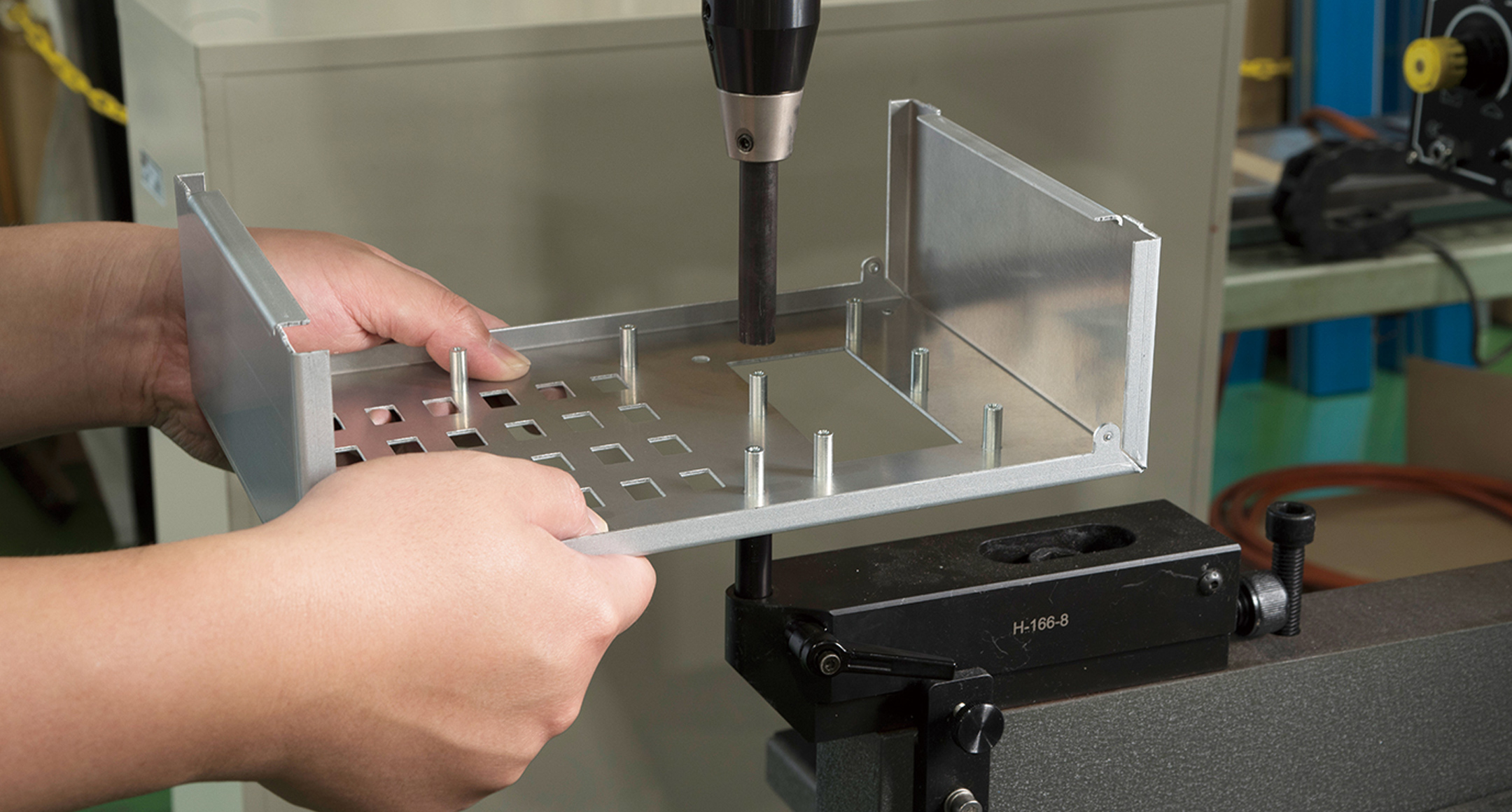

Clinching standoff pressing
