ALUMINIUM CONTROL BOX - AUH series


AUH Series -PDF

CATEGORY：Enclosure with hinged door, Hinged aluminium box, Control panel box, Aluminium cabinet

ALUMINIUM CONTROL BOX - AUH series
ALUMINIUM CONTROL BOX - AUH series
ALUMINIUM CONTROL BOX - AUH series
ALUMINIUM CONTROL BOX - AUH series1
ALUMINIUM CONTROL BOX - AUH series2
ALUMINIUM CONTROL BOX - AUH series3

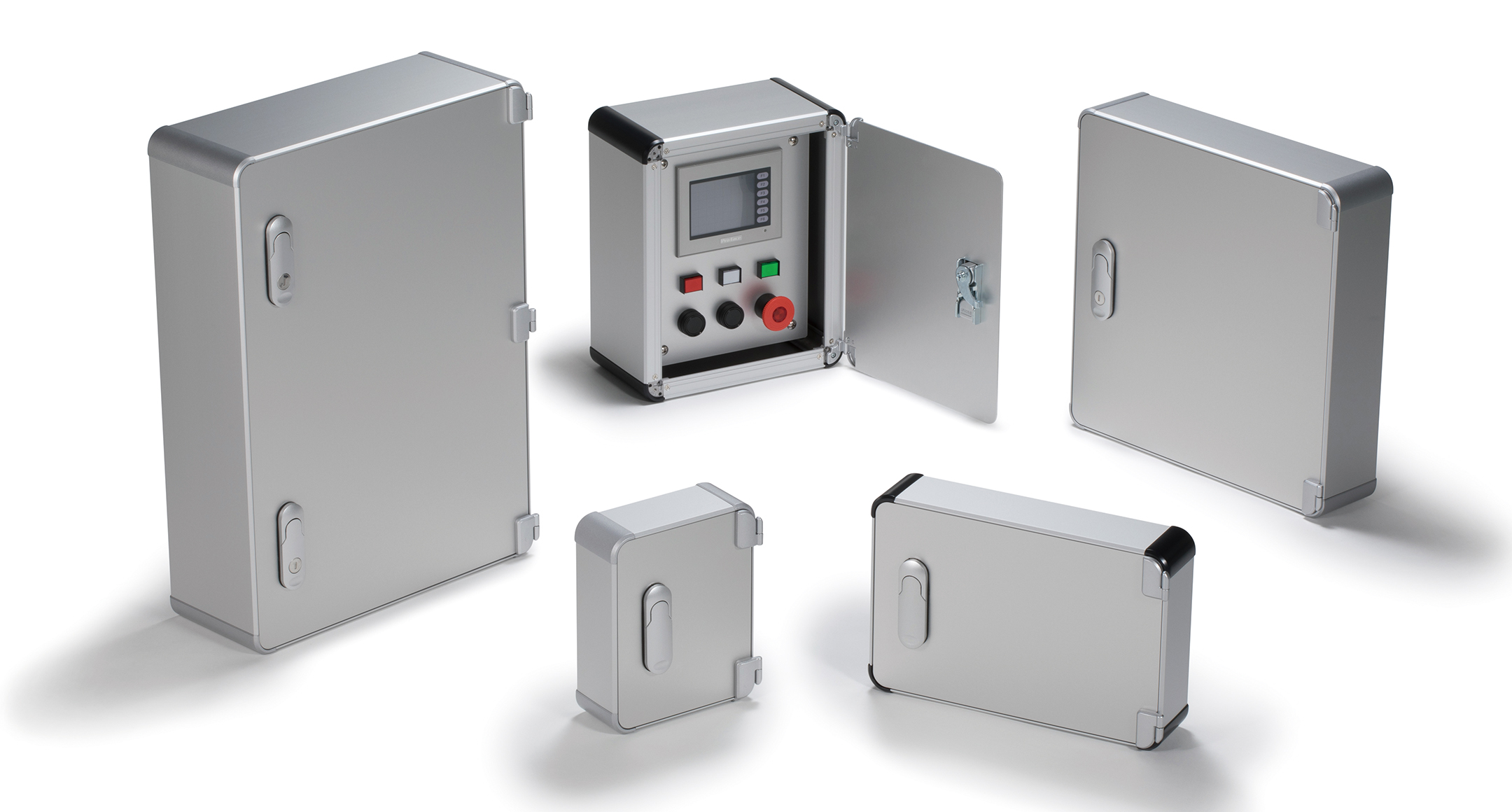

Aluminium enclosure with opening/closing cover for easy access to the inside of the case.
Flat handle is available in 2 configurations: Normal "N" type, and Key Lock "K" type.
A large selection of 112 different sizes in 2 different colors to choose from.

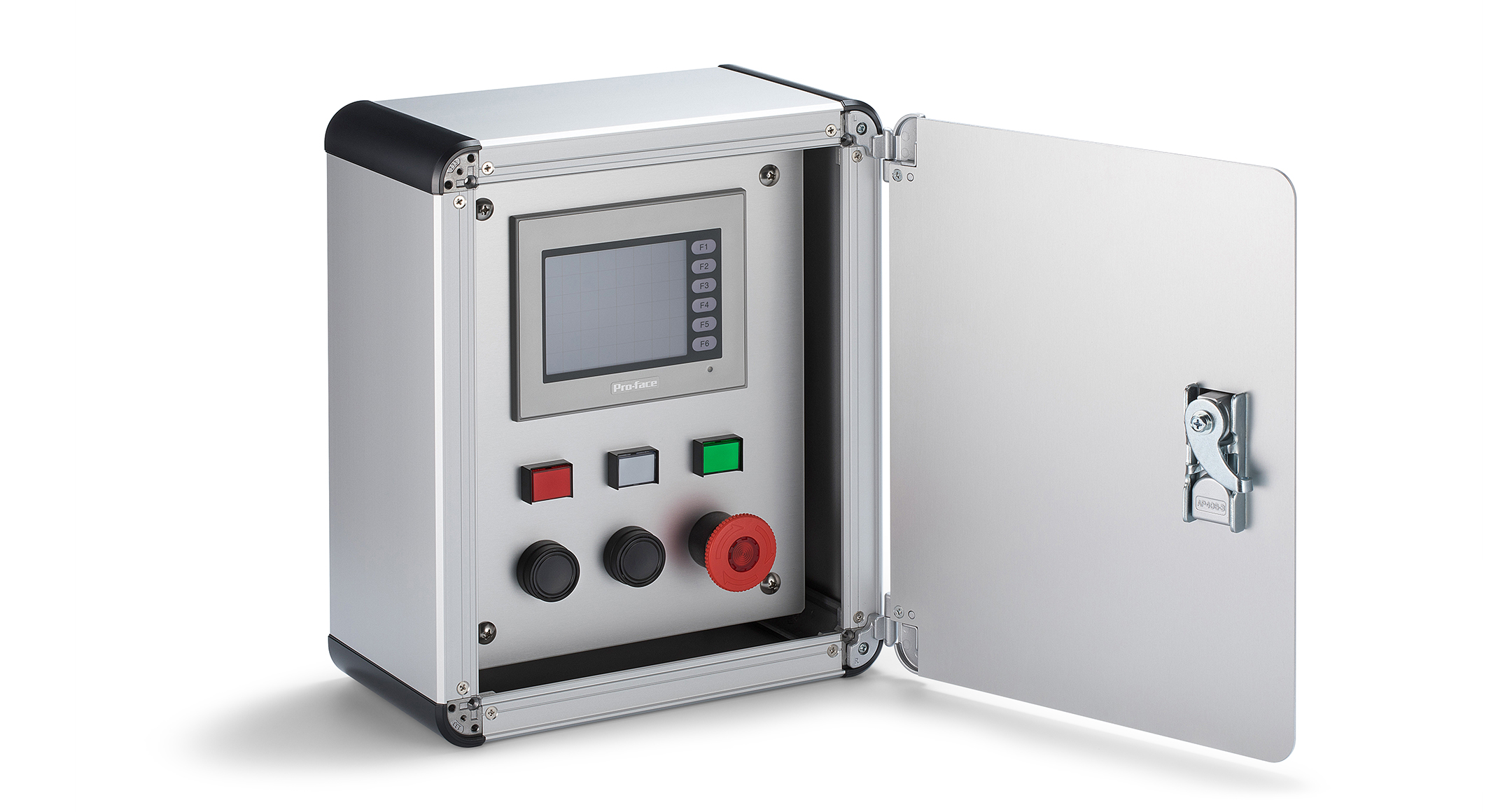

Suitable for use as industrial control panel, machine controller, audio amplifier, power supply, and others.

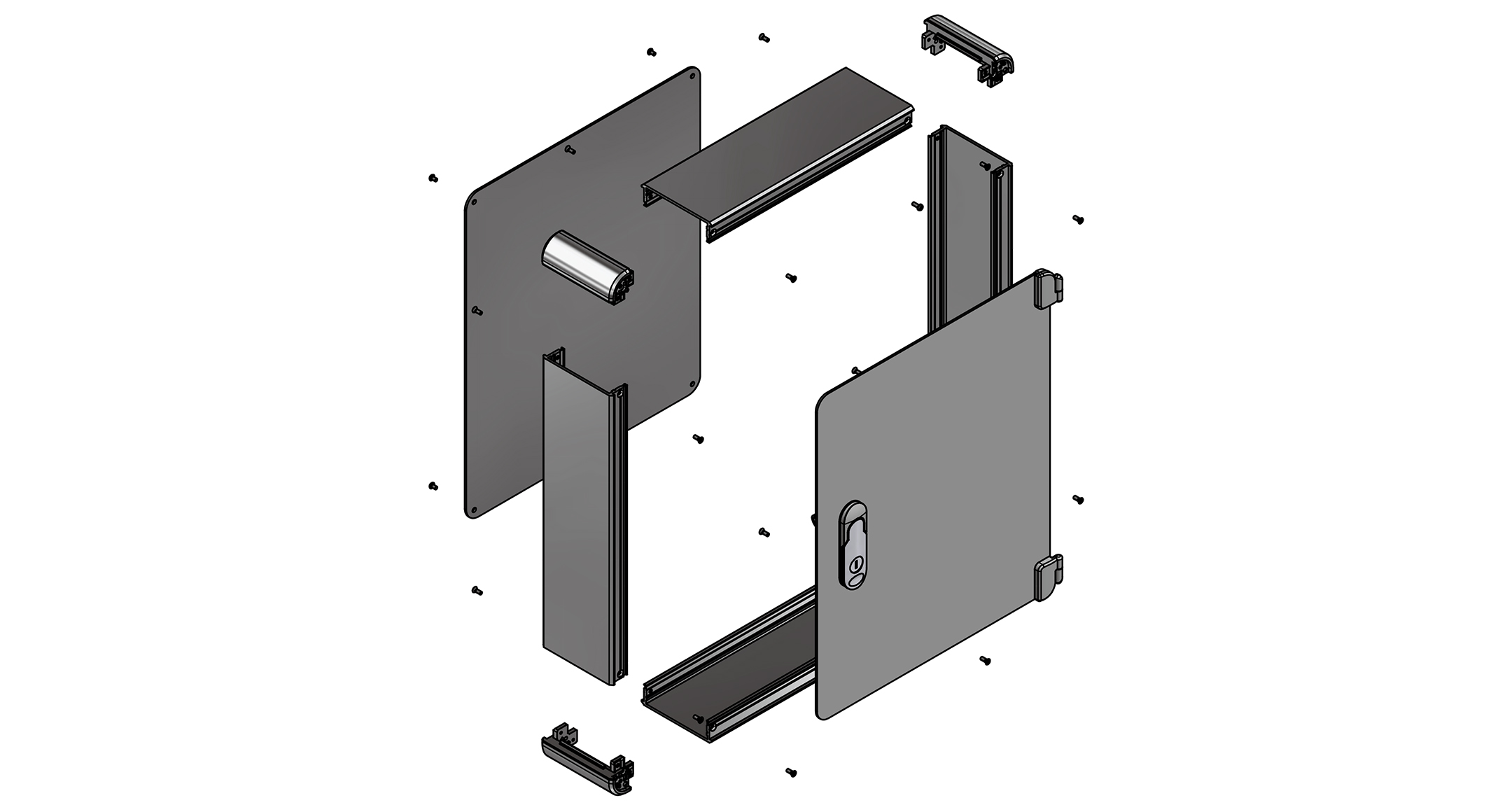

3D view - AUH88-20-30KSS  3D view - AUH133-30-30NSB  3Dview - AUH177-43-60KSS  Exploded View 

COLOR TYPE

SSSilver / Silver(Corner guard)

ALUMINIUM CONTROL BOX - AUH series:Silver / Silver(Corner guard)

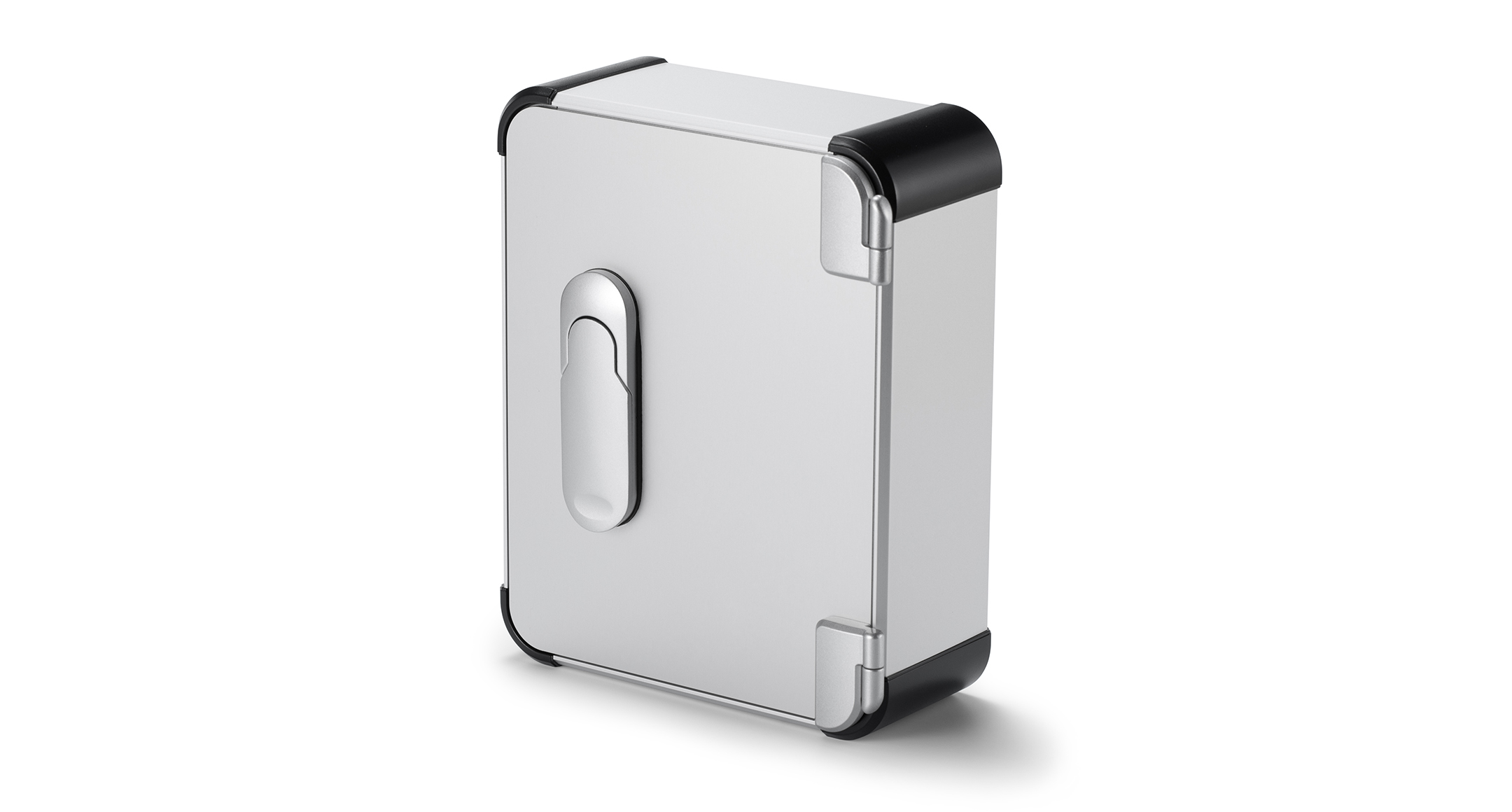

SBSilver / Black(Corner guard)

ALUMINIUM CONTROL BOX - AUH series:Silver / Black(Corner guard)
ALUMINIUM CONTROL BOX - AUH series:Silver / Silver(Corner guard)
ALUMINIUM CONTROL BOX - AUH series:Silver / Black(Corner guard)

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Handle / Hinge Qty　 Key Weight (kg) PDF DXF DWG STP
W H D w h d
AUH66-16-20N□□ 160 66 200 153 59.3 193 1 ∥ 2 Without 1.2 PDF DXF DWG
AUH66-16-20K□□ 160 66 200 153 59.3 193 1 ∥ 2 With 1.2 PDF DXF DWG
AUH66-16-25N□□ 160 66 250 153 59.3 243 1 ∥ 2 Without 1.4 PDF DXF DWG
AUH66-16-25K□□ 160 66 250 153 59.3 243 1 ∥ 2 With 1.4 PDF DXF DWG
AUH66-16-30N□□ 160 66 300 153 59.3 293 1 ∥ 2 Without 1.5 PDF DXF DWG
AUH66-16-30K□□ 160 66 300 153 59.3 293 1 ∥ 2 With 1.5 PDF DXF DWG
AUH66-20-20N□□ 200 66 200 193 59.3 193 1 ∥ 2 Without 1.3 PDF DXF DWG
AUH66-20-20K□□ 200 66 200 193 59.3 193 1 ∥ 2 With 1.3 PDF DXF DWG
AUH66-20-25N□□ 200 66 250 193 59.3 243 1 ∥ 2 Without 1.5 PDF DXF DWG
AUH66-20-25K□□ 200 66 250 193 59.3 243 1 ∥ 2 With 1.5 PDF DXF DWG
AUH66-20-30N□□ 200 66 300 193 59.3 293 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH66-20-30K□□ 200 66 300 193 59.3 293 1 ∥ 2 With 1.7 PDF DXF DWG
AUH66-20-36N□□ 200 66 360 193 59.3 353 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH66-20-36K□□ 200 66 360 193 59.3 353 1 ∥ 2 With 1.9 PDF DXF DWG
AUH66-25-25N□□ 250 66 250 243 59.3 243 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH66-25-25K□□ 250 66 250 243 59.3 243 1 ∥ 2 With 1.7 PDF DXF DWG
AUH66-25-30N□□ 250 66 300 243 59.3 293 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH66-25-30K□□ 250 66 300 243 59.3 293 1 ∥ 2 With 1.9 PDF DXF DWG
AUH66-25-36N□□ 250 66 360 243 59.3 353 1 ∥ 2 Without 2.2 PDF DXF DWG
AUH66-25-36K□□ 250 66 360 243 59.3 353 1 ∥ 2 With 2.2 PDF DXF DWG
AUH66-25-43N□□ 250 66 430 243 59.3 423 1 ∥ 2 Without 2.5 PDF DXF DWG
AUH66-25-43K□□ 250 66 430 243 59.3 423 1 ∥ 2 With 2.5 PDF DXF DWG
AUH66-30-20N□□ 300 66 200 293 59.3 193 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH66-30-20K□□ 300 66 200 293 59.3 193 1 ∥ 2 With 1.7 PDF DXF DWG
AUH66-30-25N□□ 300 66 250 293 59.3 243 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH66-30-25K□□ 300 66 250 293 59.3 243 1 ∥ 2 With 1.9 PDF DXF DWG
AUH66-30-30N□□ 300 66 300 293 59.3 293 1 ∥ 2 Without 2.2 PDF DXF DWG
AUH66-30-30K□□ 300 66 300 293 59.3 293 1 ∥ 2 With 2.2 PDF DXF DWG
AUH66-30-36N□□ 300 66 360 293 59.3 353 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH66-30-36K□□ 300 66 360 293 59.3 353 1 ∥ 2 With 2.4 PDF DXF DWG
AUH66-30-43N□□ 300 66 430 293 59.3 423 1 ∥ 2 Without 2.8 PDF DXF DWG
AUH66-30-43K□□ 300 66 430 293 59.3 423 1 ∥ 2 With 2.8 PDF DXF DWG
AUH66-30-50N□□ 300 66 500 293 59.3 493 2 ∥ 3 Without 3.3 PDF DXF DWG
AUH66-30-50K□□ 300 66 500 293 59.3 493 2 ∥ 3 With 3.3 PDF DXF DWG
AUH66-36-25N□□ 360 66 250 353 59.3 243 1 ∥ 2 Without 2.2 PDF DXF DWG
AUH66-36-25K□□ 360 66 250 353 59.3 243 1 ∥ 2 With 2.2 PDF DXF DWG
AUH66-36-30N□□ 360 66 300 353 59.3 293 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH66-36-30K□□ 360 66 300 353 59.3 293 1 ∥ 2 With 2.4 PDF DXF DWG
AUH66-36-36N□□ 360 66 360 353 59.3 353 1 ∥ 2 Without 2.7 PDF DXF DWG
AUH66-36-36K□□ 360 66 360 353 59.3 353 1 ∥ 2 With 2.7 PDF DXF DWG
AUH66-36-43N□□ 360 66 430 353 59.3 423 1 ∥ 2 Without 3.1 PDF DXF DWG
AUH66-36-43K□□ 360 66 430 353 59.3 423 1 ∥ 2 With 3.1 PDF DXF DWG
AUH66-36-50N□□ 360 66 500 353 59.3 493 2 ∥ 3 Without 3.7 PDF DXF DWG
AUH66-36-50K□□ 360 66 500 353 59.3 493 2 ∥ 3 With 3.7 PDF DXF DWG
AUH66-36-60N□□ 360 66 600 353 59.3 593 2 ∥ 3 Without 4.2 PDF DXF DWG
AUH66-36-60K□□ 360 66 600 353 59.3 593 2 ∥ 3 With 4.2 PDF DXF DWG
AUH66-43-30N□□ 430 66 300 423 59.3 293 1 ∥ 2 Without 2.8 PDF DXF DWG
AUH66-43-30K□□ 430 66 300 423 59.3 293 1 ∥ 2 With 2.8 PDF DXF DWG
AUH66-43-36N□□ 430 66 360 423 59.3 353 1 ∥ 2 Without 3.1 PDF DXF DWG
AUH66-43-36K□□ 430 66 360 423 59.3 353 1 ∥ 2 With 3.1 PDF DXF DWG
AUH66-43-43N□□ 430 66 430 423 59.3 423 1 ∥ 2 Without 3.5 PDF DXF DWG
AUH66-43-43K□□ 430 66 430 423 59.3 423 1 ∥ 2 With 3.5 PDF DXF DWG
AUH66-43-50N□□ 430 66 500 423 59.3 493 2 ∥ 3 Without 4.1 PDF DXF DWG
AUH66-43-50K□□ 430 66 500 423 59.3 493 2 ∥ 3 With 4.1 PDF DXF DWG
AUH66-43-60N□□ 430 66 600 423 59.3 593 2 ∥ 3 Without 4.7 PDF DXF DWG
AUH66-43-60K□□ 430 66 600 423 59.3 593 2 ∥ 3 With 4.7 PDF DXF DWG
AUH88-16-20N□□ 160 88 200 153 81.3 193 1 ∥ 2 Without 1.3 PDF DXF DWG
AUH88-16-20K□□ 160 88 200 153 81.3 193 1 ∥ 2 With 1.3 PDF DXF DWG
AUH88-16-25N□□ 160 88 250 153 81.3 243 1 ∥ 2 Without 1.5 PDF DXF DWG
AUH88-16-25K□□ 160 88 250 153 81.3 243 1 ∥ 2 With 1.5 PDF DXF DWG
AUH88-16-30N□□ 160 88 300 153 81.3 293 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH88-16-30K□□ 160 88 300 153 81.3 293 1 ∥ 2 With 1.7 PDF DXF DWG
AUH88-20-20N□□ 200 88 200 193 81.3 193 1 ∥ 2 Without 1.5 PDF DXF DWG
AUH88-20-20K□□ 200 88 200 193 81.3 193 1 ∥ 2 With 1.5 PDF DXF DWG
AUH88-20-25N□□ 200 88 250 193 81.3 243 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH88-20-25K□□ 200 88 250 193 81.3 243 1 ∥ 2 With 1.7 PDF DXF DWG
AUH88-20-30N□□ 200 88 300 193 81.3 293 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH88-20-30K□□ 200 88 300 193 81.3 293 1 ∥ 2 With 1.9 PDF DXF DWG
AUH88-20-36N□□ 200 88 360 193 81.3 353 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH88-20-36K□□ 200 88 360 193 81.3 353 1 ∥ 2 With 2.1 PDF DXF DWG
AUH88-25-25N□□ 250 88 250 243 81.3 243 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH88-25-25K□□ 250 88 250 243 81.3 243 1 ∥ 2 With 1.9 PDF DXF DWG
AUH88-25-30N□□ 250 88 300 243 81.3 293 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH88-25-30K□□ 250 88 300 243 81.3 293 1 ∥ 2 With 2.1 PDF DXF DWG
AUH88-25-36N□□ 250 88 360 243 81.3 353 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH88-25-36K□□ 250 88 360 243 81.3 353 1 ∥ 2 With 2.4 PDF DXF DWG
AUH88-25-43N□□ 250 88 430 243 81.3 423 1 ∥ 2 Without 2.7 PDF DXF DWG
AUH88-25-43K□□ 250 88 430 243 81.3 423 1 ∥ 2 With 2.7 PDF DXF DWG
AUH88-30-20N□□ 300 88 200 293 81.3 193 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH88-30-20K□□ 300 88 200 293 81.3 193 1 ∥ 2 With 1.9 PDF DXF DWG
AUH88-30-25N□□ 300 88 250 293 81.3 243 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH88-30-25K□□ 300 88 250 293 81.3 243 1 ∥ 2 With 2.1 PDF DXF DWG
AUH88-30-30N□□ 300 88 300 293 81.3 293 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH88-30-30K□□ 300 88 300 293 81.3 293 1 ∥ 2 With 2.4 PDF DXF DWG
AUH88-30-36N□□ 300 88 360 293 81.3 353 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH88-30-36K□□ 300 88 360 293 81.3 353 1 ∥ 2 With 2.6 PDF DXF DWG
AUH88-30-43N□□ 300 88 430 293 81.3 423 1 ∥ 2 Without 3 PDF DXF DWG
AUH88-30-43K□□ 300 88 430 293 81.3 423 1 ∥ 2 With 3 PDF DXF DWG
AUH88-30-50N□□ 300 88 500 293 81.3 493 2 ∥ 3 Without 3.5 PDF DXF DWG
AUH88-30-50K□□ 300 88 500 293 81.3 493 2 ∥ 3 With 3.5 PDF DXF DWG
AUH88-36-25N□□ 360 88 250 353 81.3 243 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH88-36-25K□□ 360 88 250 353 81.3 243 1 ∥ 2 With 2.4 PDF DXF DWG
AUH88-36-30N□□ 360 88 300 353 81.3 293 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH88-36-30K□□ 360 88 300 353 81.3 293 1 ∥ 2 With 2.6 PDF DXF DWG
AUH88-36-36N□□ 360 88 360 353 81.3 353 1 ∥ 2 Without 3 PDF DXF DWG
AUH88-36-36K□□ 360 88 360 353 81.3 353 1 ∥ 2 With 3 PDF DXF DWG
AUH88-36-43N□□ 360 88 430 353 81.3 423 1 ∥ 2 Without 3.4 PDF DXF DWG
AUH88-36-43K□□ 360 88 430 353 81.3 423 1 ∥ 2 With 3.4 PDF DXF DWG
AUH88-36-50N□□ 360 88 500 353 81.3 493 2 ∥ 3 Without 3.9 PDF DXF DWG
AUH88-36-50K□□ 360 88 500 353 81.3 493 2 ∥ 3 With 3.9 PDF DXF DWG
AUH88-36-60N□□ 360 88 600 353 81.3 593 2 ∥ 3 Without 4.5 PDF DXF DWG
AUH88-36-60K□□ 360 88 600 353 81.3 593 2 ∥ 3 With 4.5 PDF DXF DWG
AUH88-43-30N□□ 430 88 300 423 81.3 293 1 ∥ 2 Without 3 PDF DXF DWG
AUH88-43-30K□□ 430 88 300 423 81.3 293 1 ∥ 2 With 3 PDF DXF DWG
AUH88-43-36N□□ 430 88 360 423 81.3 353 1 ∥ 2 Without 3.4 PDF DXF DWG
AUH88-43-36K□□ 430 88 360 423 81.3 353 1 ∥ 2 With 3.4 PDF DXF DWG
AUH88-43-43N□□ 430 88 430 423 81.3 423 1 ∥ 2 Without 3.8 PDF DXF DWG
AUH88-43-43K□□ 430 88 430 423 81.3 423 1 ∥ 2 With 3.8 PDF DXF DWG
AUH88-43-50N□□ 430 88 500 423 81.3 493 2 ∥ 3 Without 4.4 PDF DXF DWG
AUH88-43-50K□□ 430 88 500 423 81.3 493 2 ∥ 3 With 4.4 PDF DXF DWG
AUH88-43-60N□□ 430 88 600 423 81.3 593 2 ∥ 3 Without 5.1 PDF DXF DWG
AUH88-43-60K□□ 430 88 600 423 81.3 593 2 ∥ 3 With 5.1 PDF DXF DWG
AUH133-16-20N□□ 160 132.5 200 152 125.8 192 1 ∥ 2 Without 1.7 PDF DXF DWG
AUH133-16-20K□□ 160 132.5 200 152 125.8 192 1 ∥ 2 With 1.7 PDF DXF DWG
AUH133-16-25N□□ 160 132.5 250 152 125.8 242 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH133-16-25K□□ 160 132.5 250 152 125.8 242 1 ∥ 2 With 1.9 PDF DXF DWG
AUH133-16-30N□□ 160 132.5 300 152 125.8 292 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH133-16-30K□□ 160 132.5 300 152 125.8 292 1 ∥ 2 With 2.1 PDF DXF DWG
AUH133-20-20N□□ 200 132.5 200 192 125.8 192 1 ∥ 2 Without 1.8 PDF DXF DWG
AUH133-20-20K□□ 200 132.5 200 192 125.8 192 1 ∥ 2 With 1.8 PDF DXF DWG
AUH133-20-25N□□ 200 132.5 250 192 125.8 242 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH133-20-25K□□ 200 132.5 250 192 125.8 242 1 ∥ 2 With 2.1 PDF DXF DWG
AUH133-20-30N□□ 200 132.5 300 192 125.8 292 1 ∥ 2 Without 2.3 PDF DXF DWG
AUH133-20-30K□□ 200 132.5 300 192 125.8 292 1 ∥ 2 With 2.3 PDF DXF DWG
AUH133-20-36N□□ 200 132.5 360 192 125.8 352 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH133-20-36K□□ 200 132.5 360 192 125.8 352 1 ∥ 2 With 2.6 PDF DXF DWG
AUH133-25-25N□□ 250 132.5 250 242 125.8 242 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH133-25-25K□□ 250 132.5 250 242 125.8 242 1 ∥ 2 With 2.4 PDF DXF DWG
AUH133-25-30N□□ 250 132.5 300 242 125.8 292 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH133-25-30K□□ 250 132.5 300 242 125.8 292 1 ∥ 2 With 2.6 PDF DXF DWG
AUH133-25-36N□□ 250 132.5 360 242 125.8 352 1 ∥ 2 Without 2.9 PDF DXF DWG
AUH133-25-36K□□ 250 132.5 360 242 125.8 352 1 ∥ 2 With 2.9 PDF DXF DWG
AUH133-25-43N□□ 250 132.5 430 242 125.8 422 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH133-25-43K□□ 250 132.5 430 242 125.8 422 1 ∥ 2 With 3.3 PDF DXF DWG
AUH133-30-20N□□ 300 132.5 200 292 125.8 192 1 ∥ 2 Without 2.3 PDF DXF DWG
AUH133-30-20K□□ 300 132.5 200 292 125.8 192 1 ∥ 2 With 2.3 PDF DXF DWG
AUH133-30-25N□□ 300 132.5 250 292 125.8 242 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH133-30-25K□□ 300 132.5 250 292 125.8 242 1 ∥ 2 With 2.6 PDF DXF DWG
AUH133-30-30N□□ 300 132.5 300 292 125.8 292 1 ∥ 2 Without 2.9 PDF DXF DWG
AUH133-30-30K□□ 300 132.5 300 292 125.8 292 1 ∥ 2 With 2.9 PDF DXF DWG
AUH133-30-36N□□ 300 132.5 360 292 125.8 352 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH133-30-36K□□ 300 132.5 360 292 125.8 352 1 ∥ 2 With 3.3 PDF DXF DWG
AUH133-30-43N□□ 300 132.5 430 292 125.8 422 1 ∥ 2 Without 3.7 PDF DXF DWG
AUH133-30-43K□□ 300 132.5 430 292 125.8 422 1 ∥ 2 With 3.7 PDF DXF DWG
AUH133-30-50N□□ 300 132.5 500 292 125.8 492 2 ∥ 3 Without 4.2 PDF DXF DWG
AUH133-30-50K□□ 300 132.5 500 292 125.8 492 2 ∥ 3 With 4.2 PDF DXF DWG
AUH133-36-25N□□ 360 132.5 250 352 125.8 242 1 ∥ 2 Without 2.9 PDF DXF DWG
AUH133-36-25K□□ 360 132.5 250 352 125.8 242 1 ∥ 2 With 2.9 PDF DXF DWG
AUH133-36-30N□□ 360 132.5 300 352 125.8 292 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH133-36-30K□□ 360 132.5 300 352 125.8 292 1 ∥ 2 With 3.3 PDF DXF DWG
AUH133-36-36N□□ 360 132.5 360 352 125.8 352 1 ∥ 2 Without 3.6 PDF DXF DWG
AUH133-36-36K□□ 360 132.5 360 352 125.8 352 1 ∥ 2 With 3.6 PDF DXF DWG
AUH133-36-43N□□ 360 132.5 430 352 125.8 422 1 ∥ 2 Without 4.1 PDF DXF DWG
AUH133-36-43K□□ 360 132.5 430 352 125.8 422 1 ∥ 2 With 4.1 PDF DXF DWG
AUH133-36-50N□□ 360 132.5 500 352 125.8 492 2 ∥ 3 Without 4.7 PDF DXF DWG
AUH133-36-50K□□ 360 132.5 500 352 125.8 492 2 ∥ 3 With 4.7 PDF DXF DWG
AUH133-36-60N□□ 360 132.5 600 352 125.8 592 2 ∥ 3 Without 5.4 PDF DXF DWG
AUH133-36-60K□□ 360 132.5 600 352 125.8 592 2 ∥ 3 With 5.4 PDF DXF DWG
AUH133-43-30N□□ 430 132.5 300 422 125.8 292 1 ∥ 2 Without 3.7 PDF DXF DWG
AUH133-43-30K□□ 430 132.5 300 422 125.8 292 1 ∥ 2 With 3.7 PDF DXF DWG
AUH133-43-36N□□ 430 132.5 360 422 125.8 352 1 ∥ 2 Without 4.1 PDF DXF DWG
AUH133-43-36K□□ 430 132.5 360 422 125.8 352 1 ∥ 2 With 4.1 PDF DXF DWG
AUH133-43-43N□□ 430 132.5 430 422 125.8 422 1 ∥ 2 Without 4.6 PDF DXF DWG
AUH133-43-43K□□ 430 132.5 430 422 125.8 422 1 ∥ 2 With 4.6 PDF DXF DWG
AUH133-43-50N□□ 430 132.5 500 422 125.8 492 2 ∥ 3 Without 5.3 PDF DXF DWG
AUH133-43-50K□□ 430 132.5 500 422 125.8 492 2 ∥ 3 With 5.3 PDF DXF DWG
AUH133-43-60N□□ 430 132.5 600 422 125.8 592 2 ∥ 3 Without 6 PDF DXF DWG
AUH133-43-60K□□ 430 132.5 600 422 125.8 592 2 ∥ 3 With 6 PDF DXF DWG
AUH177-16-20N□□ 160 177 200 152 170.3 192 1 ∥ 2 Without 1.9 PDF DXF DWG
AUH177-16-20K□□ 160 177 200 152 170.3 192 1 ∥ 2 With 1.9 PDF DXF DWG
AUH177-16-25N□□ 160 177 250 152 170.3 242 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH177-16-25K□□ 160 177 250 152 170.3 242 1 ∥ 2 With 2.1 PDF DXF DWG
AUH177-16-30N□□ 160 177 300 152 170.3 292 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH177-16-30K□□ 160 177 300 152 170.3 292 1 ∥ 2 With 2.4 PDF DXF DWG
AUH177-20-20N□□ 200 177 200 192 170.3 192 1 ∥ 2 Without 2.1 PDF DXF DWG
AUH177-20-20K□□ 200 177 200 192 170.3 192 1 ∥ 2 With 2.1 PDF DXF DWG
AUH177-20-25N□□ 200 177 250 192 170.3 242 1 ∥ 2 Without 2.4 PDF DXF DWG
AUH177-20-25K□□ 200 177 250 192 170.3 242 1 ∥ 2 With 2.4 PDF DXF DWG
AUH177-20-30N□□ 200 177 300 192 170.3 292 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH177-20-30K□□ 200 177 300 192 170.3 292 1 ∥ 2 With 2.6 PDF DXF DWG
AUH177-20-36N□□ 200 177 360 192 170.3 352 1 ∥ 2 Without 3 PDF DXF DWG
AUH177-20-36K□□ 200 177 360 192 170.3 352 1 ∥ 2 With 3 PDF DXF DWG
AUH177-25-25N□□ 250 177 250 242 170.3 242 1 ∥ 2 Without 2.7 PDF DXF DWG
AUH177-25-25K□□ 250 177 250 242 170.3 242 1 ∥ 2 With 2.7 PDF DXF DWG
AUH177-25-30N□□ 250 177 300 242 170.3 292 1 ∥ 2 Without 3 PDF DXF DWG
AUH177-25-30K□□ 250 177 300 242 170.3 292 1 ∥ 2 With 3 PDF DXF DWG
AUH177-25-36N□□ 250 177 360 242 170.3 352 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH177-25-36K□□ 250 177 360 242 170.3 352 1 ∥ 2 With 3.3 PDF DXF DWG
AUH177-25-43N□□ 250 177 430 242 170.3 422 1 ∥ 2 Without 3.7 PDF DXF DWG
AUH177-25-43K□□ 250 177 430 242 170.3 422 1 ∥ 2 With 3.7 PDF DXF DWG
AUH177-30-20N□□ 300 177 200 292 170.3 192 1 ∥ 2 Without 2.6 PDF DXF DWG
AUH177-30-20K□□ 300 177 200 292 170.3 192 1 ∥ 2 With 2.6 PDF DXF DWG
AUH177-30-25N□□ 300 177 250 292 170.3 242 1 ∥ 2 Without 3 PDF DXF DWG
AUH177-30-25K□□ 300 177 250 292 170.3 242 1 ∥ 2 With 3 PDF DXF DWG
AUH177-30-30N□□ 300 177 300 292 170.3 292 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH177-30-30K□□ 300 177 300 292 170.3 292 1 ∥ 2 With 3.3 PDF DXF DWG
AUH177-30-36N□□ 300 177 360 292 170.3 352 1 ∥ 2 Without 3.7 PDF DXF DWG
AUH177-30-36K□□ 300 177 360 292 170.3 352 1 ∥ 2 With 3.7 PDF DXF DWG
AUH177-30-43N□□ 300 177 430 292 170.3 422 1 ∥ 2 Without 4.1 PDF DXF DWG
AUH177-30-43K□□ 300 177 430 292 170.3 422 1 ∥ 2 With 4.1 PDF DXF DWG
AUH177-30-50N□□ 300 177 500 292 170.3 492 2 ∥ 3 Without 4.8 PDF DXF DWG
AUH177-30-50K□□ 300 177 500 292 170.3 492 2 ∥ 3 With 4.8 PDF DXF DWG
AUH177-36-25N□□ 360 177 250 352 170.3 242 1 ∥ 2 Without 3.3 PDF DXF DWG
AUH177-36-25K□□ 360 177 250 352 170.3 242 1 ∥ 2 With 3.3 PDF DXF DWG
AUH177-36-30N□□ 360 177 300 352 170.3 292 1 ∥ 2 Without 3.7 PDF DXF DWG
AUH177-36-30K□□ 360 177 300 352 170.3 292 1 ∥ 2 With 3.7 PDF DXF DWG
AUH177-36-36N□□ 360 177 360 352 170.3 352 1 ∥ 2 Without 4.1 PDF DXF DWG
AUH177-36-36K□□ 360 177 360 352 170.3 352 1 ∥ 2 With 4.1 PDF DXF DWG
AUH177-36-43N□□ 360 177 430 352 170.3 422 1 ∥ 2 Without 4.6 PDF DXF DWG
AUH177-36-43K□□ 360 177 430 352 170.3 422 1 ∥ 2 With 4.6 PDF DXF DWG
AUH177-36-50N□□ 360 177 500 352 170.3 492 2 ∥ 3 Without 5.3 PDF DXF DWG
AUH177-36-50K□□ 360 177 500 352 170.3 492 2 ∥ 3 With 5.3 PDF DXF DWG
AUH177-36-60N□□ 360 177 600 352 170.3 592 2 ∥ 3 Without 6 PDF DXF DWG
AUH177-36-60K□□ 360 177 600 352 170.3 592 2 ∥ 3 With 6 PDF DXF DWG
AUH177-43-30N□□ 430 177 300 422 170.3 292 1 ∥ 2 Without 4.1 PDF DXF DWG
AUH177-43-30K□□ 430 177 300 422 170.3 292 1 ∥ 2 With 4.1 PDF DXF DWG
AUH177-43-36N□□ 430 177 360 422 170.3 352 1 ∥ 2 Without 4.6 PDF DXF DWG
AUH177-43-36K□□ 430 177 360 422 170.3 352 1 ∥ 2 With 4.6 PDF DXF DWG
AUH177-43-43N□□ 430 177 430 422 170.3 422 1 ∥ 2 Without 5.2 PDF DXF DWG
AUH177-43-43K□□ 430 177 430 422 170.3 422 1 ∥ 2 With 5.2 PDF DXF DWG
AUH177-43-50N□□ 430 177 500 422 170.3 492 2 ∥ 3 Without 5.9 PDF DXF DWG
AUH177-43-50K□□ 430 177 500 422 170.3 492 2 ∥ 3 With 5.9 PDF DXF DWG
AUH177-43-60N□□ 430 177 600 422 170.3 592 2 ∥ 3 Without 6.7 PDF DXF DWG
AUH177-43-60K□□ 430 177 600 422 170.3 592 2 ∥ 3 With 6.7 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG STP
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-20 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-25 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC16-30 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-20 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-25 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-30 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC20-36 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-25 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-30 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-36 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC25-43 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-20 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-25 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-30 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-36 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-43 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC30-50 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-25 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-30 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-36 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-43 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC36-50 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC60-36 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-30 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-36 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-43 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC43-50 PDF DXF DWG
AUC60-43 PDF DXF DWG
AUC60-43 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for AU□ series (for AU・AUG・AUGE・AUP・AUPE・AUX・AUXE)
DETAILS
１
ADHESIVE PANEL PROTECTION PAD - ACP-15
DETAILS
１
DIN RAIL - FDR series
DETAILS
１
WALL MOUNT MONITOR ARM - MAR series
DETAILS

SIMILAR PRODUCT

１
ALUMINIUM BOX WITH HINGED DOOR - FCW series
DETAILS
１
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
DETAILS
１
IP65 POLYCARBONATE BOX with KEY LOCK - BCPK series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS
